P3OM230Microwave Module

Draft Operation Manual Opening and closing – from the outside Using the movement detector inside your car Your car is equipped with a very senstitve interior protection based on a microwave movement detector. As part of the anti- theft system. • The system has been carefully adjusted to detect any access to interior of the car. • No adjustments are necessary by the user. The antitheft system and the movement detector is deactivated/activated simultaneously with the unlocking or locking of the vehicle, and the alarm system is disarmed/armed. For US owners only The microwave detector units comply with part 15 of the FCC rules. operation is governed by the following: FCC ID P3OM230 Compliance statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Request for Confidentiality Date PHOENIX TEST-LAB GmbH Kˆnigswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: P3OM230 Please be advised that the foll owing information is to be held confidential on behalf of META System S.p.A.: • Schematics • Block Diagram • Technical Description The application contains technical information whi ch META System S.p.A. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory Johann Roidt

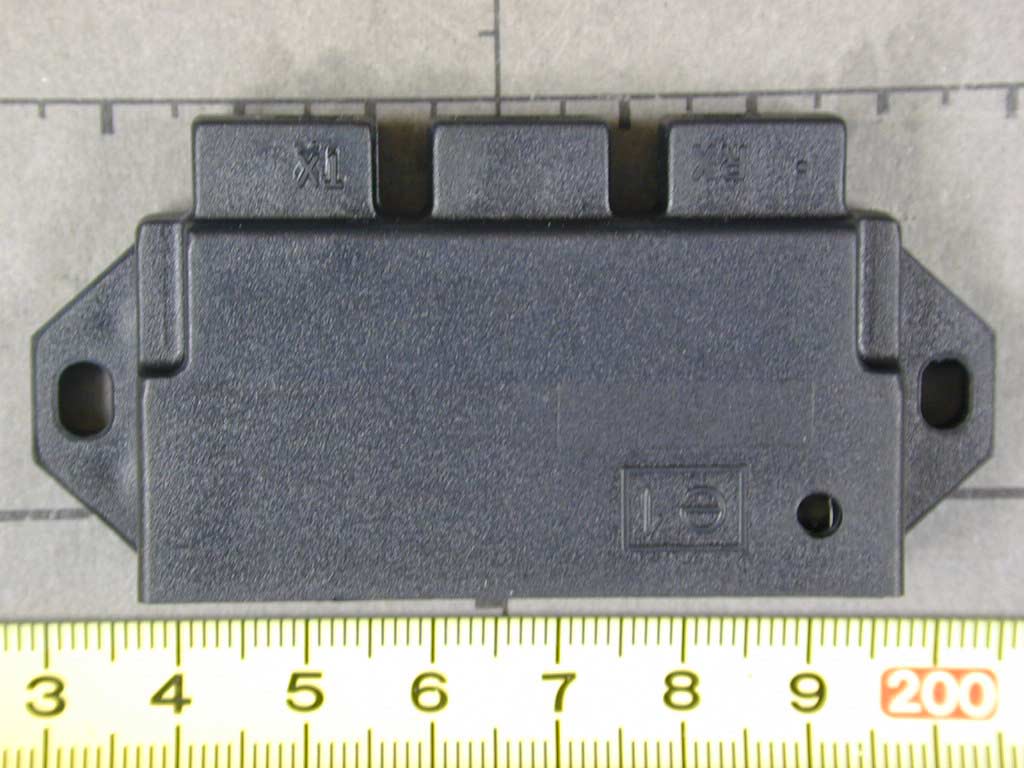

FCC ID: P3OM230 External Photos

FCC ID: P3OM230 Label Information

FCC ID: P3OM230 Internal Photos

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Page 1 of 25 Pages Straubing, Juni 17, 2002 T E S T - R E P O R T No. 55106-10748 for M230 / e323 Microwave Module Applicant: META System S.p.A. Purpose of testing: To show compliance with FCC Code of Federal Regulations, Part 15 Subpart C, Section ß15.249 Industry Canada Radio Standards Specification RSS-210 Issue 5, Section 6.1 (Category I Equipment) Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.249 Test Report No. 55106-10748 Page 2 of 25 Pages Table of Contents 1. Administrative Data.................................................................................... 3 2. Identification of Test Laboratory................................................................. 4 3. Summary of Test Results........................................................................... 5 4. Operation Mode of EUT ............................................................................. 6 5. Configuration of EUT and Peripheral Devices ........................................... 7 6. Measuring Methods ................................................................................... 8 6.1. Radiated Emission 30 MHz - 1 GHz (FCC ß15.205.a,b, ß15.209, ß15.249 (a) / RSS-210 Sections 6.1.1.b, 6.3)....................... 9 6.2. Radiated Emission 1 GHz - 40 GHz (FCC ß15.205.a,b, ß15.209, ß15.249 (a) / RSS-210 Sections 6.1.1.b, 6.3)..................... 11 7. Equipment List ......................................................................................... 13 8. Photographs Taken During Testing ......................................................... 15 9. List of Measurements............................................................................... 18 9.1. List of Measurements According To FCC Part 15 Subpart C .......................................................................................... 19 9.2. List of Measurements According To Industry Canada RSS-210 ............................................................................................ 19 10. Referenced Regulations .......................................................................... 20 11. Test Results ............................................................................................. 21 Charts taken during Testing ............................................................................. 25 EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.249 Test Report No. 55106-10748 Page 3 of 25 Pages 1. Administrative Data Equipment Under Test (EUT): M230 / e323 Serial number(s): 0001 Type of equipment: Microwave Module Parts/accessories: --- FCC-ID: Applicant: (full address) META System S.p.A. Via Majakvskij 10 b/c/d/e I- 42100 Reggio Emilia / Italy Contract identification: --- Contact person: Mr. Giorgio Maldini Manufacturer: META System S.p.A. Receipt of EUT: 08 November 2001 Date of test: January 2002 Note: Responsible for testing: Johann Roidt Responsible for test report: Johann Roidt EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.249 Test Report No. 55106-10748 Page 4 of 25 Pages 2. Identification of Test Laboratory Test Laboratory: Senton GmbH EMI/EMC Test Center (full address): Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person: Mr. Johann Roidt Communication: Telephone (+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail: [email protected] FCC registration number: 90926 Industry Canada file number: IC 3050 EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.249 Test Report No. 55106-10748 Page 5 of 25 Pages 3. Summary of Test Results The tested sample complies with the requirements set forth in the Code of Regulations Part 15 Subpart C, Section ß15.249 (intentional radiators) of the Federal Communication Commission (FCC) and the Radio Standards Specification RSS-210 Issue 5, Section 6.1 for Low Power Licence-Exempt Radiocommunication Devices (all frequency bands). Johann Roidt Technical Manager EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.249 Test Report No. 55106-10748 Page 6 of 25 Pages 4. Operation Mode of EUT TX continously active with internal modulation EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.249 Test Report No. 55106-10748 Page 7 of 25 Pages 5. Configuration of EUT and Peripheral Devices Configuration of cables of EUT - Not applicable Configuration of peripheral devices connected to EUT - Not applicable EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.249 Test Report No. 55106-10748 Page 8 of 25 Pages 6. Measuring Methods EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.249 Test Report No. 55106-10748 Page 9 of 25 Pages 6.1. Radiated Emission 30 MHz - 1 GHz (FCC ß15.205.a,b, ß15.209, ß15.249 (a) / RSS-210 Sections 6.1.1.b, 6.3) Radiated emissions are measured over the frequency range from 30 MHz to 1 GHz. The bandwidth of the EMI-receiver is set to 120 kHz and the detector-function is set to CISPR quasi-peak. The test setup is made in accordance with ANSI C63.4-1992. Measurements are made in both the horizontal and vertical planes of polarization. Preliminary scans are taken in a semi-anechoic room using a spectrum analyzer with the detector function set to peak. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration produces the highest emission relative to the limit and therefore shall be used for final testing. All tests are performed at a test-distance of 3 meters. For final testing an open-area test-site is used. During the tests the EUT is rotated all around and the receiving-antenna is raised and lowered from 1 meter to 4 meters to find the…

Text truncated - open the document above for the full version.

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.249 Test Report No. 55106-10748 Page 16 of 25 Pages Test setup for radiated emission pre-test 30 MHz - 25 GHz (fully anechoic room) EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.249 Test Report No. 55106-10748 Page 17 of 25 Pages
