P3OS4322DRemote Control Transmitter

Request for Confidentiality 03 September 2003 PHOENIX TEST-LAB GmbH Königswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: P3OS4322D Please be advised that the following information is to be held confidential on behalf of META SYSTEM S.p.A.: • Schematics • Parts List • Block Diagram • Technical Description The application contains technical information which META SYSTEM S.p.A deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory

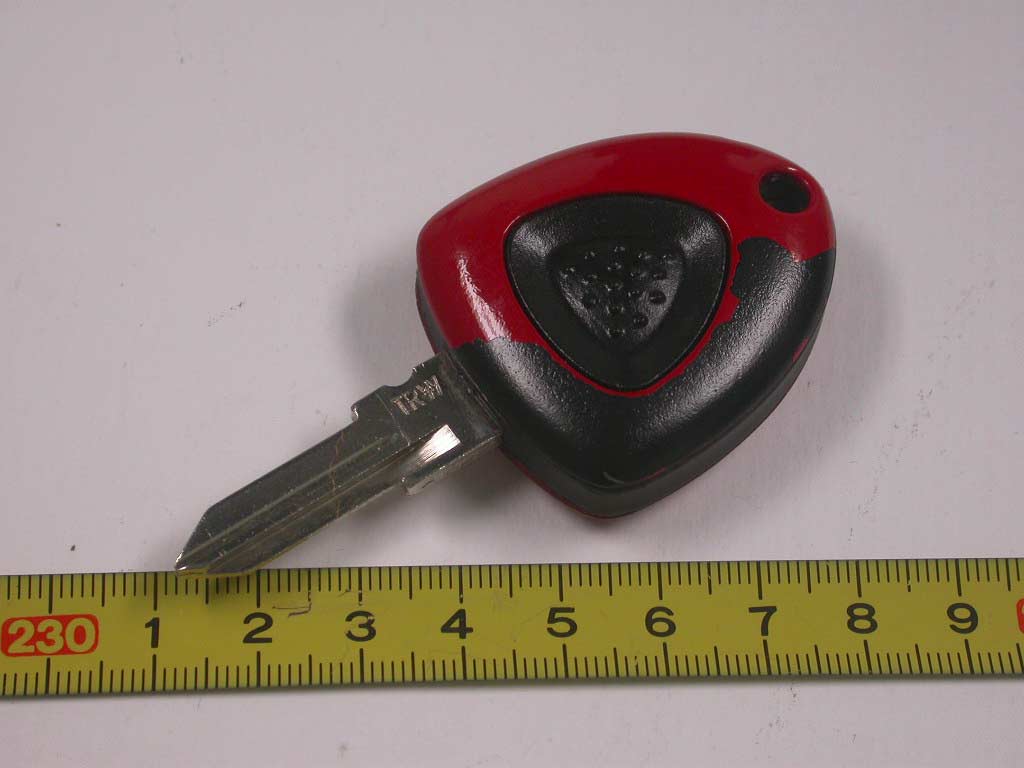

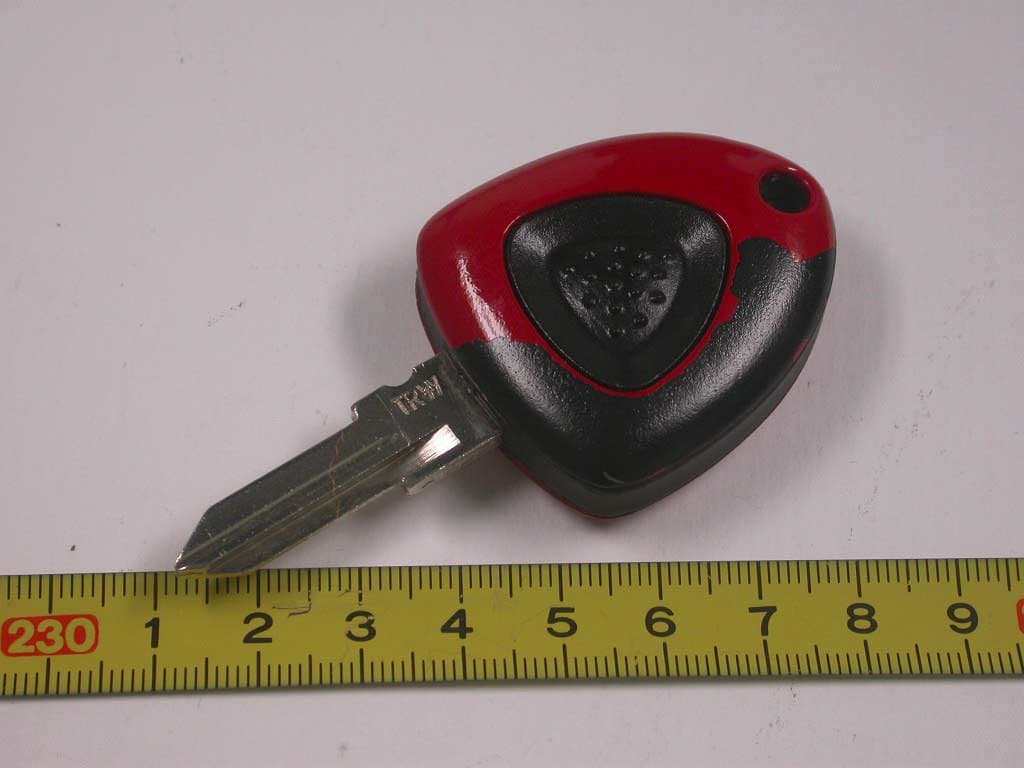

FCC ID: External Photos Page 1 of 2 FCC ID: External Photos Page 2 of 2

FCC ID: P3OS4322 D

FCC ID: Internal Photos Page 1 of 5 FCC ID: Internal Photos Page 2 of 5 FCC ID: Internal Photos Page 3 of 5 FCC ID: Internal Photos Page 4 of 5 FCC ID: Internal Photos Page 5 of 5

EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 1 of 19 Pages Straubing, 8 May 2003 T E S T - R E P O R T No. 55106-30463 for M 500 (S4322 D) Remote Control Transmitter Applicant: META System S.p.A. Test Specification: FCC Code of Federal Regulations, Part 15 Subpart C, Section 15.231 Industry Canada Radio Standards Specification RSS-210 Issue 5, Section 6.1 (Transmitters, Momentarily Operated Devices) Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 2 of 19 Pages Table of Contents 1. Administrative Data.................................................................................... 3 2. Identification of Test Laboratory................................................................. 4 3. Operation Mode of EUT ............................................................................. 5 4. Configuration.............................................................................................. 6 5. Measuring Methods ................................................................................... 7 5.1. Field Strength of Emissions, Prescans in a fully-anechoic room .................................................................................................... 8 5.2. Fieldstrength of Emissions, Measurement at Open Area Test Site .............................................................................................. 9 5.3. Fieldstrength of Emissions above 1 GHz........................................... 10 6. Photographs Taken During Testing ......................................................... 11 7. List of Measurements............................................................................... 14 8. Referenced Regulations .......................................................................... 18 9. Charts taken during testing ...................................................................... 19 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 3 of 19 Pages 1. Administrative Data Test item (EUT) Type designation M 500 (S4322D) Serial number(s): 001 Type of equipment: Remote Control Transmitter Parts/accessories: --- FCC-ID: P3OS4322D Technical data Frequency range --- Operational frequency 433.92 MHz Type of modulation 10K0A1D Pulse frequency N/A Pulse width N/A Antenna Integrated Power supply 6 V DC (2 x 3 V Lithium Cell) Applicant: (full address) META System S.p.A. via Majakovskij 10 b/c/d/e I-42100 Reggio Emilia / Italy Contract identification: --- Contact person: Mr. Giorgio Maldini Manufacturer: Applicant Application details Receipt of EUT: 11 July 2003 Date of test: 22 July 2003 Note: --- Responsible for testing: Johann Roidt Responsible for test report: Johann Roidt EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 4 of 19 Pages 2. Identification of Test Laboratory DETAILS OF THE TEST LABORATORY COMPANY NAME: Senton GmbH EMI/EMC Test Center ADDRESS: Aeussere Fruehlingsstrasse 45 D-94315 Straubing Germany LABORATORY ACCREDITATION: DAR-Registration No. TTI-P-G 062/94-40 FCC TEST SITE LISTING 90926 INDUSTRY CANADA TEST SITE REGISTRATION IC 3050 NAME FOR CONTACT PURPOSES: Mr. Johann Roidt TELEPHONE: (+49) (0)9421 5522-0 FAX: (+49) (0)9421 5522-99 PERSONNEL INVOLVED IN THIS TEST REPORT TECHNICAL DIRECTOR: Mr. Johann Roidt RESPONSIBLE FOR TESTING: Mr. Martin Steindl RESPONSIBLE FOR TEST REPORT: Mr. Martin Steindl SUMMARY OF TEST RESULTS The tested sample complies with the requirements set forth in the FCC Code of Federal Regulations Part 15, Subpart C, Section 15.231 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 5 of 19 Pages 3. Operation Mode of EUT While one button is pressed, the transmitter continuously sends the corresponding datagram. When the button is released, the transmitter stops working instantly. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 6 of 19 Pages 4. Configuration Configuration of the EUT Not applicable Cables connected to the EUT Not applicable Peripheral devices connected to the EUT Not applicable EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 7 of 19 Pages 5. Measuring Methods EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 8 of 19 Pages 5.1. Field Strength of Emissions, Prescans in a fully-anechoic room Rules and Specifications: Sections 15.109 & 15.231 Guide: ANSI C63.4 1997 Measurement Procedure: Radiated emissions are measured over the frequency range from 30 MHz to the maximum frequency as specified in section 15.33. Measurements were made in both the horizontal and vertical planes of polarization in a fully anechoic room using a spectrum analyzer with the detector function set to peak and resolution bandwidth set to 100 kHz. All tests were performed at a test-distance of 3 meters. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration produces the highest emission relative to the limit and therefore shall be used for final testing. EUT Fully anechoic chamber 3 m test distance Spectrum Analyzer Test instruments used: No. Type Model Serial Number Manufacturer 01 Spectrum Analyzer FSP 30 100063 Rohde & Schwarz 113 Preamplifier CPA9231A 3393 Schaffner 141 Biconical antenna HK 116 829708/006 Rohde & Schwarz 143 Log. periodic antenna 3147 9112-1054 EMCO 003 Fully anechoic room No. 2 1452 Albatross Projects EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 9 of 19 Pages 5.2. Fieldstrength of Emissions, Measurement at Open Area Test Site Rules and Specifications: Sections 15.109 & 15.231 Guide: ANSI C63.4 1997 M…

Text truncated - open the document above for the full version.

EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 12 of 19 Pages Test setup for radiated emission measurement (fully anechoic room) EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: P3OS4322D Test Report No.: 55106-30463 Page 13 of 19 Pages Test setup for radiated emission measurement (open-area test-side)
