P5L0130101-BVFixed Cellular Terminal

1/70 User guide F251m terminal Fixed Cellular Terminal for Small office Home office (SoHo) applications 2/70 1F251m ........................................................................................ 6 2SUPPLIED PARTS ................................................................... 7 3EXTERNAL CONNECTORS AND LIGHT INDICATORS... 7 4SIM CARD ................................................................................ 8 5CONNECTIONS ....................................................................... 8 5.1Installing the FCT as a telephone line ....................................... 8 5.2Installing an FCT connected to a PBX ...................................... 9 5.3Preparing your FCT ................................................................. 11 5.3.1Assembly ................................................................................. 11 5.3.2Connect a telephone to the FCT .............................................. 12 5.3.3Switch on the FCT ................................................................... 12 5.3.4Enter PIN ................................................................................. 12 5.3.5Network search ........................................................................ 13 5.4Installing the FCT on the wall ................................................. 14 5.4.1FCT Location........................................................................... 14 5.4.2Wall mounting ......................................................................... 15 5.5Connecting fixed line devices.................................................. 17 5.5.1Checking connections .............................................................. 18 5.5.2Checking the calls quality:....................................................... 18 6USING TELEPHONES........................................................... 19 7USING CLI DISPLAYS.......................................................... 19 8USING FAX MACHINES ...................................................... 21 8.1Sending a fax: .......................................................................... 21 8.2Receiving a fax ........................................................................ 21 9USING PCS ............................................................................. 21 9.1GPRS data access type............................................................. 22 9.2GSM data access type .............................................................. 23 10USING PBX ............................................................................ 25 11ADVANCED FEATURES...................................................... 26 11.1Changing volume..................................................................... 26 11.2Diverting calls (call forward)................................................... 26 11.3Restricting calls (call barring) ................................................. 27 11.4More than one call (call wait, call hold, call transfer, multiparty call) .......................................................................................... 28 11.4.1Call waiting service ................................................................. 29 3/70 11.4.2Making a second call ............................................................... 29 11.4.3Receiving a second call ........................................................... 29 11.4.4Conference calls....................................................................... 30 11.4.5Connecting active and held calls ............................................. 30 11.5Phonebook (abbreviated dialing) ............................................. 30 11.6Voice mail................................................................................ 31 11.7Sending tone signals ................................................................ 31 11.8Controlling call time (minute minder) ..................................... 32 11.9Emergency number (Hot line) ................................................. 32 11.10Two voice lines (Alternate Line Service) ................................ 33 11.11SIM card security..................................................................... 33 11.11.1To manage your SIM card ....................................................... 33 11.11.2To unblock your SIM card....................................................... 34 11.11.3To change your PIN................................................................. 34 11.11.4To unblock your SIM card while changing your PIN ............. 34 12TROUBLESHOOTING AND FCT INDICATORS ............... 35 12.1Light indicators ........................................................................ 35 12.2Audible tones ........................................................................... 38 13FCT TECHNICAL DATA ...................................................... 39 14FCT ACCESSORIES .............................................................. 42 14.1ISDN Adapter FI12.................................................................. 42 14.2Display Adapter DA20 ............................................................ 43 14.3Antennas .................................................................................. 43 14.4Power supply ........................................................................... 43 15ANNEX: PC data configurations............................................. 45 15.1Windows 98 GPRS set-up ....................................................... 45 15.2Windows NT GPRS set-up...................................................... 50 16SAFE AND EFFICIENT USE ................................................ 57 16.1Product care ............................................................................. 57 16.2Antenna care ............................................................................ 57 16.3Radio frequency energy........................................................... 58 16.4Electronic devices .........................…

Text truncated - open the document above for the full version.

Internal information DECLARATION1 (1) Preparado - Prepared Resp. del tema - Subject responsibleN. o - No. EEM/TI/ZYV Aitor Uribe137/0062 – FCP 101 0845 Uen Responsable doc/ Aprobado - Doc respons/ApprovedContr - CheckedFecha - DateRevArchivo - File EEM/TI/ZY Anton Menchaca2001-11-12 AMIREIA Exhibit2 - Declaration of IMEI Security.doc MANUFACTURERS DECLARATION OF IMEI SECURITY Applicant: Ericsson Spain S.A. Parque Tecnologico 700 48160 Derio Spain Product details: Ericsson Type 0130101-BV dual mode/triple band GSM 900, GSM 1800 and GSM 1900 communication module, all software and hardware versions. Declaration: We declare that the steps listed in paragraphs 1 to 3 below are protect the security of the IMEI has been taken. 1. Programming security Encryption technique has been adopted to prevent unauthorised reprogramming of the IMEI. The IMEI numbers are stored in noncosecutive memory address. 2. Mechanical security The apparatus has been constructed such that unauthorised persons cannot economically replace the components in which the IMEI is stored. 3. Availability of software Knowledge of the software and data locations is restricted to the manufacturer personnel on a need to know basis Signed for and on behalf of the applicant: Authorised sign: Aitor Uribe Date: 2001-11-19

Open Request for Confidentiality1 (1) Preparado - Prepared Resp. del tema - Subject responsibleN. o - No. EEM/TI/ZYV Aitor Uribe142/0062 – FCP 101 0845 Uen Responsable doc/ Aprobado - Doc respons/ApprovedContr - CheckedFecha - DateRevArchivo - File EEM/TI/ZY Anton Menchaca2001-11-19 AMIREIA Exhibit13 - Cover Letters Request for Confidentiality.doc Subject: Request for Confidentiality FCC ID: To Whom It May Concern: In accordance with §0.459 of CFR 47, Ericsson Spain SA requests confidentiality for the following items 1. Block Diagram (Exhibit 4) 2. Schematic Diagram (Exhibit 5) 3. Photos of internal design (Exhibit 9) 4. Part List (Exhibit 10). These items contain detailed system and equipment description and related information about the product which Ericsson Spain SA considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Ericsson Spain SA also feels that this information would be of benefit to ist competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, On behalf of Ericsson Spain SA Aitor Uribe

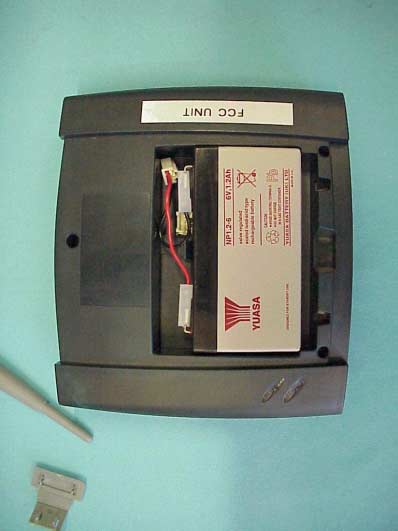

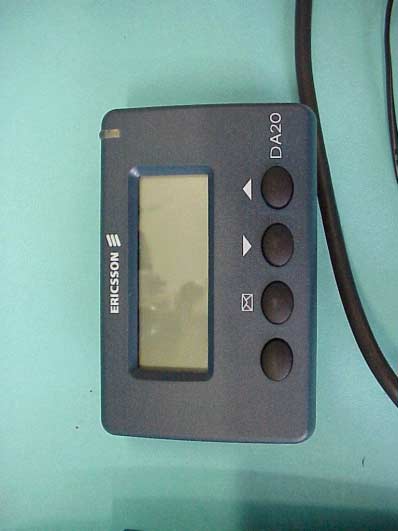

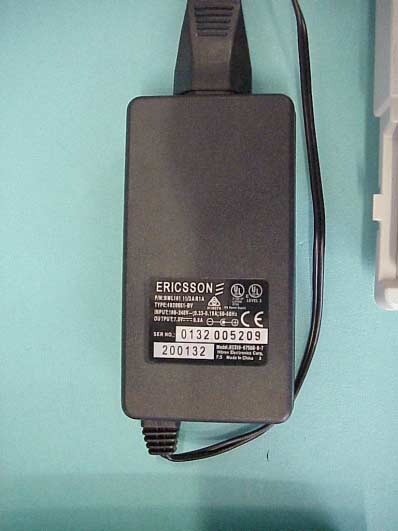

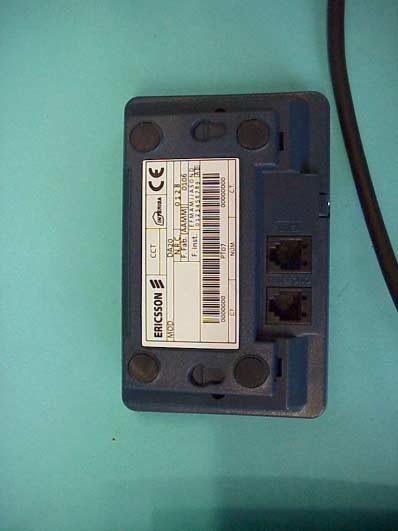

CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 59 (71) Photographs of the equipment Photograph no.: 2 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 60 (71) Photographs of the equipment Photograph no.: 3 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 61 (71) Photographs of the equipment Photograph no.: 4 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 62 (71) Photographs of the equipment Power supply Photograph no.: 5 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 63 (71) Photographs of the equipment Photograph no.: 6 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 64 (71) Photographs of the equipment Photograph no.: 7 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 65 (71) Photographs of the equipment With Outdoor antenna Photograph no.: 8 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 66 (71) Photographs of the equipment With Indoor antenna Photograph no.: 9 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 67 (71) Photographs of the equipment Photograph no.: 10 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 68 (71) Photographs of the equipment Photograph no.: 11

CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 69 (71) Photographs of the equipment Photograph no.: 12 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 70 (71) Photographs of the equipment Photograph no.: 13 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 71 (71) Photographs of the equipment Photograph no.: 14

CETECOM ICT Services GmbH Radio Satelite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 71 PagesPage 1 (71) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM TTI-P-G-166/98-30 Accredited Bluetooth Test Facility (BQTF) Test report no.: 2_2639-01-01/01 FCC Part 24 Fixed Cellular Terminal Type 0130101-BV CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:25.05.2001Page 2 (71) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G-166/98-30 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:25.05.2001Page 3 (71) 1.3Details of applicant Name : Ericsson Spain SA Street : Bilbao Technology Centre, Parque Tecnologico 700 City : SP-48160 Derio Country : Spain Telephone : +34 94 485 8000 Telefax : +34 94 485 8585 Contact : Mr. Aitor Uribe Telephone : +34 94 485 8676 1.4Application details Date of receipt of application : 22.11.01 Date of receipt of test item : 23.11.01 Date of test : 23.-24.11.01 1.5Test item Type of equipment : PCS Mobile Phone Type designation:GSM 900/1800/1900 Fixed Cellular Terminal Type 0130101-BV Manufacturer:Applicant Street: City: Country: Serial number:IMEI: 004601 01 2300430 S/N: T38008508Z Additional informations: : Frequency : 1850,2 – 1909,8 MHz Type of modulation:300KF2D Number of channels :300 Antenna:Integral antenna and socket Power supply:115V AC / 7,5V DC Adaptor Output power:29.81 dBm Peak / ERP : 27.2dBm (Burst); EIRP: 29.3dBm (Burst) Type of equipment:Temperature range : -30°C - +60°C FCC – ID : P5L 0130101-BV Hardware:A Software:CXC 112 1853 R1A13; CXC 112 1854 R1A13 1.6Test standards: FCC Part 24 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:25.05.2001Page 4 (71) 2 Technical test The radiated measurements were performed vertical andhorizontal over the whole frequency range.We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual remeasurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. The detector function and selection of bandwidth are according ANSI C63.2-1996 item 8.2.1 and ANSI C63.4-1992 Item 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT : PASS Technical responsibility for area of testing : 27.11.01RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 27.11.01RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:25.05.2001Page 5 (71) 2.2Testreport TEST REPORT Testreport no. : 2_2639-01-01/01 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:25.05.2001Page 6 (71) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED ParagraphPAGE POWER OUTPUT SUBCLAUSE § 24.2327 FREQUENCY STABILITY SUBCLAUSE § 24.2359 AFC FREQ ERROR vs. VOLTAGE10 AFC FREQ ERROR vs. TEMPERATURE10 EMISSIONS LIMITS §24.23812 CONDUCTED SPURIOUS EMISSIONS35 OCCUPIED BANDWIDTH §2.98944 CONDUCTED EMISSIONS § 15.107/20751 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS53 TEST SITE55 PHOTOGRAPHS OF THE EQUIPMENT58 CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:25.05.2001Page 7 (71) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT SUBCLAUSE § 24.232 Summery: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is wthin the required mask (this mask is specified in the JTC standarts, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer FSIQ 26 ( peak and average) This measurements were done at 3 frequencies, 1850,2 MHz, 1880,2 MHz and 1909,8 MHz (bottom, middle and top of operational frequency range) Limits: Power StepNominal Peak Output Power (dBm) Tolerance (dB) 0+30 ± ±± ± …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 55 (71) Test site RADIATED EMISSIONS CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 56 (71) Test site RADIATED EMISSIONS CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 57 (71) Test site CONDUCTED EMISSIONS CETECOM ICT Services GmbH Test report nr.:2_2639-01-01/01Issue date:28.11.2000Page 58 (71) Photographs of the equipment Test set-up Photograph no.: 1
