P5L0130102-BVFixed Cellular Terminal

User guide F250m terminal Fixed Cellular Terminal for PBX applications Content F250m ....................................................................... 7 SUPPLIED PARTS................................................... 8 EXTERNAL CONNECTORS AND LIGHT INDICATORS........................................................... 8 SIM CARD ............................................................... 9 CONNECTIONS ...................................................... 10 Installing the FCT as a telephone line ..................... 10 Installing an FCT connected to a PBX .................... 11 Preparing your FCT.................................................. 12 Installing the FCT on the wall ................................. 14 Connecting fixed line devices .................................. 16 USING TELEPHONES............................................ 18 USING CLI DISPLAYS........................................... 19 USING PBX ............................................................. 20 ADVANCED FEATURES ....................................... 21 Changing volume...................................................... 21 Diverting calls (call forward) ................................... 21 Restricting calls (call barring) .................................. 23 More than one call (call wait, call hold, call transfer, multiparty call) ........................................... 25 Phonebook (abbreviated dialing) ............................. 27 Voice mail ................................................................. 28 Sending tone signals ................................................. 28 Controlling call time (minute minder) ..................... 28 Emergency number (hot line)................................... 28 Two voice lines (alternate line service) ................... 29 SIM card security ..................................................... 30 TROUBLESHOOTING AND FCT INDICATORS 32 Light indicators......................................................... 32 Audible tones ............................................................ 35 TECHNICAL SPECIFICATIONS ........................... 36 FCT ACCESSORIES ............................................... 38 ISDN Adapter FI12 .................................................. 38 Display Adapter DA20 ............................................. 38 Antennas ................................................................... 39 Power supply ............................................................ 39 SAFE AND EFFICIENT USE ................................. 40 Product care .............................................................. 40 Antenna care ............................................................. 40 Radio frequency energy............................................ 41 Electronic devices..................................................... 41 Potentially explosive atmospheres ........................... 41 Power supply ............................................................ 42 Children .................................................................... 42 Disposing of the product .......................................... 42 Battery information................................................... 42 Disposing of the battery ........................................... 43 Moving or storing the FCT ...................................... 43 Accessing the battery compartment ......................... 43 LIMITED WARRANTY .......................................... 44 Limited Warranty Conditions ................................... 44 Ericsson Warranty..................................................... 44 What Ericsson will do .............................................. 44 Conditions ................................................................. 44 REGULATORY INFORMATION ........................... 46 DEFINITIONS.......................................................... 47 Ericsson F250m First edition, April 2002 This manual has been published by Ericsson España, S.A. Bilbao Technology Centre, without any warranty. Improvements and changes to this manual needed by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Ericsson España, S.A. at any time and without notice. Such changes will, however, be incorporated into new editions of the manual. All rights reserved © Ericsson España, S.A. Bilbao Technology Centre, 2001 Publication number: EN/LZT 123 7036 R1B Important information: Some of the services described in this guide might not be supported by all networks. Please, contact your network operator for information on different network services operational in your GSM network. F250m The F250m is a cost saving solution for small and medium-size enterprises. Connected to a PBX, the F250m can route outgoing calls to mobile phones through the GSM network. As a result, you can benefit from the Least Cost Routing (LCR) capabilities offered by most PBX vendors for an optimal use of your telephone expenses. The F250m is compatible with most analogue PBXs on the market and with most of the available 2B+D ISDN (BR) digital output trunks, via the ISDN FI12 adapter. From an end-user point of view no difference will be perceived with the fixed line during the communication process since the voice quality achieved will perfectly emulate a fixed-line transmission as a result of the Enhanced Full Rate (EFR) speech codec. The terminal allows automatic network searching between GSM 900, GSM 1800 and GSM 1900 frequencies, ensuring world wide coverage in the GSM network. The terminal offers a broad range of GSM speech services such as: • Prepaid Subscription • Calling Line Identification according to ETSI and Bellcore standards • Hook-flash functionality for GSM supplementary services such as Call Waiting, Multiparty Conference Calls and more (all depending on the GSM network provision) The Terminal provides a built-in SMS supervision function that allows remot…

Text truncated - open the document above for the full version.

Internal information DECLARATION1 (1) Preparado - Prepared Resp. del tema - Subject responsibleN. o - No. EEM/TI/ZYV Aitor Uribe221/0062 – FCP 101 0845 Uen Responsable doc/ Aprobado - Doc respons/ApprovedContr - CheckedFecha - DateRevArchivo - File EEM/TI/ZY Anton Menchaca2002-04-24 AMIREIA Exhibit2 - Declaration of IMEI Security.doc MANUFACTURERS DECLARATION OF IMEI SECURITY Applicant: Ericsson España S.A. Parque Tecnologico 700 48160 Derio Spain Product details: Ericsson type 0130102-BV, all software and hardware versions. Declaration: We declare that the steps listed in paragraphs 1 to 3 below are protect the security of the IMEI has been taken. 1. Programming security Encryption technique has been adopted to prevent unauthorised reprogramming of the IMEI. The IMEI numbers are stored in noncosecutive memory address. 2. Mechanical security The apparatus has been constructed such that unauthorised persons cannot economically replace the components in which the IMEI is stored. 3. Availability of software Knowledge of the software and data locations is restricted to the manufacturer personnel on a need to know basis Signed for and on behalf of the applicant: Authorised sign: Aitor Uribe

Open Request for Confidentiality1 (1) Preparado - Prepared Resp. del tema - Subject responsibleN. o - No. EEM/TI/ZYV Aitor Uribe222/0062 – FCP 101 0845 Uen Responsable doc/ Aprobado - Doc respons/ApprovedContr - CheckedFecha - DateRevArchivo - File EEM/TI/ZY Anton Menchaca2002-04-24 AMIREIA Exhibit13 - Cover Letters Request for Confidentiality.doc Subject: Request for Confidentiality FCC ID: P5L 0130102-BV To Whom It May Concern: In accordance with §0.459 of CFR 47, Ericsson España SA requests confidentiality for the following items 1. Block Diagram (Exhibit 4) 2. Schematic Diagram (Exhibit 5) 3. Operational Description (Exhibit 12) 4. Part List (Exhibit 10). These items contain detailed system and equipment description and related information about the product which Ericsson España SA considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Ericsson España SA also feels that this information would be of benefit to ist competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, On behalf of Ericsson España SA Aitor Uribe

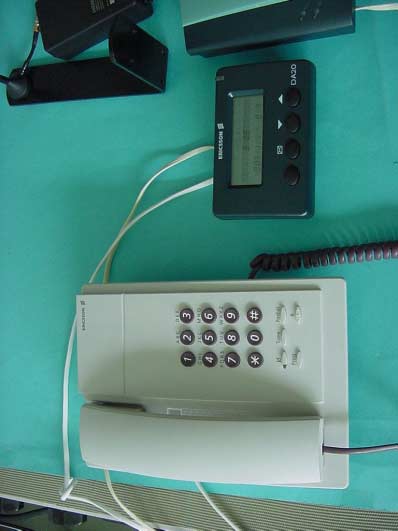

CETECOM ICT Services GmbH Test report nr.:2_2896-01-01/02Issue date: 2002-05-27Page 65 (67) Photographs of the equipment Photograph no.: 9 CETECOM ICT Services GmbH Test report nr.:2_2896-01-01/02Issue date: 2002-05-27Page 66 (67) Photographs of the equipment Photograph no.: 10 CETECOM ICT Services GmbH Test report nr.:2_2896-01-01/02Issue date: 2002-05-27Page 67 (67) Photographs of the equipment Photograph no.: 11

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 67 PagesPage 1 (67) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM TTI-P-G-166/98-30 Accredited Bluetooth Test Facility (BQTF) Test report no.: 2_2896-01-01/02 FCC Part 24 Fixed Cellular Terminal Type: 0130102-BV CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 CETECOM ICT Services GmbH Test report nr.:2_2896-01-01/02Issue date: 2002-05-27Page 2 (67) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory State of accreditation: The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:2_2896-01-01/02Issue date: 2002-05-27Page 3 (67) 1.3Details of applicant Name : Ericsson España S.A. Street : Parque Tecnológico 700 City : SP 48160 Derio Country : Spain Telephone : +34 94 485 80 00 Telefax : +34 94 485 89 89 Contact : Mr. Aitor Uribe Telephone : +34 94 485 8676 1.4Application details Date of receipt of application : 2002-05-07 Date of receipt of test item : 2002-05-07 Date of test : 2002-05-27 1.5Test item Type of equipment : GSM 900/1800/1900 MHz Type designation:GSM 900/1800/1900 Fixed Cellular Terminal Type 0130102-BV Manufacturer:Applicant Street: City: Country: Serial number:IMEI: 004601 01 2304580 S/N: 8690000006 Additional informations: : Frequency:1850 – 1910 MHz Type of modulation:300KF2D Number of channels :300 Antenna:Integral antenna and socket Power supply:115V AC / 7,5V DC Adapter Output power:1.094W Peak , ERP : 0.675 W (Burst); EIRP:1.094 W (Burst) Type of equipment:Temperature range : -30°C - +60°C FCC – ID : P5L0130102-BV Hardware : Software:2.52 (CXC 112 1853) 1.6Test standards: FCC Part 24 CETECOM ICT Services GmbH Test report nr.:2_2896-01-01/02Issue date: 2002-05-27Page 4 (67) 2 Technical test The radiated measurements were performed vertical and horizontal over the whole frequency range. We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual re-measurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. All measurements was done based on ANSI C63.4. 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2002-04-29RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 2002-04-29RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report nr.:2_2896-01-01/02Issue date: 2002-05-27Page 5 (67) 2.2Testreport TEST REPORT Test report no. : 2_2896-01-01/02 CETECOM ICT Services GmbH Test report nr.:2_2896-01-01/02Issue date: 2002-05-27Page 6 (67) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED ParagraphPAGE POWER OUTPUTSUBCLAUSE § 24.2327 FREQUENCY STABILITYSUBCLAUSE § 24.2359 AFC FREQ ERROR vs. VOLTAGE10 AFC FREQ ERROR vs. TEMPERATURE 10 EMISSIONS LIMITS §24.23812 OCCUPIED BANDWIDTH §2.98941 CONDUCTED EMISSIONS § 15.107/20748 TEST SITE53 PHOTOGRAPHS OF THE EQUIPMENT57 CETECOM ICT Services GmbH Test report nr.:2_2896-01-01/02Issue date: 2002-05-27Page 7 (67) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT SUBCLAUSE § 24.232 Summery: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is wthin the required mask (this mask is specified in the JTC standarts, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer FSIQ 26 ( peak and average) This measurements were done at 3 frequencies, 1850,2 MHz, 1880,0 MHz and 1909,8 MHz (bottom, middle and top of operational frequency range) Peak power and Average power was measured with a calibrated Signal Analyzer (FSIQ from R&S). Peak power : max Power of the Signal measured with 3 MHz ResBW and 3 MHz VBW. Average power is the integrated Power over Time from the modulated GSM Signal in the CW- mode measured in burst Limits: Power StepNominal Peak Output Power (dBm) Tolerance (dB) 0+30 ± ±± ± 2 Power Measurements: Conducted: Frequency (MHz) Power Step Peak Output Power (dBm) Average Output Power (dBm) 1850.2029.4729.36 1880…
