P6PSND251Dual Band Portable Cellular Transceiver

Contents 1Copyright and Legal Information3 2Your Phone5 3Getting started7 4Making a call10 5Answering a call12 6Using the contact list13 7Menu navigation14 8Messages15 9Internet menu19 10Sounds22 11Extras25 12Settings34 13Services36 14Troubleshooting38 15Safety information41 16RF and FDA/FCC Statements45 17Warranty51 3 1 Copyright and Legal Information 1 Copyright and Legal Information The wireless phone described in this manual is approved for use in GSM 850 and 1900 networks. Copyright Information Part number: 8E30-17262-00000, Edition 1. Copyright Sendo 2002. All rights reserved. Printed in the Netherlands. SENDO is a registered trademark, or trademark, of Sendo International Ltd. and/ or its affiliates. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Sendo is prohibited. T9 Text Input is a registered trademark of Tegic Communications. All rights reserved. T9 Text input is licensed under one or more of the following U.S. Patents: 5,818,437, 5,953,541, 5,945,928, 6,011,554 and additional patents are pending worldwide. DISCLAIMER The information contained in this user guide is written for the Sendo phone model 251. Sendo reserves the right to make changes and improvements to the products and any of the features of the products described in this document without prior notice THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. SENDO RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. UNDER NO CIRCUMSTANCES SHALL SENDO BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. Export Information The product is subject to the United States Export Administration Regulations. Diversion contrary to U.S. law is prohibited. You must comply with all applicable export laws, restrictions and regulations of the United States or foreign agencies or authorities, and shall not export, or transfer for the purpose of re-export, this product in violation of any such restrictions, laws or regulations, or without all necessary approvals. As of June 2001 under US legal requirements, this means that the Exported Product may not be downloaded or otherwise exported or re-exported (i) into Cuba, Iran, Iraq, Libya, North Korea, Sudan, Syria, the Taliban-controlled areas of 4 1 Copyright and Legal Information Afghanistan or any other country subject to U.S. trade sanctions covering the downloaded software product, to individuals or entities controlled by such countries, or to nationals or residents of such countries other than nationals who are lawfully admitted permanent residents of countries not subject to such sanctions; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nationals and Blocked Persons, the U.S. Commerce Department's Denied Persons List, or the U.S. Commerce Department's Entity List. FCC/Industry Canada Notice This phone may cause TV or radio interference (for example, when using the phone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using the phone if such interference cannot be eliminated. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. For your safety You should observe and follow the guidelines given in this manual for the safe and efficient use of your phone. Failure to comply with these guidelines and requirements may void your warranty and may invalidate any approvals given to the phone. Please see the Important Safety section of this manual before you use the phone. 5 2 Your Phone 2 Your Phone nEarpiece oDisplay – Graphical indicators, menu options and other information is shown here. pLeft soft key – This key performs the function immediately above it on the display. qQuick access key – The function of this key will vary depending on the model of your phone. It provides quick access to a certain function such as SIM Toolkit or messaging. rClear key – This erases text or takes you back to your previous step, depending on the context. A long press of this key takes you back to the main screen. sRight soft key – A long press of this key will switch the telephone on and off. It also performs the function immediately above it on the display. tUp and down keys – Used to scroll through menus and options. uAntenna 6 2 Your Phone Symbol description Main screen Battery indicator Empty icon indicates a very weak battery level. Solid icon indicates a fully charged battery level Battery charging Signal strength indicator No bars indicates a very weak signal Four bars indicates a very strong signal mNew text message All incoming calls are diverted Keypad locked lNew voice mail message (this icon is network dependent) Silent mode active Alarm clock set In calls list nShows that a call was incoming oShows that a call was outgoing xShows that a call was missed In messages list Indicates the messages which have not yet been read Indicates the messages which have been read kIndicates the smiley messages which have not yet been read jIndicates the smiley messages which have been read Lists In lists shows the option that is currently activated Internet Returns you to the previous screenDisplays the current Homepage 7 3 Getting started 3 Getting started To use your phone, you must first insert the SIM card supplied by your service provider, and then charge the battery. Removing the back cover Press down on the area below the clip and slide the cover back. Lift off. Inserting the SIM card Place the SIM in the phone, starting with the right side first, maki…

Text truncated - open the document above for the full version.

13 th September 2002 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: P6PSND251 It is requested that the following information is to be held confidential on behalf of Sendo International Ltd. FCC Rules Part 0.459 fers. 8J60-0G000-02010-SCH_1.pdf One File 8 (Eight) Pages 8J60-0G000-02010-ASY_1.pdf One File 2 (Two) Pages SND251 Rev 2 BOM.XLS One File 1 (One) File SND251_S251 Block Diagram.doc One File 2 (Two) Pages Means for determining and stabilizing frequency.doc One File 3 (Three) Pages Detailed description of modulation system.doc One File 3 (Three) Pages The above files are confidential to Sendo. The above files give reference to the schematics, board layout and parts list of the product undergoing approval. Disclosure of this information could cause substantial competitive harm, due to the technical content of the files, as they explicitly detail the technical design of the product under approval. The above files are controlled internally by Sendo via appropriate document management procedures/control and are submitted in this instance, in confidence, for the purpose of obtaining product approval. None of the above files are available to the public in any way. The above material should remain confidential at all times. Yours sincerely Mike Roper Senior Approvals Engineer

File Location: PROQUIS Page 1 of 20 Printed 08 October 2002 - This Document is uncontrolled when printed. ©2002 Sendo Ltd. Confidential and Proprietary Solihull Functional Test Specification Document Control Document Number SP5514 Original Author M.Tinkler Latest Version 1 Live Owner A Hope/T Carpenter Issue Date 04/09/2002 Approver A Hope Revision Status Version Author Date Change 0.1 M. Tinkler 28/6/2002 First Draft 0.2 M. Tinkler 2/7/2002 Corrections based on input from Christophe Lancelot. PSU use MIN current range for CURR_OFF, CURR_DEEP_SLEEP. BER levels changed to –103dBm based on input from Antoine Assaf. 0.3 M. Tinkler 12/7/2002 Modification to the charge calibration for the Li-Ion battery. 1.0 M. Tinkler 28/8/2002 Modified AUXOP_CONNECTOR test. (Specified EXTERNAL MICROPHONE). Deleted ADIN442 limit, VBATT42 limit, ADIN432 limit, VBATT32 limit. Added GTPR19_190, GSM_TX_Current and PCS_TX_Current. Added PCL column to in call tests. Modified synthesizer checking to be the same as TECN058 to define test frequencies. Changed PCS RX adjust to suit calypso software. Changed GSM850 and PCS1900 Rx adjust to suit calypso software. Removed CHK_VPPMEM. © 2002 Sendo Ltd. This document is confidential and proprietary to Sendo Ltd. All Rights Reserved. No part of this document may be copied or reproduced, in whole or in part, in any material form (including photocopying and/or storage in any medium by electronic means and whether or not transiently or incidentally to some other use of this document) without the written permission of Sendo Ltd. Application to reproduce the whole or any part of this publication should be addressed to: Sendo Ltd. Sendo Base Station, Hatchford Way, Birmingham, B26 3RZ. Controlled Statement The electronic copy of this document held on the Sendo server is the definitive version. Printed copies are uncontrolled. Update/Amendment Procedure This document is controlled and updated in accordance with the Sendo change File Location: PROQUIS Page 2 of 20 Printed 08 October 2002 - This Document is uncontrolled when printed. ©2002 Sendo Ltd. Confidential and Proprietary control procedure. Table of contents 1. SCOPE.................................................................................................. 4 2. PURPOSE............................................................................................. 4 3. REFERENCES...................................................................................... 4 4. HARDWARE MATRIX........................................................................... 4 5. TEST SYSTEM SOFTWARE VERSION ............................................... 4 6. FUNCTIONAL BOARD TEST AND ELECTRONIC TUNING ................ 5 6.1. Switch ON procedure ........................................................................................5 6.1.1. Purpose.......................................................................................................5 6.1.2. Test procedure for switch ON. ....................................................................5 6.1.3. TP108 (VRTC) CHK_VRTC..............................................................5 6.1.4. Off Current ..................................................................................................5 6.1.5. Power up current.........................................................................................5 6.2. USP communication test ...................................................................................5 6.2.1. Purpose.......................................................................................................5 6.2.2. Test procedure............................................................................................5 6.3. Retest Status test ..............................................................................................5 6.4. Software Version check.....................................................................................5 6.4.1. Purpose.......................................................................................................5 6.4.2. Test procedure............................................................................................6 6.5. Current in ON mode and supply voltages:.........................................................6 6.5.1. Purpose.......................................................................................................6 6.5.2. Test procedure............................................................................................6 6.5.3. ON Current..................................................................................................6 6.5.4. TP202 (VCORE) CHK_VCORE..........................................................6 6.5.5. TP500 (2V8_RF) CHK_2V8_RF........................................................6 6.6. SIM card control ................................................................................................6 6.6.1. Purpose.......................................................................................................6 6.6.2. Test procedure............................................................................................6 6.7. Analogue to Digital converter (ADC) Control.....................................................7 6.7.1. Purpose.......................................................................................................7 6.7.2. Test procedure:...........................................................................................7 6.7.3. Check Battery type measurement...............................................................7 6.7.4. Check Battery voltage measurement..........................................................7 6.7.5. Check Temperature measurement .............................................................7 6.8. Audio Loop Control............................................................................................8 6.8.1. Purpose..........................................…

Text truncated - open the document above for the full version.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Sendo Ltd. SND251Mobile Telephone Handset To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SARB1/RP43652JD05A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By:Release Version No: PDF01 Issue Date: 03 October 2002Test Dates: 04 September 2002 It should be noted that the standard, OET Bulletin 65 Supplement C: (2001-01) is not listed on RFIs current UKAS schedule and is therefore “not UKAS accredited”. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/SARB1/RP43652JD05A EMC DepartmentPage 2 of 35 Issue Date: 03 October 2002 Test Of:Sendo Ltd. SND251Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/SARB1/RP43652JD05A EMC DepartmentPage 3 of 35 Issue Date: 03 October 2002 Test Of:Sendo Ltd. SND251Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT) ........................................................................................ 5 3. Test Specification, Methods And Procedures ............................................................. 8 4. Deviations From The Test Specification ...................................................................... 9 5. Operation Of The EUT During Testing ....................................................................... 10 6. Summary Of Test Results ........................................................................................... 11 7. SAR Measurement System......................................................................................... 16 8. SAR Safety Limits........................................................................................................ 17 9. Details of SAR Evaluation........................................................................................... 18 10. Evaluation Procedures.............................................................................................. 19 11. System Validation...................................................................................................... 20 12. Simulated Tissues ..................................................................................................... 21 13. Tissue Parameters..................................................................................................... 22 14. DASY3 Systems Specifications................................................................................ 23 15. Validation results – 900 MHz (for 850 MHz) ............................................................. 24 16. Validation results – 1900 MHz................................................................................... 25 17. Measurement Uncertainty......................................................................................... 26 Appendix 1. Test Equipment Used.................................................................................. 29 Appendix 2. Measurement Methods................................................................................ 30 Appendix 3. Test Configuration Photograph.................................................................. 34 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/SARB1/RP43652JD05A EMC DepartmentPage 4 of 35 Issue Date: 03 October 2002 Test Of:Sendo Ltd. SND251Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) 1. Client Information 1.1. Client Details Company Name: Sendo Ltd. Address: Sendo Base Station, Hatchford Brook, Hatchford Way, Sheldon, Birmingham, B26 3QA. Contact Name: Mr. M. Roper. 1.2. Test Laboratory Company Name: Radio Frequency Investigation Ltd. Address: Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ. Contact Name: Mr.J.Kenny. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/SARB1/RP43652JD05A EMC DepartmentPage 5 of 35 Issue Date: 03 October 2002 Test Of:Sendo Ltd. SND251Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name Sendo Model Name or Number SND 251 Unique Type Identification SND 251 IMEI Number 0010310167526 Battery Serial Number 8D47-02140-200000091T Country Of Manufacture Czech Republic Date Of Receipt 03 September 2002 Brand Name Sendo Model Name or Number Personal Hands Free Headset 8P02-02000-21000 Unique Type Identification 8P02-02000-21000 (Sales Pack Part Number: 8M14-02000-20000) Serial Number As above, including 6 digit date code DD/WW/YY on plastic bag Country Of Manufacture China Date Of Receipt 03 September 2002 Brand Name Sendo Model Name or Number Case (2 types) Unique Type Identification None Stated by client Serial Number None Stated by client Country Of Manufacture None Stated by client Date Of Receipt 03 September 2002 2.2. Modifications Incorporated In EUT The EUT has not been modified from what is describ…

Text truncated - open the document above for the full version.

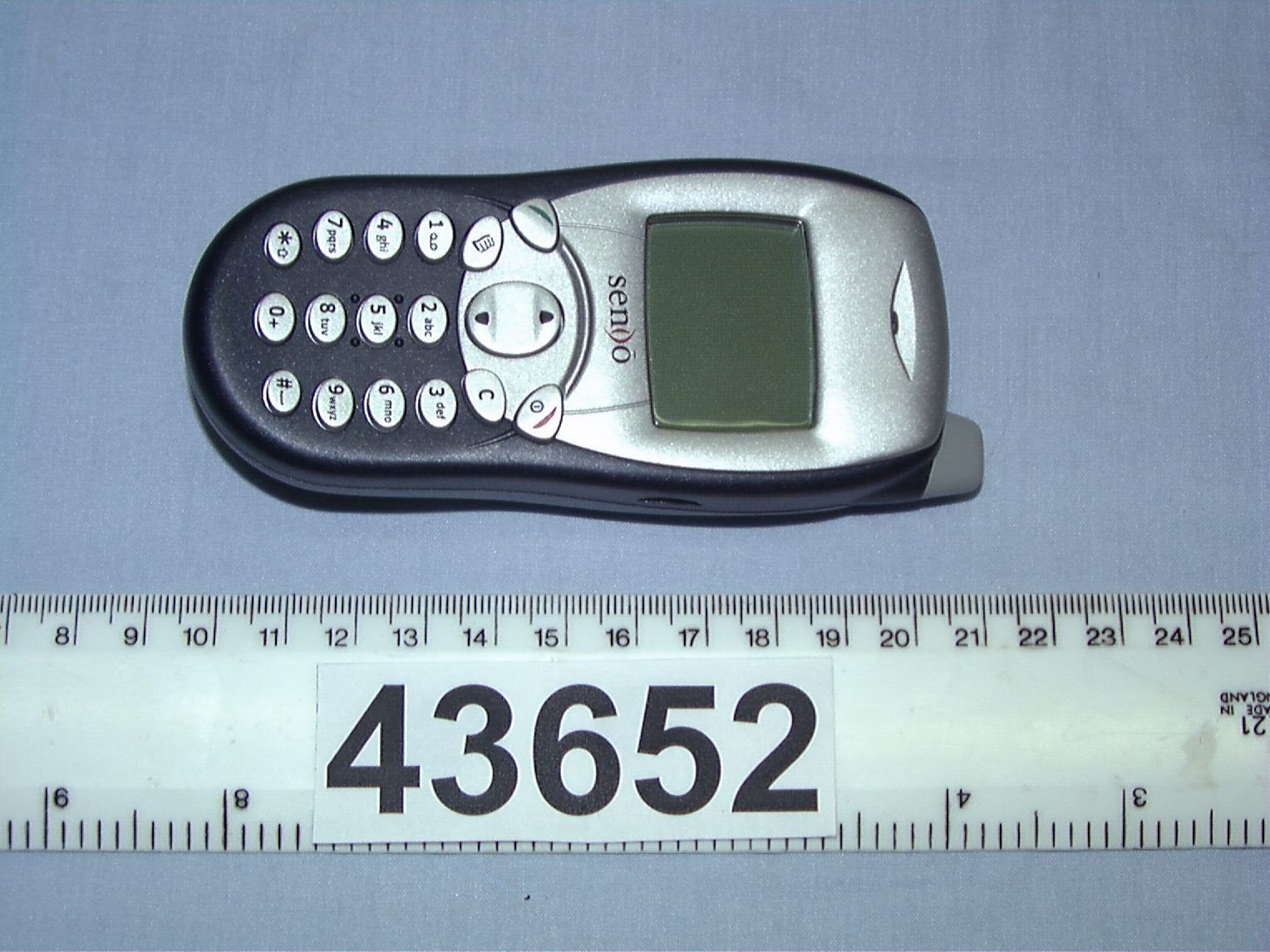

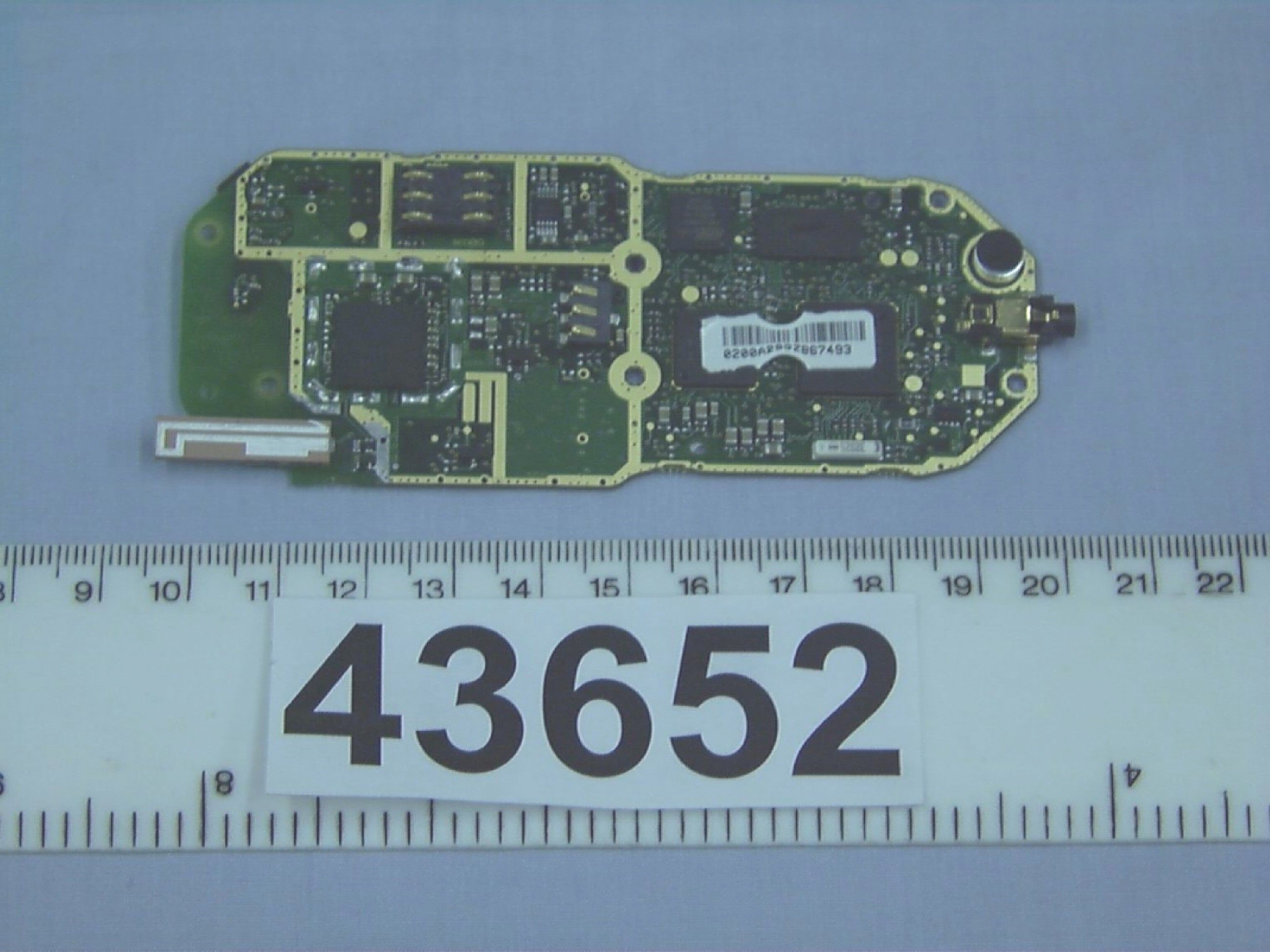

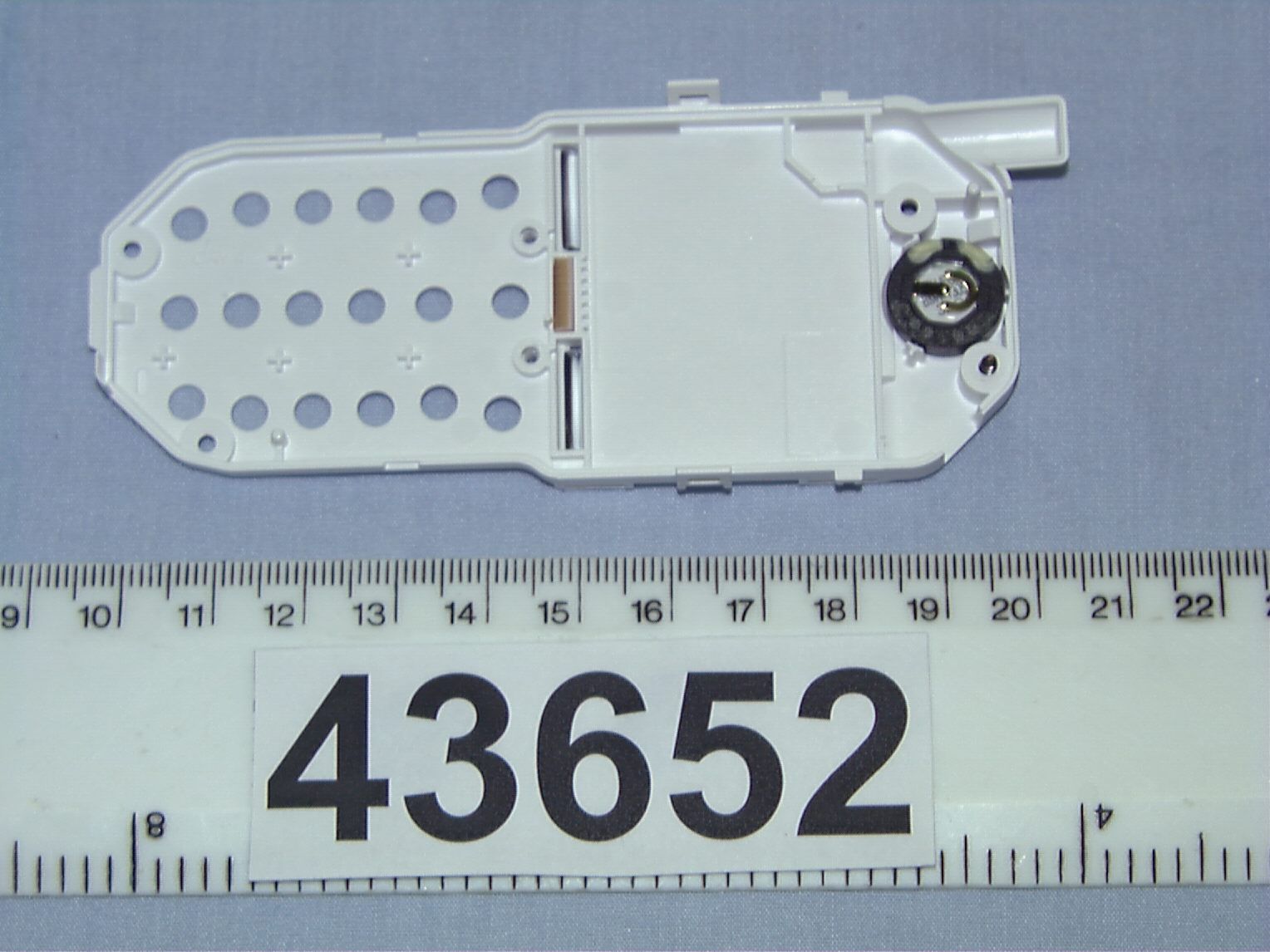

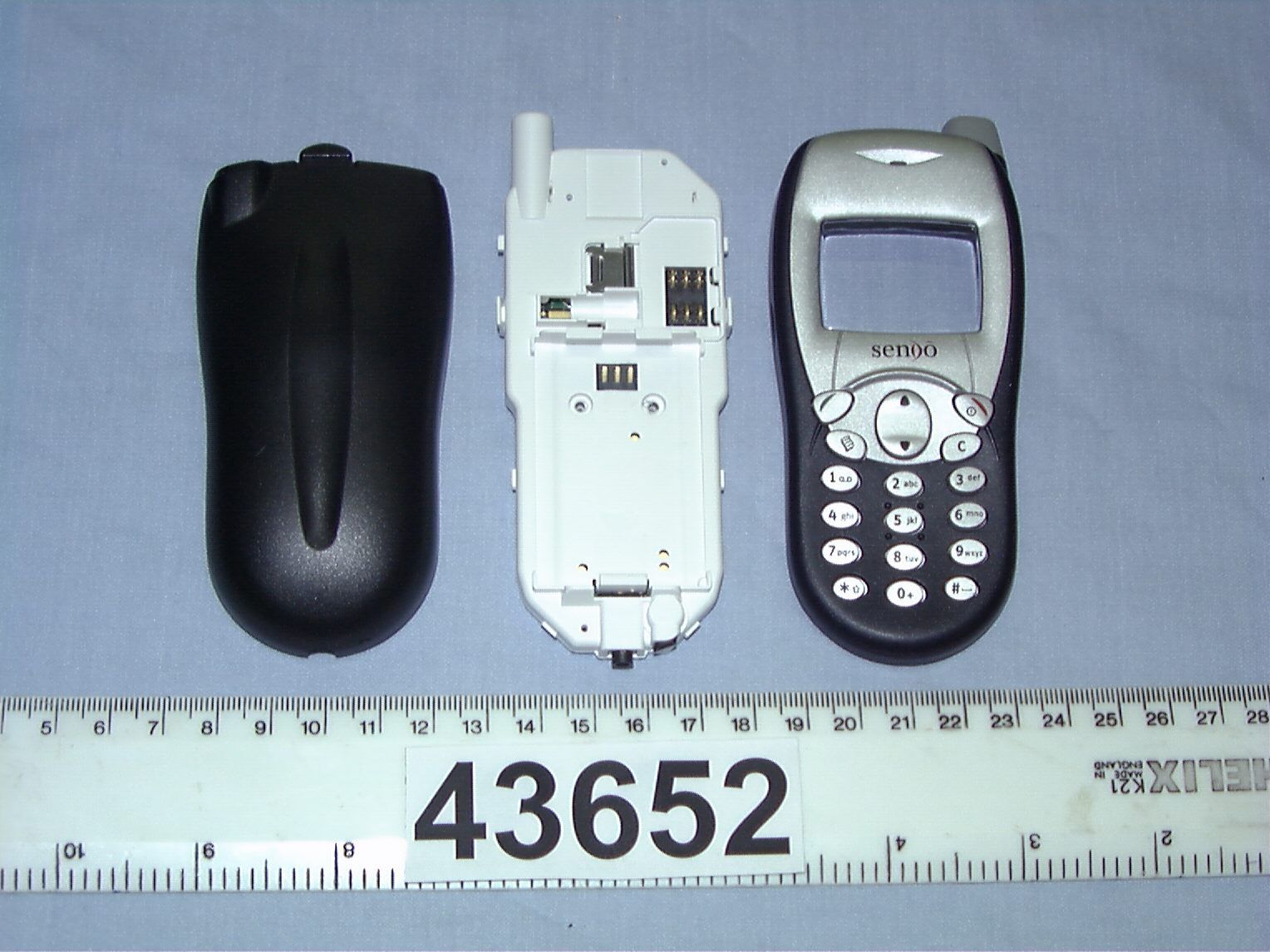

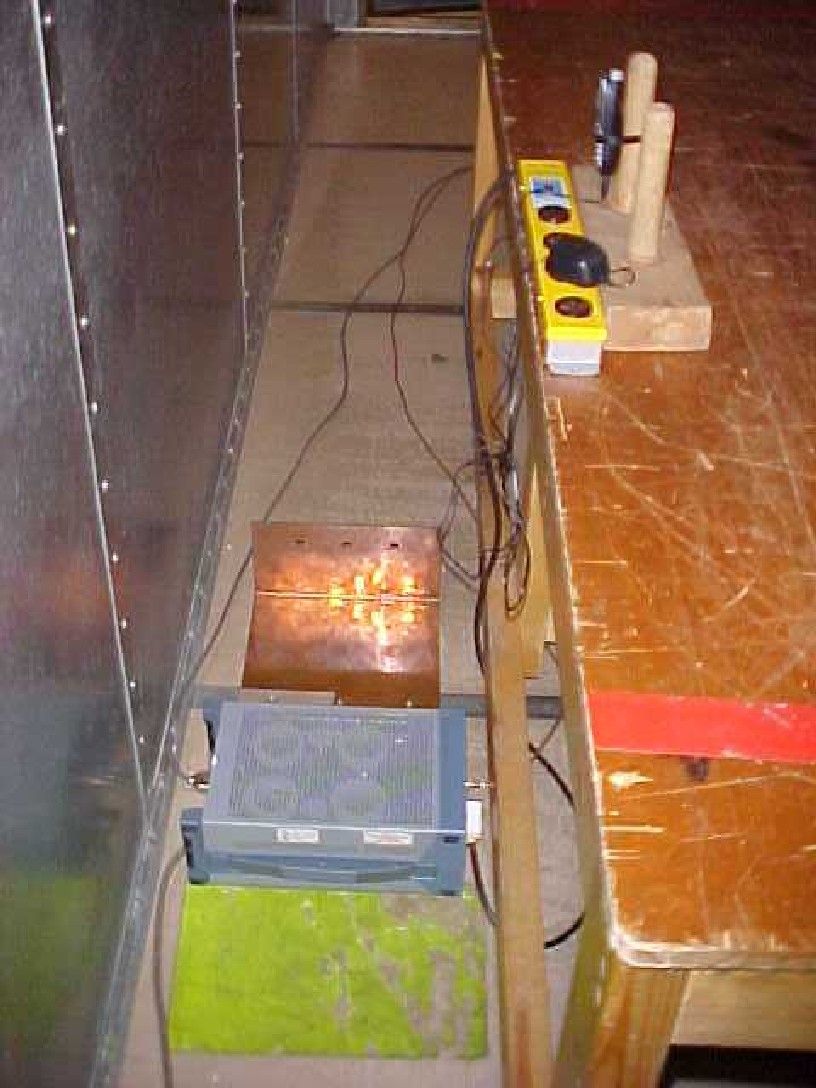

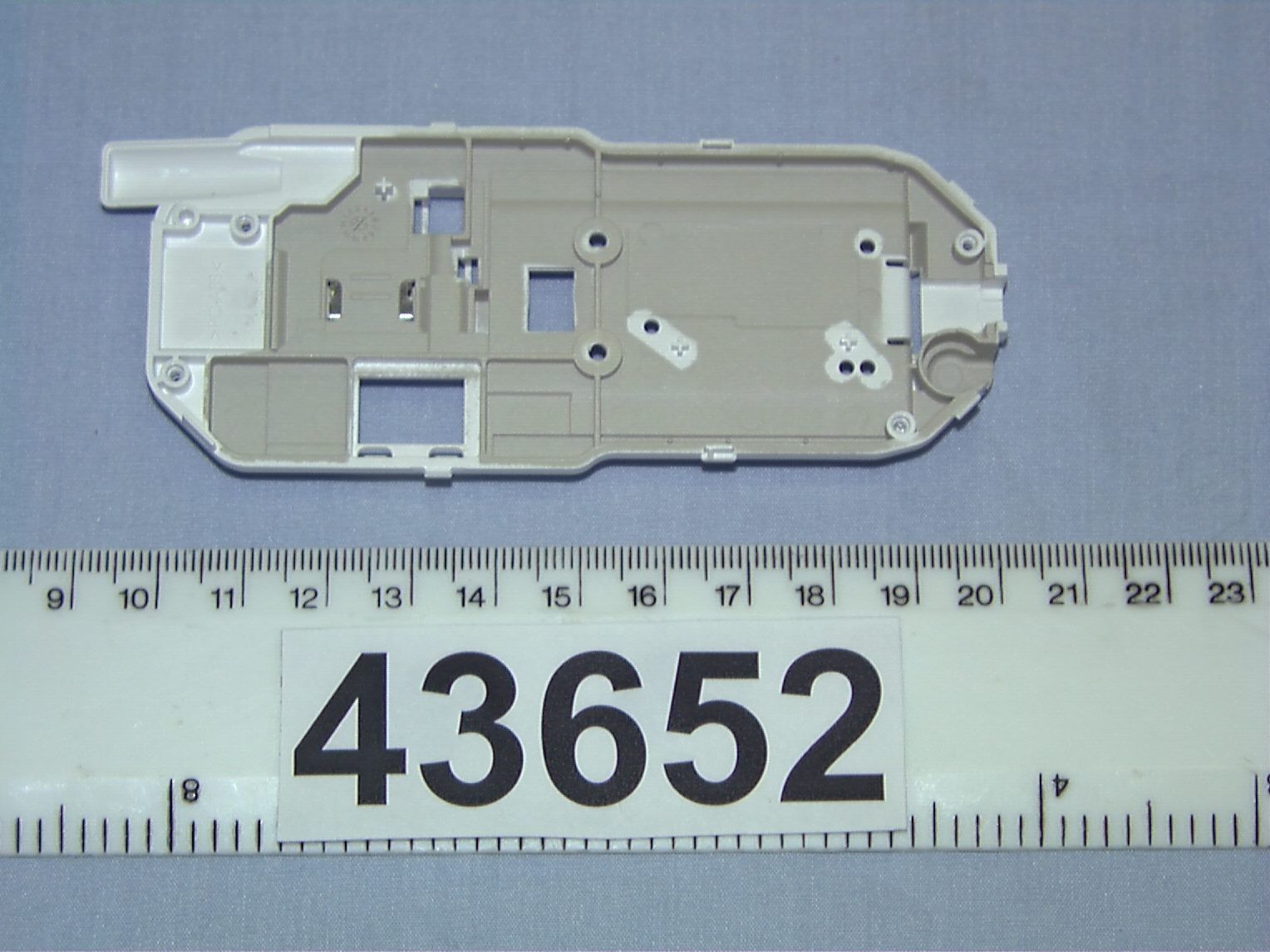

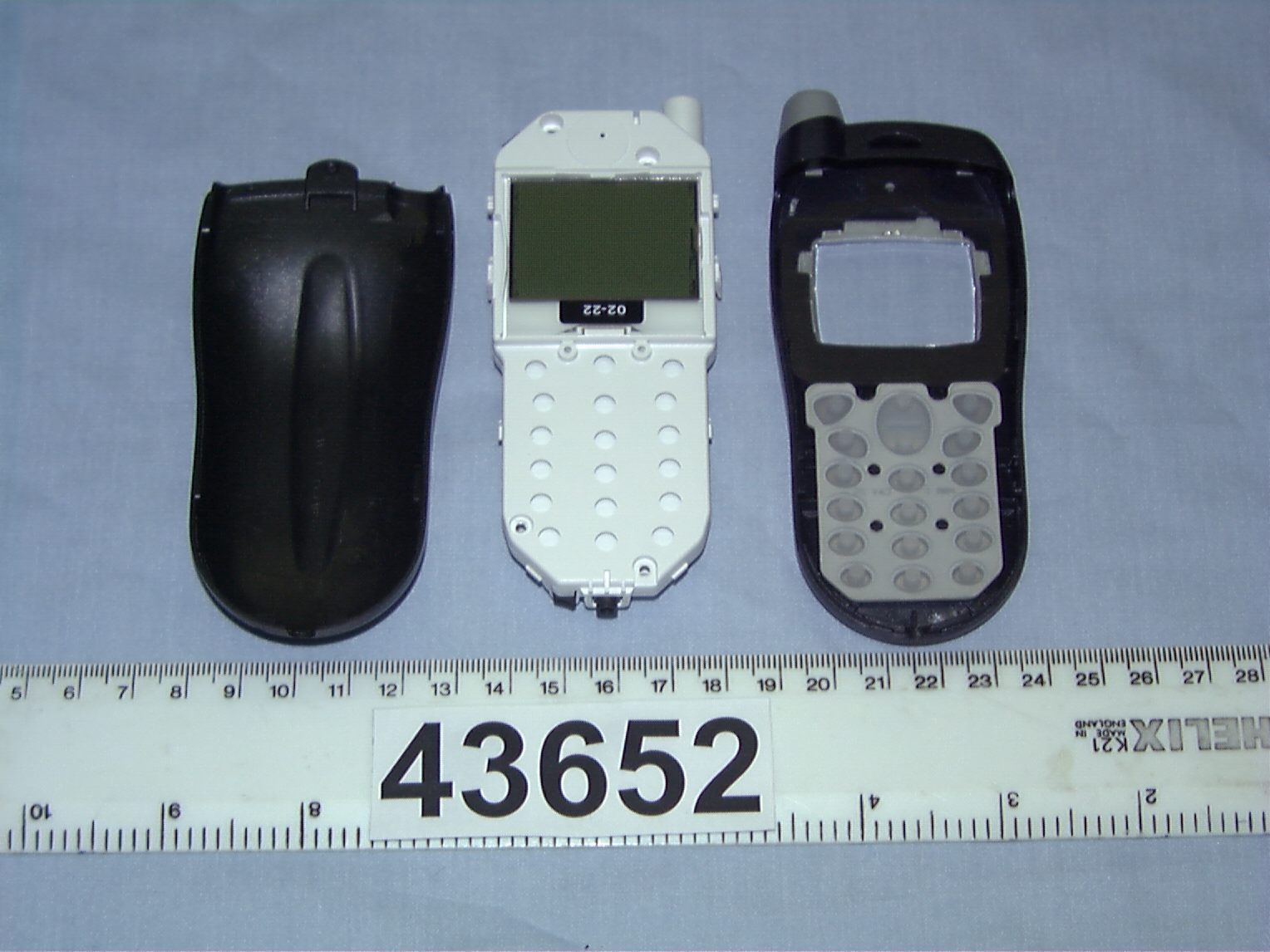

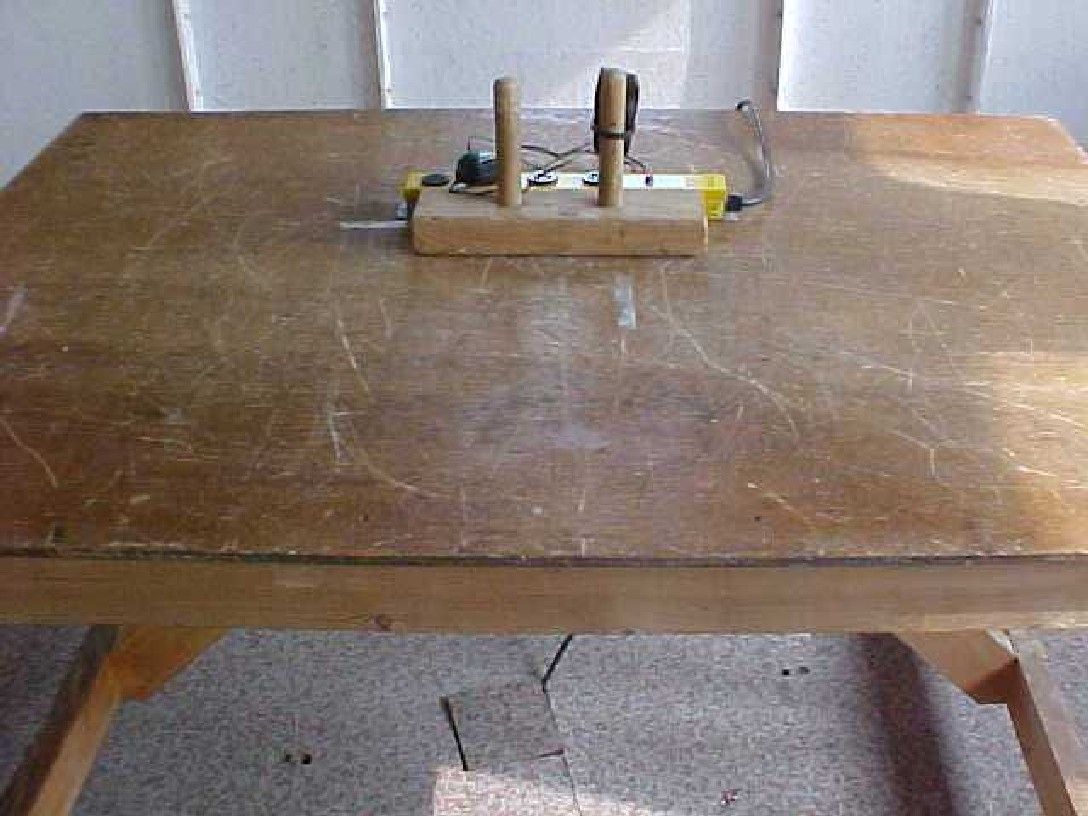

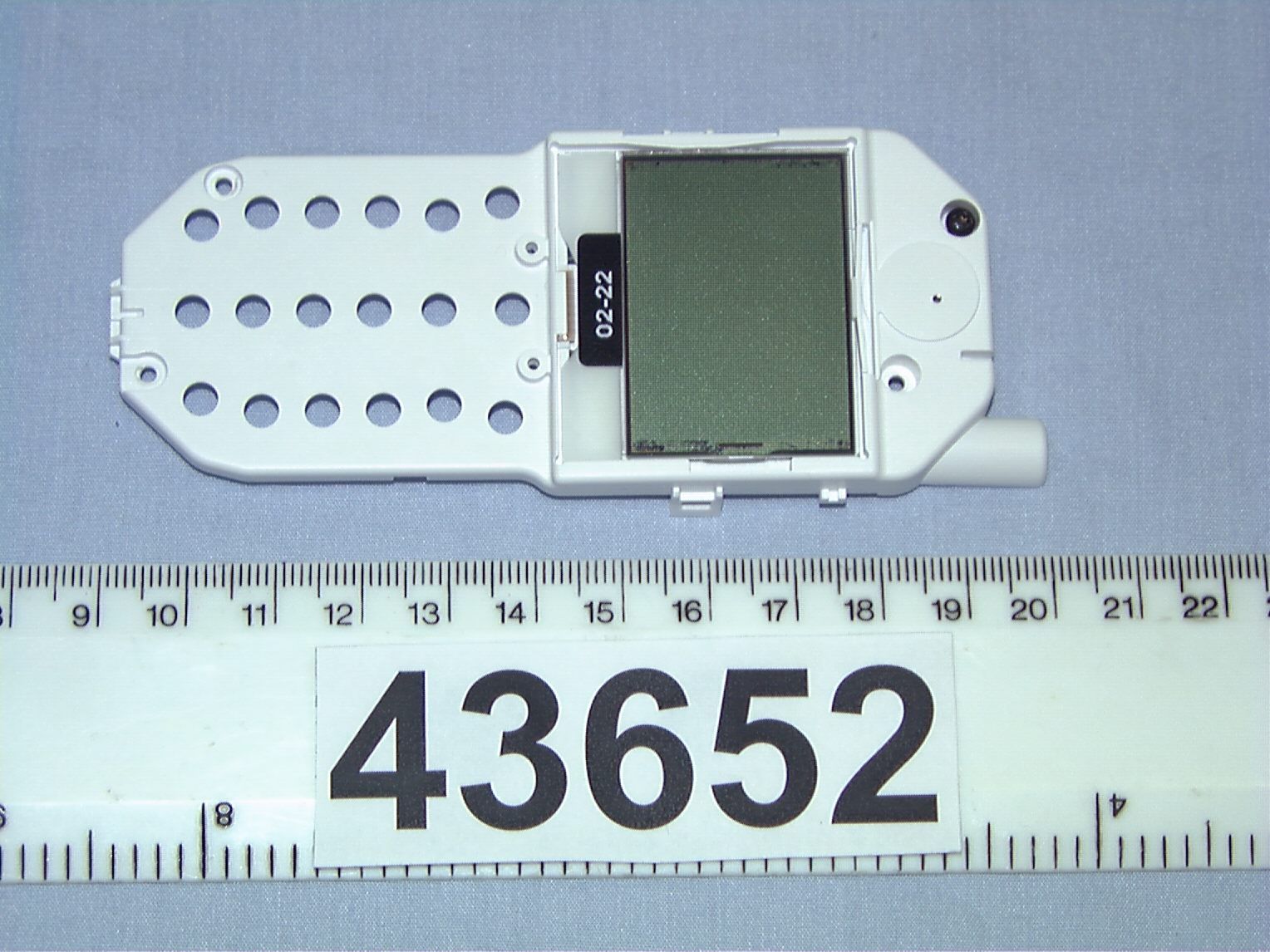

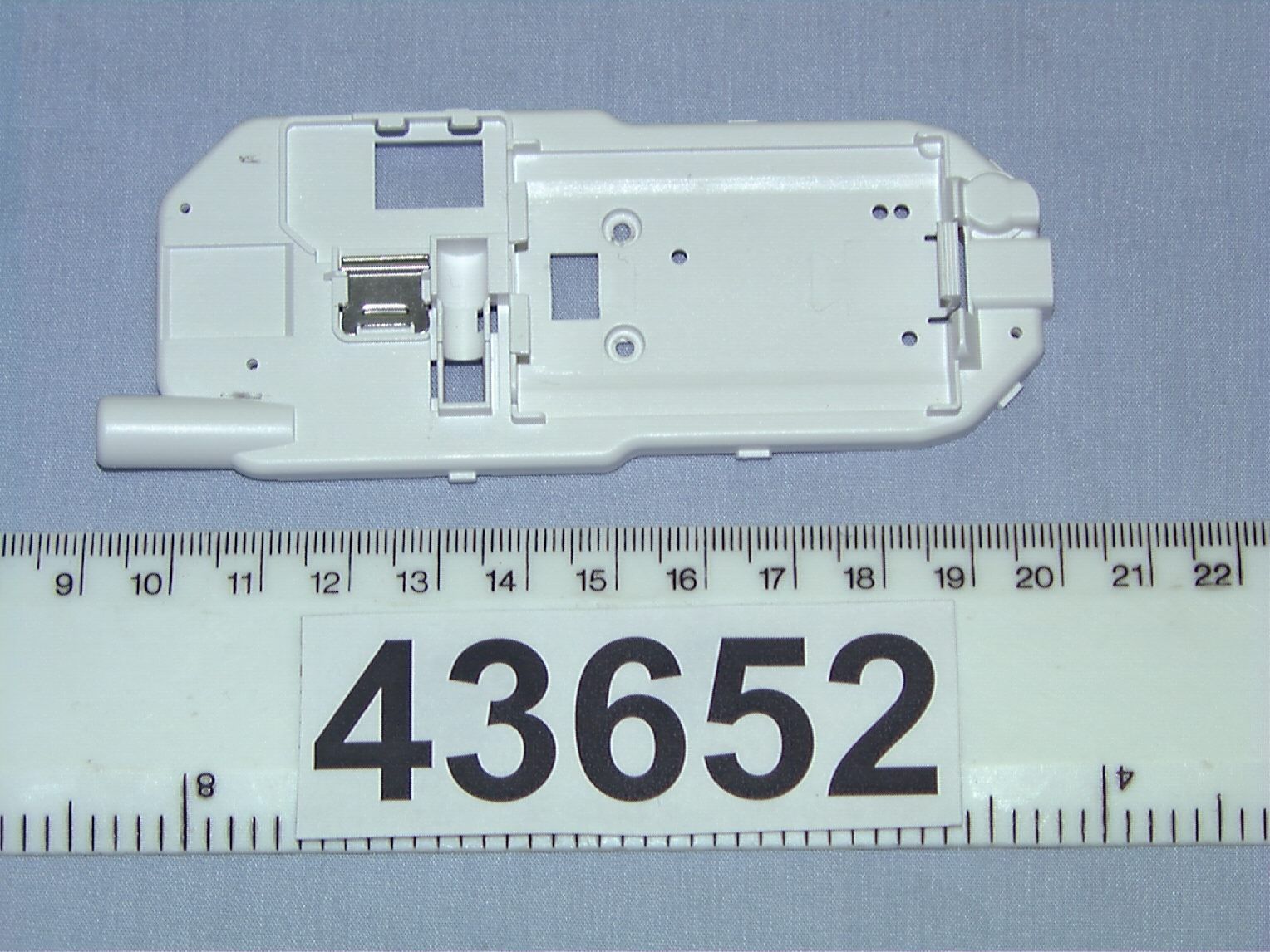

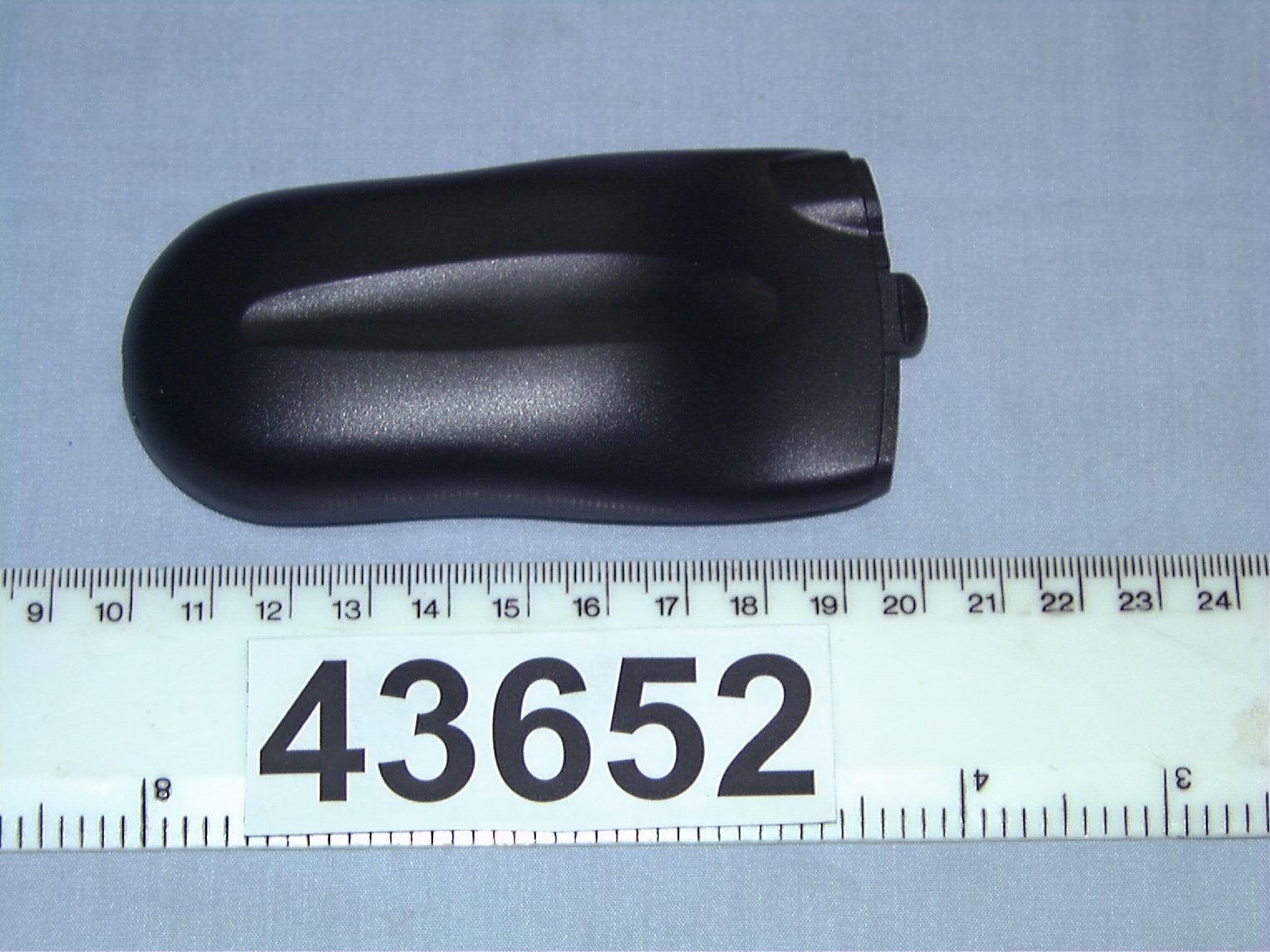

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 PHOTOGRAPH SECTION FOR RFI TEST REPORT SERIAL NO: RFI/SARB1/RP43652JD05A Test Of: Sendo Ltd. SND251 Mobile Telephone Handset To: OET Bulletin 65 Supplement C: (2001-01) RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Issue Date: 01 October 2002 Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Issue Date: 01 October 2002 Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) Photographs of EUT This appendix contains the following photographs: Photo Reference NumberTitle PHT/43652JD05/001Front View of Case 1 PHT/43652JD05/002Rear View of Case 1 PHT/43652JD05/003Side View of Case 1 PHT/43652JD05/004View of EUT (Case 1) with Personal Handsfree PHT/43652JD05/005Side View of EUT (Case 1) with Personal Handsfree PHT/43652JD05/006Front View of Case 2 PHT/43652JD05/007Rear View of Case 2 PHT/43652JD05/008Side View of Case 2 PHT/43652JD05/009View of EUT (Case 2) with Personal Handsfree PHT/43652JD05/010Bottom View of EUT (Case 2) with Personal Handsfree PHT/43652JD05/011Side View of EUT (Case 2) with Personal Handsfree PHT/43652JD05/012Top View of EUT (Case 2) with Personal Handsfree PHT/43652JD05/013View of Cheek Left PHT/43652JD05/014View of Cheek Right PHT/43652JD05/015View of Tilted Left PHT/43652JD05/016View if Tilted Right These pages are not included in the total number of pages for this report. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Issue Date: 01 October 2002 Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/001 Front View of Case 1 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/002 Rear View of Case 1 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/003 Side View of Case 1 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/004 View of EUT (Case 1) with Personal Handsfree RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/005 Side View of EUT (Case 1) with Personal Handsfree RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/006 Front View of Case 2 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/007 Rear View of Case 2 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/008 Side View of Case 2 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/009 View of EUT (Case 2) with Personal Handsfree RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/010 Bottm View of EUT (Case 2) with Personal Handsfree RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/011 Side View of EUT (Case 2) with Personal Handsfree RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/012 Top View of EUT (Case 2) with Personal Handsfree RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/013 View of Cheek Left RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/014 View of Cheek Right RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section EMC DepartmentS.No. RFI/SARB1/RP43652JD05A Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) PHT/43652JD05/015 View of Tilted Left RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT Photograph Section E…

Text truncated - open the document above for the full version.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 GRAPH SECTION FOR RFI TEST REPORT SERIAL NO: RFI/SARB1/RP43652JD05A Test Of: Sendo Ltd. SND251 Mobile Telephone Handset To: OET Bulletin 65 Supplement C: (2001-01) RADIO FREQUENCY INVESTIGATION LTD.Graph Section S.No. RFI/SARB1/RP43652JD05A EMC DepartmentIssue Date: 01 October 2002 Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.Graph Section S.No. RFI/SARB1/RP43652JD05A EMC DepartmentIssue Date: 01 October 2002 Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) SAR Distribution Scans This appendix contains SAR Distribution Scans. RADIO FREQUENCY INVESTIGATION LTD.Graph Section S.No. RFI/SARB1/RP43652JD05A EMC DepartmentIssue Date: 01 October 2002 Test Of:Sendo Ltd. SND251 Mobile Telephone Handset To:OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. SND 251 Cheek Left Bottom Channel (512) SAM Phantom; Left Hand Probe: ET3DV6 - SN1529; ConvF(5.20,5.20,5.20); Crest factor: 8.0; Brain 1900MHz: σ = 1.52 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Lab Temperature 21.5 deg C, Fluid Temperature 19.0 deg C SAR Drift 0.5% 09/04/02 SAR Tot [mW/g] 1.12E-1 2.25E-1 3.37E-1 4.50E-1 5.62E-1 6.74E-1 7.87E-1 8.99E-1 1.01E+0 1.12E+0 Radio Frequency Investigation Limited SND 251 Cheek Left Bottom Channel (512) SAM Phantom; Left Hand Probe: ET3DV6 - SN1529; ConvF(5.20,5.20,5.20); Crest factor: 8.0; Brain 1900MHz: σ = 1.52 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Peak: 2.71 mW/g,SAR (1g): 1.38 mW/g Lab Temperature 21.5 deg C, Fluid Temperature 19.0 deg C SAR Drift 0.5% 09/04/02 SAR Tot [mW/g] 2.63E-1 5.26E-1 7.90E-1 1.05E+0 1.32E+0 1.58E+0 1.84E+0 2.11E+0 2.37E+0 2.63E+0 Radio Frequency Investigation Limited SND 251 Cheek Left Centre Channel (660) SAM Phantom; Left Hand Probe: ET3DV6 - SN1529; ConvF(5.20,5.20,5.20); Crest factor: 8.0; Brain 1900MHz: σ = 1.52 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Lab Temperature 21.5 deg C, Fluid Temperature 19.0 deg C SAR Drift 6.0% 09/04/02 SAR Tot [mW/g] 1.03E-1 2.07E-1 3.10E-1 4.13E-1 5.16E-1 6.20E-1 7.23E-1 8.26E-1 9.30E-1 1.03E+0 Radio Frequency Investigation Limited SND 251 Cheek Left Centre Channel (660) SAM Phantom; Left Hand Probe: ET3DV6 - SN1529; ConvF(5.20,5.20,5.20); Crest factor: 8.0; Brain 1900MHz: σ = 1.52 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Peak: 2.63 mW/g,SAR (1g): 1.32 mW/g Lab Temperature 21.5 deg C, Fluid Temperature 19.0 deg C SAR Drift 6.0% 09/04/02 SAR Tot [mW/g] 2.53E-1 5.05E-1 7.57E-1 1.01E+0 1.26E+0 1.51E+0 1.77E+0 2.02E+0 2.27E+0 2.52E+0 Radio Frequency Investigation Limited SND 251 Cheek Left Top Channel (810) SAM Phantom; Left Hand Probe: ET3DV6 - SN1529; ConvF(5.20,5.20,5.20); Crest factor: 8.0; Brain 1900MHz: σ = 1.52 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Lab Temperature 21.5 deg C, Fluid Temperature 19.4 deg C SAR Drift 5.3% 09/05/02 SAR Tot [mW/g] 1.01E-1 2.01E-1 3.02E-1 4.02E-1 5.03E-1 6.04E-1 7.04E-1 8.05E-1 9.05E-1 1.01E+0 Radio Frequency Investigation Limited SND 251 Cheek Left Top Channel (810) SAM Phantom; Left Hand Probe: ET3DV6 - SN1529; ConvF(5.20,5.20,5.20); Crest factor: 8.0; Brain 1900MHz: σ = 1.52 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Peak: 2.80 mW/g,SAR (1g): 1.39 mW/g Lab Temperature 21.5 deg C, Fluid Temperature 19.5 deg C SAR Drift 5.3% 09/05/02 SAR Tot [mW/g] 2.77E-1 5.53E-1 8.30E-1 1.11E+0 1.38E+0 1.66E+0 1.94E+0 2.21E+0 2.49E+0 2.77E+0 Radio Frequency Investigation Limited SND 251 Cheek Right Centre Channel (660) SAM Phantom; Righ Hand Probe: ET3DV6 - SN1529; ConvF(5.20,5.20,5.20); Crest factor: 8.0; Brain 1900MHz: σ = 1.52 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Lab Temperature 21.5 deg C, Fluid Temperature 19.4 deg C SAR Drift 1.3% 09/05/02 SAR Tot [mW/g] 1.03E-1 2.06E-1 3.10E-1 4.13E-1 5.16E-1 6.19E-1 7.22E-1 8.26E-1 9.29E-1 1.03E+0 Radio Frequency Investigation Limited SND 251 Cheek Right Centre Channel (660) SAM Phantom; Righ Hand Probe: ET3DV6 - SN1529; ConvF(5.20,5.20,5.20); Crest factor: 8.0; Brain 1900MHz: σ = 1.52 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Peak: 1.69 mW/g,SAR (1g): 0.890 mW/g Lab Temperature 21.5 deg C, Fluid Temperature 19.5 deg C SAR Drift 1.3% 09/05/02 SAR Tot [mW/g] 1.68E-1 3.36E-1 5.04E-1 6.72E-1 8.41E-1 1.01E+0 1.18E+0 1.34E+0 1.51E+0 1.68E+0 Radio Frequency Investigation Limi…
