[[[ ]]] i Contents Copyright and Legal Informationv 1Your phone1 Layout - front1 Layout - back2 Menus3 Display indicators4 2Getting started6 Removing the back cover6 Removing the battery6 Inserting the SIM card6 Inserting the battery6 Replacing the back cover7 Charging the battery7 3The basics9 Switching on/off9 Navigation and scrolling9 My number9 Screensaver9 Power save9 SIM Toolkit10 Shortcuts10 Entering text, numbers and symbols10 4Calls13 Making a call13 Answering a call14 In-call options14 Adjusting the volume15 Using the calls list15 5Messages16 Using Messages16 Text messages16 MMS messages19 Sending an MMS message20 [[[ ]]] ii Using templates22 Sorting and deleting messages22 Calling your voice mail22 SMS and MMS settings23 6Internet25 Internet settings25 Internet menu25 Connecting to an internet page25 Downloading25 In browser options26 Setting your homepage26 Bookmarks26 Settings27 7Personalize your phone29 Ringtones29 Sounds29 Volume and vibrate29 Display30 Covers30 Wrist/neck strap32 8Contacts33 Phone contacts and SIM contacts33 Adding a contact33 Finding a contact36 Copying contacts36 Deleting contacts36 Fixed names36 Additional Contacts menu options37 Calls list38 9Camera39 Taking a photo39 Sending a photo39 Photo options40 [[[ ]]] iii Camera options40 Memory41 Timeout41 Editing your photos41 10Games42 Funny Farmer42 Solitaire44 Sumito44 Tenpin45 Splat45 Volume45 11Applications46 Calculator46 Converter46 12Java48 Downloading and installing48 Deleting48 Options49 13Pictures/Sounds50 Pictures50 Sounds51 14Settings53 Languages53 Time/Date53 Alarm53 Display54 Sounds54 Advanced55 Data accounts56 Shortcuts57 Auto key lock57 [[[ ]]] iv 15Services58 Commands58 Network sel. (selection)58 Send number58 Cost/timers58 Divert59 Call waiting59 Broadcast59 16Troubleshooting60 17Regulatory Statements64 [[[ ]]] v Copyright and Legal Information The wireless phone described in this manual is approved for use in GSM 850 and 1900 networks. This manual and the accompanying Safety, Warranty and License booklet are available for download from www.sendo.com. Copyright Information Part number: 8E30-1Y261-50001 (Edition 1). Copyright Sendo 2004. All rights reserved. Printed in the Netherlands. Sendo, the Sendo logo, the Sendo “D” and the Sendo model S601 phone are trademarks or registered trademarks of Sendo International Ltd. and/or its affiliates. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Sendo is prohibited. T9 Text Input is a registered trademark of Tegic Communications. All rights reserved. T9 Text input is licensed under one or more of the following U.S. Patents: 5,818,437, 5,953,541, 5,945,928, 6,011,554 and additional patents are pending worldwide. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S and other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Disclaimer The information contained in this user guide is written for the Sendo phone model S601. Sendo reserves the right to make changes and improvements to the products and any of the features of the products described in this document, and/or this document itself, without prior notice. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. SENDO RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. UNDER NO CIRCUMSTANCES SHALL SENDO BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. Export Information This phone may be subject to export regulation of the United Kingdom and other countries. Diversion contrary to law is prohibited. You must comply with all applicable export laws, restrictions and regulations of the United Kingdom or foreign agencies or authorities, and shall not export, or transfer for the purpose of re-export, the phone or any part of the phone in violation of any applicable restrictions, laws or regulations, or without all necessary approvals. For Your Safety You should observe and follow the guidelines given in this manual for the safe and efficient use of your phone. Failure to comply with these guidelines and requirements may void your warranty and may invalidate any approvals given to the phone. Please read this manual in conjunction with the Safety, Warranty and License booklet provided (and in particular the safety section), before you use your phone. !Warning: Throughout the main body of this manual, text in this format is used to act as a warning. Please read each warning carefully. This phone is equipped with an internal antenna on the top area of the phone. Avoid touching or covering the antenna as detailed in the Safety section of the Safety, Warranty and License booklet supplied with this manual. Safety, Warranty, License Please refer to the information contained in the Safety, Warranty and License booklet supplied with this manual. The booklet contains important Safety, Warranty and End User License Agreement information. Approved Accessories Warning Use only batteries, chargers and accessories approved by Sendo for use with this phone model. The use of any other types may invalidate any warranty applying to the phone, and may be dangerous. For availability of approved accessories, [[[ ]]] vi please check with your dealer or visit www.sendo.com. When you disconnect the power cord of any accessory, grasp and pull the plug, not the cord. Network Services A number of features included in this guide are called network services. They are services provided by w…

Text truncated - open the document above for the full version.

5 th July 2004 Sendo Base Station Hatchford Way Birmingham B26 3RZ Tel: +44 121 251 5000 Fax: +44 121 251 5001 [email protected] www.sendo.com Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: P6PSND601 It is requested that the following information is to be held confidential on behalf of Sendo International Ltd. FCC Rules Part 0.459 fers. 8J60-1Y000-04000-SCH_1.pd One File 11 (Eleven) Pages 8J60-1Y000-04000-ASY_1.pd One File 2 (Two) Pages Penny US 4.00C 13-04-04.xls One File 1 (One) File SND601_S601_Block_Diagram.pdf One File 2 (Two) Pages Means for determining and stabilizing frequency.pdf One File 3 (Three) Pages Detailed description of modulation system.pdf One File 3 (Three) Pages DC V and I into final radio amplifying device .pdf One File 1 (One) Page d R e g N o . 3 7 18 22 0 R e g Ad dr ess S e nd o B a se S t ati on, H a tchf or d W a y, Sh el don , Bi r m i ngh am , B2 6 3R Z Functional Test Spec.pdf One File 22 (Twenty Two) Pages The above files are confidential to Sendo. The above files give reference to the schematics, board layout and parts list of the product undergoing approval. Disclosure of this information could cause substantial competitive harm, due to the technical content of the files, as they explicitly detail the technical design of the product under approval. The above files are controlled internally by Sendo via appropriate document management procedures/control and are submitted in this instance, in confidence, for the purpose of obtaining product approval. None of the above files are available to the public in any way. The above material should remain confidential at all times. Yours sincerely Mike Roper Head of Validation & Approvals Send o Li m i te

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory Measurements were performed on the DASY4 System To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SARB2/RP46027JD02A Supersedes Test Report Serial No: RFI/SARB1/RP46027JD02A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Joe Lomako Tested By: Richelieu Quoi PP Release Version No: PDF01 Issue Date: 07 July 2004 Test Dates: 28 April 2004 to 30 April 2004 It should be noted that the standard, OET Bulletin 65 Supplement C: (2001-01) is not listed on RFI’s current UKAS schedule and is therefore “not UKAS accredited”. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 2 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 3 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Client Information..............................................................................................................4 2. Equipment Under Test (EUT) ...........................................................................................5 3. Test Specification, Methods And Procedures ................................................................8 4. Deviations From The Test Specification .........................................................................9 5. Operation Of The EUT During Testing ..........................................................................10 6. Summary Of Test Results...............................................................................................11 7. SAR Measurement System.............................................................................................18 8. SAR Safety Limits ...........................................................................................................19 9. Details of SAR Evaluation ..............................................................................................20 10. Evaluation Procedures .................................................................................................21 11. System Validation .........................................................................................................22 12. Simulated Tissues.........................................................................................................23 13. Tissue Parameters ........................................................................................................24 14. DASY4 Systems Specifications ...................................................................................25 15. Validation results – 900 MHz Head (Performed: 30/04/04).........................................26 16. Validation results – 900 MHz Body (Performed: 29/04/04) ........................................27 17. Validation results – 1900 MHz Head (Performed: 28/04/04).......................................28 18. Validation results – 1900 MHz Head (Performed: 29/04/04).......................................29 19. Measurement Uncertainty ............................................................................................30 Appendix 1. Test Equipment Used ....................................................................................33 Appendix 2. SAR Distribution Scans.................................................................................35 Appendix 3. Test Configuration Photograph....................................................................36 Appendix 4. Calibration Data .............................................................................................38 Appendix 5 Photographs of EUT .......................................................................................40 Test Report Serial No: RFI/SARB2/RP46027JD02A Supersedes Test Report Serial No: RFI/SARB1/RP46027JD02A RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 4 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) 1. Client Information 1.1. Client Details Company Name: Sendo Ltd. Address: Hatchford Brook Hatchford Way Sheldon Birmingham B26 3RZ United Kingdom Contact Name: Mr M Bailey 1.2. Test Laboratory Company Name: Radio Frequency Investigation Ltd. Address: Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ. Contact Name: Mr J Lomako RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 5 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Sendo Model Name or Number: S601 Unique Type Identification: 0400C16YZ600004 IMEI Number: 001031000051023 Country Of Ma…

Text truncated - open the document above for the full version.

RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 35 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) Appendix 2. SAR Distribution Scans This appendix contains SAR Distribution Scans. Scan Reference Number Title SCN/46027JD0246027/001 Left Hand Side Touch 1900MHz SCN/46027JD0246027/002 Left Hand Side Tilt 1900MHz SCN/46027JD0246027/003 Right Hand Side Touch 1900MHz SCN/46027JD0246027/004 Right Hand Side Tilt 1900MHz SCN/46027JD0246027/005 Left Hand Side Touch Low 1900MHz SCN/46027JD0246027/006 Left Hand Side Touch High 1900MHz SCN/46027JD0246027/007 Flat Section 1900MHz Rear Facing Phantom SCN/46027JD0246027/008 Flat Section 1900MHz Front Facing Phantom SCN/46027JD0246027/009 Flat Section 1900MHz Rear Facing Phantom With PHF SCN/46027JD0246027/010 Flat Section 1900MHz Rear Facing Phantom Low SCN/46027JD0246027/011 Flat Section 1900MHz Rear Facing Phantom High SCN/46027JD0246027/012 Flat Section 850MHz Rear Facing Phantom SCN/46027JD0246027/013 Flat Section 850MHz Front Facing Phantom SCN/46027JD0246027/014 Flat Section 850MHz Rear Facing Phantom With PHF SCN/46027JD0246027/015 Flat Section 850MHz Rear Facing Phantom With PHF Low SCN/46027JD0246027/016 Flat Section 850MHz Rear Facing Phantom With PHF High SCN/46027JD0246027/017 Left Hand Side Touch 850MHz SCN/46027JD0246027/018 Left Hand Side Tilt 850MHz SCN/46027JD0246027/019 Right Hand Side Touch 850MHz SCN/46027JD0246027/020 Right Hand Side Tilt 850MHz SCN/46027JD0246027/021 Left Hand Side Touch 850MHz Low SCN/46027JD0246027/022 Left Hand Side Touch 850MHz High SCN/VALIDATION_001 System Performance Check – D1900 28 04 04 SCN/VALIDATION_002 System Performance Check – D1900 29 04 04 SCN/VALIDATION_003 System Performance Check – D900 29 04 04 SCN/VALIDATION_004 System Performance Check – D900 30 04 04 Page 1 of 3 file://C:\Documents and Settings\Admini...\46027_JD02_Left_Hand_Side_Touch_1900MHz-1.ht28/04/2004 Date: 28/04/04 46027/02/001 Test Laboratory: RADIO FREQUENCY INVESTIGATION LTD. 46027_JD02_Left_Hand_Side_Touch_1900MHz DUT: Sendo ; Type: S601; Serial: 001031000051023 0 dB = 0.244mW/g Page 2 of 3 file://C:\Documents and Settings\Admini...\46027_JD02_Left_Hand_Side_Touch_1900MHz-1.ht28/04/2004 Page 3 of 3 file://C:\Documents and Settings\Admini...\46027_JD02_Left_Hand_Side_Touch_1900MHz-1.ht28/04/2004 Communication System: DCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900MHz Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.42 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(5, 5, 5); Calibrated: 29/07/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 19/05/2003 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Touch position - Middle/Area Scan 2 (71x141x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 13.8 V/m; Power Drift = -0.1 dB Maximum value of SAR (interpolated) = 0.238 mW/g Touch position - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.8 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.244 mW/g Peak SAR (extrapolated) = 0.314 W/kg SAR(1 g) = 0.225 mW/g; SAR(10 g) = 0.131 mW/g Page 1 of 5 file://C:\Documents and Settings\Administr...\46027_JD02_Left_Hand_Side_Tilt_1900MHz-1.ht28/04/2004 Date: 28/04/04 46027/02/002 Test Laboratory: RADIO FREQUENCY INVESTIGATION LTD. 46027_JD02_Left_Hand_Side_Tilt_1900MHz DUT: Sendo ; Type: S601; Serial: 001031000051023 0 dB = 0.131mW/g Page 2 of 5 file://C:\Documents and Settings\Administr...\46027_JD02_Left_Hand_Side_Tilt_1900MHz-1.ht28/04/2004 Page 3 of 5 file://C:\Documents and Settings\Administr...\46027_JD02_Left_Hand_Side_Tilt_1900MHz-1.ht28/04/2004 Page 4 of 5 file://C:\Documents and Settings\Administr...\46027_JD02_Left_Hand_Side_Tilt_1900MHz-1.ht28/04/2004 Communication System: DCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900MHz Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.42 mho/m; ε r = 38.4; ρ Page 5 of 5 file://C:\Documents and Settings\Administr...\46027_JD02_Left_Hand_Side_Tilt_1900MHz-1.ht28/04/2004 = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(5, 5, 5); Calibrated: 29/07/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 19/05/2003 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilt position - Middle/Area Scan (71x141x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 12.7 V/m; Power Drift = -0.1 dB Maximum value of SAR (interpolated) = 0.197 mW/g Tilt position - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.211 mW/g Peak SAR (extrapolated) = 0.280 W/kg SAR(1 g) = 0.193 mW/g; SAR(10 g) = 0.107 mW/g Tilt position - Middle/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.131 mW/g Peak SAR (extrapolated) = 0.219 W/kg SAR(1 g) = 0.117 mW/g; SAR(10 g) = 0.062 mW/g Page 1 of 3 file://C:\Documents and Settings\Admi...\46027_JD02_Right_Hand_Side_Touch_1900MHz-1.ht28/04/2004 Date: 28/04/04 46027/02/003 Test Laboratory: RADIO FREQUENCY INVESTIGATION LTD. 46027_JD02_Right_Hand_Side_Touch_1900MHz DUT: Sendo ; Type: S601; Serial: 001031000051023 0 dB = 0.243mW/g Page 2 of 3 file://C:\Documents and Settings\Admi...\46027_JD02_Right_Hand_Side_Touch_1900MHz-1.ht28/04/2004 Page 3 of 3 file://C:\Documents and Settings\Admi...\46027_JD02_Right_Hand_Side_Touch_1900MHz-1.ht28/04/2004 Communication System: DCS 1900; Frequency: 1879.8 MHz;…

Text truncated - open the document above for the full version.

Page 1 of 7 file://C:\Documen...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF-2.ht29/04/2004 Date: 29/04/04 46027/02/014 Test Laboratory: RADIO FREQUENCY INVESTIGATION LTD. 46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF DUT: Sendo ; Type: S601; Serial: 001031000051023 0 dB = 0.105mW/g Page 2 of 7 file://C:\Documen...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF-2.ht29/04/2004 Page 3 of 7 file://C:\Documen...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF-2.ht29/04/2004 Page 4 of 7 file://C:\Documen...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF-2.ht29/04/2004 Page 5 of 7 file://C:\Documen...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF-2.ht29/04/2004 Page 6 of 7 file://C:\Documen...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF-2.ht29/04/2004 Communication System: 850 MHz; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: 900MHz MSL Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.966 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.3, 6.3, 6.3); Calibrated: 29/07/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 19/05/2003 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Rear facing phantom, Middle/Area Scan (141x201x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 9.95 V/m; Power Drift = 0.2 dB Maximum value of SAR (interpolated) = 0.158 mW/g Rear facing phantom, Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.95 V/m; Power Drift = 0.2 dB Maximum value of SAR (measured) = 0.192 mW/g Peak SAR (extrapolated) = 0.373 W/kg SAR(1 g) = 0.163 mW/g; SAR(10 g) = 0.087 mW/g Rear facing phantom, Middle/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Page 7 of 7 file://C:\Documen...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF-2.ht29/04/2004 Reference Value = 9.95 V/m; Power Drift = 0.2 dB Maximum value of SAR (measured) = 0.159 mW/g Peak SAR (extrapolated) = 0.461 W/kg SAR(1 g) = 0.137 mW/g; SAR(10 g) = 0.071 mW/g Rear facing phantom, Middle/Zoom Scan (7x7x7)/Cube 2: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.95 V/m; Power Drift = 0.2 dB Maximum value of SAR (measured) = 0.105 mW/g Peak SAR (extrapolated) = 0.120 W/kg SAR(1 g) = 0.099 mW/g; SAR(10 g) = 0.073 mW/g Page 1 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_Low-1.ht30/04/2004 Date: 29/04/04 46027/02/015 Test Laboratory: RADIO FREQUENCY INVESTIGATION LTD. 46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_Low DUT: Sendo ; Type: S601; Serial: 001031000051023 0 dB = 0.161mW/g Page 2 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_Low-1.ht30/04/2004 Page 3 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_Low-1.ht30/04/2004 Page 4 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_Low-1.ht30/04/2004 Page 5 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_Low-1.ht30/04/2004 Page 6 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_Low-1.ht30/04/2004 Communication System: 850 MHz; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: 900MHz MSL Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.966 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(6.3, 6.3, 6.3); Calibrated: 29/07/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 19/05/2003 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Rear facing phantom, Low/Area Scan (141x201x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 10.9 V/m; Power Drift = -0.0 dB Maximum value of SAR (interpolated) = 0.200 mW/g Rear facing phantom, Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.9 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.212 mW/g Peak SAR (extrapolated) = 0.407 W/kg SAR(1 g) = 0.183 mW/g; SAR(10 g) = 0.100 mW/g Rear facing phantom, Low/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Page 7 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_Low-1.ht30/04/2004 Reference Value = 10.9 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.172 mW/g Peak SAR (extrapolated) = 0.505 W/kg SAR(1 g) = 0.146 mW/g; SAR(10 g) = 0.079 mW/g Rear facing phantom, Low/Zoom Scan (7x7x7)/Cube 2: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.9 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.161 mW/g Peak SAR (extrapolated) = 0.527 W/kg SAR(1 g) = 0.139 mW/g; SAR(10 g) = 0.075 mW/g Page 1 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_High-1.ht30/04/2004 Date: 29/04/04 46027/02/016 Test Laboratory: RADIO FREQUENCY INVESTIGATION LTD. 46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_High DUT: Sendo ; Type: S601; Serial: 001031000051023 0 dB = 0.101mW/g Page 2 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_High-1.ht30/04/2004 Page 3 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_High-1.ht30/04/2004 Page 4 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_High-1.ht30/04/2004 Page 5 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_High-1.ht30/04/2004 Page 6 of 7 file://C:\Do...\46027_JD02_Flat_Section_850MHz_Rear_Facing_Phantom_With_PHF_High-1.ht30/04/2004 Communication System: 850 MHz; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: 900MHz MSL Medium parameters used (interpolated): f = 848.…

Text truncated - open the document above for the full version.

RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 36 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) Appendix 3. Test Configuration Photograph This appendix contains photographs showing the test configuration for the measurement of Specific Absorption Rate (SAR) RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 37 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 38 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) Appendix 4. Calibration Data This appendix contains the calibration data and certificates. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 39 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank.

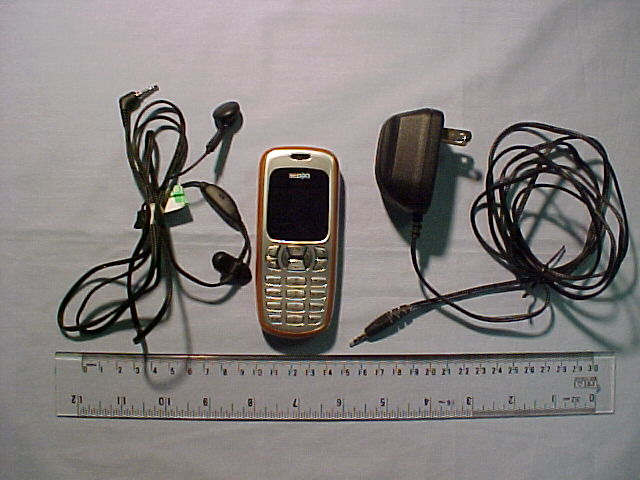

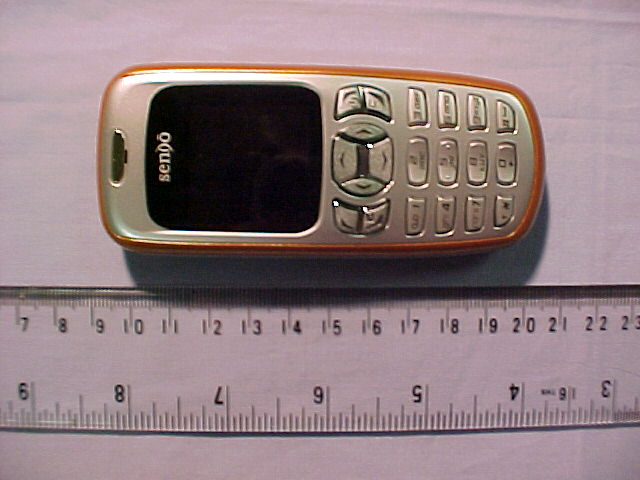

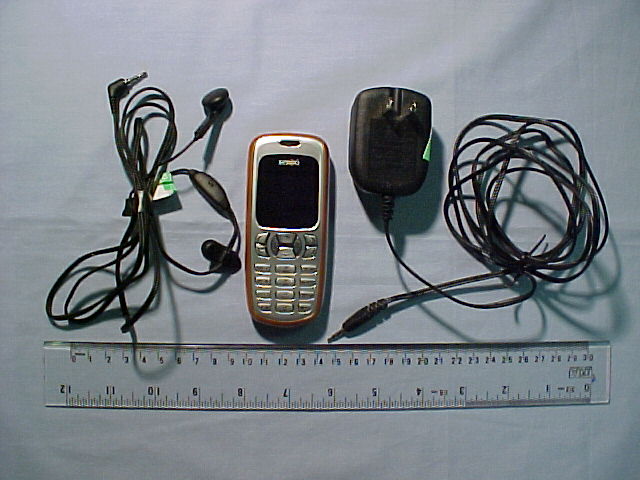

RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 40 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) Appendix 5 Photographs of EUT This appendix contains the following photographs: Photo Reference Number Title PHT/46027JD02/001 Close Up of Internal View of EUT PHT/46027JD02/002 Fluid Level 1900MHz Body PHT/46027JD02/003 Fluid Level 1900MHz Head PHT/46027JD02/004 Fluid Level 850MHz Body PHT/46027JD02/005 Fluid Level 850MHz Head PHT/46027JD02/006 Front Facing Phantom PHT/46027JD02/007 Front of EUT PHT/46027JD02/008 Front View of Battery 1 and Battery 2 PHT/46027JD02/009 General Bottom View of Set up With PHF PHT/46027JD02/010 General Top View of Set up With PHT PHT/46027JD02/011 Internal Rear View of EUT PHT/46027JD02/012 PHF PHT/46027JD02/013 Rear Facing Phantom With PHF Bottom View PHT/46027JD02/014 Rear Facing Phantom With PHF Top View PHT/46027JD02/015 Rear View of Battery 1 PHT/46027JD02/016 Rear View of Battery 2 PHT/46027JD02/017 Rear View of EUT PHT/46027JD02/018 Tilt Left PHT/46027JD02/019 Tilt Right PHT/46027JD02/020 Touch Left PHT/46027JD02/021 Touch Right RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 41 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) PHT/46027JD02/001 Close Up of Internal View of EUT RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 42 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) PHT/46027JD02/002 Fluid Level 1900MHz Body RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 43 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) PHT/46027JD02/003 Fluid Level 1900MHz Head RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 44 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) PHT/46027JD02/004 Fluid Level 850MHz Body RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 45 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) PHT/46027JD02/005 Fluid Level 850MHz Head RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 46 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfree Accessory To: OET Bulletin 65 Supplement C: (2001-01) PHT/46027JD02/006 Front Facing Phantom RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP46027JD02A Page 47 of 62 Issue Date: 07 July 2004 Test Of: Sendo Ltd. Sendo S601 with Personal Handsfre…
