P6PSNDX00Sendo X

Contents 1Introduction1 2Getting started2 3Getting to know your phone6 4Making and receiving calls11 5Sounds, photos, video, music14 6Sending and receiving messages17 7Safety Information20 8Regulatory Compliance and SAR Statements25 9End User Licence Agreement32 10Warranty Statements35 i Copyright and Legal Inform ation Copyright and Legal Information The wireless phone described in this guide is approved for use on the GSM and GPRS networks operating on the 900, 1800 (DCS/ PCN) and 1900 (PCS) bands. It is approved for use in the country where it was originally sold and may be approved for use in other countries. Part No. 8E30-0H010-80000, Edition 0.2 (Draft). Copyright © Sendo 2003. All rights reserved. SENDO is a trademark of Sendo International and/or its affiliates. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Sendo is prohibited. T9® Text Input is a registered trademark of Tegic Communications. All rights reserved. T9 Text input is licensed under one or more of the following U.S. Patents: 5,818,437, 5,953,541, 5,945,928, 6,011,554 and additional patents are pending worldwide. Complying with all applicable copyright laws is the responsibility of the user. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S and other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. This product includes software licensed from Symbian Ltd © 1998-2003. This product contains software licensed from Atelier. Copyright © 2003 Atelier, All rights reserved. Contains portions of Copyright © 2001 Symbian Ltd. This product contains software copyright © Beatnik, Inc. 1996-2002. Quick View Plus® for Symbian © 1999-2002 Stellent Chicago, Inc. All rights reserved. Portions of this User Manual have been authored in whole or in part by the following entities, and use of third party text is subject to the following: Contains portions of Copyright © 2001 Symbian Ltd. ii Copyright and Legal Information Disclaimer The information contained in this User Guide is written for the Sendo X phone. Sendo reserves the right to make changes and improvements to the products and any of the features of the products described in this document without prior notice THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. SENDO RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. UNDER NO CIRCUMSTANCES SHALL SENDO BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. Export Information This phone may be subject to export regulation of the United Kingdom and other countries. Diversion contrary to law is prohibited. You must comply with all applicable export laws, restrictions and regulations of the United Kingdom or foreign agencies or authorities, and shall not export, or transfer for the purpose of reexport, the phone or any part of the phone in violation of any applicable restrictions, laws or regulations, or without all necessary approvals. For Your Safety You should observe and follow the guidelines given in this manual for the safe and efficient use of your phone. Failure to comply with these guidelines and requirements may void your warranty and may invalidate any approvals given to the phone. Please see the Safety Information section of this manual before you use the phone. Approved Accessories Warning Use only batteries, chargers and accessories approved by Sendo for use with this phone model. The use of any other types may invalidate any warranty applying to the phone, and may be dangerous. For availability of approved accessories, please check with your dealer or visit www.sendo.com. When you disconnect the power cord of any accessory, grasp and pull the plug, not the cord. iii Copyright and Legal Inform ation FCC/Industry Canada Notice This phone may cause TV or radio interference (for example, when using the phone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using the phone if such interference cannot be eliminated. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Network Services A number of features included in this guide are called network services. They are services provided by wireless service providers. Before you can take advantage of any of these network services, you must subscribe to these service(s) from your home wireless service provider and obtain instructions for their use. Some of these network services may not be available when roaming on a network other than your home network. iv Copyright and Legal Information 1 1 Introduction 1 Introduction About this guide This guide is a general introduction to your phone and its key features, intended to get you using your new phone quickly. ζIMPORTANT: Read your User Guide before using your phone. This booklet is written as a supplement to the complete User Guide. Do not use this booklet in place of the complete manual, but as a quick introduction to your new phone. Your User Guide, provides important information on the safe and efficient operation of your phone, and your phone's maintenance. See the Where now? section below for details. About your phone You will have been supplied with the following: !Sendo X phone !Battery !Mains charger !Stereo headset !USB cable !Keyboard * !Cradle * !Carry case * * Note that your phone may have been supplied with these and other optional accessories. To get you start…

Text truncated - open the document above for the full version.

i Sendo X User Guide Table of Contents Copyright and Legal Information ................... ................................................................. iii Chapter 1 The Basics............................................................................................................ ........... 1 Chapter 2 Phone Calls ..... ................ ................ ................ ................. ............. ............. ........... ....... 27 Chapter 3 Settings and Profiles................................................................................................. ..... 42 Chapter 4 Contacts .............................................................................................................. ......... 55 Chapter 5 Messaging ............................................................................................................. ....... 62 Chapter 6 Now! Screen ........................................................................................................... ...... 79 Chapter 7 Calendar and Tasks ............................ ........................................................................ .. 83 Chapter 8 Camera ................................................................................................................ ........ 90 Chapter 9 Image Editor .......................................................................................................... ....... 95 Chapter 10 Camcorder ............................................................................................................ ..... 100 Chapter 11 MP3 Player ........................................................................................................... ...... 104 Chapter 12 RealOne™ Player ...................................................................................................... .. 108 Chapter 13 Internet and WAP............................. ........................................................................ ... 112 Chapter 14 Games ................................................................................................................ ....... 123 Chapter 15 Managing Applications ............................................................................................... 1 27 Chapter 16 Extras ............................................................................................................... .......... 133 ii Sendo X User Guide Table of Contents Chapter 17 Connectivity. ................. ................ ................ ................ ............. ............. ............. ....... 142 Chapter 18 Accessories .......................................................................................................... ....... 147 Chapter 19 Troubleshootin g............... ................ ................ ................. ............. ............. ............ .... 152 Safety Information ................. ..................................................................................... 158 Regulatory Compliance and SAR Statements.. .............................................................. 164 End User Licence Agreement ....................................................................................... 172Warranty Statements................................................................................................... 175Declaration of Conformity ........................................................................................... 181 iii Sendo X User Guide Copyright and Legal Information Copyright and Legal Information The wireless phone described in this guide is approved for use on the GSM and GPRS networks operating on the 900, 1800 (DCS/PCN) and 1900 (PCS) bands. It is approved for use in the country where it was originally sold and may be approved for use in other countries.Part No. 8E30-0H011-50000, Edition 0.1 (Draft). Copyright © Sendo 2003. All rights reserved.SENDO is a trademark of Sendo International and/or its affiliates. Reproduction , transfer, distribution or storage of part or all of th e contents in this document in any form without the prior written permission of Sendo is prohibited.T9® Text Input is a registered trademark of Tegic Communications. All rights re served. T9 Text input is licensed under one or more of the following U.S. Patents: 5,818,437, 5,953,541, 5,945,928, 6,011,554 and additional patents are pending worldwide. Complying with all applicable copyright laws is the responsibility of the user. Java and all Java-based trademarks and logos are trademarks or register ed trademarks of Sun Microsystems, Inc. in the U.S and other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners.This product includes so ftware licensed from Symbian Ltd © 1998-2003.This product contains softwa re licensed from Atelier. Copyright © 2003 Atelier, All rights reserved. Contains portions of Copyright © 2001 Symbian Ltd. This product contains soft ware copyright © Beatnik, Inc. 1996-2002.Quick View Plus® for Symbian © 1999-2002 Stellent Chicago, Inc. All rights reserved. Disclaimer The information contained in this User Guide is written for the Sendo model X phone. Sendo reserves the right to make changes and improvements to the products and any of the features of the products de scribed in this document without prior notice. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. SENDO RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. UNDER NO CIRCUMSTANCES SHALL SENDO BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. Copyright and Legal…

Text truncated - open the document above for the full version.

27 th February 2004 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: P6PSNDX00 It is requested that the following information is to be held confidential on behalf of Sendo International Ltd. FCC Rules Part 0.459 fers. 8J60-0H000-02060-SCH_1.pdf One File 13 (Thirteen) Pages 8J60-0H000-02060-ASY_1.pdf One File 2 (Two) Pages Huli 2.06G BOM.xls One File 1 (One) File SNDX00_Sendo X Block Diagram.doc One File 3 (Three) Pages Means for determining and stabilizing frequency.doc One File 3 (Three) Pages Detailed description of modulation system.doc One File 3 (Three) Pages SP10387.doc – Huli Antenna Test One File 6 (Six) Pages Specification SP11524.doc – Huli MMI Automatic One File 13 (Thirteen) Pages Test Specification The above files are confidential to Sendo. The above files give reference to the schematics, board layout and parts list of the product undergoing approval. Disclosure of this information could cause substantial competitive harm, due to the technical content of the files, as they explicitly detail the technical design of the product under approval. The above files are controlled internally by Sendo via appropriate document management procedures/control and are submitted in this instance, in confidence, for the purpose of obtaining product approval. None of the above files are available to the public in any way. The above material should remain confidential at all times. Yours sincerely Mike Roper Head of Validation & Approvals

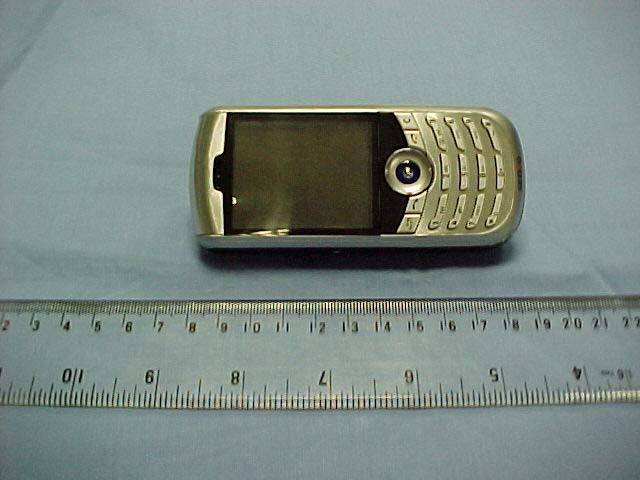

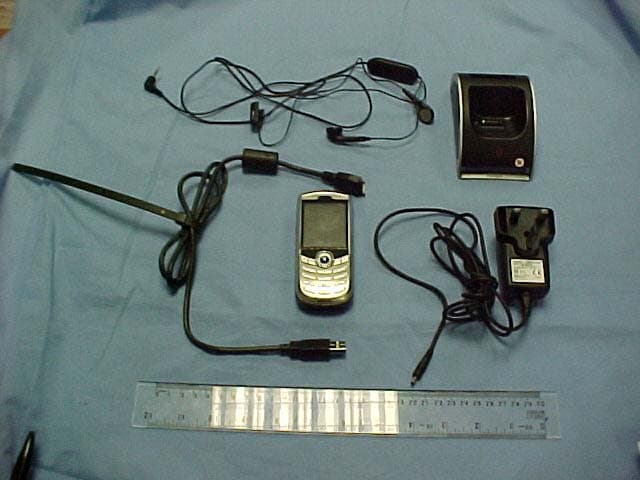

External Photos Front View Rear View Handset with Accessories

Internal Photo’s Front view cover off Rear view cover off # Internal view 1 Internal view 2 Internal view 3 Main board top, screening can top removed Main board bottom screening can top removed Main board bottom screening can completely removed Main board top screening can completely removed LCD display rear Rear case

Sendo Limited Reg No. 3718220 Reg Address Sendo Base Station, Hatchford Way, Sheldon, Birmingham, B26 3RZ Bluetooth Radio and Baseband Operation. Bluetooth operates using frequency hopping spread spectrum (FHSS) techniques with Gaussian frequency shift keying (GFSK) modulation. The parameters of these techniques are described in more detail, below. For more information please refer to the radio and baseband specification chapters of the Bluetooth core specification version 1.1 available at: https://www.bluetooth.org/spec/ Bluetooth Channel Definition. The Bluetooth channel is represented by a pseudo random hopping sequence, hopping through 79 RF channels. The hop sequence is unique for each piconet (a piconet is a group of Bluetooth enabled devices comprising 1 master and up to 7 slaves all sharing the same channel) and is determined by the Bluetooth address of the master, the phase in the hopping sequence is determined by the Bluetooth clock of the master device. The channel is divided into time slots where each time slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1600 hops per second. All Bluetooth enabled devices participating in the piconet are time and hop synchronized to the channel. Time Slots. The channel is divided into time slots, each 625 ms in length. The time slots are numbered according to the Bluetooth clock of the piconet master. The slot numbering ranges from 0 to 2 27 , and is cyclic with a cycle length of 2 27 . In the time slots both master and slave can transmit packets. A time division duplex scheme is employed where master and slave alternately transmit. The master shall start its transmission in even numbered time slots only, and the slave shall start its transmission in odd numbered time slots only. The packet start shall be aligned with the slot start. Packets transmitted by the master or the slave may extend over up to five time slots. The RF hop frequency shall remain fixed for the duration of the packet. For a single packet, the RF hop frequency top be used is derived from the current Bluetooth clock value. For a multi-slot packet, the RF hop frequency to be used for the entire packet is derived from the Bluetooth clock value, in the first slot of the packet. The RF hop frequency in the first slot after a multi-slot packet shall be use the frequency as Sendo Base Station Hatchford Way Birmingham B26 3RZ Tel: +44 121 251 5000 Fax: +44 121 251 5001 [email protected] www.sendo.com Sendo Limited Reg No. 3718220 Reg Address Sendo Base Station, Hatchford Way, Sheldon, Birmingham, B26 3RZ determined by the current Bluetooth clock value. If a packet occupies more than one time slot, the hop frequency applied shall be the hop frequency as applied in the time slot where the packet transmission was started. Modulation and Bit Rate. The data transmitted has a symbol rate of 1Ms/s. A Gaussian shaped, binary FSK modulation is applied with a BT product of 0.5. A binary 1 is represented by a positive frequency deviation, a binary 0 by a negative deviation. The maximum frequency deviation shall be between 140 kHz and 175 kHz. Modulation Characteristics. The modulation is GFSK with a BT = 0.5. The modulation index must be between 0.28 and0.35. The symbol timing shall be better than ± 20 ppm. For each transmit channel, the minimum frequency deviation (F min = the lesser of {F min +, F min -}) which corresponds to 1010 sequence shall be no smaller than ± 80 % of the frequency deviation (fd) which corresponds to a 00001111 sequence. In addition, the minimum deviation shall never be smaller than 115 kHz. The zero crossing error is the time difference between the ideal symbol period and the measured crossing time. This shall be less than ± 1/8 of a symbol period.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test of: Sendo Ltd. Sendo X Tri Band Mobile Handset (Body Measurements Only) To: OET Bulletin 65 Supplement C: (2001-01) Measurements were performed on the DASY4 System Test Report Serial No: RFI/SARB2/RP45077JD26A Supersedes Test Report Serial No: RFI/SARB1/RP45077JD21A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Joe Lomako Tested By: Richelieu Quoi Release Version No: PDF01 Issue Date: 15 March 2004 Test Dates: 07 January 2003 to 09 January 2004 It should be noted that the standard, OET Bulletin 65 Supplement C: (2001-01) is not listed on RFI’s current UKAS schedule and is therefore “not UKAS accredited”. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP45077JD26A Operations Department Page 2 of 56 Issue Date: 15 March 2004 Test Of: Sendo Ltd. Sendo X Tri Band Mobile Handset To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP45077JD26A Operations Department Page 3 of 56 Issue Date: 15 March 2004 Test Of: Sendo Ltd. Sendo X Tri Band Mobile Handset To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Client Information ............................................................................................................. 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods And Procedures................................................................ 8 4. Deviations From The Test Specification......................................................................... 9 5. Operation Of The EUT During Testing .......................................................................... 10 6. Summary Of Test Results .............................................................................................. 11 7. SAR Measurement System ............................................................................................ 15 8. SAR Safety Limits ...........................................................................................................16 9. Details of SAR Evaluation .............................................................................................. 17 10. Evaluation Procedures ................................................................................................. 18 11. System Validation ......................................................................................................... 19 12. Simulated Tissues ........................................................................................................ 20 13. Tissue Parameters ........................................................................................................ 21 14. DASY4 Systems Specifications................................................................................... 22 15. Validation results ..........................................................................................................23 16. Measurement Uncertainty ........................................................................................... 25 Appendix 1. Test Equipment Used.................................................................................... 27 Appendix 2. SAR Distribution Scans ................................................................................ 29 Appendix 3. Test Configuration Photographs ................................................................. 31 Appendix 4. Calibration Data ............................................................................................. 33 Appendix 5 Photographs of EUT ....................................................................................... 35 Test Report Serial No: RFI/SARB2/RP45077JD26A Supersedes Test Report Serial No: RFI/SARB1/RP45077JD21A RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP45077JD26A Operations Department Page 4 of 56 Issue Date: 15 March 2004 Test Of: Sendo Ltd. Sendo X Tri Band Mobile Handset To: OET Bulletin 65 Supplement C: (2001-01) 1. Client Information 1.1. Client Details Company Name: Sendo Ltd. Address: Hatchford Brook Hatchford Way Sheldon Birmingham B26 3QA United Kingdom Contact Name: Mr C Thornton 1.2. Test Laboratory Company Name: Radio Frequency Investigation Ltd. Address: Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ. Contact Name: Mr J Lomako RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB2/RP45077JD26A Operations Department Page 5 of 56 Issue Date: 15 March 2004 Test Of: Sendo Ltd. Sendo X Tri Band Mobile Handset To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name Sendo Model Name or Number Sendo X Unique Type Identification Number: SNDX00 FCC ID Number P6PSNDX00 IMEI Number 15151515151515151515151515158 (stated by client) Battery Serial Number 804A – 201C0 – 20000 Country Of Manufacture Czech Republic Date Of Receipt 07 January 2004 2.2. Modifications Incorporated In EUT The client has…

Text truncated - open the document above for the full version.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ CALIBRATION DATA FROM RADIO FREQUENCY INVESTIGATION LTD. Test of: Sendo Ltd. Sendo X Tri Band Mobile Handset (Body Measurements Only) To: OET Bulletin 65 Supplement C: (2001-01) Measurements were performed on the DASY4 System RADIO FREQUENCY INVESTIGATION LTD. Calibration Data S.No. RFI/SARB2/RP45077JD26A Operations Department Page 2 of 4 Issue Date: 15 March 2004 Test Of: Sendo Ltd. Sendo X Tri Band Mobile Handset To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. Calibration Data S.No. RFI/SARB2/RP45077JD26A Operations Department Page 3 of 4 Issue Date: 15 March 2004 Test Of: Sendo Ltd. Sendo X Tri Band Mobile Handset To: OET Bulletin 65 Supplement C: (2001-01) Calibration Data This appendix contains the calibration data and certificates. RADIO FREQUENCY INVESTIGATION LTD. Calibration Data S.No. RFI/SARB2/RP45077JD26A Operations Department Page 4 of 4 Issue Date: 15 March 2004 Test Of: Sendo Ltd. Sendo X Tri Band Mobile Handset To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ SAR DISTRIBUTION SCANS FROM RADIO FREQUENCY INVESTIGATION LTD. Test of: Sendo Ltd. Sendo X Tri Band Mobile Handset (Body Measurements Only) To: OET Bulletin 65 Supplement C: (2001-01) Measurements were performed on the DASY4 System RADIO FREQUENCY INVESTIGATION LTD. SAR Distribution Scans S.No. RFI/SARB2/RP45077JD26A Operations Department Page 2 of 4 Issue Date: 15 March 2004 Test Of: Sendo Ltd. Sendo X Tri Band Mobile Handset To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. SAR Distribution Scans S.No. RFI/SARB2/RP45077JD26A Operations Department Page 3 of 4 Issue Date: 15 March 2004 Test Of: Sendo Ltd. Sendo X Tri Band Mobile Handset To: OET Bulletin 65 Supplement C: (2001-01) SAR Distribution Scans This appendix contains SAR Distribution Scans. Plot Number Title 45077/JD26/001 Rear of Handset facing phantom 45077/JD26/002 Display of Handset facing phantom 45077/JD26/003 Handset in Case A with Rear of Handset facing phantom 45077/JD26/004 Handset in Case A with Display of Handset facing phantom 45077/JD26/005 Handset in Case A with PHF. Rear of Handset facing phantom 45077/JD26/006 Handset in Case A with PHF. Rear of Handset facing phantom 45077/JD26/007 Handset in Case A with PHF. Rear of Handset facing phantom 45077/JD26/008 Handset in Case B. Rear of Handset facing phantom 45077/JD26/009 Handset in Case B. Display of Handset facing phantom 45077/JD26/010 Handset in Case B with PHF. Rear of Handset facing phantom 45077/JD26/011 Handset in Case B. Rear of Handset facing phantom 45077/JD26/012 Handset in Case B. Rear of Handset facing phantom 45077/JD26/Validation 001 1800MHz Body Validation 07/01/04 45077/JD26/Validation 002 1800MHz Body Validation 08/01/04 RADIO FREQUENCY INVESTIGATION LTD. SAR Distribution Scans S.No. RFI/SARB2/RP45077JD26A Operations Department Page 4 of 4 Issue Date: 15 March 2004 Test Of: Sendo Ltd. Sendo X Tri Band Mobile Handset To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. Page 1 of 2 file://C:\Documents and Settings\Administrator\My Documents\45077_26_Flat_1900-2.htm07/01/2004 Date: 07/01/04 45077/JD26/001 Test Laboratory: RADIO FREQUENCY INVESTIGATION LTD. DUT: Sendo; Type: Huli; Serial: 15151515151515151515151515158 Communication System: DCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900MSL (σ = 1.4801 mho/m, ε r = 52.1966, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.7, 4.7, 4.7); Calibrated: 29/07/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 19/05/2003 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 116 0 dB = 0.413mW/g Page 2 of 2 file://C:\Documents and Settings\Administrator\My Documents\45077_26_Flat_1900-2.htm07/01/2004 Rear of Handset Facing Phantom (15mm Distance)/Area Scan (111x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 9.18 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.414 mW/g Rear of Handset Facing Phantom (15mm Distance)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.653 W/kg SAR(1 g) = 0.386 mW/g; SAR(10 g) = 0.227 mW/g Reference Value = 9.18 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.413 mW/g Page 1 of 2 file://C:\Documents and Settings\Administrator\My Documents\45077_26_Flat_1900-3.htm07/01/2004 Date: 07/01/04 45077/JD26/002 Test Laboratory: RADIO FREQUENCY INVESTIGATION LTD. DUT: Sendo; Type: Huli; Serial: 15151515151515151515151515158 Communication System: DCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900MSL (σ = 1.4801 mho/m, ε r = 52.1966, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1528; ConvF(4.7, 4.7, 4.7); Calibrated: 29/07/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 19/05/2003 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 116 0 dB = 0.126mW/g Page 2 of 2 file://C:\Documents and Settings\Administrator\My Documents\45077_26_Flat_1900-3.htm07/01/2004 Display of Handset Facing Phantom (15mm Distance)/Area Scan (111x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 6.91 V/m Power Drift = -0.03 dB Maximum value of SAR = 0.158 mW/g Display of Handset Facing Phantom (15mm Distance)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Pe…
