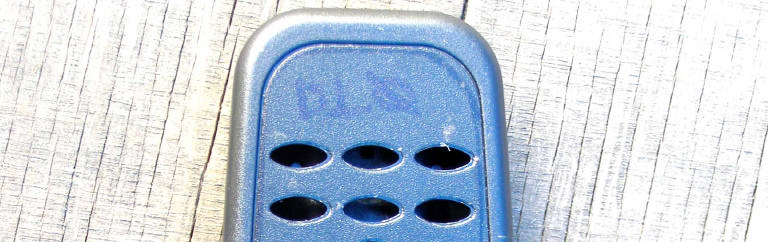

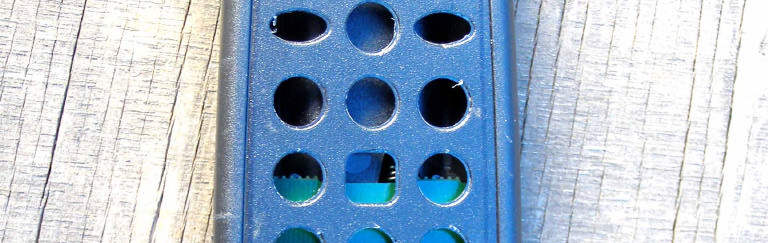

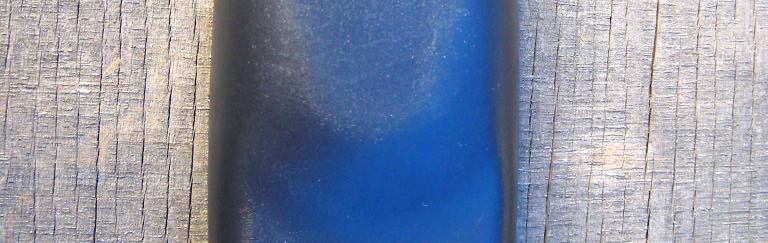

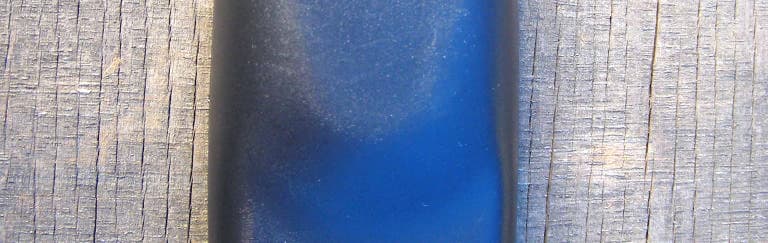

P7R433DT1Transmitter

January 26, 2006 Electronic Solutions, Inc. 11811 Upham St. Unit #2, Broomfield, CO 80020-2710 voice: 303-469-9322 fax: 303-469-5129 www.elec-solutions.com Electronic Solutions, Inc. DT1 Transmitter with RR24 connected to RP24 Operation & Installation Manual January 26, 2006 Specifications: DT1 Transmitter Power Supply Voltage 3V (2 AAA batteries) Frequency 433.92 MHz RR24 Receiver Power Supply Voltage 5V (provided via RP24 or RP60) January 26, 2006 Electronic Solutions, Inc. 11811 Upham St. Unit #2, Broomfield, CO 80020-2710 voice: 303-469-9322 fax: 303-469-5129 www.elec-solutions.com RR24 Installation Guide Connect the RR24 Radio Receiver to the RP24 as shown The RR24 unit must connect to an Eye Jack on a RP24 or splitter. If the eye connects to a splitter, then the Main jack next to it must connect to the Eye Jack on an RP24. For best reception, the RR24 should be mounted with the antenna pointing up, and it should not be placed on or near a metal surface. The RR24 unit can learn up to 5 different transmitters to work with. It ships from the factory with NO transmitters learned, you must train it in the field to work with your specific transmitters. Press and release the “Learn Transmitter” button on the RR24, the red LED will come on if 5 transmitters have not already been learned, the unit is now ready to learn another radio transmitter: Press stop on the radio transmitter, (buttons other than stop are ignored) The LED on the RR24 will go out, this transmitter is added to the list of known transmitters, the RR24 is now operating normally again. Note that if this transmitter is already known, this button will be ignored and the LED will remain lit. If no stop command is received within 10 seconds, the red LED will flash off, then on, and then go out. NO new transmitters were learned! (Note that if no transmitters are known at all, then the LED will turn back on immediately) If the red LED is on and the learn button is pressed and released, the red LED will turn off with no changes to the learned list. (Note that if no transmitters are known at all, then the LED will turn back on immediately) If no transmitters are known, (as shipped from factory) then the red LED will turn on as soon as the unit is plugged in. Note that the LED will flash every 10 seconds until a transmitter is learned. Pressing the learn button has no meaning while in this mode (the LED will turn off while the button is pushed). Press and hold the learn button for 5 seconds to clear all known transmitters, (the LED will blink on and off.) Release the button, the red LED will come on, and the unit is ready to learn the 1 st transmitter. January 26, 2006 Electronic Solutions, Inc. 11811 Upham St. Unit #2, Broomfield, CO 80020-2710 voice: 303-469-9322 fax: 303-469-5129 www.elec-solutions.com If you press and release the learn button and the LED does not come on, the list is “full” and no more transmitters can be learned. Note that in the learn mode (button is pressed or the LED is on), the receiver is not passing commands to the RP24 system. Once the transmitter is learned, and if the STOP button is still held, the stop command will be sent to the system. INSTRUCTION TO THE USER This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

FCCID:P7R433DT1 ThisdevicecomplieswithPart15 oftheFCCRules. Operationissubjecttothefollowing twoconditions: (1)Thisdevicemaynotcause harmfulinterferenceand (2)thisdevicemustacceptanyinterference received,includinginterferencethatmay causeundesiredoperation. ThisClassBdigitalapparatusmeetsall requirementsoftheCanadianInterference- CausingEquipmentRegulations. 0.9” LabeltextisArialNarrowFont Blacklettersonwhitebackground labelappliedtodepressiononbackofTransmitter

Report Number: B60215B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: DT1 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for REMOTE CONTROL MODEL: DT1 Prepared for ELECTRONIC SOLUTIONS, INC. 11811 UPHAM STREET, UNIT #2 BROOMFIELD, COLORADO 80020 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBRUARY 24, 2006 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 12 12 46 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B60215B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: DT1 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description Of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 15 8. CONCLUSIONS 16 Report Number: B60215B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: DT1 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of 3 Meter Radiated Test Site Report Number: B60215B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: DT1 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Remote Control Model: DT1 S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified during the testing. Manufacturer: Electronic Solutions, Inc. 11811 Upham Street, Unit #2 Broomfield, Colorado 80020 Test Dates: February 1 and 15, 2006 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209 and 15.231 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz – 4.4 GHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B60215B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: DT1 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Remote Control Model: DT1. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B60215B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: DT1 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Divi…

Text truncated - open the document above for the full version.

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 Unit dB  V P0 TDS SWT 76 ms Center 433.92 MHz7.6 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 1.44 dB -57.418838 ms D1 43.27 dB  V Date: 1.FEB.2006 11:20:38 First Pulse = 1 * 0.561122244 mS = Total Time: 0.561122244 mS # of Large Pulses = 14 * 1.042084 mS = Total Time: 14.589176 mS # of Small Pulses #1 = 15 * 0.480961924 mS = 7.21442886 mS # of Small Pulses #2 = 11 * 0.320641283 mS = 3.527054113 mS Total On Time: 25.89178122 uS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 Unit dB  VSWT 200 ms Center 433.92 MHz20 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 1.57 dB 94.829659 ms D1 43.27 dB  V Date: 1.FEB.2006 11:26:15 Total Duty Cycle = 25.89178122 mS / 94.829659 mS = 27.30% Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 Unit dB  VSWT 20 ms Center 433.92 MHz2 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 0.94 dB 561.122244  s D1 43.27 dB  V Date: 1.FEB.2006 10:58:43 Time of First Pulse = 561.122244 uS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 Unit dB  VSWT 20 ms Center 433.92 MHz2 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.54 dB 1.042084 ms D1 43.27 dB  V Date: 1.FEB.2006 10:59:10 Time of Large Pulse = 1.042084 mS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 Unit dB  VSWT 20 ms Center 433.92 MHz2 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 0.41 dB 480.961924  s D1 43.27 dB  V Date: 1.FEB.2006 10:59:34 Time of Small Pulse Version #1 = 480.961924 uS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 Unit dB  VSWT 20 ms Center 433.92 MHz2 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 2.49 dB -320.641283  s D1 43.27 dB  V Date: 1.FEB.2006 11:01:16 Time of Small Pulse #2 = 320.641283 uS
