P7RRFRQTRANSRemote Control

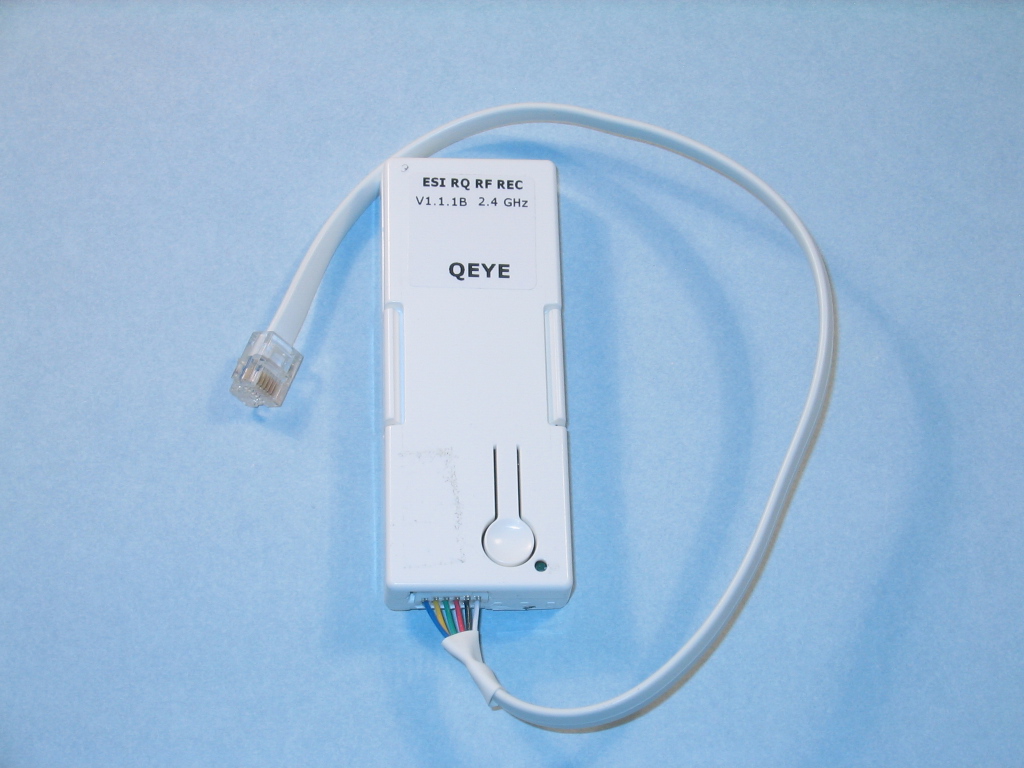

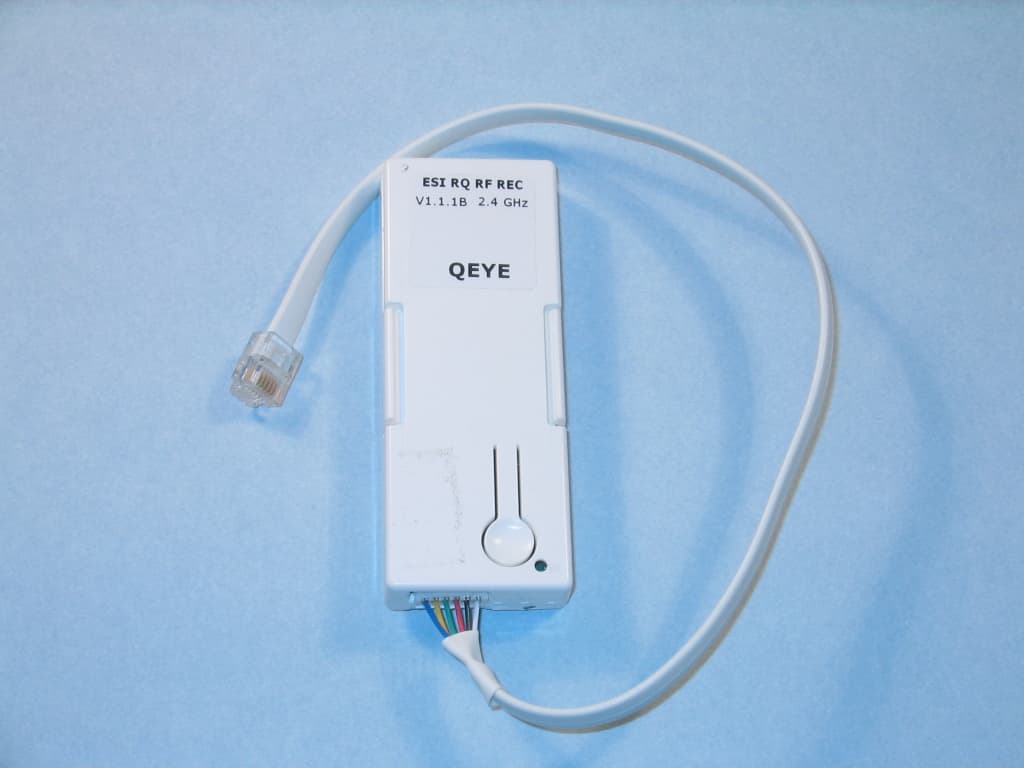

August 2012, rev 1 © 2012 Electronic Solutions, Inc. Page 1 of 2 ESI RF RQ Transceiver Install Guide - DRAFT Electronic Solutions, Inc. 1355 Horizon Avenue Lafayette, CO 80026 U.S.A. www.elec-solutions.com Tel: (303) 469-9322 Introduction The ESI RF RQ Transceiver allows RQ devices to be added to ESI RF networks. The ESI RF RQ Transceiver connects to the QEYE modular jack of AUM, DUM, EOS V2 and Forest Drapery track (TCS) RQ devices without adding an additional power supply. When the ESI RF RQ Transceiver is networked with a V2 SUITE remote, the attached RQ device will work in the following modes just like an ESI RF v2 motor:  Latch and Run fashion, the same as the initial production release of SUITE remote (v1).  Tilt Mode, replicating as much as possible the Tilt modes implemented in the RF Switch Interface. These two methods of operation will be implemented as separate sub-modes of operation of the remote while in User mode. The ESI RF RQ Transceiver is considered a V2 ESI RF device, meaning it can respond appropriately to SUITE V2 tilt commands and it can assign unique network groups to a SUITE V2 remote. NOTE: a SUITE v2 remote cannot be used to set upper and lower limits for RQ devices connected to an ESI RF RQ Transceiver. The upper and lower limits of all RQ devices must be set prior to connecting the ESI RF RQ Transceiver. The RQ devices must also be calibrated before connecting the ESI RF RQ Transceiver -- ONLY if you want to set a PRESET. COMMANDS Join a Network: Plug into QEYE port, goes into Network Search (NOTE: only if at factory default with no network information). Triple button press: A “reset” to defaults. Clears network information and enters into Network Search Mode. Single button press: “Identifies” the dongle (for the Link Mode functions used on a remote). Installation Steps 1. Set up and configure (limits and scenes) an ESI RF network of motor(s) and SUITE remote(s). 2. Join the ESI RF RQ Transceiver to the ESI RF network — plug into QEYE port on RQ device. 3. Test shade movement using buttons on the SUITE remote. Parts List Included:  ESI RF RQ Transceiver.  ESI RF Antenna (2.4 GHz) - onboard. Usage:  Interior use only. Top view ESI RF RQ Transceiver Installation Guide www.elec-solutions.com © 2012 Electronic Solutions, Inc. Page 2 of 2 SPECIFICATIONS Overall Dimensions: Length: 4.54 in. Width: 1.40 in. Thickness: 0.50 in. Electrical Communicates with ESI RF devices, version 1, and later. Power: external, 5V supplied by RQ device Frequency: 2.4 GHz Regulatory Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES-003. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: P7RRFRQTRANS IC: 7206A-RFRQTRANS Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage.

1076 Deer Clover Way • Castle Rock, Colorado 80108 USA • Phone 303 663 3396 • Fax 303 663 5545 e-mail: [email protected] The information in this document is private and company confidential "your compliance solution" Request for Confidentiality Date: July 6, 2012 Subject: Confidentiality Request for: ______FCC ID: P7RRFRQTRANS, IC 7206A- RFRQTRANS______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term x Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term x Permanent Operation Description/Theory of Operation Short Term x Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term x Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______Electronic Solutions , Inc._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___0__ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 1076 Deer Clover Way • Castle Rock, Colorado 80108 USA • Phone 303 663 3396 • Fax 303 663 5545 e-mail: [email protected] The information in this document is private and company confidential information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: J Douglas Barnes / Agent (Signature/Title 2 ) (Print name) 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a mobile device which is wall mounted. 2. Measurement Result: This is a mobile device and the max peak output power is 0.00212 mW/cm ² which is well below the 1.0 limit. Lower that low threshold 60/f GHz mW (24.19 mW), d<2.5 cm general population category. The SAR measurement is not necessary as it used more than 20 cm from any person.

P.O. Box 489 1350 Tolland Road Rollinsville, CO 80474 Phone: (303) 258-0100 FAX: (303) 258-0775 www.criteriontech.com CONFIDENTIAL AND PROPRIETARY EMC QUALIFICATION TEST REPORT ELECTRONIC SOLUTIONS, INC. A HUNTER DOUGLAS COMPANY DONGLE, ESI RF RQ TRANS FCC ID# P7RRFRQTRANS TESTED TO CONFORM WITH: EMISSIONS STANDARDS FOR INDUSTRIAL, SCIENTIFIC AND MEDICAL (ISM) Test Report Number: 120805-1791FCC Date of Test Completion: September 10, 2012 Manufacturer’s Address: 1355 Horizon Ave Lafayette, CO 80026 Phone: (303) 469-9322 DOCUMENT REVISION HISTORY REVISION # REPORT NUMBER DESCRIPTION OF REVISION DATE OF REVISION 0 120805-1791FCC ORIGINAL REPORT 2012-10-19 1 120805-1791FCC ADDED ADDITIONAL TEST DATA INFO 2012-11-16 2 120805-1791FCC ADDED ADDITIONAL TEST DATA INFO 2012-12-21 3 120805-1791FCC UPDATED TEST DATA CALCULATIONS 2013-1-28 4 120805-1791FCC NOTE ADDED 2013-2-1 Approved by: Laboratory Director Sheet 2 of 46 EMC QUALIFICATION TEST REPORT CRITERION TECHNOLOGY 120805-1791FCC FOR ELECTRONIC SOLUTIONS, INC. CONFIDENTIAL AND PROPRIETARY DISCLAIMERS This report is the confidential property of the client. For the protection of our clients and ourselves, extracts from this test report cannot be produced without prior written approval from Criterion Technology. Reproduction of the complete report can be performed at the client’s discretion. The client is aware that Criterion Technology has performed testing in accordance with the applicable standard(s). Test data is accurate within ANSI parameters for Emissions testing, unless a specific level of accuracy has been defined in writing prior to testing, by Criterion Technology and the client. Criterion Technology reports apply only to the specific Equipment Under Test (EUT) sample(s) tested under the test conditions described in this report. If the manufacturer intends to use this report as a document demonstrating compliance of this model, additional models of this product must have electrical and mechanical characteristics identical to the device tested for this report. Criterion Technology shall have no liability for any deductions, inferences, or generalizations drawn by the client or others from Criterion Technology issued reports. Total liability is limited to the amount invoiced for the testing of this EUT and the contents of this report are not warranted. Compliance with the appropriate governmental standards is the responsibility of the manufacturer. Any questions regarding this report should be directed to: Laboratory Director Criterion Technology Corp. P.O. Box 489 1350 Tolland Road Rollinsville, Colorado 80474 Phone: (303) 258-0100 Fax: (303) 258-0775 mailto:[email protected] NVLAP Note: Criterion Technology is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP) for the specific scope of accreditation under Lab Code 100396-0. This report may contain data which is not covered by the NVLAP accreditation. This report must not be used by the client to claim product endorsement by NIST or any agency of the Federal Government. Criterion Technology has been accredited by the following groups: NVLAP (#100396-0) FCC (#90688) BSMI (#SL2-IN-007R) VCCI (1255) member number (A-0102) registration number Nemko (#ELA-214) NMi (EU Competent Body Accreditation) Industry Canada (#IC 3301A-1). The National Institute for Standards and Technology (NIST) has designated Criterion Technology a Conformity Assessment Body (CAB) for Taiwan (BSMI # SL2-IN-E-007R) and Korea (US0026). All Criterion Technology instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 9002, ISO 17025, ANSI/NCSL Z540-I-1994 and are traceable to national standards. CRITERION TECHNOLOGY EMC QUALIFICATION TEST REPORT Sheet 3 of 46 120805-1791FCC FOR ELECTRONIC SOLUTIONS, INC. CONFIDENTIAL AND PROPRIETARY TABLE OF CONTENTS 1.0 EXECUTIVE SUMMARY...................................................................................................................................................... 4 1.1 PURPOSE .............................................................................................................................................................................. 4 1.2 CONFORMITY ..................................................................................................................................................................... 4 1.3 EQUIPMENT UNDER TEST (EUT) .................................................................................................................................... 4 2.0 EMISSIONS TEST STANDARDS ......................................................................................................................................... 5 2.1 UNINTENTIONAL RADIATED EMISSIONS – 30 MHZ TO 1000 MHZ ......................................................................... 5 2.2 RECEIVER SPURIOUS & UNINTENTIONAL RADIATED EMISSIONS - 30 MHZ TO 1000 MHZ .............................6 2.3 TRANSMITTER SPURIOUS & UNINTENTIONAL RADIATED EMISSIONS - 30 MHZ TO 1000 MHZ.................... 7 2.4 UNINTENTIONAL RADIATED EMISSIONS – 1 GHZ TO 12.5 GHZ ............................................................................. 8 2.5 INTENTIONAL RADIATOR – RADIATED EMISSIONS ................................................................................................. 9 2.6 BANDEDGE ........................................................................................................................................................................ 10 2.7 FREQUENCY LIMITS........................................................................................................................................................ 11 2.8 POWER SPECTRAL DENSITY......................................................................................................................................... 12 2.9 CONDUCTED EMISSIONS ................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Electronic Solutions, Inc A Hunter Douglas Company Test Report Number: 120508-1791 EUT NAME(S): Dongle EUT MODEL NUMBER(S): ESI RF RQ TRANS Unintentional Radiated emissions
