P7RRFSWTINTRFCRemote Control

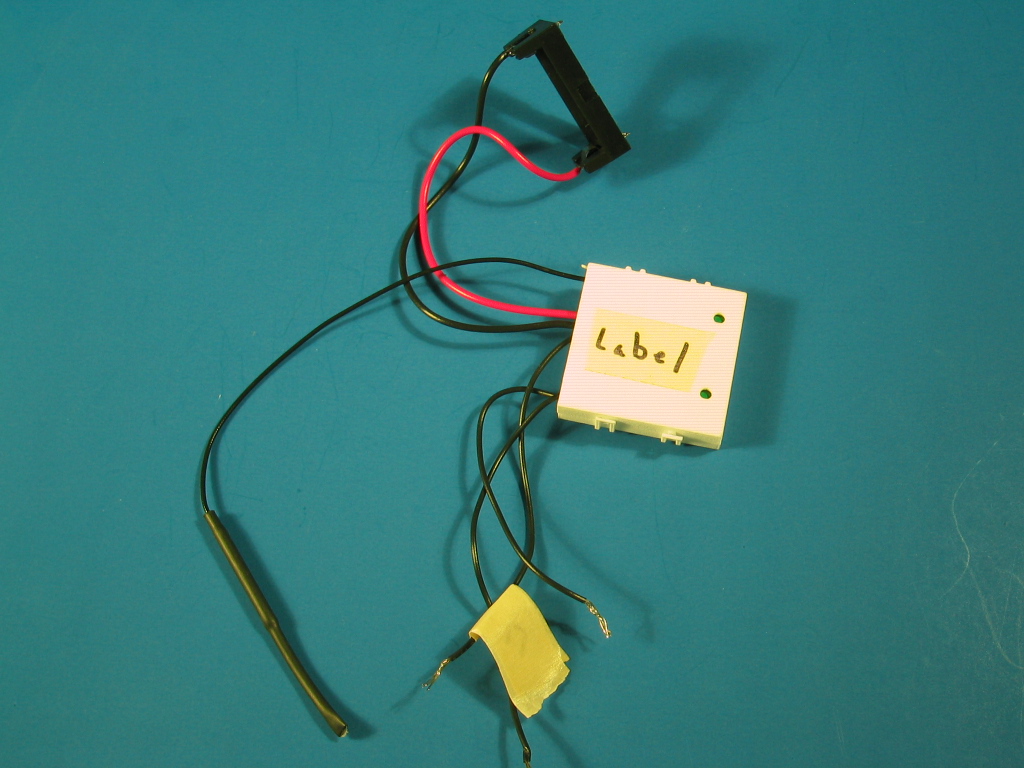

July 2012, rev 1 © 2012 Electronic Solutions, Inc. Page 1 of 10 RF Switch Interface Installation Guide Electronic Solutions, Inc. 1355 Horizon Avenue Lafayette, CO 80026 U.S.A. www.elec-solutions.com Tel: (303) 469-9322 Introduction The RF Switch Interface connects to any dry contact device and communicates with all ESI RF controllable devices. Dry contact devices — wall switch, timer, motion sensor, or other — allow local control of ESI RF devices such as a window shade motor network. Up to four dry contact devices can be connected to the RF Switch Interface. Overview of Installation Steps 1. Set up and configure (limits and scenes) an ESI RF network of motor(s) and remote(s). 2. Install the dry contact device, such as a wall switch. 3. Connect dry contact wires from the wall switch to the RF Switch Interface. DO NOT connect the battery yet. 4. Change DIP Switch settings on the RF Switch Interface, if needed. 5. Install battery into the RF Switch Interface. 6. Join the RF Switch Interface to the ESI RF network. 7. Test shade movement using buttons on the wall switch. 8. Mount the RF Switch Interface inside the wall, preferably inside a plastic junction box. WARNING: Always use a plastic junction box. Metal junction boxes will greatly reduce the RF signal. WARNING: Drill a hole in the bottom of the junction box, to let the RF antenna hang free. DO NOT roll up the RF antenna and place it inside the junction box. The RF signal will be reduced or lost. Parts List Included:  RF Switch Interface.  Battery holder with one CR123A lithium battery.  ESI RF Antenna (2.4 GHz). Not Included:  Wire. Requires 20-26 AWG solid conductor wire for connection to dry contact device, such as a wall switch.  Screwdriver. With 2mm flat blade to release wires from terminal block. Usage:  Interior use only.  Fits into most standard junction boxes.  Dry contact wires are attached mechanically from the RF Switch Interface to a dry contact device such as a wall switch. Top view (with RF antenna) Back view (with battery; antenna not shown) RF Switch Interface, v1.0 Installation Guide www.elec-solutions.com © 2012 Electronic Solutions, Inc. Page 2 of 10 Description Side View Top View LED (light emitting diode) A single red/green LED provides visual feedback for startup blinks, network invite, and network reset actions. Network button Pushbutton switch used to join the RF Switch Interface to an existing ESI RF network, or used to reset network information on the RF Switch Interface. Dry contact terminals - Groups Open and Close contacts to control up to four groups of ESI RF devices. Dry contact terminals - Power DC - and DC + contacts connected to the battery. DIP Switches Used to configure different modes of operation. Spring Loaded Terminals WIRE: Use 20-26 AWG solid conductor wire. Insert wire: ―Push-in‖ wire connection to the terminal for tool-free install. Release wire: Insert 2mm bladed screwdriver into slot (no levering). Wall Switches MOMENTARY SWITCHES Use momentary switches ONLY. Must have a Center Off position. MAINTAINED SWITCHES Not supported. Do not use maintained switches. RF Switch Interface, v1.0 Installation Guide www.elec-solutions.com © 2012 Electronic Solutions, Inc. Page 3 of 10 Installation — Starting Conditions 1. All ESI RF devices must be installed, networked, and configured (limits, scenes, and so on) prior to adding the RF Switch Interface into the system. Examples of ESI RF devices commonly used would be a SUITE remote and M40RF or M50RF motors used for window shades. To set up an ESI RF network with remotes and motors, see the instructions on any one of the following product pages on the ESI website — SUITE Arc, SUITE Step, M40RF, or M50RF. Instructions: M40/50RF System Quick Setup Guide Website: http://elec-solutions.com/ 2. RF Switch Interface — NOT powered up. Step 1 — Verify ESI RF Network Exists Verify that an ESI RF network of remotes(s) and motor(s) is already set up and configured with limits and scenes. Step 2 — Install Wall Switch Install the dry contact device, such as a wall switch. Step 3 — Connect Wires Connect dry contact wires (20-26 AWG solid conductor) from the wall switch to the RF Switch Interface.  Insert wires. ―Push-in‖ connection. Push the bare end of the wire into the terminal block.  Release wires. Use a 2mm bladed screwdriver. Push screwdriver straight into slot, no levering.  Hook up switches in Group # order. If you have one switch, you must hook it up to Group #1. If you have two switches, you must use Group #1 and #2, and so on.  DO NOT connect the battery to the RF Switch Interface yet.  Wiring Diagram — SPST Momentary switch SPST Momentary switch — Garage door switch Up to four switches. If a single Pushbutton switch is used for Group # control, it must be wired to the Close terminal for that #. RF Switch Interface, v1.0 Installation Guide www.elec-solutions.com © 2012 Electronic Solutions, Inc. Page 4 of 10  Wiring Diagram — SPDT Momentary switch (SPCO) SPDT Momentary switch (SPCO) — Rocker switch with Center Off position Up to four switches. Repeat the wiring configuration shown, for switches attached to Group #2, #3, and #4. Step 4 — Set DIP Switches Change the DIP Switch settings on the RF Switch Interface, if needed. IMPORTANT: The RF Switch Interface reads the DIP Switch settings ONLY at power up — after you install the battery. If you change DIP Switch settings after the RF Switch Interface is powered up, the change will not take place until the battery is removed, then re-installed. Determine the operational mode needed for the RF Switch Interface, then adjust the DIP Switches accordingly. Operational Modes Mode Description DIP Switch setting Default (as shipped) Required Switch Type = SPST Momentary (individual momentary buttons for Open and Close) Motor moves to limit when an Open or Close button is pressed and released. Motor stops if both Open and Close buttons are pressed simultaneously and motor was not at a limit. SOBR (stop o…
