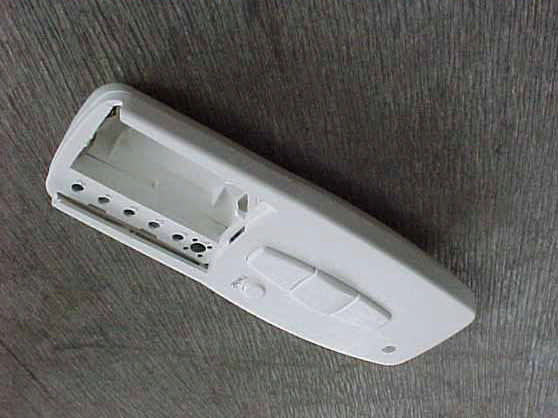

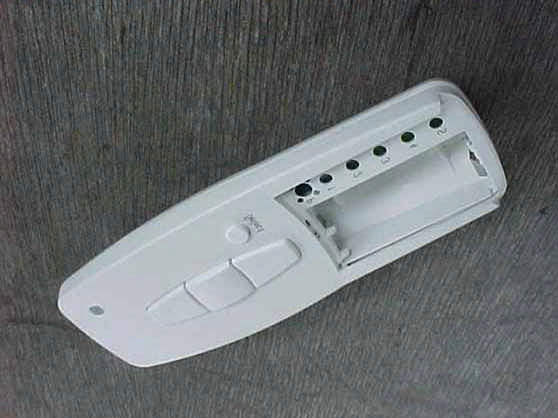

P7R433ETTransmitter

April 27, 2005 Electronic Solutions, Inc. 11811 Upham St. Unit #2, Broomfield, CO 80020-2710 voice: 303-469-9322 fax: 303-469-5129 www.elec-solutions.com Electronic Solutions, Inc. 93.640.5405 Transmitter with RR24 connected to RP24 Operation & Installation Manual April 27, 2005 Specifications: 93.640.5405 Transmitter Power Supply Voltage 3V (2 AAA batteries) Frequency 433.92 MHz RR24 Receiver Power Supply Voltage 5V (provided via RP24) April 27, 2005 Electronic Solutions, Inc. 11811 Upham St. Unit #2, Broomfield, CO 80020-2710 voice: 303-469-9322 fax: 303-469-5129 www.elec-solutions.com RR24 Installation Guide Connect the RR24 Radio Receiver to the RP24 as shown The RR24 unit must connect to an Eye Jack on a RP24 or splitter. If the eye connects to a splitter, then the Main jack next to it must connect to the Eye Jack on an RP24. For best reception, the RR24 should be mounted with the antenna pointing up, and it should not be placed on or near a metal surface. The RR24 unit can learn up to 5 different transmitters to work with. It ships from the factory with NO transmitters learned, you must train it in the field to work with your specific transmitters. Press and release the “Learn Transmitter” button on the RR24, the red LED will come on if 5 transmitters have not already been learned, the unit is now ready to learn another radio transmitter: Press stop on the radio transmitter, (buttons other than stop are ignored) The LED on the RR24 will go out, this transmitter is added to the list of known transmitters, the RR24 is now operating normally again. Note that if this transmitter is already known, this button will be ignored and the LED will remain lit. If no stop command is received within 10 seconds, the red LED will flash off, then on, and then go out. NO new transmitters were learned! (Note that if no transmitters are known at all, then the LED will turn back on immediately) If the red LED is on and the learn button is pressed and released, the red LED will turn off with no changes to the learned list. (Note that if no transmitters are known at all, then the LED will turn back on immediately) If no transmitters are known, (as shipped from factory) then the red LED will turn on as soon as the unit is plugged in. Note that the LED will flash every 10 seconds until a transmitter is learned. Pressing the learn button has no meaning while in this mode (the LED will turn off while the button is pushed). Press and hold the learn button for 5 seconds to clear all known transmitters, (the LED will blink on and off.) Release the button, the red LED will come on, and the unit is ready to learn the 1 st transmitter. April 27, 2005 Electronic Solutions, Inc. 11811 Upham St. Unit #2, Broomfield, CO 80020-2710 voice: 303-469-9322 fax: 303-469-5129 www.elec-solutions.com If you press and release the learn button and the LED does not come on, the list is “full” and no more transmitters can be learned. Note that in the learn mode (button is pressed or the LED is on), the receiver is not passing commands to the RP24 system. Once the transmitter is learned, and if the STOP button is still held, the stop command will be sent to the system. INSTRUCTION TO THE USER This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 July 16, 2004 CETCB 114 Olinda Drive Brea, CA 92823 Subject: Request for withholding from public disclosure of Electronic Solutions, Inc. documents. Gentlemen: As appointed agent for Electronic Solutions, Inc., 11811 Upham Street, Unit #2, Broomfield, Colorado 80020-2710 we would like to request that the Block Diagrams, Schematics, and Expository Statement submitted with the application for certification be withheld from public disclosure as per Section 0.459 of the FCC Rules. This request is made under the provisions of Section 0.457 (d) of the FCC Rules and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize a withholding from public inspection materials, which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at (714) 579-0500. Regards, Kyle Fujimoto Test Engineer

Scott McCutchan From: Scott McCutchan [[email protected]] Sent: Friday, May 20, 2005 11:49 AM To: '[email protected]' Cc: '[email protected]' Subject: FCC ID: P7R433ET Page 1 of 1 5/20/2005 Mr. Fujimoto: In order for processing of this application (FCC ID: P7R433ET) to continue, the following issue(s) will have to be addressed: 1) Please submit a diagram showing the location of the FCC label. Please note that the FCC label can not be placed on the battery compartment. 2) The block diagram submitted is not sufficient. The schematics show a 13.56 MHz oscillator which is not included on the block diagram.. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload responses and/or exhibits to the electronic filing website. Your correspondence number is P7R433ET- 1. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Fax (714) 579-1850 [email protected] Correspondence by Project Project Number: 1115328125 Correspondence Number Memo P7R433ET-1 1) Please submit a diagram showing the location of the FCC label. Please note that the FCC label can not be placed on the battery compartment. Response: Please see the photos for label location. Also a letter will state how the location complies with the "readily visible" requirements for the FCC-ID label location as determined by when it is purchased by the user. 2) The block diagram submitted is not sufficient. The schematics show a 13.56 MHz oscillator which is not included on the block diagram.. Response: The new block diagram has been uploaded.

Label is 1” (25.4mm) by .5” (12.7mm)

11811 Upham St. Unit #2, Broomfield, CO 80020-2710 303-469-9322 fax 303-469-5129 June 7, 2005 To Whom it May Concern: The remote control transmitter we are about to produce (model number 93.640.5405) with FCCID: P7R433ET will be sold with either the battery cover removed or with the clear cover installed so the consumer can see the label with the FCCID. Gary Skinner

Report Number: B50415D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: 93.640.5405 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 17 FCC PART 15, SUBPART B and C TEST REPORT for TRANSMITTER MODEL: 93.640.5405 Prepared for ELECTRONIC SOLUTIONS, INC. 11811 UPHAM STREET, UNIT #2 BROOMFIELD, COLORADO 80020 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: APRIL 27, 2005 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 12 11 46 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B50415D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: 93.640.5405 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 5.3 EMI Test Equipment Continued 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. TEST PROCEDURES 14 7.1 Radiated Emissions (Spurious and Harmonics) Test 14 7.2 Radiated Emissions (Spurious and Harmonics) Test (continued) 15 7.3 Bandwidth of the Fundamental 16 8. CONCLUSIONS 17 Report Number: B50415D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: 93.640.5405 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Test Site Report Number: B50415D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: 93.640.5405 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 17 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Transmitter Model: 93.640.5405 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Electronic Solutions, Inc. 11811 Upham Street, Unit #2 Broomfield, Colorado 80020 Test Dates: April 13 and 15, 2005 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4: 2003 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT operates on batteries only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4400 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. 3 -20 dB Bandwidth of the Fundamental Complies with the limits of Subpart C, sections 15.231 [c]. Report Number: B50415D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: 93.640.5405 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Transmitter Model: 93.640.5405. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 2003. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B50415D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transmitter Model: 93.640.5405 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 17 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Electronic Solutions, Inc. Gary Skinner President Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Benigno Chavez Test Engineer Michael Christensen Lab Manager 2.4 Date Test Sample was Received The test sample was received prior to its quali…

Text truncated - open the document above for the full version.

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 20 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 SWT 5 ms Center 433.92 MHz500  s/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 3.08 dB -410.821643  s D1 54 dB  V Date: 22.APR.2005 11:41:12 Time of one Small Pulse = 410.821643 uS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 20 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 SWT 5 ms Center 433.92 MHz500  s/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.42 dB 931.863727  s D1 54 dB  V Date: 22.APR.2005 11:41:48 Time of One Large Pulse = 931.863727 uS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 20 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 SWT 60 ms Center 433.92 MHz6 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.89 dB 55.190381 ms D1 54 dB  V Date: 22.APR.2005 11:39:09 19 Small Pulses and 22 Large Pulses per Pulse Train Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 20 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 SWT 200 ms Center 433.92 MHz20 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -1.46 dB 91.382766 ms D1 54 dB  V Date: 22.APR.2005 11:43:49 19 Small Pulses * 0.410821643 mS = 7.805611217 mS 22 Large Pulses * 0.931863727 mS = 20.501001994 mS Total On Time = 28.306613211 mS Duty Cycle = 28.306613211 mS / 91.382766 mS = 30.98 %
