P7RRFTM433Remote Control

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 July 16, 2004 CETCB 114 Olinda Drive Brea, CA 92823 Subject: Request for withholding from public disclosure of Electronic Solutions, Inc. documents. Gentlemen: As appointed agent for Electronic Solutions, Inc., 11811 Upham Street, Unit #2, Broomfield, Colorado 80020-2710 we would like to request that the Block Diagrams, Schematics, and Expository Statement submitted with the application for certification be withheld from public disclosure as per Section 0.459 of the FCC Rules. This request is made under the provisions of Section 0.457 (d) of the FCC Rules and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize a withholding from public inspection materials, which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at (714) 579-0500. Regards, Kyle Fujimoto Test Engineer

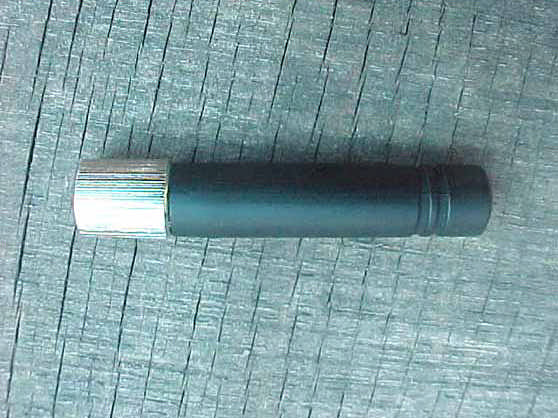

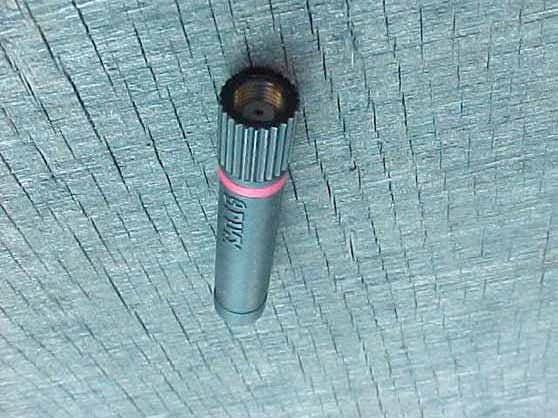

ZONEREVDESCRIPTIONDATE APPROVED LINX TECHNOLOGIES 575 S.E. Ashley, Pl. Grants Pass, OR 97526 PHONE: 541-471-6256 FAX: 541-471-6251 www.linxtechnologies.com SIZE A FSCM NO.DWG NO. DESIGN: DRAWING: Chris APPROVED: SERIES NUMBER STATUS: DRAFT/APPROVED DATE: 5/15/98 PAT H PART NUMBER SHEET SCALE Covers Part #s 2.03" (52) Ø0.30" (7.8) 0.50" (13) 6.94" (178) - 418 MHz 6.75" (173) - 433 MHz 868 MHz 1 3.13" (80) - 916 MHz End View 0.18" (4.5) 0.57" (14.5) 0.25" (6.4) RPSMA 315 MHz = ANT-315-CW-QW 418 MHz = ANT-418-CW-QW 433 MHz = ANT-433-CW-QW Threads common to ground CONNECTORIZED 1/4-WAVE WHIP ANTENNAS CH1 S 11 SWR1 / REF 1 SPAN = 650 MHz 1 MARKER 1 hp 1: 1.0363 Marker 1 = Specified Frequency 1 -5.3926 Ω 70.607 pF CH1 S 11 1: 51.189 Ω SPAN = 50 MHz Marker 1 = Specified Center Frequency

Report Number: B40714B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Remote Control Model Number: K24A-PRF+RFTM 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for REMOTE CONTROL MODEL NUMBER: K24A-PRF+RFTM Prepared for ELECTRONIC SOLUTIONS, INC. 11811 UPHAM STREET, UNIT #2 BROOMFIELD, COLORADO 80020-2710 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JULY 15, 2004 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 12 8 42 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B40714B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Remote Control Model Number: K24A-PRF+RFTM 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 15 8. CONCLUSIONS 16 Report Number: B40714B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Remote Control Model Number: K24A-PRF+RFTM 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Test Site Report Number: B40714B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Remote Control Model Number: K24A-PRF+RFTM 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Remote Control Model Number: K24A-PRF+RFTM S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: Electronic Solutions, Inc. 11811 Upham Street, Unit #2 Broomfield, Colorado 80020-2710 Test Date: July 14, 2004 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT operates on DC power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4340 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B40714B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Remote Control Model Number: K24A-PRF+RFTM 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Remote Control Model Number: K24A-PRF+RFTM. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B40714B1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Remote Control Model Number: K24A-PRF+RFTM 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Electronic Solutions, Inc. Gary F. Skinner President Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Benigno Chavez Test Technician Michael Christensen Sr. Test Engineer 2.4 Date Test Sample was Received The test sample was received prior to its qualification testing on July 13, 2004. 2.5 Disposition of the Test Sample The test s…

Text truncated - open the document above for the full version.

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 30 dB A I2D Unit dB  V P20 SWT 10 ms Center 433.92 MHz1 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 2.39 dB -460.921844  s Date: 14.JUL.2004 09:26:14 Time of One Small Pulse = 460.921822 uS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 30 dB A I2D Unit dB  V P20 SWT 10 ms Center 433.92 MHz1 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.64 dB -941.883768  s Date: 14.JUL.2004 09:26:54 Time of One Big Pulse = 921.883768 uS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 30 dB A I2D Unit dB  VSWT 100 ms Center 433.92 MHz10 ms/ P20 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.63 dB 72.945892 ms Date: 14.JUL.2004 09:28:05 Total time of Pulse with Blanking Interval = 72.945892 mS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 30 dB A I2D Unit dB  VSWT 60 ms Center 433.92 MHz6 ms/ P20 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 Date: 14.JUL.2004 09:29:21 16 Small Pulses X 460.921844 uS = 7.374749504 mS 24 Large Pulses X 941.883768 uS = 22.60521043 mS Total Pulse Time = 29.97995993 mS Total Duty Cycle = 29.97995993 ms / 72.945892 ms = 41.098901 % Duty Cycle Peak to Average Correction Factor = 20 Log (0.41098901) = -7.723395824 dB
