P87-ETR0005TFT LCD TV MONITOR

OPERATING INSTRUCTIONS TL - 1700W 17.1 inch WIDESCREEN TFT - LCD TV 2 Introduction READ THIS BEFORE OPERATING YOUR UNIT : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION WARNING This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Units shipped to the U.S.A and Canada are designed for operation on 120 V AC only. Safety precaution with use of a polarized AC plug. However, some products may be supplied with a nonpolarized plug. FOR YOUR SAFETY U.S.A CANADA 120 V Note to CATV System Installer : This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as pracitcal. FCC INFORMATION : To prevent electric shock, match wide blade of plug to wide slot, fully insert. : Pour éviter chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’ au fond. CAUTION ATTENTION NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFCATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3 1. Read Instructions- All the safety and operating instructions should be read before the product is operated. 2. Retain instructions- The safety and operating instructions should be retained for future reference. 3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to. 4. Follow Insturctions- All operating and use instuctions should be followed. 5. Cleaning- Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6. Attachments- Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7. Water and Moisture- Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement, or near a swimming pool; and the like. 8. Accessories- Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s insturctions, and should use a mounting accessory recommended by the manufacturer. 9. A product and cart combinaion should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 10. Ventilation- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s intructions have been adhered to. 11. Power Sources- This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For porducts intended to operate from battery power, or other sources, refer to the operating instructions. 12. Grounding or Polarization- This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replae your obsolete outlet. Do not defeat the safety purpose of the polarized plug. Alternate Warnings - This product is equipped with a three-wire grounding-type plug, a plug having a third(grounding) pin. This plug wil…

Text truncated - open the document above for the full version.

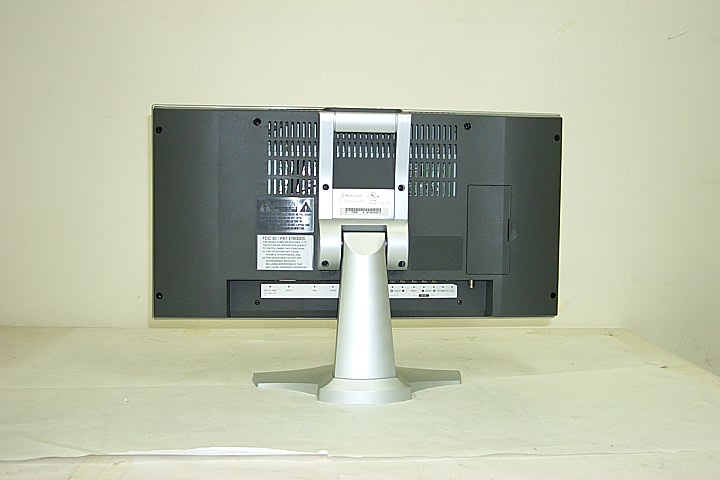

ITN Test Lab. a Devision of ETRONICS Corporation. 1 / 1 External Photographs of EUT < Front View > < Rear View >

ITN Test Lab. a Devision of ETRONICS Corporation. 1 / 1 FCC ID Sample Label & Location Information Labelling Requirements ∫∫∫∫ 2.928 The Label shown shall permanently affixed at a conspicuous location On the device and be readily visible to the user at the time of purchase. This device complies with part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may nay not cause harmful interference, and (2) this device must accept any interference receiver, including interference that may cause undesired operation.

ITN Test Lab. a Devision of ETRONICS Corporation. 1 / 1 FCC ID Label Sample

ITN Test Lab. a Devision of ETRONICS Corporation. 1 / 7 Internal photographs of EUT < Internal View – With Main Board Cover > < Internal View - Without Main Board Cover > ITN Test Lab. a Devision of ETRONICS Corporation. 2 / 7 Photographs of Printed Wiring Boards < Main Board – Top View > < Main Board – Bottom View > ITN Test Lab. a Devision of ETRONICS Corporation. 3 / 7 < LCD Panel Board – Top View > < LCD Panel Board – Bottom View > ITN Test Lab. a Devision of ETRONICS Corporation. 4 / 7 < Inverter Board – Top View > < Inverter Board – Bottom View > ITN Test Lab. a Devision of ETRONICS Corporation. 5 / 7 < Tuner Board – Top View > < Tuner Board – Bottom View > ITN Test Lab. a Devision of ETRONICS Corporation. 6 / 7 < Button Board – Top View > < Button Board – Bottom View > ITN Test Lab. a Devision of ETRONICS Corporation. 7 / 7 < IR Board – Top View > < IR Board – Bottom View >

ITN Test Lab. a Devision of ETRONICS Corporation. 1 / 13 Certificate of compliance Test report No.: ITN-2003-087 Applicant : Etronics Corporation. Applicant Address : 345-50, Gasan-Dong, Geumcheon-Gu, Seoul, Korea, 153-802 Product : LCD Color TV/Monitor FCC ID : P87-ETR0005 Model NO.: TL-1700W Receipt NO.: N/A Date of receipt October 06, 2004 Date of Issue : October 06, 2004 Testing Iocatlon : Etronics Corporation. 461, Tokjeong-Ri, Changan-Myun, Hwaseong-city, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2001 Rule Parts : FCC Part 15 Subpart B Equipment Class : Class B Device Peripheral Test Result : The above mentioned preduct has been tested and passed. Prepared by : H.N.Choi Tested by : S.S.Oh / Engineer Approved By : J.W.Cho / Lab. Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : OK, Passed · Fall = falled · N/A = not applicable ☞ ＊ This test report is not permitted to copy partly without our permission. ＊ This test result Is dependent on only equipment to be used. ＊ This test result is based on single evaluation of one sample of the above mentioned. ＊ We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. ITN Test Lab. a Devision of ETRONICS Corporation. 2 / 13 contents Contents 2 List of Tables 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Data 4 2.4 Test Environment 4 3. Descrioption of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted documents 5 4. Measurement conditions 6 4.1 Modes of operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. Emission Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 10 ¾ List of Tables Table 1 List of test and measurement equioment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data,Radiated Emissions 13 ITN Test Lab. a Devision of ETRONICS Corporation. 3 / 13 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by Etronics Corp. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Etronics Corporation. 2.1 Location 461, Tokjeong-Ri, Changan-Myun, Hwaseong-city, Kyunggi-do, Korea, 445-944 The test site is in compliance with ANSI C63.4/2001 for measurement of radio Interference. ITN Test Lab. a Devision of ETRONICS Corporation. 4 / 13 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equlpment ·Conducted Emissions Kind of Equipment Type S/N Calibrated until EMI Reciver ESS 841432/010 08.2004 Two Line V-Network ESH3-Z5 894785/013 08.2004 Conducted Cable N/A N/A 09.2004 ·Radiated Emissions Kind of Equipment Type S/N Calibrated until EMI Reciver ESS 841432/010 08.2004 Spectrum Analyzer 8568B 3019A05457 08.2004 Amplifier 8447F 3113A04584 08.2004 Log Periodic Antenna UHALP9107 9107846 04.2004 Biconical Antenna BBA9106 91039103 04.2004 Open Site Cable N/A N/A 01.2004 Antenna Mast EMRT2014 N/A N/A Antenna & Turntable controller EMAT2015 N/A N/A 2.3 Test Date Date of Application : Setember 09, 2004 Date of Test : Setember 10, 2004 ∼ October 04, 2004 2.4 Test Environment See each test item’s description ITN Test Lab. a Devision of ETRONICS Corporation. 5 / 13 3. Description of the tested samples The EUT is TFT LCD TV With MONITOR 3.1 Rating and Physical Characteristics Panel Display size : 17.1”(434.38 mm, diagonal) Panel Actual Display size : 372.48(H) X 223.488(V) mm Panel Pixel size : 0.291 X 0.291 mm Panel Viewing Angle : 88 / 88 / 88 / 88 (L/R/U/D) Frequency Horizontal : 30 – 64 KHz Frequency Vertical : 50 – 85 KHz Frequency Display Color : 16.777.216 colors Display Resolution Optimum Mode : 1280 X 768 @ 60 Display Resolution Maximum Mode : 1280 X 1024 @ 60 Input Signal Sync. : H/V Separate, TTL, SOG (Sync On Green) Video Color system : NTSC Video Ins Antenna : 75Ohms unbalance, F-Type Video Ins Composite : CVBS Video Ins S-Video : S-VHS Video Ins Component (1/2) : Y/Pb/Pr, (480i/480p) Video Ins VGS : Analog R/G/B Video Ins DVI-D : Digital R/G/B Audio Ins/Out Audio Ins : RCA Jack, Red(R)/White(L), 0.3Vrms Audio Ins/Out PC Audio In : Stereo mini jack, 0.3Vrms Audio Ins/Out Headphone Out : Stereo mini jack, 10mV Output Audio Amplfier : Max. 4.2W output Power Supply Input : AC 100-240 V, 1.8-0.9 A (50/60 Hz) Power Supply Output : DC 14V / 4.5A Power Maximum : 63 W Consumption Power Saving : < 10 W Dimensions Weight : Unit (WXDXH) : TV body : 22.06 X 2.6 X 11.43 inch / 15.44 lbs (560 X 66 X 290 mm / 7 Kg) Stand : 20.06 X 7.87 X 14.8 inch / 24.26 lbs (560 X 200 X 376 mm / 11 Kg) Environmental Considerations Operating Temperature : 32 ̊F to 122 ̊F (0 ̊C to 50 ̊C) Environmental Considerations Operating Humidity : 10% to 90% Environmental Considerations Storge Temperature : -4 ̊F to 140 ̊F (-20 ̊C to 60 ̊C) Environmental Considerations Storge Humidity : 10% to 90% ITN Test Lab. a Devision of ETRONICS Corporation. 6 / 13 3.2 Submitted Documents N/A 4. Measurement Conditions The operating voltage of EUT is supplied by a TFT LCD TV With MONITOR 4.1 Modes of Operation The EUT was in the follwing operation mode during all testing; The measurement was conducted under “H” Pattern Display of MNT and PC operating 4.2 List of Peripherals Descrlption Manufacturer Model Name Serial No. FCC ID Personal Computer SAMSUNG MA10 A32192DT400609 N/A Keyboard SAMSUNG SEM-DT35 3V002032 N/A Mouse Logitech M-S48a HCA20912082 JNZ201213 ITN Test Lab. a Devision of ETRONICS Corporation. 7 / 13 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark PC power cable 2.0m Non-Shield None Video interfacd cab…

Text truncated - open the document above for the full version.

ITN Test Lab. a Devision of ETRONICS Corporation. 1 / 2 Test set up photos Photograph 1 : Setup for Conducted Emissions ITN Test Lab. a Devision of ETRONICS Corporation. 2 / 2 Photograph 2 : Setup for Radiated Emissions
