PAGRC-001Receiver

MODEL RC-002 INDOOR REMOTE CONTROLLER FCC ID : XXXRC-001 FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. SPECIFICATIONS Frequency --- 315MHz Transmitter Power Input --- DC 12V Battery Receiver Power Input --- AC 125V Electrical Outlet Receiver Power Output --- 15 Amps / 125 Volts / 1875 Watts INSTALLATION 1. Plug the receiver into electrical outlet. Then plug device cord into the receptacle at bottom of the receiver. 2. Install battery into the transmitter. OPERATION 1. Press ON button on the transmitter to turn the receiver ON. 2. Press OFF button on the transmitter to turn the receiver OFF.

MODEL RC-002 INDOOR REMOTE CONTROLLER FCC ID : XXXRC-001 FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. SPECIFICATIONS Frequency --- 315MHz Transmitter Power Input --- DC 12V Battery Receiver Power Input --- AC 125V Electrical Outlet Receiver Power Output --- 15 Amps / 125 Volts / 1875 Watts INSTALLATION 1. Plug the receiver into electrical outlet. Then plug device cord into the receptacle at bottom of the receiver. 2. Install battery into the transmitter. OPERATION 1. Press ON button on the transmitter to turn the receiver ON. 2. Press OFF button on the transmitter to turn the receiver OFF.

MODEL RC-002 INDOOR REMOTE CONTROLLER FCC ID : XXXRC-001 FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. SPECIFICATIONS Frequency --- 315MHz Transmitter Power Input --- DC 12V Battery Receiver Power Input --- AC 125V Electrical Outlet Receiver Power Output --- 15 Amps / 125 Volts / 1875 Watts INSTALLATION 1. Plug the receiver into electrical outlet. Then plug device cord into the receptacle at bottom of the receiver. 2. Install battery into the transmitter. OPERATION 1. Press ON button on the transmitter to turn the receiver ON. 2. Press OFF button on the transmitter to turn the receiver OFF.

FCC ID : XXXRC-001 DECODER Receiver ANTENA AMPLIFIER RESONATOR CIRCUIT 315MHz LOW TREQUENCY AMPLIFIER POWER INPUT POWER OUTPUT LOAD

FCC ID : XXXRC-001 DECODER Receiver ANTENA AMPLIFIER RESONATOR CIRCUIT 315MHz LOW TREQUENCY AMPLIFIER POWER INPUT POWER OUTPUT LOAD

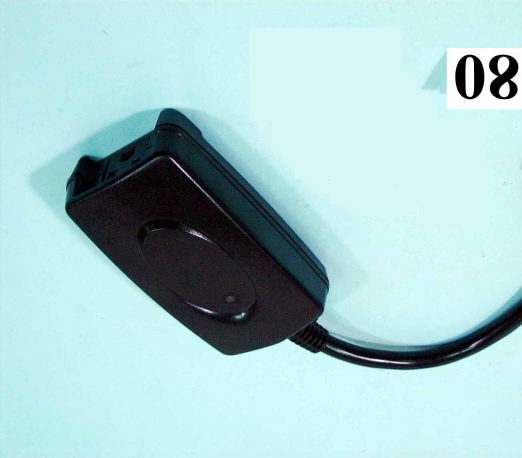

FCC ID : XXXRC-001 FRONT SIDE OF EUT 080210-01.jpg FCC ID : XXXRC-001 REAR SIDE OF EUT

FCC ID LOCATION

*Note: Where “XXX” = “PAG”

FCC ID : XXXRC-001 Mechanical Construction 080210-03.jpg FCC ID : XXXRC-001 Front side of main board 080210-04.jpg FCC ID : XXXRC-001 Rear side of main board 080210-05.jpg

FCC TEST REPORT Report No. : F080210 SPORTON International Inc. FCC ID: XXXRC-001 TEL : 886-2-2696-2468Page No.: 1 of 26 FAX : 886-2-2696-2255Issued Date : Aug. 24, 2000 FCC TEST REPORT for 47 CFR, Part 15, Subpart B Class B Equipment: RECEIVER Model No.: RC-001, RC-002 FCC ID: PAGRC-001 Filing Type: Original Grant Applicant: KAB ENTERPRISE CO., LTD. 21-1 Fl., No. 33, Sec. 1, Min Sheng Rd., Panchiao City, Taipei Hsien, Taiwan, 220 R.O.C. ! The test result refers exclusively to the test presented test model / sample. ! Without the written authorization of the test lab., the Test Report may not be copied. ! Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F080210 SPORTON International Inc. FCC ID: XXXRC-001 TEL : 886-2-2696-2468Page No.: 2 of 26 FAX : 886-2-2696-2255Issued Date : Aug. 24, 2000 Table of Contents CERTIFICATE OF COMPLIANCE.............................................................................................................. 3 1. General Description of Equipment under Test..................................................................................... 4 1.1. Applicant.............................................................................................................................................................................................................. 4 1.2. Manufacturer....................................................................................................................................................................................................... 4 1.3. Basic Description of Equipment under Test................................................................................................................................................... 4 1.4. Feature of Equipment under Test.................................................................................................................................................................... 4 2. Test Configuration of Equipment under Test....................................................................................... 5 2.1. Test Manner........................................................................................................................................................................................................ 5 2.2. Description of Test System............................................................................................................................................................................... 5 2.3. Connection Diagram of Test System.............................................................................................................................................................. 6 3. Test Software....................................................................................................................................... 7 4. General Information of Test................................................................................................................. 8 4.1. Test Facility......................................................................................................................................................................................................... 8 4.2. Standard for Methods of Measurement.......................................................................................................................................................... 8 4.3. Test in Compliance with.................................................................................................................................................................................... 8 4.4. Frequency Range Investigated........................................................................................................................................................................ 8 4.5. Test Distance...................................................................................................................................................................................................... 8 5. Test of Conducted Powerline............................................................................................................... 9 5.1. Major Measuring Instruments........................................................................................................................................................................... 9 5.2. Test Procedures...............................................................................................................................................................................................10 5.3. Typical Test Setup Layout of Conducted Powerline...................................................................................................................................11 5.4. Test Result of AC Powerline Conducted Emission.....................................................................................................................................12 5.5. Photographs of Conducted Powerline Test Configuration.........................................................................................................................13 6. Test of Radiated Emission.................................................................................................................. 16 6.1. Major Measuring Instruments.........................................................................................................................................................................18 6.2. Test Procedures...............................................................................................................................................................................................19 6.3. Typical Test Setup Lay…

Text truncated - open the document above for the full version.

1.1. Photographs of Radiated Emission Test Configuration ! Tested Model : RC-002 ! The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW ! Tested Model : RC-001 ! The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
