EN 1 Important safety instructions This manual contains important information about the Philips remote controlled outlets. Read it carefully before you star t the installation and setup. Warning •Do not operate your remote controlled outlets near water. •Do not operate your remote controlled outlets if liquid of any kind is spilled onto or inside the unit. •Do not disassemble or repair. •Do not expose your remote controlled outlets to direct sunlight or place it near wall heaters, space heaters, or enclosed space prone to temperature increase. •The Philips remote controlled outlets require a properly grounded outlet for safety and to protect the connected equipment. If you are not sure whether your home’s electrical wiring has proper grounding, consult a qualified electrician. Caution •Risk of electrical shock! Not for use outdoors or in other wet or damp areas, with aquariums, in hazardous environments requiring failsafe performance (such as nuclear facilities or aircraft), or for medical or life suppor t equipment. Notice for USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to par t 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Relocate the receiving antenna. • Increase the separation between equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Recycling SPS6010A/17 EspañolEnglish Register your product and get support at www.philips.com/welcome © 2012 Koninklijke Philips Electronics N.V. All rights reserved. SPS6010A_UM_17_V1.0 Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health. The packaging of this product is intended to be recycled. Contact your local authorities for information about how to recycle the packaging. 2 Your remote controlled outlets Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Overview a c b d e g f h i a Button A • Turn on/off the outlet of Receiver A. b Button B • Turn on/off the outlet of Receiver B. c Button C • Turn on/off the outlet of Receiver C. d Button ALL ON • Turn on all the outlets of all receivers. e Button ALL OFF • Turn off all the outlets of all receivers. f Remote control g Receiver A h Receiver B i Receiver C 3 Get started Note •To avoid any potential hazard, use the power source supplied by your local authorities. There are three receivers and one remote control. You can control up to three receivers with the remote control. 1 Plug the receivers into a properly grounded outlet. 2 Plug your devices into the AC outlet of receivers. Install/Replace remote control battery Caution •Risk of explosion! Keep the battery away from heat, sunshine or fire. Never discard the battery in fire. •Risk of product damage! When the remote control is not used for long periods, remove the battery. For first-time use: Remove the protective tab to activate the remote control batter y. To replace remote control battery: 1 Open the battery compartment. 2 Inser t one A23 battery with correct polarity (+/-) as indicated. 3 Close the battery compar tment. Control your devices The plugged devices can be turned on or off easily by the remote control. You can control each plugged device individually or control all the plugged devices at the same time. Note •The remote controlled range (open field) is up to 40 feet. •The output rating of each receiver is 125V/13A. • Press button A to turn on/off the outlet of Receiver A. • Press button B to turn on/off the outlet of Receiver B. • Press button C to turn on/off the outlet of Receiver C. • Press button ALL ON/ALL OFF to turn on/off all the outlets of the three receivers at the same time. Tip •If you want to purchase more than one unit, make sure that they have two different frequencies (1 and 2) as indicated by stickers on the back side of packaging. You can also find the stickers in the battery compar tment of remote control and on the surface close to mains plug of the receivers. The remote control of this unit operates on either Channel 1 or Channel 2 frequency. 4 One Year Limited Warranty (USA only) Philips warrants that this product shall be free from defects in material, workmanship and assembly, under normal use, in accordance with the specifications and warnings, for a period of one year from the date of purchase. This warranty extends only to the original purchaser of the product, and are not transferable. To exercise your rights under this warranty, you must provide proof of purchase in the form of an original sales receipt that shows the product name and the date of purchase. For customer suppor t or to obtain warranty service, please visit our website www.philips.com/support. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. Philips’ liability is limited to repair or, at its sole option, replacement of the product. Incident…
Text truncated - open the document above for the full version.

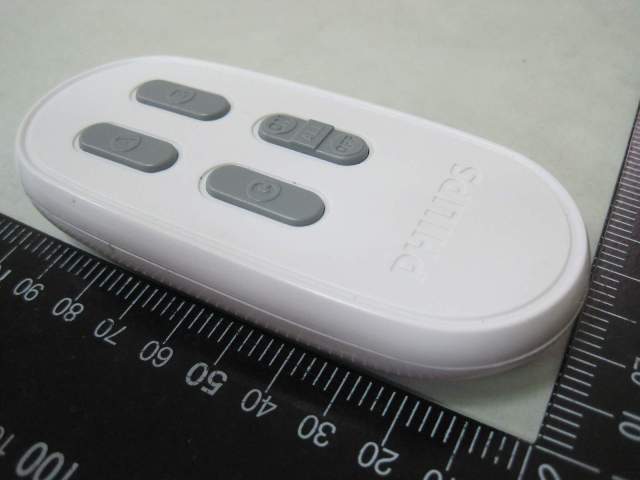

Report No.: 210507 SPORTON International Inc. PAGE NUMBER : 1 OF 1 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 05, 2012 FAX : 886-2-2696-2255 Photographs of EUT
Report No.: 210507 SPORTON International Inc. PAGE NUMBER : 1 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 05, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 210507 SPORTON International Inc. PAGE NUMBER : 2 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 05, 2012 FAX : 886-2-2696-2255 Report No.: 210507 SPORTON International Inc. PAGE NUMBER : 3 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 05, 2012 FAX : 886-2-2696-2255
SPORTON International Inc. Report Format Version: a FFCC TEST REPORT Report No. : FR210507 FCC RADIO TEST REPORT according to 47 CFR Part 15.231 Equipment : Remote Control Model No. : SPS6010A FCC ID : PAGSPS6010A Filing Type : New Application Applicant Manufacturer : KAB Enterprise Co., Ltd. Verdant Electronics(Dong Guan) Co., Ltd. Received Date : Jan. 05, 2012 Final Test Date : Mar. 01, 2012 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL: 886-2-2696-2468 Issued Date: Mar. 05, 2012 FAX: 886-2-2696-2255 FFCC TEST REPORT Report No. : FR210507 Table of Contents 1. SUMMARY OF THE TEST RESULT .......................................................................................................................2 2. GENERAL INFORMATION......................................................................................................................................3 2.1 Product Details...................................................................................................................................................................................3 2.2 Table for Test Modes..........................................................................................................................................................................3 2.3 Table for Testing Locations.................................................................................................................................................................3 2.4 Table for Supporting Units..................................................................................................................................................................3 2.5 Test Configurations.............................................................................................................................................................................4 3. TEST RESULT .........................................................................................................................................................5 3.1 Duty Factor Measurement...................................................................................................................................................................5 3.2 Field Strength of Fundamental Emissions Measurement.....................................................................................................................6 3.3 20dB Spectrum Bandwidth Measurement...........................................................................................................................................9 3.4 Deactivating Time.............................................................................................................................................................................11 3.5 Radiated Emissions Measurement....................................................................................................................................................14 3.6 Antenna Requirements.....................................................................................................................................................................25 4. LIST OF MEASURING EQUIPMENTS ..................................................................................................................26 5. TEST LOCATION...................................................................................................................................................27 6. TAF CERTIFICATE OF ACCREDITATION ...........................................................................................................28 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A4 SPORTON International Inc. Page No. : ii of ii TEL: 886-2-2696-2468 Issued Date: Mar. 05, 2012 FAX: 886-2-2696-2255 FFCC TEST REPORT Report No. : FR210507 History of This Test Report Original Issue Date: Mar. 05, 2012 Report No.: FR210507 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description 2.7 2.8 3.4.2(4.1) 3.4.2(4.2) SPORTON International Inc. Page No. : 1 of 28 TEL: 886-2-2696-2468 Issued Date: Mar. 05, 2012 FAX: 886-2-2696-2255 FFCC TEST REPORT Report No. : FR210507 CERTIFICATE OF COMPLIANCE according to 47 CFR Part 15.231 Equipment : Remote Control Model No. : SPS6010A Applicant : KAB Enterprise Co., Ltd. Verdant Electronics(Dong Guan) Co., Ltd. Sporton International as requested by the applicant to evaluate the EMC performance of the product sample received on Jan. 05, 2012 would like to declare that the tested sample has been evaluated and found to be in compliance with the tested rule parts. The data recorded as well as the test configuration specified is true and accurate for showing the sample’s EMC nature. ____________________________ Jordan Hsiao / Vice Manager Reviewed Data: Jul. 30, 2004 SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : 2 of 28 TEL: 886-2-2696-2468 Issued Date: Mar. 05, 2012 FAX: 886-2-2696-2255 FFCC TEST REPORT Report No. : FR210507 1. SUMMARY OF THE TEST RESULT Applied Standard: 47 CFR FCC Part 15 Subpart C Part Rule Section Description of Test Result Under Limit - 15.207 AC P…
Text truncated - open the document above for the full version.
Report No.: FR210507 FCC ID: PAGSPS6010A Page No. : 1 of 4 Appendix A. Test Photos Report No.: FR210507 FCC ID: PAGSPS6010A Page No. : 2 of 4 1. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR210507 FCC ID: PAGSPS6010A Page No. : 3 of 4 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR210507 FCC ID: PAGSPS6010A Page No. : 4 of 4 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
