PAGTR-001Transmitter

MODEL TR-001 OUTDOOR REMOTE CONTROLLER FCC FCC FCC FCC ID : XXXTR-001 ID : XXXTR-001ID : XXXTR-001 ID : XXXTR-001 FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Shielded interface cables must be used in order to comply with emission limits. - Change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Consult the dealer or an experienced radio/TV technician for help. SPECIFICATIONS Frequency --- 315MHz Transmitter Power Input --- DC 12V Battery Receiver Power Input --- AC 125V Electrical Outlet Receiver Power Output --- 15 Amps / 125 Volts / 1875 Watts INSTALLATION 1. Mount the receiver on wall near grounded electrical outlet. Nail or screw head must extend at least 3/16” out from wall. Hang the receiver from slot on back of unit onto nail or screw. Plug the power supply cord of the receiver into outlet. Then plug device cord into the receptacle at bottom of the receiver. 2. Install battery into the transmitter. OPERATION 1. Press ON button on the transmitter to turn the receiver ON. 2. Press OFF button on the transmitter to turn the receiver OFF.

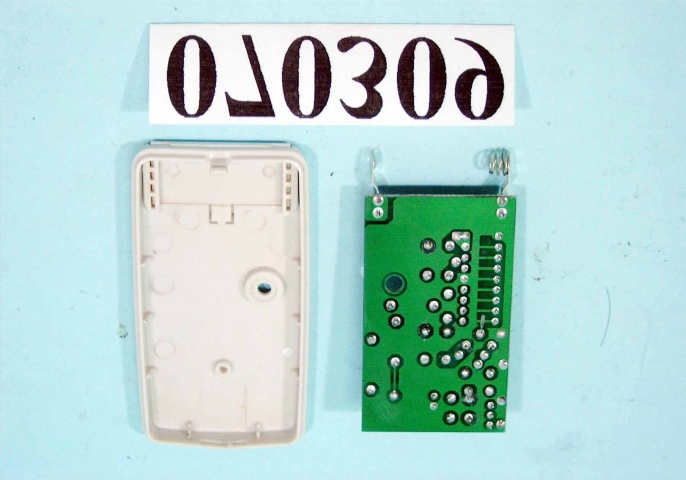

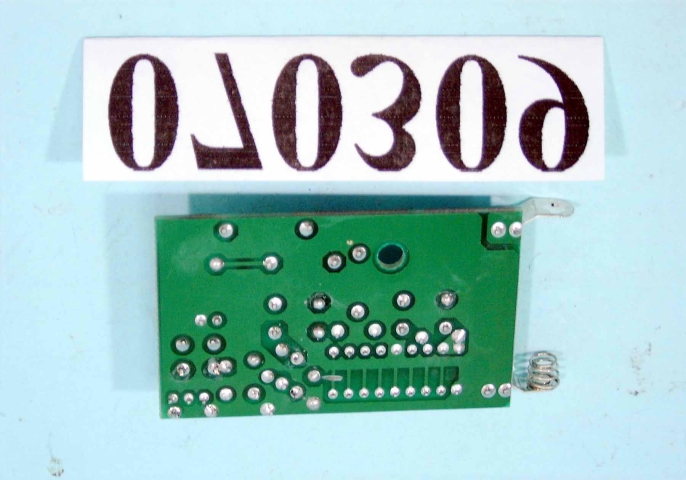

FCC ID : XXXTR -001 FRONT SIDE OF EUT Number 1 070309-01.jpg FCC ID : XXXTR -001 REAR SIDE OF EUT Number 2 070309-02.jpg FCC ID : XXXTR -001 Mechanical Construction Number 3 070309-03.jpg FCC ID : XXXTR -001 Front side of main board Number 4 070309-04.jpg FCC ID : XXXTR -001 Rear side of main board Number 5 070309-05.jpg

Please Note: “XXX” will be replaced with “PAG”

FCC ID LABEL LOCATION 9o2501-3f.JPG

FCC ID : XXXTR -001 Mechanical Construction Number 3 070309-03.jpg FCC ID : XXXTR -001 Front side of main board Number 4 070309-04.jpg FCC ID : XXXTR -001 Rear side of main board Number 5

FCC ID : XXXTR -001 Mechanical Construction Number 3 070309-03.jpg FCC ID : XXXTR -001 Front side of main board Number 4 070309-04.jpg FCC ID : XXXTR -001 Rear side of main board Number 5

INSTALLATION 1. Mount the receiver on wall near grounded electrical outlet. Nail or screw head must extend at least 3/16” out from wall. Hang the receiver from slot on back of unit onto nail or screw. Plug the power supply cord of the receiver into outlet. Then plug device cord into the receptacle at bottom of the receiver. 2. Install battery into the transmitter. OPERATION 1. Press ON button on the transmitter to turn the receiver ON. 2. Press OFF button on the transmitter to turn the receiver OFF. 1.1. Connection Diagram of Test System (Receiver) Dummy Load EUT (Transmitter)

FCC TEST REPORT Report No. : F070309 SPORTON International Inc. FCC ID: XXXTR-001 TEL : 886-2-2696-2468Page No.: 1 of 18 FAX : 886-2-2696-2255Issued Date : Jul. 19, 2000 FCC TEST REPORT for Part 15, Subpart C Equipment: TRANSMITTER Model No.: TR-001 FCC ID: PAGTR-001 Filing Type: Original Grant Applicant: KAB ENTERPRISE CO., LTD. 21-1 Fl., No. 33, Sec. 1, Min Sheng Rd., Panchiao City, Taipei Hsien, Taiwan, 220 R.O.C. ! The test result refers exclusively to the test presented test model / sample. ! Without the written authorization of the test lab., the Test Report may not be copied. ! Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F070309 SPORTON International Inc. FCC ID: XXXTR-001 TEL : 886-2-2696-2468Page No.: 2 of 18 FAX : 886-2-2696-2255Issued Date : Jul. 19, 2000 Table of Contents CERTIFICATE OF COMPLIANCE.............................................................................................................. 3 1. General Description of Equipment under Test0................................................................................... 4 1.1. Applicant.............................................................................................................................................................................................................. 4 1.2. Manufacturer....................................................................................................................................................................................................... 4 1.3. Basic Description of Equipment under Test................................................................................................................................................... 4 1.4. Feature of Equipment under Test.................................................................................................................................................................... 4 2. Test Configuration of Equipment under Test....................................................................................... 5 2.1. Test Manner........................................................................................................................................................................................................ 5 2.2. Description of Test System............................................................................................................................................................................... 5 2.3. Connection Diagram of Test System.............................................................................................................................................................. 6 2.4. Connection Diagram of Test System.............................................................................................................................................................. 7 3. Test Software....................................................................................................................................... 8 4. General Information of Test................................................................................................................. 9 4.1. Test Facility......................................................................................................................................................................................................... 9 4.2. Standard for Methods of Measurement.......................................................................................................................................................... 9 4.3. Test in Compliance with.................................................................................................................................................................................... 9 4.4. Frequency Range Investigated........................................................................................................................................................................ 9 4.5. Test Distance...................................................................................................................................................................................................... 9 5. Test of Conducted Powerline............................................................................................................. 10 6. Test of Radiated Emission.................................................................................................................. 11 6.1. Major Measuring Instruments.........................................................................................................................................................................11 6.2. Test Procedures...............................................................................................................................................................................................12 6.3. Typical Test Setup Layout of Radiated Emission.......................................................................................................................................13 6.4. Test Result of Radiated Emission.................................................................................................................................................................14 6.5. Photographs of Radiated Emission Test Configuration.............................................................................................................................16 7. Antenna Factor & Cable Loss............................................................................................................. 17 8. List of Measuring Equipments Used..........................................................................…

Text truncated - open the document above for the full version.

1.1. Photographs of Radiated Emission Test Configuration ! The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
