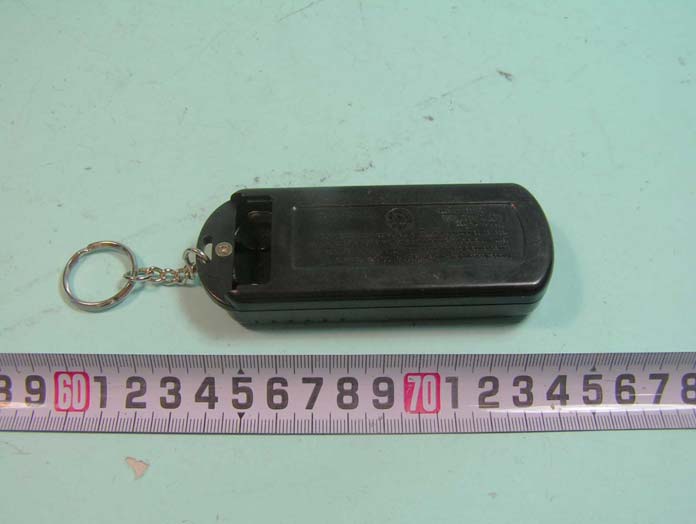

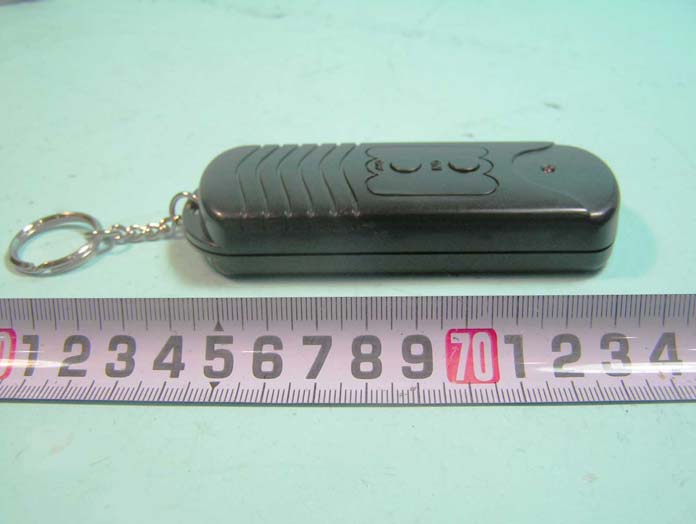

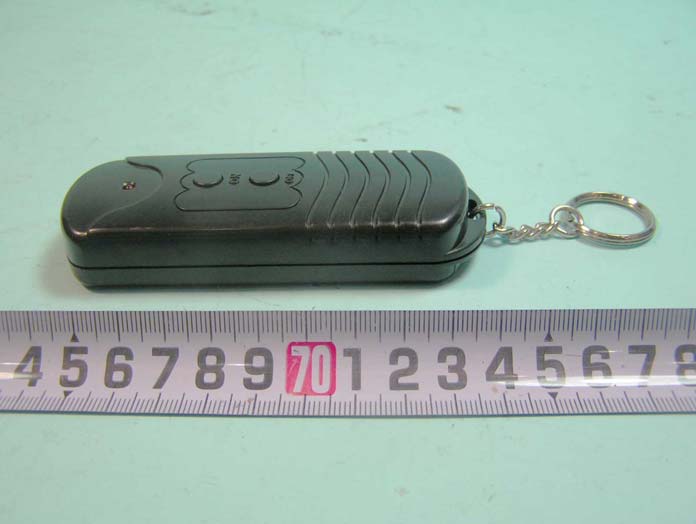

SPORTON International Inc. PAGE NUMBER : A1 OF A 5 TEL : 886-2-2696-2468 ISSUED DATE : Jul.18, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A 5 TEL : 886-2-2696-2468 ISSUED DATE : Jul.18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A 5 TEL : 886-2-2696-2468 ISSUED DATE : Jul.18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A 5 TEL : 886-2-2696-2468 ISSUED DATE : Jul.18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A 5 TEL : 886-2-2696-2468 ISSUED DATE : Jul.18, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A 1 OF A1 TEL : 886-2-2696-2468 ISSUED DATE : Jul.18, 2006 FAX : 886-2-2696-2255 Label Location 互換塊" 005 :2/1 字高為2.0mm 直徑為 8的年.月輪 760 互換區 " MADE IN CHINA C MADE IN CHINA C This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditio ns: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. 如圖所示 Engraving Drawing TR-005 NOTE: 1.字体為Ari al Narrow 字体 2.字為凸字,凸高為0.3 3. 字高如圖所示. 4 .其中兩個年輪分別為年月輪各一個. 5.當生產 時,用互換塊 . 當生產 時,用互換塊 當生產 時,用互換塊 :1/1 :2/1 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interferencereceived,including interference that may cause undesired operation. IC: 4494A-TR005 FCC ID: PAGTR-005 MODEL: TR-005 IC: 4494A-TR005 FCC ID: PAGTR-005 MODEL: TR-005 IC: 4494A-TR005 FCC ID: PAGTR-005 MODEL: TR-005

SPORTON International Inc. PAGE NUMBER : A 1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Jul.18, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Jul.18, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report No.: FR631403 Report Format Version: RF-15.231-2006-2-17-c FCC RADIO TEST REPORT Applicant’s company KAB Enterprise Co., Ltd. Applicant Address 21F-1, No. 33, Sec. 1, Min Sheng Rd. Panchiao, Taipei Hsien, Taiwan, R.O.C. FCC ID PAGTR-005 Manufacturer’s company Verdant Electronics (Dong Guan) Co., Ltd. Manufacturer Address Langxie Administrative District, Qiaotou Dongguan City, Guangdong China Product Name Remote control Brand Name KAB Model Name TR-005 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.231 Test Freq. Range 315MHz Received Date Jul. 05, 2006 Final Test Date Jul. 13, 2006 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR631403 Report Format Version: RF-15.231-2006-2-17-c Page No. : i of ii FCC ID: PAGTR-005 Issued Date : Jul. 14, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Table for Carrier Frequencies .............................................................................................................................................................3 3.3. Table for Test Modes ...........................................................................................................................................................................3 3.4. Table for Testing Locations..................................................................................................................................................................3 3.5. Table for Supporting Units ...................................................................................................................................................................4 3.6. Test Configurations .............................................................................................................................................................................4 4. TEST RESULT ..................................................................................................................................................... 5 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................5 4.2. Field Strength of Fundamental Emissions Measurement .....................................................................................................................8 4.3. 20dB Spectrum Bandwidth Measurement ........................................................................................................................................11 4.4. Deactivating Time.............................................................................................................................................................................13 4.5. Radiated Emissions Measurement ....................................................................................................................................................16 4.6. Antenna Requirements .....................................................................................................................................................................26 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 27 6. TEST LOCATION.............................................................................................................................................. 28 7. NVLAP CERTIFICATE OF ACCREDITATION ......................................................................................................... 29 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A7 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B3 Report No.: FR631403 Report Format Version: RF-15.231-2006-2-17-c Page No. : ii of ii FCC ID: PAGTR-005 Issued Date : Jul. 14, 2006 History of This Test Report Original Issue Date: Jul. 14, 2006 Report No.: FR631403 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description 15.205(a) 15.209(a) 15.231(a) 15.231(e) Further, this requirement does not apply to intentional radiators that must be professionally installed. Report No.: FR631403 Report Format Version: RF-15.231-2006-6-16-d Page No. : 2 of 29 FCC ID: PAGTR-005 Issued Date : Jul. 14, 2006 2. SUMMARY OF THE TEST RESULT Applied Standard: 47 CFR FCC Part 15 Subpart C Part Rule Section Description of Test Result Under Limit 4.1 15.207 AC Power Line Conducted Emissions Complies - 4.2 15.231(b) Field Strength of Fundamental Em…

Text truncated - open the document above for the full version.

Report No.: FR631403 FCC ID: PAGTR-005 Page No. : 1 of 3 Appendix B. Test Photos Report No.: FR631403 FCC ID: PAGTR-005 Page No. : 2 of 3 1. Photographs of Radiated Emissions Test Configuration Below 30MHz FRONT VIEW REAR VIEW Report No.: FR631403 FCC ID: PAGTR-005 Page No. : 3 of 3 FRONT VIEW REAR VIEW
