PAGTR-009-1Remote control

Remote Control Outlets Operating Instructions - FOR INDOOR OR OUTDOOR USE - 2 IMPORTANT SAFEGUARDS Signal Word Definitions NOTE: These are general definitions only; all may not pertain to the actual product purchased. DANGER – Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. Usage of this signal word is limited to the most extreme situations. WARNING – Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION – Indicates a potentially hazardous situation, which, if not avoided, may result in minor/moderate injury or product/property damage. It also alerts against unsafe practices. When using electrical products, always follow basic safety precautions including the following: READ ALL INSTRUCTIONS BEFORE USE. !! WARNING -- To reduce the risk of fire, electric shock, or serious personal injury: • Do not immerse the product in water or other liquids. • This product is not intended for use by children and contains small parts that may pose a choking hazard to children under the age of three. Keep the product out of the reach of children and pets. • Do not use an electrical device or appliance with this product whose electrical specifications exceed those specified in the “Electrical Specifications” section of this manual. !! CAUTION -- To reduce the risk of personal injury or product/property damage: • This product is intended for non-commercial, non-industrial use in the remote control of two electrical outlets. Do not use this product for any other purpose. 3 WARNING: This product is equipped with a three-prong grounding pin plug to reduce the risk of electric shock. This plug will fit into a grounded outlet only one way. This is a safety feature. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the grounding plug. IMPORTANT INFORMATION REQUIRED BY THE FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MODEL : TR-009-1 FCC ID : PAGTR-009-1 IC : 4494A-TR009-1 SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE 4 Features • Controls two electrical outlets up to a distance of 50 feet • Plugs into any grounded three-prong outlet • Has two three-prong receptacles To Set Up 1. Mount the Receiver near a three-prong, grounded, standard 120-volt AC electrical outlet: a. Choose a location on the wall to insert a nail or wood screw (not included) for mounting the Receiver. Please note the following when choosing the location: • When hung from the nail/screw, the Receiver must be close enough to the outlet for the cord to plug into the outlet. • The Receiver must be mounted vertically with its outlets facing downward and not reaching ground level. b. Insert the nail/screw into the wall in the chosen location. The nail or screw head must extend at least 3/16” from the wall. c. Hang the keyhole of the Receiver on the nail or screw. 2. Plug the Receiver into a standard 120-volt AC electrical outlet. 3. Confirm that the electrical specifications of an item you wish to use with this product do not exceed those specified in the “Electrical Specifications” section. Plug the item into an outlet of the Receiver. 4. Remove the plastic battery tab from the Battery Compartment in the back of the Remote Control to activate the DC 12V Type A23 pre-installed battery. To Use 1. To activate the Receiver, press the ON Button of the Remote Control. The red LED of the Remote Control will illuminate momentarily and the LED of the Receiver will remain illuminated. NOTE: The Remote Control must be within 50 feet of the Receiver. 2. To turn the Receiver off, press the OFF Button of the Remote Control. The LED on 5 the Receiver will shut off. Battery Handling and Usage WARNING: Keep batteries away from children and pets. • Follow the battery manufacturer’s safety and usage instructions. • Insert the battery observing the proper polarity ( + / − ) as indicated inside the Battery Compartment. CAUTION: Failure to properly align the battery polarity can cause personal injury and/or property damage. • Remove a spent or discharged battery from the product. Remove the battery when not using the product for an extended period. • Never throw batteries into a fire. Do not expose batteries to fire or other heat sources. • Dispose or recycle spent/discharged batteries in compliance with all applicable laws. For detailed information, contact your local solid waste authority. Battery Replacement: 1. Remove the Battery Compartment Cover from the back of the Remote Control by sliding the Cover in the direction that its treads curve. 2. Remove the spent battery and place a new DC 12V Type A23 battery into the Battery Compartment, correctly observing the polarity indications ( + / − ) inside the Battery Compartment. 3. Replace the Battery Compartment Cover. Electrical Specifications Voltage Frequency Wattage Amperage 120VAC 60Hz *1000W - 1625W 13A *Maximum combined wattage for items using a tungsten bulb plugged into the Receiver is 1000W. *Maximum combined wattage for appliances plugged into the Receiver is 1625W. 6 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particul…

Text truncated - open the document above for the full version.

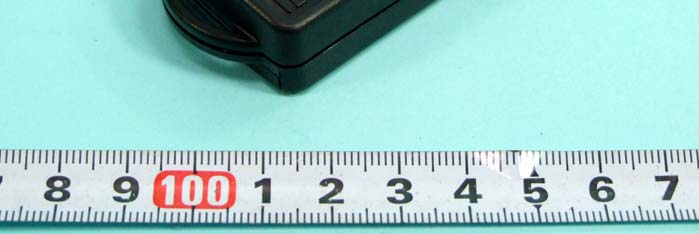

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 21, 2007 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 21, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 21, 2007 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 21, 2007 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR780809 SPORTON International Inc. Report Format Version: b FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.231 Equipment : Remote Control Model No. : TR-009-1 Brand Name : KAB Filing Type : New Application Applicant : KAB Enterprise Co., Ltd. 21F-1, No.33, Sec.1, Min Sheng Rd. Panchiao, Taipei Hsien, Taiwan. R.O.C. FCC ID : PAGTR-009-1 Manufacturer : Verdant Electronics (Dong Guan) Co., Ltd. Langxie Administrative District, Qiaotou Dongguan City, Guangdog China Received Date : Aug. 09, 2007 Test Date : Aug. 15, 2007 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ILAC MRA FCC TEST REPORT Report No.: FR780809 SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Aug. 21, 2007 FAX : 886-2-2696-2255 FCC ID : PAGTR-009-1 Table of Contents 1. SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2. GENERAL INFORMATION..................................................................................................................................... 3 2.1. Product Details ........................................................................................................................................................................................ 3 2.2. Table for Carrier Frequencies ................................................................................................................................................................. 3 2.3. Table for Test Modes .............................................................................................................................................................................. 3 2.4. Table for Testing Locations ..................................................................................................................................................................... 3 2.5. Table for Supporting Units....................................................................................................................................................................... 4 2.6. Test Configurations ................................................................................................................................................................................. 4 3. TEST RESULT ........................................................................................................................................................ 5 3.1. AC Power Line Conducted Emissions Measurement.............................................................................................................................. 5 3.2. Field Strength of Fundamental Emissions Measurement........................................................................................................................ 8 3.3. 20dB Spectrum Bandwidth Measurement............................................................................................................................................. 11 3.4. Deactivating Time.................................................................................................................................................................................. 13 3.5. Radiated Emissions Measurement........................................................................................................................................................ 16 3.6. Antenna Requirements.......................................................................................................................................................................... 24 4. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 25 5. TEST LOCATION.................................................................................................................................................. 26 6. TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 27 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A4 APPENDIX B. PHOTOGRAPHS OF EUT ....................................................................................................... B1 ~ B4 FCC TEST REPORT Report No.: FR780809 SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Aug. 21, 2007 FAX : 886-2-2696-2255 FCC ID : PAGTR-009-1 History of This Test Report Original Issue Date: Aug. 21, 2007 Report No.: FR780809 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description 15.205(a) 15.209(a) 15.231(a) 15.231(e) Further, this requirement does not apply to intentional radiators that must be professionally installed. FCC TEST REPORT Report No.: FR780809 SPORTON International Inc. Page No. : 2 of 27 TEL : 886-2-2696-2468 Issued Date : Aug. 21, 2007 FAX : 886-2-2696-2255 FCC ID : PAGTR-009-1 1. SUMMARY OF THE TEST RESULT Applied Standard: 47 CFR FCC Part 15 Subpart C Part Rule Section Description of Test Result Under Limit 4.1 15.207 AC Power Line Conducted Emissions Complies - 4.2 15.231(b) Field Strength of Fundamental Emissions Complies 17.49 dB 4.3 15.231(c) 20dB Spectrum Bandwidth Complies - 4.4 15.231(a) Deac…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR780809 Page No. : A1 of A4 FCC ID : PAGTR-009-1 Appendix A. Test Photos FCC TEST REPORT Report No.: FR780809 Page No. : A2 of A4 FCC ID : PAGTR-009-1 1. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR780809 Page No. : A3 of A4 FCC ID : PAGTR-009-1 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR780809 Page No. : A4 of A4 FCC ID : PAGTR-009-1 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
