PBKMS010040Smart card

Hi Dave I would like to add the following statement to our manual to explain exactly which FCC rules we have been certified to: “This device has been certified to the Class B digital device requirements as specified in the FCC rules and regulations (CFR47 Part 15 Subpart B). This device has also been certified to the FCC rules and regulations (CFR47 Part 15 Subpart C) for the low power transmitter contained within it.” Any comments on this? Regards Haka n Lo ha ma nder

Document No FAXE/LET/0040/PB Author Håkan Lohmander Date 2002-02-04 Revision A Page 1/1 Precise Biometrics AB Address: Phone: Fax: E-mail: WWW: Dag Hammarskjölds väg 2 +46(46)311100 +46(46)311101 [email protected] www.precisebiometrics.com SE-224 64 Lund, Sweden Request for Confidentiality Monday, 04 February 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: PBKMS010040 Please be advised that the following information is to be held confidential and behalf of Precise Biometrics AB: • Schematics • Block Diagram • Bill of Materials (Parts List) • Circuit description and statement of how the device operates • Modification Letter The application contains technical information, which Precise Biometrics AB deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Håkan Lohmander

02/18/02 Hakan Lohmander Precise Biometrics In reference to FCC ID: PBKMS010040 Mr.Lohmander Upon completion of review of the application for FCC ID: PBKMS010040, there are several issues that must be addressed before the application can be granted by ATCB. Please address each issue below. 1) Upon reviewing the test report and set up photos, the systems appears to have been tested with an active rod antenna below 30 MHz. This is not in compliance w ith the FCC rules. Systems tested below 30 MHz require the use of a loop antenna. Please provide data using a loop antenna 2) The warning manual needs the correct FCC statements including the statements against unauthorized modifications. 3) In regards to your confidential letter, we cannot list the modification letter as part of the confidential material. Suggestions are as follows. A) Add the changes to your parts list as an appendix so we can honor the request. B) Provide a generic letter for the modifications listing only the locations and a reference to the confidential file. Regards David A. Case NCE Examining Engineer mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Document No FAXE/LET/0054/PB Author Håkan Lohmander Date 2002-02-04 Revision A Page 1/1 Precise Biometrics AB Address: Phone: Fax: E-mail: WWW: Dag Hammarskjölds väg 2 +46(46)311100 +46(46)311101 [email protected] www.precisebiometrics.com SE-224 64 Lund, Sweden Modification Letter CONFIDENTIAL Monday, 04 February 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: PBKMS010040 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. The following components has been changed in the parts list for the Miranda PCA: Position Product Type Change V1 Varistor New component V39ZA1 C13 Capacitor New value: 39 pF C15 Capacitor New value: 39 pF Thank you for your attention to this matter. Håkan Lohmander

Document No FAXE/LET/0039/PB Date 2002-02-04 Revision A Page 1/1 Precise Biometrics AB Address: Phone: Fax: E-mail: WWW: Dag Hammarskjölds väg 2 +46(46)311100 +46(46)311101 [email protected] www.precisebiometrics.com SE-224 64 Lund, Sweden FCC Warning statement and location for Precise Miranda Transceiver Warning statement The following statement will be included in the User Instructions delivered with the product: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

Dave I have uploaded the new test report from DELTA. The project number of the new test report is K222371-6. The new test report replaces the test report K222371-2 previously uploaded to your server. Please delete the k222371-2 report. Hakan Lohmander -----Original Message----- From: David Case [mailto:[email protected]] Sent: den 1 mars 2002 01:01 To: [email protected]; Vagn Sylvest Cc: Håkan Lohmander Subject: RE: The PBKMS010040 application - Miranda Dear Sir Photos look fine - will issue grant when updated report is received Dave C ----- Original Message ----- From: Vagn Sylvest To: [email protected];[email protected] Cc: [email protected] Sent: 2/27/2002 12:06:51 PM Subject: The PBKMS010040 application - Miranda Hello Dave We have made two new tests on the BioAccess Test set-up photos are attached We intend to issue a new report including the new measurements The radiated fields below 30 MHz are measured as seen on the photo. This should be in compliance with good engineering practice, when measuring magnetic fields. 30 m distance. Loop centre at 1 m elevation. Conducted emission set-up is very close to the ANSI referenced figure. The unit is powered from an AC/AC converter. The AC low voltage wire is low impedance folded to 80 cm. Distance to vertical plane is 40 cm. Table has a height of 80 cm. On the MIRANDA in card position is mounted a shorted loop whish causes a high loading of the magnetic field. This will cause highest load on the drivers and at the same time reduce the radiated fields which might radiate back into the power wiring. Please comment on the two measurements before we integrate then into the new report Best regards Vagn Vagn Sylvest Project Manager, EMC DELTA Venlighedsvej 4, DK-2970 H?rsholm Direct tel. +45 72 19 42 06 Tel. +45 72 19 40 00, fax +45 72 19 40 01 e-mail: [email protected] Information: www.delta.dk/emc --- David Case --- [email protected] --- EarthLink: It's your Internet. Please note that the attached document "FCC Answer below 30 MHz.doc" on the mail you send me could open in Word, but did not format as a word document but only as a huge amount of what appears as random letters. I have attached the word document again to this reply Could you please check and retransmit? Regards Va gn Va gn Sy lvest Project Manager, EMC DELTA Venlighedsvej 4, DK-2970 Hrsholm Direct tel. +45 72 19 42 06 Tel. +45 72 19 40 00, fax +45 72 19 40 01 e-mail: [email protected] Information: www.delta.dk/emc >>> "David Case" <[email protected]> 01-03-02 01:04 >>> Dear Sir Please see attached David C ----- Original Message ----- From: H?kan Lohmander To: [email protected] ;[email protected] Cc: Vagn Sylvest \(E-mail\) Sent: 2/27/2002 10:57:46 AM Subject: The PBKMS010040 application Dave Our test engineer at the DELTA test lab will contact you regarding your questions below. 1) Upon reviewing the test report and set up photos, the systems appears to have been tested with an active rod antenna below 30 MHz. This is not in compliance with the FCC rules. Systems tested below 30 MHz require the use of a loop antenna. Please provide data using a loop antenna. 2) One further question, on further examination of your set up photos, the line conducted test set up appears to not be per ANSI C63.4 requirements. Please verify that the test was set up per ANSI C 63.4 line conducted requirements. Regards Hakan Lohmander ________________________________________ H?kan Lohmander, Ph. D. Project Manager, R D Precise Biometrics AB Dag Hammarskjolds vag 2 SE-224 64 Lund Sweden Phone: +46 - 46 31 11 37, Fax: +46 - 46 31 11 01 Homepage : http://www.precisebiometrics.com/ --- David Case --- [email protected] --- EarthLink: It's your Internet. Hi Dave I would like to add the following statement to our manual to explain exactly which FCC rules we have been certified to: “This device has been certified to the Class B digital device requirements as specified in the FCC rules and regulations (CFR47 Part 15 Subpart B). This device has also been certified to the FCC rules and regulations (CFR47 Part 15 Subpart C) for the low power transmitter contained within it.” Any comments on this? Regards Haka n Lo ha ma nder -----Original Message----- From: David Case [mailto:[email protected]] Sent: den 23 februari 2002 01:15 To: Håkan Lohmander Subject: RE: FCC Statements for the Precise Miranda Transceiver The FCC statements that you have listed in the email below meet the requirements ----- Original Message ----- From: Hakan Lohmander To: [email protected] Cc: Bill Graff \(E-mail\) Sent: 2/22/2002 4:42:02 AM Subject: RE: FCC Statements for the Precise Miranda Transceiver David I have forwarded your question regarding the line conducted test to the test laboratory performing the test. Regarding the questions about the FCC statements earlier in this e-mail correspondence (see below), could you please advice me how I should go about. Regards Hakan ________________________________________ Hakan Lohmander, Ph. D. Project Manager, R&D Precise Biometrics AB Dag Hammarskjolds vag 2 SE-224 64 Lund Sweden Phone: +46 - 46 31 11 37, Fax: +46 - 46 31 11 01 Homepage: http://www.precisebiometrics.com/ -----Original Message----- From: David Case [mailto:[email protected]] Sent: den 22 februari 2002 03:58 To: Håkan Lohmander Cc: Bill Graff Subject: RE: FCC Statements for the Precise Miranda Transceiver Dear Sir, One further question, on further examination of your set up photos , the line conducted test set up appears to not be per ANSI C63.4 requirements. Please verify that the test was set up per ANSI C 63.4 line conducted requirements Regards David Case NCE ----- Original Message ----- From: H?kan Lohmander To: [email protected] Sent: 2/21/2002 12:52:21 PM Subject: FCC Statements for the Precise Miranda Transceiver Hello David, I have a question concerning the FCC statements. I have studied the PART 15 rules now and found three statements (Please let me know if there is…

Text truncated - open the document above for the full version.

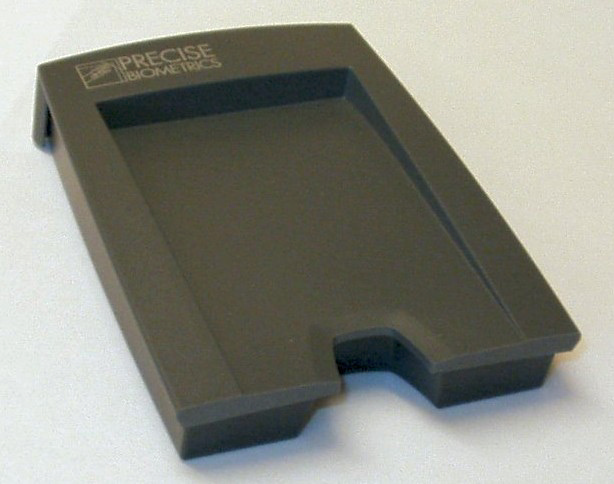

Document No FAXE/LET/0034/PB Author Håkan Lohmander Date 2001-11-25 Revision A Page 1/3 Precise Biometrics AB Address: Phone: Fax: E-mail: WWW: Dag Hammarskjölds väg 2 +46(46)311100 +46(46)311101 [email protected] www.precisebiometrics.com SE-224 64 Lund, Sweden External photographs of the Miranda Transceiver Document No: FAXE/LET/0034/PB Date: 2001-11-25 Revision: A Page: 2/3 The Precise Miranda device The Precise Miranda device Document No: FAXE/LET/0034/PB Date: 2001-11-25 Revision: A Page: 3/3 The Precise Miranda device

Document No FAXE/LET/0038/PB Author Håkan Lohmander Date 2001-12-03 Revision A Page 1/2 Precise Biometrics AB Address: Phone: Fax: E-mail: WWW: Dag Hammarskjölds väg 2 +46(46)311100 +46(46)311101 [email protected] www.precisebiometrics.com SE-224 64 Lund, Sweden FCC ID Label Location and Information for Precise Miranda Transceiver Document No: FAXE/LET/0038/PB Date: 2001-12-03 Revision: A Page: 2/2 Label size: Ca 39 mm x ca 29 mm. Label type: Self-adhesive label. UL Marked. FCC text: PBKMS010040. FCC font: 8 point Helvetica Neue Cond. Below: Drawing of label to be placed on backside of reader. Position of label on backside of transceiver FCC ID: PBKMS010040 Ca 29 mm Ca 39 mm FCC ID: PBKMS010040FCC ID: PBKMS010040 Ca 29 mm Ca 39 mm

Document No FAXE/LET/0035/PB Date 2001-11-25 Revision A Page 1/3 Precise Biometrics AB Address: Phone: Fax: E-mail: WWW: Dag Hammarskjölds väg 2 +46(46)311100 +46(46)311101 [email protected] www.precisebiometrics.com SE-224 64 Lund, Sweden Internal Photographs of Precise Miranda Transceiver Document No: FAXE/LET/0035/PB Date: 2001-11-25 Revision: A Page: 2/3 Precise Miranda Front Document No: FAXE/LET/0035/PB Date: 2001-11-25 Revision: A Page: 3/3 Back

20dan-uk-i D E LTA Danish Electronics, Light & Acoustics Venlighedsvej 4 DK-2970 Hørsholm Denmark Tel. (+45) 72 19 40 00 Fax (+45) 72 19 40 01 www.delta.dk This report is issued under the rules of DANAK (Danish Accreditation). Further information about DANAK can be found at www.danak.dk. The report must not be reproduced, except in full, without the written approval of DELTA. Test Report DANAK Reg. no. 19 Emission tests to FCC requirements of Precise Miranda Performed for Precise Biometrics AB DANAK-196071 Project no.: K222371-6 Page 1 of 12 5 annexes 2002-03-05 DANAK-196071 DELTA-K222371-6 Page 2 of 12 VS/blj Title Emission tests to FCC requirements of Precise Miranda Test object Precise Miranda with Mifare contactless smart card Report no. DANAK-196071 Project no. K222371-6 Test period November 2001 - February 2002 Client Precise Biometrics AB Dag Hammerskjöldsväg S-224 64 Lund Sweden Telephone: +46 46 311100 Fax: +46 46 311101 Contact person Mr. Håkan Lohmander Manufacturer Precise Biometrics AB Specifications 47 CFR Part 15, Subpart B - Unintentional Radiators 47 CFR Part 15, Subpart C - Intentional Radiators Results The equipment under test was in compliance with the requirements Test personnel Jesper Nielsen Vagn Sylvest Date 2002-03-05 Responsible Vagn Sylvest B.Sc.E.E., EMC DELTA DANAK-196071 DELTA-K222371-6 Page 3 of 12 VS/blj Table of contentsPage 1.Summaries4 1.1Technical Report Summary4 1.2Summary of tests4 2.Test specimen(s)6 2.1Test object - Precise Miranda6 2.2Test object- -AC Adapter6 2.3AUX equipment - Precise Fingerprint reader6 2.4AUX equipment - Test PC6 3.General test conditions7 3.1Test set-up7 4.Test and results8 4.1Conducted emission, AC mains (FCC Part 15, Subpart B, Class B and FCC Part 15, Subpart C)8 4.2Radiated electromagnetic field (FCC Part 15, Subpart B, Class B and FCC Part 15, Subpart C)9 4.3Peak field strength10 4.4Occupied bandwidth10 4.5Frequency tolerance over temperature11 4.6Frequency tolerance over supply voltage range12 Annex 1 List of instruments (1 page) Annex 2 Photos (3 pages) Annex 3 Test record sheet regarding conducted emission on power port (1 page) Annex 4 Test record sheets regarding radiated emission (2 page) Annex 5 Plot of relative measurement in climatic chamber (1 page) DANAK-196071 DELTA-K222371-6 Page 4 of 12 VS/blj 1. Summaries 1.1 Technical Report Summary The tests reported in this document have been performed to demonstrate compliance with the requirements of FCC for Information Technology Digital Equipment and for intentional transmitters, operating within the band 13.553 - 13.567 MHz. This report contains measurement data from tests performed at DELTA, Denmark, a FCC listed and DANAK accredited test laboratory. 1.1.1 Applicable FCC Rules for test 47 CFR Part 15, Subpart B – Unintentional Radiators §15.107 Conducted limits §15.109 Radiated emission limits, general requirements 47 CFR Part 15, Subpart C – Intentional Radiators §15.207 Conducted limits §15.209 Radiated emission limits, general requirements §15.225 Operation within the band 13.553 - 13.567 MHz The methods and procedures have been applied as specified in: ANSI C63.4:1992 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. 1.2 Summary of tests The results of the emission tests can be summarised as follows: Tests of Unintentional Radiator Key references to requirement FCC Part 15, Subpart B, Class B Conducted emission, AC mains§ 15.107Passed Radiated electromagnetic field emission§ 15.109Passed DANAK-196071 DELTA-K222371-6 Page 5 of 12 VS/blj Tests of Intentional Radiator Key references to requirement FCC Part 15 Subpart C Conducted emission, AC mains§ 15.207Passed Radiated electromagnetic field emission§15.209Passed Peak Field Strength§ 15.225(a)Passed Occupied Bandwidth§ 15.225(b)Passed Frequency tolerance over temperature§ 15.225(c)Passed Frequency tolerance over supply voltage range § 15.225(c)Passed Abbreviations Passed:The requirements are met. Not done:No test was performed. N/A:Not applicable. Not relevant:The test was not relevant for the test object. The test results relate only to the specimen tested. DANAK-196071 DELTA-K222371-6 Page 6 of 12 VS/blj 2. Test specimen(s) The test object consists 2.1 Test object - Precise Miranda CategoryInformation Technology Equipment with intentional radiator ManufacturerPrecise Biometrics AB Model / typePrecise Miranda Part no.MS 010 040 Serial no.- FCC ID- Supply voltage7-12 VAC Operational modeReading contactless smart card 2.2 Test object- -AC Adapter CategoryAC adapter ManufacturerNordic Power AB Model / typeA20960C 9 VAC Part no.- Serial no.- FCC ID- Supply voltage120 VAC Operational modeNormal, 120 VAC 2.3 AUX equipment - Precise Fingerprint reader ManufacturerPrecise Biometrics AB Model / type100SC Part no.MS 010 004 Serial no.0001 FCC IDPBKMS010004 2.4 AUX equipment - Test PC Manufacturer IBM Model / type ThinkPad 600E/2645-3AQ Part no.- Serial no.5502ZP2-02/99 FCC ID4U6JPN-32476-DT-E DANAK-196071 DELTA-K222371-6 Page 7 of 12 VS/blj 3. General test conditions 3.1 Test se t -up Precise Miranda is a programming unit to programme standard Mifare contactless smart cards. During test a DOS programme in the test PC can constantly read a Mifare card mounted on the Precise Miranda unit. When the card is removed a carrier modulated five times a second by a request com- mand (duration below 100 μs) is transmitted continuously. This mode was used for most tests. During conducted emission tests a shorted ring was placed in the card position. This has the consequence that the transmitter is loaded and that the radiated part of the field is re- duced. The power adapter / EUT was powered from 115 VAC 50 Hz during tests. AC/AC Test PC Precise Miranda Mifare con- tactless smart card 1 cm distance d 115 VAC 100SC finger- print reader DANAK-196071 DELTA-K222371-6 Page 8 of 12 VS/blj 4. Test and results 4.1 Conducted emission, AC mains (FCC Part 15, …

Text truncated - open the document above for the full version.

20dan-uk-i D E LTA Danish Electronics, Light & Acoustics Venlighedsvej 4 DK-2970 Hørsholm Denmark Tel. (+45) 72 19 40 00 Fax (+45) 72 19 40 01 www.delta.dk This report is issued under the rules of DANAK (Danish Accreditation). Further information about DANAK can be found at www.danak.dk. The report must not be reproduced, except in full, without the written approval of DELTA. Test Report DANAK Reg. no. 19 Emission tests to FCC requirements of Precise Miranda Performed for Precise Biometrics AB DANAK-196038 Project no.: K222371-2 Page 1 of 12 5 annexes 2002-02-11 DANAK-196038 DELTA-K222371-2 Page 2 of 12 VS/blj Title Emission tests to FCC requirements of Precise Miranda Test object Precise Miranda with Mifare contactless smart card Report no. DANAK-196038 Project no. K222371-2 Test period November 2001 - January 2002 Client Precise Biometrics AB Dag Hammerskjöldsväg S-224 64 Lund Sweden Telephone: +46 46 311100 Fax: +46 46 311101 Contact person Mr. Håkan Lohmander Manufacturer Precise Biometrics AB Specifications 47 CFR Part 15, Subpart B - Unintentional Radiators 47 CFR Part 15, Subpart C - Intentional Radiators Results The equipment under test was in compliance with the requirements Test personnel Jesper Nielsen Vagn Sylvest Date 2002-02-11 Responsible Vagn Sylvest, B.Sc.E.E., EMC DELTA DANAK-196038 DELTA-K222371-2 Page 3 of 12 VS/blj Table of contentsPage 1.Summaries4 1.1Technical Report Summary4 1.2Summary of tests4 2.Test specimen(s)6 2.1Test object - Precise Miranda6 2.2Test object- -AC Adapter6 2.3AUX equipment - Precise Fingerprint reader6 2.4AUX equipment - Test PC6 3.General test conditions7 3.1Test set-up7 4.Test and results8 4.1Conducted emission, AC mains (FCC Part 15, Subpart B, Class B and FCC Part 15, Subpart C)8 4.2Radiated electromagnetic field (FCC Part 15, Subpart B, Class B and FCC Part 15, Subpart C)9 4.3Peak field strength10 4.4Occupied bandwidth10 4.5Frequency tolerance over temperature11 4.6Frequency tolerance over supply voltage range11 Annex 1 List of instruments (1 page) Annex 2 Photos (3 pages) Annex 3 Test record sheet regarding Conducted emission on power port (1 page) Annex 4 Test record sheets regarding radiated emission (2 page) Annex 5 Plot of relative measurement in climatic chamber (1 page) DANAK-196038 DELTA-K222371-2 Page 4 of 12 VS/blj 1. Summaries 1.1 Technical Report Summary The tests reported in this document have been performed to demonstrate compliance with the requirements of FCC for Information Technology Digital Equipment and for intentional radiators, operating within the band 13.553 - 13.567 MHz. This report contains measurement data from tests performed at DELTA, Denmark, a FCC listed and DANAK accredited test laboratory. 1.1.1 Applicable FCC Rules for test 47 CFR Part 15, Subpart B- Unintentional Radiators §15.107 Conducted limits §15.109 Radiated emission limits, general requirements 47 CFR Part 15, Subpart C - Intentional Radiators §15.207 Conducted limits §15.209 Radiated emission limits, general requirements §15.225 Operation within the band 13.553 - 13.567 MHz The methods and procedures have been applied as specified in: ANSI C63.4:1992 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. 1.2 Summary of tests The results of the emission tests can be summarised as follows: Tests of Unintentional Radiator Key references to requirement FCC Part 15, Subpart B, Class B Conducted emission, AC mains§ 15.107Passed Radiated electromagnetic field emission§ 15.109Passed DANAK-196038 DELTA-K222371-2 Page 5 of 12 VS/blj Tests of Intentional Radiator Key references to requirement FCC Part 15 Subpart C Conducted emission, AC mains§ 15.207Passed Radiated electromagnetic field emission§15.209Passed Peak Field Strength§ 15.225(a)Passed Occupied Bandwidth§ 15.225(b)Passed Frequency tolerance over temperature§ 15.225(c)Passed Frequency tolerance over supply voltage range § 15.225(c)Passed Abbreviations Passed:The requirements are met. Not done:No test was performed. N/A:Not applicable. Not relevant:The test was not relevant for the test object. The test results relate only to the specimen tested. DANAK-196038 DELTA-K222371-2 Page 6 of 12 VS/blj 2. Test specimen(s) The test object consists 2.1 Test object - Precise Miranda CategoryInformation Technology Equipment with intentional radiator ManufacturerPrecise Biometrics AB Model / typePrecise Miranda Part no.MS 010 040 Serial no.- FCC ID- Supply voltage7-12 VAC Operational modeReading contactless smart card 2.2 Test object- -AC Adapter CategoryAC adapter ManufacturerNordic Power AB Model / typeA20960C 9 VAC Part no.- Serial no.- FCC ID- Supply voltage120 VAC Operational modeNormal, 120 VAC 2.3 AUX equipment - Precise Fingerprint reader ManufacturerPrecise Biometrics AB Model / type100SC Part no.MS 010 004 Serial no.0001 FCC IDPBKMS010004 2.4 AUX equipment - Test PC Manufacturer IBM Model / type ThinkPad 600E/2645-3AQ Part no.- Serial no.5502ZP2-02/99 FCC ID4U6JPN-32476-DT-E DANAK-196038 DELTA-K222371-2 Page 7 of 12 VS/blj 3. General test conditions 3.1 Test se t -up Precise Miranda is a programming unit to programme standard Mifare contactless smart cards. During test a DOS programme in the test PC can constantly read a Mifare card mounted on the Precise Miranda unit. When the card is removed a carrier modulated five times a second by a request com- mand (duration below 100 μs) is transmitted continuously. This mode was used for most tests. The power adapter / EUT was powered from 115 VAC 50 Hz during tests. AC/AC Test PC Precise Miranda Mifare con- tactless smart card 1 cm distance d 115 VAC 100SC finger- print reader DANAK-196038 DELTA-K222371-2 Page 8 of 12 VS/blj 4. Test and results 4.1 Conducted emission, AC mains (FCC Part 15, Subpart B, Class B and FCC Part 15, Subpart C) Requirements Specification 1FCC Rules and Regulations Part 15, Subpart B, Class B Specification 2FCC Rules and Regulations Part 15, Subpart C Test …

Text truncated - open the document above for the full version.

DANAK-196038 DELTA-K222371-2 Annex 2 Photos (3 pages) This exhibit is an extract of DELTA Test Report K222371-2, DANAK 196038, containing only the photographs of representative test set-ups. DANAK-196038 DELTA-K222371-2 Photo 1 FCC Conducted emission on AC mains port Photo 2EUT with card DANAK-196038 DELTA-K222371-2 Photo 3FCC Radiated emission 30 - 1000 MHz Photo 4Measurements of modulation products at a distance of 9 m DANAK-196038 DELTA-K222371-2 Photo 5Radiated measurements on 30 m OATS Photo 6Measurements in climatic chamber

DANAK-196071 DELTA-K222371-6 Annex 2 Photos (3 pages) This exhibit is an extract of DELTA Test Report K222371-6, DANAK 196071 containin g only the photographs of representative test set-ups. DANAK-196071 DELTA-K222371-6 Photo 1 FCC Conducted emission on AC mains port. Photo 2EUT with card. EUT DANAK-196071 DELTA-K222371-6 Photo 3FCC Radiated emission 30 - 1000 MHz. Photo 4Measurements of modulation products at a distance of 9 m. Survey only. DANAK-196071 DELTA-K222371-6 Photo 5Radiated measurements using magnetic loop. 13 MHz to 30 MHz on 30 m OATS. EUT shown in position with maximum radiation. Photo 6Measurements in climatic chamber.
