PBLBDW463AM(1) WiFi Combo VPN Router (Model: BDW463AM) (2) WiFi Combo VPN Router (Model: BDW462AM) (3) WiFi Combo Router (Model: CDW463AM) (4) WiFi Combo Security Router (Model: BDW462AM-L) (5) WiFi VPN Router (Model: BDE460RP-001)

1 BDW463AM;BDW462AM WiFi Combo VPN Router CDW463AM WiFi Combo Router BDE460RP-001 WiFi VPN Router BDW462AM-L WiFi Combo Security Router User Manual 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. 3 TABLE OF CONTENTS COPYRIGHT ......................................................................................................................... 2 FCC INTERFERENCE STATEMENT ................................................................................... 2 CHAPTER 1. INTRODUCTION ............................................................................................ 4 1.1 PACKAGE LIST.............................................................................................................. 4 1.2 HARDWARE INSTALLATION ....................................................................................... 5 CHAPTER 2. GETTING STARTED ...................................................................................... 8 2.1 EASY SETUP BY WINDOWS UTILITY.......................................................................... 8 2.2 EASY SETUP BY CONFIGURING WEB PAGES........................................................ 16 CHAPTER 3. MAKING CONFIGURATION........................................................................ 21 3.1 BASIC SETTING........................................................................................................... 21 3.2 FORWARDING RULES ................................................................................................ 40 3.3 SECURITY SETTING.................................................................................................... 43 3.4 ADVANCED SETTING ................................................................................................. 59 3.5 TOOL BOX....................................................................................................................66 CHAPTER 4. TROUBLESHOOTING ................................................................................. 70 APPENDIX A. SPEC SUMMARY TABLE.......................................................................... 74 APPENDIX B. LICENSING INFORMATION ...................................................................... 75 4 CHAPTER 1. Introduction Congratulations on your purchase of this outstanding product: BDW463AM WiFi Combo VPN Router. This product is specifically designed for Office needs. It provides a complete solution for Internet surfing, 3G backup, and VPN tunneling. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. 1.1 Package List Items Description Contents Quantity 1 WiFi Combo VPN Router 1 2 Power adapter 12V 2A 1 3 CD 1 4 RS232-to-RJ45 1 5 1.2 Hardware Installation 1.2.1 Hardware configuration 1.2.2 LED indicators LED color Description Green It is connected to Internet. WA N Green in flash Data access Green RJ45 cable is plugged, and Ethernet connection is established. LAN Green in flash Data access Green WiFi is on. WLAN Green in flash Data access Amber 3G/3.5G is on. 3G USB Amber in flash Data access Amber Connection established 3G Express Card Amber in flash Data access Amber Serial port connection established RS232-to-RJ45 Amber in flash Data access Green in flash Normal mode (The power is on.) Power Green in fast flash Reset mode 6 1.2.3 Installation Steps Step 1. Attach the antenna: Screw the antenna in a clockwise direction to the back panel of the unit. DO NOT connect WiFi Combo VPN Router to power before performing the installation steps below. Step 2. Insert the 3G USB to the router: Plug your USB modem which is with activated SIM card provided by your 3G service provider. to the USB interface. Step 3. Connect with the Ethernet patch cable: Insert the Ethernet cable into RJ45 Ethernet Port on the back panel. And then plug the other end of RJ45 into the computer or Laptop computer. The LED of Internet connection will show green color if the Ethernet connection is normally connected. Step 4. Connect the power adapter: Plug the other end of the power adapter into a wall outlet. Step 5. Press the power button 7 Step 6. Start to configure the device: You can start to configure the device via the Easy Setup. (see Easy Setup Utility) 8 CHAPTER 2. Getting Started 2.1 Easy Setup by Windows Utility Step 1: Install the Easy Setup Utility from CD then follow the steps to configure it. Step 2: Select Language then click “Next” to continue. Step 3: Then click the “Wizard” to continue. Or click “advanced” to run advanced mode for more de…

Text truncated - open the document above for the full version.

Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Confidentiality Request FCC ID : PBLBDW463AM Product : (1)WiFi Combo VPN Router / (2) WiFi Combo Router / (3)WiFi Combo Security Router / (4) WiFi VPN Router Model : (1)BDW463AM;BDW462AM, (2)CDW463AM, (3)BDW462AM-L , (4)BDE460RP-001 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ___________________________ name/ title tel: fax: email:

Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Date : 2012-01-18 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA Model Difference To whom it may concern, Due to the business consideration, we hereby declare that our products of (1) WiFi Combo VPN Router (Model: BDW463AM) (2) WiFi Combo VPN Router (Model: BDW462AM) (3) WiFi Combo Router (Model: CDW463AM) (4) WiFi Combo Security Router (Model: BDW462AM-L) (5) WiFi VPN Router (Model: BDE460RP-001) have as following difference Model Description: Function I Function II Function III Function IV Function V No. Product name Model USB Port (connect to 3G dongle) PCIE RS232 Green Function Ethernet Port External Case Internal Case Adapter RF Test Mode EMI Test Mode 12Vdc/2A O O 1 WiFi Combo VPN Router BDW463AM Ye s , * 1 Ye s , * 1 Ye s , * 1 Ye s 1 WAN 4 LAN Case 1 Case 2 Case 1 12Vdc/1A X X 12Vdc/2A X O 2 WiFi Combo VPN Router BDW462AM Ye s , *2 No Ye s , * 1 No 1 WAN 4 LAN Case 3 Case 3 12Vdc/1A X X 12Vdc/1A X O 3 WiFi Combo Router CDW463AM Ye s , * 1 Ye s , * 1 No Yes 1 WAN 4 LAN Case 4 Case 5 Case 4 12Vdc/2A X O 4 WiFi Combo Security Router BDW462AM-L Ye s , *2 No Ye s , * 1 No a. 1 WAN 4 LAN b. 2 WAN 3 LAN 2 Mode Switch Case 3 Case 3 12Vdc/2A X X 5 WiFi VPN Router BDE460RP-001 No No No No 1 WAN 4 LAN Case 6 Case 6 12Vdc/2A 12Vdc/1A X X NOTE: “No”: EUT without this function and circuit. “Yes”: EUT with this function and circuit. “X”: EUT without test data in this report. “O”: EUT with test data in this report (worse case). 1. Each model has the different product name just for marketing purpose. 2. WiFi Combo VPN Router (Model: BDW463AM): a. this model has five functions more than other samples, so it was used for RF test and EMI test(radiated emissions) with an adapter(12Vac/2A). b. This model has two external cases just for marketing purpose. 3. WiFi Combo Router (Model: CDW463AM) has two external cases just for marketing purpose. 4. BDW463AM with an adapter(12Vac/2A), BDW462AM with an adapter(12Vac/2A), CDW463AM with an adapter(12Vac/2A), CDW463AM with an adapter(12Vac/1A), these samples have been tested for POWERLINE CONDUCTED EMISSIONS. Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely yours, (Name / Title) (Company Name)

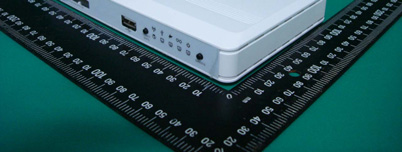

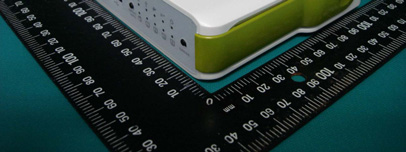

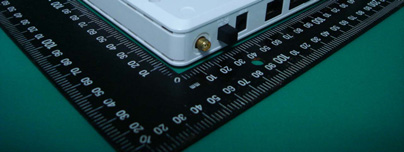

Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A1 / 21 ʳ PHOTOGRAPHS OF EUT Model: BDW463AM Case 1 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A2 / 21 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A3 / 21 Model: BDW463AM Case 2 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A4 / 21 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A5 / 21 Model: BDW462AM, BDW462AM-L Case 3 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A6 / 21 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A7 / 21 Model: CDW463AM Case 4 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A8 / 21 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A9 / 21 Model: CDW463AM Case 5 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A10 / 21 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A11 / 21 Model: BDE460RP-001 Case 6 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A12 / 21

Diagram AMIT FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label location

Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A13 / 21 Model: BDW463AM Case 1 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A14 / 21 Model: CDW463AM Case 4 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A15 / 21 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A16 / 21 Model: BDW462AM, BDW462AM-L Case 3 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A17 / 21 Model: BDE460RP-001 Case 6 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A18 / 21 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A19 / 21 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A20 / 21 Compliance Certification Services Inc. Report No.:T100916402 Date of Issue: November 15, 2010 Page A21 / 21

Description of Operation The EUT is a (1)WiFi Combo VPN Router / (2) WiFi Combo Router / (3)WiFi Combo Security Router / (4) WiFi VPN Router with IEEE 802.11b/g/n . And this device provided of transmitting speed: IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps IEEE 802.11n HT40 : 150 ,135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was a Dipole antenna and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz～2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz～2452MHz Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40: 5MHz Channel Number IEEE 802.11b/g, 802.11n HT20:11 Channels IEEE 802.11n HT40 :7 Channels

Reference No.: T100914404-RP1 Report No.：T100916402-RP1 FCC ID：PBLBDW463AM Date of Issue: January 18, 2011 Page 1 FCC 47 CFR PART 15 SUBPART C: 2009 AND ANSI C63.4: 2003 TEST REPORT For (1) WiFi Combo VPN Router (Model: BDW463AM) (2) WiFi Combo VPN Router (Model: BDW462AM) (3) WiFi Combo Router (Model: CDW463AM) (4) WiFi Combo Security Router (Model: BDW462AM-L) (5) WiFi VPN Router (Model: BDE460RP-001) Data Applies To： Brand : AMIT; ZALiP Issued for Advance Multimedia Internet Technology Inc. No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 140 Reference No.: T100914404-RP1 Report No.：T100916402-RP1 FCC ID：PBLBDW463AM Date of Issue: January 18, 2011 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 November 1, 2010 Initial Issue ALL Leah Peng 01 January 18, 2011 Modify product name and model & Model difference list Page 1,2,4,5,6 Leah Peng Reference No.: T100914404-RP1 Report No.：T100916402-RP1 FCC ID：PBLBDW463AM Date of Issue: January 18, 2011 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ...................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 2.1 DESCRIPTION OF EUT & POWER ........................................................................................ 5 3. DESCRIPTION OF TEST MODES ..................................................................................7 4. TEST METHODOLOGY ..................................................................................................8 5. FACILITIES AND ACCREDITATIONS............................................................................8 5.1 FACILITIES .............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 9 6. CALIBRATION AND UNCERTAINTY.............................................................................10 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 10 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 10 7. SETUP OF EQUIPMENT UNDER TEST.........................................................................11 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 11 7.2 SUPPORT EQUIPMENT ......................................................................................................... 13 7.3 EUT OPERATING CONDITION .............................................................................................. 15 8. APPLICABLE LIMITS AND TEST RESULTS.................................................................16 8.1 6DB BANDWIDTH ................................................................................................................... 16 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 31 8.3 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 35 8.4 POWER SPECTRAL DENSITY ............................................................................................... 37 8.5 CONDUCTED SPURIOUS EMISSION.................................................................................... 56 8.6 RADIATED EMISSIONS ..........................................................................................................77 8.7 POWERLINE CONDUCTED EMISSIONS .............................................................................. 124 9. ANTENNA REQUIREMENT ............................................................................................134 9.1 STANDARD APPLICABLE ...................................................................................................... 134 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 134 APPENDIX I SETUP PHOTOS ...........................................................................................135 APPENDIX II PHOTOGRAPHS OF EUT...................................................................A1 Reference No.: T100914404-RP1 Report No.：T100916402-RP1 FCC ID：PBLBDW463AM Date of Issue: January 18, 2011 Page 4 1. TEST REPORT CERTIFICATION Applicant ： Advance Multimedia Internet Technology Inc. Address ： No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Manufacture ： Advance Multimedia Internet Technology Inc. Address ： No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Equipment Under Test (Model Number)： (1) WiFi Combo VPN Router (Model: BDW463AM) (2) WiFi Combo VPN Router (Model: BDW462AM) (3) WiFi Combo Router (Model: CDW463AM) (4) WiFi Combo Security Router (Model: BDW462AM-L) (5) WiFi VPN Router (Model: BDE460RP-001) Brand Name ： AMIT; ZALiP Date of Test ： September 29, 2010 – October 7, 2010 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2009 AND ANSI C6…

Text truncated - open the document above for the full version.

Reference No.: T100914404-RP1 Report No.：T100916402-RP1 FCC ID：PBLBDW463AM Date of Issue: January 18, 2011 Page 101 Product Name WiFi Combo VPN Router Test Date 2010/10/4 Model BDW463AM Test By John Chen Test Mode IEEE 802.11n HT40 TX (CH Low) TEMP& Humidity 26.8 , 5°C7% Horizontal TX / IEEE 802.11n HT40 mode / CH LowMeasurement Distance at 3m Horizontal polarity Freq. Reading AF Cable LossPre-ampFilterLevel Limit Margin Mark (MHz) (dBμV) (dB/m) (dB) (dB) (dB)(dBμV/m)(dBμV/m) (dB) (P/Q/A) * 4844.18 51.69 33.23 3.74 42.40 0.7046.96 74.00 -27.04 P * 4844.18 41.85 33.23 3.74 42.40 0.7037.12 54.00 -16.88 A * 7265.34 50.16 38.70 4.69 41.80 1.5053.25 74.00 -20.75 P * 7265.34 40.73 38.70 4.69 41.80 1.5043.82 54.00 -10.18 A N/A ------ ------ ------ ------ ------------ ------ ------ P N/A ------ ------ ------ ------ ------------ ------ ------ A REMARK: 1. AF: Antenna Factor, Cable: Cable Loss, Pre-Amp: Preamplifier gain, Filter: High Pass Filter Insertion Loss (3.5GHz) 2. Spectrum analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz 3. The result basic equation calculation is as follow: Level = Reading + AF + Cable – Preamp + Filter – Dist, Margin = Level-Limit 4. The other emission levels were 20dB below the limit 5. The test limit distance is 3M limit. Reference No.: T100914404-RP1 Report No.：T100916402-RP1 FCC ID：PBLBDW463AM Date of Issue: January 18, 2011 Page 102 Product Name WiFi Combo VPN Router Test Date 2010/10/4 Model BDW463AM Test By John Chen Test Mode IEEE 802.11n HT40 TX (CH Low) TEMP& Humidity 26.8°C, 57% Vertical TX / IEEE 802.11n HT40 mode / CH LowMeasurement Distance at 3m Vertical polarity Freq. Reading AF Cable LossPre-ampFilterLevel Limit Margin Mark (MHz) (dBμV) (dB/m) (dB) (dB) (dB)(dBμV/m)(dBμV/m) (dB) (P/Q/A) * 4844.20 53.04 33.23 3.74 42.40 0.7048.31 74.00 -25.69 P * 4844.20 42.36 33.23 3.74 42.40 0.7037.63 54.00 -16.37 A * 7265.56 51.56 38.70 4.69 41.80 1.5054.65 74.00 -19.35 P * 7265.56 41.37 38.70 4.69 41.80 1.5044.46 54.00 -9.54 A N/A ------ ------ ------ ------ ------------ ------ ------ P N/A ------ ------ ------ ------ ------------ ------ ------ A REMARK: 1. AF: Antenna Factor, Cable: Cable Loss, Pre-Amp: Preamplifier gain, Filter: High Pass Filter Insertion Loss (3.5GHz) 2. Spectrum analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz 3. The result basic equation calculation is as follow: Level = Reading + AF + Cable – Preamp + Filter – Dist, Margin = Level-Limit 4. The other emission levels were 20dB below the limit 5. The test limit distance is 3M limit. Reference No.: T100914404-RP1 Report No.：T100916402-RP1 FCC ID：PBLBDW463AM Date of Issue: January 18, 2011 Page 103 Product Name WiFi Combo VPN Router Test Date 2010/10/4 Model BDW463AM Test By John Chen Test Mode IEEE 802.11n HT40 TX (CH Middle) TEMP& Humidity 26.8°C, 57% Horizontal TX / IEEE 802.11n HT40 mode / CH MiddleMeasurement Distance at 3m Horizontal polarity Freq. Reading AF Cable LossPre-ampFilterLevel Limit Margin Mark (MHz) (dBμV) (dB/m) (dB) (dB) (dB)(dBμV/m)(dBμV/m) (dB) (P/Q/A) * 4874.16 51.96 33.32 3.74 42.43 0.7147.31 74.00 -26.69 P * 4874.16 41.63 33.32 3.74 42.43 0.7136.98 54.00 -17.02 A * 7311.34 50.69 38.83 4.71 41.72 1.6054.11 74.00 -19.89 P * 7311.34 40.03 38.83 4.71 41.72 1.6043.45 54.00 -10.55 A N/A ------ ------ ------ ------ ------------ ------ ------ P N/A ------ ------ ------ ------ ------------ ------ ------ A REMARK: 1. AF: Antenna Factor, Cable: Cable Loss, Pre-Amp: Preamplifier gain, Filter: High Pass Filter Insertion Loss (3.5GHz) 2. Spectrum analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz 3. The result basic equation calculation is as follow: Level = Reading + AF + Cable – Preamp + Filter – Dist, Margin = Level-Limit 4. The other emission levels were 20dB below the limit 5. The test limit distance is 3M limit. Reference No.: T100914404-RP1 Report No.：T100916402-RP1 FCC ID：PBLBDW463AM Date of Issue: January 18, 2011 Page 104 Product Name WiFi Combo VPN Router Test Date 2010/10/4 Model BDW463AM Test By John Chen Test Mode IEEE 802.11n HT40 TX (CH Middle) TEMP& Humidity 26.8°C, 57% Vertical TX / IEEE 802.11n HT40 mode / CH MiddleMeasurement Distance at 3m Vertical polarity Freq. Reading AF Cable LossPre-ampFilterLevel Limit Margin Mark (MHz) (dBμV) (dB/m) (dB) (dB) (dB)(dBμV/m)(dBμV/m) (dB) (P/Q/A) * 4873.86 53.06 33.32 3.74 42.43 0.7148.40 74.00 -25.60 P * 4873.86 42.25 33.32 3.74 42.43 0.7137.59 54.00 -16.41 A * 7311.16 51.85 38.83 4.71 41.72 1.6055.26 74.00 -18.74 P * 7311.16 41.36 38.83 4.71 41.72 1.6044.77 54.00 -9.23 A N/A ------ ------ ------ ------ ------------ ------ ------ P N/A ------ ------ ------ ------ ------------ ------ ------ A REMARK: 1. AF: Antenna Factor, Cable: Cable Loss, Pre-Amp: Preamplifier gain, Filter: High Pass Filter Insertion Loss (3.5GHz) 2. Spectrum analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz 3. The result basic equation calculation is as follow: Level = Reading + AF + Cable – Preamp + Filter – Dist, Margin = Level-Limit 4. The other emission levels were 20dB below the limit 5. The test limit distance is 3M limit. Reference No.: T100914404-RP1 Report No.：T100916402-RP1 FCC ID：PBLBDW463AM Date of Issue: January 18, 2011 Page 105 Product Name WiFi Combo VPN Router Test Date 2010/10/4 Model BDW463AM Test By John Chen Test Mode IEEE 802.11n HT40 TX (CH High) TEMP& Humidity 26.8°C, 57% Horizontal TX / IEEE 802.11n HT40 mode / CH HighMeasurement Distance at 3m Horizontal polarity Freq. Reading AF Cable LossPre-ampFilterLevel Limit Margin Mark (MHz) (dBμV) (dB/m) (dB) (dB) (dB)(dBμV/m)(dBμV/m) (dB) (P/Q/A) * 4903.86 51.36 33.41 3.75 42.46 0.7246.78 74.00 -27.22 P * 4903.86 41.69 33.41 3.75 42.46 0.7237.11 54.00 -16.89 A * 7355.95 50.84 38.97 4.73 41.65 1.6954.58 74.00 -19.42 P * 7355.95 40.62 38.97 4.73 41.65 1.6944.36 54.00 -9.64 A N/A ------ ------ ------ ------ ------------ ------ ------ P N/A ------ ------ ------ ------ ------------ ------ --…

Text truncated - open the document above for the full version.

!!!Reference No.: T100914404-RP1 Report No.ΚT100916402-RP1 FCC IDΚPBLBDW463AM Date of Issue: January 18, 2011 ! Qbhf!246! APPENDIX SETUP PHOTOS CONDUCTED EMISSION TEST SETUP Mode 1 BDW463AM !!!Reference No.: T100914404-RP1 Report No.ΚT100916402-RP1 FCC IDΚPBLBDW463AM Date of Issue: January 18, 2011 ! Qbhf!247! Mode 2 BDW462AM !!!Reference No.: T100914404-RP1 Report No.ΚT100916402-RP1 FCC IDΚPBLBDW463AM Date of Issue: January 18, 2011 ! Qbhf!248! Mode 3 CDW463AM ; Mode 4 CDW463AM !!!Reference No.: T100914404-RP1 Report No.ΚT100916402-RP1 FCC IDΚPBLBDW463AM Date of Issue: January 18, 2011 ! Qbhf!249! RADIATED EMISSION MEASUREMENT SETUP Mode 1 BDW463AM !!!Reference No.: T100914404-RP1 Report No.ΚT100916402-RP1 FCC IDΚPBLBDW463AM Date of Issue: January 18, 2011 ! Qbhf!24:! RADIATED RF MEASUREMENT SETUP !!!Reference No.: T100914404-RP1 Report No.ΚT100916402-RP1 FCC IDΚPBLBDW463AM Date of Issue: January 18, 2011 ! Qbhf!251! POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP End of report
