PBLCDD531AMU03WiFi ADSL2/2+ RG

1 CDD530AM-003/ CDD531AM-U03 WiFi ADSL2/2+ RG User Manual 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. This equipment has been tested and found to comply with the limits for a lass B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Part 15.21 information for user You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. 3 FCC Part 15.19 Caution: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 4 TABLE OF CONTENTS Copyright ..................................................................2 Chapter 1 Introduction..............................................5 Chapter 2 Getting Started .......................................10 Chapter 3 Making Configuration............................18 Chapter 4 Troubleshooting .....................................82 5 Chapter 1 . Introduction Congratulations on your purchase of this outstanding product: CDD531AM-U03 WiFi ADSL RG. This residential gateway is specifically designed for those who need to have the data, voice, video and file sharing services beyond his home and office. It provides a complete solution for Internet surfing and broadband sharing. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. 1.1Package List Items Description Contents Quantity 1 WiFi ADSL RG 1 2 Power adapter 1 3 CD 1 6 1.2 Hardware Installation 1.2.1 Hardware configuration Antenna Receptor for Power Adapter USB Port RJ-11 Port Auto MDI/MDIX RJ-45 Ports Automatically sense the types of WAN and LAN when connecting to Ethernet Note : CDD530-003 without USB Port 7 LAN1~LAN4 LEDs Wi-Fi/ WPS LED ADSL LED Status LED WPS/Wireless/ Reset Button 8 1.2.2 LED indicators LED Status Description Green in flash power is on Green in fast flash Reset mode Green USB storage attached ( only for CDD531-U03) Status (USB) Green in flash Data access Green in flash xDSL connection is established ADSL Green in fast flash Data packet transferred via DSL Line Green WiFi is on. WLAN Green in flash Data access Green RJ45 cable is plugged, and Ethernet connection is established. LAN Green in flash Data access 9 How to Operate Step 1. Plug the RJ45 cable into LAN port 1~4 and connect with your PC or NB. Step 2. Plug your RJ-11 into the DSL port and connect with your xDSL modem. Step 3. Plug the power jack into it. Step 4 Prepare a USB Storage or 3G dongle, and then plug into the USB port. 10 Chapter 2 Getting Started Please use windows EZ setup utility or Web UI wizard to enter the setup process. 2.1 Easy Setup by Windows Utility Step 1. Install the Easy Setup Utility from the provided CD then follow the steps to configure the device. Step 2. Select Language then click “Next” to continue. 11 Step 3. Then click the “Wizard” to continue. Step 4. Click “Next” to continue. Step 6. Select Wireless Enable, and then click “Next” to continue. 12 Step 7. Enter SSID, Channel and Security options, and then click “Next” to continue. Step 8. Select Auto Detect WAN service. Step 9. Save the setting. 13 Step 10. Congratulations! Setup is completed. Now you have already connected to Internet successfully. 14 2.3 Easy Setup by Configuring Web UI You can also browse UI of the web to…

Text truncated - open the document above for the full version.

規格承認書 Specification for Approval 客 戶： 永 洋 Customer 品 名: 2.4GHz 2dBi ANTENNA BLACK Part name 料 號：GY111HT467-006 Part No. 客戶料號：11320Y11060A1 Customer Part No. Rev.(版本): 01 客戶承認印 CUSTOMER APPROVED BY APPROVAL CHIEF SUPERVISOR Approval No. Model Part No. CHIEF SALES R&D DESIGN Andy Teri Tseng Ta mmy River Date: 2010/10/08 Date: 2010/10/08 驊 陞 科 技 股 份 有 限 公 司 WIESON TECHNOLOGIES CO., LTD. 表格編號：324012 版本: 第四版

規格承認書 Specification for Approval 客 戶： 永 洋 Customer 品 名: 2.4GHz 2.35dBi ANTENNA WHITE Part name 料 號：GY111HT467-026 Part No. 客戶料號：11320Y11127A1 Customer Part No. Rev.(版本): 01 客戶承認印 CUSTOMER APPROVED BY APPROVAL CHIEF SUPERVISOR Approval No. Model Part No. CHIEF SALES R&D DESIGN Andy Teri Tseng JERRY JOSN Date: 2012/4/25 Date: 2012/4/25 驊 陞 科 技 股 份 有 限 公 司 WIESON TECHNOLOGIES CO., LTD. 表格編號：324012 版本: 第四版 WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 3/10 I. SUMMARY This report to account for the measurement setup and result of the Antenna. 1. The measurement setup includes s-parameter, pattern, and gain measurement. 2. The measured data for Antenna are presented and analysis. II. S-PARAMETER MEASUREMENT A. Reflection coefficient : (a) InstrumentNetwork Analyzer. (b) Setup (1) Calibrate the Network Analyzer by one port calibration using O.S.L. calibration kits. (2) Connect the antenna under test to the Network Analyzer. (3) Measure the S11(reflection coefficient) shown in Fig. 1. (4) Generally, the S11 is less than –10dB to ensure the 90% power into antenna and only less than 10% power back to system. Fig.1 Antenna measured in Network Analyzer WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 4/10 III. S-PARAMETER TEST RESULT Antenna Retune Loss (a) Antenna Frequency Sample 2.4GHz 2.45GHz 2.4835GHz 1 -17.837dB-30.28dB -28.058dB WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 5/10 IV. THE TEST INFORMATION IN ANECHOIC CHAMBER A. Scope This statement of work defines the requirements of a far-field antenna measurement range, which includes (1) One 325 cm (W) x 285 cm (H) x 640 cm (L) Antenna Measurement Anechoic Chamber, detailed requirements refer section 2.0 . (2) One Far-field Antenna Measurement System with spinning linear CP measurement capabilities, detailed requirement refer section 3.0 . (3) One broad-band transmitted antenna, detailed requirements refer section 8.0 . (4) Three NRL-4433 standard gain antennas, detailed requirements refer section 9.0 . B. Antenna Measurement Anechoic Chamber Fully anechoic chamber with dimension 325 cm in width, 285 cm in height and 640 cm in length. The quiet zone of this Chamber shall be greater than WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 6/10 70 cm @ 0.9 GHz, 50 cm @1.8 GHz, 44 cm @2.4 GHz, 28 cm @5.8 GHz, 16 cm @18 GHz. Contractor should be aware of this anechoic chamber is going to be used for performing far-filed antenna measurement. C. Electrical specifications Frequency Range: 800 MHz to 18 GHz, Quiet zone size: >70 cm @ 0.9 GHz, >50 cm @1.8 GHz, >44 cm @2.4 GHz, >28 cm @5.8 GHz, >16 cm @18 GHz. Quiet zone ripple: < +/- 0.5 dB @1.5~2.4 GHz, < +/- 0.25 dB @2.4~18GHz WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 7/10 D. Absorbers We shall design and install proper absorbers on the inner walls of the chamber to guarantee the electrical specifications . However, the absorbers height shall be no less than 24" which enables the space in the chamber to be around 203 cm (W) x 163 cm (H) x 533 cm (L). All the absorber used shall meet NRL-8093 fire retardant regulations E. Far-field Antenna Measurement System We shall supply all the hardware and software which are capable of characterizing antenna radiation patterns from 30 KHz to 6 GHz or 18GHz using the existed Agilent 5230A PNA-L or Agilent 8753ES Vector Network Analyzer. The system shall be able to automatically measure and plot single axis amplitude and phase antenna patterns in either Cartesian or polar formats. F. Far-field measurement software The software consists of the control or data acquisition software and the data plotting software. (1) The data acquisition software shall at least be capable of the following functions: *measuring single frequency per cut - single axis (azimuth); system can automatically switch frequency at the end of a scan. *measuring data in Uni-direction or bi-direction *measuring data at least with azimuth 360 degrees. (+/- 180 degrees or 0-360 degrees) *real time plot in Cartesian or polar format *screen shows real time angle position WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 8/10 *system automatically calculates S/N ratio level based on measured signal fluctuation *function to set positioner zero position *operator can set data taking velocity and data sampling interval *entry to allow positioner offset to any angle (2) The data plotting software shall at least be capable of the following functions: *Editing plot data *plotting data in Carttesian, Polar or delimited ASCII output with header information *plotting data in linear or dB scales *normalizing data to peak (dB), standard gain reference (dBi), or no normalization *overlaying data, (drag and dorp capability is preferable) *outputting data to any Windows supported printers G. Broadband Transmitted antenna We shall provide a linear-polarized broadband antenna with the specifications better than those listed hereafter in this article, Frequency: 1-18 GHz, Gain: >12 dBi @10 GHz, VSWR:<2,0:1, Front to Back Ration > 20 dB H. NRL4433 Standard Gain Horns We shall provide one WR-430, WR-187 one DRH0118 standard gain horns which meets the specifications of NRL-4433 report. The operating frequency of WR-430 standard gain horn is from 1.7 to 2.6 GHz, and WR-187 from 3.95 to 5.85 GHz, and DRH-0118 from 0.8 to 18GHz. We shall also provide NRL-4433 theoretical gain curves and tables for the standard gain horns. V. C h am WI mber T IESON Test Pho N TEC oto CHNOOLOGIIES CCO., LT TD. WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 10/10 VI. CHAMBER TEST RESULT Frequency (GHz) 2.4 2.45 2.5 Peak Gain (dBi) 1.79 2.35 2.24 Avg. Gain (dBi) -1.18 -1.03 -1.45 Efficiency(%) 76 79 72 Antenna Pattern 2.4GHz 2.45GHz 2.5GHz

規格承認書 Specification for Approval 客 戶： 永 洋 Customer 品 名: 2.4GHz 4.04dBi ANTENNA BLACK Part name 料 號：GY112HT467-010 Part No. 客戶料號：11320Y11008B1 Customer Part No. Rev.(版本): 01 客戶承認印 CUS TOMER APPROVED BY APPROVAL CHIEF SUPERVISOR Approval No. Model Part No. CHIEF SALES R&D DESIGN Andy Teri Tseng Tammy Jerry Date: 2011/03/01 Date: 2011/03/01 驊 陞 科 技 股 份 有 限 公 司 WIESON TECHNOLOGIES CO., LTD. 表格編號：324012 版本: 第四版 PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 1/9 I. SUMMARY： This report to account for the measurement setup and result of the Antenna. 1. The measurement setup includes s-parameter, pattern, and gain measurement. 2. The measured data for Antenna are presented and analysis. II. S-PARAMETER MEASUREMENT： A. Reflection coefficient : (a) Instrument：Network Analyzer. (b) Setup： (1) Calibrate the Network Analyzer by one port calibration using O.S.L. calibration kits. (2) Connect the antenna under test to the Network Analyzer. (3) Measure the S11(reflection coefficient) shown in Fig. 1. (4) Generally, the S11 is less than –10dB to ensure the 90% power into antenna and only less than 10% power back to system. Fig.1 Antenna measured in Network Analyzer WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 2/9 III. S-PARAMETER TEST RESULT： Antenna VSWR Frequency Sample 2400 MHz 2450 MHz 2500 MHz 1 1.9102 1.7576 1.447 WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 3/9 Antenna Log Mag Frequency Sample 2400 MHz 2450 MHz 2500 MHz 1 -10.326 -10.993 -14.159 WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 4/9 IV. THE TEST INFORMATION IN ANECHOIC CHAMBER A. Scope This statement of work defines the requirements of a far-field antenna measurement range, which includes (1) One 325 cm (W) x 285 cm (H) x 640 cm (L) Antenna Measurement Anechoic Chamber, detailed requirements refer section 2.0 . (2) One Far-field Antenna Measurement System with spinning linear CP measurement capabilities, detailed requirement refer section 3.0 . (3) One broad-band transmitted antenna, detailed requirements refer section 8.0 . (4) Three NRL-4433 standard gain antennas, detailed requirements refer section 9.0 . B. Antenna Measurement Anechoic Chamber Fully anechoic chamber with dimension 325 cm in width, 285 cm in height and 640 cm in length. The quiet zone of this Chamber shall be greater than WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE :5/9 70 cm @ 0.9 GHz, 50 cm @1.8 GHz, 44 cm @2.4 GHz, 28 cm @5.8 GHz, 16 cm @18 GHz. Contractor should be aware of this anechoic chamber is going to be used for performing far-filed antenna measurement. C. Electrical specifications Frequency Range: 800 MHz to 18 GHz, Quiet zone size: >70 cm @ 0.9 GHz, >50 cm @1.8 GHz, >44 cm @2.4 GHz, >28 cm @5.8 GHz, >16 cm @18 GHz. Quiet zone ripple: < +/- 0.5 dB @1.5~2.4 GHz, < +/- 0.25 dB @2.4~18GHz WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 6/9 D. Absorbers We shall design and install proper absorbers on the inner walls of the chamber to guarantee the electrical specifications . However, the absorbers height shall be no less than 24" which enables the space in the chamber to be around 203 cm (W) x 163 cm (H) x 533 cm (L). All the absorber used shall meet NRL-8093 fire retardant regulations E. Far-field Antenna Measurement System We shall supply all the hardware and software which are capable of characterizing antenna radiation patterns from 30 KHz to 6 GHz or 18GHz using the existed Agilent 5230A PNA-L or Agilent 8753ES Vector Network Analyzer. The system shall be able to automatically measure and plot single axis amplitude and phase antenna patterns in either Cartesian or polar formats. F. Far-field measurement software The software consists of the control or data acquisition software and the data plotting software. (1) The data acquisition software shall at least be capable of the following functions: *measuring single frequency per cut - single axis (azimuth); system can automatically switch frequency at the end of a scan. *measuring data in Uni-direction or bi-direction *measuring data at least with azimuth 360 degrees. (+/- 180 degrees or 0-360 degrees) *real time plot in Cartesian or polar format *screen shows real time angle position WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE :7/9 *system automatically calculates S/N ratio level based on measured signal fluctuation *function to set positioner zero position *operator can set data taking velocity and data sampling interval *entry to allow positioner offset to any angle (2) The data plotting software shall at least be capable of the following functions: *Editing plot data *plotting data in Carttesian, Polar or delimited ASCII output with header information *plotting data in linear or dB scales *normalizing data to peak (dB), standard gain reference (dBi), or no normalization *overlaying data, (drag and dorp capability is preferable) *outputting data to any Windows supported printers G. Broadband Transmitted antenna We shall provide a linear-polarized broadband antenna with the specifications better than those listed hereafter in this article, Frequency: 1-18 GHz, Gain: >12 dBi @10 GHz, VSWR:<2,0:1, Front to Back Ration > 20 dB H. NRL4433 Standard Gain Horns We shall provide one WR-430, WR-187 one DRH0118 standard gain horns which meets the specifications of NRL-4433 report. The operating frequency of WR-430 standard gain horn is from 1.7 to 2.6 GHz, and WR-187 from 3.95 to 5.85 GHz, and DRH-0118 from 0.8 to 18GHz. We shall also provide NRL-4433 theoretical gain curves and tables for the standard gain horns. WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 8/9 V. CHAMBER TEST PICTURE Y X Z WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 9/9 VI. CHAMBER TEST RESULT Frequency (MHz) Peak gain (dBi) Avg. gain (dBi) Efficiency (%) 2400 2.26 -2.3356 2450 3.38 -1.6469 2500 4.04 -1.8672 2400MHz 2450MHz 2500MH…

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: Advance Multimedia Internet Technology Inc. Address: No.28, Lane 31, 1,Huandong Rd., Sinshih District City: Tainan City Country: Taiwan Declare that: Name Representative of agent: Daphne Liang (1) Agent Company name: Compliance Certification Services Inc. Address: No.8, Jiucengling, Xinhua Dist., 712 City: Tainan City Country Taiwan is authorized to apply for Certification of the following product(s): Product description: WiFi ADSL2/2+ RG Type designation: CDD531AM-U03, CDD530AM-003 Trademark: AMIT on our behalf. Date: April 18, 2013 City: Tainan City Name: Spencer Huang (2) Function: ............................... Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Advance Multimedia Internet Technology Inc. Address : No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , City: Tainan City Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: PBLCDD531AMU03 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: December 28, 2012 Name and signature of applicant: Spencer Huang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

DECLARATION OF CONFORMITY (DoC) Equipment: WiFi ADSL2/2+RG Trademark(s) and Model(s): AMIT and CDD531AM-U03, CDD530AM-003 Manufacturer: Advance Multimedia Internet Technology Inc. FCC ID in case other parts of this equipment are subject to certification: PBLCDD531AMU03 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number: T120920N91-DIssue date: October 31, 2012 Company name: Advance Multimedia Internet Technology Inc. Name/Title (legal representative): Spencer Huang / Engineer Address: No.28, Lane 31,Sec.1, Huandong Rd., Sinshih Disteict,Tainan City , Taiwan R.O.C Phone: Fax: E-mail: Date: December 10 ,2012 Signature: Advance Multimedia Internet Technology Inc.

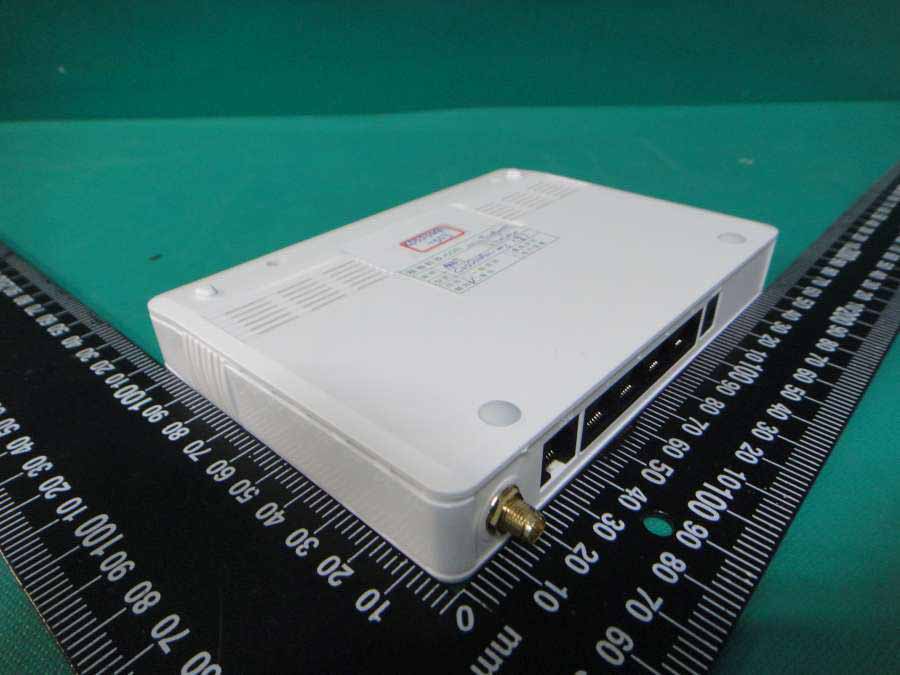

Compliance Certification Services Inc. Report No.T120920N91 Page A1 / 22 External Photo ( CDD531AM-U03 ) Antenna 1 (4.04 dBi) Compliance Certification Services Inc. Report No.T120920N91 Page A2 / 22 Compliance Certification Services Inc. Report No.T120920N91 Page A3 / 22 External Photo ( CDD531AM-U03 ) Antenna 2 (2.0 dBi) Compliance Certification Services Inc. Report No.T120920N91 Page A4 / 22 Compliance Certification Services Inc. Report No.T120920N91 Page A5 / 22 Antenna 1 (4.04 dBi) Antenna 2 (2.0 dBi) Compliance Certification Services Inc. Report No.T120920N91 Page A6 / 22 External Photo ( CDD531AM-U03 ) Antenna 3 (2.35 dBi) Compliance Certification Services Inc. Report No.T120920N91 Page A7 / 22 Compliance Certification Services Inc. Report No.T120920N91 Page A8 / 22 Antenna 3 (2.35 dBi) Compliance Certification Services Inc. Report No.T120920N91 Page A9 / 22 External Photo ( CDD531AM-U03 ) Adapter 1 Compliance Certification Services Inc. Report No.T120920N91 Page A10 / 22 External Photo ( CDD530AM-003 ) Antenna 1 (4.04 dBi) Compliance Certification Services Inc. Report No.T120920N91 Page A11 / 22 Compliance Certification Services Inc. Report No.T120920N91 Page A12 / 22 External Photo ( CDD530AM-003 ) Antenna 2 (2.0 dBi) Compliance Certification Services Inc. Report No.T120920N91 Page A13 / 22 Compliance Certification Services Inc. Report No.T120920N91 Page A14 / 22 External Photo ( CDD530AM-003 ) Antenna 3 (2.35 dBi) Compliance Certification Services Inc. Report No.T120920N91 Page A15 / 22 Compliance Certification Services Inc. Report No.T120920N91 Page A16 / 22 External Photo ( CDD530AM-003 ) Adapter 2

Diagram This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation Label location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation

Compliance Certification Services Inc. Report No.T120920N91 Page A17 / 22 Internal Photo ( CDD531AM-U03 ) Detachable Antenna Internal Photo ( CDD531AM-U03 ) Integrated Antenna Compliance Certification Services Inc. Report No.T120920N91 Page A18 / 22 Compliance Certification Services Inc. Report No.T120920N91 Page A19 / 22 Internal Photo ( CDD530AM-003 ) Detachable Antenna Internal Photo ( CDD530AM-003 ) Integrated Antenna Compliance Certification Services Inc. Report No.T120920N91 Page A20 / 22 Compliance Certification Services Inc. Report No.T120920N91 Page A21 / 22 Compliance Certification Services Inc. Report No.T120920N91 Page A22 / 22

Reference No.: T120920N91-RP1 FCC IDPBLCDD531AMU03 Report No.T120920N91-RP1 Page 106 / 283 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Reference No.: T120920N91-RP1 FCC IDPBLCDD531AMU03 Report No.T120920N91-RP1 Page 107 / 283 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. Antenna Gain 4.04 dBi () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Once Antenna Gain=4.04dBi=2.53512863mW IEEE 802.11b = 0.0796 * 91.6220 *2.53512863 ÷ 400 = 0.04622 IEEE 802.11g = 0.0796 * 134.2765 *2.53512863 ÷ 400 = 0.06774 IEEE 802.11n HT20 = 0.0796 * 145.2112 *2.53512863 ÷ 400 = 0.07326 IEEE 802.11n HT40 = 0.0796 * 164.8162 *2.53512863 ÷ 400 = 0.08315 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 19.62 91.62 4.04 1.00 0.046222 IEEE 802.11g 20 21.28 134.28 4.04 1.00 0.067741 IEEE 802.11n HT2020 21.62 145.21 4.04 1.00 0.073258 IEEE 802.11n HT4020 22.17 164.82 4.04 1.00 0.083148 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. Reference No.: T120920N91-RP1 FCC IDPBLCDD531AMU03 Report No.T120920N91-RP1 Page 108 / 283 Antenna Gain 2.0 dBi () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Once Antenna Gain=2.0dBi=1.58489319mW IEEE 802.11b = 0.0796 * 140.6048 *1.58489319 ÷ 400 = 0.04435 IEEE 802.11g = 0.0796 * 187.9317 *1.58489319 ÷ 400 = 0.05927 IEEE 802.11n HT20 = 0.0796 * 211.3489 *1.58489319 ÷ 400 = 0.06666 IEEE 802.11n HT40 = 0.0796 * 194.0886 *1.58489319 ÷ 400 = 0.06121 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 21.48 140.60 2.00 1.00 0.044346 IEEE 802.11g 20 22.74 187.93 2.00 1.00 0.059272 IEEE 802.11n HT2020 23.25 211.35 2.00 1.00 0.066658 IEEE 802.11n HT4020 22.88 194.09 2.00 1.00 0.061214 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. Antenna Gain 2.35 dBi () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Once Antenna Gain=2.35dBi=1.71790839mW IEEE 802.11b = 0.0796 * 112.2018 *1.71790839 ÷ 400 = 0.03836 IEEE 802.11g = 0.0796 * 151.3561 *1.71790839 ÷ 400 = 0.05174 IEEE 802.11n HT20 = 0.0796 * 162.9296 *1.71790839 ÷ 400 = 0.0557 IEEE 802.11n HT40 = 0.0796 * 126.7652 *1.71790839 ÷ 400 = 0.04334 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 20.50 112.20 2.35 1.00 0.038358 IEEE 802.11g 20 21.80 151.36 2.35 1.00 0.051743 IEEE 802.11n HT2020 22.12 162.93 2.35 1.00 0.055700 IEEE 802.11n HT4020 21.03 126.77 2.35 1.00 0.043336 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Reference No.: T120920N91-RP1 FCC IDPBLCDD531AMU03 Report No.T120920N91-RP1 Page 1 / 283 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For WiFi ADSL2/2+ RG Model: CDD531AM-U03 Data Applies To: CDD530AM-003 Brand: AMIT Issued for Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Date of Issue: October 31, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Servic…

Text truncated - open the document above for the full version.
