PBLCDE560AM001WiFi Combo Router / WiFi Broadband Router

1 CDW561AM-U01 WiFi Combo Router User Manual 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. 3 Table of contents COPYRIGHT ............................................................................................................................. 2 FCC INTERFERENCE STATEMENT ....................................................................................... 2 CHAPTER 1 INTRODUCTION ................................................................................................. 5 1.1 PACKAGE LIST .............................................................................................. 5 1.2 HARDWARE INSTALLATION........................................................................ 6 CHAPTER 2 GETTING STARTED WITH EASY SETUP UTILITY .......................................... 9 2.1 EASY SETUP BY WINDOWS UTILITY.......................................................... 9 2.2 EASY SETUP BY CONFIGURING WEB PAGES ........................................ 14 CHAPTER 3 MAKING CONFIGURATION ............................................................................. 18 3.1 BASIC SETTING............................................................................................. 18 3.1.1 NETWORK SETUP............................................................................... 19 3.1.2 DHCP SERVER .................................................................................... 35 3.1.3 WIRELESS SETTINGS ....................................................................... .37 3.1.4 CHANGE PASSWORD ........................................................................ 41 3.2 FORWARDING RULES .................................................................................. 42 3.2.1 VIRTUAL SERVER............................................................................... 42 3.2.2 SPECIAL AP......................................................................................... 43 3.2.3 MISCELLANEOUS ............................................................................... 44 3.3 SECURITY SETTING...................................................................................... 45 3.3.1 PACKET FILTERS....................................................................46 3.3.2 DOMAIN FILTERS ...................................................................48 3.3.3 URL BLOCKING................................................................................... 49 3.3.4 MAC CONTROL ................................................................................... 50 3.3.5 VPN-L2TP CLIENT............................................................................... 51 3.3.6 VPN-PPTP CLIENT .............................................................................. 54 3.3.7 MISCELLANEOUS ............................................................................... 56 3.4 ADVANCED SETTING ..................................................................................... 58 3.4.1 System Log............................................................................59 3.4.2 DYNAMIC DNS.........................................................................60 3.4.3 QOS ......................................................................................61 3.4.4 SNMP .................................................................................................... 67 3.4.5 ROUTING.............................................................................................. 68 3.4.6 SYSTEM TIME...................................................................................... 69 3.4.7 SCHEDULING ...................................................................................... 70 3.4.8 IPV6 ...................................................................................................... 71 3.4.9 VLAN .................................................................................................... 75 4 3.5 NSA ................................................................................................................... 76 3.5.1 DISK UILITY ......................................................................................... 76 3.5.2 SAMBA SERVER ................................................................................. 76 3.5.3 FTP SERVICE CONFIGURATION ....................................................... 77 3.5.4 ACCESS CONTROL ............................................................................ 77 3.5.5 TUNES SERVER .................................................................................. 78 3.5.6 DOWNLOAD ASSISTANT .................................................................…

Text truncated - open the document above for the full version.

1 User Manual CDE560AM-001 WiFi Broadband Router 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. The specification is subject to change without notice. 3 Table of Contents Chapter 1 Introduction........................................................................... 4 1.1 Packing List................................................................................. 4 1.2 Spec Summary Table................................................................. 5 1.3 Hardware Configuration............................................................. 7 1.4 LED indicators............................................................................. 8 1.5 Button Definition......................................................................... 9 1.6 Procedure for Hardware Installation........................................ 9 Chapter 2 Getting start........................................................................ 11 Chapter 3 Making Configuration........................................................ 17 3.1 Login to Configure from Wizard............................................. 18 3.2 System Status........................................................................... 22 3.3 Advanced................................................................................... 23 Appendix A FAQ and Troubleshooting............................................. 71 What can I do when I have some trouble at the first time?...... 71 How do I connect router by using wireless?............................... 72 4 C C C h h h a a a p p p t t t e e e r r r 1 1 1 I I I n n n t t t r r r o o o d d d u u u c c c t t t i i i o o o n n n Congratulations on your purchase of this outstanding Wireless Broadband Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. 1.1 Packing List items Description Contents Quantity 1 WiFi Broadband Router 1 2 Power adapter 5V 1A 1 3 CD 1 z Wireless broadband router unit z Installation CD-ROM z Power adapter 5 1.2 Spec Summary Table Device Interface CDE560AM-001 Ethernet WAN RJ-45 port, 10/100Mbps, auto-MDI/MDIX 1 Ethernet LAN RJ-45 port, 10/100Mbps, auto-MDI/MDIX 4 Antenna fixed antenna 2 WPS Button/Wireless On For WPS connection and Enable “Wireless Function” 1 Reset Button Reset to Factory Default setting 1 LED Indication Status / WAN / LAN1 ~ LAN4/ WiFi ● Power Jack DC Power Jack, powered via external DC 5V/1A switching power adapter 1 Wireless LAN (WiFi) Standard IEEE 802.11b/g/n-lite compliance ● SSID SSID broadcast or in stealth mode ● Channel Auto-selection, manually ● Security WEP, WPA, WPA-PSK, WPA2, WPA2-PSK ● WPS WPS (Wi-Fi Protected Setup) ● WMM WMM (Wi-Fi Multimedia) ● Functionality Ethernet WAN PPPoE, DHCP client, Static IP ● WAN Connection Auto-reconnect, dial-on-demand, manually ● One-to-Many NAT Virtual server, special application, DMZ, Super DMZ(IP pass-through) ● NAT Session Support NAT session 10000 SPI Firewall IP/Service filter, URL blocking. ● DoS Protection DoS (Deny of Service) detection and protection ● 6 Routing Protocol Static route, dynamic route (RIP v1/v2) ● Management SNMP, UPnP IGD, syslog, DDNS ● Administration Web-based UI, remote login, backup/restore setting ● Performance NAT up to 90Mbps and Wireless up to70Mbps Environment & Certification Package Information CDE560AM-001, DC 5V/1A power adapter, Quick Installation Guide Device dimension (mm) Package dimension (246x210x62mm) SP/MP/ZP 156x110x22 Package dimension (214x146x69mm) PP ● Package Information Package dimension (290x234x100mm) AP ○ Operation Temp. Temp.: 0~40oC, Humidity 10%~90% non-condensing ● Storage Temp. Temp.: -10~70oC, Humidity: 0~95% non-condensing ● EMI Certification CE/FCC compliance ● RoHS RoHS compliance ● *Specifications are subject to change without prior notice. 7 1.3 Hardware Configuration Auto MDI/MDIX RJ-45 Ports Automatically sense the types of WA N and LAN when connecting to Ethernet Power Jack Antenna Antenna 8 1.4 LED indicators LED status Description Status Green in flash Device status is working. Green RJ45 cable is plugged WAN LED Green in flash Data access Green RJ45 cable is plugged LAN LED Green in flash Data access Green WLAN is on Green in flash Data access WiFi LED Green in fast flash Device is in WPS PBC mode Green in dark Wi-Fi Radio is disabled LAN1~LAN4 L…

Text truncated - open the document above for the full version.

Specification 1. Electrical Properties : 1.1 Frequency Range.................. 1.2 Impedance ........................ 1.3 VSWR .............................. 1.4 Return Loss........................ 1.5 Radiation ........................... 1.6 Gain(peak).........................2dBi 1.7 Polarization........................Linear; Vertical 1.8 Admitted Power.................. 1.9 Cable.................................RG-178 Cable 1.10 Connector...........................SMA Straight Plug Reverse 2. Physical Properties : 2.1 Antenna Body................ ......TPE 2.2 Antenna Base................ ......PC 2.3 Antenna Base................ ......PBT 2.4 Operating Temp. ..................-10 ~ +60 2.5 Storage Temp. .................. ...-10 ~ +70 2.6 Color .............................. White 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 :1Max. -10 dB Max. RF Antenna Assembly Omni-directional 1 2 3 2009/4/13 RF Antenna Assembly P/No.C381-510150-A SSR-91019 Spec:2.4~2.5GHz 4 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C381-510150-A SSR-91019 E H-PLANE.nsi 2.400000 GHz 2.450000 GHz2.500000 GHz 5 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C381-510150-A SSR-91019 V H-PLANE.nsi 2.400000 GHz 2.450000 GHz2.500000 GHz 6 11 - 15 Santai Rd., Hsinchuang, Taipei Hsien, 242, Taiwan, R.O.C. Nizing Electric Co., Ltd. Tel: 02-29016164 Fax: 29050644 E- mail: [email protected] RG 178 B/U PAGE 1 / 2 ISSUED 16. Oct. 2003 PRODUCT STANDARD FEP INSULATED HIGH-FREQUENCY COAXIAL CABLE REVISED I - Scope This specification presents a FEP insulated high- frequency coaxial cable AWG 30, 1.8 mm O.D. for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II - Construction Item Unit Details Material — CP-AG Composition No./mm AWG 30 or 7 0.1 1. Inner Conductor Dia. (approx.) mm 0.305 Material — Extruded FEP Nom. O.D. mm 0.84 ± 0.05 2. Dielectric Color — Natural Material — Silver coated copper Composition — Braided (16 / 3 / 0.1) 3. Outer Conductor Dia. (approx) mm 1.29 0.01 Material — Extruded FEP Dia. mm 1.80 0.1 4. Jacket Color — Standard color is Light Orange MADE BY Note : APPROVALS 2 4 3 1 7 11 - 15 Santai Rd., Hsinchuang, Taipei Hsien, 242, Taiwan, R.O.C. Nizing Electric Co., Ltd. Tel: 02-29016164 Fax: 29050644 E- mail: [email protected] RG 178 B/U PAGE 2 / 2 ISSUED 16. Oct. 2003 PRODUCT STANDARD FEP INSULATED HIGH-FREQUENCY COAXIAL CABLE REVISED III – Characteristics Item Unit Specified Value Note Temperature Rating -55 ~ +200 Voltage Lasting V 1000 Dielectric core: No breakdown at AC 3 kv for 0.2 sec. Spark test Dielectric strength — Jacket: No breakdown at AC 3 kv for 0.2 sec. Spark test Characteristic Impedance Ω 50 ± 2 TDR method Capacitance pF / m 29.4 at 1 kHz 52.0 1.0 GHz 94.0 3.0 GHz - 5.0 GHz 16.0 100.0 GHz Attenuation. (Max.) dB / 30m 33.0 400.0 GHz Approx. Weight g / m 7.68 MADE BY Note : APPROVALS 8 ET-QA-0017-A2 料 4 Pin 3. Ferrule 2. Duelectric 1. Assembly Body 理 9

RF_160, Issue 03 Declaration of Authorization We Name: Advance Multimedia Internet Technology Inc. Address: No.28, Lane 31, 1,Huandong Rd., Sinshih District City: Tainan City Country: Taiwan Declare that: Name Representative of agent: Daphne Liang (1) Agent Company name: Compliance Certification Services Inc. Address: No.8, Jiucengling, Xinhua Dist., 712 City: Tainan City Country Taiwan is authorized to apply for Certification of the following product(s): Product description: WiFi Combo Router Type designation: CDW561AM-U01 Trademark: AMIT;ZALiP on our behalf. Date: December 04,2012 City: Tainan City Name: Spencer Huang (2) Function: ............................... Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Advance Multimedia Internet Technology Inc. Address : No.28,Lane 31, Sec. 1,Huandong Rd. , Sinshih District City: Tainan City Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: PBLCDE560AM001 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: December 04,2012 Name and signature of applicant: Spencer Huang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

DECLARATION OF CONFORMITY (DoC) Equipment: WiFi Combo Router / WiFi Broadband Router Trademark(s) and Model(s): AMIT;ZALiP and CDW561AM-U01;CE560AM- 001;WBR-6012;AR686W Manufacturer: Advance Multimedia Internet Technology Inc. FCC ID in case other parts of this equipment are subject to certification: PBLCDE560AM001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number: T110816402-DIssue date: February 13, 2012 Company name: Advance Multimedia Internet Technology Inc. Name/Title (legal representative): Spencer Huang / Engineer Address: No.28,Lane 31, Sec. 1,Huandong Rd. , Sinshih District, Tainan City 74146, Taiwan, Phone: 886-6-5058026 Fax: 886-6-5058068 E-mail: [email protected] Date: December 04,2012 Signature: Advance Multimedia Internet Technology Inc.

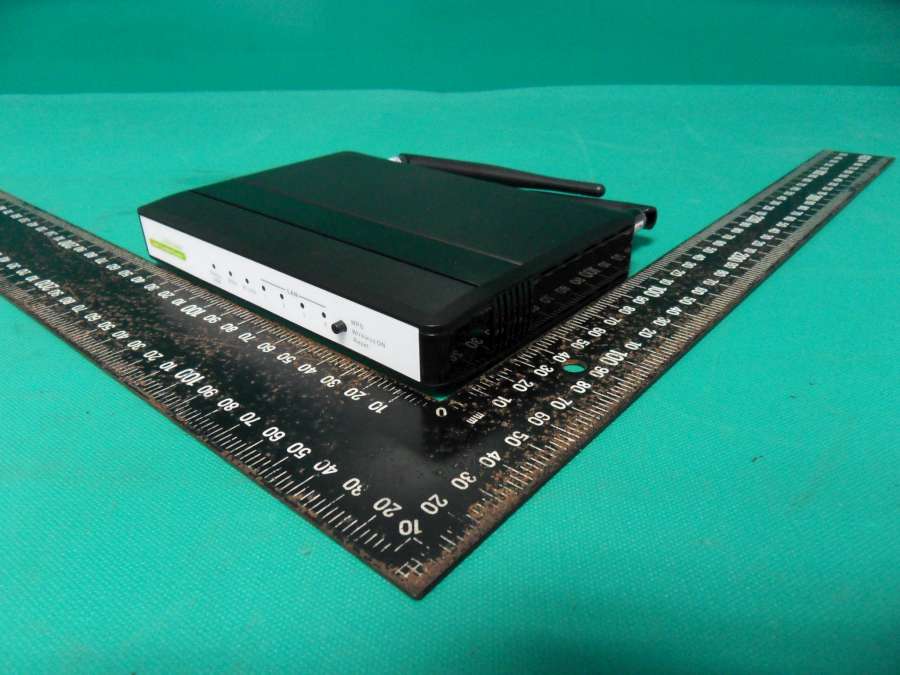

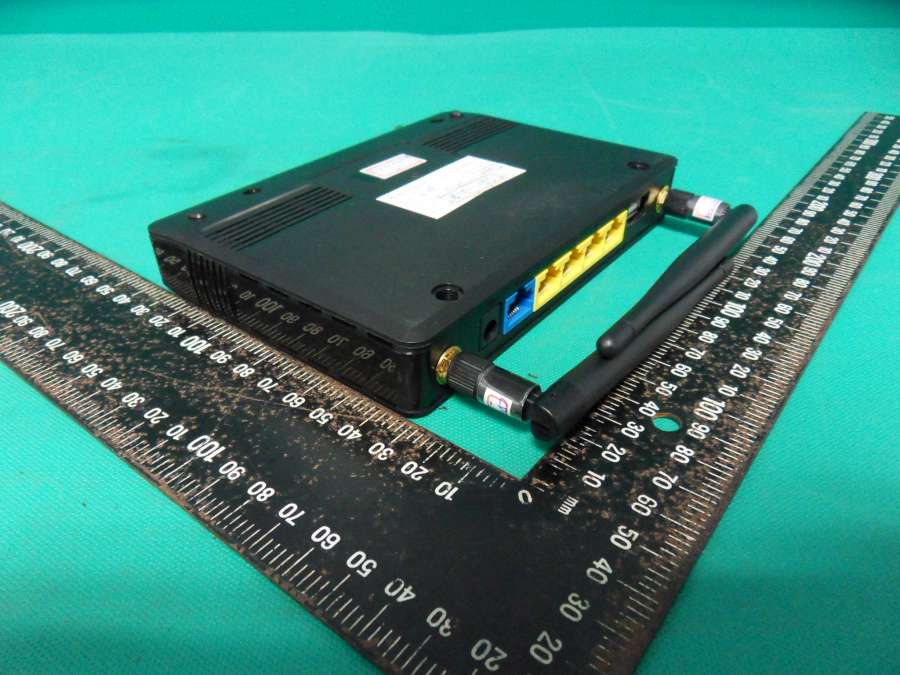

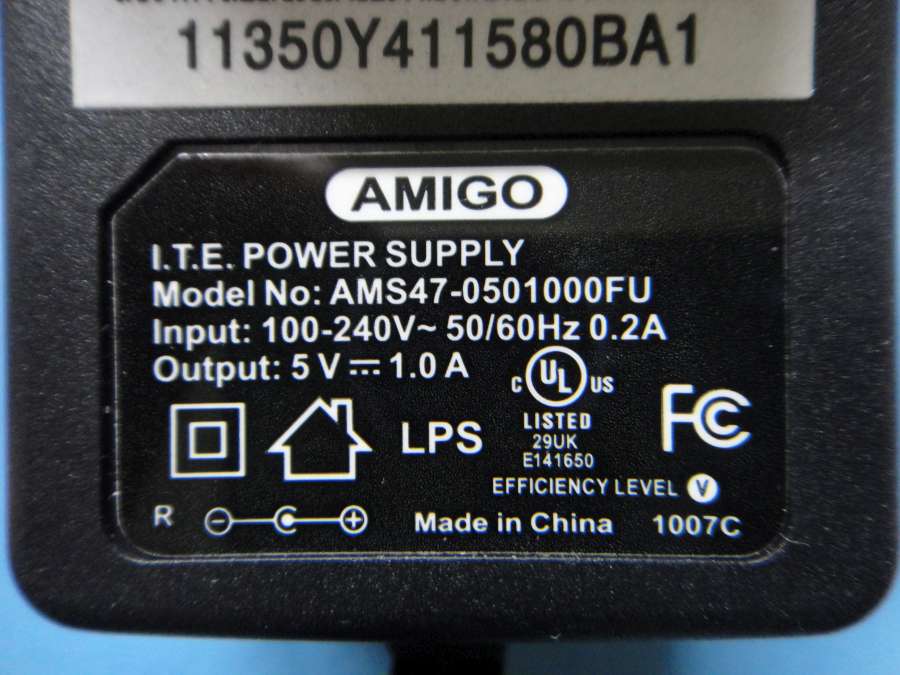

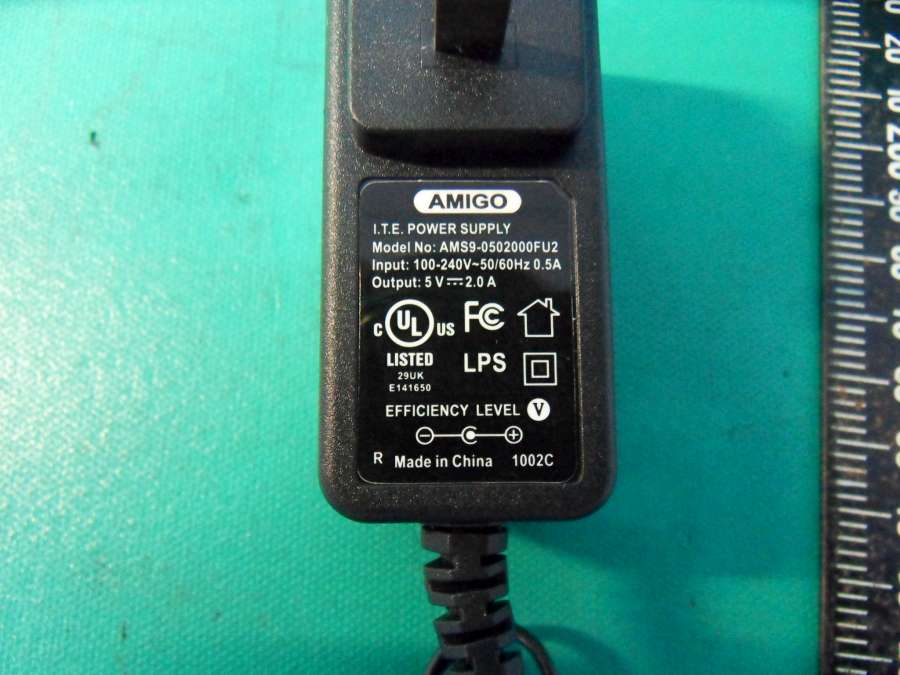

Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A1 / 17 External Photo (CDW561AM-U01-White) Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A2 / 17 Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A3 / 17 External Photo (Antenna 2.35dBi) Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A4 / 17 External Photo (CDW561AM-U01-Black) Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A5 / 17 Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A6 / 17 External Photo (Antenna 2 dBi) Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A7 / 17 External Photo (CDE560AM-001; WBR-6012; AR686W-White) Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A8 / 17 Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A9 / 17 External Photo (CDE560AM-001; WBR-6012; AR686W-Blue) Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A10 / 17 Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A11 / 17 External Photo (Antenna 2.35dBi) External Photo (Antenna 2 dBi) Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A12 / 17 External Photo (Adapter 1) External Photo (Adapter 2) Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A13 / 17 External Photo (Adapter 3)

Diagram FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Trade mark can be AMIT or ZALiP (printed on enclosure) Label location ZALiP FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Trade mark can be AMIT or ZALiP (printed on enclosure) ZALiP

Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A14 / 17 Internal Photo (CDW561AM-U01-White) Internal Photo (CDW561AM-U01-Black) Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A15 / 17 Internal Photo (CDE560AM-001; WBR-6012; AR686W-White) Internal Photo (CDE560AM-001; WBR-6012; AR686W-Blue) Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A16 / 17 Compliance Certification Services Inc. Report No.：T110816402 Date of Issue: February 13, 2012 Page A17 / 17

Reference No.: T110816402-RP1 FCC ID：PBLCDE560AM001 Report No.：T110816402-RP1 Page 34 / 157 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Reference No.: T110816402-RP1 FCC ID：PBLCDE560AM001 Report No.：T110816402-RP1 Page 35 / 157 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = G=2.35dBi=1.717908mW IEEE 802.11b = 0.0796 * 13.2739 *1.71790839÷ 400 = 0.00454 IEEE 802.11g = 0.0796 * 68.8652 *1.71790839÷ 400 = 0.02354 IEEE 802.11n HT20 = 0.0796 * 110.4671 *1.71790839÷ 400 = 0.03776 IEEE 802.11n HT40 = 0.0796 * 91.4215 *1.71790839÷ 400 = 0.03125 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mw) Antenn a Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 11.23 13.27 2.35 1.00 0.004538 IEEE 802.11g 20 18.38 68.87 2.35 1.00 0.023543 IEEE 802.11n HT2020 20.43 110.47 2.35 1.00 0.037765 IEEE 802.11n HT4020 19.61 91.42 2.35 1.00 0.031254 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Reference No.: T110816402-RP1 FCC ID：PBLCDE560AM001 Report No.：T110816402-RP1 Page 1 / 157 FCC 47 CFR PART 15 SUBPART C: 2008 AND ANSI C63.4: 2003 TEST REPORT For WiFi Combo Router / WiFi Broadband Router Issued for Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Date of Issue: February 13, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Reference No.: T110816402-RP1 FCC ID：PBLCDE560AM001 Report No.：T110816402-RP1 Page 2 / 157 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 February 13, 2012 Initial Issue ALL Sunny Chang Reference No.: T110816402-RP1 FCC ID：PBLCDE560AM001 Report No.：T110816402-RP1 Page 3 / 157 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION............................................................................................ 4 2. EUT DESCRIPTION.................................................................................................................... 5 3. DESCRIPTION OF TEST MODES........................................................................................... 7 4. TEST METHODOLOGY............................................................................................................. 8 5. FACILITIES AND ACCREDITATIONS.................................................................................... 8 5.1 FACILITIES............................................................................................................................................8 5.2 EQUIPMENT..........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS LISTINGS..............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................9 6. CALIBRATION AND UNCERTAINTY..................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................10 6.2 MEASUREMENT UNCERTAINTY.....................................................................................................10 7. SETUP OF EQUIPMENT UNDER TEST................................................................................. 11 7.1 SETUP CONFIGURATION OF EUT..................................................................................................11 7.2 SUPPORT EQUIPMENT.....................................................................................................................12 7.3 EUT OPERATING CONDITION.........................................................................................................13 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 14 8.1 6DB BANDWIDTH................................................................................................................................14 8.2 MAXIMUM PEAK OUTPUT POWER.................................................................................................29 8.3 MAXIMUM PERMISSIBLE EXPOSURE...........................................................................................34 8.4 POWER SPECTRAL DENSITY..........................................................................................................36 8.5 CONDUCTED SPURIOUS EMISSION.............................................................................................50 8.6 RADIATED EMISSIONS......................................................................................................................79 8.7 POWERLINE CONDUCTED EMISSIONS........................................................................................133 9. ANTENNA REQUIREMENT...................................................................................................... 141 9.1 STANDARD APPLICABLE..................................................................................................................141 9.2 ANTENNA CONNECTED CONSTRUCTION...................................................................................141 APPENDIX SETUP PHOTOS........................................................................................................ 142 APPENDIX II PHOTOGRAPHS OF EUT.................................................................A1 Reference No.: T110816402-RP1 FCC ID：PBLCDE560AM001 Report No.：T110816402-RP1 Page 4 / 157 1. TEST REPORT CERTIFICATION Applicant ： Advance Multimedia Internet Technology Inc. Address ： No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Manufacturer ： Advance Multimedia Internet Technology Inc. Address ： No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Equipment Under Test ： WiFi Combo Router / WiFi Broadband Router Model / Brand ： Date of Test ： August 22, 2011 ~ December 09, 2011 APPLICABLE S…
