MLC21AAM FCC ID : PBLMLC21AAM 802.11ac/abgnDual-Band The MLC21AAM is a highly integrated module which has built in a 2x2 dual-band wireless LAN radio. It supports IEEE 802.11ac draft standard and provides the highest PHY rate up to 867Mbps, offering feature-rich wireless connectivity and reliable throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. MLC21AAM integrates P A/LNA such that the number of the external components is reduced to minimum. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators which offloads the host processor. The MLC21AAM supports the 802.11i security standard and implements hardware acceleration for TKIP, CCMP and WAPI. General Descriptions: MLC21AAM baseband supports the following features: 11ac stage-1 feature support 20, 40, and 80MHz channels MCS0-7 (BPSK, r=1/2 through 64QAM, r=5/6) MCS8-9 (256QAM, r=3/4 and r=5/6) VHT A-MPDU delimiter for RX and TX for single MPDU Clear Channel Assessment (CCA) on secondary Short Guard Interval STBC support Low Density Parity check (LDPC) coding Support digital pre-distortion to enhance PA performance Smoothing (channel estimation) extension to MIMO case Dynamic frequency selection (DFS) radar pulse detection MLC21AAM RF supports the following features: In tegrated 2.4GHz/5GHz PA and LNA Integrated 5GHz Balun Support 2.4GHz/5GHz external PA and LNA Improve the efficiency of RF PA with Digital Pre-Distortion (DPD) Improve the power variation with TSSI compensated TX power control WLANRF WLAN Base band GENERAL IEEE WLAN Standard IEEE 802.11 a/b/g/n and 802.11ac draft compliant Support 20MHz, 40MHz, 80MHz in 5GHz band, and 20MHz, 40MHz bandwidth in 2.4GHz band Dual-band 2T2R mode with data rate up to 867Mbps Support 256QAM in 2.4GHz band Support STBC, LDPC, MRC, and transmit Beamforming Greenfield, mixed mode, legacy modes support Frame aggregation Integrated LNA, PA, and T/R switch. Optional external LNA and PA support. IEEE 802.11 d/e/h/i/k/r/w support Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI Supports 802.11w protected managed frames QoS support of WFA WMM, WMM PS 802.11 to 802.3 header translation offload Supports Wi-Fi Direct Per packet transmit power control Wake on WLAN SECURITYFEATURES 11 Support for WFAWPA/WPA2 personal, WPS2.0, WAPI Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FOR MOBILE DEVICE USAGE (>20cm/low power eg. AP routers ) Radiation ExposureStatement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES) Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only. This module is intended for OEM integrators only. Per FCC KDB 996369 D03 OEM Manual v01 guidance, the following conditions must be strictly followed when using this certified module: KDB 996369 D03 OEM Manual v01 rule sections: 2.2 List of applicable FCC rules This module has been tested for complianceto FCC Part 15 2.3 Summarize the specific operational use conditions The module is tested for standalone mobile RF exposure use condition. Any other usage conditions such as co-location with other transmitter(s) or being used in a portable condition will need a separate reassessment through a class II permissive change application or new certification. 2.4 Limited module procedures Not applicable. 2.5 Trace antenna designs Not applicable. 2.6 RF exposure considerations This equipment complies with FCC mobile radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. If the module is installed in a portable host, a separate SAR evaluation is required to confirm compliance with relevant FCC portable RF exposure rules. 2.7 Antennas The following antennas have been certified for use with this module; antennas of the same type with equal or lower gain may also be used with this module. The antenna must be installed such that 20 cm can be maintained between the antenn…

Text truncated - open the document above for the full version.

FCC ID: PBLMLC21AAM Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch January 22, 2020 Dear Application Examiner, MLC21AAM, WiFi Module, FCC ID: PBLMLC21AAM would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of KDB 996369 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip MT7612E. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is MT7612E. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: PBLMLC21AAM 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Debby Lin Senior Specialist Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

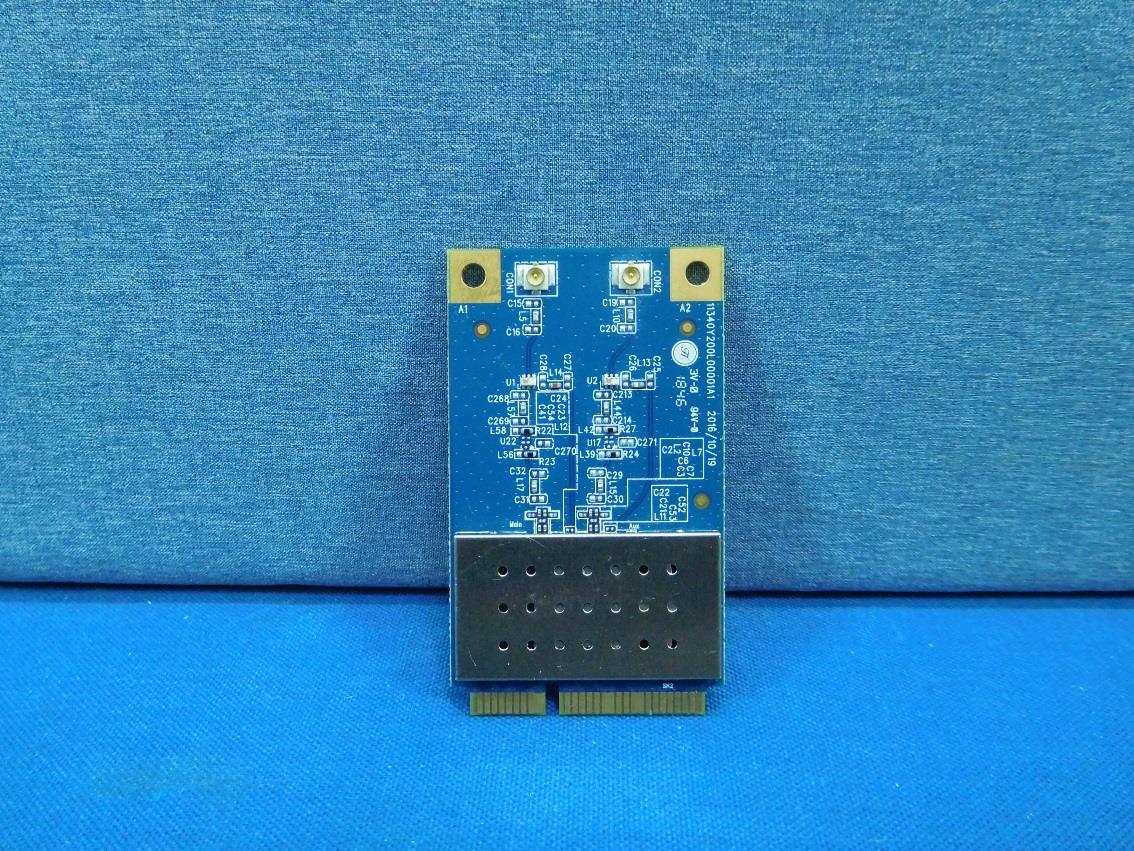

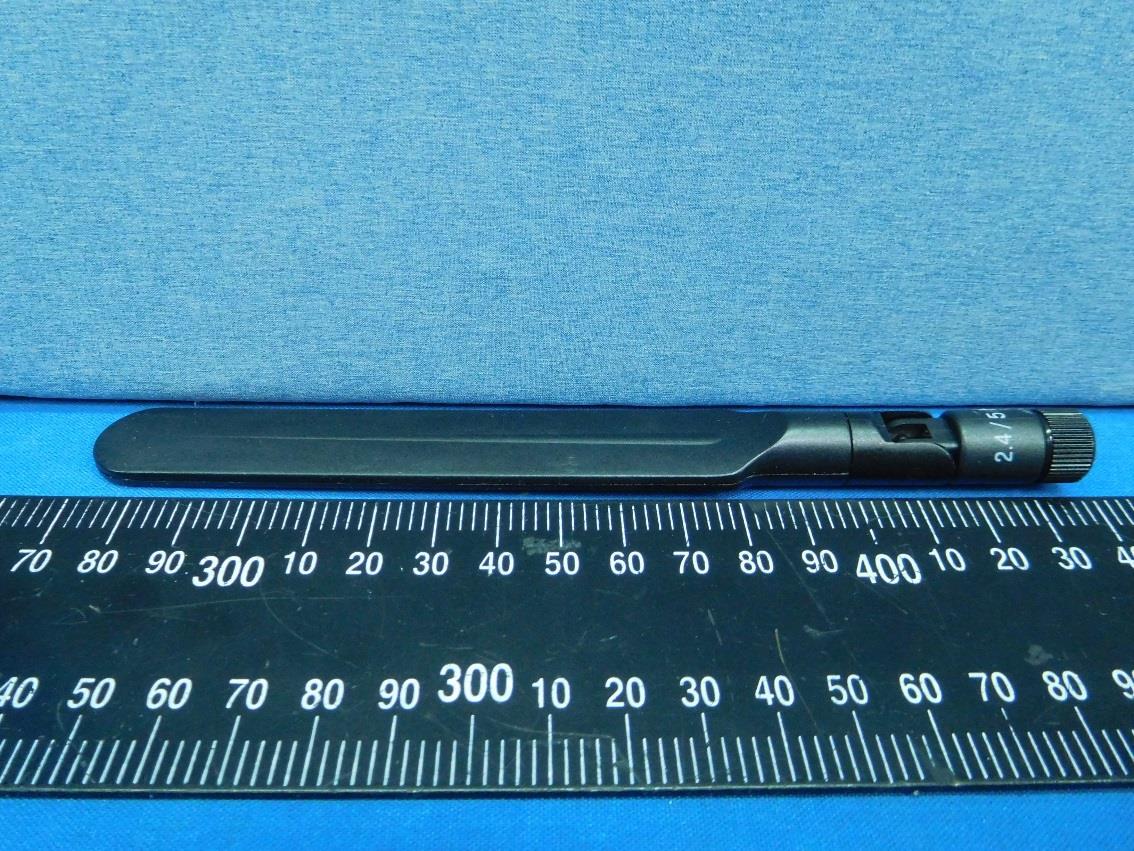

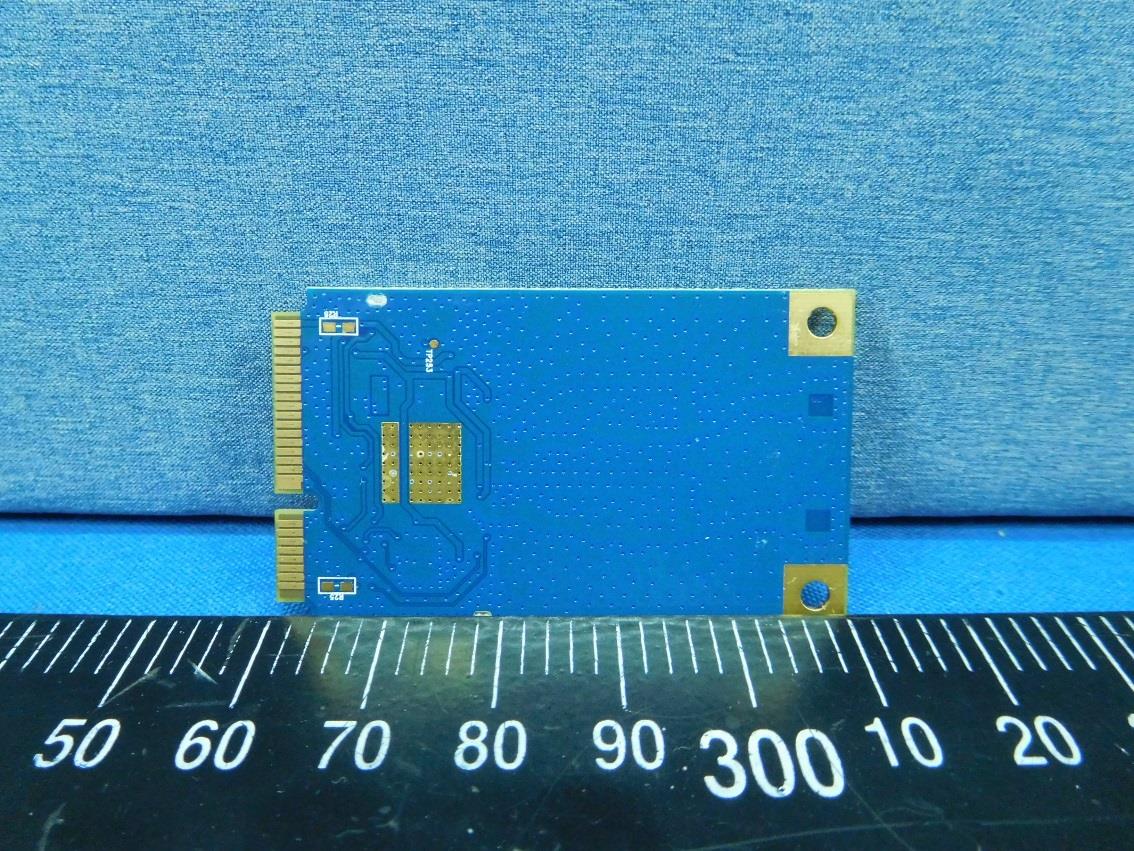

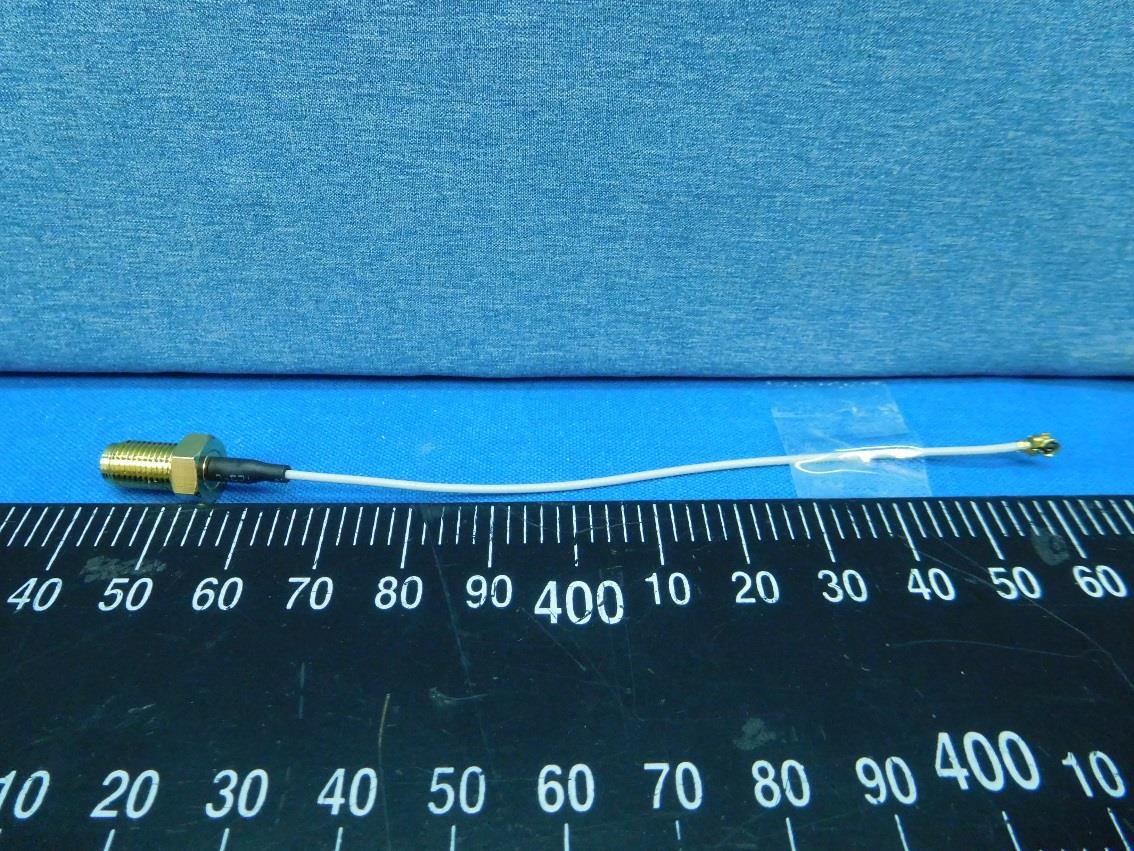

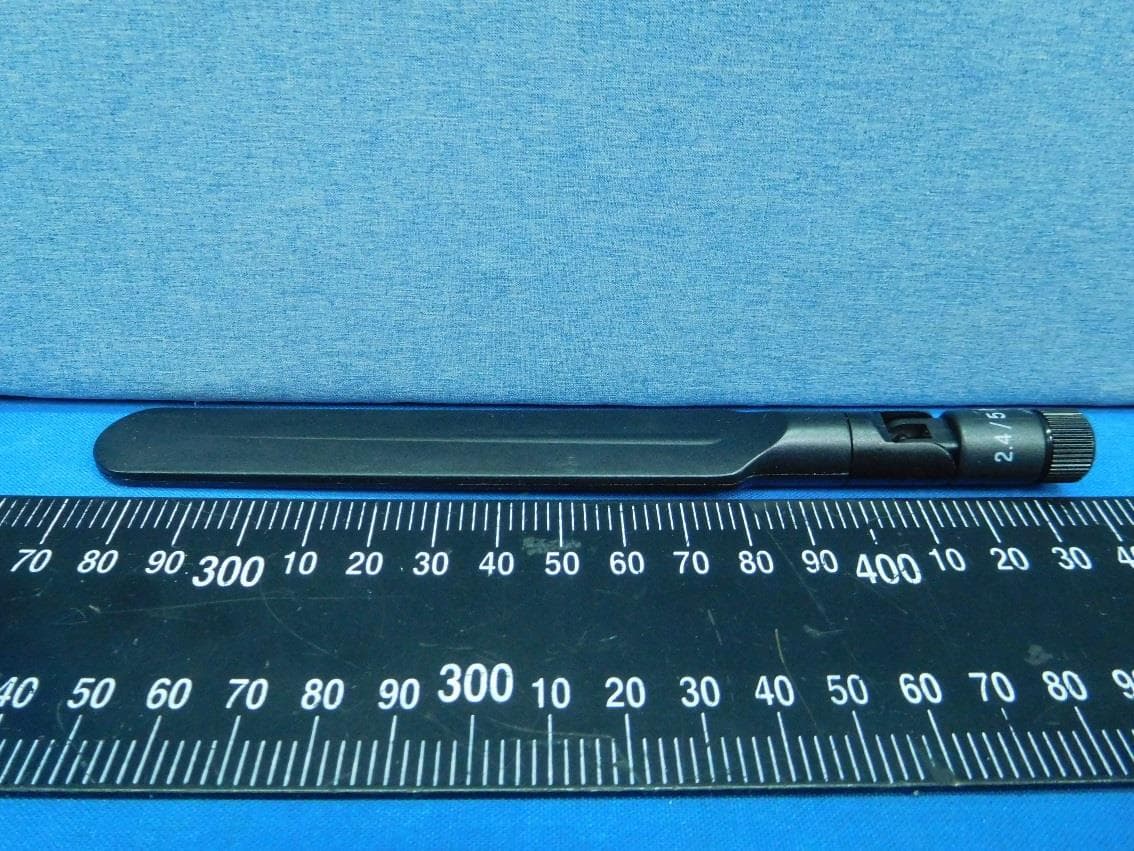

Reference No: 191009E01-1 Page 1 CONSTRUCTION PHOTOS OF EUT Reference No: 191009E01-1 Page 2 Reference No: 191009E01-1 Page 3 Reference No: 191009E01-1 Page 4 Reference No: 191009E01-1 Page 5 Antenna No: 1 & 2 Reference No: 191009E01-1 Page 6 Reference No: 191009E01-1 Page 7

FCC Label location Back of the EUT FCC ID:PBLMLC21AAM

Reference No: 191009E01-2 Page 1 CONSTRUCTION PHOTOS OF EUT Reference No: 191009E01-2 Page 2 Reference No: 191009E01-2 Page 3 Antenna No: 1 & 2 Reference No: 191009E01-2 Page 4 Reference No: 191009E01-2 Page 5

Report No.: SA191009E01 Page No. 1 / 6 Report Format Version: 6.1.1 Reference No.: RF Exposure Report Report No.: SA191009E01 FCC ID: PBLMLC21AAM Test Model: MLC21AAM Received Date: Oct. 09, 2019 Test Date: Nov. 19, 2019 Issued Date: Jan. 20, 2020 Applicant: AMIT Wireless Inc. Address: No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA191009E01 Page No. 2 / 6 Report Format Version: 6.1.1 Reference No.: Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 5 2.5 Calculation Result of Maximum Conducted Power ............................................................................. 6 Report No.: SA191009E01 Page No. 3 / 6 Report Format Version: 6.1.1 Reference No.: Release Control Record Issue No. Description Date Issued SA191009E01 Original release. Jan. 20, 2020 Report No.: SA191009E01 Page No. 4 / 6 Report Format Version: 6.1.1 Reference No.: 1 Certificate of Conformity Product: Wifi module Brand: AMIT Test Model: MLC21AAM Sample Status: MASS-PRODUCTION Applicant: AMIT Wireless Inc. Test Date: Nov. 19, 2019 Standards: FCC Part 2 (Section 2.1091) KDB 447498 D01 General RF Exposure Guidance v06 IEEE C95.3-2002 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date: Jan. 20, 2020 Claire Kuan / Specialist Approved by : , Date: Jan. 20, 2020 Clark Lin / Technical Manager Report No.: SA191009E01 Page No. 5 / 6 Report Format Version: 6.1.1 Reference No.: 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20 cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 Antenna Gain Ant. No. Chain No. Antenna Gain (dBi) Frequency Range (GHz) Antenna Type Connector Type 1 Chain 0 3 2.4~2.4835 Dipole R-SMA 5 5.15~5.85 2 Chain 1 3 2.4~2.4835 Dipole R-SMA 5 5.15~5.85 Report No.: SA191009E01 Page No. 6 / 6 Report Format Version: 6.1.1 Reference No.: 2.5 Calculation Result of Maximum Conducted Power Operation Mode Evaluation Frequency (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) WLAN (2.4GHz) 2437 793.482 6.01 20 0.62989 1 WLAN (U-NII-1) 5230 58.956 8.01 20 0.07417 1 WLAN (U-NII-3) 5755 134.125 8.01…
