PBLCDM532AM001WiFi Mobile Router

1 CDM532AM-001 WiFi Mobile Router User Manual 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. 3 Table of contents COPYRIGHT ............................................................................................................................. 2 FCC INTERFERENCE STATEMENT ....................................................................................... 2 CHAPTER 1 INTRODUCTION ............................................................................................. 4 1.1 PACKAGE LIST................................................................................................ 4 1.2 HARDWARE INSTALLATION.......................................................................... 5 CHAPTER 2 GETTING STARTED WITH EASY SETUP .................................................... 8 2.1 EASY SETUP BY WINDOWS UTILITY............................................................ 8 2.2 EASY SETUP BY CONFIGURING WEB PAGES.......................................... 13 CHAPTER 3 MAKING CONFIGURATION ........................................................................ 17 3.1 BASIC NETWORK SETTING ......................................................................... 17 3.2 ADVANCED NETWORK SETTING................................................................ 40 3.2.1 FIREWALL ............................................................................................... 40 3.2.2 QOS .......................................................................................................... 47 3.2.3 MANAGEMENT........................................................................................ 48 3.3 SYSTEM.......................................................................................................... 50 CHAPTER 4 TROUBLESHOOTING .................................................................................. 57 APPENDIX A. SPEC SUMMARY TABLE .............................................................................. 61 APPENDIX B. LICENSING INFORMATION .......................................................................... 62 4 Chapter 1 Introduction Congratulations on your purchase of this outstanding product: CDM532AM, WiFi Mobile Router. This product is specifically designed for mobile user who needs to have the Internet access beyond his/her home and office. It provides a complete solution for Internet surfing and broadband sharing. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. 1.1 Package List Items Description Contents Quantity 1 WiFi Mobile Router 1 2 Power adapter 1 3 CD 1 5 1.2 Hardware Installation A. Hardware configuration WPS Button RJ45 WAN Mode Switch Power Jack Power/ Status LED Internet LED USB Reset 6 B. LED indicators Power/ Status LED Color Status Blinking Speed Description Green Blinking Slow Device is on and system is working Green Blinking Quick Device is in Wi-Fi WPS mode None OFF - Device is powered off Internet LED Color Status Blinking Speed Description Red Solid - Problems with Internet connection Green Solid - Internet connection is established None Off - Internet connection is dropped 7 C. Installation Steps for 3G Connection Step 1. Plug in power: Connect with the power adapter to the receptor on the back panel of it. Then the device will be powered on. Step 2. Set WAN mode switch: Set WAN mode switch at “3G” side. Step 3. Connect with a USB 3G modem: Plug your USB modem which is with activated SIM card provided by your 3G service provider. Step 4. Connect with Ethernet Cable Insert the Ethernet cable into RJ45 Ethernet Port on the back panel. And then plug the other end of RJ45 into the computer or Laptop computer. Step 5. Start to configure the device: You can start to configure the device via the Easy Setup Utility. (see Easy Setup Utility in CD) Note. If you set WAN mode switch at “DSL” side, the Ethernet port will became WAN port for you connect to xDSL modem. Your PC or laptop can only connect to it via WLAN at this condition. 8 Chapter 2 Getting Started with Easy Setup There are two approaches for you to set up the WiFi Mobile Router quickly and easily. One is through executing the provided Windows Easy Setup Utility on your PC, and the other is through browsing the device web pages and configuration. 2.1 Easy Setup by Windows Utility Step 1： Install the Easy Setup Utility from the provided CD then follow the steps to configure the device. Step 2： Select Language then click “Next” to continue. Step 3： Then click the “Wizard” to conti…

Text truncated - open the document above for the full version.

1. Experimental Setup X Y Z Antenna 2. Return Loss 3. Radiation Pattern White Housing Phi=0.00deg Gain Phi. dB Layer Max value Average 2400(MHz) 0.82 -1.72 2450(MHz) 0.50 -1.76 2500(MHz) 0.64 -1.74 Phi=0.00deg Gain Theta. dB Layer Max value Average 2400(MHz) -1.31 -6.95 2450(MHz) -1.86 -7.17 2500(MHz) -2.27 -7.32 Phi=0.00deg Gain . dB Layer Max value Average 2400(MHz) 2.36 -0.58 2450(MHz) 2.00 -0.66 2500(MHz) 1.96 -0.68 Phi=90.00deg Gain Phi. dB Layer Max value Average 2400(MHz) -1.52 -4.55 2450(MHz) -2.74 -4.90 2500(MHz) -3.07 -4.98 Phi=90.00deg Gain Theta. dB Layer Max value Average 2400(MHz) 0.57 -4.39 2450(MHz) 0.10 -4.73 2500(MHz) 0.39 -4.64 Phi=90.00deg Gain . dB Layer Max value Average 2400(MHz) 1.25 -1.46 2450(MHz) 0.84 -1.80 2500(MHz) 1.22 -1.79 Theta=90.00deg Gain Phi. dB Layer Max value Average 2400(MHz) 0.82 -2.95 2450(MHz) 0.20 -3.37 2500(MHz) -0.14 -3.40 Theta=90.00deg Gain Theta. dB Layer Max value Average 2400(MHz) -12.56 -16.37 2450(MHz) -12.88 -16.53 2500(MHz) -11.78 -16.04 Theta=90.00deg Gain . dB Layer Max value Average 2400(MHz) 0.82 -2.76 2450(MHz) 0.21 -3.17 2500(MHz) -0.11 -3.17 4. Efficiency Maximum Efficiency At 2.4 ~ 2.5 GHz : 76.96 %

RF_160, Issue 03 Declaration of Authorization We Name: Advance Multimedia Internet Technology Inc. Address: No.28,Lane 31, Sec. 1,Huandong Rd. , Sinshih District City: Tainan City Country: Taiwan Declare that: Name Representative of agent: Daphne Liang (1) Agent Company name: Compliance Certification Services Inc. Address: No.8, Jiucengling, Xinhua Dist., 712, City: Tainan City Country Taiwan is authorized to apply for Certification of the following product(s): Product description: WiFi Mobile Router Type designation: CDM532AM-001 Trademark: AMIT;ZALiP on our behalf. Date: December 04,2012 City: Tainan City Name: Spencer Huang (2) Function: ............................... Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

DECLARATION OF CONFORMITY (DoC) Equipment: WiFi Mobile Router Trademark(s) and Model(s): AMIT;ZALiP and CDM532AM-001 Manufacturer: Advance Multimedia Internet Technology Inc. FCC ID in case other parts of this equipment are subject to certification: PBLCDM532AM001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number: T110831401-DIssue date: October 27,2011 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: Advance Multimedia Internet Technology Inc Name/Title (legal representative): Spencer Huang / Engineer Address: No.28,Lane 31, Sec. 1,Huandong Rd. , Sinshih District, Tainan City 74146, Taiwan, Phone: 886-6-5058026 Fax: 886-6-5058068 E-mail: [email protected] Date: December 04,2012 Signature: Advance Multimedia Internet Technology Inc.

Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Attestation FCC ID : PBLCDM532AM001 Product : WiFi Mobile Router Model : CDM532AM-001 Statements: We, the undersigned, hereby certify that only 11 channels from 2412-2462MHz will be used in USA, other channels will be disabled by software. Sincerely yours, _________________________ Name/ Title Company name

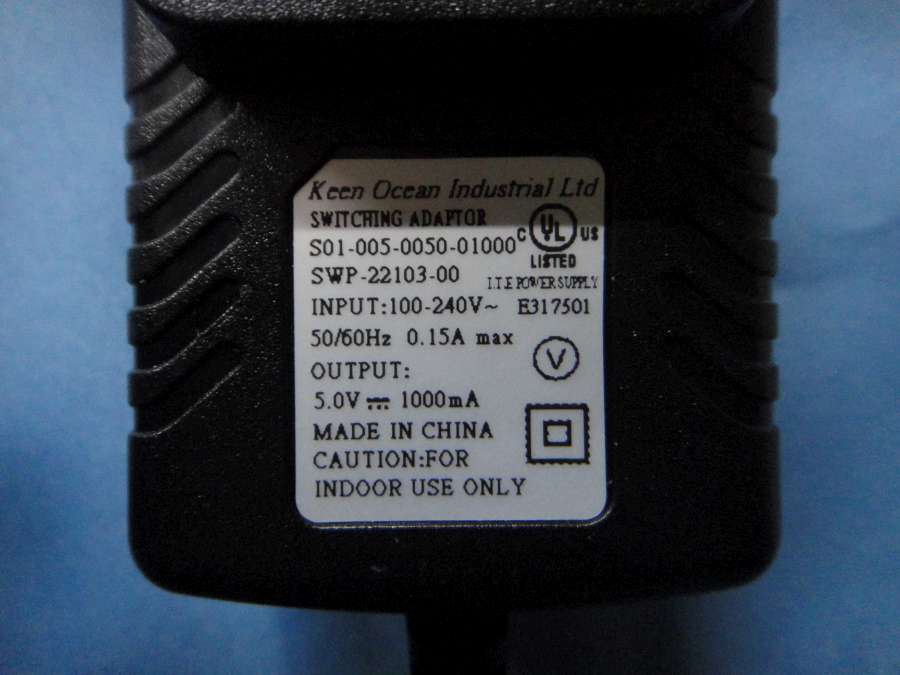

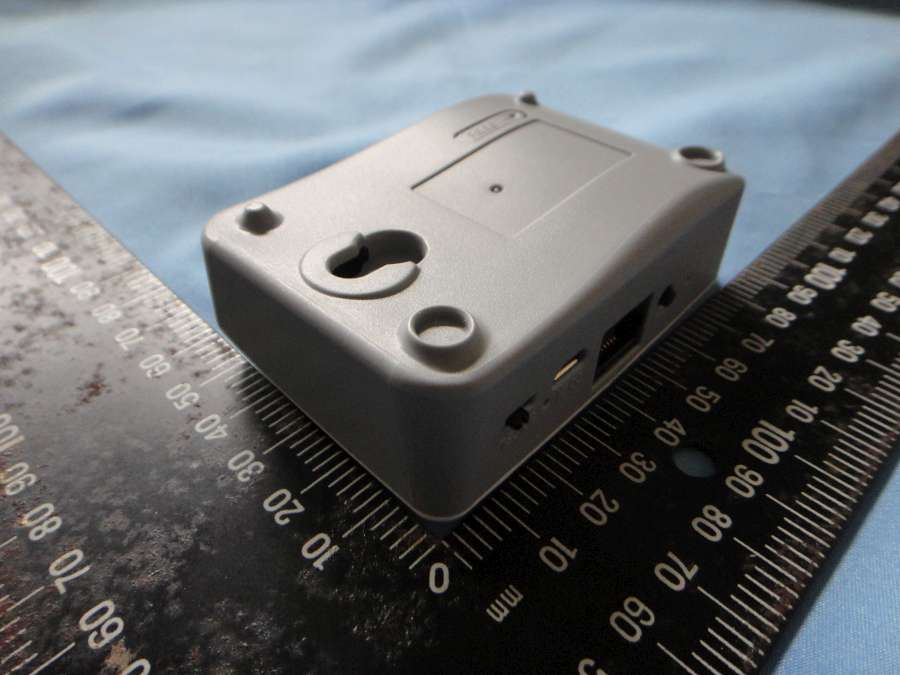

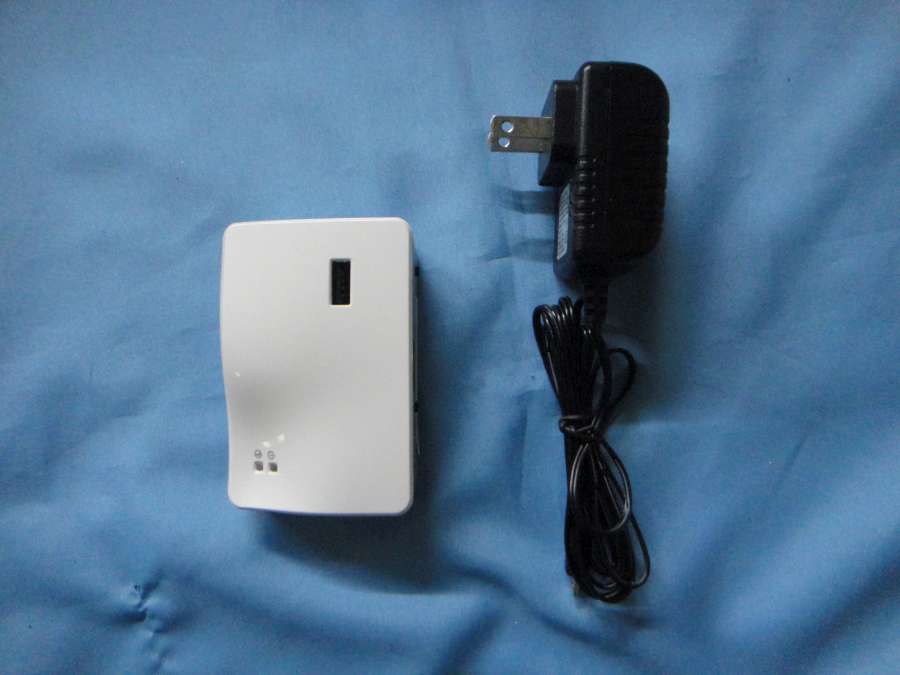

Compliance Certification Services Inc. Report No.:T110831401 Date of Issue: October 20, 2011 Page A1 / 7 PHOTOGRAPHS OF EUT External Photo (Model: CDM532AM-001) Antenna Gain: 2.36 dBi Compliance Certification Services Inc. Report No.:T110831401 Date of Issue: October 20, 2011 Page A2 / 7 Compliance Certification Services Inc. Report No.:T110831401 Date of Issue: October 20, 2011 Page A3 / 7

Diagram Label location Label location FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ZALiP Trade mark can be AMIT or ZALiP (printed on enclosure)

Compliance Certification Services Inc. Report No.:T110831401 Date of Issue: October 20, 2011 Page A4 / 7 Internal Photo (Model: CDM532AM-001) Antenna Gain: 2.36 dB Compliance Certification Services Inc. Report No.:T110831401 Date of Issue: October 20, 2011 Page A5 / 7 Compliance Certification Services Inc. Report No.:T110831401 Date of Issue: October 20, 2011 Page A6 / 7 Compliance Certification Services Inc. Report No.:T110831401 Date of Issue: October 20, 2011 Page A7 / 7

Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 29 / 104 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 30 / 104 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = G=2.36dBi=1.72186857 mW IEEE 802.11b = 0.0796 * 28.0543 * 1.72186857 ÷ 400 = 0.0096129 IEEE 802.11g = 0.0796 *66.3743 * 1.72186857 ÷ 400 = 0.0227433 IEEE 802.11n HT20 = 0.0796 *53.4564 * 1.72186857 ÷ 400 = 0.0183169 IEEE 802.11n HT40 = 0.0796 *53.2108 * 1.72186857 ÷ 400 = 0.0182328 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mw) Antenn a Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 14.48 28.05 2.36 1.00 0.009613 IEEE 802.11g 20 18.22 66.37 2.36 1.00 0.022743 IEEE 802.11n HT2020 17.28 53.46 2.36 1.00 0.018317 IEEE 802.11n HT4020 17.26 53.21 2.36 1.00 0.018233 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 1 / 104 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For WiFi Mobile Router Model Number: CDM532AM-001 Brand: AMIT; ZALiP Issued for Advance Multimedia Internet Technology Inc. No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: December 02, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 2 / 104 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 December 02, 2011 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 3 / 104 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION............................................................................................ 4 2. EUT DESCRIPTION.................................................................................................................... 5 3. DESCRIPTION OF TEST MODES........................................................................................... 6 4. TEST METHODOLOGY............................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS.................................................................................... 7 5.1 FACILITIES .............................................................................................................................. 7 5.2 EQUIPMENT............................................................................................................................ 7 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 8 6. CALIBRATION AND UNCERTAINTY..................................................................................... 9 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 9 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 9 7. SETUP OF EQUIPMENT UNDER TEST................................................................................. 10 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 10 7.2 SUPPORT EQUIPMENT ......................................................................................................... 11 7.3 EUT OPERATING CONDITION .............................................................................................. 12 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 13 8.1 6DB BANDWIDTH ................................................................................................................... 13 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 24 8.3 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 29 8.4 POWER SPECTRAL DENSITY ............................................................................................... 31 8.5 CONDUCTED SPURIOUS EMISSION.................................................................................... 41 8.6 RADIATED EMISSIONS ..........................................................................................................58 8.7 POWERLINE CONDUCTED EMISSIONS .............................................................................. 94 9. ANTENNA REQUIREMENT...................................................................................................... 98 9.1 STANDARD APPLICABLE ...................................................................................................... 98 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 98 APPENDIX I SETUP PHOTOS...................................................................................................... 99 APPENDIX II PHOTOGRAPHS OF EUT.............................................................................A1 Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 4 / 104 1. TEST REPORT CERTIFICATION Applicant ： Advance Multimedia Internet Technology Inc. Address ： No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Manufacture ： Advance Multimedia Internet Technology Inc. Address ： No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Equipment Under Test ： WiFi Mobile Router Model Number ： CDM532AM-001 Brand Name ： AMIT; ZALiP Date of Test ： September 05, 2011 ~November 26, 2011 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 5 / 104 2. EUT DESCRIPTION Product Name WiFi Mobile Router Model Number CDM532AM-001 Brand Name AMIT; ZALiP Received Date August 31, 2011 Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz～2462MHz …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 99 / 104 APPENDIX I SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Test Mode: ( 3G Mode ) Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 100 / 104 RADIATED EMISSION MEASUREMENT SETUP Test Mode: ( DSL Mode ) Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 101 / 104 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 102 / 104 Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 103 / 104 RF CONDUCTED SETUP Compliance Certification Services Inc. Reference No.: T110831401-RP1 FCC ID：PBLCDM532AM001 Report No.：T110831401-RP1 Page 104 / 104 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
