PBLCDD531AMU02WIFI ADSL2/2+ROUTER2

1 CDD530AM-002; WBR-6603 WiFi ADSL2/2+ Router User Manual 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. 3 TABLE OF CONTENTS COPYRIGHT ......................................................................................................................... 2 FCC INTERFERENCE STATEMENT ................................................................................... 2 1.1 PACKAGE LIST ........................................................................................................... 4 1.2 HARDWARE INSTALLATION .................................................................................... 5 CHAPTER 2. GETTING STARTED ...................................................................................... 8 2.2 EASY SETUP BY CONFIGURING WEB PAGES........................................................ 12 CHAPTER 3. MAKING CONFIGURATION ..................................................................... 16 3.1 START TO CONFIGURE .......................................................................................... 16 3.2 SYSTEM STATUS...................................................................................................... 17 3.3 ADVANCED ............................................................................................................... 18 3.3.1 BASIC SETTING........................................................................................................ 18 3.3.2 FORWARDING RULES ............................................................................................. 32 3.3.3 SECURITY SETTINGS .............................................................................................. 36 3.3.4 ADVANCED SETTINGS ............................................................................................ 50 3.3.5 TOOLBOX..................................................................................................................61 CHAPTER 4. TROUBLESHOOTING ................................................................................. 66 APPENDIX A. SPEC SUMMARY TABLE.......................................................................... 70 4 CHAPTER 1. Introduction Congratulations on your purchase of this outstanding product: CDD530AM-002 WiFi ADSL2/2+ Router. This product is specifically designed for home and small office needs. It provides a complete solution for Internet surfing. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. 1.1 Package List Items Description Contents Quantity 1 WiFi ADSL 2/2+ Router 1 2 Power adapter 12V 0.6A 1 3 CD 1 5 1.2 Hardware Installation 1.2.1 Hardware configuration LAN1~LAN4 LEDs ADSL Connection Status WPS Button Status LEDPower Switch WLAN LED Wireless On/Off Button Reset: Press “Wireless on/off” and “WPS” button for 5 sec simultaneously. 6 1.2.2 LED indicators LED color Description Green in flash power is on Status Green in fast flash Reset mode Green in flash xDSL connection is established ADSL Green in fast flash Data packet transferred via DSL Line Green WiFi is on. WLAN Green in flash Data access Green RJ45 cable is plugged, and Ethernet connection is established. LAN Green in flash Data access Auto MDI/MDIX RJ-45 Ports Automatically sense the types of WAN and LAN when connecting to Ethernet Receptor for Power adapter RJ-11 Port 7 1.2.3 Installation Steps Step 1. Connect with the Ethernet patch cable: Insert the Ethernet cable into RJ45 Ethernet Port on the back panel. And then plug the other end of RJ45 into the computer or Laptop computer. The LED of Internet connection will show green color if the Ethernet connection is normally connected. Step 2. Insert the RJ11 cable for ADSL Step 3. Connect the power adapter: Plug the other end of the power adapter into a wall outlet. Step 4. power on Switch the power on in front of this WiFi ADSL Router Step 5. Start to configure the device: You can start to configure the device via the Easy Setup. (see Easy Setup Utility) 8 CHAPTER 2. Getting Started 2.1 Easy Setup by Windows Utility Step 1: Install the Easy Setup Utility from CD then follow the steps to configure it. Step 2: Select Language then click “Next” to continue. Step 3: Then click the “Wizard” to continue. Or click “advanced” to run advanced mode for more detailed setting. (See User Manual) Step 4: Click “Next” to continue. 9 Step 7: Configure your wireless interface. Step 8: Insert SSID, Channel and Security options, and then click “Next” to continue. Step 9: Auto detect the WAN service, just cl…

Text truncated - open the document above for the full version.

1 CDD531AM-U02 WiFi ADSL2/2+ Router User Manual 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. 3 TABLE OF CONTENTS COPYRIGHT.................................................................................................................................. 2 FCC INTERFERENCE STATEMENT......................................................................................... 2 CHAPTER 1 . INTRODUCTION ........................................................................................... 5 1.1PACKAGE LIST......................................................................................................................... 5 1.2 HARDWARE INSTALLATION..................................................................................................... 6 1.2.1 Hardware configuration............................................................................................. 6 1.2.2 LED indicators............................................................................................................ 7 CHAPTER 2 . GETTING STARTED ....................................................................................10 2.1 EASY SETUP BY WINDOWS UTILITY............................................................................10 2.3 EASY SETUP BY CONFIGURING WEB UI.............................................................................14 CHAPTER 3 . MAKING CONFIGURATION......................................................................18 3.1 BASIC SETTING............................................................................................................19 3.1.1 Network Setup.........................................................................................................20 3.1.1.2 LAN type.................................................................................................................. 20 3.1.1.2 Internet Setup......................................................................................................... 20 3.1.2 DHCP Server............................................................................................................28 3.1.3 Wireless Settings....................................................................................................30 3.1.4 Change Password...................................................................................................34 3.2. NAS CONFIGURATION.................................................................................................35 3.2.1. Disk Utility ..............................................................................................................35 3.2.2. File Sharing.............................................................................................................35 3.2.2.1. Basic Setting .............................................................................................................. 35 3.2.2.2. FTP Service ................................................................................................................ 36 3.2.3. Access Control.........................................................................................................36 3.2.3.1. User Configuration..................................................................................................... 37 3.2.4. iTunes Server...........................................................................................................37 3.3. DOWNLOAD ASSISTANT................................................................................................38 3.3.1. FTP..........................................................................................................................38 3.3.2. HTTP .......................................................................................................................38 3.3.3. BT (Bit Torrent) .......................................................................................................40 3.3.3.1. Start BT download ..................................................................................................... 40 3.3.3.2. BT download status .................................................................................................... 41 3.3.3.3. Stop, Resume and Remove seed................................................................................. 41 3.3.4. Download Status......................................................................................................42 3.3.5. How to access data on the NAS? .............................................................................42 3.3.5.1. Windows User .........................................................…

Text truncated - open the document above for the full version.

Advance Multimedia Internet Technology Inc. No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Confidentiality Request FCC ID : PBLCDD531AMU02 Product : WiFi ADSL2/2+ Router2 Model : CDD531AM-U02; CDD530AM-002; WBR-6603 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ___________________________ name/ title tel: fax: email:

Advance Multimedia Internet Technology Inc. No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Date: 2011/12/7 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Alex Chiu / Director of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Alex Chiu / Director of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (Please type Name and Title of Person to Receive Grant/Certificate) (Please type Company Name) REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

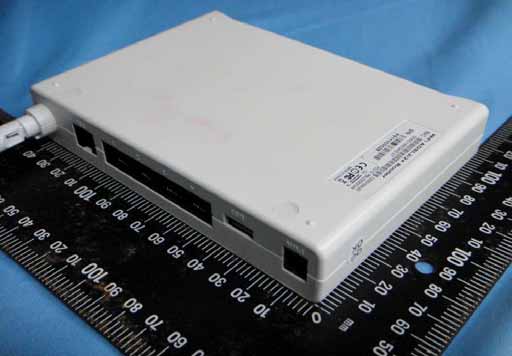

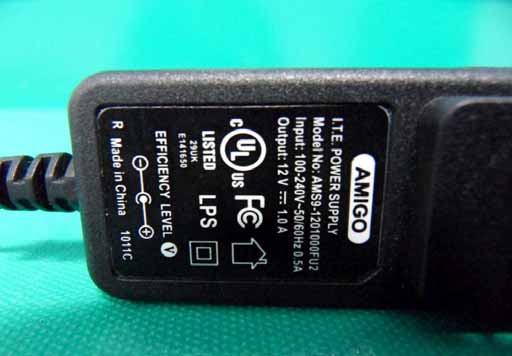

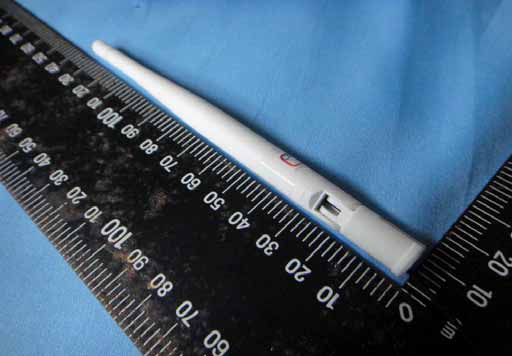

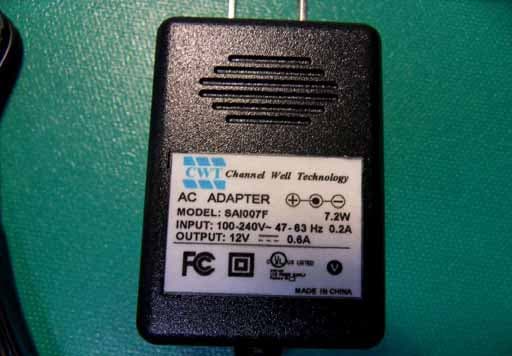

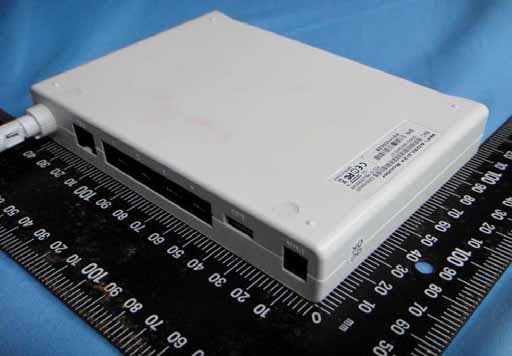

Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A1 / 20 PHOTOGRAPHS OF EUT External Photo (Model: CDD531AM-U02) Antenna Gain: 2.35 dBi Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A2 / 20 Antenna Gain: 2 dBi Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A3 / 20 Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A4 / 20 Antenna Gain: 2.35 dBi Antenna Gain: 2 dBi Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A5 / 20 External Photo (Model: CDD530AM-002) Antenna Gain: 2.35 dBi Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A6 / 20 Antenna Gain: 2 dBi Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A7 / 20 Antenna Gain: 2.35 dBi Antenna Gain: 2 dBi Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A8 / 20 External Photo (Adapter 1) Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A9 / 20 External Photo (Adapter 2) Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A10 / 20 External Photo (Adapter 3)

Diagram Label location

Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A11 / 20 Internal Photo (Model: CDD531AM-U02) Antenna Gain: 2.35 dB Antenna Gain: 2 dBi Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A12 / 20 Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A13 / 20 Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A14 / 20 Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A15 / 20 Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A16 / 20 Internal Photo (Model: CDD530AM-002) Antenna Gain: 2.35 dB Antenna Gain: 2 dBi Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A17 / 20 Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A18 / 20 Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A19 / 20 Compliance Certification Services Inc. Report No.:T110519402 Date of Issue: June 14, 2011 Page A20 / 20

規格承認書 Specification for Approval 客 戶： 永 洋 Customer 品 名: 2.4GHz 2.35dBi ANTENNA WHITE ANT-WIFI-2.35dBi-C:驊陞,剝皮鍍錫,Cable=160mm,白色 GY111HT467-012 Part name 料 號：GY111HT467-012 Part No. 客戶料號：11320Y11065A1 Customer Part No. Rev.(版本): 01 客戶承認印 CUSTOMER APPROVED BY APPROVAL CHIEF SUPERVISOR Approval No. Model Part No. CHIEF SALES R&D DESIGN Andy Teri Tseng Ta mmy River Date: 2010/10/18 Date: 2010/10/18 驊 陞 科 技 股 份 有 限 公 司 WIESON TECHNOLOGIES CO., LTD. 表格編號：324012 版本: 第四版 WIESON TECHNOLOGIES CO., LTD. SPECIFICATION LIST TYPE OF PRODUCT ANTENNA ITEM INDEX PAGE 1. THE PRODUCT SPECIFICATION LIST.......................................................... 1 2. DRAWING OF PRODUCT.............................................................................. 2 3. SPECIFICATION OF CABLE.......................................................................... 3 4. SPECIFICATION OF PLASTIC....................................................................... 4~6 5. SPECIFICATION OF COPPER TUBE............................................................ 7 6. TEST REPORT............................................................................................ 8~15 7. GUARANTEE OF HAZARDOUS SUBSTANCES................................................. 16 8. WIESON CERTIFICATE............................................................................... 17~18 Approvals Rev Date Description Edited by Prepared : River 01 2010/10/18 ISSUE River Checked : Tammy 02 2011/02/08 ADD CHAMBER TEST RESULT Jerry Approved : Andy Issued No : Sheet : 1 OF 18 No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. Panlite L-1250Z 100 CategoryUnitTest MethodCondition L-1250Z 100 Melt volume flow rate cm 3 /10min ISO 1133300deg.C load 1.2kg8 Density kg/m 3 ISO 1183-1200 Water absorption rate%ISO 62in water 23deg.C 24h0.2 Light transmission%ASTM D 1003thickness 3mm88 Refractive index-ASTM D 542-1.585 Tensile modulusMPa1mm/min2400 Tensile stress at yieldMPa50mm/min61 Tensile strain at yield%50mm/min6 Nominal tensile strain at break %50mm/min>50 Flexural modulusMPa2mm/min2350 Flexural strengthMPa2mm/min93 unnotchedNB notched76 1.80MPa129 0.45MPa142 Vicat softening tem perature deg.CISO 30650deg.C/h 50N149 parallel0.5-0.7 vertical0.5-0.7 parallel0.7 vertical0.7 -100Hz3.1 -1MHz3 ×10 -4 100Hz10 ×10 -4 1MHz90 Volume resistivityohm-mIEC 60093- >1×10 13 Surface resistivityohmIEC 60093- >1×10 15 Withstand voltageMV/mIEC 60243-1short time test30 Tracking resistance-IEC 60112-250 electric 1.47mmt125 impact 1.47mmt115 non-impact 1.47mmt125 * The values listed are specification values, not certified values. ISO 527-1 and ISO 527-2 ISO 178 Charpy impact strength kJ/m 2 ISO 179 Heat deflection temperature deg.C ISO 75-1 and ISO 75-2 Mold shrinkage% In-house method Coefficient of linear expansion ×10 -4 /k ISO 11359-2 Specific inductive capacity IEC 60250 Dielectric loss tangentIEC 60250 Flammability-UL 94 V-2(0.40mm) HB(1.5mm) - Temperature indexdeg.CUL 746B NOV-12-2007 12 : 17PM FROM-TA I WAN YOSON 70-1 AC I -D G, YmU-SI , JEOLLANAM-DO. KOREA HTTP: I/ w M.GN%I~E.CU -- r,. ;. Fax : (001 )680-8070 & '71.: a Te l : (061 ) 686--1669,15B4 , - 8 b, .. RTl F l GATE OF AwU 1 I 1 Customer I YOSON I NERhIAT I ONAL CO . , LTD Product /Grade I Tast I tsrn I Test Method 1 PEIT KEYFLEX ET1063D 25KG BAG Remark I Unit I Sp~e IRBSUI~SI Lot No. Quantity(Kg1 AT11631 I QOM.0W 2007.11 .O9 2021 6745 Low Temp I mp' ASN D256 Mln.3.0 I I I I 5 .€I Melt Flow Index (ASMD1238( 2:K)ExZ.IBkg _I/l~min) 21.00-27.00 1 26.29 1 I I-. 'I Date of Iswe Shore Hardness ASTM 02240 stye-D I 59.0-84.. 0 60.9 1 I Shlpment No. Flexural Modulus 3270 C 211 -0717.0 213.4 Yield strength YIE HEREBY CERT l FY THAT ABOVE-MENT I ONED TEST FIESULTS AqE CORRECT AND MEET OUR SPEC IF I CAT IONS. - a- . - - - YMSU SPECIALTY POLYMERS PLANT O.A. MANAGER 'ASTM I3338 250 mmlmln I E:g / crn* 180-240 189 WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 3/10 I. SUMMARY This report to account for the measurement setup and result of the Antenna. 1. The measurement setup includes s-parameter, pattern, and gain measurement. 2. The measured data for Antenna are presented and analysis. II. S-PARAMETER MEASUREMENT A. Reflection coefficient : (a) InstrumentNetwork Analyzer. (b) Setup (1) Calibrate the Network Analyzer by one port calibration using O.S.L. calibration kits. (2) Connect the antenna under test to the Network Analyzer. (3) Measure the S11(reflection coefficient) shown in Fig. 1. (4) Generally, the S11 is less than –10dB to ensure the 90% power into antenna and only less than 10% power back to system. Fig.1 Antenna measured in Network Analyzer WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 4/10 III. S-PARAMETER TEST RESULT Antenna Retune Loss (a) Antenna Frequency Sample 2.4GHz 2.45GHz 2.4835GHz 1 -17.837dB-30.28dB -28.058dB WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 5/10 IV. THE TEST INFORMATION IN ANECHOIC CHAMBER A. Scope This statement of work defines the requirements of a far-field antenna measurement range, which includes (1) One 325 cm (W) x 285 cm (H) x 640 cm (L) Antenna Measurement Anechoic Chamber, detailed requirements refer section 2.0 . (2) One Far-field Antenna Measurement System with spinning linear CP measurement capabilities, detailed requirement refer section 3.0 . (3) One broad-band transmitted antenna, detailed requirements refer section 8.0 . (4) Three NRL-4433 standard gain antennas, detailed requirements refer section 9.0 . B. Antenna Measurement Anechoic Chamber Fully anechoic chamber with dimension 325 cm in width, 285 cm in height and 640 cm in length. The quiet zone of this Chamber shall be greater than WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 6/10 70 cm @ 0.9 GHz, 50 cm @1.8 GHz, 44 cm @2.4 GHz, 28 cm @5.8 GHz, 16 cm @18 GHz. Contractor should be aware of this anechoic chamber is going to be used for perform…

Text truncated - open the document above for the full version.

Specification 1. Electrical Properties : 1.1 Frequency Range.................. 1.2 Impedance ..................... ... 1.3 VSWR .............................. 1.4 Return Loss........................ 1.5 Radiation ........................... 1.6 Gain(peak).........................2dBi 1.7 Polarization..................... ...Linear; Vertical 1.8 Admitted Power.................. 1.9 Cable.............................. ...RG-178 Cable 1.10 Connector........................ ...SMA Straight Plug Reverse 2. Physical Properties : 2.1 Antenna Body................ ... ...TPE 2.2 Antenna Base................ ... ...PC 2.3 Antenna Base................ ... ...PBT 2.4 Operating Temp. ............... ...-10к ~ +60к 2.5 Storage Temp. .................. ...-10к ~ +70к 2.6 Color .............................. White 1W 2.4GHz ~ 2.5GHz 50ȍ Nominal 1.92 :1Max. -10 dB Max. RF Antenna Assembly Omni-directional 1 2 3 2009/4/13 RF Antenna Assembly P/No.C381-510150-A SSR-91019 Spec:2.4~2.5GHz 4 ʳ 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C381-510150-A SSR-91019 E H-PLANE.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 ʳ 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C381-510150-A SSR-91019 V H-PLANE.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 6 11-15 Santai Rd., Hsinchuang, Taipei Hsien, 242, Taiwan, R.O.C. Nizing Electric Co., Ltd. Tel: 02 -29016164 Fax: 29050644 E-mail: [email protected] RG 178 B/UPAGE1 / 2 ISSUED 16. Oct. 2003 PRODUCT STANDARD FEP INSULATED HIGH-FREQUENCY COAXIAL CABLE REVISED I - Scope This specification presents a FEP insulated high- frequency coaxial cable AWG 30, 1.8 mm O.D. for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II - Construction ItemUnitDetails Material— CP-AG CompositionNo./mm AWG 30 or 7ͪ0.1 1. Inner Conductor Dia. (approx.)mm 0.305 Material— Extruded FEP Nom. O.D. mm 0.84 ± 0.05 2. Dielectric Color— Natural Material— Silver coated copper Composition — Braided (16 / 3 / 0.1) 3. Outer Conductor Dia. (approx)mm 1.29̈́0.01 Material— Extruded FEP Dia.mm 1.80̈́0.1 4. Jacket Color— Standard color is Light Orange MADE BY Note : APPROVALS 2 4 3 1 7 11-15 Santai Rd., Hsinchuang, Taipei Hsien, 242, Taiwan, R.O.C. Nizing Electric Co., Ltd. Tel: 02 -29016164 Fax: 29050644 E-mail: [email protected] RG 178 B/UPAGE2 / 2 ISSUED 16. Oct. 2003 PRODUCT STANDARD FEP INSULATED HIGH-FREQUENCY COAXIAL CABLE REVISED III – Characteristics ItemUnitSpecified ValueNote Temperature Rating к -55 ~ +200 Voltage LastingV1000 Dielectric core: No breakdown at AC 3 kv for 0.2 sec. Spark test Dielectric strength — Jacket: No breakdown at AC 3 kv for 0.2 sec. Spark test Characteristic Impedance Ω50 ± 2 TDR method CapacitancepF / m29.4at 1 kHz 52.01.0 GHz 94.03.0 GHz -5.0 GHz 16.0100.0 GHz Attenuation. (Max.)dB / 30m 33.0400.0 GHz Approx. Weight g / m 7.68 MADE BY Note : APPROVALS 8 ET-QA-0017-A2 ˖̂́́˸˶̇̂̅ޗᔆᢞࣔ஼ʳ ᢛᇛறᇆʳ ˪˻˴̌̈ʳˣ˂ˡ ʳ ˄˃˃ˀ˅˃˃˄˅ˉˉˀ˔˭ʳ ข঴ټጠʳ ˣ̅̂˷̈˶̇ʳˡ˴̀˸ʳ ʳ˕˼˺ʳ˦ˠ˔ʳ˦̇̅˴˼˺˻̇ʳˣ˿̈˺ʳ˥˸̉˸̅̆˸ʳ ̇̂̅ʳ˥ ̊ˀ˄ˊˋʳ ࿨ዌቹ૿ʳ 4 Pin 3. Ferrule 2. Duelectric 1. Assembly Body ʳ ʳٝګᔆޗ।૿๠෻ʳ ˄ʳ ˕̂˷̌ʳ ˕̅˴̆̆ʳ ˖̈ʳ ˣ˵ʳ ̇˸ʳ ̇˸ʾ˦́ ˭́ʳ ʳˣˢˠʳ˪˻˼̇˸ʳ ˅ʳ ˗˼˸˿˸˶̇̅˼˶ʳ ˧˸˹˿̂́ʳˣ˧ ̇ ̆ʳˡ˂˔ʳ ˆʳ ̇˸̅̅̈˿˸ʳ ˕̅˴̆̆ʳ ˖̈ʳ ˣ˵ʳ ̇˸ʳ ̇˸ʾ˦́ ˭́ʳ ʳ ˣ˿˴̇˸˷ʳˡ˼˶˾˸˿ʳˑˋ˃Ӵʵʳ ˇʳ ˣ˼́ʳ ˕̅˴̆̆ʳ ˖̈ʳ ˣ˵ʳ ̇˸ʳ ̇˸ʾ˦́ ˭́ʳ ʳ ˣ˿˴̇˸˷ʳ ̊̂˿˷ʳˈӴʵʳ ˥˸̀˴̅˾Κʳᓮ።ֆ׹ີʳ 9

Description of Operation The EUT is a WiFi ADSL2/2+ Router with IEEE 802.11b/g/n . And this device provided of transmitting speed: IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps IEEE 802.11n HT40 : 150 ,135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK . The device adapts DSSS and OFDM modulation. And the antenna was a Dipole antenna and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz～2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz～2452MHz Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40: 5MHz Channel Number IEEE 802.11b/g, 802.11n HT20:11 Channels IEEE 802.11n HT40 :7 Channels

Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC IDPBLCDD531AMU02 Report No.T110519402-RP1 Page 1 / 123 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For WiFi ADSL2/2+ Router2 Model Number: CDD531AM-U02 Data Applies To: CDD530AM-002; WBR-6603 Brand: AMIT, ZALiP Issued for Advance Multimedia Internet Technology Inc. No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Dat…

Text truncated - open the document above for the full version.
