PBLCDE570AMWiFi Gigabit Router

1 ZALiP CDE570AM-U WiFi Gigabit Router User Manual 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. 3 TABLE OF CONTENTS COPYRIGHT ......................................................................................................................... 2 FCC INTERFERENCE STATEMENT................................................................................... 2 CHAPTER 1 INTRODUCTION .......................................................................................... 4 1.1 PACKAGE LIST ........................................................................................................ 4 1.2 HARDWARE INSTALLATION .................................................................................. 5 CHAPTER 2 GETTING STARTED ................................................................................... 8 2.1 EASY SETUP BY WINDOWS UTILITY .................................................................... 8 2.2 EASY SETUP BY UTILITY FOR PRINTER SHARING .......................................... 12 2.3 EASY SETUP BY CONFIGURING WEB PAGES .................................................. 17 CHAPTER 3 MAKING CONFIGURATION ..................................................................... 21 3.1 BASIC SETTING ..................................................................................................... 22 3.2 FORWARDING RULES .......................................................................................... 36 3.3 SECURITY SETTING .............................................................................................. 39 3.4 ADVANCED SETTING............................................................................................ 44 CHAPTER 4 TROUBLESHOOTING ...................................................................... 64 APPENDIX A. SPEC SUMMARY TABLE.......................................................................... 67 APPENDIX B. LICENSING INFORMATION ...................................................................... 69 4 Chapter 1 . Introduction Congratulations on your purchase of this outstanding product: WiFi Broadband Router. This product is specifically designed for those who need to have the file sharing and P2P download services beyond his home and office. It provides a complete solution for Internet surfing and broadband sharing. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. 1.1 Package List Items Description Contents Quantity 1 WiFi Broadband Router 1 2 Antenna 2 3 Power adapter 1 4 CD 1 5 1.2 Hardware Installation 1.2.1 Hardware configuration USB Connector Reset Button WAN LED LAN LED 1－4 WPS/USB OFF Button Status LED Power LED USB LED WiFi LED ANTENNA Connector Power Switch Button Power Connector WAN Port LAN Port 1－4 ANTENNA Connector 6 1.2.2 LED indicators LED Status Description Status LED Green Power ON Green USB storage attached Green in flash Data access USB LED Green in flash then stop Press ‘USB off’ button till LED flashing, then can remove USB storage when LED stop flashing. Green It is connected to local Ethernet. WAN LED Green in flash Data access Green RJ45 cable is plugged Ethernet LED Green in flash Data access Green WLAN is on WiFi LED Green in flash Data access Power LED Green Power ON How to Operate DO NOT connect WiFi Broadband Router to power before performing the installation steps below. Step 1. Screw the antenna in a clockwise direction to the back panel of the unit. Step 2. Plug the RJ45 cable into LAN port 1~4 and connect with your PC or NB. 7 Step 3. Plug your RJ-45 into the WAN port and connect with your xDSL modem. Step 4. Plug the power jack into it. Step 5. Power ON. Step 6. Prepare a USB Storage or Printer, and then plug into the USB port. 8 Chapter 2 . Getting Started Please use windows EZ setup utility or Web UI wizard to enter the setup process. 2.1 Easy Setup by Windows Utility Step 1. Install the Easy Setup Utility from the provided CD then follow the steps to configure the device. Step 2. Select Language then click “Next” to continue. Step 3. Then click the “Wizard” to continue. 9 Step 4. Click “Next” to continue. Step 5. One free DDNS account ‘ MAC address.ezguard.net’ for end user to access the NAS router remotely, you can rename an alias name to remember it easily. Once you type in a name, you can click ‘ check’ to see if the name server accept it or not. You also can click ‘Ignore’ to pass it. Step 6. Select Wireless Enable, and then click “Next” to continue. 10 Step 7. Enter SSID, Channe…

Text truncated - open the document above for the full version.

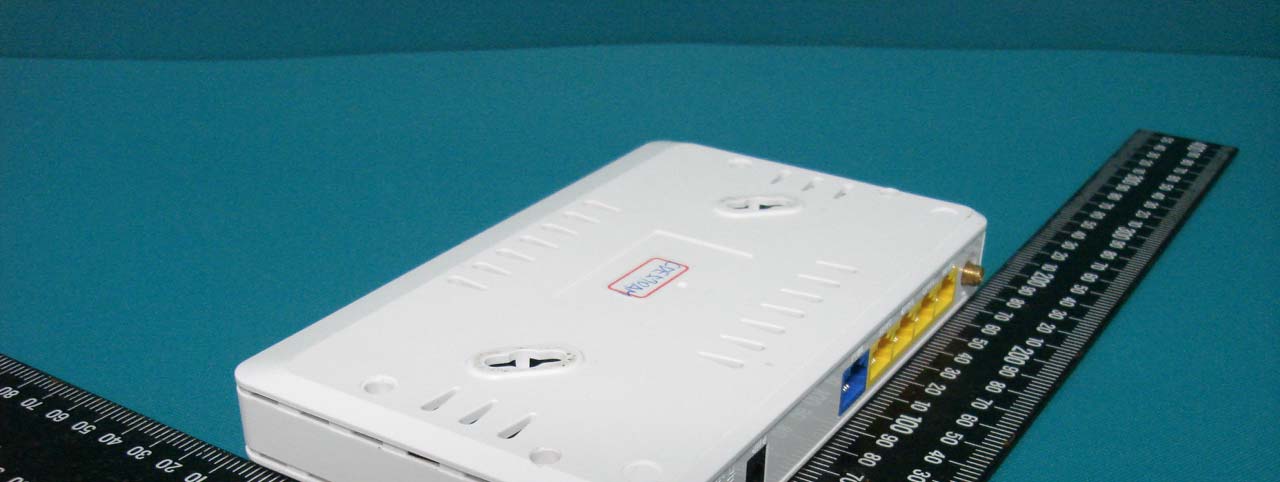

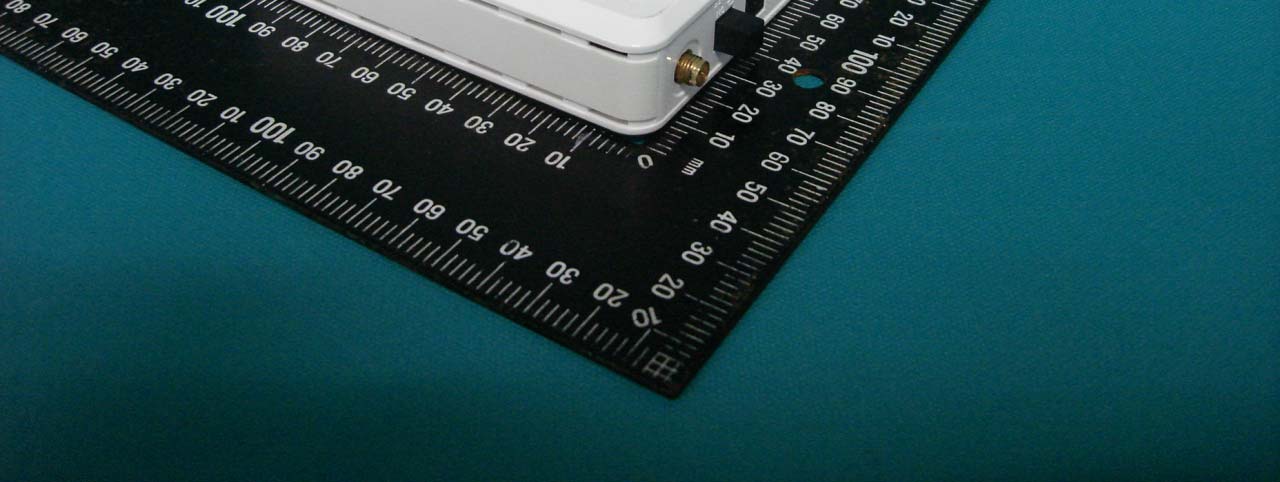

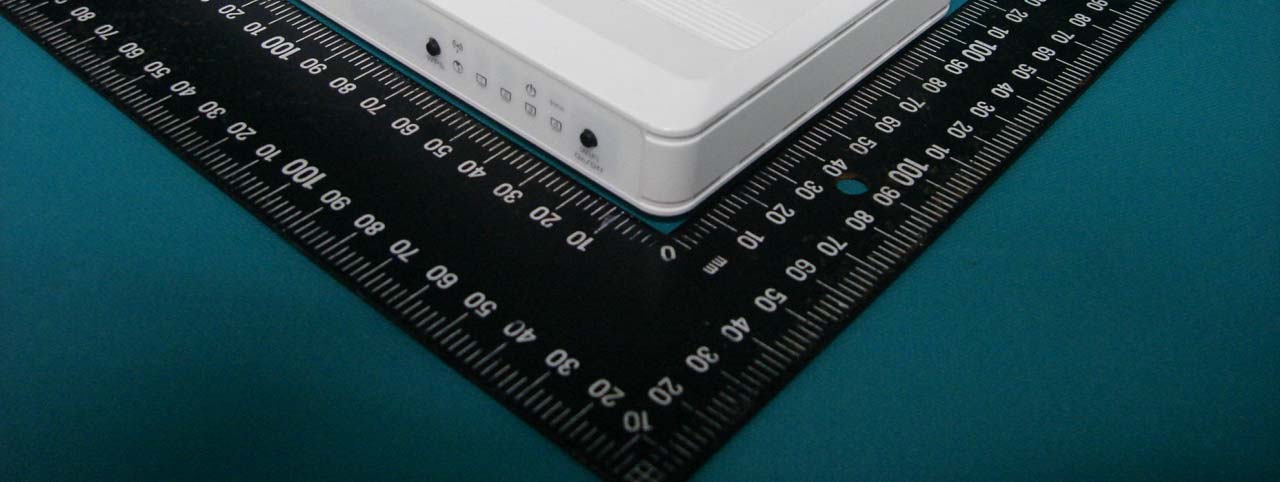

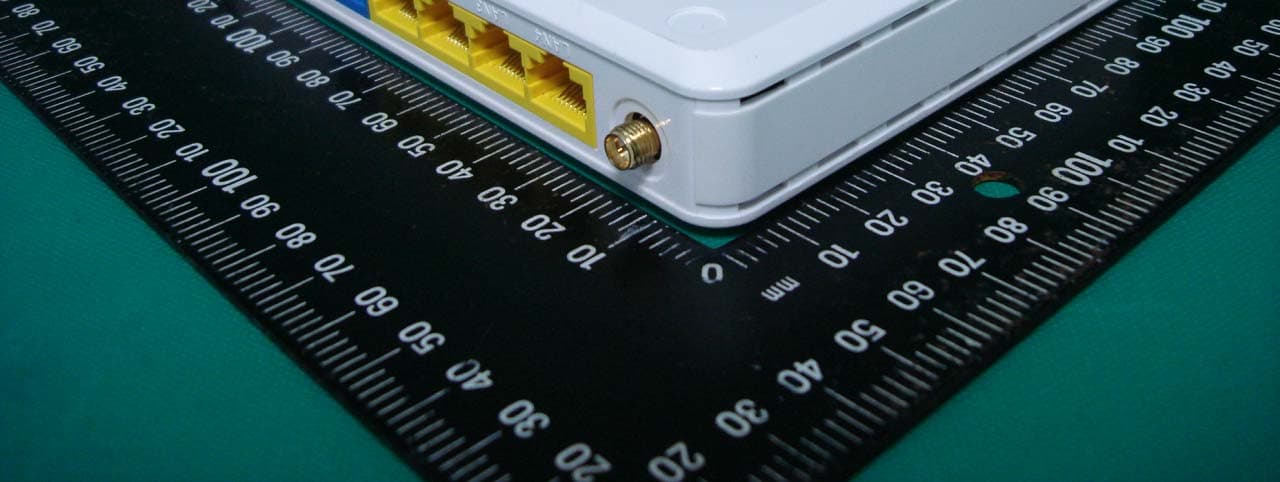

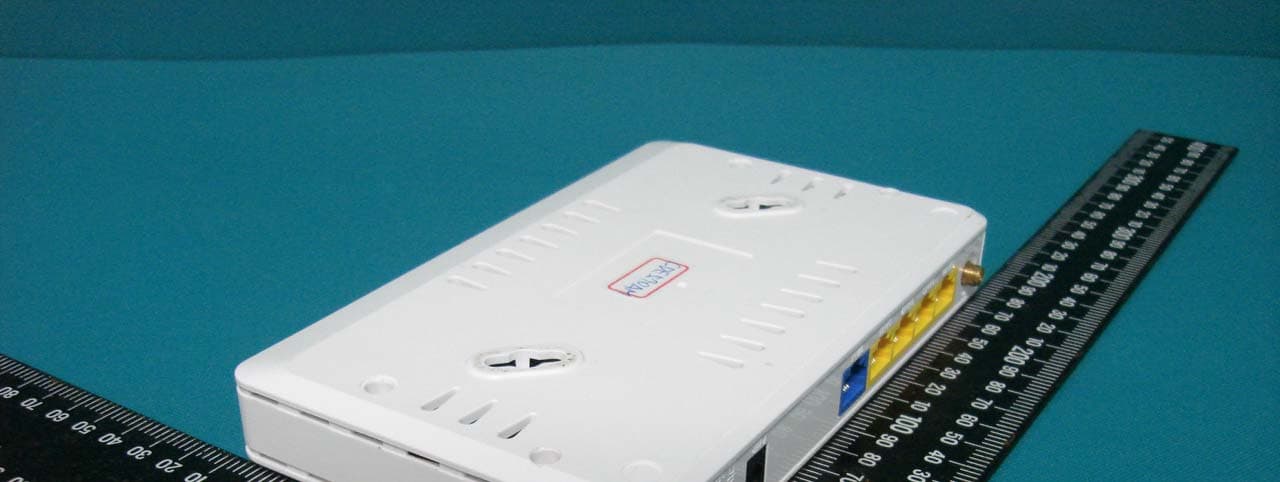

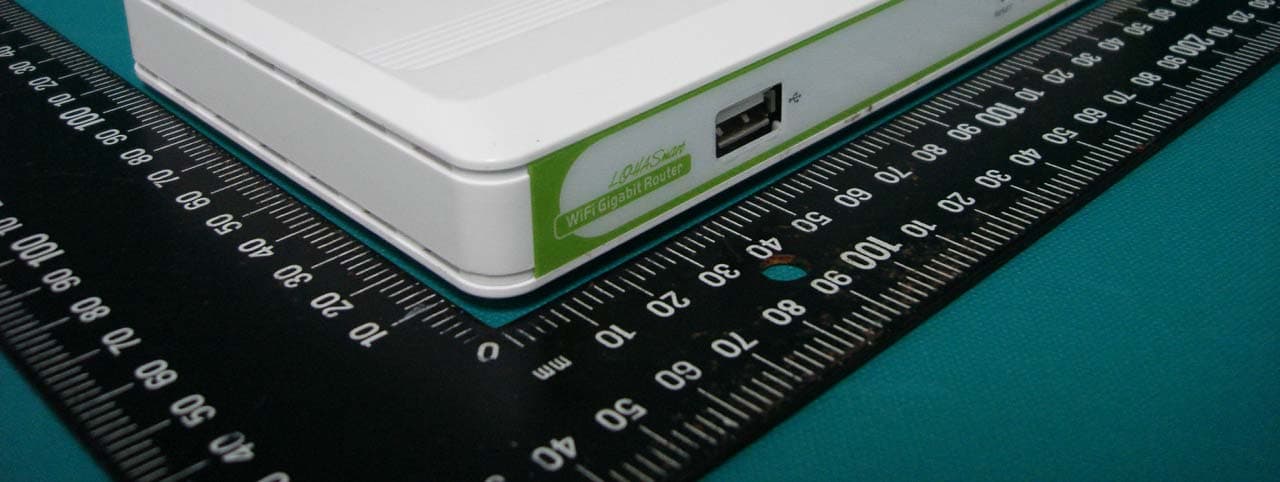

Compliance Certification Services Inc. Report No.：T100914404 Page 1 External Photo (MODEL: CDE570AM-U) Compliance Certification Services Inc. Report No.：T100914404 Page 2 Compliance Certification Services Inc. Report No.：T100914404 Page 3 External Photo (MODEL: CDE570AM, WGR-6012 ) Compliance Certification Services Inc. Report No.：T100914404 Page 4

Label drawing and location Label location FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ZALiP

Compliance Certification Services Inc. Report No.：T100914404 Page 7 Internal Photo (MODEL: CDE570AM-U) Compliance Certification Services Inc. Report No.：T100914404 Page 8 Compliance Certification Services Inc. Report No.：T100914404 Page 9 Internal Photo (MODEL: CDE570AM, WGR-6012 ) Compliance Certification Services Inc. Report No.：T100914404 Page 5 Compliance Certification Services Inc. Report No.：T100914404 Page 6 Compliance Certification Services Inc. Report No.：T100914404 Page 10 Compliance Certification Services Inc. Report No.：T100914404 Page 11 Compliance Certification Services Inc. Report No.：T100914404 Page 12

Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 1 FCC 47 CFR PART 15 SUBPART C: 2008 AND ANSI C63.4: 2003 TEST REPORT For WiFi Gigabit Router Model Number: CDE570AM-U Data Applies To: CDE570AM, WGR-6012 Brand Name: AMIT ; ZALiP Issued for Advance Multimedia Internet Technology Inc. No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 141 Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 October 22, 2010 Initial Issue ALL Leah Peng Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ...................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 2.1 DESCRIPTION OF EUT & POWER ........................................................................................ 5 3. DESCRIPTION OF TEST MODES ..................................................................................6 4. TEST METHODOLOGY ..................................................................................................7 5. FACILITIES AND ACCREDITATIONS............................................................................7 5.1 FACILITIES .............................................................................................................................. 7 5.2 EQUIPMENT............................................................................................................................ 7 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 8 6. CALIBRATION AND UNCERTAINTY.............................................................................9 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 9 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 9 7. SETUP OF EQUIPMENT UNDER TEST.........................................................................10 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 10 7.2 SUPPORT EQUIPMENT ......................................................................................................... 11 7.3 EUT OPERATING CONDITION .............................................................................................. 12 8. APPLICABLE LIMITS AND TEST RESULTS.................................................................13 8.1 6DB BANDWIDTH ................................................................................................................... 13 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 28 8.3 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 43 8.4 POWER SPECTRAL DENSITY ............................................................................................... 45 8.5 CONDUCTED SPURIOUS EMISSION.................................................................................... 64 8.6 RADIATED EMISSIONS ..........................................................................................................85 8.7 POWERLINE CONDUCTED EMISSIONS .............................................................................. 131 9. ANTENNA REQUIREMENT ............................................................................................137 9.1 STANDARD APPLICABLE ...................................................................................................... 137 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 137 APPENDIX I SETUP PHOTOS ...........................................................................................138 APPENDIX II PHOTOGRAPHS OF EUT..............................................................A1-1 !!!! Report No.ΚT100914404-RP1 FCC IDΚPBLCDE570AM Date of Issue: October 22, 2010 ! Qbhf!5! 1. TEST REPORT CERTIFICATION Applicant Κ Advance Multimedia Internet Technology Inc. Address Κ No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Manufacture Κ Advance Multimedia Internet Technology Inc. Address Κ No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Equipment Under Test Κ WiFi Gigabit Router Model Number Κ CDE570AM-U Data Applies To Κ CDE570AM, WGR-6012 Brand Name Κ AMIT ; ZALiP Date of Test Κ September 25, 2010 ~ October 1, 2010 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2008 AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Eric Huang Assistant Manager Assistant Section Manager Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 5 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name WiFi Gigabit Router Model Number CDE570AM-U Data Applies To CDE570AM, WGR-6012 Model Difference CDE570AM-U with USB port to connect storage; CDE570AM, WGR-6012 without USB port, just for marketing purpose. Brand Name AMIT ; ZALiP Frequency Range…

Text truncated - open the document above for the full version.

Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 81 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT20 Combined Mode ) CH Low (30MHz~26.5GHz) (802.11n HT20 MODE ) CH Mid (30MHz~26.5GHz) (802.11n HT20 MODE ) Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 82 CH High (30MHz~26.5GHz) (802.11n HT20 MODE ) Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 83 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT40 Combined Mode ) CH Low (30MHz~26.5GHz) (802.11n HT40 MODE ) CH Mid (30MHz~26.5GHz) (802.11n HT40 MODE ) Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 84 CH High (30MHz~26.5GHz) (802.11n HT40 MODE ) Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 85 8.6 RADIATED EMISSIONS 8.6.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS LIMITS § 15.205 (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 16.42 - 16.423 399.9 - 410 4.5 - 5.15 1 0.495 - 0.505 16.69475 - 16.69525608 - 614 5.35 - 5.46 2.1735 - 2.1905 16.80425 - 16.80475960 - 1240 7.25 - 7.75 4.125 - 4.128 25.5 - 25.67 1300 - 1427 8.025 - 8.5 4.17725 - 4.17775 37.5 - 38.25 1435 - 1626.5 9.0 - 9.2 4.20725 - 4.20775 73 - 74.6 1645.5 - 1646.5 9.3 - 9.5 6.215 - 6.218 74.8 - 75.2 1660 -1710 10.6 -12.7 6.26775 - 6.26825 108 -121.94 1718.8 - 1722.2 13.25 -13.4 6.31175 - 6.31225 123 - 138 2200 - 2300 14.47 – 14.5 8.291 - 8.294 149.9 - 150.05 2310 - 2390 15.35 -16.2 8.362 - 8.366 156.52475 - 156.52525 2483.5 - 2500 17.7 - 21.4 8.37625 - 8.38675 156.7 - 156.9 2655 - 2900 22.01 - 23.12 8.41425 - 8.41475 162.0125 - 167.17 3260 - 3267 23.6 - 24.0 12.29 - 12.293 167.72 - 173.2 3332 - 3339 31.2 - 31.8 12.51975 - 12.52025 240 - 285 3345.8 - 3338 36.43 - 36.5 12.57675 - 12.57725 322 -335.4 3600 - 4400 ( 2 ) 13.36 - 13.41 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 § 15.205 (b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown is Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 86 § 15.209 (a) Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table : Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 30 - 88 100 ** 3 88 - 216 150 ** 3 216 - 960 200 ** 3 Above 960 500 3 ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz, However, operation within these frequency bands is permitted under other sections of this Part, e-g, Sections 15.231 and 15.241. § 15.209 (b) In the emission table above, the tighter limit applies at the band edges. TEST EQUIPMENTS The following test equipments are utilized in making the measurements contained in this report. Open Area Test Site # 6 Name of Equipment Manufacturer Model Serial Number Calibration Due TYPE N COAXIAL CABLE SUHNER CHA9513 6 AUG. 31, 2011 BI-LOG Antenna Sunol JB1 A070506-2 NOV. 12, 2010 LOOP ANTENNA EMCO 6502 8905-2356 JUN. 10, 2011 Pre-Amplifier HP 8447F 2944A03817 AUG. 31, 2011 EMI Receiver R&S ESVS10 833206/012 MAY 10, 2011 RF Cable SUHNER SUCOFLEX104PEA 20520/4PEA NOV. 10, 2010 Horn Antenna Com-Power AH-118 071032 DEC. 29, 2010 Spectrum Analyzer R&S FSEK 30 835253/002 JUL. 14, 2011 Pre-Amplifier MITEQ AFS44-00108650-42-10P- 44 1205908 NOV. 10, 2010 Turn Table Yo Chen 001 ---------- N.C.R. Antenna Tower AR TP1000A 309874 N.C.R. Controller CT SC101 ---------- N.C.R. RF Swicth E-INSTRUME NT TELH LTD ERS-180A EC1204141 N.C.R Test S/W e-3 (5.04303e) Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 87 TEST SETUP The diagram below shows the test setup that is utilized to make the measurements for emission from 30 to 1GHz. 3m EUT & PERIPHERALS PERIPHERALS Antenna Elevation Variable The diagram below shows the test setup that is utilized to make the measurements for emission above 1GHz. 3m EUT & PERIPHERALS PERIPHERALS Antenna Elevation Variable Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 88 TEST PROCEDURE a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 10 meter open area test site. The table was rotated 360 degrees to determine the position of the highest radiation. b. White measuring the radiated emission below 1GHz, the EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. White measuring the radiated emission above 1GHz, the EUT was set 3 meters away from the interference-receiving antenna c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarization of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the table was turned from 0 degrees to 360 degrees to find the maximum reading. e. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode.…

Text truncated - open the document above for the full version.

Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 138 APPENDIX SETUP PHOTOS CONDUCTED EMISSION TEST SETUP Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 139 RADIATED EMISSION MEASUREMENT SETUP Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 140 RADIATED RF MEASUREMENT SETUP Report No.：T100914404-RP1 FCC ID：PBLCDE570AM Date of Issue: October 22, 2010 Page 141 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP End of report
