PBLCDM530AM002WiFi Mobile Router

1 CDM530AM-002 WiFi Mobile Router User Manual 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. Please note: Open the battery cover, and FCC ID:PBLCDM530AM002 is marked inside the battery case. 3 Table of contents COPYRIGHT ............................................................................................................................. 2 FCC INTERFERENCE STATEMENT ....................................................................................... 2 CHAPTER 1 INTRODUCTION ............................................................................................. 4 1.1 PACKAGE LIST................................................................................................ 4 1.2 HARDWARE INSTALLATION.......................................................................... 5 CHAPTER 2 GETTING STARTED WITH EASY SETUP UTILITY...................................... 9 2.1 EASY SETUP BY WINDOWS UTILITY............................................................ 9 2.2 EASY SETUP BY CONFIGURING WEB PAGES.......................................... 13 CHAPTER 3 MAKING CONFIGURATION ........................................................................ 17 3.1 BASIC SETTING............................................................................................. 17 3.2 FORWARDING RULES .................................................................................. 35 3.2.1 VIRTUAL SERVER .................................................................................. 35 3.2.2 SPECIAL AP ............................................................................................ 36 3.2.3 MISCELLANEOUS................................................................................... 37 3.3 SECURITY SETTING...................................................................................... 38 3.4 ADVANCED SETTING ................................................................................... 44 3.5 TOOL BOX...................................................................................................... 51 CHAPTER 4 TROUBLESHOOTING .................................................................................. 54 APPENDIX A. SPEC SUMMARY TABLE .............................................................................. 58 APPENDIX B. LICENSING INFORMATION .......................................................................... 59 4 Chapter 1 Introduction Congratulations on your purchase of this outstanding product: CDM530AM-002 WiFi Mobile Router. This product is specifically designed for mobile user who needs to have the internet access beyond his home and office. It provides a complete solution for Internet surfing and broadband sharing. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. 1.1 Package List Items Description Contents Quantity 1 WiFi Mobile Router 1 2 Power adapter 1 3 CD 1 4 Li-ion Battery 1 5 1.2 Hardware Installation A. Hardware configuration *Check Wireless LED to know wifi status. 6 B. LED indicators Power LED indicator: Power Source ON/OFF SwitchLED Status Description ON Green in flash Device ON, and Battery is in use. ON Red Device ON, and Battery is low. Battery Only OFF N/A Device OFF ON Green Device ON, and Battery is fully charged. ON Amber Device ON, and Battery is charging ON Red in Flash Device ON, Battery is charging , and System Temperature is too high and ready to shut down OFF Amber Device OFF, and Battery is charging. Power Adapter OFF N/A Device OFF Other LED indicator: LED Status Description Green RJ45 cable is plugged, and Ethernet connection is established. Ethernet LED Green in flash Data access Green 3G/3.5G is on USB LED Green in flash Data access Green WLAN is on WiFi LED Green in flash Data access C. Installation Steps Step 1. Install the battery: Turn OFF the power switch, open the battery lid, and then insert the Li-ion battery into the battery holder. Battery needs to stay in the compartment to power-on the device. 7 Step 2. Close the battery lid Step 3. Plug in power: Connect with the power adapter to the receptor on the back panel of it. Step 4. Start to Charge the Battery: Then plug the other end of the power adapter into a wall outlet. If it is the first time to put the battery in, the power LED will show amber which means the battery is been charging. It will take about 3 hours to fully charge the battery, and when the battery is fully charged, the power LED will show green. Step 5. Power ON: Turn ON the power switch. Ste…

Text truncated - open the document above for the full version.

Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Attestation FCC ID : PBLCDM530AM002 Product : WiFi Mobile Router Model : CDM530AM-002 Statements: We, the undersigned, hereby certify that only 11 channels from 2412-2462MHz will be used in USA, other channels will be disabled by software. Sincerely yours, _________________________ Name/ Title Company name

Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Confidentiality Request FCC ID : PBLCDM530AM002 Product : WiFi Mobile Router Model : CDM530AM-002 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ___________________________ TEL: 06-5058026 FAX: 06-5058068 E-MAIL: [email protected]

Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Date: 2011/8/8 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Alex Chiu / Director of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Alex Chiu / Director of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (Please type Name and Title of Person to Receive Grant/Certificate) (Please type Company Name) REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

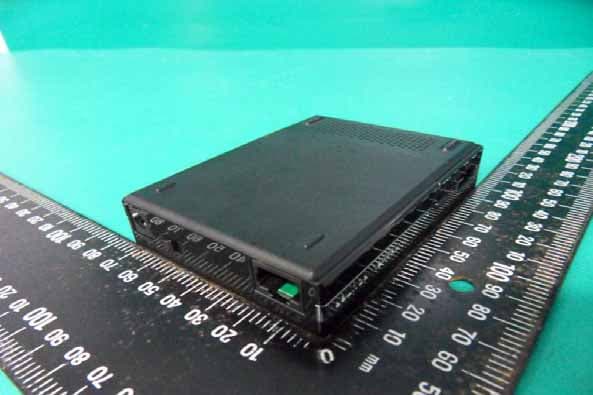

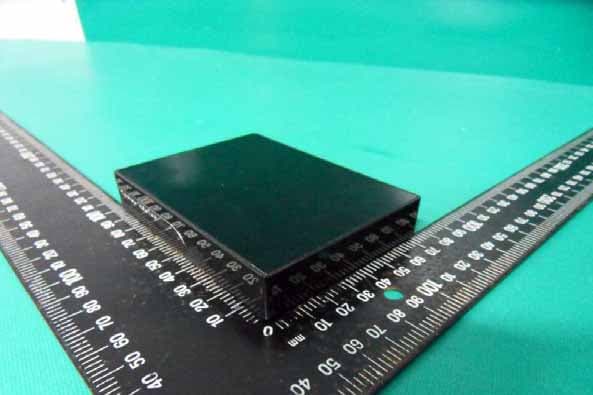

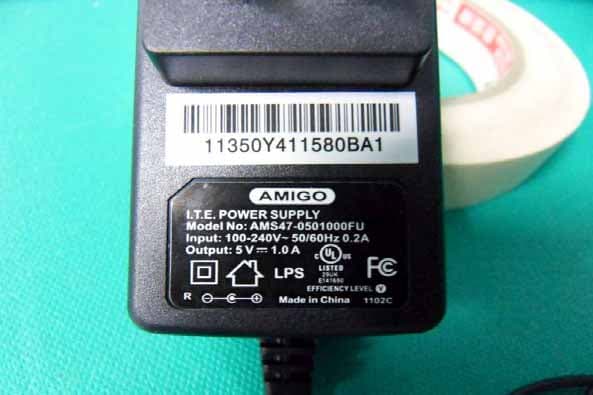

Compliance Certification Services Inc. Report No.:T110531401 Date of Issue: June 21, 2011 Page A1 / 7 PHOTOGRAPHS OF EUT External Photo (Model: CDM530AM-002) Compliance Certification Services Inc. Report No.:T110531401 Date of Issue: June 21, 2011 Page A2 / 7 Compliance Certification Services Inc. Report No.:T110531401 Date of Issue: June 21, 2011 Page A3 / 7

Diagram Label location Label location FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ZALiP FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful

Compliance Certification Services Inc. Report No.:T110531401 Date of Issue: June 21, 2011 Page A4 / 7 Internal Photo Compliance Certification Services Inc. Report No.:T110531401 Date of Issue: June 21, 2011 Page A5 / 7 Compliance Certification Services Inc. Report No.:T110531401 Date of Issue: June 21, 2011 Page A6 / 7 Compliance Certification Services Inc. Report No.:T110531401 Date of Issue: June 21, 2011 Page A7 / 7

Description of Operation The EUT is a WiFi Mobile Router with IEEE 802.11b/g/n (1T1R) . And this device provided of transmitting speed: IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps IEEE 802.11n HT40 : 150 ,135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was a PIFA Antenna(1T1R) and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. The other instruction, please have a look at the user’s manual.

PIFA Antenna Max Antenna Gain: 2.74dBi 1. Experimental Setup ANTENNA X Z Y 2. Return Loss 3. Radiation Patterns Phi=0.00deg Gain Phi. dB Layer Max value Average 2400(MHz) -1.09 -4.75 2450(MHz) -0.75 -4.93 2500(MHz) -0.80 -5.22 Phi=0.00deg Gain Theta. dB Layer Max value Average 2400(MHz) -1.96 -7.62 2450(MHz) -2.18 -7.92 2500(MHz) -2.48 -7.92 Phi=0.00deg Gain . dB Layer Max value Average 2400(MHz) -0.22 -2.94 2450(MHz) -0.42 -3.16 2500(MHz) -0.49 -3.36 Phi=90.00deg Gain Phi. dB Layer Max value Average 2400(MHz) 0.50 -4.19 2450(MHz) 0.72 -4.10 2500(MHz) 0.68 -4.06 Phi=90.00deg Gain Theta. dB Layer Max value Average 2400(MHz) 1.06 -4.33 2450(MHz) 0.84 -4.43 2500(MHz) -0.11 -4.74 Phi=90.00deg Gain . dB Layer Max value Average 2400(MHz) 2.74 -1.25 2450(MHz) 2.69 -1.25 2500(MHz) 1.65 -1.37 Theta=90.00deg Gain Phi. dB Layer Max value Average 2400(MHz) 0.75 -3.00 2450(MHz) 0.96 -2.88 2500(MHz) 0.84 -2.97 Theta=90.00deg Gain Theta. dB Layer Max value Average 2400(MHz) -9.28 -12.41 2450(MHz) -8.96 -12.60 2500(MHz) -8.40 -12.73 Theta=90.00deg Gain . dB Layer Max value Average 2400(MHz) 1.15 -2.53 2450(MHz) 1.29 -2.43 2500(MHz) 1.07 -2.54 4. Efficiency Maximum Efficiency At 2.4-2.5 GHz : 69.19 %

!! FCC ID: PBLCDM530AM002! ! ! ! Qbhf!2!! RF Exposure Evaluation Assessment WiFi Mobile Router Model Number: CDM530AM-002 Brand: AMIT; ZALiP Issued for Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan !! FCC ID: PBLCDM530AM002! ! ! ! Qbhf!3!! ! 1. Product description: WiFi Mobile Router 1.1. Functions description : -Whiling connecting with any certified 3G dongle, any device with WLAN may then be able to access internet via this mobile router. Please see Figure 1; or - This device (Router) can be connected to the Internet with a external XDSL Modem when a 3G dongle isnot available. Please see the Figure 2. For detail product information, please refer to attached user manual. !! FCC ID: PBLCDM530AM002! ! ! ! Qbhf!4!! 2. EUT photos and antenna locations ! ! !! FCC ID: PBLCDM530AM002! ! ! ! Qbhf!5!! ! \ ! ! ! !! FCC ID: PBLCDM530AM002! ! ! ! Qbhf!6!! ! !! FCC ID: PBLCDM530AM002! ! ! ! Qbhf!7!! ! WLAN antenna location and WLAN antenna distance to the end of USB connector (which is the shortest distance where the certified 3G dongle connected.) ! Boufoob! 6 / 3 d n ! 7 / 6 d n ! !! FCC ID: PBLCDM530AM002! ! ! ! Qbhf!8!! ! !! FCC ID: PBLCDM530AM002! ! ! ! Qbhf!9!! 3. Conducted average output power 802.11b mode FrequencyAverage Power Chain0 Channel (MHz)(dBm) Low 2412 13.65 Middle 2437 13.68 High 2462 13.77 802.11g Normal Mode FrequencyAverage Power Chain0 Channel (MHz)(dBm) Low 2412 10.34 Middle 2437 10.45 High 2462 10.35 802.11n HT-20 Mode FrequencyAverage Power Chain0 Channel (MHz)(dBm) Low 2412 8.12 Middle 2437 8.27 High 2462 8.15 802.11n HT-40 Mode FrequencyAverage Power Chain0 Channel (MHz)(dBm) Low 2422 8.08 Middle 2437 8.24 High 2452 7.93 ! ! ! ! !! FCC ID: PBLCDM530AM002! ! ! ! Qbhf!:!! 4. Summary of the RF evaluation result 4.1 Justification of Stand-alone SAR evaluation The maximum average output power of 802.11bgn: b mode: 13.77dBm (23.82mW) g mode: 10.45dBm (11.09mW) HT-20 : 8.27dBm (6.71mW) HT-40 : 8.24dBm (6.67mW) According to KDB 447498 D01 Mobile Portable RF Exposure v04, Stand-alone SAR evaluation for WLAN is not required because the output power is lower than the power threshold=60/f : 60/2.437=24.62mW No stand-alone SAR evaluation required 4.2 Justification of the co-location simultaneous transmission SAR evaluation -3G dongle is not a part of the EUT -any certified 3G dongle can be connected to the EUT -based on current WLAN antenna distance to the USB connector as indicated in page 6, the min. distance is 5.2 cm; -and assume the max. SAR value of 3G dongle is 1.6W/kg -per KDB 941225 D06 Hot Spot SAR v01 of the Head and body-worn accessory SAR test requirements for handsets with hotspot mode,it may quote for simultaneous transmission SAR test exclusion according to the procedures in KDB 648474 : Min. WLAN Antenna- 3G antenna = 5.2cm > 5cm - Per KDB 648474 procedure, the simultaneous SAR can be exempted. No co-location simultaneous transmission SAR evaluation required. !

Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC IDPBLCDM530AM002 Report No.T110531401-RP1 Page 1 / 114 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For WiFi Mobile Router Model Number: CDM530AM-002 Data Applies To: WBR-6803 Brand: AMIT, ZALiP Issued for Advance Multimedia Internet Technology Inc. No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Ceng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: August 17, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC IDPBLCDM530AM002 Report No.T110531401-RP1 Page 2 / 114 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 June 28, 2011 Initial Issue ALL Sunny Chang 01 August 17, 2011 Update test data Page 5,7,18,20,42,61-86 Sunny Chang Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC IDPBLCDM530AM002 Report No.T110531401-RP1 Page 3 / 114 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ................................................................................................ 4 2. EUT DESCRIPTION...................................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ........................................................................................ 5 3. DESCRIPTION OF TEST MODES ............................................................................................... 7 4. TEST METHODOLOGY................................................................................................................ 8 5. FACILITIES AND ACCREDITATIONS......................................................................................... 8 5.1 FACILITIES .............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 9 6. CALIBRATION AND UNCERTAINTY .......................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 10 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 10 7. SETUP OF EQUIPMENT UNDER TEST ...................................................................................... 11 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 11 7.2 SUPPORT EQUIPMENT ......................................................................................................... 12 7.3 EUT OPERATING CONDITION .............................................................................................. 13 8. APPLICABLE LIMITS AND TEST RESULTS.............................................................................. 14 8.1 6DB BANDWIDTH ................................................................................................................... 14 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 25 8.3 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 29 8.4 POWER SPECTRAL DENSITY ............................................................................................... 31 8.5 CONDUCTED SPURIOUS EMISSION.................................................................................... 41 8.6 RADIATED EMISSIONS .......................................................................................................... 58 8.6.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS .................................................. 58 8.6.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz.................................................. 62 8.6.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ................................................. 63 8.6.4 RESTRICTED BAND EDGES.......................................................................................... 87 8.7 POWERLINE CONDUCTED EMISSIONS .............................................................................. 105 9. ANTENNA REQUIREMENT .........................................................................................................109 9.1 STANDARD APPLICABLE ...................................................................................................... 109 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 109 APPENDIX I SETUP PHOTOS......................................................................................................... 110 APPENDIX II PHOTOGRAPHS OF EUT.............................................................................A1 Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC IDPBLCDM530AM002 Report No.T110531401-RP1 Page 4 / 114 1. TEST REPORT CERTIFICATION Applicant Advance Multimedia Internet Technology Inc. Address No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih District , Tainan City 74146 , Taiwan Manufacture Advance Multimedia Internet Technology Inc. Address No.28, Lane 31 , Sec. 1 , Huandong Rd. , Sinshih Distric…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC IDPBLCDM530AM002 Report No.T110531401-RP1 Page 110 / 114 APPENDIX I SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC IDPBLCDM530AM002 Report No.T110531401-RP1 Page 111 / 114 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC IDPBLCDM530AM002 Report No.T110531401-RP1 Page 112 / 114 Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC IDPBLCDM530AM002 Report No.T110531401-RP1 Page 113 / 114 RF CONDUCTED SETUP Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC IDPBLCDM530AM002 Report No.T110531401-RP1 Page 114 / 114 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
