PBLCDM530NCWiFi Mobile Broadband Router

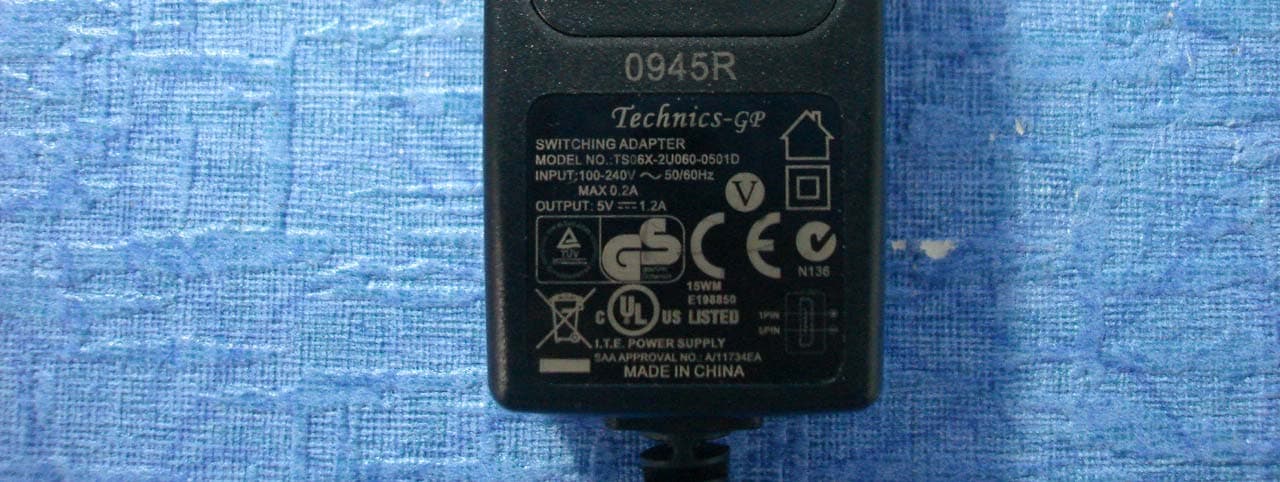

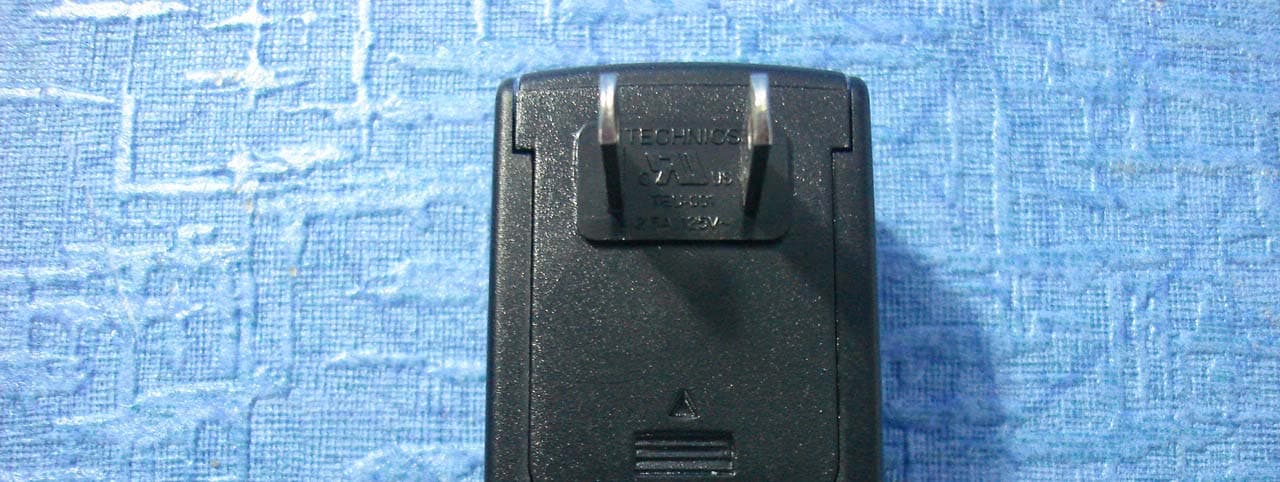

1 Advance Multimedia Internet Technology Inc. No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan CDM530NC WiFi Mobile Broadband Router Installation Steps Step 1. Install the battery: Turn OFF the power switch, open the battery lid, and then insert the Li-ion battery into the battery holder. DO NOT insert or remove the Li-ion battery while the power switch is at ON position. Step 2. Close the battery lid Step 3. Plug in power: Connect with the power adapter to the receptor on the back panel of it. 2 Step 4. Start to Charge the Battery: Then plug the other end of the power adapter into a wall outlet. If it is the first time to put the battery in, the power LED will show amber which means the battery is been charging. It will take about 3 hours to fully charge the battery, and when the battery is fully charged, the power LED will show green. Step 5. Power ON: Turn ON the power switch. Step 6. Connect with a USB 3G modem: Plug your USB modem which is with activated SIM card provided by your 3G service provider. Step 7. Connect with Ethernet Cable Insert the Ethernet cable into RJ45 Ethernet Port on the back panel. And then plug the other end of RJ45 into the computer or Laptop computer. The Ethernet LED will show green color if the Ethernet connection is normally connected. Step 8. Start to configure the device: You can start to configure the device via the Easy Setup Utility . (see Easy Setup Utility) ON 3 Chapter 1 Getting Started with Easy Setup Utility There are two approaches for you to set up the WiFi Mobile Router quickly and easily. One is through executing the provided Windows Easy Setup Utility on your PC, and the other is through browsing the device web pages and configuration. 2.1 Easy Setup by Windows Utility Step 1： Install the Easy Setup Utility from the provided CD then follow the steps to configure the device. Step 2： Select Language then click “Next” to continue. Step 3： Then click the “Wizard” to continue. Step 4： Click “Next” to continue. 4 Step 5： Select Wireless Enable, and then click “Next” to continue. Step 6： Enter SSID, Channel and Security options, and then click “Next” to continue. Step 7： Select 3G Service by clicking 3G icon to continue. 5 Step 8-1： Select “Auto-Detection”, and the Utility will try to detect and configure the required 3G service settings automatically. Click “Next” to continue. Step 8-2： Or you can select “Manual” and manually fill in the required 3G service settings provided by your ISP. Click “Next” to continue. Step 9： The WiFi Mobile Router is rebooted to make your entire configuration take effect. 6 Step 10： Click “Next” to test the Internet connection or you can ignore test. Step 11： Click “Next” to test WAN Networking service. Step 12： Setup is completed.

CDM530NC Diagram Label Location FCC ID: XV3AVK01 FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that ma y cause undesired operation. PBLCDM530NC

Compliance Certification Services Inc. Report No.：T100709401 Page 3 Compliance Certification Services Inc. Report No.：T100709401 Page 4 Compliance Certification Services Inc. Report No.：T100709401 Page 5 Internal Photo Compliance Certification Services Inc. Report No.：T100709401 Page 6 Antenna 4 . 3 c m 5 . 7 c m Compliance Certification Services Inc. Report No.：T100709401 Page 7

Test Data 2009/12/2 Te s t M e m b e r B e n s o n 一、 Return Loss & VSWR 測試線焊接示意圖 Antenna 二、 Radiation Pattern Measurement XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left Left Right Down Up Back Front Z X Y DUT待測物 Gain Horn Antenna X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) 三、Te s t Va l u e 1‐1 Return Loss (dB) 2.40 GHz ‐16.024 2.45 GHz ‐11.741 2.50 GHz ‐15.325 1‐2 Peak Gain Gain (dBi) Efficiency (%) 2.40GHz 0.12 38.26 2.45GHz 0.31 36.50 2.50GHz -1.12 24.42

Description of Operation The EUT is a WiFi Mobile Broadband Routerwith IEEE 802.11b/g/n (1T1R) . And this device provided of transmitting speed: IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps IEEE 802.11n HT40 : 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was a PIFA Antenna(1T1R) and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. The other instruction, please have a look at the user’s manual.

Compliance Certification Services Inc. FCC ID: PBLCDM530NC Page 1 RF Exposure Evaluation Assessment WiFi Mobile Broadband Router Model Number: CDM530NC Brand: AMIT / ZALiP Issued for Advance Multimedia Internet Technology Inc. No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Compliance Certification Services Inc. FCC ID: PBLCDM530NC Page 2 1. Product description: WiFi Mobile Broadband Router 1.1. Functions description : -Whiling connecting with any certified 3G dongle, any device with WLAN may then be able to access internet via this mobile router. Please see Figure 1; or – -This device (Router) can be connected to the Internet with a external XDSL Modem when a 3G dongle is not available. Please see Figure 2. For detail product information, please refer to attached user manual. 2 Compliance Certification Services Inc. FCC ID: PBLCDM530NC Page 3 2. EUT photos and antenna locations Compliance Certification Services Inc. FCC ID: PBLCDM530NC Page 4 WLAN antenna location and WLAN antenna distance to the end of USB connector (which is the shortest distance where the certified 3G dongle connected.) Antenna 4 . 3 c m 5 . 7 c m Compliance Certification Services Inc. FCC ID: PBLCDM530NC Page 5 3. Conducted average output power 802.11b mode Frequency Average Power Chain0 Channel (MHz) (dBm) Low 2412 9.13 Middle 2437 12.08 High 2462 8.17 802.11g Normal Mode Frequency Average Power Chain0 Channel (MHz) (dBm) Low 2412 5.26 Middle 2437 7.41 High 2462 3.33 802.11n HT-20 Mode Frequency Average Power Chain0 Channel (MHz) (dBm) Low 2412 4.68 Middle 2437 6.25 High 2462 2.76 802.11n HT-40 Mode Frequency Average Power Chain0 Channel (MHz) (dBm) Low 2422 5.12 Middle 2437 4.96 High 2452 4.73 Compliance Certification Services Inc. FCC ID: PBLCDM530NC Page 6 4. Summary of the RF evaluation result 4.1 Justification of Stand-alone SAR evaluation The maximum average output power of 802.11bgn: b mode: 12.08dBm (16.14mW) g mode: 7.41dBm (5.50mW) HT-20 : 6.25dBm (4.21mW) HT-40 : 5.12dBm (3.25mW) According to KDB 447498 D01 Mobile Portable RF Exposure v04, Stand-alone SAR evaluation for WLAN is not required because the output power is lower than the power threshold=60/f : 60/2.437=24.62mW No stand-alone SAR evaluation required 4.2 Justification of the co-location simultaneous transmission SAR evaluation - 3G dongle is not a part of the EUT - any certified 3G dongle can be connected to the EUT - based on current WLAN antenna distance to the USB connector as indicated in page 4, the min. distance is 5.7cm; - and assume the max. SAR value of 3G dongle is 1.6W/kg - per KDB 447498 D01 Mobile Portable RF Exposure v04, item 3) b) ii) (1): Min. WLAN Antenna- 3G antenna = 5.7cm >5cm No co-location simultaneous transmission SAR evaluation required.

!!!! Report No.ΚT100709401-RP1 FCC IDΚPBLCDM530NC Date of Issue: July 15, 2010 ! Qbhf!2! FCC 47 CFR PART 15 SUBPART C: 2008 AND ANSI C63.4: 2003 TEST REPORT For WiFi Mobile Broadband Router Model Number: CDM530NC Brand Name: AMIT ; ZALiP Issued for Advance Multimedia Internet Technology Inc. No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 111 !!!! Report No.ΚT100709401-RP1 FCC IDΚPBLCDM530NC Date of Issue: July 15, 2010 ! Qbhf!3! REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00July 15, 2010 Initial Issue ALL Leah Peng !!!! Report No.ΚT100709401-RP1 FCC IDΚPBLCDM530NC Date of Issue: July 15, 2010 ! Qbhf!4! TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ...................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 2.1 DESCRIPTION OF EUT & POWER ........................................................................................ 5 3. DESCRIPTION OF TEST MODES ..................................................................................6 4. TEST METHODOLOGY ..................................................................................................7 5. FACILITIES AND ACCREDITATIONS............................................................................7 5.1 FACILITIES .............................................................................................................................. 7 5.2 EQUIPMENT............................................................................................................................ 7 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 8 6. CALIBRATION AND UNCERTAINTY.............................................................................9 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 9 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 9 7. SETUP OF EQUIPMENT UNDER TEST.........................................................................10 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 10 7.2 SUPPORT EQUIPMENT ......................................................................................................... 10 7.3 EUT OPERATING CONDITION .............................................................................................. 11 8. APPLICABLE LIMITS AND TEST RESULTS.................................................................12 8.1 6DB BANDWIDTH ................................................................................................................... 12 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 23 8.3 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 34 8.4 POWER SPECTRAL DENSITY ............................................................................................... 36 8.5 CONDUCTED SPURIOUS EMISSION.................................................................................... 46 8.6 RADIATED EMISSIONS ..........................................................................................................57 8.7 POWERLINE CONDUCTED EMISSIONS .............................................................................. 103 9. ANTENNA REQUIREMENT ............................................................................................107 9.1 STANDARD APPLICABLE ...................................................................................................... 107 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 107 APPENDIX SETUP PHOTOS .............................................................................................108 !!!! Report No.ΚT100709401-RP1 FCC IDΚPBLCDM530NC Date of Issue: July 15, 2010 ! Qbhf!5! 1. TEST REPORT CERTIFICATION Applicant Κ Advance Multimedia Internet Technology Inc. Address Κ No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Equipment Under Test Κ WiFi Mobile Broadband Router Model Number Κ CDM530NC Brand Name Κ AMIT ; ZALiP Date of Test Κ November 23, 2009 ~ November 30, 2009 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2008 AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Eric Yang Assistant Manager Senior Engineer !!!! Report No.ΚT100709401-RP1 FCC IDΚPBLCDM530NC Date of Issue: July 15, 2010 ! Qbhf!6! 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name WiFi Mobile Broadband Router Model Number CDM530NC Brand Name AMIT ; ZALiP Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz̚2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz̚2452MHz Transmit Power R IEEE 802.11b Mode : 15.26dBm (DTS Band) (33.5738 mW) IEEE 802.11g Mode : 13.14dBm (DTS Band) (20.6063 mW) IEEE 802.11n HT20 Mode : 13.38dBm (DTS Band) (21.7771 mW) IEEE 802.11n HT40 Mode : 12.54dBm (DTS Band) (17.9473 mW) Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40: 5MHz Channel Number IEEE 802.11b/g, 802.11n HT20:11 Channels IEEE 80…

Text truncated - open the document above for the full version.

Report No.：T100709401-RP1 FCC ID：PBLCDM530NC Date of Issue: December 4, 2009 Page 108 APPENDIX SETUP PHOTOS CONDUCTED EMISSION TEST SETUP Report No.：T100709401-RP1 FCC ID：PBLCDM530NC Date of Issue: December 4, 2009 Page 109 RADIATED EMISSION MEASUREMENT SETUP Report No.：T100709401-RP1 FCC ID：PBLCDM530NC Date of Issue: December 4, 2009 Page 110 RADIATED RF MEASUREMENT SETUP Report No.：T100709401-RP1 FCC ID：PBLCDM530NC Date of Issue: December 4, 2009 Page 111 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP End of report
