PBLCDW531AMWiFi Combo/Broadband Gateway

WiFi Combo Broadband Gateway User Guide Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements related to electromagnetic compatibility, EN 55022/A1 Class B. The specification is subject to change without notice. FCC COMPLIANCE STATEMENT Ta b l e o f C o n t e n t s FCC Interference Statement........................................................................................ 2 1. Introduction............................................................................................................... 4 1.1. Package Contents...................................................................................... 4 1.2. System Requirements for Configuration................................................ 4 1.3. Interfaces - the Rear View........................................................................ 5 1.4. LEDs and Buttons – the Front View....................................................... 5 1.5. Features...................................................................................................... 6 2. Configuring WiFi Combo Broadband Gateway.............................................. 7 2.1. Installation Considerations...................................................................... 7 2.1.1. Installation Instructions- Get Start Networking.................................... 7 2.1.2. Establish WiFi Connection....................................................................... 9 3. Using the Configuration Menu.......................................................................... 10 3.1. Wizard setting......................................................................................... 12 3.2. Administrator’s Main Menu.................................................................. 18 4. Troubleshooting................................................................................................... 55 5. Technical Specifications...................................................................................... 58 1. Introduction The WiFi Combo Broadband Gateway is a high-performance tool that supports wireless networking at home, work, or in a public place. The WiFi Combo Broadband Gateway supports a USB 3G modem card, either WCDMA or EVDO and even HSDPA as well, and supports wireless data transfers up to 150M bps, and wired data transfers up to 100 Mbps. The WiFi Combo Broadband Gateway is compatible with industry security features. 1.1. Package Contents Importance: Check your product package contents FIRST. The WiFi Combo Broadband Gateway package should contain the items listed below. If any of the items are missing, please contact your reseller. items Description Quantity 1 WiFi Combo Broadband Gateway 1 2 RJ-45 Cable 1 3 Power adapter 5V 2.0A 1 4 CD 1 Caution: Using a power supply with a different voltage rating than the one included with the WiFi Combo Broadband Gateway will cause damage and void the warranty for this product. 1.2. System Requirements for Configuration • A compatible USB 3G modem card with service Note: Subject to services and service terms available from your carrier. • Computers with Windows, Macintosh, or Linux-based operating systems with an installed Ethernet adapter. • Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above. • Wi-Fi System Requirements: An 802.11b, 802.11g, or 802.11n Adapter. 1.3. Interfaces - the Rear View 1.4. LEDs and Buttons – the Front View Note: Contains a reset button to restore the setting back to original factory defaulted setting as if your convenience of forgetting your applicable setting Reset Button Restore to Original factory defaulted setting USB port for connecting with 3G USB modem Receptor for Power adapter Auto MDI/MDIX RJ-45 Ports Automatically sense the types of WAN and LAN when connecting to Ethernet WPS Button Restore to Original factory defaulted setting WiFi LED A green light as connection on WLAN available LAN LED A green light as connected to local Ethernet and blinks durin g data is transmission WA N L E D A green light as WAN is connected Mobile/Status LED A green light as what’s status of power or 3G card. 1.5. Features z IEEE 802.11b/g compliant and 11n Lite (HW 1T1R not MIMO solution.) „ Backward compatible to IEEE 802.11b standards „ Max physical rate up to 54Mbps in 802.11g mode „ Max physical rate up to 150Mbps in 802.11n mode „ Security Supports: WEP (64/128 bits), WPA, WPA2, WPA-PSK, WPA2-PSK, and 802.1x „ WPS Support z Provide 5 * 10/100 RJ-45 ports „ 4 * LAN „ 1 * WAN z WAN connection through external USB 3G/3.75G modem card „ WCDMA,HSDPA,HSUPA(depend on region) „ CDMA2000,EV-DO(depend on region) „ TD-SCDMA,TD-HSDPA(Option) „ Flash OFDM(Reserve) „ iBurst(Option) z Built-in NAT function…

Text truncated - open the document above for the full version.

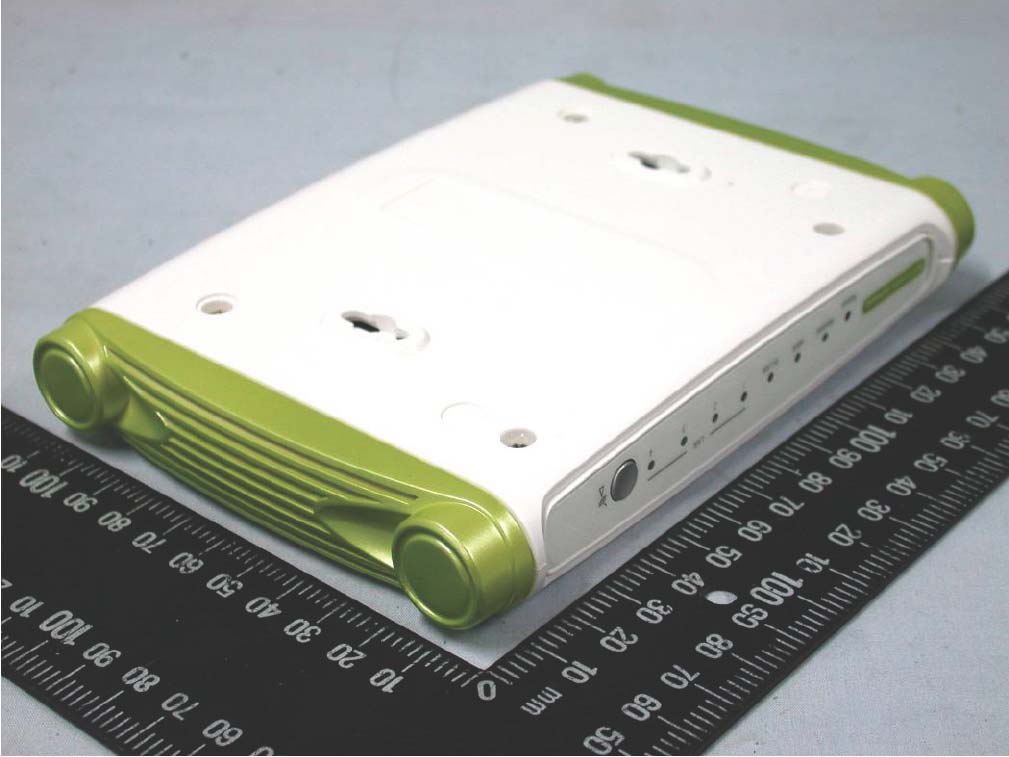

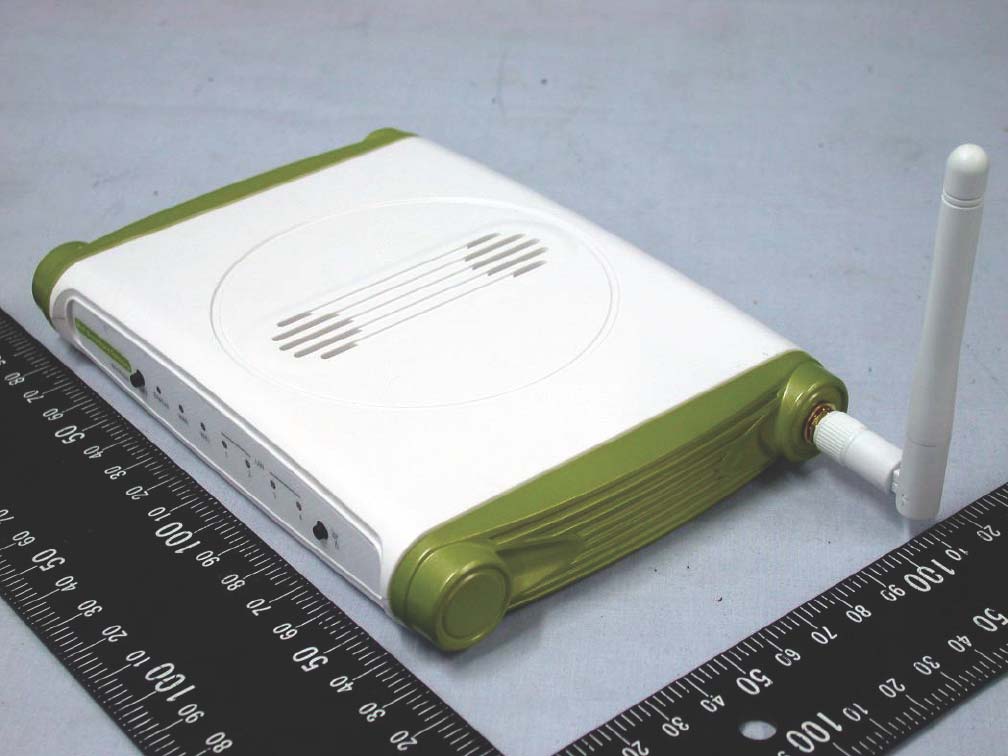

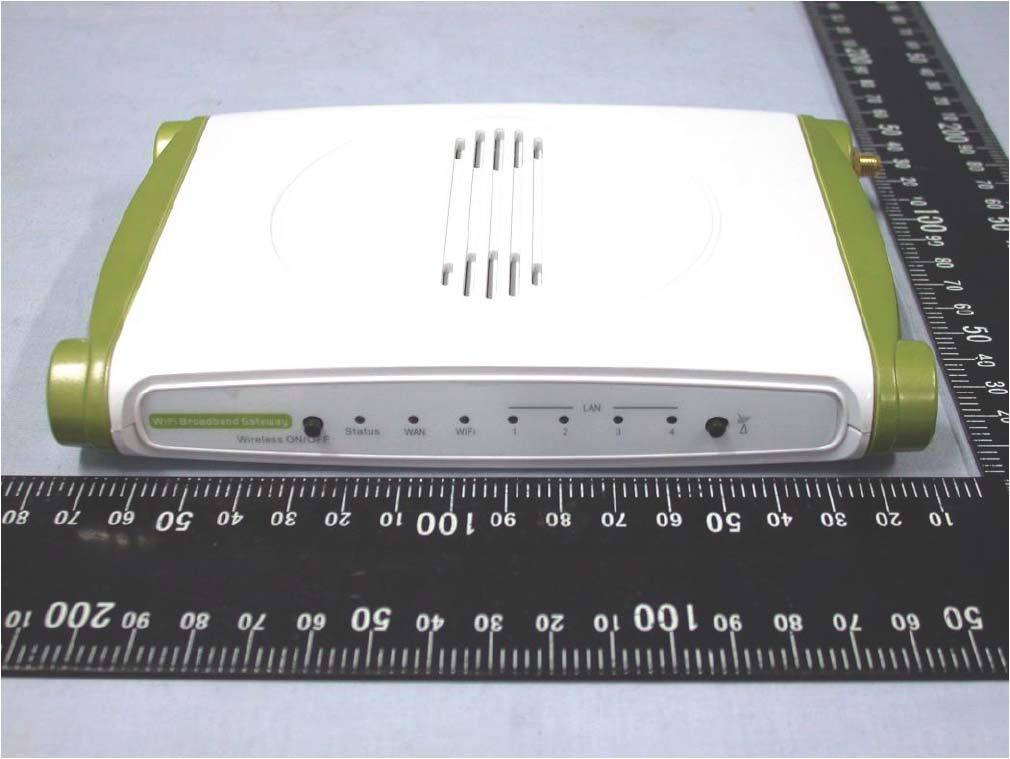

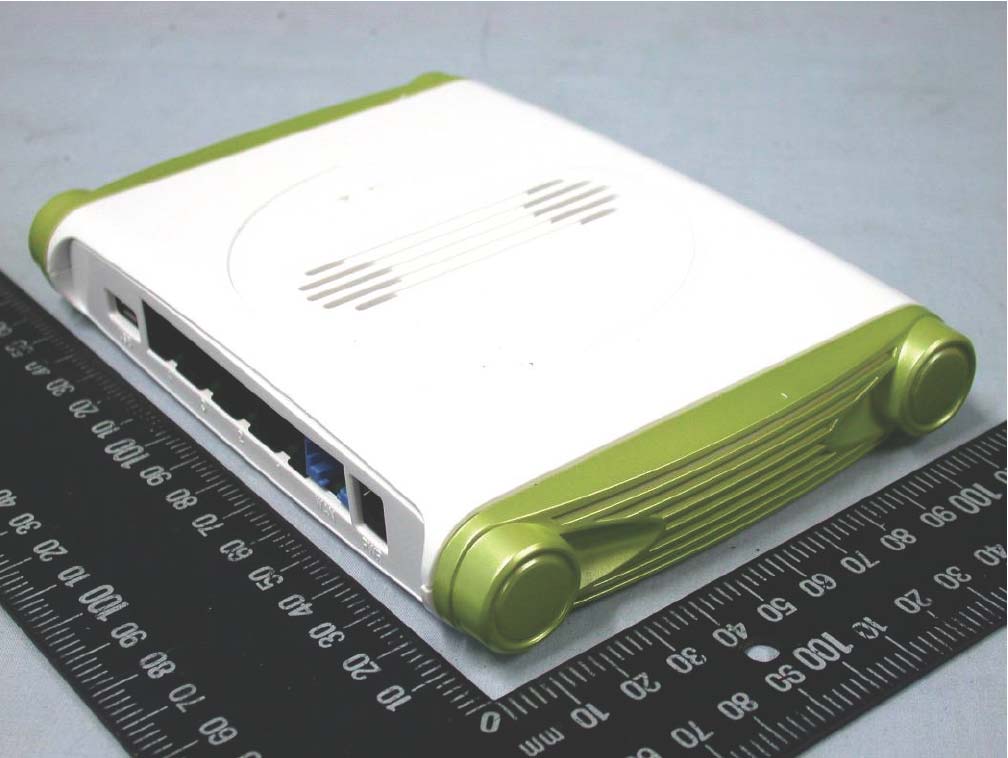

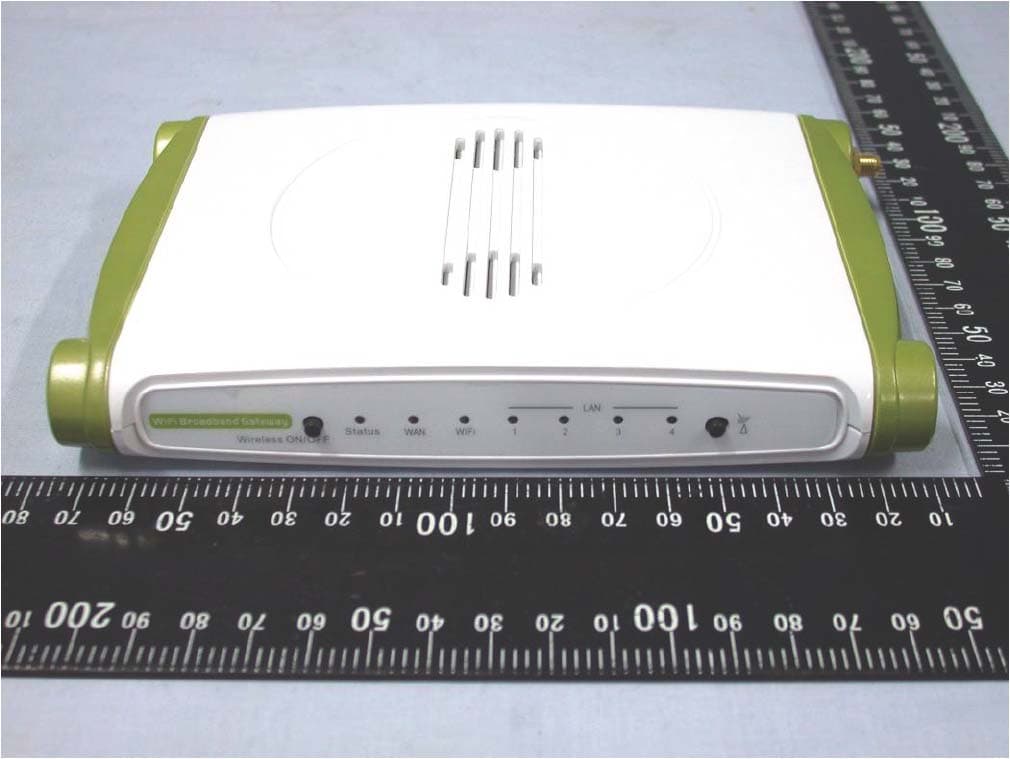

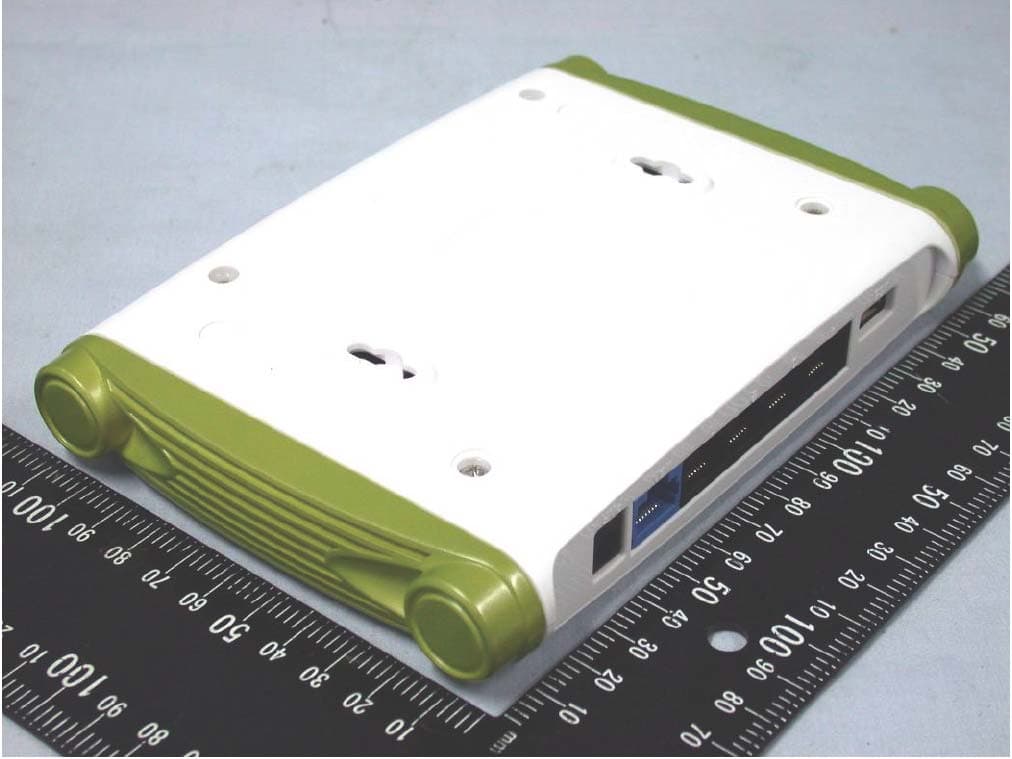

Compliance Certification Services Inc. Report No.：91123401 Page 1 External Photo ( Model :CDW531AM ) Case 1 Compliance Certification Services Inc. Report No.：91123401 Page 2 Compliance Certification Services Inc. Report No.：91123401 Page 3 External Photo ( Model :CDW531AM ) Case 2 Compliance Certification Services Inc. Report No.：91123401 Page 4 Compliance Certification Services Inc. Report No.：91123401 Page 5 External Photo ( Model :CDE531AM & WBR-6004 ) Compliance Certification Services Inc. Report No.：91123401 Page 6

Diagram Label Location FCC ID: XV3AVK01 FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Compliance Certification Services Inc. Report No.：91123401 Page 7 Internal Photo ( Model :CDW531AM ) Case 1 Case 2 Compliance Certification Services Inc. Report No.：91123401 Page 8 Compliance Certification Services Inc. Report No.：91123401 Page 9 Internal Photo ( Model :CDE531AM & WBR-6004 ) Compliance Certification Services Inc. Report No.：91123401 Page 10 Compliance Certification Services Inc. Report No.：91123401 Page 11 For all model

Description of Operation The EUT is a WiFi Combo/Broadband Gateway with IEEE 802.11b/g/n (1T1R) . And this device provided of transmitting speed: IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps IEEE 802.11n HT40 : 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was a PIFA antenna(1T1R) for CDW531AM & a dipole antenna(1T1R) for CDE531AM and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. The other instruction, please have a look at the user’s manual.

!!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!2! FCC 47 CFR PART 15 SUBPART C: 2008 AND ANSI C63.4: 2003 TEST REPORT For WiFi Combo/Broadband Gateway Model Number: CDW531AM; CDE531AM Data Applies To: WBR-6004 Brand Name: AMIT; ZALiP Issued for Advance Multimedia Internet Technology Inc. No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 161 !!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!3! REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 December 20, 2009 Initial Issue ALL Leah Peng !!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!4! ! TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ........................................................................................... 4 2. EUT DESCRIPTION .................................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ......................................................................................................5 3. DESCRIPTION OF TEST MODES............................................................................................ 7 4. TEST METHODOLOGY.............................................................................................................8 5. FACILITIES AND ACCREDITATIONS................................................................................... 8 5.1 FACILITIES.............................................................................................................................................8 5.2 EQUIPMENT ...........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS LISTINGS.................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ...............................................................................9 6. CALIBRATION AND UNCERTAINTY .................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION....................................................................................10 6.2 MEASUREMENT UNCERTAINTY ......................................................................................................10 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................. 11 7.1 SETUP CONFIGURATION OF EUT .....................................................................................................11 7.2 SUPPORT EQUIPMENT ........................................................................................................................11 7.3 EUT OPERATING CONDITION............................................................................................................12 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 13 8.1 6DB BANDWIDTH .................................................................................................................................13 8.2 MAXIMUM PEAK OUTPUT POWER ..................................................................................................24 8.3 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................35 8.4 POWER SPECTRAL DENSITY .............................................................................................................38 8.5 CONDUCTED SPURIOUS EMISSION .................................................................................................48 8.6 RADIATED EMISSIONS........................................................................................................................59 8.7 POWERLINE CONDUCTED EMISSIONS ...........................................................................................147 9. ANTENNA REQUIREMENT...................................................................................................... 153 9.1 STANDARD APPLICABLE ...................................................................................................................153 9.2 ANTENNA CONNECTED CONSTRUCTION ......................................................................................153 APPENDIX SETUP PHOTOS......................................................................................................... 154 !!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!5! 1. TEST REPORT CERTIFICATION Applicant Κ Advance Multimedia Internet Technology Inc. Address Κ No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Manufacture Κ Advance Multimedia Internet Technology Inc. Address Κ No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 74146, Taiwan Equipment Under Test Κ WiFi Combo/Broadband Gateway Model Number Κ CDW531AM; CDE531AM Data Applies To Κ WBR-6004 Brand Name Κ AMIT; ZALiP Date of Test Κ November 25, 2009 ~ December 5, 2009 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2008 AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: ! ! ! ! Jeter Wu Eric Yang Section Ma…

Text truncated - open the document above for the full version.

!!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!265! APPENDIX SETUP PHOTOS For model: CDW531AM RADIATED EMISSION MEASUREMENT SETUP ! ! !!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!266! CONDUCTED EMISSION TEST ! ! ! !!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!267! RADIATED RF MEASUREMENT SETUP !!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!268! !!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!269! For model: CDE531AM RADIATED EMISSION MEASUREMENT SETUP ! ! ! ! ! !!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!26:! ! CONDUCTED EMISSION TEST ! ! ! !!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!271! RADIATED RF MEASUREMENT SETUP !!Compliance Certification Services Inc.!! Report No.Κ91123401-RP1 FCC IDΚPBLCDW531AM Date of Issue: December 20, 2009 ! Qbhf!272! POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP ! End of report
