MAA502AM WiFi Internet Melody Station User Manual Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. Table of contents Chapter 1 Introduction............................................................. 4 1.1 Package List ..................................................................... 4 1.2 Hardware Installation....................................................... 4 Chapter 2 Getting Start ............................................................ 6 2.1 How to operate ................................................................. 6 2.1.1 Easy Wizard.................................................................... 6 2.1.2 Function configuration.................................................. 7 Chapter 3 Making Configuration........................................... 13 3.1 Network Setup ................................................................ 13 3.1.1 Basic Requirement ...................................................... 13 3.2 Software Installation ...................................................... 24 3.3 Listen to Music............................................................... 32 3.4 Setup the Alarm ............................................................. 38 3.5 Setup the Clock.............................................................. 39 3.6 Setup RSS....................................................................... 40 3.7 Miscellaneous Setup ..................................................... 42 Chapter 4 Troubleshooting ..................................................... 45 Chapter 1 Introduction Congratulations on your purchase of this outstanding MAA502 Wireless Melody Station. This product is specifically designed for Home entertainment needs. It provides music resource for Internet Radio, FM, UPnP media server and USB MP3 player, it is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual for fully exploiting the functions of this product. 1.1 Package List items Description Contents Quantity 1 Wireless Melody Station 1 2 Power adapter 1 3 CD 1 4 Remote Controller 1 5 QIG 1 1.2 Hardware Installation Hardware configuration Vo l + / - Play/pause Back key Option key USB port Earphone RCA jack Power on/off Power jack Reset FM antenna WPS Internal PIFA antenna RJ45 How to operate : Function select – You can scroll this rotary wheel to change the function, and press it once you want to select the function you choose. Play /Pause music – You can press this button once you select one song or one station. Volume control – You can scroll this rotary wheel when you want to change the volume. Back last page – You can press ‘back’ key once you want to go back last page. Option – This key designs for specific use, such as Stop playing music, go to favorite etc. Remote controller – You can use the remote controller to select the function you want to choose. (see below Fig. 1) Power – standby/ power on Light – light dimming Radio IP – Go to Internet Radio Media Player – Go to Media Server MP3 Reader – Go to MP3 player Mute – Mute REW – backward Play/Pause – Play/Pause FWB – forward  –up  –down  – left  –right OK – OK Vol+ – Volume up Vol- – Volume down Prev – Prev song Next – Next song 1~0 – Numeric or alphabet input STOP – Stop playing music ZZZ – Snooze Favorite – add to My favorite Shuffle – shuffle music Fig. 1: Remote controller Chapter 2 Getting Start 2.1 How to operate Please prepare 1 router (Wire / Wi-Fi function) before you setup this Wi-Fi Melody Station, you can follow the steps as below to setup this machine once you get ready. Step 1. Power on: Plug in power adapter and press the power switch on to activate this machine. Step 2. Connect to Wi-Fi Router from AP lists If you have a router with Wi-Fi function, this Wi-Fi Internet Melody Station will automatically find the available AP lists for you to select. (See Chapter 2.1.1 to do the detailed setup) Step 3. Connect to wired Router If you want to connect with your router (AP) by a RJ45 cable, you can go ‘Setup’ to change advance setting / configure network to wired client/ AP mode. (See Chapter 2.1.1 to do the detailed setup) 2.1.1 Easy Wizard When you power on Wireless Melody Station, it will lead you to choose the main language and V-Tuner language (see as Fig. 1-1) Main language: Internet Radio (v-Tuner) language: Fig. 1-1 Note: Please note that all screens we captured are for your reference. Only if you find any inconsistency in this document, please follow the MMI on machine. It will auto run …

Text truncated - open the document above for the full version.

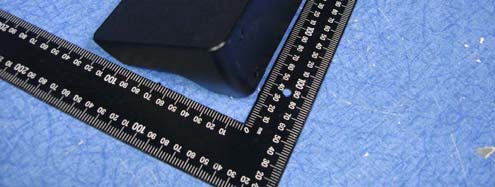

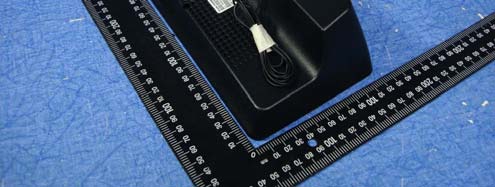

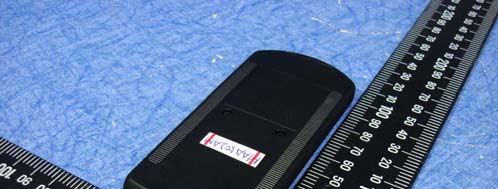

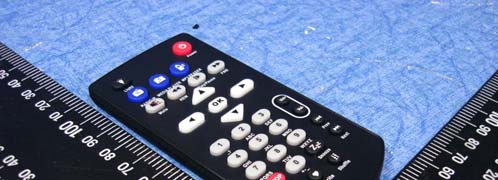

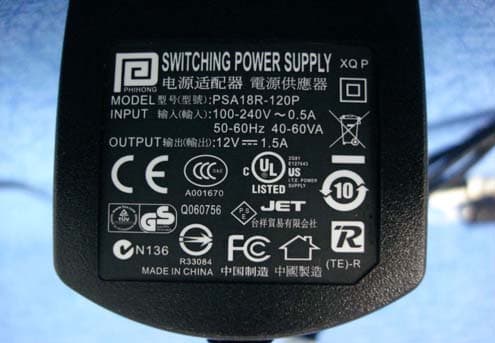

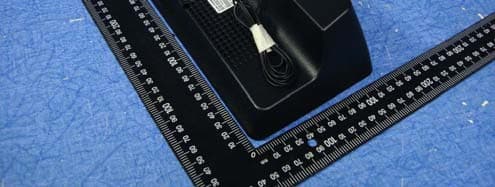

!Compliance Certification Services Inc.!!!!!!!!!!Report No.Κ91207406 ! ! ! ! External Photo ( Model : MAA502AM ) !Compliance Certification Services Inc.!!!!!!!!!!Report No.Κ91207406 ! ! ! ! ! ! ! !Compliance Certification Services Inc.!!!!!!!!!!Report No.Κ91207406 ! ! ! ! ! Remote ! !Compliance Certification Services Inc.!!!!!!!!!!Report No.Κ91207406 ! ! ! ! ! Adapter 1 (AMIGO) Adapter 2 (PHIHONG) ! !

MAA502AM Diagram Label location Label location Model: MAA502AM ZALiP FCC ID: PBLMAA502AM MADE IN TAIWAN FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Marked in the manual

!Compliance Certification Services Inc.!!!!!!!!!!Report No.Κ91207406 ! ! ! ! ! Internal Photo ! ! !Compliance Certification Services Inc.!!!!!!!!!!Report No.Κ91207406 ! ! ! ! ! ! ! !Compliance Certification Services Inc.!!!!!!!!!!Report No.Κ91207406 ! ! ! ! ! PIFA Antenna ! ! !Compliance Certification Services Inc.!!!!!!!!!!Report No.Κ91207406 ! ! ! ! ! ! ! !Compliance Certification Services Inc.!!!!!!!!!!Report No.Κ91207406 ! ! ! ! ! ! ! !Compliance Certification Services Inc.!!!!!!!!!!Report No.Κ91207406 ! ! ! ! ! ! ! !

Description of Operation The EUT is a WiFi Internet Melody Station with IEEE 802.11b/g/n (1T1R) . And this device provided of transmitting speed: IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps IEEE 802.11n HT40 : 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was a PIFA Antenna and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. The other instruction, please have a look at the user’s manual.

SSR-92899 Test Data 2009/09/18 Te s t M e m b e r B e n s o n 一、 Return Loss & VSWR PIFA Antenna 二、 Radiation Pattern Measurement XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left Left Right Down Up Back Front Z X Y DUT待測物 Gain Horn Antenna X-Z Plane Y- Z P l a n e X-Y Plane 三、Te s t Va l u e 1‐1 Return Loss (dB) 2.40 GHz ‐15.227 2.45 GHz ‐26.701 2.50 GHz ‐12.956 1‐2 Peak Gain Gain (dBi) Efficiency (%) 2.4GHz 3.63 56.46 2.45GHz 4.14 59.66 2.5GHz 3.75 58.58

!!Compliance Certification Services Inc.!! Report No.Κ91207406-RP1 FCC IDΚPBLMAA502AM Date of Issue: January 29, 2010 ! Qbhf!223! APPENDIX SETUP PHOTOS Adapter Brand(model):AMIGO(AMS3-1201500FU) RADIATED EMISSION MEASUREMENT SETUP ! !!Compliance Certification Services Inc.!! Report No.Κ91207406-RP1 FCC IDΚPBLMAA502AM Date of Issue: January 29, 2010 ! Qbhf!224! CONDUCTED EMISSION TEST ! ! ! !!Compliance Certification Services Inc.!! Report No.Κ91207406-RP1 FCC IDΚPBLMAA502AM Date of Issue: January 29, 2010 ! Qbhf!225! RADIATED RF MEASUREMENT SETUP !!Compliance Certification Services Inc.!! Report No.Κ91207406-RP1 FCC IDΚPBLMAA502AM Date of Issue: January 29, 2010 ! Qbhf!226! POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP !!Compliance Certification Services Inc.!! Report No.Κ91207406-RP1 FCC IDΚPBLMAA502AM Date of Issue: January 29, 2010 ! Qbhf!227! Adapter Brand(model): PHIHONG (PSA18R-120P) RADIATED EMISSION MEASUREMENT SETUP ! ! ! ! ! ! !!Compliance Certification Services Inc.!! Report No.Κ91207406-RP1 FCC IDΚPBLMAA502AM Date of Issue: January 29, 2010 ! Qbhf!228! CONDUCTED EMISSION TEST ! ! ! ! ! ! End of report
