PBLWIC228Wireless Broadband Router

1 User’s Manual Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. The specification is subject to change without notice. 2 Table of Contents Chapter 1 Introduction...........................................................................3 Functions and Features......................................................................3 Packing List......................................................................................5 Chapter 2 Hardware Installation.............................................................6 2.1 Panel Layout...............................................................................6 2.2 Procedure for Hardware Installation............................................8 Chapter 3 Network Settings and Software Installation............................9 3.1 Make Correct Network Settings of Your Computer......................9 Chapter 4 Configuring Wireless Broadband Router..............................10 4.1 Start-up and Log in....................................................................11 4.2 Status........................................................................................12 4.3 Wizard.......................................................................................13 4.4 Basic Setting.............................................................................14 4.5 Forwarding Rules......................................................................24 4.6 Security Settings.......................................................................28 4.7 Advanced Settings.....................................................................41 4.8 Toolbox.....................................................................................53 Appendix A TCP/IP Configuration for Windows 95/98.......................58 Appendix B 802.1x Setting..................................................................63 Appendix C WPA-PSK and WPA........................................................69 Appendix D FAQ and Troubleshooting................................................82 Reset to factory Default...................................................................82 3 C C C h h h a a a p p p t t t e e e r r r 1 1 1 I I I n n n t t t r r r o o o d d d u u u c c c t t t i i i o o o n n n Congratulations on your purchase of this outstanding Wireless Broadband Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. Functions and Features Router Basic functions l Auto-sensing Ethernet Switch Equipped with a 4-port auto-sensing Ethernet switch. l WAN type supported The router supports some WAN types, Static, Dynamic, PPPoE , PPTP , and Dynamic IP with Road Runner. l Firewall All unwanted packets from outside intruders are blocked to protect your Intranet. l DHCP server supported All of the networked computers can retrieve TCP/IP settings automatically from this product. l Web-based configuring Configurable through any networked computer’s web browser using Netscape or Internet Explorer. l Virtual Server supported Enable you to expose WWW, FTP and other services on your LAN to be accessible to Internet users. l User-Definable Application Sensing Tunnel User can define the attributes to support the special applications requiring multiple connections, like Internet gaming, video conferencing, Internet telephony and so on, then this product can sense the application type and open multi-port tunnel for it. l DMZ Host supported Lets a networked computer be fully exposed to the Internet; this function is used when special application sensing tunnel feature is insufficient to allow an application to function correctly. l Statistics of WAN Supported Enables you to monitor inbound and outbound packets Wireless functions 4 l High speed for wireless LAN connection Up to 54Mbps data rate by incorporating Orthogonal Frequency Division Multiplexing (OFDM). l Roaming Provides seamless roaming within the IEEE 802.11b (11M) and IEEE 802.11g (54M) WLAN infrastructure. l IEEE 802.11b compatible (11M) Allowing inter-operation among multiple vendors. l IEEE 802.11g compatible (54M) Allowing inter-operation among multiple vendors. l Auto fallback 54M, 48M, 36M, 24M, 18M, 12M, 6M data rate with auto fallback in 802.11g mode. 11M, 5.5M, 2M, 1M data rate with auto fallback in 802.11b m…

Text truncated - open the document above for the full version.

Advance Multimedia Internet Technology Inc. NO.32, Hwan-Gong Rd. Yung Kang City,Tainan Hsien, Taiwan. Attestation FCC ID : PBLWIC228 Product : Wireless Broadband Router Model : WIC228 Statements: We don’t provide with any controls or software to allow operation outside the USA frequency band for all future applications when we sell this product in USA. Sincerely, Signature: (Name / Date)

Advance Multimedia Internet Technology Inc. No. 32, Hwan-Gong Rd, Yung Kang City, TainanHsien, Taiwan Confidentiality Request FCC ID : PBLWIC228 Product : Wireless Broadband Router Model : WIC228 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours,

Compliance Certification Services Inc.Report No.50202420 Page 1 of 11 External Photo Compliance Certification Services Inc.Report No.50202420 Page 5 of 11 Adapter Photo Compliance Certification Services Inc.Report No.50202420 Page 6 of 11 Compliance Certification Services Inc.Report No.50202420 Page 7 of 11 Compliance Certification Services Inc.Report No.50202420 Page 8 of 11 External Photo

Company : Advance Multimedia Internet Technology Inc. Model : WIC228 Product : Wireless Broadband Router Wireless Broadband Router Model No: WIC228 FCC ID：PBLWIC228 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan Label Here

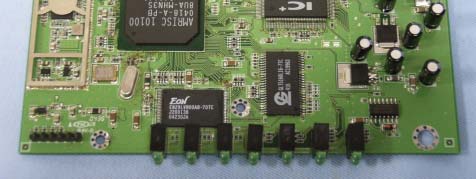

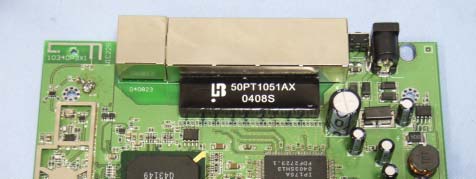

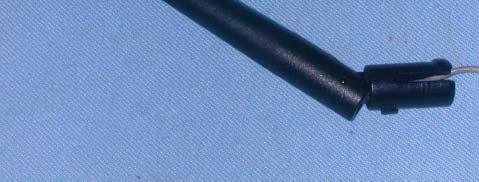

Compliance Certification Services Inc.Report No.50202420 Page 2 of 11 Internal Photo Compliance Certification Services Inc.Report No.50202420 Page 3 of 11 Compliance Certification Services Inc.Report No.50202420 Page 4 of 11 Compliance Certification Services Inc.Report No.50202420 Page 9 of 11 Internal Photo Compliance Certification Services Inc.Report No.50202420 Page 10 of 11 Compliance Certification Services Inc.Report No.50202420 Page 11 of 11

Compliance Certification Services Inc. FCC ID PBLWIC228 Report No.50202420-RP2 Page 54 of 55 9. RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 9.1 Friis Formula Friis transmission formula : P d = (P out *G)/(4*p i *r 2 ) Where P d = power density in mW/cm 2 P out = output power to antenna in mW G = gain of antenna in linear scale P i = 3.1416 r = distance between observation point and center of the radiator in cm P d is the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance “r” where the MPE limit is reached. 9.2 EUT Operating Condition A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Compliance Certification Services Inc. FCC ID PBLWIC228 Report No.50202420-RP2 Page 55 of 55 9.3 Test Result of RF Exposure Evaluation Test Item RF Exposure Evaluation Data Test Mode Normal Operation 9.3.1 Antenna Gain Antenna GainThe maximum Gain measured in fully anechoic chamber is 1.514 linear scale. 9.3.2 Output Power into Antenna & RF Exposure Evaluation Distance Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density at 20cm (mW/cm 2 ) LIMITS (mW/cm 2 ) 1 2412 17.49 0.016894 1 6 2437 17.61 0.017367 1 11 2462 18.08 0.019352 1 Note : 1. For 802.11b mode (11Mbps). 2. The power density Pd (4th column) at a distance of 20cm calculated from the friis transmission formula is far below the limit of 1 mW/cm 2 . The EUT is classified as mobile product. So, RF exposure limit warning or SAR test are not required. 3. The EUT is classified as mobile module. RF exposure evaluation will be evaluated after the EUT is installed with the host. Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density at 20cm (mW/cm 2 ) LIMITS (mW/cm 2 ) 1 2412 14.74 0.008969 1 6 2437 14.72 0.008928 1 11 2462 15.21 0.009994 1 Note : 1. For 802.11g mode (6Mbps). 2. The power density Pd (4th column) at a distance of 20cm calculated from the friis transmission formula is far below the limit of 1 mW/cm 2 . The EUT is classified as mobile product. So, RF exposure limit warning or SAR test are not required. 3. The EUT is classified as mobile module. RF exposure evaluation will be evaluated after the EUT is installed with the host.

Compliance Certification Services Inc. FCC ID PBLWIC228 Report No.50202420-RP2 Page 1 of 55 TEST REPORT Product Name Wireless Broadband Router Model Number WIC228 FCC ID PBLWIC228 Applicant Advance Multimedia Internet Technology Inc. Address No. 32, Hwan-Gong Rd, Yung Kang City, Tainan Hsien, Taiwan Received Date February 02, 2005 Tested Date March 11 ~ April 12, 2005 Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Ceng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL : (06)580-2201 FAX : (06)580-2202 Notes 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Compliance Certification Services Inc. FCC ID PBLWIC228 Report No.50202420-RP2 Page 2 of 55 Test Report Certification Product Name Wireless Broadband Router Model Number WIC228 FCC ID PBLWIC228 Applicant Advance Multimedia Internet Technology Inc. Measurement Standard : FCC 47 C.F.R. Part 15, Subpart B and Subpart C (2004) ANSI C63.4 (2003) Tested By _________________________ , Date : April 18, 2005 (Jeter Wu Section Manager) Approved By __________________________, Date : April 18, 2005 (Alex Chiu Manager) WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc. FCC ID PBLWIC228 Report No.50202420-RP2 Page 3 of 55 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION .............................................................................................. 5 1.1 General Statement ........................................................................................................................... 5 1.2 General Description of EUT & Power............................................................................................ 5 1.3 Description of Peripherals............................................................................................................... 6 1.4 EUT & Peripherals Setup Diagram................................................................................................. 6 1.5 EUT Operating Procedure............................................................................................................... 6 1.6 Description of Laboratory............................................................................................................... 7 1.7 Summary of Test Results ................................................................................................................ 7 2. CONDUCTED POWERLINE TEST.................................................................................. 8 2.1 Test Equipments.............................................................................................................................. 8 2.2 Test Setup ....................................................................................................................................... 8 2.3 Conducted Power Line Emission Limit .......................................................................................... 9 2.4 Test Procedure ................................................................................................................................ 9 2.5 Uncertainty of Conducted Emission ............................................................................................... 9 2.6 Conducted RF Voltage Measurement ............................................................................................. 10 2.7 Photos of Conduction Test.............................................................................................................. 12 3. RADIATED EMISSION TEST ........................................................................................... 13 3.1 Test Equipments.............................................................................................................................. 13 3.2 Test Setup ....................................................................................................................................... 13 3.3 Radiation Limit ............................................................................................................................... 14 3.4 Test Procedures............................................................................................................................... 15 3.5 Uncertainty of Radiated Emission .................................................................................................. 15 3.6 Radiated RF Noise Measurement ................................................................................................... 16 3.7 Photos of Open Site ........................................................................................................................ 35 4. 6dB BANDWIDTH MEASUREMENT .............................................................................. 37 4.1 Test Equipments.............................................................................................................................. 37 4.2 Test Setup ....................................................................................................................................... 37 4.3 Limits of 6dB Bandwidth Measurement .........................................................................................37 4.4 Test Procedure ................................…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID PBLWIC228 Report No.50202420-RP2 Page 12 of 55 2.7 Photos of Conduction Test Compliance Certification Services Inc. FCC ID PBLWIC228 Report No.50202420-RP2 Page 35 of 55 3.7 Photos of Open Site Compliance Certification Services Inc. FCC ID PBLWIC228 Report No.50202420-RP2 Page 36 of 55
