S:\TimcoOffice\ReportTemplate\probonholdemail.doc TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: tei@t imcoengr.com January 16, 2001 FCC SUBJECT: Advance Multimedia Internet Technology Inc., FCC ID: PBLWIP-301 REFERENCE: TC99517 TO WHOM IT MAY CONCERN, The test lab was asked to: 1) confirm that the radiated measurements were made to the 10 th harmonic. 2) confirm that the EUT’s antenna was permanently attached. 3) explain the reason that the 731 form showed a frequency range of 2400 to 2483.5 MHz, while the test data only went up to 2462 MHz. 4) mark their bandedge plots in the future so that they are more clear 5) provide test data to demonstrate compliance with the 20dBc requirement of the antenna-comducted emissions. Best Regards, Eric Dobson

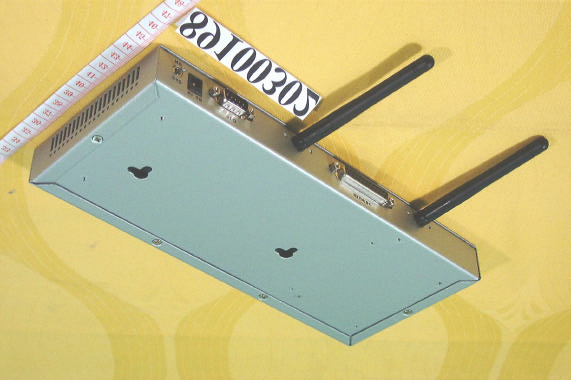

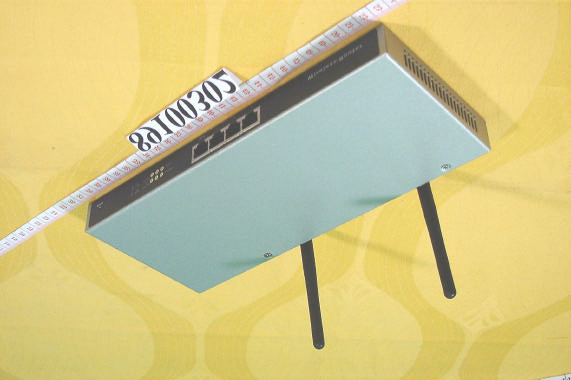

RF89100302Page 73 FCC ID:PBLWIP-301 Issued Date: October 18, 2000 8 EUT PHOTOS RF89100302Page 74 FCC ID:PBLWIP-301 Issued Date: October 18, 2000

FCC Label Location

Model No: WIP-301 FCC ID: PBLWIP-301 This unit complies with Part 15 of FCC Rules. Operation is subject to following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Tested To Comply With FCC Standards

RF89100302Page 74 FCC ID:PBLWIP-301 Issued Date: October 18, 2000 RF89100302Page 75 FCC ID:PBLWIP-301 Issued Date: October 18, 2000 RF89100302Page 76 FCC ID:PBLWIP-301 Issued Date: October 18, 2000 RF89100302Page 77 FCC ID:PBLWIP-301 Issued Date: October 18, 2000 RF89100302Page 78 FCC ID:PBLWIP-301 Issued Date: October 18, 2000

PBLWIP-301 89100302 Operational Description The transmitter of the EUT (Wireless Router) is powered by host PC and connected with PC (WAN port) and notebook (LAN port) through RJ45 port. The antenna used is dual monopole and should be rotated vertically when operation. Under normal use condition, the device should be placed at least 20 cm far away from the user or nearby person. The other instruction, please have a look at the users manual.

PBLWIP-301 89100302 Operational Description The transmitter of the EUT (Wireless Router) is powered by host PC and connected with PC (WAN port) and notebook (LAN port) through RJ45 port. The antenna used is dual monopole and should be rotated vertically when operation. Under normal use condition, the device should be placed at least 20 cm far away from the user or nearby person. The other instruction, please have a look at the users manual.

I IMPORTANT NOTICE & SAFETY INFORMATION Your WIRELESS network device contains a low power transmitter. When the device is in use it sends out radio frequency (RF) signals. This device is authorized to operate at a distance of at LEAST 20cm(7.9 inches) from the body. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for wireless devices. CAUTION: To maintain compliance with the FCC’s RF exposure guidelines, be sure to always keep this device at least 20cm(7.9 inches) from your body. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations.

88 77 66 55 44 33 22 11 D D C C B B A A CPU - AM186 DRAM PULL UP/DOWN FLASH ROM WIP-301(CPU,DRAM,Flash) 1.0 B 15 Friday, October 27, 2000 Size Document Number Rev Date: Sheet of AMIT Inc. Adavance Multimedia Internet Technology Inc. A14 AD11AD14 A17 A7 A15 A5 AD9 AD[0..15] AD15 A9 A8 AD1AD12 A0 AD5 A6 AD0 A11 A10 AD4AD13 A13 AD3AD6 A3 A1 AD2 /PCS0 A12 AD10 A4 A2 AD8 A16 AD7 A1 AD0 A3 AD1 A5 AD2 A7 AD3 A9 AD4 A11 AD5 A13 AD6 A15 AD7 A17 AD8 AD9AD10AD11AD12AD13AD14AD15 A0 AD0 A1 AD1 A2 AD2 A3 AD3 A4 AD4 A5 AD5 A6 AD6 A7 AD7 A8A9A10A11A12A13A14A15A16A17 /PCS0 A13 A3 M2 RST_BTN GND GND GND GND GND VCC VCC GND GND VCCGND VCCGND VCC VCC VCC VCC GND GND C4522p C4622P BC1BEAD 1000Z R381K U5DRAM IS41C16256A0 16 A1 17 A2 18 A3 19 A4 22 A5 23 A6 24 A7 25 A8 26 /RAS 14 /CASL 29 /CASH 28 /WE 13 /OE 27 I/O1 2 I/O2 3 I/O3 4 I/O4 5 I/O5 7 I/O6 8 I/O7 9 I/O8 10 I/O9 31 I/O10 32 I/O11 33 I/O12 34 I/O13 36 I/O14 37 I/O15 38 I/O16 39 VCC 1 VCC 6 VCC 20 GND 21 GND 35 GND 40 R9100K R2100K R6100K R8100K R7100K R5100K R4100K U14AM29F002A0 12 A1 11 A2 10 A3 9 A4 8 A5 7 A6 6 A7 5 A8 27 A9 26 A10 23 A11 25 A12 4 A13 28 A14 29 A15 3 A16 2 A17 30 A18 1 WE 31 OE 24 CE 22 GND 16 D0 13 D1 14 D2 15 D3 17 D4 18 D5 19 D6 20 D7 21 VCC 32 C500.1u C14 0.1u C370.1u U13C74HC14 5 6 R3100K R10110K C610.1u C1 0.1u C160.1u U9AM186ED X1 13 X2 14 NMI 47 RES 71 DRQ0 77 DRQ1 76 INT0 56 INT1 55 INT2 54 INT3 53 INT4 52 ARDY 8 SRDY 46 HOLD 45 TMRIN0 75 TMRIN1 72 RTS[SCLK] 3 TXD0[SDEN0] 2 RXD0[SDEN1] 1 CTS0[SDATA] 100 RXD1 99 TXD1 98 PLLBYPS 97 PCS0 66 PCS1 65 PCS2 63 PCS3 62 PCS5 60 PCS6 59 LCAS[MCS2] 68 RAS1[MCS3] 69 VCC 15 VCC 21 VCC 38 VCC 61 VCC 67 VCC 92 GND 12 GND 18 GND 41 GND 64 GND 70 GND 89 CLKOUTB 17 CLKOUTA 16 TMROUT1 73 TMROUT0 74 S2 9 S1 10 S0 11 HLDA 44 RCAS0[LCS] 58 MCS0 50 UCAS[MCS1] 51 UCS 57 WLB 43 WHB 42 DT/R 48 DEN 49 ALE 7 RD 6 WR 5 BHE 4 S6 96 AD15 95 AD14 93 AD13 90 AD12 87 AD11 85 AD10 83 AD9 81 AD8 79 AD7 94 AD6 91 AD5 88 AD4 86 AD3 84 AD2 82 AD1 80 AD0 78 A0 40 A1 39 A2 37 A3 36 A4 35 A5 34 A6 33 A7 32 A8 31 A9 30 A10 29 A11 28 A12 27 A13 26 A14 25 A15 24 A16 23 A17 22 A18 20 A19 19 Y240M R120RR140R R19 22 C1122P C100.1u R42 22 C1222P INT0 M1 TXD0 RXD0 /LCAS A[0..17] AD[0..15] PRN_ERR /WR/RD/UCS/UCAS/RAS0 RTS0 ARDY INT1 NMI HOLD /RESET PRN_PE INT2 INT4/RI1 PRN_BUSY S2 /PCS0 /PCS1 PRN_ACK PRN_STRBE PRN_SLCT AD[0..15] /RAS0/LCAS /UCAS /RD /WR A[0..17] HOLDNMIINT1INT2INT4/RI1PRN_SLCT INT3 A[0..17] /WR /RD /UCS AD[0..7] INT3 VCCGND /PRN_CS DTR0 CTS0 CD0 INT0 /PCS3 ARDY

88 77 66 55 44 33 22 11 D D C C B B A A COM PORT PRINTER SPARE (REPLACE MAX208) WIP-301 (8019 NIC & PRINTER) 1.0 B 25 Friday, October 27, 2000 Size Document Number Rev Date: Sheet of AMIT Inc. Adavance Multimedia Internet Technology Inc. A0A1A2A3A4A5A6A7AD0AD1AD2AD3AD4AD5AD6AD7AD8AD9AD10AD11AD12AD13AD14AD15 WAN0 RX0-RX0+TX0-TX0+ IO16 A0A1A2A3A4A5A6A7AD0AD1AD2AD3AD4AD5AD6AD7AD8AD9AD10AD11AD12AD13AD14AD15 RX1-RX1+TX1-TX1+ SMRBSMWB SMRBSMWB PPD0PPD1PPD2PPD3PPD4PPD5PPD6PPD7 PPRN_ACKPPRN_BUSYPPRN_PEPPRN_SLCT PPRN_ERR PD0PD1PD2PD3PD4PD5PD6PD7 AD0AD2AD1AD4AD3AD7AD6AD5 TXD0RTS0 RXD1_CTXD1_CDTR1_C RTS1_CCTS1_C DCD1_C PPRN_ACKPPRN_SLCTPPRN_PEPR_STROBE0PPRN_BUSYPPRN_ERR PD0PD1PD2PD3PD4PD5PD6PD7 PPD0PPD1PPD2PPD3PPD4PPD5PPD6PPD7 PPRN_STRBE PPRN_ACKPPRN_PEPPRN_BUSYPPRN_SLCTPPRN_ERR CD0RI0RXD0CTS0DTR0 DCD1_CRTS1_CTXD1_CDTR1_CCTS1_CRXD1_CRI1_C RI1_C XTAL2 XTAL3 XTAL4 XTAL1 PPRN_STRBE PR_STROBE0 P316 P316 C10+ C10-C20+ C20- RTS0TXD0 CD0 RXD0 V1- C11-C11+ C21+C21- V1+ DTR0CTS0 INT2 DTR1_CCTS1_CRI1_C V0- V0+ RTS1_C TXD1_CCD1_CRXD1_C WAN0 LAN0 VCC GNDGNDGND VCC VCC GNDGNDGND GND GND VCC VCC VCC VCC VCC VCC GND GND GND GND GND GND GND GND GND GND GND VCC VCCGND GND GND VCC VCC R49 300R50 300 P2P2 12345 67891011 R54 300 RP2 1234 8765 RP1 1234 8765 U174244A0 2 A1 4 A2 6 A3 8 A4 11 A5 13 A6 15 A7 17 OE0 1 OE1 19 Y0 18 Y1 16 Y2 14 Y3 12 Y4 9 Y5 7 Y6 5 Y7 3 U7RTL8019ASSA0 5 SA1 7 SA2 8 SA3 9 SA4 10 SA5 11 SA6 12 SA7 13 SA8 15 SA9 16 SA10 18 SA11 19 SA12 20 SA13 21 SA14 22 SA15 23 SA16 24 SA17 25 SA18 26 SA19 27 SD0 36 SD1 37 SD2 38 SD3 39 SD4 40 SD5 41 SD6 42 SD7 43 SD8 95 SD9 94 SD10 93 SD11 92 SD12 91 SD13 90 SD14 88 SD15 87 INT0 4 INT1 3 INT2 2 INT3 1 INT4 100 INT5 99 INT6 98 INT7 97 AEN 34 IOCHRDY 35 IOCS16B 96 IORB 29 IOWB 30 RSTDRV 33 SMEMRB 31 SMEMWB 32 GND 86 GND 83 GND 52 GND 44 GND 28 GND 14 VDD 89 VDD 70 VDD 57 VDD 47 VDD 17 VDD 6 JP 65 X2 51 X1 50 LED2 63 LED1 62 LED0 61 LEDBNC 60 TPOUT- 46 TPOUT+ 45 TPIN- 58 TPIN+ 59 TX- 48 TX+ 49 RX- 55 RX+ 56 CD- 53 CD+ 54 AUI 64 EECS 76 BCSB 75 BA14 74 BA15 73 BA16 72 BA17 71 BA18 69 BA19 68 BA20 67 BA21 66 BD0 85 BD1 84 BD2 82 BD3 81 BD4 80 BD5 79 BD6 78 BD7 77 U274HC373D0 3 Q0 2 D1 4 Q1 5 D2 7 Q2 6 D3 8 Q3 9 D4 13 Q4 12 D5 14 Q5 15 D6 17 Q6 16 D7 18 Q7 19 OC 1 G 11 VCC 20 GND 10 U374244A0 2 A1 4 A2 6 A3 8 A4 11 A5 13 A6 15 A7 17 OE0 1 OE1 19 Y0 18 Y1 16 Y2 14 Y3 12 Y4 9 Y5 7 Y6 5 Y7 3 C8 0.1uC2 0.1u C9 0.1u C3 0.1u U4 MAX208 T1_O 2 T1_I 5 T2_O 1 T2_I 18 T3_O 24 T3_I 19 T4_O 20 T4_I 21 R1_I 7 R1_O 6 R2_I 3 R2_O 4 R3_I 23 R3_O 22 R4_I 16 R4_O 17 V+ 11 C1+ 10 V- 15 C1- 12 C2+ 13 C2- 14 VCC 9 C8820P C8520P Y420MHZ C86 20P U11RTL8019ASSA0 5 SA1 7 SA2 8 SA3 9 SA4 10 SA5 11 SA6 12 SA7 13 SA8 15 SA9 16 SA10 18 SA11 19 SA12 20 SA13 21 SA14 22 SA15 23 SA16 24 SA17 25 SA18 26 SA19 27 SD0 36 SD1 37 SD2 38 SD3 39 SD4 40 SD5 41 SD6 42 SD7 43 SD8 95 SD9 94 SD10 93 SD11 92 SD12 91 SD13 90 SD14 88 SD15 87 INT0 4 INT1 3 INT2 2 INT3 1 INT4 100 INT5 99 INT6 98 INT7 97 AEN 34 IOCHRDY 35 IOCS16B 96 IORB 29 IOWB 30 RSTDRV 33 SMEMRB 31 SMEMWB 32 GND 86 GND 83 GND 52 GND 44 GND 28 GND 14 VDD 89 VDD 70 VDD 57 VDD 47 VDD 17 VDD 6 JP 65 X2 51 X1 50 LED2 63 LED1 62 LED0 61 LEDBNC 60 TPOUT- 46 TPOUT+ 45 TPIN- 58 TPIN+ 59 TX- 48 TX+ 49 RX- 55 RX+ 56 CD- 53 CD+ 54 AUI 64 EECS 76 BCSB 75 BA14 74 BA15 73 BA16 72 BA17 71 BA18 69 BA19 68 BA20 67 BA21 66 BD0 85 BD1 84 BD2 82 BD3 81 BD4 80 BD5 79 BD6 78 BD7 77 C8720P P3DB.25 123456789 10111213 1415161718192021222324252627 R127 R98 10K Y120MHZ R110R R100R C90 0.1U C89 0.1U C92 0.1U C91 0.1U U16 SP232A C1+ 1 C1- 3 C2+ 4 C2- 5 V+ 2 V- 6 T1IN 11 T2IN 10 R1OUT 12 R2OUT 9 T1OUT 14 T2OUT 7 R1IN 13 R2IN 8 VCC 16 GND 15 U15 SP232A C1+ 1 C1- 3 C2+ 4 C2- 5 V+ 2 V- 6 T1IN 11 T2IN 10 R1OUT 12 R2OUT 9 T1OUT 14 T2OUT 7 R1IN 13 R2IN 8 VCC 16 GND 15 C930.1UC940.1U C960.1U C950.1U AD[0..15] A[0..8] INT1 ARDY RESET /RD /WR AD[0..15] A[0..8] INT0 ARDY RESET /RD /WR /PCS3 IO16 /PCS1 AD[0..7] /PRN_CS TXD0 RTS0 PRN_STRBE PRN_SLCTPRN_PEPRN_BUSYPRN_ACKPRN_ERR CD0 INT2 RXD0CTS0DTR0 RX1+RX1-TX1+TX1- RX0+RX0-TX0+TX0- VCCGND RTS0TXD0CD0RXD0 DTR0 INT2 CTS0

55 44 33 22 11 D D C C B B A A POWER : DC12V TO DC5V POWER : DC5V TO DC2.5V RESET GND IN_VCC N IN_VCC2 GNDREF RST_BTN V2.5 V2.5PL IN_GND VCC GND VCC V2.5 GND GND GND VCC A VCC GND VCC A V2.5A GND V2.5 GND VCC C730.1u + C53 10uF C74 0.1u C380.1u POW1PHONEJACK F1CHOCK 43 12 C550.1u C5410uFR62100K U13B74HC14 3 4 U13A74HC14 1 2 C1310uF C5910uF FB3BEAD + C34 10uF U13F74HC14 13 12 R991K R1001K VR1AS2830VI 3 GND 1 VO 2 C5110uF S/W1 S/W1 1 2 T9BTN R69100K /RESETRESET GNDVCC GNDA GND_SIGNAL

55 44 33 22 11 D D C C B B A A KS8995 OPTION FOR ENGINEERING VREF2 VREF4VREF1VREF5TCT5TCT1TCT2 TCT4 VREF4VREF3VREF2VREF5VREF1 TXM4 TXM3 TXP1 TXM2TXP2 TXP3 TXP4 TXM1 TXP5TXM5 LED1_0LED1_1LED2_1LED2_3 TEST1MUX1MUX2TEST2 TEST1TEST2 MUX1MUX2 TESTENSCANEN RXP3RXM4RXM2RXP2RXP1RXM1RXM3RXP4RXP5RXM5 VREF3TCT3 TCT1TCT2TCT4TCT5TCT3 TXP1TXM1TXP2TXM2TXP3TXM3TXP4TXM4TXP5TXM5RXP1RXM1RXP2RXM2RXP3RXM3RXP4RXM4RXP5RXM5 LED1_1LED1_0LED2_3LED2_1LED3_3LED4_3LED5_3 /RESET LED5_1LED4_1LED3_1 V2.5A V2.5 V2.5 A A A A A A V2.5 V2.5PL V2.5 V2.5 V2.5 V2.5 V2.5 V2.5AVCC GND A A 0.1u C71 0.1u C70 R29 0 R23 0 R41 0 C22 0.1u R22 0 0.1u C72 R35 3K 1% 0.1u C74 C49 22P R55500K R32100 1% R34100 1% R37100 1% R33100 1% R44100 1% R60 1K R61 1K R71 10K R76 10K R86 4.7K R82 4.7K R83 4.7K R47 1K R39 1K R43 1K R46 1K R40 1K R57 1K R58 1K R59 1K C290.1u C41 0.1u C420.1u C44 0.1u C33 0.1u C350.1u C27 0.1u C72 0.1u C320.1u C570.1u C56 0.1u C58 0.1u C520.1u R3049.9 1%R3149.9 1% C26 0.1u R2649.9 1%R2749.9 1% C31 0.1u R2449.9 1%R2549.9 1% C43 0.1u C30 0.1u R5149.9 1%R4849.9 1%R2049.9 1%R2149.9 1% C28 0.1u R87 4.7K R28 0 U10 KS8995 VDD_TX[1,2] 5 VDD_TX[3,4] 25 VDD_TX[5] 43 VDD_RX[1] 127 VDD_RX[2] 10 VDD_RX[3] 20 VDD_RX[4] 30 VDD_RX[5] 37 VDD_RCV[1] 117 VDD_RCV[2] 118 VDD_RCV[3] 49 VDD_RCV[4] 50 VDD_RCV[5] 53 VDD 58 VDD 79 VDD 94 VDD 110 VDD-IO 73 VDD-IO 100 VDD_PLL 114 VDD_BG 14 GND_TX[1] 4 GND_TX[2] 6 GND_TX[3] 24 GND_TX[4] 26 GND_TX[5] 42 GND_RX[1] 124 GND_RX[2] 13 GND_RX[3] 17 GND_RX[4] 33 GND_RX[5] 34 GND_RCV[1] 116 GND_RCV[2] 119 GND_RCV[3] 48 GND_RCV[4] 51 GND_RCV[5] 52 GND 74 GND 80 GND 95 GND 101 GND 111 GND_ANA 128 GND_ANA 38 GND_BG 16 GND_PLL 115 GND 59 TXP1 2 TXP2 7 TXP3 22 TXP4 27 TXP5 40 TXM1 3 TXM2 8 TXM3 23 TXM4 28 TXM5 41 RXP1 125 RXP2 11 RXP3 18 RXP4 31 RXP5 35 RXM1 126 RXM2 12 RXM3 19 RXM4 32 RXM5 36 VREF1 1 VREF2 9 VREF3 21 VREF4 29 VREF5 39 ISET 15 FXSD2 44 FXSD3 45 FXSD4 46 FXSD5 47 FXSD1 122 TEST1 54 TEST2 55 MUX1 121 MUX2 120 AOUT 123 TESTEN 83 SCANEN 84 CLKSEL 56 EXTCLK 57 P5EXT 75 P5SNI 76 RST# 85 LED1_3 86 LED1_2 87 LED1_1 88 LED1_0 89 LED2_3 90 LED2_2 91 LED2_1 92 LED2_0 93 LED3_3 96 LED3_2 97 LED3_1 98 LED3_0 99 LED4_3 102 LED4_2 103 LED4_1 104 LED4_0 105 LED5_3 106 LED5_2 107 LED5_1/SCLK 108 LED5_0/SDATA 109 MODESEL_2 78 MODESEL_1 81 MODESEL_0 82 MODESEL_3 77 MTXD_3 61 MTXD_2 62 MTXD_1 63 MTXD_0 64 MRXD_3 68 MRXD_2 69 MRXD_1 70 MRXD_0 71 MII_CLK 66 MTXEN 60 MRXDV 67 MCOL 72 MTXER 65 X1 113 X2 112 R84 4.7K R88 4.7K R85 4.7K R81 4.7K R63 0 Y3 25MHZ R160R R15 0R GNDVCC GNDAGND_SIGNAL

55 44 33 22 11 D D C C B B A A ETHERNET TX1- RX1+RX1- TX1+ TXP4TXM4TCT4RXP4RXM4TXP3TXM3TCT3RXP3RXM3RXP2RXM2TCT2TXP2TXM2 TXM1TXP1TCT1RXM1 TX4PTX4MCMT4RX4MTX3MCMT3RX3PRX3MRX2PRX2MCMT2TX2PTX2MTX1MTX1PCMT1RX1MRX1P CMT2CMT3CMT4 TPTX0+TPTX0-TPRX0-TPRX0+ RX2MRX2PTX2PTX2MRX3PRX3MTX3PTX3MTX4PRX4MRX4PTX4M TXP5TXM5TCT5 RXP1 TPRX0+TPTX0+TPTX0-TPRX0- RX0+RX0-TX0+TX0- RXM5RXP5 RX4P TX3P CMT1 RXP1 TX1+TX1- RXM1 RX1+ TXP1 RX1- TXM1 LED_LNK_3LED_LNK_4LED_LNK_5LED_LNK_2 RX1PRX1MTX1PTX1M LED4_3LED3_3LED2_3 TXP4TXM4TCT4RXP4RXM4TXM3TXP3TCT3RXM3RXP3RXP2RXM2TCT2TXP2TXM2 TXM1TXP1RXM1 TXP5TXM5TCT5 RXP1TCT1 LED5_3M1WAN0 RXP5RXM5 M2LAN0LED5_1LED4_1LED3_1LED2_1 RESET V2.5 GND VCC GND VCC GND A GND GNDGNDGNDGND GND CG GND VCC U12LH-H40S 123678 9 1011141516 C360.001uC470.001u R56 75R36 75 R67 220 R70 220 RR9 75 1% R1833R17 33 R13200 LPFLPF U6 20F001N 654321 121110987 CK2 103/1KV CK1103/1KV C190.01u C180.01u R65 220 B3 Bead R78 330 R80 330 T1SQ-H44W RX1+ 40 RX1- 39 RD1+ 1 TX1CT 38 TX1+ 37 TX1- 36 RD1- 2 TX2- 35 TD1CT 3 TD1+ 4 TX2+ 34 TD1- 5 TX2CT 33 RX2- 32 TD2- 6 RX2+ 31 TD2+ 7 RX3+ 30 RX3- 29 TD2CT 8 TX3CT 28 RD2- 9 TX3+ 27 TX3- 26 RD2+ 10 TX4- 25 RD3+ 11 TX4+ 24 TX4CT 23 TD3CT 13 RX4- 22 RD3- 12 RX4+ 21 TD3+ 14 TD3- 15 TD4- 16 TD4+ 17 TD4CT 18 RD4- 19 RD4+ 20 RR7 75 1% RR8 75 1% RR12 75 1% C7 103/1KV RR5 75 1% RR6 75 1% RR11 75 1% C6 103/1KV RR10 75 1% RR4 75 1% C5 103/1KV RR3 75 1% RR2 75 1% RR1 75 1% C4 103/1KV P7RJ45X6 1234567891011121314151617181920212223242526272829303132 BC2 0 BC3 0 T8 YELLOW 1 2 3 4 T11 GREEN 1 2 3 4 T6 GREEN 1 2 3 4 T7 GREEN 1 2 3 4 T5 GREEN 1 2 3 4 R92 330 R68 330 R64 220 R53 220 R52 220 R45 220 R72 220 T4 GREEN 1 2 3 4 J250CON1012345678910 TX1+ TX1- RX1+ RX1- RX0+ RX0- TX0+ TX0- GNDVCC GNDAGND_SIGNAL

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:20-Oct-2000Sheet of File:\\..\WLANAP-jtagv01.SCHDrawn By: TDI TDO TCLK TMS NTRST R286J 22 R287J 68 R288J 68 R283J 10K R282J 10K R281J 10K R280J 10K C280J 100P C281J 100P WLANAP WLANAP-JTAGV01.SCH 07 67 VCCS VCC VDD 1 NTRST 2 TDO 3 TDI 4 TMS 5 TCK 6 GND 7 GND 8 GND 9 GND 10 GND 11 VDD 12 J280 CON_JTAG

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:20-Oct-2000Sheet of File:\\..\WLANAP-netv01.schDrawn By: VDD 13 VDD 15 VDD 25 VDD 37 VDD 38 EQVDD 7 XTLVDD 46 TXVDD 51 TXVDD 55 CSVDD 57 CSVDD 58 RXVDD 59 RXVDD 64 GND 3 GND 14 GND 26 GND 36 EQGND 6 TXGND 52 CSGND 56 RXGND 60 RXGND 63 RXDV 18 RXER 19 RXD3 20 RXD2 21 RXD1 22 RXD0 23 RXCLK 24 TXEN 27 TXER 28 TXD3 29 TXD2 30 TXD1 31 TXD0 32 TXCLK 33 CRS/PHY3 34 COL/FCRS/PHY4 39 MDIO 35 MDC 45 MIENA 8 MDIOINTZ/PHY2 16 AUTONEN 4 100FDEN/CIWEN 2 100HDEN 11 PHY1 12 TPTX+ 53 TPTX- 54 TPRX+ 61 TPRX- 62 LEDSP/10FDEN 17 LEDRX/NORPTR 40 LEDTX/AC/BPSCR 41 LEDCOL/BP4B5B 42 SRL10 1 TPTXTR 5 REF10 49 REF100 50 LEDFD/10HDEN 43 LEDLNK/BPALIGN 44 XIN 47 XOUT 48 RSTZ 9 PHY0 10 U250 LU3X31FT-T64 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 T250 H1102 TXD0 TXD1 TXEN RXD0 RXD1 RXER REFCLK CRSDV TXCLK RXDV RXD3 RXD2 COL TXER TXD2 TXD3 MDC MDIO R250 1.5K 1 1 3 3 X250 25MC C250X 20P RESOUT R251 4.7K R252 300 C259D.1U C25AD.1U L252D BLM31A601SPT R251D 1 C258D 10U L251D BLM31A601SPT C257D .1U C256D .1U VCCS VCCS C250T 5P C251T 5P R250T 49.9 R251T 49.9 C253T .1U C254T 1000P R252T 49.9 R253T 49.9 C252T .1U TX+ 1 TX- 2 GND 3 GND 4 RX+ 5 RX- 6 3.3V 7 3.3V 8 9 RESET 10 J250 CON_UTP R254T 75 R255T 75 C255T 470P WLANAP WLANAP-NETV01.SCH 07 77 VCCS VCCS C250D .01U C251D .01U C252D .01U C253D .01U C254D 10U C255D 10U C250D near U250 pin 13/15 C251D near U250 pin 25 C252D near U250 pin 37/38 C253D near U250 pin 46 C254D near U250 pin 51/55 C255D near U250 pin 59/64 C251X 20P VCCS NOTE: connet PHY1 to VSS connet PHY0 to NC033 NC034 NC035 NC036 NC037 NC038 NC039 NC040 NC041 NC042 MAN_RESET VCC

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:20-Oct-2000Sheet of File:\\..\WLANAP-pwv01.SCHDrawn By: F200 C1Q1.5A C200 4.7U C201 10U VCCS WLANAP WLANAP-PWV01.SCH 07 C201A 10U L201 FBMH3216HM501NT +3.3V VCC C200A 4.7U Vin 3 GND 1 Vout 2 U200 NOPOP Vin 3 GND 1 Vout 2 U200A NOPOP C10D 47U 57 F201 C1Q1.5A

123456 A B C D 654321 D C B A Title Size: Date: File: Revision: Sheetof Technology co,Ltd GEMTEK Drawn By: DESIGN:APPVD: B AMY WU C139 0.01U VREF R29 0 RX_Q- R27 0 RX_Q+ RX_I- R23 0 R19 0 RX_I+ CSB S_CLK S_DATA C18 0.1UR13 10K C140 0.01U C29 0.1U C35 0.1U TX_DET C11 10U C15 10U GNDd 1 VDDD 2 SD 3 SCLK 4 R/W 5 CS 6 GNDd 7 VDDD 8 GNDa 9 RX_I+ 10 RX_I- 11 VDDA 12 RX_Q+ 13 RX_Q- 14 GNDa 15 VREF 16 VDDA 17 TX_AGC_IN 18 RX-IF_DET 19 GNDa 20 IREF 21 VDDA 22 TX_I+ 23 TX_I- 24 GNDa 25 COMPCAP2 26 COMPRES2 27 GNDa 28 TX_Q+ 29 TX_Q- 30 VDDA 31 COMPRES1 32 COMPCAP1 33 RX_IF_AGC 34 TX_IF_AGC 35 GNDd 36 VDDD 37 RX-RF_AGC 38 ANT-SEL 39 ANT-SEL 40 NC 41 MCLK 42 GNDd 43 TEST0 44 TEST1 45 TEST2 46 TEST3 47 TEST4 48 TEST5 49 TEST6 50 TEST7 51 RXCLK 52 RXD 53 MD_RDY 54 TXCLK 55 GNDd 56 VDDD 57 TXD 58 TX_RDY 59 CCA 60 RX_PE 61 TX_PE 62 RESET 63 SDI 64 U5 HFA3861 RESOUT TX_PE RX_PE CCA TX_DATA TX_CLK MD_RDY RX_DATA RX_CLK IF_DET R32 12.1K TX_I+ TX_I- R33 19.1K R34 19.1K TX_Q+ TX_Q- C36 0.1U C32 0.1U RX_IF_AGC TX_IF_AGC RX_RF_AGC ANTSEL* ANTSEL 44MHZ_REF C26 0.1U R30 976 R28 619 C25 NOPOP C17 0.1U R20 560 WLANAP WLANAPR2V01.SCH 27 TX_DET VREF RX_Q- RX_Q+ RX_I- RX_I+ CSB S_CLK S_DATA RESOUT TX_PE RX_PE CCA TX_DATA TX_CLK MD_RDY RX_DATA RX_CLK +3.3VVCCS 44MHZ_REF ANTSEL ANTSEL* RX_RF_AGC TX_IF_AGC RX_IF_AGC TX_Q- TX_Q+ TX_I+ TX_I- IF_DET 05'11'00 C30 0.1U SDI SDI NEW!! C13 0.1U C12 0.1U NC043NC044NC045 NC046 NC047 NC048 NC049 NC050 R1 100

123456 A B C D 654321 D C B A Title Size: Date: File: Revision: Sheetof Technology co,Ltd GEMTEK Drawn By: DESIGN:APPVD: B AMY WU RX_VCC 1 GND 2 IF_RX+ 3 IF_RX- 4 GND 5 TX_VAGC 6 TX_VCC 7 IF_TX+ 8 IF_TX- 9 TX_VCC 10 GND 11 GND 12 REF_BYP 13 REF_IN 14 GND 15 GND 16 SYN_VDD 17 CLK 18 DATA 19 LE 20 CP_VDD 21 CP_D0 22 GND 23 LD 24 GND 25 LO_IN- 26 LO_IN+ 27 LO_VCC 28 GND 29 TXQ- 30 TXQ+ 31 1.2V_OUT 32 TXI- 33 TXI+ 34 RXQ- 35 RXQ+ 36 RXI- 37 RXI+ 38 GND 39 BB_VCC 40 GND 41 CAL_EN 42 PE2 43 PE1 44 IF_DET 45 GND 46 RX_VAGC 47 GND 48 U9 HFA3783 C121 0.1UF C104 100PF C112 0.1UF C84 0.1U C91 0.022U C80 1000P C85 100P C88 100P C57 0.1U C93 0.1U C70 0.1U C110 68P C120 68PF C108 100PF C89 0.1U C76 1000P R640 R610 R70 536 R66124R67 124 R57 0 R63 0 R62124 R45 2.87K R56 49.9 R58 124 R59 536 R49100 R47100 R52 2K R40 2K R55 3.92K RX_IF_AGC IF_DET PE1 PE2 CAL_EN RX_I+ RX_I- RX_Q+ RX_Q- TX_I+ TX_I- VREF TX_Q+ TX_Q- LE_IF SD_RF_IF SCLK_RF_IF C71 0.1U C72 0.1U C107 3900P C100 0.22U 44MHZ_REF TX_IF_AGC C53 0.1U C51 10P C52 10P C55 220P C45 15P C46 15P C56 220P L5 39NHL6 22NH L10 33NH L9 33NH C39 220P C44 220P IF+ IF- C124 0.1U ENB 1 GND 2 OUT 3 VDD 4 U6 F4106-44MHZ C33 0.1U C133 0.1U C135 0.1U C137 0.1U C134 10U C136 10U R41 1K SHDN 1 GND 2 IN 3 OUT 4 BP 5 U15 MAX8867 RADIO_PD GND 1 GND 2 OUT 3 OUTRET 4 GND 5 GND 6 GND 7 GND 8 IN 9 INRET 10 GND 11 GND 12 FL1 FILTER855653L1 WLANAP WLANAPR3V01.SCH 37 05'11'00 VCCC VCCB RADIO_PD VCCA IF+ IF- TX_IF_AGC RX_IF_AGC IF_DET PE1 PE2 CAL_EN VCCC VCCB RX_I+ RX_I- TX_I- TX_I+ TX_Q+ TX_Q- RX_Q- RX_Q+ VREF VCCC SCLK_RF_IF SD_RF_IF LE_IF 44MHZ_REF VCM=1.2V VCM=1.2V RF 1 VCC 2 VCONT 3 GND 4 GND 5 GND 6 GND 7 GND 8 U13 ENFVH172S80 Q1 TR.IRLML6302 R15 1.5K R24 0 R74 NOPOP C24 22P L26 0.56UH L21 BLM21P300S C27 1000P R100 0 44MHZ_CW 44MHZ_CW +3.3V NC051 12 R87 0 12 R86 NO POP L101 FBMH3216HM501NT

123456 A B C D 654321 D C B A Title Size: Date: File: Revision: Sheetof Technology co,Ltd GEMTEK Drawn By: DESIGN:APPVD: B AMY WU RF_OUT 61 GND 1 GND 3 GND 5 RX_IN 4 BIAS_VCC 6 BIAS_GND 7 GND 12 PE2 9 PE1 10 TX_VCC2 11 GND 14 TXA_OUT 13 TXA_SUB 15 GND 16 GND 18 TX_VCC1 17 GND 20 TXA_IN 19 SYN_SUB/GND 26 REF_IN 25 REF_BY 24 SYN_SUB/GND 28 CP_GND 31 SYN_VDD 27 CLK 23 DATA 22 LE 21 CP_VDD 29 CP_DO 30 FLAG1 39 FLAG2 42 TX_MX_VCC2- 33 TX_MX_OUT 34 TX_MX_VCC2+ 35 TX_MX_VCC2 36 TX_MX_VCC1 37 TX_LO_DR_VCC 38 LO_GND 44 LO_IN+ 40 LO_IN- 41 LO_GND 46 LO_VCC 43 TX_MX_IND 51 RX_LO_DR_VCC 45 PRE_GND 53 TX_MX_IN- 47 RX_MX_OUT- 48 RX_MX_OUT+ 49 TX_MX_IN+ 50 GND 64 RX_MX_IN 52 BIAS_GND 55 PRE_VDD 54 GND 60 ITAT_RES1 56 PTATA_RES 57 BIAS_VCC 58 ITAT_RES2 59 LD 32 COL_OUT 63 H/L 8 LNA_VCC 2 GND 62 U11 HFA3683A C79 7P C117 0.1U C116 1000P C115 NO POP C105 2.7P C87 NO POP C83 47P C94 100P C65 47P 1 2 C73 7P C126 270P C66 7P C86 0.01U C22 0.01U 1 2 C111 7P C114 0.01U C95 0.01U L7 1.2NH L11 1.8NH L14 33NH R51100 R71 1K R68 10 R46 100 R38 9.53K R48 100 12 R53 100 R43 100 R50 3.74K R54 3.74K R60 10 R44 1.1K R76 82.5 R75 90.9 PE2 PE1 LE_RF SD_RF_IF SCLK_RF_IF 44MHZ_CW OUT1 1 GND 2 OUT2 3 VCONT2 4 IN 5 VCONT1 6 U10 UPG152TA GND 1 OUT 2 GND 3 IN 4 FL6 LFSN30N17C 2450B OUT1 1 GND 2 OUT2 3 VCONT2 4 IN 5 VCONT1 6 U8 UPG152TA IN 1 GND 2 GND 3 OUT 4 GND 5 VCC 6 U16 UPC2745T GND 1 OUT 2 GND 3 IN 4 FL5 LFSN30N17C 2450B C113 1000P C128 1000P C1061000P C101 1000P C98 1000P C90 0.1U C82 1P TX_DET PA_PE L20 2.2NH L18 BLM10A121SPT L16 BLM10A121SPT L19 6.8NH T/R_SW T/R_SW* ANTSEL* ANTSEL C77 22P C97 22P 1 2 C96 47P C61 0.01U R36 11.5K R37 1.5K C60 0.01U C58 3.3P C68 7P C62 4.7P C47 220P C59 7P WLANAP WLANAPR4V01.SCH 13 44 05'09'00 +3.3V +3.3V PA_PE TX_DET C127 7P ANTSEL* ANTSEL VCCA VCCA C49 4.7P R73 20 RX_RF_AGC IF+ L12 33NH R39 1.1K VCCA C75 4.7P C74 220P IF- C63 0.01U C92 0.01U C99 0.01U C103 0.01U C118 0.068U C123 0.47U R69 649 R65 1.5K C125 0.01U VCCB C129 10U C130 0.01U C132 0.1U C69 22P R77 90.9 VCCB C50 1000P IF+ IF- RX_RF_AGC LE_RF SD_RF_IF SCLK_RF_IF 44MHZ_CW RF 1 VCC 2 VCONT 3 GND 4 GND 5 GND 6 GND 7 GND 8 U14 ENFVZ5F81 T/R_SW* T/R_SW GND 1 VCC 2 PE 3 GND 4 VCC 5 OS_REXT 6 DS_REXT 7 DS_VCC 8 GND 9 GND 10 RF_OUT 11 GND 12 GND 13 GND 14 GND 15 GND 16 GND 17 GND 18 GND 19 GND 20 GND 21 RF_IN 22 GND 23 GND 24 GND 25 DET_VOUT 26 GND 27 VCC 28 U12 HFA3983 PE2 PE1 L2 4.7NH C16 0.01U R80 0 R81 0 C67 7P R35100 R31100 C78 7P R25100 C109 7P C23 1000P VCCC 12 C48 7P C28 47P NC046 C81 7P **R85 NO POP for U7 using MIC5205-2.8BM5 **R84 0 Ohm for U7 using MAX8867EUK29 GND 1 OUT 2 GND 3 IN 4 FL4 LFSN30N17C 2450B 1 2 C236 7P IN 1 GND 2 OUT 3 GND 4 FL3 LTF3216L C41 0.1U C42 0.1U C40 0.1U C43 10U C38 10U VCCA PD 1 ANT2 PAD PD 1 ANT1 PAD +3.3V 12 R84 0 12 R85 NOPOP VCCA SHDN 1 GND 2 IN 3 OUT 4 BP 5 U7 MAX8867 1 1 2 2 L701 1.2NH

RF89100302Page 1 FCC ID:PBLWIP-301 Issued Date: October 18, 2000 T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Wireless Router Model Name WIP-301 Tested at October 8, 2000 According 47CFR Part 15C (15.247) &15B Issued for Advance Multimedia Internet Technology Inc. No. 59, Alley 21, Lane 279, Chung Cheng Rd., Yung Kang City, Tainan Hsien, Taiwan, R.O.C. PREPARED BY:ADVANCE DATA TECHNOLOGY CORPORATION 11F, NO.1, SEC.4, NAN-KING EAST RD., TAIPEI, TAIWAN, R.O.C. This test report consists of 78 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of our laboratory. It should not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. government. The test result in the report only applies to the tested sample. Accredited Laboratory RF89100302Page 2 FCC ID:PBLWIP-301 Issued Date: October 18, 2000 REPORT NO:RF89100302 PRODUCT:Wireless Router MODEL NO:WIP-301 SERIAL NO:N/A CLIENT:Advance Multimedia Internet Technology Inc. AD…
