PBLWIQ189AM802.11n 4 port Broadband Router

User’s Manual 802.11n 4 port Broadband Router WIQ189AM Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. Trademarks All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. The specification is subject to change without notice. 1 Table of Contents Chapter 1 Introduction .............................................................................. 3 Functions and Features ........................................................................ 3 Packing List ......................................................................................... 5 Chapter 2 Hardware Installation ............................................................... 6 2.1 Panel Layout .................................................................................. 6 2.2 Procedure for Hardware Installation .............................................. 8 Chapter 3 Network Settings and Software Installation............................. 9 3.1 Make Correct Network Settings of Your Computer....................... 9 Chapter 4 Configuring Wireless Broadband Router ............................... 10 4.1 Login to Configure from Wizard ................................................. 11 4.2 Status............................................................................................ 13 4.4 Basic Setting ................................................................................ 14 4.5 Forwarding Rules......................................................................... 29 4.6 Security Settings .......................................................................... 34 4.7 Advanced Settings........................................................................ 48 4.7.7 Qos Rule.................................................................................... 59 4.8 Toolbox ........................................................................................ 60 Appendix A 802.1x Setting..................................................................... 63 Appendix B WPA-PSK and WPA .......................................................... 69 Appendix C FAQ and Troubleshooting .................................................. 81 What can I do when I have some trouble at the first time?...... 81 How do I connect router by using wireless?............................... 84 2 C C C h h h a a a p p p t t t e e e r r r 1 1 1 I I I n n n t t t r r r o o o d d d u u u c c c t t t i i i o o o n n n Congratulations on your purchase of this outstanding Wireless Broadband Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. Functions and Features Router Basic functions zAuto-sensing Ethernet Switch Equipped with a 4-port auto-sensing Ethernet switch. zWAN type supported The router supports some WAN types, Static, Dynamic, PPPoE , PPTP ,L2TP, Dynamic IP with Road Runner. zFirewall All unwanted packets from outside intruders are blocked to protect your Intranet. zDHCP server supported All of the networked computers can retrieve TCP/IP settings automatically from this product. zWeb-based configuring Configurable through any networked computer’s web browser using Netscape or Internet Explorer. zVirtual Server supported Enable you to expose WWW, FTP and other services on your LAN to be accessible to Internet users. zUser-Definable Application Sensing Tunnel User can define the attributes to support the special applications requiring multiple connections, like Internet gaming, video conferencing, Internet telephony and so on, then this product can sense the application type and open multi-port tunnel for it. zDMZ Host supported Lets a networked computer be fully exposed to the Internet; this function is used when special application sensing tunnel feature is insufficient to allow an application to function correctly. zStatistics of WAN Supported Enables you to monitor inbound and outbound packets 3 Wireless functions zHigh speed for wireless LAN connection Up to 80Mbps data rate by incorporating Orthogonal Frequency Division Multiplexing (OFDM). zRoaming Provides seamless roaming within the IEEE 802.11b (11M) and IEEE 802.11g (54M) WLAN infrastructure. zWDS(Wireless Distribution System):It is a system that enables the interconnection of access points wirelessly. zWPS(WiFi Protection Setup):WPS is WiFi Protection Setup which is similar to WCN-NET and offer safe and easy way in Wireless Conne…

Text truncated - open the document above for the full version.

1 Lucy Tsai From: debby.dai [[email protected]] Sent: Sunday, December 23, 2007 11:52 PM To: Lucy Tsai Cc: daphne.liang; leah.peng Subject: 回信： FW: Advance Multimedia Internet Technology Inc., FCC ID: PBLWIQ189AM, Assessment NO.: AN07T7442, Notice#1 Attachments: WIQ189AM_User Manual(revised 20071224).pdf; WIQ189AM_Block Diagram.pdf; WIQ189AM_Circuit.pdf; WIQ189AM_Test Report(revised 22071224).pdf Dear Lucy, Merry Christmas!! Please see reply below in red. Best Regards, Debby Dai 戴妤如 Compliance Certification Services, Inc / Tainan Lab. 程智科技股份有限公司 台南實驗室 TEL: 06-5980808 # 607 FAX: 06-5987878 e-mail: [email protected] 6F., No.605, Jhongshan RD., Sinhua Township, Tainan County 71243, Taiwan 台南縣新化鎮中山路605號6樓 "Lucy Tsai" <[email protected] > 2007/12/19 11:24 PM 收件人： "application" <[email protected]> 副本抄送： 主旨： FW: Advance Multimedia Internet Technology Inc., FCC ID: PBLWIQ189AM, Assessment NO.: AN07T7442, Notice#1 Hi Debby, Please address following issues. Q#1: Please provide RF module's schematic and functional block diagram. Please see attached module's schematic and functional block diagram per your requirement. Q#2: Test report page 5 indicates two antennas are applied but the antenna type, brand and gain listed are identical. Please have a check and do the necessary revise. Besides, in page 115 of test report mentioned two 1.8dBi antennas as dipole and printed antennas are used. However, there no test result addressed printed antenna has been investigated. Noted that per FCC request, all antenna types shall be investigated and reported. Please address. 2 There are only dipole antennas for this model. We already corrected the report in page 5 and 115 for the typos. Please see attached revised report for your reference. Q#3: Page 6 of test report indicates this device is configured as 1 transmitter and 2 receiver which should not be called as MIMO but MISO instead since it's a multiple in and single out transmitter. Please correct. We already correct the typo,please see attached revised report for your reference. Q#4: User manual doesn't include RF exposure statement per Part 2.1091 nor the statement of 15.21. Please revise. Please see attached revised manual in the last page. Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Compliance Certification Services Inc. Report No.：71115405-RP1 External Photo ( Model : WIQ189AM ) Compliance Certification Services Inc. Report No.：71115405-RP1 Compliance Certification Services Inc. Report No.：71115405-RP1

Label here 802.11n 4 port Broadband Router Model No:WIQ189AM FCC ID：PBLWIQ189AM This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan

Compliance Certification Services Inc. Report No.：71115405-RP1 Internal Photo Compliance Certification Services Inc. Report No.：71115405-RP1 Compliance Certification Services Inc. Report No.：71115405-RP1 Compliance Certification Services Inc. Report No.：71115405-RP1

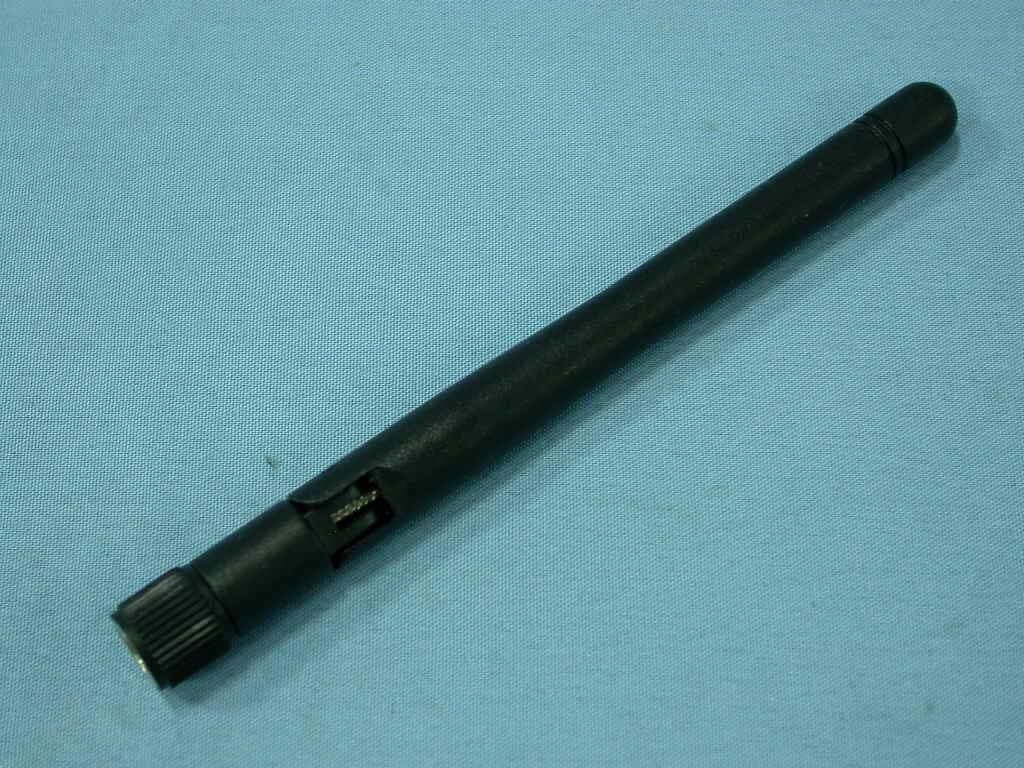

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Gain(peak)................... 1.8dBi 1.7 Polarization............... ...Linear Vertical 1.8 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20 ~ +65 2.6 Storage Temp. ............ ...-30 ~ +75 2.7 Color ........................ .Black 2.8 Connector.................. ...SMA Plug Reverse 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Maximum RF Antenna Cable Assembly Omni-directional 1 2 3 RF Antenna Assembly P/NO :C381-510085-A SPEC : 2.4GHz 10/7/2005 4 10/7/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C779-510006-A-H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz C381-510085-A-H.nsi 5 10/7/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C779-510006-A-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz C381-510085-A-V.nsi 6 7 8 9

Compliance Certification Services Inc. Report No.：71115405-RP1 FCC ID：PBLWIQ189AM Date of Issue: December 17, 2007 Page 1 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For 802.11n 4 port Broadband Router Model : WIQ189AM Issued for Advance Multimedia Internet Technology Inc. No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 741, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 119 Compliance Certification Services Inc. Report No.：71115405-RP1 FCC ID：PBLWIQ189AM Date of Issue: December 17, 2007 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 December 17, 2007 Initial Issue ALL Leah Peng Compliance Certification Services Inc. Report No.：71115405-RP1 FCC ID：PBLWIQ189AM Date of Issue: December 17, 2007 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION........................................................................................................4 2. EUT DESCRIPTION ..............................................................................................................................5 2.1 DESCRIPTION OF EUT & POWER ....................................................................................................5 3. DESCRIPTION OF TEST MODES .......................................................................................................6 4. TEST METHODOLOGY ........................................................................................................................7 5. FACILITIES AND ACCREDITATIONS...............................................................................................7 5.1 FACILITIES ...........................................................................................................................................7 5.2 EQUIPMENT .........................................................................................................................................7 5.3 LABORATORY ACCREDITATIONS LISTINGS...............................................................................7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS .............................................................................8 6. CALIBRATION AND UNCERTAINTY.................................................................................................9 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................9 6.2 MEASUREMENT UNCERTAINTY ....................................................................................................9 7. SETUP OF EQUIPMENT UNDER TEST ............................................................................................10 7.1 SETUP CONFIGURATION OF EUT ...................................................................................................10 7.2 SUPPORT EQUIPMENT.......................................................................................................................10 7.3 EUT OPERATING CONDITION..........................................................................................................11 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................................12 8.1 6DB BANDWIDTH ...............................................................................................................................12 8.2 99% BANDWIDTH ...............................................................................................................................22 8.3 MAXIMUM PEAK OUTPUT POWER ................................................................................................32 8.4 MAXIMUM PERMISSIBLE EXPOSURE............................................................................................43 8.4 MAXIMUM PERMISSIBLE EXPOSURE............................................................................................43 8.5 AVERAGE POWER ..............................................................................................................................45 8.6 POWER SPECTRAL DENSITY ...........................................................................................................47 8.7 CONDUCTED SPURIOUS EMISSION ...............................................................................................57 8.8 RADIATED EMISSIONS......................................................................................................................66 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ................................................................66 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ................................................................70 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ..............................................................71 8.8.4 RESTRICTED BAND EDGES ...........................................................................................................95 8.9 POWERLINE CONDUCTED EMISSIONS .........................................................................................111 9. ANTENNA REQUIREMENT.................................................................................................................115 9.1 STANDARD APPLICABLE .................................................................................................................115 9.2 ANTENNA CONNECTED CONSTRUCTION ....................................................................................115 APPENDIX SETUP PHOTOS ...........................................................................…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.：71115405-RP1 FCC ID：PBLWIQ189AM Date of Issue: December 17, 2007 Page 1 SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Report No.：71115405-RP1 FCC ID：PBLWIQ189AM Date of Issue: December 17, 2007 Page RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Report No.：71115405-RP1 FCC ID：PBLWIQ189AM Date of Issue: December 17, 2007 Page Compliance Certification Services Inc. Report No.：71115405-RP1 FCC ID：PBLWIQ189AM Date of Issue: December 17, 2007 Page POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
