PBLWL561CAMCardBus Adapter

CardBus Adapter 11G WIRELESS Network Adapter User’s Manual Production component This WIRELESS production should contain the following items: 1. One piece of CardBus or PCI adapter 11G WIRELESS LAN Card 2. One piece of CD which contain drivers, user’s manual, and utility Quick Installation 1. Insert the product’s CD into CD-ROM. 2. Exit all application programs and insert the 11G WIRELESS adapter into the PCMCIA on notebook or PCI slot on desktop. 3. Following “Found New Hardware Wizard” window to install driver step by step. 4. Install the WIRELESS adapter utility 5. Configure your WIRELESS adapter for connecting to a WIRELESS network. FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - i - - Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This device has been tested for compliance with FCC RF Exposure(SAR) limits in a typical laptop configuration with a PCMCIA slot on either the right or left side of the laptop and can be used in laptop computers with substantially similar physical dimensions, construction, and - ii - electrical and RF characteristics. 3. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Contents CHAPTER 1 TERMINOLOGY INTRODUCTION......................................................................1 CHAPTER 2 SYSTEM REQUIREMENTS....................................................................................3 2-1 HARDWARE....................................................................................................................................3 2-2 SOFTWARE.....................................................................................................................................3 CHAPTER 3 INSTALL DRIVER FOR WINDOWS SERIES ......................................................4 3-1 SET UP WIRELESS LAN CARD FOR WINDOWS XP...................................................................4 3-2 SET UP WIRELESS LAN CARD FOR WINDOWS 2000................................................................7 3-3 SET UP WIRELESS LAN CARD FOR WINDOWS 98/ ME.........................................................11 3-4 UNINSTALL THE WIRELESS LAN CARD.................................................................................14 CHAPTER 4 CONFIGURE THE WIRELESS LAN ADAPTER...............................................17 4-1 INSTALL UTILITY........................................................................................................................17 4-2 CONFIGURE WIRELESS LAN ADAPTER FOR WINDOWS XP...................................................18 4-3 CONFIGURE WIRELESS LAN ADAPTER FOR WINDOWS 98/ME/2000 BY UTILITY...............21 - iii - Chapter 1 Terminology Introduction This chapter will introduce terminology about IEEE802.11 what referred by this manual. And in this character we will explain terminology according to IEEE802.11 Std. z Ad-Hoc Network(Peer to Peer) A network composed solely of stations within mutual communication range of each other via the WIRELESS medium(WM). An Ad Hoc network is typically created in a spontaneous manner. The principal distinguishing characteristic of an ad hoc network is limited temporal and spatial extent. These limitations allow the act of creating and dissolving the ad hoc network to be sufficiently straightforward and convenient so as to be achievable by nontechnical users of the network facilities; i.e., no specialized “technical skills” are required and little or no investment of time or additional resources is required beyond the stations that are to participate in the ad hoc network. The term ad hoc is often used as slang to refer to an independent basic service set(IBSS). z Infrastructure Network The infrastructure includes the distribution system medium (DSM), access point(AP), and portal entities. It is also the logical location of distribution and integration service functions of an extended service set(ESS). An infrastructure contains one or more APs and zero or more portals in addition to the distribution system(DS). z Basic Service Set(BSS) A set of stations controlled by a single coordination function. z BSSID Basic service set identifier z Station service(SS) The set of services that support transport of medium access control(MAC) service data units(MSDUs) between stations within a basic service set(BSS) z SSID Station service identifier - 1 - z Association The service used to establish access point/station(AP/STA) mapping and enable STA invocation of the di…

Text truncated - open the document above for the full version.

Advance Multimedia Internet Technology Inc. NO.32, Hwan-Gong Rd. Yung Kang City,Tainan Hsien, Taiwan. Attestation FCC ID : PBLWL561CAM Product : CardBus Adapter Model : WL561CAM Statements: We don’t provide with any controls or software to allow operation outside the USA frequency band for all future applications when we sell this product in USA. Sincerely, Signature: (Name / Date)

Advance Mu/fjmedja h fernef N0 .32, Hwan-Gong Rd. Yung k ang City, FCC iD: PBLWL561CAM PrCduct: CardBus Adapter Model : WL561CAM Pursuant to Sect1ons 0.457 Ó d 0.459 of the Commission's Rules, the Applicant hereby requests conEdential Ì eam ent of information accompanying this Application &q outlined below : Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary inh nnation not customarily released to the public. The public disclosure of these matters mid 1t be harmh 1to the Applicant and provide uqjustined beneEts to its competitors. The Applicant understands that pu sumt to Rule 0.457, disclosure of d1is Application and all accompanying documentation will not be made before the date of the Grant for this application. ~Sincerely you s, Techno/ogy /nca Tainan Hsi en, ~ConfIdent i al it v R equest ~~~puan

Compliance Certification Services Inc.Report No.50915401-RP1 External Photo ( Model : WL561CAM )

Company : Advance Multimedia Internet Technology Inc. Model : WL561CAM Product : CardBus Adapter CardBus Adapter Model No: WL561CAM FCC IDPBLWL561CAM This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan Label Here

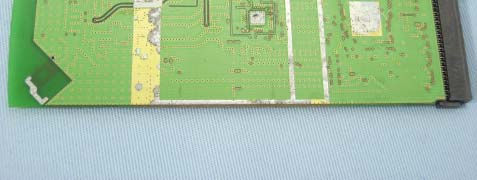

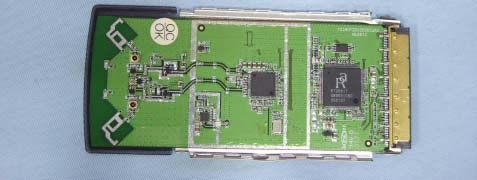

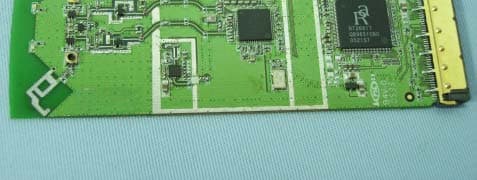

Compliance Certification Services Inc.Report No.50915401-RP1 Internal Photo Compliance Certification Services Inc.Report No.50915401-RP1

Compliance Certification Services Inc. Report No: 50915401-SF FCC ID: PBLWL561CAM Date of Issue: September 30, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 23 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For CardBus Adapter Trade Name: N/A Model: WL561CAM Issued to Advance Multimedia Internet Technology Inc. No. 32, Hwan-Gong Rd., Yung Kang City, Tainan Hsien, Taiwan Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. TEL: 886-2-2299-9720 FAX: 886-2-2299-9721 Compliance Certification Services Inc. Report No: 50915401-SF Date of Issue: September 30, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. EUT DESCRIPTION ....................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .........................5 3. DOSIMETRIC ASSESSMENT SYSTEM ...................................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES ..................................................................................................9 5. MEASUREMENT UNCERTAINTY .........................................................................................13 6. EXPOSURE LIMIT ....................................................................................................................14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .........14 8. MEASUREMENT RESULTS ....................................................................................................15 8.1 SYSTEM PERFORMANCE CHECK..............................................................................15 8.2 TEST LIQUID CONFIRMATION...................................................................................16 8.3 EUT TUNE-UP PROCEDURES......................................................................................17 8.4 SAR MEASUREMENTS RESULTS...............................................................................18 9. EUT PHOTOS.............................................................................................................................20 10. EQUIPMENT LIST & CALIBRATION STATUS....................................................................21 11. FACILITIES................................................................................................................................22 12. REFERENCES ............................................................................................................................22 13. ATTACHMENTS .......................................................................................................................23 Compliance Certification Services Inc. Report No: 50915401-SF Date of Issue: September 30, 2005 Page 4 Rev. 00 1. EUT DESCRIPTION Product CardBus Adapter Trade Name N/A Model Number WL561CAM Model Discrepancy N/A Frequency Range 802.11b: 2412 ~ 2462 MHz 802.11g: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Average) 802.11b: 19.77 dBm 802.11g: 19.65 dBm Max. SAR (1g): 802.11b: 0.417 W/kg 802.11g: 0.171 W/kg Modulation Technique 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: Antenna A: PCB antenna Antenna B: PCB antenna Battery option: Only one type / model with EUT Host Brand : IBM Modle : X31 Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Compliance Certification Services Inc. Report No: 50915401-SF Date of Issue: September 30, 2005 Page 5 Rev. 00 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetric probe EX3DV4-SN: 3554 (manufactured by SPEAG), designed in the c…

Text truncated - open the document above for the full version.

Date/Time: 9/23/2005 7:17:09 PMDate/Time: 9/23/2005 7:20:31 PMDate/Time: 9/23/2005 7:26:21 PM Test Laboratory: Compliance Certification Services Inc. D2450V2-SN 728-Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.3 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.76 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 90.1 V/m; Power Drift = -0.109 dB Peak SAR (extrapolated) = 31.2 W/kg SAR(1 g) = 13.7 mW/g; SAR(10 g) = 5.98 mW/g Maximum value of SAR (measured) = 15.5 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 22.1 mW/g Page1 Page2 Date/Time: 9/23/2005 7:36:49 PMDate/Time: 9/23/2005 7:44:44 PMDate/Time: 9/23/2005 7:52:35 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Parallel Touch mode ant A DUT: WL561C; Type: 2.4GHz USB Dangle; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; σ = 1.99 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.3 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Middle CH Rate=1M bit/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.534 mW/g Middle CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 13.8 V/m; Power Drift = -0.152 dB Peak SAR (extrapolated) = 0.839 W/kg SAR(1 g) = 0.417 mW/g; SAR(10 g) = 0.211 mW/g Maximum value of SAR (measured) = 0.575 mW/g Middle CH Rate=1M bit/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Maximum value of SAR (measured) = 0.710 mW/g Page1 Page2 Date/Time: 9/23/2005 10:27:29 PMDate/Time: 9/23/2005 10:35:24 PM Test Laboratory: Compliance Certification Services Inc. 802.11g Parallel Touch mode ant A DUT: WL561C; Type: 2.4GHz USB Dangle; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; σ = 1.99 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.3 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Middle CH Rate=6M bit/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.216 mW/g Middle CH Rate=6M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 8.39 V/m; Power Drift = -0.148 dB Peak SAR (extrapolated) = 0.349 W/kg SAR(1 g) = 0.168 mW/g; SAR(10 g) = 0.086 mW/g Maximum value of SAR (measured) = 0.224 mW/g Page1 Date/Time: 9/23/2005 10:08:45 PMDate/Time: 9/23/2005 10:16:40 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Parallel Touch mode ant B DUT: WL561C; Type: 2.4GHz USB Dangle; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; σ = 1.99 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.3 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Middle CH Rate=1M bit/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.492 mW/g Middle CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 12.2 V/m; Power Drift = -0.067 dB Peak SAR (extrapolated) = 0.841 W/kg SAR(1 g) = 0.414 mW/g; SAR(10 g) = 0.210 mW/g Maximum value of SAR (measured) = 0.563 mW/g Page1 Date/Time: 9/23/2005 10:55:59 PMDate/Time: 9/23/2005 11:03:57 PMDate/Time: 9/23/2005 11:09:50 PM Test Laboratory: Compliance Certification Services Inc. 802.11g Parallel Touch mode ant B DUT: WL561C; Type: 2.4GHz USB Dangle; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2437 MHz; σ = 1.99 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.3 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); z Sensor-Surface: 2.5mm (Mechanical Surfac…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 50915401-RP1 FCC ID: PBLWL561CAM Date of Issue: October 14, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 61 FCC 47 CFR PART 15 SUBPART C TEST REPORT For CardBus Adapter Model Number : WL561CAM Issued to Advance Multimedia Internet Technology Inc. NO.32, Hwan-Gong Rd. Yung Kang City, Tainan Hsien, Taiwan Issued by Compliance Certification Services Inc. No. 8, Jiu Ceng Ling, Jiao keng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Compliance Certification Services Inc. Report No: 50915401-RP1 FCC ID: PBLWL561CAM Date of Issue: October 14, 2005 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION .................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES...................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .....................................................6 3.5 DESCRIPTION OF TEST MODES .................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES .....................................................................................................................................8 5.2 EQUIPMENT ...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING ..................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ........................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT ............................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH ........................................................................................................................11 7.2 PEAK POWER ...............................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY.........................................................................................31 7.5 RADIO FREQUENCY EXPOSURE..............................................................................................36 7.6 SPURIOUS EMMISSIONS............................................................................................................37 7.7 POWERLINE CONDUCTED EMISSIONS ..................................................................................57 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .......................................................................60 Compliance Certification Services Inc. Report No: 50915401-RP1 FCC ID: PBLWL561CAM Date of Issue: October 14, 2005 Page 3 1. TEST RESULT CERTIFICATION Applicant: Advance Multimedia Internet Technology Inc. NO. 32, Hwan-Gong Rd. Yung Kang City, Tainan Hsien, Taiwan Equipment Under Test: CardBus Adapter Model Number: WL561CAM Date of Test: October 8 ~ October 13, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Alex Chiu Jeter Wu Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 50915401-RP1 FCC ID: PBLWL561CAM Date of Issue: October 14, 2005 Page 4 2. EUT DESCRIPTION Product CardBus Adapter Model Number WL561CAM Model Discrepancy N/A Power Supply Powered from host device Frequency Range IEEE 802.11b/g:2412~2462 MHz Transmit Power IEEE 802.11b: 19.77 dBm IEEE 802.11g: 19.65dBm Modulation Technique IEEE 802.11b: DSSS IEEE 802.11g: OFDM Transmit Data Rate IEEE802.11b: 11Mbps(CCK) with fall back rates of 5.5, 2, and 1Mbps IEEE802.11g: 54Mbps with fall back rates of 48/36/24/18/12/9/6 M…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 50915401-RP1 FCC ID: PBLWL561CAM Date of Issue: October 14, 2005 Page 60 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 50915401-RP1 FCC ID: PBLWL561CAM Date of Issue: October 14, 2005 Page 61 Conducted Emission Set Up Photos
