PBLWL581MAM802.11n Mini PCI Module

802.11n Wireless Mini-PCI Adapter Manual FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.this device may not cause harmful interference, and 2.this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: 1.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. - 1 - Introduction The 802.11n wireless mini-PCI adapter allows you to connect to your wireless networking. It provides more throughput rate on data communication than traditional 802.11g wireless adapters. With the built advanced wireless configuration utility, it let it more easily for you to surf your wireless LAN. Features and Benefits System - Standard: IEEE 802.11b/g/n. - Host Interface: mini-PCI. - Data rate: 1, 2, 5.5, 11Mbps for 802.11b; 6, 9, 12, 18, 24, 36, 48, 54Mbps for 802.11g; 6, 6.5, 13, 19.5, 26, 39, 52, 58.5, 65, 78, 104, 117, 130Mbps for 802.11n. - Operating range: Indoor, 30-100m; outdoor, 100-400m (depends on surrounding environment). RF - Frequency band: 2.400 ~ 2.4835 GHz (subject to local regulation). - Modulation: OFDM(Orthogonal Frequency Division Multiplexing) for 802.11g/n; DSSS(Direct Sequence Spread Spectrum) for 802.11b. - RF radiated output power: 16dBm for 802.11g/n; 18dBm for 802.11b. (±1dBm). Software - Driver: Microsoft Windows 2000, XP, XP64, and Vista. - Operation mode: Infrastructure mode (Seamless roaming supported), Ad-Hoc mode (peer to peer connection). - Security: 64/128 bit WEP encryption, WPA, WPA-PSK, WPA2, WPA2-PSK, and 802.1x. LEDs and Physical connections - Link: external. - Activity: external. - Antenna: external. Package Contents - Wireless adapter. - Manual - Quick installation guide - CD: includes adapter drivers, manual, and quick installation guide. ** If any of the above items are missing, please contact your reseller. - 2 - System Requirements Before installing the adapter and related software, make sure your system meets the minimum requirements described below. IBM compatible desktop or notebook PC with available mini-PCI container. - CPU level: no restricted. - Memory size: no restricted. - CDROM drive: no restricted. - Operation system: Microsoft Windows 2000, XP, XP64, or Vista. - 3 - Installation - Insert the Product CD into the CD-ROM drive. - Execute “Setup.exe” in the root directory of the CD, it will guide you to install the Driver and Utility. - Insert the wireless adapter into the mini-PCI container. - 4 - Management Load up utility After the installation, one utility will be run and minimized on Windows system tray bar. ：Indicate wireless adapter detected, and connected to one site. ：Indicated wireless adapter not detected, or not connected to one site. You may double click it to bring up the main menu. You may also use mouse right button to launch or to close it. For Windows XP, the utility provides one option to manage the wireless adapter with Windows Zero Configuration. Site Survey Page Under the site survey page, system will display the information of surrounding APs from last scan result. List information include SSID, BSSID, Signal, Channel, Encryption algorithm, and Network type. - 5 - Definition of each field - SSID: Name of BSS of IBSS network. - BSSID: MAC address of AP or randomly generated of IBSS. - Signal: Receive signal strength of specified network. - Channel: Channel in use. - Encryption: Encryption algorithm used within than BSS or IBSS. Valid value includes WEP, TKIP, AES, and Not Use. - Authentication: Authentication mode used within the network, including Unknown, WPA-PSK, WPA2-PSK, WPA and WPA2. - Network Type: Network type in use, Infrastructure for BSS, Ad-Hoc for IBSS network. Connected network When utility first ran, it will select the best AP to connect automatically. It is available to connect to other site by double click the intended item. If the intended network has encryption other than '' Not Use '' or “Unknown”, the security page will pop up for you to setup the appropriate information to make the connection. : This icon indicates the change is successful. - Connection box: Indicate connection status, the connected network SSID will show up here. - Rescan: Issue an rescan command to wireless NIC to update information on surrounding wireless network. - Connect: Command to connect to the selected network. - Add to Profile: Add the selected AP to profile setting. It will bring up profile page and save the setting to a new profile. Add/Edit Profile System Configuration - 6 - - Profile Name: User c…

Text truncated - open the document above for the full version.

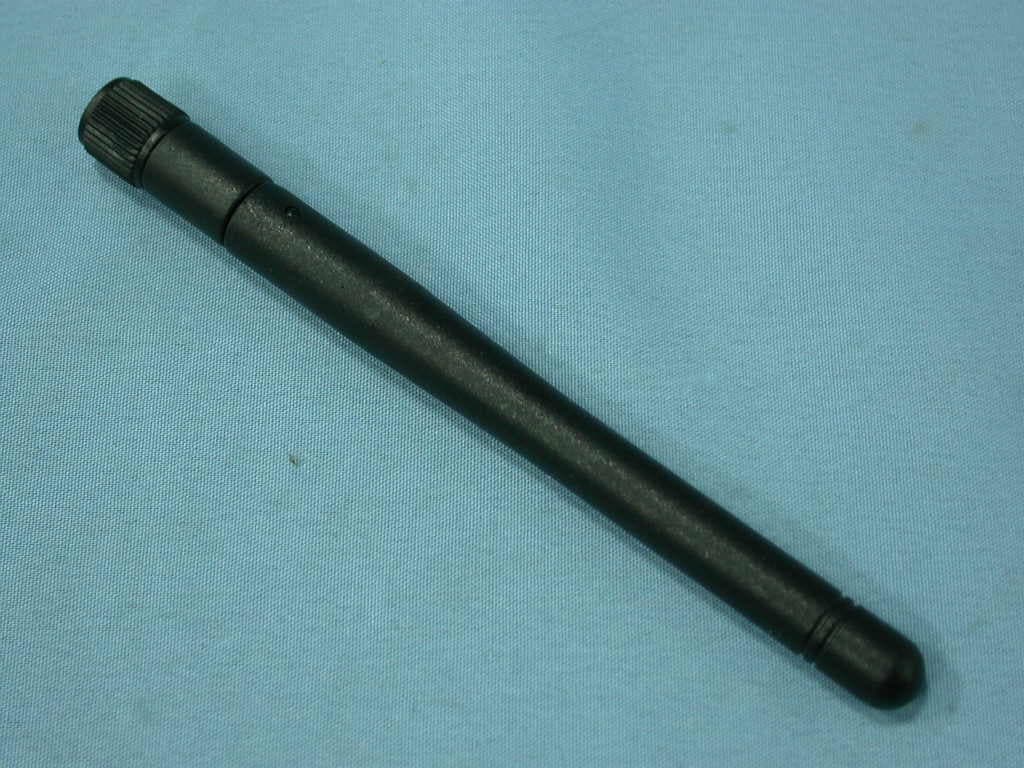

Transmitter Modular Approval Letter Date: Aug. 29, 2007 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: PBLWL581MAM Gentlemen: The following attestation addresses the eight requirements to support Modular approval as required by the FCC Public Notice DA 00-1407” Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding.(Refer to “Internal Photograph Exhibit”) 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. (Refer to “Block Diagram and Schematics Exhibit”) 3 The modular transmitter has its own power supply regulator.(Refer to “Block Diagram and Schematics Exhibit ”and Bill of Materials Exhibit”) 4 The modular transmitter has an antenna that complies with section 15.203 of the FCC rules. It has a UFL type of connector at the transmitter end and is Dipole Antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user.(Refer to “Operational Description Exhibit” and “Antenna Specification Exhibit”) 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer.(Refer to “Test Configuration”in Compliance Certificaiton Services Inc. test report and to “External Photograph Exhibit”) 6 The modular transmitter will be labeled with it own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior habel will read as follows: “Contains Transmitter Module FCC ID: PBLWL581MAM” or “Contains TX FCCID: PBLWL581MAM” (Refer to “Label Information Exhibit”) 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations.(Refer to“User’s Guide Exhibit) 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1) (Refer to “RF Exposure Exhibit”.)

Compliance Certification Services Inc. Report No.：70723402-RP1 External Photo ( Model : WL581MAM ) Compliance Certification Services Inc. Report No.：70723402-RP1

WL581MAM Rear diagram 802.11n Mini PCI Module Model No: WL581MAM FCC ID：PBLWL581MAM Label location

!Compliance Certification Services Inc.!!!!!Report No.Κ70723402-RP1 ! ! ! ! ! Internal photo ! !Compliance Certification Services Inc.!!!!!Report No.Κ70723402-RP1 ! ! ! ! ! ! !

!Compliance Certification Services Inc.!! Report No.ˍʳ70723402-RP1 FCC ID: PBLWL581MAMDate of Issue: Aug. 15, 2007! ! Pageʳ56! MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theʳ environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E uu 30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S uu Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields 2 2 0796.0 100/3770 1000/30 d GP d GP S u u u uu Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 !Compliance Certification Services Inc.!! Report No.ˍʳ70723402-RP1 FCC ID: PBLWL581MAMDate of Issue: Aug. 15, 2007! ! Pageʳ57! LIMIT Power Density Limit, S=1.0mW/cm 2 ! TEST RESULTS No non-compliance noted Mode Minimum separation distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 22.03 1.80 1.00 0.05 IEEE 802.11g 20 21.92 1.80 1.00 0.05 IEEE 802.11n HT2020 23.03 1.80 1.00 0.06 IEEE 802.11n HT4020 22.66 1.80 1.00 0.06 Remark:For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Compliance Certification Services Inc. Report No.: 70723402-RP1 FCC ID: PBLWL581MAM Date of Issue: Aug. 15, 2007 Page 1 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For 802.11n Mini PCI Module Model: WL581MAM Brand: AMIT Issued for Advance Multimedia Internet Technology Inc. No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih Township, Tainan County 741, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 147 Compliance Certification Services Inc. Report No.: 70723402-RP1 FCC ID: PBLWL581MAM Date of Issue: Aug. 15, 2007 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 15, 2007 Initial Issue ALL Leah Peng Compliance Certification Services Inc. Report No.: 70723402-RP1 FCC ID: PBLWL581MAM Date of Issue: Aug. 15, 2007 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ........................................................................................ 4 2. EUT DESCRIPTION ................................................................................................................. 5 2.1 DESCRIPTION OF EUT & POWER ..................................................................................................5 3. DESCRIPTION OF TEST MODES......................................................................................... 6 4. TEST METHODOLOGY.......................................................................................................... 7 5. FACILITIES AND ACCREDITATIONS................................................................................ 7 5.1 FACILITIES......................................................................................................................................... 7 5.2 EQUIPMENT ....................................................................................................................................... 7 5.3 LABORATORY ACCREDITATIONS LISTINGS............................................................................. 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ........................................................................... 8 6. CALIBRATION AND UNCERTAINTY ................................................................................. 9 6.1 MEASURING INSTRUMENT CALIBRATION................................................................................ 9 6.2 MEASUREMENT UNCERTAINTY .................................................................................................. 9 7. SETUP OF EQUIPMENT UNDER TEST .............................................................................. 10 7.1 SETUP CONFIGURATION OF EUT .................................................................................................10 7.2 SUPPORT EQUIPMENT .................................................................................................................... 10 7.3 EUT OPERATING CONDITION........................................................................................................ 11 8. APPLICABLE LIMITS AND TEST RESULTS..................................................................... 13 8.1 6dB BANDWIDTH.............................................................................................................................. 13 8.2 99% BANDWIDTH ............................................................................................................................. 27 8.3 MAXIMUM PEAK OUTPUT POWER .............................................................................................. 41 8.4 MAXIMUM PERMISSIBLE EXPOSURE ......................................................................................... 56 8.4 MAXIMUM PERMISSIBLE EXPOSURE ......................................................................................... 56 8.5 AVERAGE POWER ............................................................................................................................ 58 8.6 POWER SPECTRAL DENSITY ......................................................................................................... 60 8.7 CONDUCTED SPURIOUS EMISSION ............................................................................................. 79 OUT-OF-BAND COMBINED SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ............... 92 8.8 RADIATED EMISSIONS.................................................................................................................... 96 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ........................................... 96 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ........................................... 100 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ......................................... 101 8.8.4 RESTRICTED BAND EDGES ...................................................................................... 125 8.9 POWERLINE CONDUCTED EMISSIONS ....................................................................................... 141 9. ANTENNA REQUIREMENT................................................................................................... 145 9.1 STANDARD APPLICABLE ............................................................................................................... 145 9.2 ANTENNA CONNECTED CONSTRUCTION .................................................................................. 145 APPENDIX SETUP PHOTOS...................................................................................................... 146 Compliance Certification Services Inc. Report No.: 70723402-RP1 FCC ID: PBLWL581MAM Date of Issue: Aug. 15, 2007 Page…

Text truncated - open the document above for the full version.

!Compliance Certification Services Inc.!! Report No.ˍʳ70723402-RP1 FCC ID: PBLWL581MAMDate of Issue: Aug. 15, 2007! ! Pageʳ146! APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP ! ! ! ! ! !Compliance Certification Services Inc.!! Report No.ˍʳ70723402-RP1 FCC ID: PBLWL581MAMDate of Issue: Aug. 15, 2007! ! Pageʳ147! RADIATED RF MEASUREMENT SETUP ! !Compliance Certification Services Inc.!! Report No.ˍʳ70723402-RP1 FCC ID: PBLWL581MAMDate of Issue: Aug. 15, 2007! ! Pageʳ148! ! !Compliance Certification Services Inc.!! Report No.ˍʳ70723402-RP1 FCC ID: PBLWL581MAMDate of Issue: Aug. 15, 2007! ! Pageʳ149! POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP ! ! End of report
