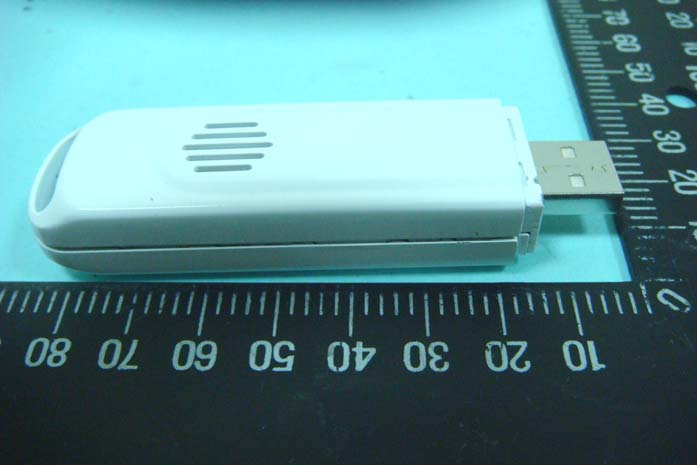

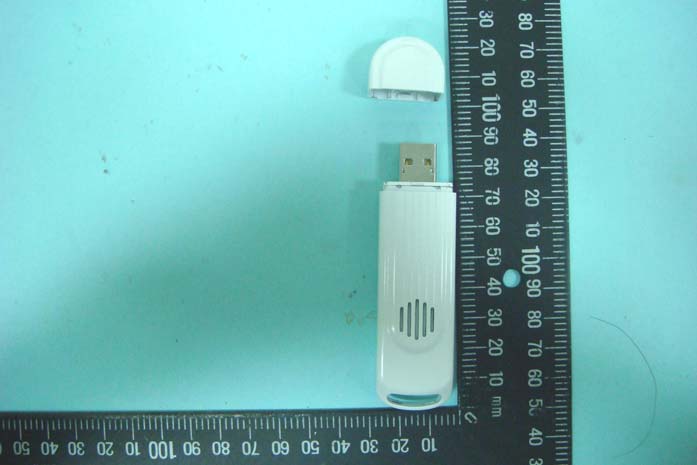

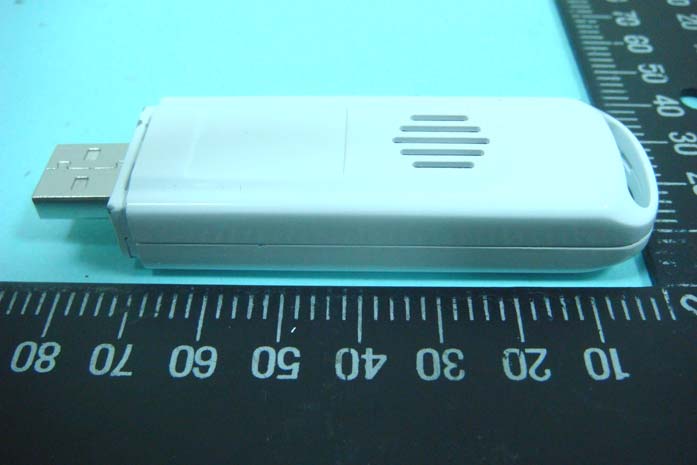

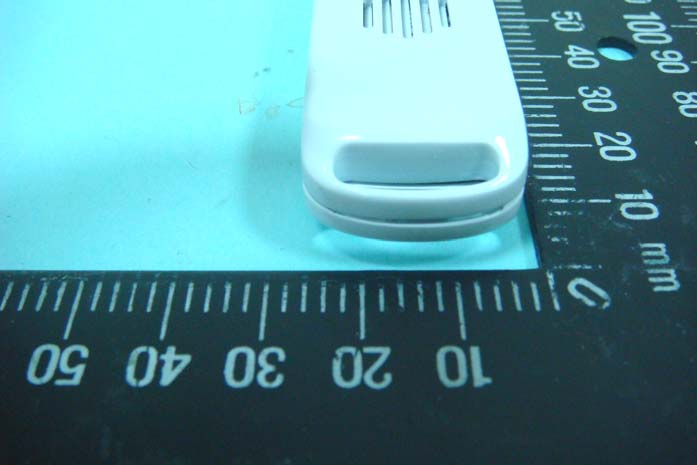

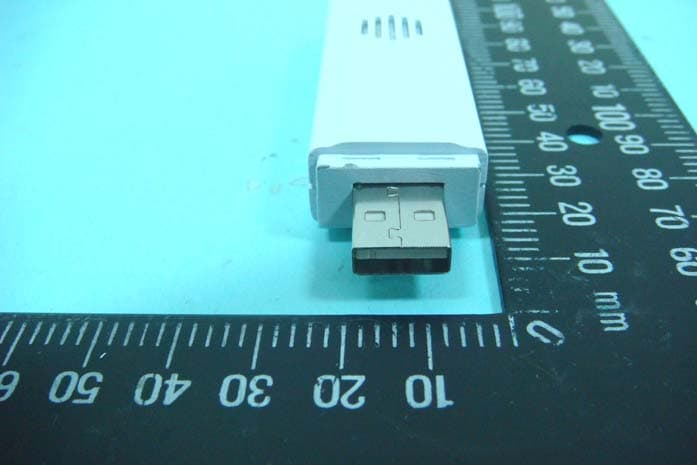

PBLWL581UAM802.11n USB Dongle

802.11n Wireless USB Adapter Manual FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.this device may not cause harmful interference, and 2.this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. - 1 - Introduction The 802.11n wireless USB Dongle, USB 2.0 compatible, allows you to connect to your wireless networking. It provides more throughput rate on data communication than traditional 802.11g wireless Dongle. With the built advanced wireless configuration utility, it let it more easily for you to surf your wireless LAN. Features and Benefits System - Standard: IEEE 802.11b/g/n. - Host Interface: USB 2.0 standard. - Data rate: 1, 2, 5.5, 11Mbps for 802.11b; 6, 9, 12, 18, 24, 36, 48, 54Mbps for 802.11g; 6, 6.5, 13, 19.5, 26, 39, 52, 58.5, 65, 78, 104, 117, 130Mbps for 802.11n. - Operating range: Indoor, 30-100m; outdoor, 100-400m (depends on surrounding environment). RF - Frequency band: 2.400 ~ 2.4835 GHz (subject to local regulation). - Modulation: OFDM(Orthogonal Frequency Division Multiplexing) for 802.11g/n; DSSS(Direct Sequence Spread Spectrum) for 802.11b. - RF radiated output power: 17.89dBm for 802.11g/n; 17.61dBm for 802.11b. (±1dBm). Software - Driver: Microsoft Windows 2000, XP, XP64, and Vista. - Operation mode: Infrastructure mode (Seamless roaming supported), Ad-Hoc mode (peer to peer connection). - Security: 64/128 bit WEP encryption, WPA, WPA-PSK, WPA2, WPA2-PSK, and 802.1x. LEDs and Physical connections - Link: Always on, Green, after linked up to remote wireless. - Activity: Blinking, Green, for data communication. - Antenna: Embedded. Package Contents - USB wireless Dongle. - Manual - Quick installation guide - CD: includes Dongle drivers, manual, and quick installation guide. ** If any of the above items are missing, please contact your reseller. - 2 - System Requirements Before installing the Dongle and related software, make sure your system meets the minimum requirements described below. IBM compatible desktop or notebook PC with available USB slot. - CPU level: no restricted. - Memory size: no restricted. - CDROM drive: no restricted. - USB Host: USB 2.0 suggested. USB 1.0/1.1 leads low data communication rate. - Operation system: Microsoft Windows 2000, XP, XP64, or Vista. - 3 - Installation - Insert the Product CD into the CD-ROM drive. - Execute “Setup.exe” in the root directory of the CD, it will guide you to install the Driver and Utility. - Insert the wireless Dongle into the USB slot. - 4 - Management Load up utility After the installation, one utility will be run and minimized on Windows system tray bar. ：Indicate wireless adapter detected, and connected to one site. ：Indicated wireless adapter not detected, or not connected to one site. You may double click it to bring up the main menu. You may also use mouse right button to launch or to close it. For Windows XP, the utility provides one option to manage the wireless adapter with Windows Zero Configuration. Site Survey Page Under the site survey page, system will display the information of surrounding APs from last scan result. List information include SSID, BSSID, Signal, Channel, Encryption algorithm, and Network type. - 5 - Definition of each field - SSID: Name of BSS of IBSS network. - BSSID: MAC address of AP or randomly generated of IBSS. - Signal: Receive signal strength of specified network. - Channel: Channel in use. - Encryption: Encryption algorithm used within than BSS or IBSS. Valid value includes WEP, TKIP, AES, and Not Use. - Authentication: Authentication mode used within the network, including Unknown, WPA-PSK, WPA2-PSK, WPA and WPA2. - Network Type: Network type in use, Infrastructure for BSS, Ad-Hoc for IBSS network. Connected network When utility first ran, it will select the best AP to connect automatically. It is available to connect to other site by double click the intended item. If the intended network has encryption other than '' Not Use '' or “Unknown”, the security page will pop up for you to setup the appropriate information to make the connection. : This icon indicates the change is successful. - Connection box: Indicate connection status, the connected network SSID will show up here. - Rescan: Issue an rescan command to wireless NIC to update information on surrounding wireless network. - Connect: Command to connect to the selected net…
