WiViEW WMT-1000I WMT-1000O USER’S MANUAL Version 1.0 Notice This device has been approved by FCC for a home appliance and is suitable for all residential areas. z © 2006 Copyright SIGMACOM CO., LTD. All right reserved z All trademarks are the properties of their respective owner. z The information contained herein is subjected to change without notice. 1 WMT-1000O Specification ■ Power Supply Adaptor IN: 100-240V~50/60Hz 0.5A OUT: 12V, DC 1.25A ■ Power Consumption : 2.5mW/MHz ■ Digital Modulation : OFDM ■ Channel 3Channel (5180MHz, 5200MHz, 5220MHz), BAND WIDTH : 20MHz ■ VIDEO OUTPUT : Composite, S-Video, Component (480i) ■ AUDIO OUTPUT : 2-Channel Stereo ■ FRONT LED Lamps : Power (Red), Signal (Green) ■ Physical Specification Size (W * H * D) : 42 * 230 * 195 (Without Stand) 85 * 240 * 195 (With Stand) Operating Temperature : -10°C ~ +50°C Storage Temperature : -10°C ~ +70°C 2 WMT-1000I Specification ■ Power Supply Adaptor IN: 100-240V~50/60Hz 0.5A OUT: 12V, DC 1.25A ■ Power Consumption : 2.5mW/MHz ■ Digital Modulation : OFDM ■ Channel 3Channel (5180MHz, 5200MHz, 5220MHz), BAND WIDTH : 20MHz ■ VIDEO INPUT : Composite, S-Video, Component (480i, 480p, 720p, 1080i) ■ AUDIO INPUT : 2-Channel Stereo ■ PC Interface : USB ■ 2-Input IR Blaster ■ FRONT LED Lamps : Power (Red), Signal (Green) ■ Physical Specification Size (W * H * D) : 42 * 230 * 195 (Without Stand), 85 * 240 * 195 (With Stand) Operating Temperature : -10°C ~ +50°C Storage Temperature : -10°C ~ +70°C 3 Overview of WiVIEW Safety notice and Warning FCC notice to users and product statements THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This appliance and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 4 European CE notice to users and product statements This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC). Hereby, Sigmacom Co., Ltd declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information, please contact http://www.sigmacom.co.kr/eng/main/ Operating Matrix 1. Connect video-out of PC or VIDEO out-put device(DVD player, DVR) to video-in of the WMT-1000I(server) with cable. 2. Connect video-in of TV or other displays to image-out of the WMT-1000O(client) with cable. 3. WMT-1000I encode a video data into MPEG2 and transmit encoded data to WMT000O in the band of 5180khz,5200khz and 5220khz in 802.11a protocol. 4. After WMT-1000O receives the encoded data, WMT-1000O decode the data into analog signal and transmits to TV or other displays. 5. According PC connection, remotecontrol transmits PC control-signal to WMT- 1000O and WMT-1000O transmit the signal to WMT-1000I by wireless and WMT-10001 transmits the signal to PC by USB port. Contents Overview of Wi-VIEW Safety notices and warnings Checking Wi-VIEW package Each part description Using remote control - Controlling Wi-VIEW - Controlling SMC(Sigma Multimedia Center) - Installing batteries Placing Wi-VIEW on the stand 5 Hardware Installation Connecting Wi-VIEW Connecting to WMT-1000I of Wi-VIEW - Connecting satellite receiver or cable TV receiver - Connecting VCR - Connecting DVD Player or Game console - Using the remote control of external video device Connecting to WMT-1000O of Wi-VIEW - Connecting analog TV set - Connecting HDTV Ready set Main functions Using the remote control of menu screen Starting Wi-VIEW Setting Input Setting Output Adjusting image quality Setting OSD language Additional functions - Checking Wi-VIEW’s information - Setting screen saver - checking network status Using SMC (Sigma Multimedia Center) Basic screen content Description of each button of the remote control SMC function 1) TV - Running TV program - Setting antenna - Setting TV channel (registered/preferred) - EPG(Electronic Programming Guide) - Reservation - Multi-screen 2) Music 6 3) Picture 4) Video 5) DVD 6) Radio 7) Setup - Standard setting - TV setting - File setting - Multimedia setting 7 Accessories Thank you for purchasing the Wi-VIEW. When removing the package, make sure that the following contents are included. If you find any missing part, please contact our near dealer or distributor. Holder – 2EA WMT-1000I - 1 EA Remote control WMT-1000O - 1 EA Sound(2RCA) cable Power Adaptor - 2EA IR Blaster cable Composite (3 RCA) cabl…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A RF_Module Matrix II DDR 8M X 16 16MByte SDR 8M X 1616MByte ES6425MPEGDecoder flash32Mbit Wireless LAN IntegratedMedium Access Controllerwith Baseband Processor Power 1Power 1Power 1Power 1Power 1 2.0V3.3V1.8V 5V 2.5V External DCPOWER 12V 2.0V3.3V1.8V5V2.5V 27MHzx-tal 33MHzOSC 40MHzOSC 2.5V 3.3V 3.3V2.5V 3.3V2.0V 3.3V 3.3V 5V WMT-1000O Diagram Antenna Audio DAC YPbPr A-R A-L Comp S-Video 3.3V5V Digital Modulation : OFDM

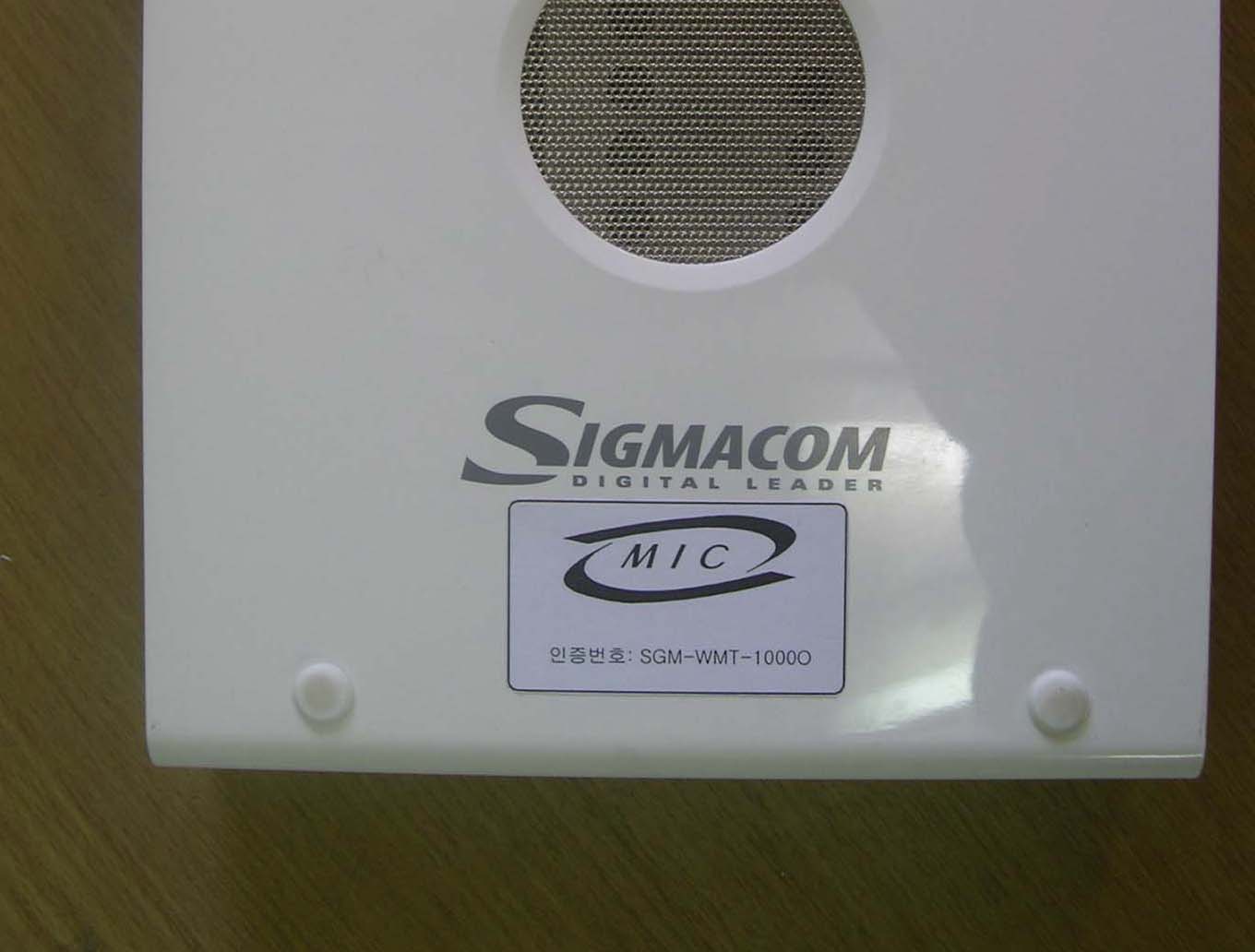

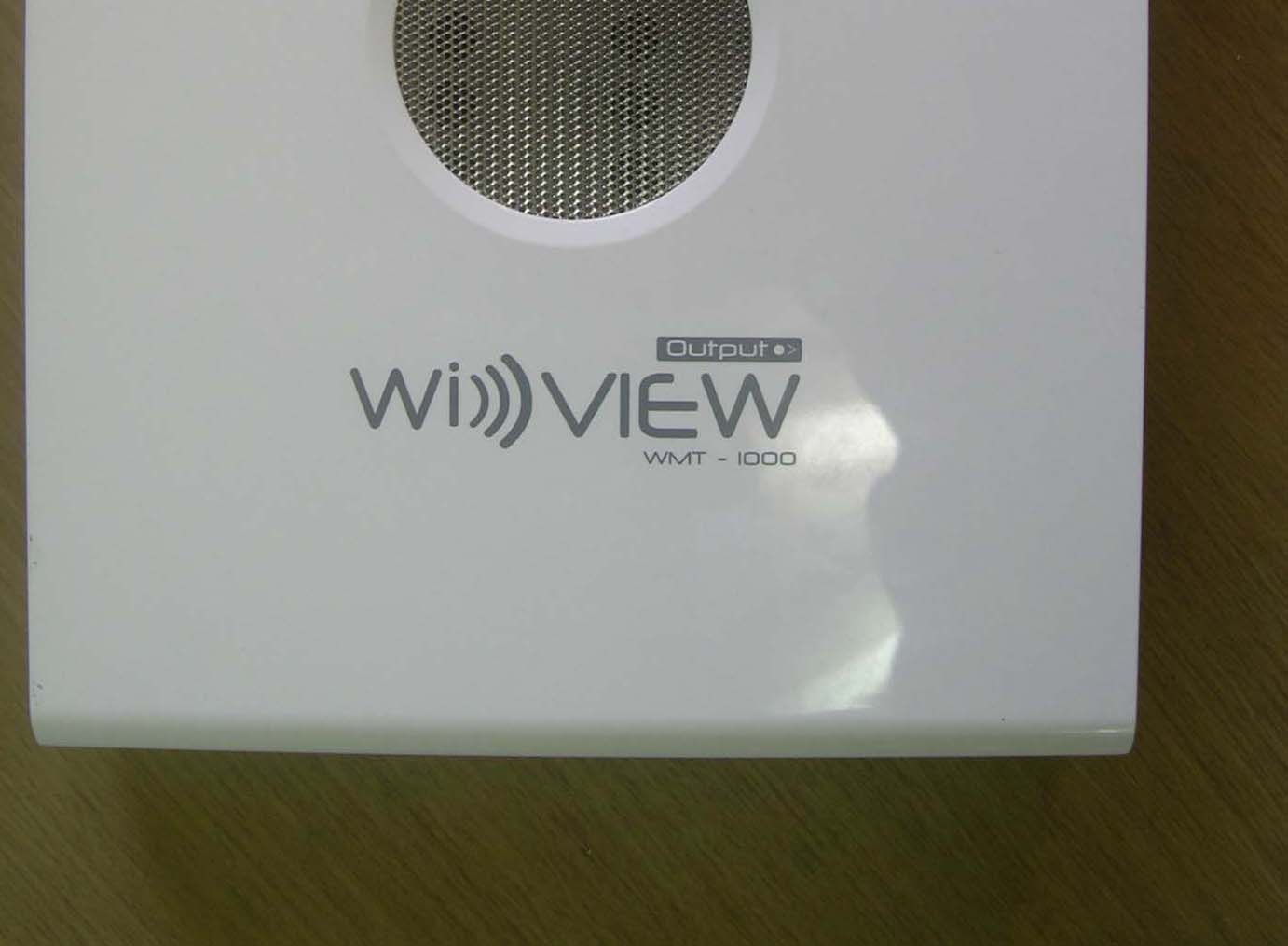

SK TECH CO., LTD. Page 1 of 4 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O External Photographs of EUT <Photograph 1: Front View> SK TECH CO., LTD. Page 2 of 4 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O <Photograph 2: Rear View> SK TECH CO., LTD. Page 3 of 4 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O <Photograph 3: External Interface view> SK TECH CO., LTD. Page 4 of 4 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O <Photograph 4: EUT with accessories>

ID Label Location & Sample LABEL LOCATION: Label will be affixed on the SIDE of the product LABEL Drawing: WiViEW Model: WMT-1000O Rated Input: 12V ,1.25A Made in Korea THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PCO-WMT-1000O SGM-WMT-1000O LABEL LOCATION

SK TECH CO., LTD. Page 1 of 6 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O Internal Photographs of EUT <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 6 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O <Photograph 2: Front View - Main board> SK TECH CO., LTD. Page 3 of 6 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O <Photograph 3: Rear View - Main board> SK TECH CO., LTD. Page 4 of 6 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O <Photograph 4: Rear View - RF module> SK TECH CO., LTD. Page 5 of 6 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O <Photograph 5: Rear View - RF module> SK TECH CO., LTD. Page 6 of 6 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O <Photograph 6: Front panel board>

SPECIFICATION FOR APPROVAL CUSTOMER DATE DESCRIPTION CUSTOMER P/N Part No. 2005/11/24 T1W1424A1 WPS008 5G Swivel Type Antenna RP-SMA (M) (Black) CIWPS008SC 1 Table of Contents Table of Contents ......... 1 Specification ......... 2 Antenna Drawing ......... 3 Electrical Properties Return Loss ......... 4 V. S . W. R ......... 5 Radiation Pattern ......... 6-7 Material Data Sheet Coaxial Cable ......... 8-10 Hinge ......... 11 2 SPECIFICATION 1. Description 5GHz Swivel Type Antenna With RP-SMA (M) 2. Customer Sigmacom Co., Ltd 3. Model No. WPS008 4. Part No. T1W1424A1 5. Standard IEEE 802.11a/g Wireless LAN 6. Antenna Profile 133.5 (157) mm length (see Drawing) 7. Color Black 8. Electrical Characteristics Operating Frequency 5.15~5.35/5.725~5.85 GHz Antenna Type PCB Polarization Type Linear Type of Radiation Toroidal Antenna Gain 3.0 dBi Typical Impedance 50 Ohm nominal V.S.W.R. 2.0:1 Max. 9. Mechanical Characteristics Swivel 90 degrees Connector RP-SMA (M) Core N/A 10. Raw Material Coaxial Cable MIL-C-17 RG-178 B/U Housing ABS+PC(FR-2000) Hinge PC+ALLOY 3 Data: 94/11/24 Revised J. L. Lin Approval ScaleFREE UNITmm Page 1/1 Sandy Checked Mandy Drawed Customer Part No. Part No. Part Name 4 Electrical Properties Return Loss 6.8 GHz 10 dB/ -80 dB 20 dB MAGdB CH110 dB/REF 0 dB START4.5 GHzSTOP7 GHz200 MHz/ OFS CPL FIL 10k10k FIL 10k10k CAL S22 1 2 3 4 5 6 6: -11.58 dB 5.85 GHz 1: -11.97 dB 5.15 GHz 2: -13.27 dB 5.25 GHz 3: -13.76 dB 5.35 GHz 4: -17.32 dB 5.725 GHz 5: -14.06 dB 5.8 GHz 〈 0 dB 5 Electrical Properties V. S . W. R 6.8 GHz 1 U/ 1 U 11 U SWRLINCH11 U/REF 1 U START4.5 GHzSTOP7GHz200 MHz/ FIL 10k10k FIL 10k10k OFS CPL CAL S22 1 2 3 4 5 6 6: 1.692 U 5.85 GHz 1: 1.688 U 5.15 GHz 2: 1.538 U 5.25 GHz 3: 1.522 U 5.35 GHz 4: 1.327 U 5.725 GHz 5: 1.435 U 5.8 GHz 〈 1U 6 Electrical Properties Radiation Pattern – H Plane 7 Electrical Properties Radiation Pattern – E Plane 8 Coaxial Cable Data Sheet RG-178 9 10 11 z Hinge - PC+ALLOY

Operational Description This product, WiViEW, is an audio/video transmission system operating 5.2 GHz bands with OFDM technique. The system consists of INPUT (Model WMT-1000I, server/master mode) and OUTPUT (Model WMT-1000O, client/slave mode). The INPUT transmits A/V signals fed from Satellite or cable TV receiver, VCR, DVD Player, Game console, etc. to the OUTPUT to which an analog TV or HDTV ready TV set is connected. The transfer rate could be 6/9/12/18/24/36/48/54 Mbps. The transmitter has a unique antenna connector, Reverse-Polarity SMA type. Under normal use condition, the user has to keep at least 20 cm separation distance between radiator and the body of the user. For more detailed instruction, please refer to the user's manual. FCC 15.407(c) states: the device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packet (ACKs, CTS, PSPoll, etc.) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore the transmitter will be on only while one of the aforementioned packets are being transmitted.

SK TECH CO., LTD. Page 33 of 35 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O 5.7 RF Exposure 5.7.1 Regulation According to §15.407(f), U-NII devices are subject to the radio frequency radiation exposure requirements specified in §§ 1.1307(b), 2.1091 and 2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a "general population/uncontrolled" environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [mW/cm 2 ] Averaging Time [minute] Limits for General Population/Uncontrolled Exposure 0.3 ~ 1.34 1.34 ~ 30 30 ~ 300 300 ~ 1500 1500 ~ 15000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / *(100) *(180/f 2 ) 0.2 f/1500 1.0 30 30 30 30 30 f = frequency in MHz, * = Plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01 () SPGR RPGS π π 4 4 2 =⇒ = EUT: Maximum peak output power = 11.89[dBm] (= 15.5 [mW]) & Antenna gain = 2.79 [dBi] 100mW, at 20cm from an antenna 6[dBi] S = PG/4πR² = 100 × 3.98 / (4 × π × 400) = 0.0792 [mW/cm 2 ] < 1.0 [mW/cm 2 ] 15.5mW, at 20cm from the antenna 2.79 [dBi] S = PG/4πR² = 0.0059 [mW/cm 2 ] < 1.0 [mW/cm 2 ] 15.5mW, at 5cm from the antenna 2.79 [dBi] S = PG/4πR² = 0.0938 [mW/cm 2 ] < 1.0 [mW/cm 2 ] 15.5mW, at 2.5cm from the antenna 2.79 [dBi] S = PG/4πR² = 0.3752 [mW/cm 2 ] < 1.0 [mW/cm 2 ] NOTE: The antenna used for the EUT is an integral SMD chip antenna. The calculated values of MPE for the EUT show that MPE is safe beyond 2.5 cm from the antenna. 5.7.2 RF Exposure Compliance Issue This information should be included in the user's manual: This appliance and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. S = power density [mW/cm 2 ] P = power input to antenna [mW] G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [cm]

SK TECH CO., LTD. Page 1 of 35 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O Certificate of Compliance Test Report No.: SKTTRT-060406-013 NVLAP CODE: 200220-0 Applicant: Sigmacom Co., Ltd. Applicant Address: DaeGo Bldg, 6F 1591-10 Gwanyang-dong, Dongan-gu, Anyang, 431-060 South Korea Manufacturer: Sigmacom Co., Ltd. Manufacturer Address: DaeGo Bldg, 6F 1591-10 Gwanyang-dong, Dongan-gu, Anyang, 431-060 South Korea Device Under Test: WiViEW FCC ID: PCO-WMT-1000O Model No.: WMT-1000O Receipt No.: SKTEU06-0158 Date of receipt: March 17, 2006 Date of Issue: April 6, 2006 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4, FCC Public Notice DA 02-2138 (August 30, 2002) Test Specification: 47CFR, Part 15 Rules Equipment Class: NII - Unlicensed National Information Infrastructure TX Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Jong-Soo, Yoon 2006.04.06 Approved by: Jae-Kyung, Bae 2006.04.06 Signature Date Signature Date Other Aspects: - Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 35 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O >> CONTENTS << 1. GENERAL ············································································································· 4 2. TEST SITE ············································································································ 4 2.1 Location ········································································································· 4 2.2 List of Test and Measurement Instruments ···················································· 5 2.3 Test Date ········································································································ 5 2.4 Test Environment ··························································································· 5 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ········································· 6 3.1 Rating and Physical Characteristics ······························································ 6 3.2 Equipment Modifications ················································································ 6 3.3 Submitted Documents ···················································································· 6 4. MEASUREMENT CONDITIONS ··········································································· 7 4.1 Description of test configuration ···································································· 7 4.2 List of Peripherals ·························································································· 7 4.3 Uncertainty ····································································································· 7 5. TEST AND MEASUREMENTS ············································································· 8 5.1 ANTENNA REQUIREMENT ·········································································· 8 5.1.1 Regulation ······························································································· 8 5.1.2 Result ······································································································ 8 5.2 MAXIMUM CONDUCTED OUTPUT POWER ··············································· 9 5.2.1 Regulation ······························································································· 9 5.2.2 Test Procedure ························································································ 9 5.2.3 Test Results ··························································································· 10 Table 1: Measured values of the Maximum Conducted Output Power ·············10 Figure 1: Plot of the Maximum Conducted Output Power ·······························11 5.3 PEAK POWER SPECTRAL DENSITY ······················································· 14 5.3.1 Regulation ····························································································· 14 5.3.2 Test Procedure ······················································································ 14 5.3.3 Test Results ··························································································· 15 Table 2: Measured values of the Peak Power Spectral Density ······················15 Figure 2: Plot of the Peak Power Spectral Density ········································15 5.4 PEAK POWER EXCURSION ······································································ 17 5.4.1 Regulation ····························································································· 17 5.4.2 Test Procedure ······················································································ 17 5.4.3 Test Results ··························································································· 17 Table 3: Measured values of the Peak Power Excursion ································17 Figure 3: Plot of the Peak Power Excursion .................................................18 SK TECH CO., LTD. Page 3 of 35 SKT SKTTRT-060406-013 FCC ID: PCO-WMT-1000O 5.5 SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BANDS ········ 20 5.5.1 Regulation ····························································································· 20 5.5.2 Test Procedure ······················································································ 21 5.5.3 Test Results ···························································…
