PCOAS04VGA Card

NEMESIS GEFORCE2 MX200/MX400 User’s Manual Version 1.0 Notice This device has been approved by EMI for home. It can be used in all areas including residential area. 2 FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. - Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 3 Table of Contents Chapter 1 Introduction • Features of NEMESIS GEFORCE2 MX200/MX400 • System Configuration and Each Part Description Chapter 2 Installation • Installation of display drivers Windows 98 Windows ME Windows 2000 Windows NT • Installation of application programs Chapter 3 How to use programs • Using NEMESIS GEFORCE2 MX200/MX400’s utilities • Watching VIDEO CD • Listening to MP3 audio Addendum • Q & A 4 Chapter 1. Introduction Contents of the package Thank you for purchasing the NEMESIS GEFORCE2 MX200/MX400. Please make sure that you have a full content of the NEMESIS GEFORCE2 MX200/MX400 after removing the package. NEMESIS GEFORCE2 MX200/MX400 Board It is equipped in AGP slot of system main board. Installation CD It is an installation CD that contains drivers and programs. User’s manual It describes the installation and use of application programs. 5 Features of NEMESIS GEFORCE2 MX200/MX400 * Powered by nVIDIA’s GeForce 2 MX 200 / MX 400 * Two new Hypertexel pipelines * Up to 20million triangles per second at peak rates * Full scene anti-aliasing and Per-Pixel Shading * Maximum resolution up to 2048x1536 at 75 Hz * 32MB Video Memory support * Integrated 350MHz RAMDAC * AGP 4X/2X with Fast Writes and Execute Mode * DirectX 7.0/OpenGL support * DVD acceleration * 100% hardware triangle setup engine * Transform and Lighting (T&L) Engine * Sigma MP3 Player * Flash ROM BIOS for BIOS update * GigaTexel Shading processing two texture per pixel * Optimized drivers for Windows9x, NT40 and Windows2000 6 System Configuration and Each Part Description z zz z System Configuration To use the NEMESIS GEFORCE2 MX200/MX400 effectively, you need the following configuration. CPU & Main board IBM-PC compatible main board in compliance with AGP 2.0 (More than Intel 440BX or VIA Apollo pro) Intel Pentium II/III CPU or compatible O/S Windows98 Windows98SE WindowsNT4.0 (more than service pack 3) Windows 2000 Windows Me (Sigma VCD /MP3 are for Windows 98(SE).) Software Microsoft DirectX6.1 System memory 32MB or more Peripherals 50MB free hard disk space CD-ROM drive MS Compatible mouse Sound blaster compatible sound card (recommended) 3.5” Floppy Drive Multi-scan monitor 7 z zz z Part Description 1. Monitor connector is connected to the monitor and outputs video signals. 2. Feature connector is a connection jumper for connection with other multimedia products. To use the function, you need to refer to the manual provided by its manufacturer. 3. ROM BIOS is the location of the memory containing basic program code to control the VGA in your system. 4. Video memory is a storage place to have the contents to be displayed on the screen. It is called as Frame buffer or Video buffer. 32MB(or 64MB) high speed SDRAM or DDR SGRAM are provided as standard, which is the maximum amount of memory supported by the NEMESIS GEFORCE2 MX200/MX400. 8 Chapter 2 Installation Installation of display drivers Windows 98 SE In case of installing the NEMESIS GEFORCE2 MX 200/MX 400 with Windows 98 SE If you have installed Windows 98 newly, your system recognizes the video card as “Standard PCI Graphics Adapter [VGA]”. If it has not been set correctly, switch display to “Standard PCI Graphics Adapter [VGA]” and processed the following procedures. 1. Insert the installation CD into the CD-ROM Drive. 2. Click the right mouse button on the Windows screen and select “Properties” on the dialog box. 3. Select “Settings” in “Display properties”. 4. Click “Advanced”, “Adapter” then click “Change...”. 5. “Update Device Driver Wizard” appears then click “Next”. 6. Select “Search foe a better driver than the one your device is using now. [Recommended]”. Click “Next” again. 9 7. Select “Specify a location”. ( Do not select other items.) 8. Select “WIN9X” folder on “MX200-400” folder of CD-ROM drive by using “Browse...” button then click “Next”. 9. If it recognizes “NVIDIA GEFORCE2 MX / MX400”, click “ Next” again. (“NVIDIA GeForce2 MX200” is displayed if you use MX 200,) 10. The appropriate drivers will be copied and the system will be configured automatically. 11. Click “Finish”. 12. If a dialog box appears asking if you want to restart your system, select “Yes”. 10 In case of exchanging the VGA card to the NEMESIS GEFORCE2 MX 200/MX 4…

Text truncated - open the document above for the full version.

          CRTC CHIPGEFORCE 2 MX400SDRAM 64M AGP FlashRom VoltageRegulator Data, ADD.,Controlsignal NEMESIS MX400 PRO MotherBoardSide


     MONITOR CRT 2X/4X BT868/869ENCODER TV

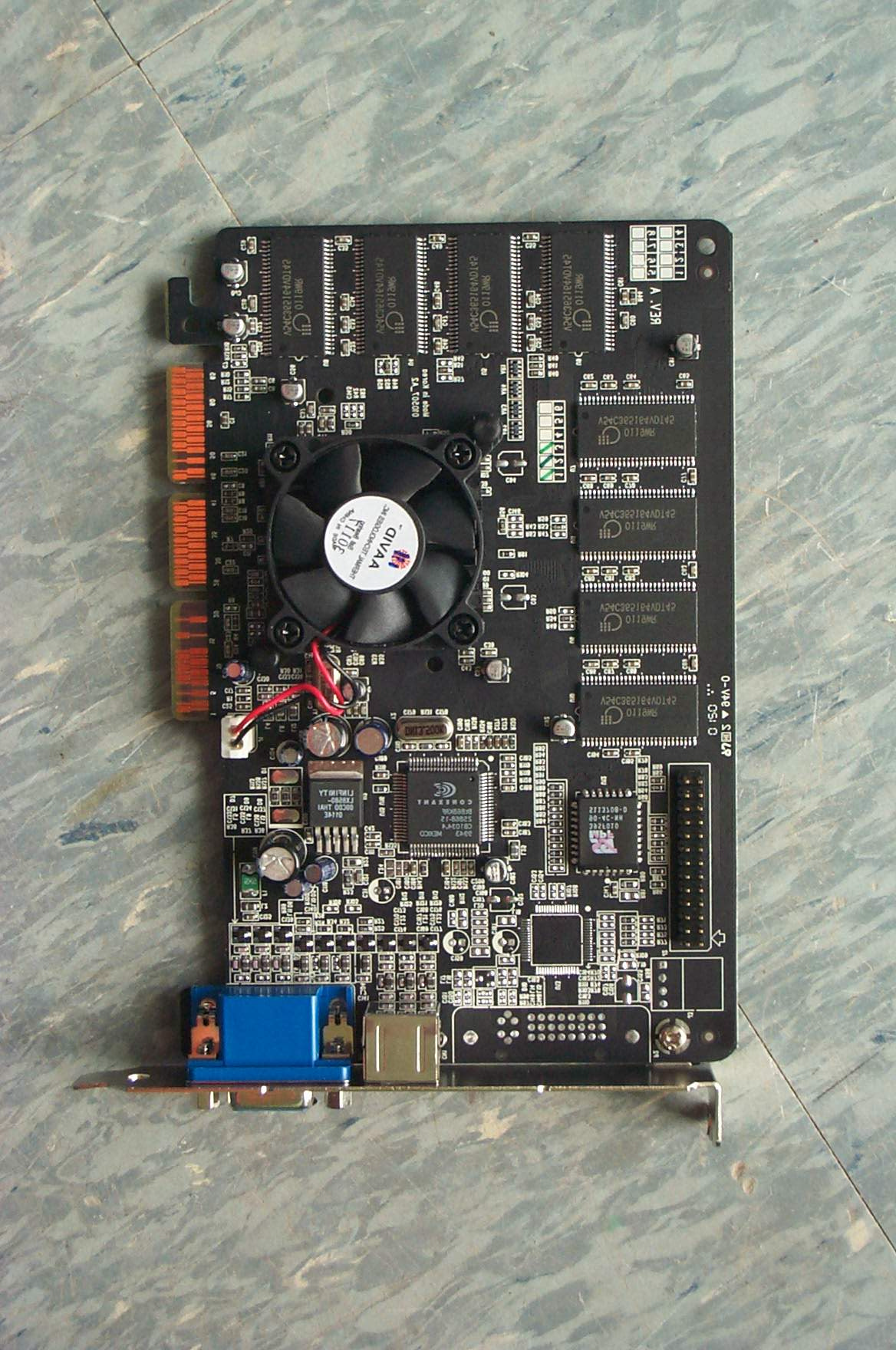

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01094 FCC ID : PCOAS04 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01094 FCC ID : PCOAS04

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01094 FCC ID : PCOAS04 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PCOAS04 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01094 FCC ID : PCOAS04 Internal Photographs of EUT

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-01094 FCC ID : PCOAS04 Certificate of Compliance Test Report No.: SKTOS-01094 NVLAP CODE : 200220-0 Applicant: Sigmacom Co., Ltd. Applicant Address: 4F Anyang Nonghyub B/D, #1588-9, Kwanyang-Dong, Dongan-Ku, Anyang-City, 431-060, Korea Product: VGA CARD FCC ID: PCOAS04 Model No.: NEMESIS Geforce2 MX400 PRO Receipt No.: SKE20010710-545 Date of receipt: July 10, 2001 Date of Issue: July 13, 2001 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:E.K. Seong Tested by:K.W.Song/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-01094 FCC ID : PCOAS04 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. EMISSION Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 》 》》 》List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-01094 FCC ID : PCOAS04 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-01094 FCC ID : PCOAS04 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS 10 862970/019 02.2002 Artificial Mains Network ESH2-Z5 834549/011 10.2001 EMI Receiver ESHS10 385871/002 10.2001 Artificial Mains Network ESH3-Z5 836679/018 10.2001 Conducted Cable N/A N/A 11.2001 z Radiated Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 02.2002 EMI Receiver ESVS 10 834468/008 11.2001 Spectrum Analyzer R3361A 11730187 06.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 02.2002 Biconical Antenna BBA9106 N/A 02.2002 Open Site Cable N/A N/A N/A Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A N/A Amp & Spectrum connection cable N/A N/A N/A 50Ω Switcher MP59B M93083 N/A 2.3 Test Date Date of Application : July 10, 2001 Date of Test : July 11 , 2001 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-01094 FCC ID : PCOAS04 3. Description of the tested samples The EUT is the VGA Card. 3.1 Rating and Physical Characteristics z CRTC Chip (GEFORCE 2 MX) : 1.95Vdc z Memory (4x 16 SDRAM) : 3.3Vdc z ROM (FLASH ROM) : 5Vdc or 3.3Vdc z ENCODER (BT868/869) : 3.3Vdc z Regulator Input : 5Vdc, 3.3Vdc Output : 1.95Vdc 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-01094 FCC ID : PCOAS04 4. Measurement Conditions The operating voltage of EUT is supplied by the PC. (PC Input Voltage : AC 120V, 60Hz ) 4.1 Modes of Operation The EUT was in the following operation mode during all testing; The EUT installed in the PC. And connected with the Monitor. Tested on the mode of scrolling “H” on the screen. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Monitor Samsung SyncMaster750P PG17H3NK700247 DoC Printer H.P 2225C 3245S12493 DSI6XU2225 Keyboard JING MOLD LKB-0107 10209670 N/A Mouse KYE System P801 01053560 FSUGMZFT JoyStick Logitech J-ZA10 LZS01651409 DoC Speaker FAN HAI DIAN CMK660 None DoC Mic LG Electronics None None N/A INNO Dispenser Biopia BD-2000 N/A Doc Personal Computer Mother board Micro-Star MS-6161 96K6262664G1144716 DoC Power supply HIPRO HP-235ATXA6 F3-9911252206 DoC FDD Drive Panasonic JU-257A604P 62638 DoC HDD Quantum Pro Drive LPS 9442203B DoC CD-ROM Drive LG GCD-R560B 6023002365 BEJGCD-R560B SK TECH CO., LTD. Page 7 of 13 SKT SKTOS-01094 FCC ID : PCOAS04 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark PC power cable 1.7m Non-Shield None Monitor Power cable 1.8m Non-Shield Samsung Video interface cable 1.8m Shield Samsung S-Video cable 1.2m Non-Shield None Keyboard interface cable 1.8m Shield JING MOLD Mouse interface cable 1.0m Shield KYE System Printer power cable 1.8m N…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01094 FCC ID : PCOAS04 Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01094 FCC ID : PCOAS04 Photograph 2: Setup for Radiated Emissions
