SIGMA CYBER 5500 II DVI User’s Manual Version 1.0 Notice This device has been approved by EMI for home. It can be used in all areas including residential area. 2 Table of Contents Chapter 1 Introduction • Contents of the package • Features of SIGMA CYBER 5500 DVI • System Configuration and Each Part Description Chapter 2 Installation • Installation of display drivers Windows 98 Windows 2000 Windows NT • Installation of application programs Chapter 3 How to use programs • Using SIGMA CYBER 5500 DVI’s utilities • TwinView function • Watching VIDEO-CD • Listening to MP3 audio Addendum • Q & A 3 Chapter 1. Introduction Contents of the package Thank you for purchasing the Sigma Cyber 5500 DVI. Please make sure that you have a full content of Sigma Cyber 5500 DVI after removing the package. Sigma Cyber 5500 DVI Board It is equipped in AGP slot of system main board and displays the computer screen on your TV. Installation CD It is an installation CD that contains drivers and programs. User’s manual It describes the installation and use of application programs. TV out Y-type cable It is a cable to connect composite or S-VHS TV. 4 Features of Sigma CYBER 5500 DVI * Powered by nVIDIA’s GeForce 2 MX * Two new Hypertexel pipelines * Up to 20million triangles per second at peak rates * Full scene anti-aliasing and Per-Pixel Shading * Maximum resolution up to 2048x1536 at 75 Hz * 32MB Video Memory support * Integrated 350MHz RAMDAC * AGP 4X/2X with Fast Writes and Execute Mode * DirectX 7.0/OpenGL support * DVD acceleration * Dual monitor out support (Twinview) * 100% hardware triangle setup engine * Transform and Lighting (T&L) Engine * Sigma MP3 Player * Flash ROM BIOS for BIOS update * GigaTexel Shading processing two texture per pixel * Optimized drivers for Windows9x, NT40 and Windows2000 5 System Configuration and Each Part Description ! !! ! System Configuration To use Sigma Cyber 5500 DVI effectively, you need the following configuration. CPU & Main board IBM-PC compatible main board in compliance with AGP 2.0 (More than Intel 440BX or VIA Apollo pro) Intel Pentium II/III CPU or compatible O/S Windows98 Windows98SE WindowsNT4.0 (more than service pack 3) Windows 2000 Windows Me (Sigma VCD /MP3 are for Windows 98(SE).) Software Microsoft DirectX6.1 System memory 32MB or more Peripherals 50MB free hard disk space CD-ROM drive MS Compatible mouse Sound blaster compatible sound card (recommended) 3.5” Floppy Drive Multi-scan monitor 6 ! !! ! Part Description Figure1. Sigma Cyber 5500 DVI 1. VGA Monitor output is connected to the monitor and outputs video signals. 2. Composite/S-VHS TV output is to transmit PC screen into Composite/S-VHS signals. 3. DVI-I Dual Link output (24 pins) accepts either a 12- or 24 - pin DVI plug connector or new type of analog plug connector. 4. Feature connector is a connection jumper for connection with other multimedia products. To use the function, you need to refer to the manual provided by its manufacturer. 5. ROM BIOS is the location of the memory containing basic program code to control the VGA in your system. 6. Video memory is a storage place to have the contents to be displayed on the screen. It is called as Frame buffer or Video buffer. 32MB high speed SDRAM or DDR SGRAM are provided as standard, which is the maximum amount of memory supported by the CYBER 5500 DVI. 7 Chapter 2 Installation Installation of display drivers Windows 98 In case of installing the SIGMA CYBER 5500 with Windows 98 If you have installed Windows 98 newly, your system recognizes the video card as “standard PCI graphics adapter”. If it has not been set correctly, switch display to “standard PCI graphics adapter and proceed the following procedures. 1. Insert the installation CD into the CD-ROM Drive. 2. Click the right mouse button on the Windows screen and select “properties” on the dialog box. 3. Select “ settings” in “Display properties”. 4. Click “advanced”, “Adapter” then “Change”. 5. “Device driver update wizard” appears then click “next”. 6. Select your CD-ROM drive and locate WIN9X folder then click “O.K”. (ex, D:\CYBER5500\WINX) 8 7. When it turns back to the “device driver update wizard”, click “Next”. 8. If it recognizes “SIGMA CYBER 5500 DVI”, click “ next” again. 9 Click “Finish”. 10. If a dialog box appears asking if you want to restart your system, select “Yes”. 9 In case of exchanging the VGA card to the CYBER 5500 DVI 1. When Windows 98 begins, the “Add new hardware wizard” dialog box will appear then click “Next”. 2. Click “Display a list of all the drivers in a specific location so you can select the driver you want” and then click “Next”. 3. Select “Disk” in the “Device update wizard” and insert the installation CD into the CD- Rom drive. 4. Click “Find” in “Install from disk” dialog box and select the CD-Rom Drive. 5. Type “E:\WIN9X” then click “O.K” (E is assumed as the letter of your CD-ROM Drive) 6. If “SIGMA CYBER 5500” is in “Display adopter” dialog box, click “O.K”. The appropriate drivers will be copied and the system will be configured automatically. 10 7. If a dialog box appears asking if you want to restart your system, select “Yes”. 11 Windows 2000 In case of installing Windows 2000 in your system that has the SIGMA CYBER 5500 DVI When you install Windows 2000 in condition that the SIGMA CYBER 5500 DVI has been installed, Adapter type is set to “VGA”. You can find ‘Video controller (VGA compatible) in “Other device” in ‘Device manager’ 1. Insert the installation CD into your CD-ROM Drive. 2. Click the right mouse button on the “My Computer” and select “properties”. 3. Select “hardware” tab and click “Device manager” then the device manager dialog box and Video controller (VGA compatible) in “Other devices” appear. 4. Select “Video controller (VGA compatible)” and then “Properties”. 5. Select “Driver’ tab and click “Driver update”. 6. “Driver upgrade wizard” or ‘New hardware search wizard” appears. Then click “Next”. 7. Select “Search for the best driver f…

Text truncated - open the document above for the full version.

          CRTC 2M X 32SDRAM Total : 32M AGP 2X / 4X MONITOR Voltage LPB / Feature Con (1.95V) Data,Add,Co nsignal Data,Add,Consignal Pixel Data.Clock, H.V SYNC IIC Clock.Data BIOS 14.31818Mhz GEFORCE 2MX SIGMA Cyber5500II CLOCK DVI- IMONITOR TV



    BT868 SIL154/164 TMDS




SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00139 FCC ID : XXXCYBER5500II IIII II External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00139 FCC ID : XXXCYBER5500II IIII II

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-00139 FCC ID : PCOCYBER5500II IIII II FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PCOCYBER5500 II IIII II This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

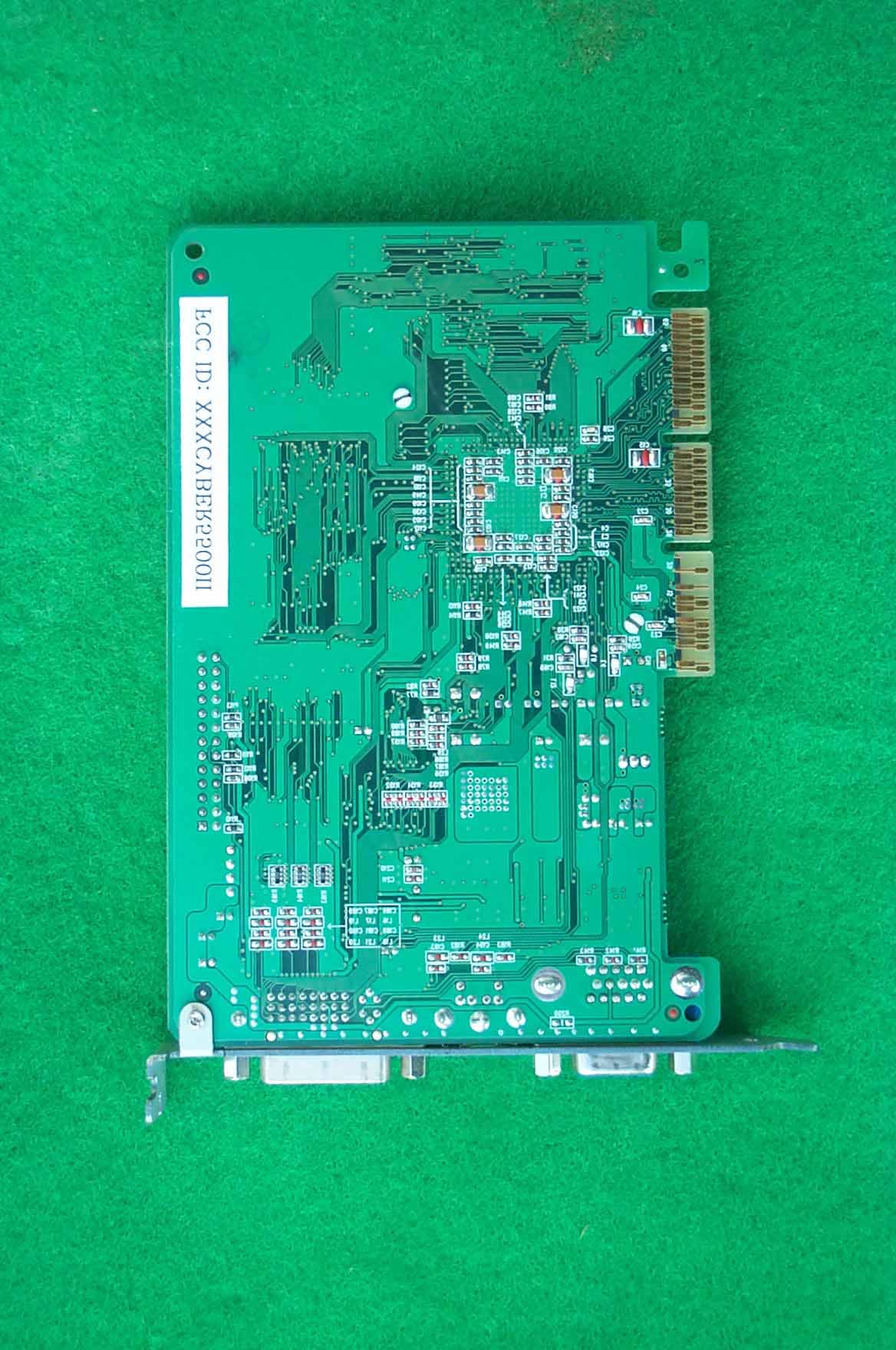

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-00139 FCC ID : XXXCYBER5500II IIII II Internal Photographs of EUT

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-00139 FCC ID : PCOCYBER5500 II Certificate of Compliance Test Report No.: SKTOS-00139 NVLAP CODE : 200220-0 Applicant: Sigmacom Co., Ltd. Applicant Address: 4F Anyang Nonghyub B/D, #1588-9, Kwanyang-Dong, Dongan-Ku, Anyang-City, 431-060, Korea Product: VGA Card FCC ID: PCOCYBER5500 II Model No.: SIGMA Cyber 5500 II Receipt No.: SKE20001103-805 Date of receipt: Nov. 03, 2000 Date of Issue: Nov. 07, 2000 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H. Kang Tested by:K.T.Lee/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-00139 FCC ID : XXXCYBER5500 II 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Data 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted documents 5 4. Measurement conditions 6 4.1 Modes of operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. Emission Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 》 》》 》List of Tables Table 1 List of test and measurement equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-00139 FCC ID : XXXCYBER5500 II 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-00139 FCC ID : XXXCYBER5500 II 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESHS 10 862970/019 04.2001 LISN KNW-407 M63284 07.2001 LISN ESH2-Z5 862060/029 06.2001 Conducted Cable N/A N/A 07.2001 z Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESVS 10 825120/013 04.2001 Spectrum Analyzer R3361A 11730187 07.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 04.2001 Biconical Antenna BBA9106 N/A 04.2001 Open Site Cable N/A N/A 07.2001 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A 07.2001 Amp & Spectrum connection cable N/A N/A 07.2001 50Ω Switcher MP59B M93083 07.2001 2.3 Test Date Date of Application : Nov. 03, 2000 Date of Test : Nov. 07, 2000 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-00139 FCC ID : XXXCYBER5500 II 3. Description of the tested samples The EUT is VGA Card. 3.1 Rating and Physical Characteristics • CHIP : GeForce 2MX • Bus Type : 2X/4X AGP • Memory Type and Size : 2M x 32 SDRAM 32Mbyte • I/O port : DVI-I, CRT, TV • Memory Clock : 166 MHz • Power : DC 1.95V • Supports stable 2048 x 1536 high resolution through 350MHz Ramdec 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-00139 FCC ID : XXXCYBER5500 II 4. Measurement Conditions Testing Input Voltage : AC 120V, 60Hz 4.1 Modes of Operation The EUT was in the following operation mode during all testing; Setting the PC and supports twin-view function. Test to view with two monitors at the same time. Check to normal operating condition. (“H” scrolling) 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Monitor Samsung SyncMaster750P PG17HS9U/ADC DoC TFT Monitor Samsung 770TFT(DV17AS) GR17H DoC Printer H.P 2225C 3245S12493 DSI6XU2225 Keyboard I-GANG Industries IGK-2000i 100060126134 HQKBITS9001 Mouse 1 Logitech M-S48 LZA91457567 DZL211153 Mouse 2 Logitech M-BE55 LZE02551778 DoC Mouse 3 A4 TECH AM-5E 951237243 HBGAM555P Joystick Logitech J-ZA10 LZS01651409 DoC Speaker CAMAC CMK660 None DoC MIC N/A N/A N/A N/A Personal Computer Mother board Micro-Star MS-6161 96K6262664G1144716 DoC Power supply HIPRO HP-235ATXA6 F3-9911252206 DoC FDD Drive Panasonic JU-257A604P 62638 DoC HDD Quantum Pro Drive LPS 9442203B DoC CD-ROM Drive LG GCD-R560B 6023002365 BEJGCD-R560B SK TECH CO., LTD. Page 7 of 13 SKT SKTOS-00139 FCC ID : XXXCYBER5500 II 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark Monitor interface cable 1.5m Shield Samsung For EUT TFT Monitor interface cable 1.5m Shield Samsung For EUT PC power cable 1.8m Shield Wonderful Monitor power cable 1.8m Shield Wonderful Sp…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00139 FCC ID : XXXCYBER5500II IIII II Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00139 FCC ID : XXXCYBER5500II IIII II Photograph 2: Setup for Radiated Emissions
