PCU-JLDK-18-1Wireless remote handset

OKIN Refined Electric Technology Co., Ltd Page 1 of 5 Operating Manual of Remote Hand Control 1、Interface of the Handset 2、Button description A. button: Press the button, the head and foot motor will move simultaneously and do not stop until return to the position of the system set (reading position). You can press any button to stop action during moving. B. button: Press the button, the head and foot motor will move simultaneously and do not stop until return to the position of the system set (recline position). You can press any button to stop action during moving. C. button: Press the button, the head and foot motor will move simultaneously and do not stop until return to the position of the system set (zero gravity position). You can press any button to stop action during moving. The reading, recline and zero gravity position can be changed by the end user. Step 1: Adjust the head position and feet position to a desired position; Step 2: Press and hold the button for 3sec, backlight LED start flashing; Step 3: Release button, during next 1sec, press oror button, LED stop flashing. Then the corresponding position is updated successfully. OKIN Refined Electric Technology Co.,Ltd Page 2 of 5 D. HEAD button：Press and hold the button, the head motor will go up or down. E. FEET button：Press and hold the button, the foot motor will go up or down. F. FLAT button：Press the button, the head and foot motor will move down to the flat position simultaneously. You can press any button to stop action during moving. G. HEAD Massage ON/OFF button： Press the button to turn on or turn off the vibrating of the head vibrator; H. FEET Massage ON/OFF button： Press the button to turn on or turn off the vibrating of the feet vibrator; I. HEAD and FEET Massage intensity button： Press the button to change circularly the vibrating intensity of the head and feet vibrator by one level, total 3 levels; J. Massage time button： Press the button and released to stop all moves and change circularly the vibrating time of the head and feet vibrator by one level, total 4 levels; The indication of the vibrating time is below: The yellow LED on-------10minutes OKIN Refined Electric Technology Co.,Ltd Page 3 of 5 The blue LED on-------20minutes Both of the yellow LED and the blue LED on-------30minutes Both of the yellow LED and the blue LED off-------forever 3、Wireless Matching operation Step 1: Set up DIP switch to a desired channel; The below is only for example. Step 2: Disconnect the DC plug (not the AC plug) of the control box from the SMPS to turn off the power; DC plug control box SMPS AC plug OKIN Refined Electric Technology Co.,Ltd Page 4 of 5 Step 3: Two seconds later connect again the DC plug of the control box to the SMPS to turn on the power. Step 4: Press simultaneously and hold the head up button and feet up button on the handset until backlight LED flashing. Release the two buttons and LEDs continue flashing and search with control box, once the LEDs stop flashing the matching is successful, which means the control box and the handset can work together. All matching set up process must finish in two minutes after turning on again the power of the control box. Configuring two beds to a big bed Connect the two control boxes with the cable as below, as do this, the two beds can work synchronously. Usage notice of the Control Box 1. The control box is designed for using the SMPS of 29VDC/ around 2A as the power. It is necessary to use the SMPS provided by us when normal operation. 2. In the case of the AC power utility failure, the battery box for backup of 18VDC can be used as the power. It is only for flatting the bed plate without load if the battery box used as the power and each one of the batteries must be new with 9V voltage. Due to the electric quantity of the batteries limit it is impossible to move repeatedly the bed plate, it is strongly recommended to use in turn the button “Head Down” and “Feet Down” to drive the head motor and feet motor in turn not simultaneously to flat the bed plate. Not to use the button “Flat” to flat the bed plate, in this way the battery voltage will be pulled down by the bigger current because the head motor and the feet motor is driven simultaneously, that perhaps results the motors will not work normally. It isn’t also strongly recommended to start the massage motors when the battery box used as power. FCC STATEMENT: FCC ID: PCU-JLDK-18-1 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. OKIN Refined Electric Technology Co.,Ltd Page 5 of 5 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 OKIN Refined Electric Technology Co., Ltd. May 29, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, OKIN Refined Electric Technology Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID: PCU-JLDK-18-1 Wireless remote handset Model name: JLDK.18.01 We affirm that between SIEMIC and OKIN Refined Electric Technology Co., Ltd, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Minglong Lei Title: General Manager OKIN Refined Electric Technology Co., Ltd. Address: Plant 4, No. 410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Telephone: 0086-573-82281072 Fax : 0086-0573-82280968 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 OKIN Refined Electric Technology Co., Ltd. May 29, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PCU-JLDK-18-1 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Minglong Lei Title: General Manager OKIN Refined Electric Technology Co., Ltd. Address: Plant 4, No. 410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Telephone: 0086-573-82281072 Fax : 0086-0573-82280968 E-mail: [email protected]

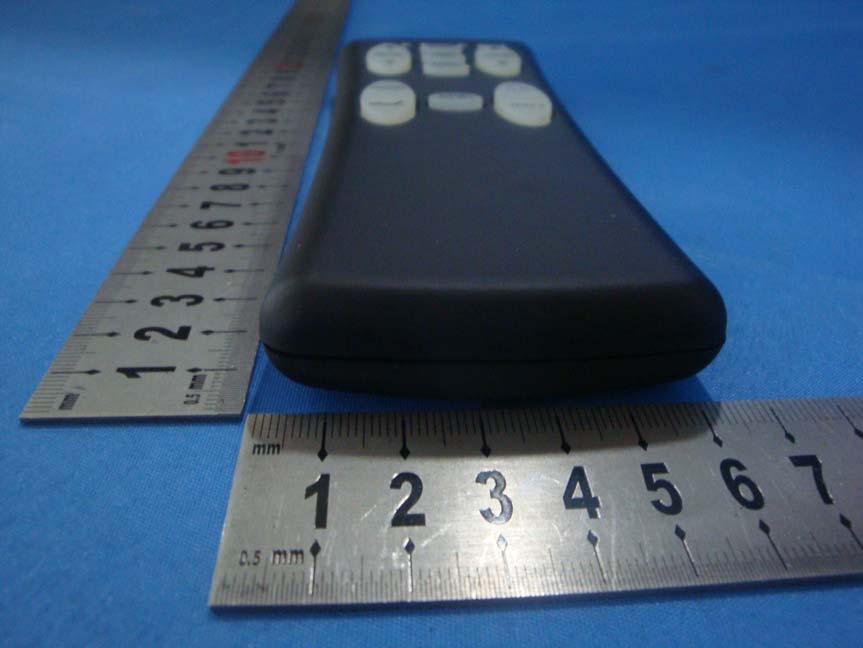

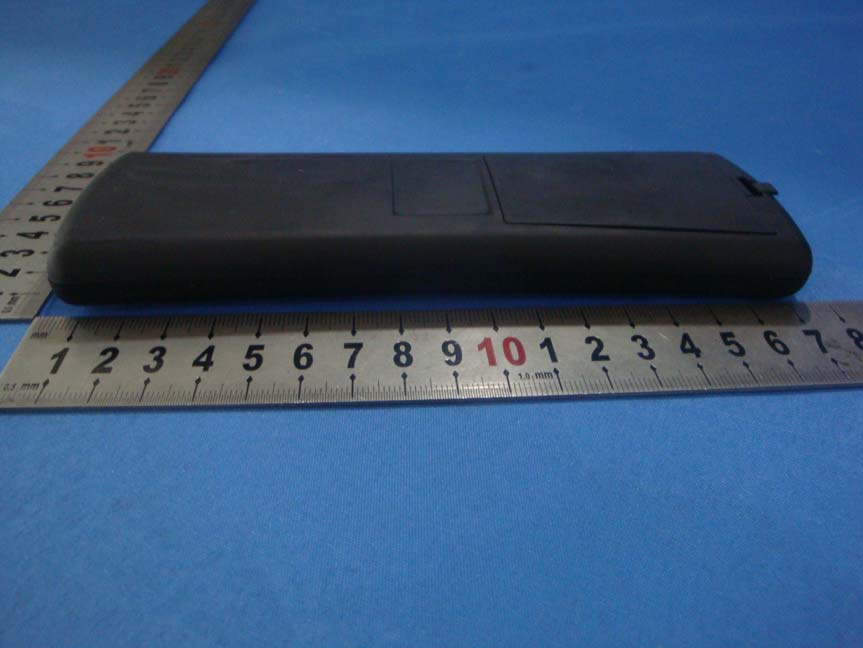

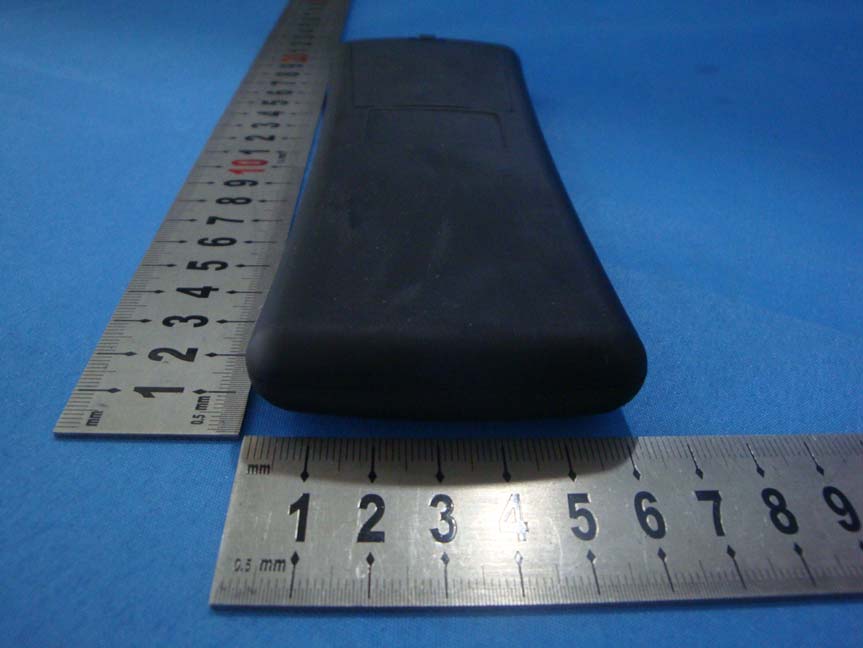

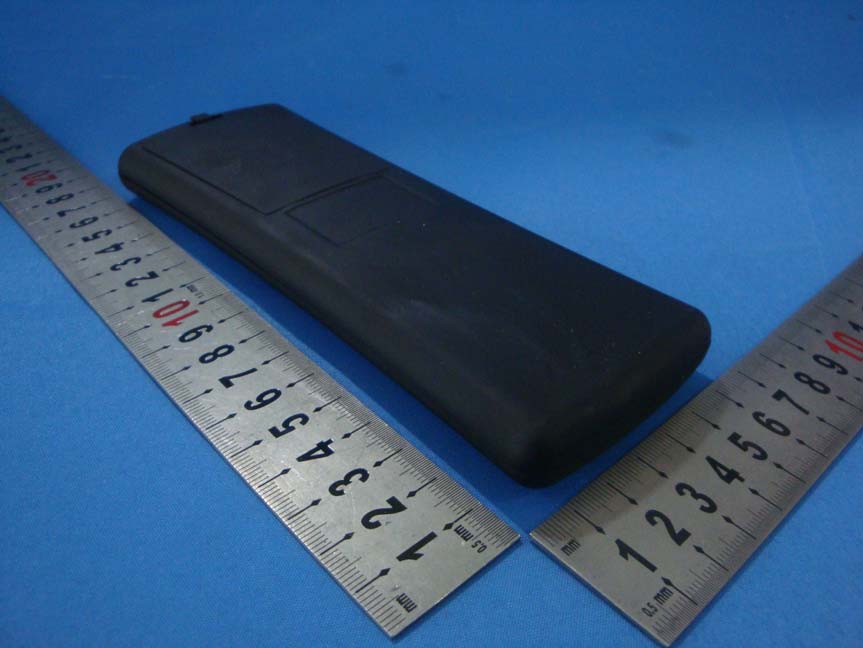

External photos:

Internal photos:

NINGBO EMTEK CO., LTD. REPORT NO: EN130503006F FCC ID: PCU-JLDK-18-1 DATE: 05/30/2013 Page 1 of 23 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART B &C REQUIREMENT OF Wireless remote handset MODEL No.: JLDK.18.01 FCC ID: PCU-JLDK-18-1 REPORT NO: EN130503006E ISSUE DATE: May 30, 2013 Prepared for OKIN REFINED ELECTRIC TECHNOLOGY CO., LTD. Plant 4, No.410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Prepared by NINGBO EMTEK CO., LTD 1F Building 4, 1177#, Lingyun Road, Ningbo National Hi-Tech Zone, Ningbo, Zhejiang, China TEL: 0086-574-27907998 FAX: 0086-574-27721538 NINGBO EMTEK CO., LTD. REPORT NO: EN130503006F FCC ID: PCU-JLDK-18-1 DATE: 05/30/2013 Page 2 of 23 VERIFICATION OF COMPLIANCE Applicant: OKIN REFINED ELECTRIC TECHNOLOGY CO., LTD. Plant 4, No.410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Product Description: Wireless remote handset Model Number: JLDK.18.01 File Number: EN130503006F Date of Test: May 06, 2013 to May 27, 2013 We hereby certify that: The above equipment was tested by NINGBO EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved By Andy.wang/Manager NINGBO EMTEK CO., LTD. NINGBO EMTEK CO., LTD. REPORT NO: EN130503006F FCC ID: PCU-JLDK-18-1 DATE: 05/30/2013 Page 3 of 23 Table of Contents 1. GENERAL INFORMATION ........................................................................................................... 4 1.1. Product Description...................................................................................................................... 4 1.2. Related Submittal(s) / Grant (s) ................................................................................................... 4 1.3. Test Methodology ........................................................................................................................ 4 1.4. Special Accessories ...................................................................................................................... 4 1.5. Equipment Modifications ............................................................................................................. 4 1.6. Test Facility .................................................................................................................................. 5 1.7. Measurement Uncertainty ............................................................................................................ 5 2. SYSTEM TEST CONFIGURATION ............................................................................................. 6 2.1. EUT Configuration ...................................................................................................................... 6 2.2. EUT Exercise ............................................................................................................................... 6 2.3. Requirement for Compliance ....................................................................................................... 6 2.4. Configuration of Tested System ................................................................................................... 8 2.5. Description of support units ......................................................................................................... 8 3. SUMMARY OF TEST RESULTS ................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................ 9 5. RADIATED EMISSION TEST ..................................................................................................... 10 5.1. Measurement Procedure ............................................................................................................. 10 5.2. Measurement Equipment Used: ................................................................................................. 10 5.3. Test SET-UP ............................................................................................................................... 10 5.4. Radiated Measurement Result ................................................................................................... 12 5.5. Radiated Measurement Photos: .................................................................................................. 18 6. BAND EDGES MEASUREMENT ................................................................................................ 20 6.1. Standard Applicable ................................................................................................................... 20 6.2. Measurement Procedure ............................................................................................................. 20 6.3. Measurement Equipment ........................................................................................................... 20 6.4. Test Setup ................................................................................................................................... 20 6.5. Test Results ................................................................................................................................ 20 7. ANTENNA APPLICATION ........................................................................................................... 23 7.1. Standard Applicable ................................................................................................................... 23 7.2. Antenna Construction .................................................…

Text truncated - open the document above for the full version.

Setup photos 30M~1000MHz: Above 1000MHz:
