PCU-JLDK-18-4Wireless remote handset

OKIN Refined Electric Technology Co., Ltd Page 1 of 8 Operating Manual of Remote Control system 1、 Interface of the remote control 2、Button description A. HEAD UP button：Press and hold the button, the Head actuator will go up. Stop when released. OKIN Refined Electric Technology Co., Ltd Page 2 of 8 B. HEAD DN button：Press and hold the button, the Head actuator will go down. Stop when released. C. FOOT UP button：Press and hold the button, the Foot actuator will go up. Stop when released. D. FOOT DN button：Press and hold the button, the Foot actuator will go down. Stop when released. E. HEAD & FOOT UP button：Press and hold the button, the Head and Foot actuator will simultaneously go up. Stop when released. F. HEAD & FOOT DN button：Press and hold the button, the Head and Foot actuator will simultaneously go down. Stop when released. G. ZERO GRAVITY button: Click the button, the Head and Foot actuator will start up and keep running until arriving to the zero gravity position. Running can be stopped by clicking any button. H. ANTI SNORE button: Click the button, the Head and Foot actuator will start up and keep running until arriving to the ANTI SNORE position. Running can be stopped by clicking any button. I. FLAT button: Click the button, the Head and Foot actuator will start up and keep running until arriving to the FLAT position. Running can be stopped by clicking any button. J. MEMORY A button: Click the button, the Head and Foot actuator will start up and keep running until arriving to the Memory A position preset by user. Running can be stopped by clicking any button. K. MEMORY B button: Click the button, the Head and Foot actuator will start up and keep running until arriving to the Memory B position preset by user. Running can be OKIN Refined Electric Technology Co., Ltd Page 3 of 8 stopped by clicking any button. The blue LEDs for backlight are on as long as any button is pressed. IF all buttons are released the LEDs will automatically turn off three seconds later. The blue LED for power is always on as long as the power on. The below positions can be changed or set by the end user. The Zero gravity position; The Memory A position; The Memory B position; The procedure to set these special positions is below: Step 1: Click the button to flat the bed; Step 2: Adjust the Head and Foot position to a desired position by pressing the button HEAD_ UP or HEAD_DOWN or FOOT_UP or FOOT_DOWN; Step 3: Press and hold the button for 3sec, backlight LED start flashing; Step 4: Release the button then click one of oror button before LED stop flashing. Then the Flashing stops immediately to indicate the corresponding operating has completed successfully. ALL of the Zero gravity position and the Memory A position and the Memory B position can be restored to default sets by pressing and holding the button for approximate six seconds until the backlight LEDs finally stop flashing from first flashing. L. FLASHLIGHT button：Click the button, the Flashlight on the remote control will turn on if it is being off or turn off if it is being on. If the Flashlight is turning on as the button pressed, it will keep on as long as the button pressed. When the button is released, the Flashlight will still keep on for several seconds then turn off with the backlight turning off together. OKIN Refined Electric Technology Co., Ltd Page 4 of 8 M. UNDERLIGHT button：Click the button, the Under-light under the bed will turn on if it is being off or turn off if it is being on. If the Under-light is turning on as the button pressed, it will keep on for 5 minutes then turn off automatically if the button isn’t pressed again. N. Massage INTENSITY ICREASEMENT button： Click the button the vibrating intensity will raise up one level, total 3 levels. O. Massage INTENSITY DECREASEMENT button： Click the button the vibrating intensity will lower down one level, total 3 levels. The number of level represents the vibrating intensity. More big number of the level, more strongly vibrating it is. The strongest vibrating is level 3, and the weakest is level 1. Implement adjustment of the vibrating intensity is the way known as “PWM”. Different duty cycle of PWM makes different intensity. The value of the duty cycle corresponding to the level is below: Duty cycle Level 20% 1 35% 2 50% 3 P. Massage SPEED INCREASEMENT button： If the vibrating has started up, click the button, the vibrating speed will raise up one level, total 4 levels. Q. Massage SPEED DECREASEMENT button： If the vibrating has started up, click the button, the vibrating speed will lower down one level, total 4 levels. The “Speed” essentially represents the vibrating mode. The mode in speed level 0~2 is that the motor vibrates at intervals and the mode in speed level 3 does continuously. The intervals and the corresponding level are below: ON time OFF time Level OKIN Refined Electric Technology Co., Ltd Page 5 of 8 500mS 500mS 0 350mS 350mS 1 200mS 200mS 2 Continuous 3 Note: ON time-----On vibrating OFF time-----Stop vibrating PS: If the vibrator has stopped, press any one of the four buttons of , the vibrator will start up in the intensity of level one and in the previous speed. J. Massage time button： Press the button and released to stop all moves （including the actuators and vibrator） and change circularly the vibrating time of the vibrator by one level once, total 3 levels。 The time means that vibrating keeps on for this period then automatically stops if no any button related to vibrating is pressed again. The time and the LED indication are below: This LED flash a time, the vibrating time is 10minutes; This LED flash a time, the vibrating time is 20minutes; This LED flash a time, the vibrating time is 30minutes; 3、Wireless pairing operation Step1: Push the DIP Switch on the remote control to a certain position (different from the position on the other remote controls paired with the near other control boxes) and put in the batteries. Step2: Power on the control box. Ste…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 OKIN Refined Electric Technology Co., Ltd. July 31, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, OKIN Refined Electric Technology Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: PCU-JLDK-18-4 Wireless remote handset Model name: JLDK.18.04.02, JLDK.18.04.03, JLDK.18.04.05, JLDK.18.04.06 Sincerely, Minglong Lei/ General Manager OKIN Refined Electric Technology Co., Ltd. Address: Plant 4, No. 410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Telephone: 0086-573-82281072 Fax: 0086-0573-82280968 E-mail: [email protected] SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 4.0 OKIN Refined Electric Technology Co., Ltd. July 31, 2014 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, OKIN Refined Electric Technology Co., Ltd. hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): PCU-JLDK-18-4 Wireless remote handset Model name: JLDK.18.04.02, JLDK.18.04.03, JLDK.18.04.05, JLDK.18.04.06 We affirm that between SIEMIC, Inc. and OKIN Refined Electric Technology Co., Ltd, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Minglong Lei/ General Manager OKIN Refined Electric Technology Co., Ltd. Address: Plant 4, No. 410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Telephone: 0086-573-82281072 Fax: 0086-0573-82280968 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 OKIN Refined Electric Technology Co., Ltd. July 31, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PCU-JLDK-18-4 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Minglong Lei/ General Manager OKIN Refined Electric Technology Co., Ltd. Address: Plant 4, No. 410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Telephone: 0086-573-82281072 Fax: 0086-0573-82280968 E-mail: [email protected]

July 31, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA We, OKIN Refined Electric Technology Co., Ltd hereby declare: Models JLDK.18.04.02 and JLDK.18.04.05 are designed with nine buttons; they are identical except the printed logo. Models JLDK.18.04.03 and JLDK.18.04.06 are designed with eighteen buttons; they are identical except the printed logo. Models with nine buttons and those with eighteen buttons are the same in structure and PCB board Minglong Lei/ General Manager OKIN Refined Electric Technology Co., Ltd. Address: Plant 4, No. 410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Telephone: 0086-573-82281072 Fax: 0086-0573-82280968 E-mail: [email protected]

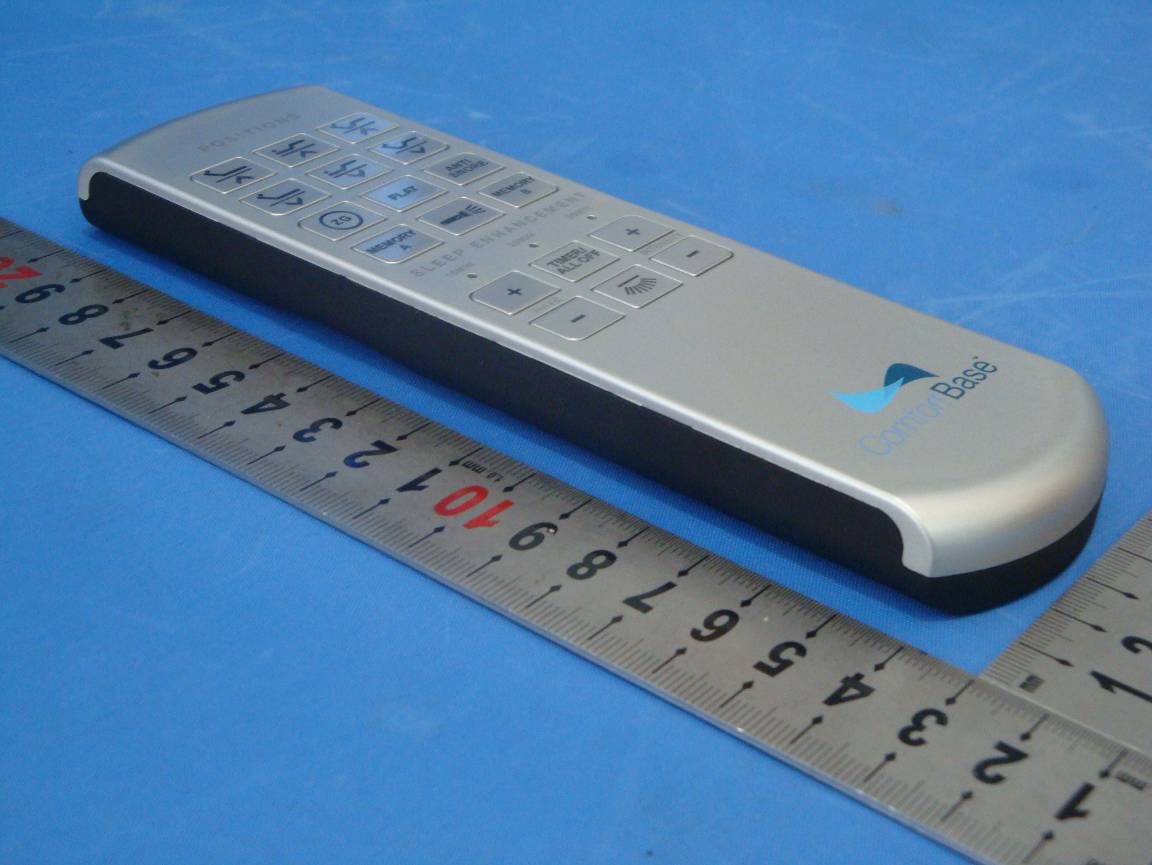

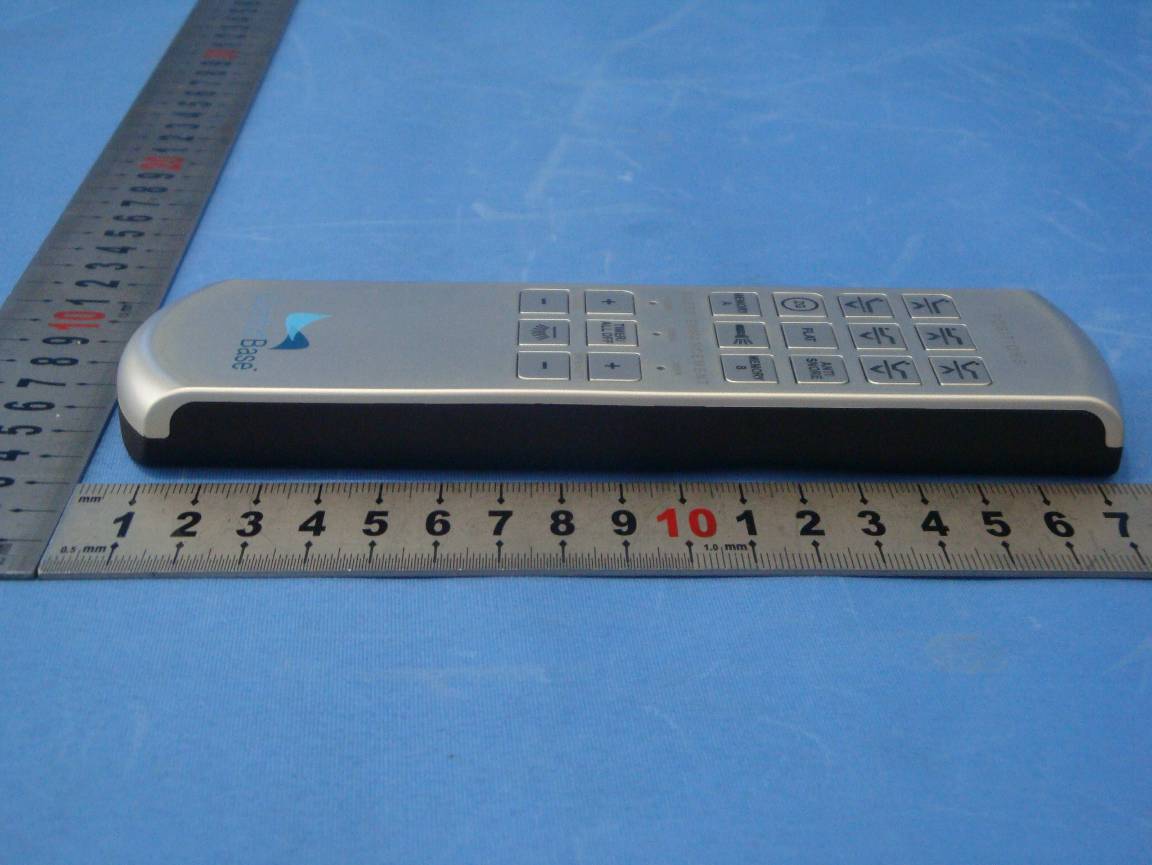

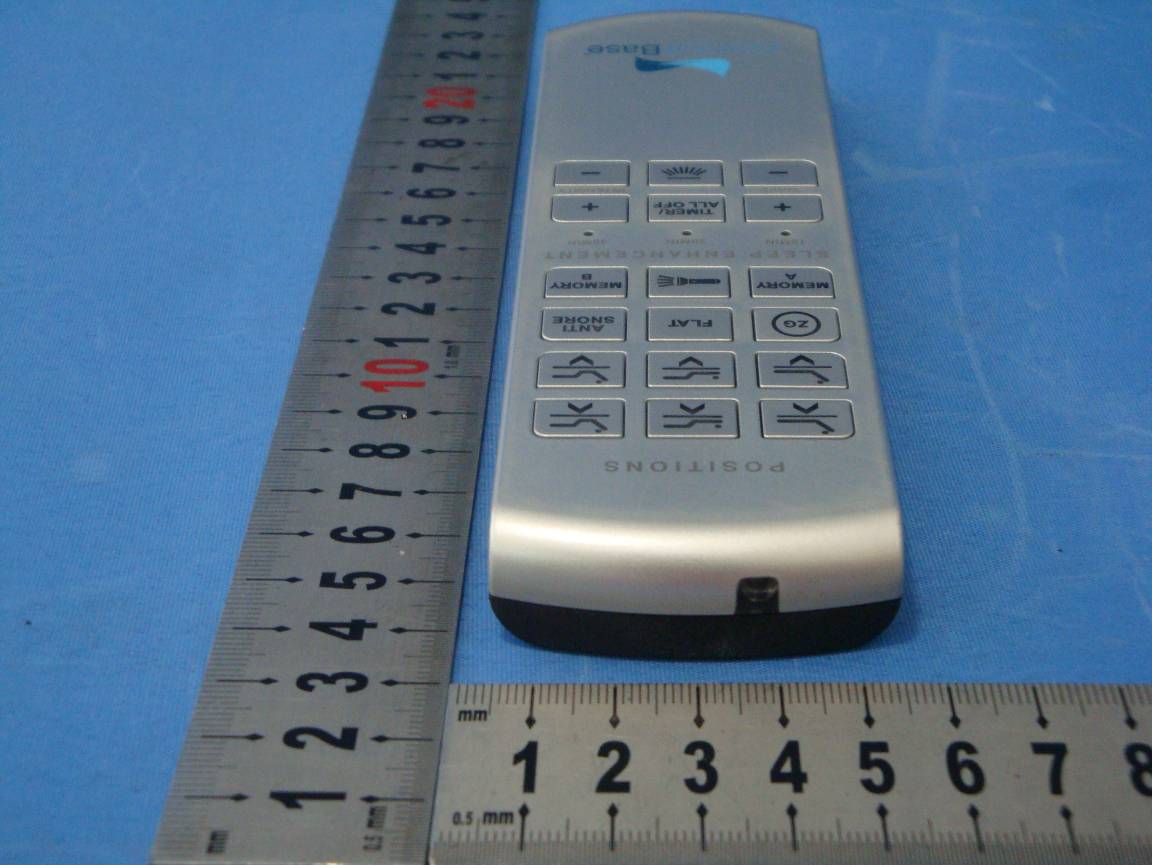

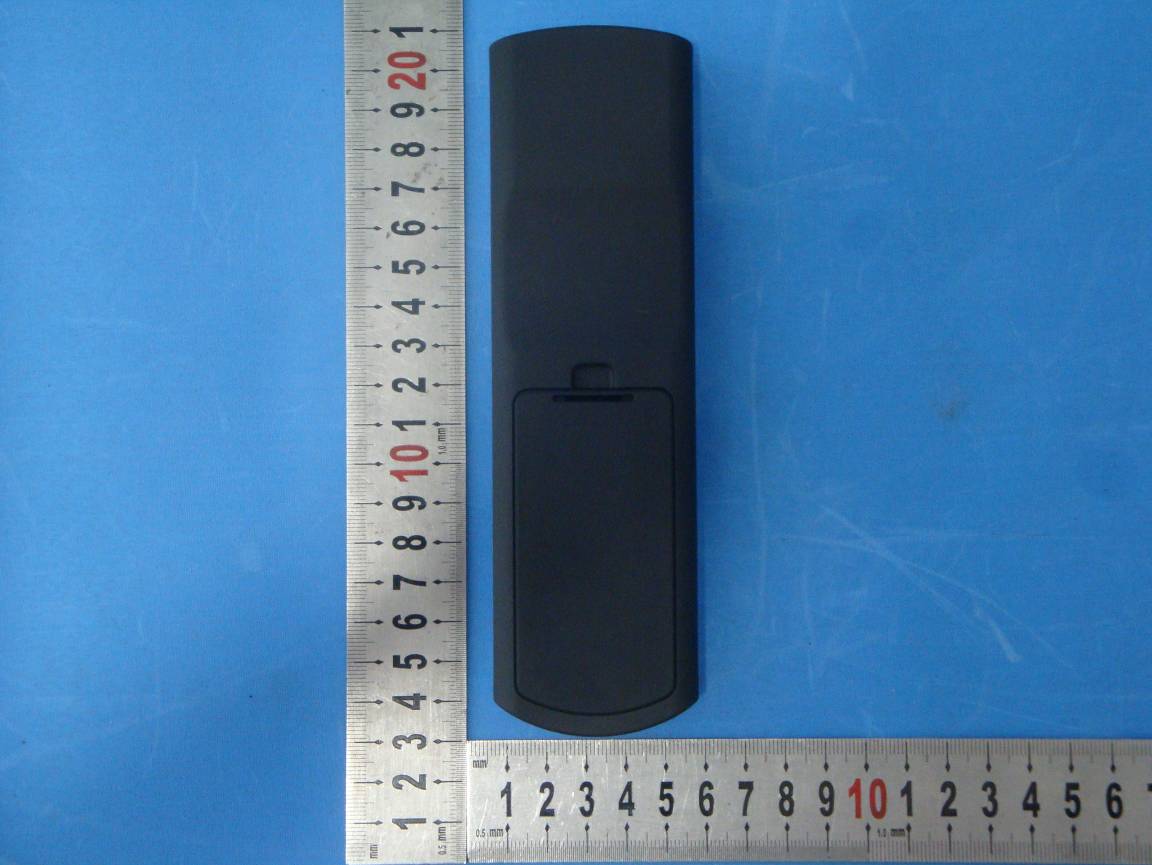

External photos:

Internal photos:

NINGBO EMTEK CO., LTD. REPORT NO: EN140708024E FCC ID: PCU-JLDK-18-4 DATE: 08/04/2014 Page 1 of 21 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART B &C REQUIREMENT OF Wireless remote handset MODEL No.: JLDK.18.04.03 Serial Model: JLDK.18.04.02, JLDK.18.04.05, JLDK.18.04.06 FCC ID: PCU-JLDK-18-4 REPORT NO: EN140708024E ISSUE DATE: August 04, 2014 Prepared for OKIN REFINED ELECTRIC TECHNOLOGY CO., LTD. Plant 4, No.410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Prepared by NINGBO EMTEK CO., LTD 1F Building 4, 1177#, Lingyun Road, Ningbo National Hi-Tech Zone, Ningbo, Zhejiang, China TEL: 0086-574-27907998 FAX: 0086-574-27721538 NINGBO EMTEK CO., LTD. REPORT NO: EN140708024E FCC ID: PCU-JLDK-18-4 DATE: 08/04/2014 Page 2 of 21 VERIFICATION OF COMPLIANCE Applicant: OKIN REFINED ELECTRIC TECHNOLOGY CO., LTD. Plant 4, No.410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Product Description: Wireless remote handset Model Number: JLDK.18.04.03 Serial Model: JLDK.18.04.02, JLDK.18.04.05, JLDK.18.04.06 (Note: All the models are identical in interior structure and PCB, the only difference is the number of the buttons on the surface.) File Number: EN140708024E Date of Test: July 08, 2014 to August 04, 2014 We hereby certify that: The above equipment was tested by NINGBO EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved By Andy.wang/Manager NINGBO EMTEK CO., LTD. NINGBO EMTEK CO., LTD. REPORT NO: EN140708024E FCC ID: PCU-JLDK-18-4 DATE: 08/04/2014 Page 3 of 21 Table of Contents 1. GENERAL INFORMATION ........................................................................................................... 4 1.1. Product Description...................................................................................................................... 4 1.2. Related Submittal(s) / Grant (s) ................................................................................................... 4 1.3. Test Methodology ........................................................................................................................ 4 1.4. Special Accessories ...................................................................................................................... 4 1.5. Equipment Modifications ............................................................................................................. 4 1.6. Test Facility .................................................................................................................................. 5 1.7. Measurement Uncertainty ............................................................................................................ 5 2. SYSTEM TEST CONFIGURATION ............................................................................................. 6 2.1. EUT Configuration ...................................................................................................................... 6 2.2. EUT Exercise ............................................................................................................................... 6 2.3. Requirement for Compliance ....................................................................................................... 6 2.4. Configuration of Tested System ................................................................................................... 7 2.5. Description of support units ......................................................................................................... 8 3. SUMMARY OF TEST RESULTS ................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................ 9 5. RADIATED EMISSION TEST ..................................................................................................... 10 5.1. Measurement Procedure ............................................................................................................. 10 5.2. Measurement Equipment Used: ................................................................................................. 10 5.3. Test SET-UP ............................................................................................................................... 11 5.4. Radiated Measurement Result ................................................................................................... 11 5.5. Radiated Measurement Photos: .................................................................................................. 18 6. BAND EDGES MEASUREMENT ................................................................................................ 19 6.1. Standard Applicable ................................................................................................................... 19 6.2. Measurement Procedure ............................................................................................................. 19 6.3. Measurement Equipment ........................................................................................................... 19 6.4. Test Setup ................................................................................................................................... 19 6.5. Test Results ................................................................................................................................ 19 7. ANTENNA APPLICATION ....................................................................…

Text truncated - open the document above for the full version.

Setup photos 30M~1000MHz: Above 1000MHz:
