PCU-JLDK-21-01Shenzhou Spaceship2012 Wireless remote handset

OKIN Refined Electric Technology Co., Ltd Operating Manual of Remote Hand Control 1、 Interface of the Handset S3 2、 Button description A．Press button(S1) and hold until you bring the chair to a seated position. If you release the button, the motor will immediately shut off. B．Press button(S2) and hold until you bring the chair to a reclined position. If you release the button, the motor will immediately shut off. C． Double press button(S3) and the Remote handset will enter a connecting state for 30s. During this time, If a nearby Control box is also in connecting state, they will be connected with each other. 3、 indicator light description A. Only orange light flashing indicates that the motor is running to a seated position normally. B. Only blue light flashing mostly indicates that the motor is running to a reclined S1 S2 OKIN Refined Electric Technology Co., Ltd position normally. Sometimes, it indicates the Remote handset being in a connecting state. C. Both of the indicator lights flashing 3 times indicates something wrong happened to the Remote handset during operation, as follows: a. In connecting state, the Remote handset fail to connect to a Control box. b. In connected state, if you press button(S1 or S2), the control commands cannot reach the Control box. 4、 To connect the Remote handset to a Control box Step1: Connect the DC plug of the Actuator to the SMPS to turn on the power. Connect the 5-pin plug of the Control box to the Actuator. AC plugSMPS DC plug 5-pin plug Control box Step2: Double press the button of the Control box. The light going on indicates the Control box entered a connecting mode for 30s. Step3: Double press button(S3) and the blue light flashing indicates the Remote handset being in a connecting mode. Step4: When flashing blue light goes out, the Remote handset and the Control box are connected. If blue light flashing state turns to double indicator lights flashing 3 times, it means the Remote handset fails to connect to the Control box. At this OKIN Refined Electric Technology Co., Ltd time, you should repeat step2 ~ step4. FCC STATEMENT: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 OKIN Refined Electric Technology Co., Ltd. September 10, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, OKIN Refined Electric Technology Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID: PCU-JLDK-21-01 Shenzhou Spaceship2012 Wireless remote handset Model name: JLDK.21.01 We affirm that between SIEMIC and OKIN Refined Electric Technology Co., Ltd, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Minglong Lei Title: General Manager OKIN Refined Electric Technology Co., Ltd. Address: Plant 4, No. 410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Telephone: 0086-573-82281072 Fax : 0086-0573-82280968 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 OKIN Refined Electric Technology Co., Ltd. September 10, 2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PCU-JLDK-21-01 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Minglong Lei Title: General Manager OKIN Refined Electric Technology Co., Ltd. Address: Plant 4, No. 410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Telephone: 0086-573-82281072 Fax : 0086-0573-82280968 E-mail: [email protected]

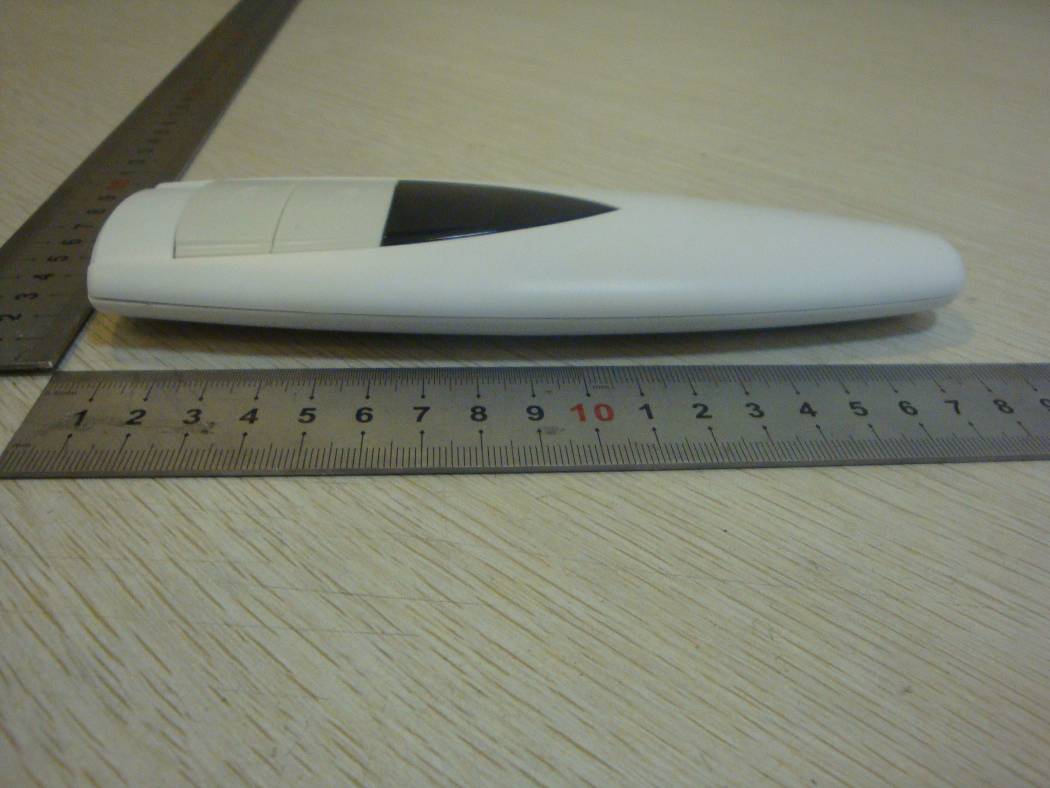

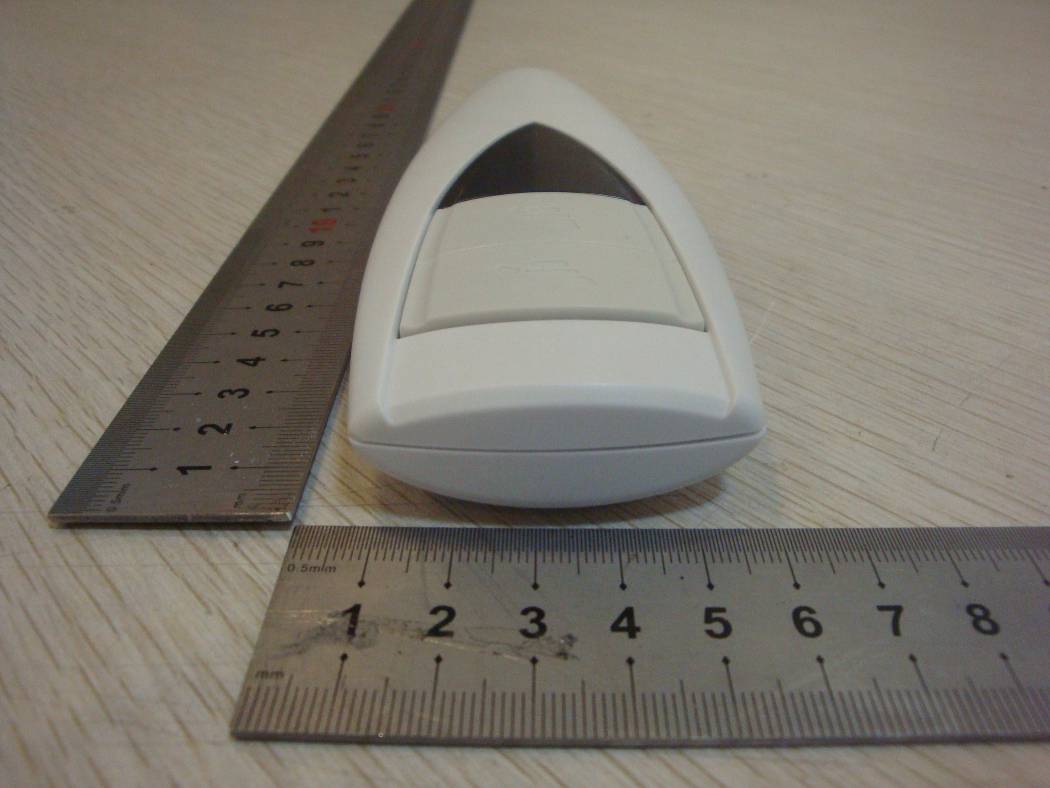

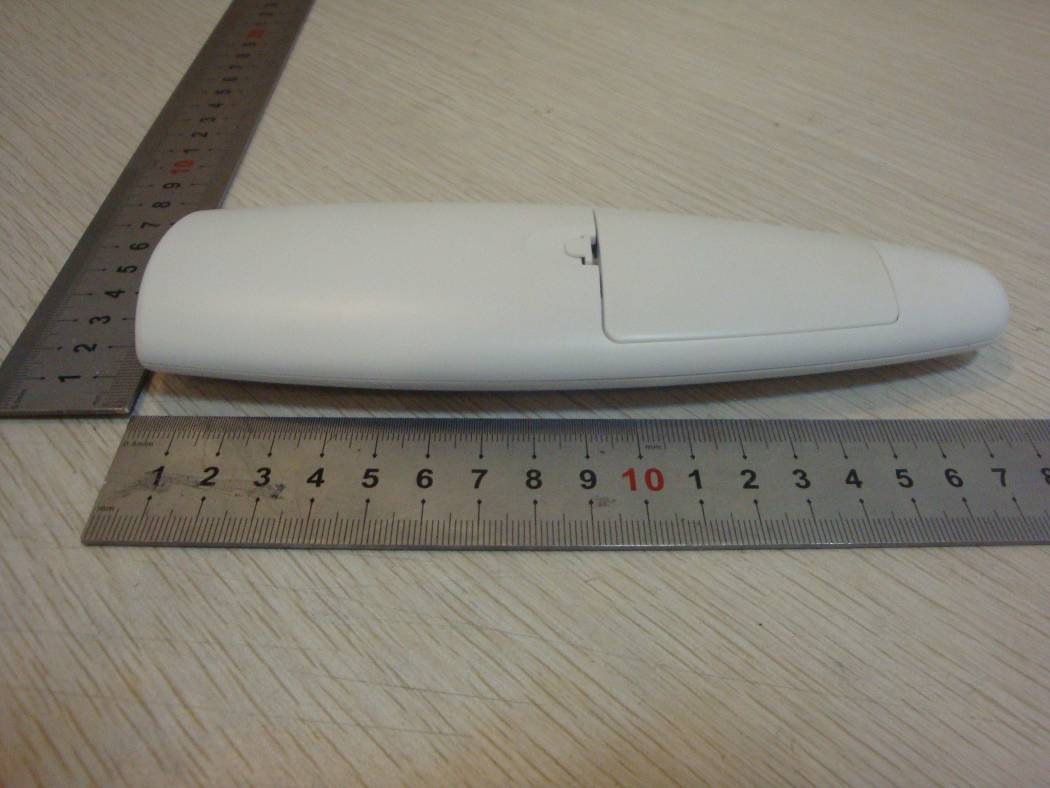

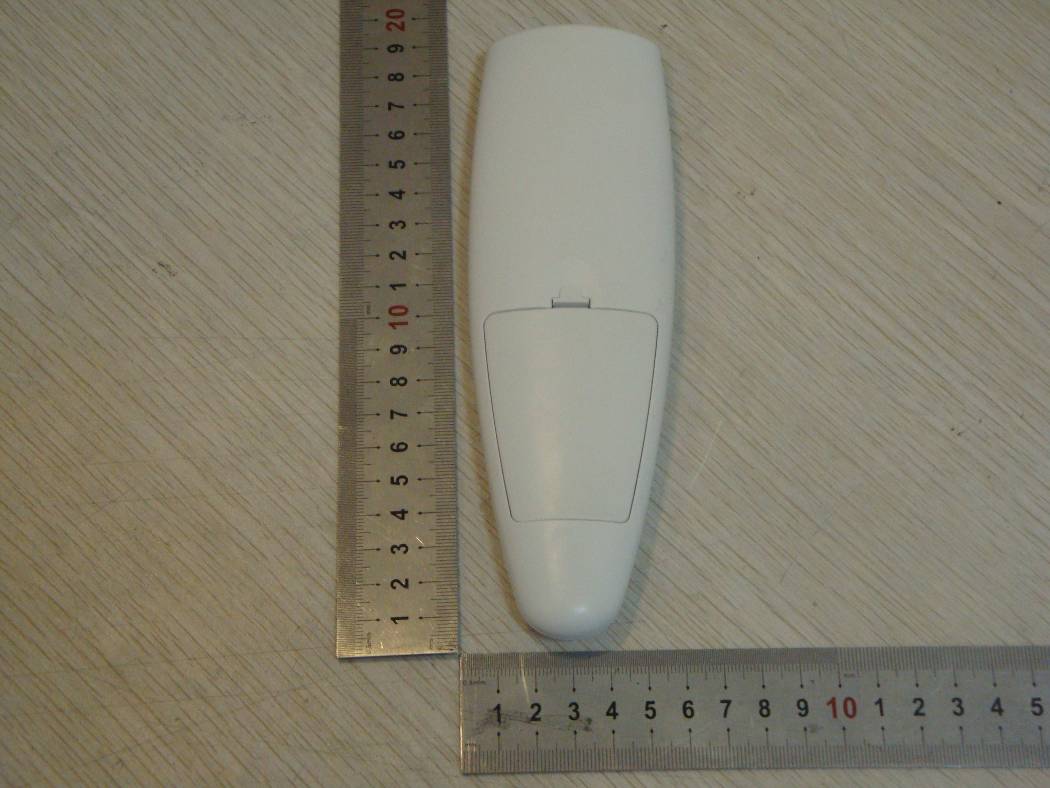

External photos:

Internal photos:

FCC ID: PCU-JLDK-21-01 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) Result calculation 1-g SAR 2.425 O-QPSK 3.24 0.66 3.0 2.450 O-QPSK 3.67 0.73 3.0 2.475 O-QPSK 3.47 0.70 3.0 Conclusion: For the max result : 0.73≤ 3.0 for 1-g SAR extremity SAR, No SAR is required. Sincerely, Signature Company Name: NINGBO EMTEK., LTD. Address: 1F Building 4, 1177#, Lingyun Road, Ningbo National Hi-Tech Zone, Ningbo, Zhejiang, China Andy.wang/Manager

NINGBO EMTEK CO., LTD. REPORT NO: KAN130802005F FCC ID: PCU-JLDK-21-01 DATE: 09/10/2013 Page 1 of 42 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Shenzhou Spaceship2012 Wireless remote handset MODEL No.: JLDK.21.01 FCC ID: PCU-JLDK-21-01 REPORT NO: KAN130802005F ISSUE DATE: September 10, 2013 Prepared for OKIN REFINED ELECTRIC TECHNOLOGY CO., LTD. Plant 4, No.410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Prepared by NINGBO EMTEK CO., LTD. 1F Building 4, 1177#, Lingyun Road, Ningbo National Hi-Tech Zone, Ningbo, Zhejiang, China TEL: 0086-574-27907998 FAX: 0086-574-27721538 NINGBO EMTEK CO., LTD. REPORT NO: KAN130802005F FCC ID: PCU-JLDK-21-01 DATE: 09/10/2013 Page 2 of 42 VERIFICATION OF COMPLIANCE Applicant: OKIN REFINED ELECTRIC TECHNOLOGY CO., LTD. Plant 4, No.410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Manufacturer: OKIN REFINED ELECTRIC TECHNOLOGY CO., LTD. Plant 4, No.410, Xinyonglian Road, Wangjiangjing Development Zone, Jiaxing Zhejiang China Product Description: Shenzhou Spaceship2012 Wireless remote handset Model Number: JLDK.21.01 File Number: KAN130802005F Date of Test: August 2, 2013 to September 8, 2013 We hereby certify that: The above equipment was tested by NINGBO EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By Andy.wang/Manager NINGBO EMTEK CO., LTD. NINGBO EMTEK CO., LTD. REPORT NO: KAN130802005F FCC ID: PCU-JLDK-21-01 DATE: 09/10/2013 Page 3 of 42 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ......................................................................................................... 5 1.1 Product Description ........................................................................................................................ 5 1.2 Related Submittal(s) / Grant (s) ...................................................................................................... 5 1.3 Test Methodology ........................................................................................................................... 5 1.4 Special Accessories ........................................................................................................................ 5 1.5 Equipment Modifications ............................................................................................................... 5 1.6 Test Facility .................................................................................................................................... 6 2. SYSTEM TEST CONFIGURATION ........................................................................................... 7 2.1 EUT Configuration ......................................................................................................................... 7 2.2 EUT Exercise .................................................................................................................................. 7 2.3 Test Procedure ................................................................................................................................ 7 2.4 Configuration of Tested System ..................................................................................................... 7 2.5 Equipment Used in Tested System ................................................................................................. 8 3. DESCRIPTION OF TEST MODES .............................................................................................. 9 4. SUMMARY OF THE TEST RESULTS ...................................................................................... 10 5. RADIATED EMISSION TEST ................................................................................................... 11 5.1 Measurement Procedure ............................................................................................................... 11 5.2 Test SET-UP (Block Diagram of Configuration) .......................................................................... 11 5.3 Measurement Equipment Used: ................................................................................................... 12 5.4 Radiated Emission Limit .............................................................................................................. 13 5.5 Measurement Result ..................................................................................................................... 14 6. 6DB BANDWIDTH TEST AND 99% BANDWIDTH TEST ................................................... 23 6.1 Measurement Procedure ............................................................................................................... 23 6.2 Test SET-UP (Block Diagram of Configuration) .......................................................................... 23 6.3 Measurement Equipment Used: ................................................................................................... 23 6.4 Limit ............................................................................................................................................. 23 6.5 Measurement Results .................................................................................................................... 23 7. MAXIMUM PEAK OUTPUT POWER TEST .......................................................................... 28 7.1 Measurement Procedure ............................................................................................................... 28 7.2 Test SET-UP (Block Diagram of Configuration) ...............…
