PCVCTM3206015AMicrowave Oven

1 IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS USER INSTRUCTIONS Mealstream Series 5 2 1Introduction ........................................................ 2 2Safety instructions ............................................. 3 3Installation instructions ...................................... 6 4Main features .................................................... 9 5 Operating instructions: Manual mode ............ 11 6Operating instructions: Program mode ........... 12 7Daily cleaning .................................................. 15 8 Problem solving .............................................. 16 9Technical specification .................................... 16 a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumalate on sealing surfaces. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO MICROWAVE ENERGY c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that the there is no damage to the(1) door (bent ) (2) hinges and latches ( broken or loosened ) (3) door seals and sealing surfaces. d) The oven should not be adjusted or repaired by anyone except an approved Servicer. PLEASE READ THE FOLLOWING SAFETY INSTRUCTIONS CAREFULLY 3 When using electrical appliances basic safety precautions should be followed, including the following: WARNING To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1 Read all instructions before using the appliance 2 Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCES- SIVE MICROWAVE ENERGY” FOUND ON PAGE 3 3 This appliance must be grounded. Connect only to A properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 4 4 Install or locate this appliance only in accord- ance with the provided installation instructions 5. Some products such as whole eggs and sealed containers — for example, closed jars — may explode and should not be heated in this oven 6 Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapours in this appliance. This type of oven is specifically designed to heat, cook or dry food It is not designed for industrial or labora- tory use. 7 This appliance should not be used by children 8 Do not operate this appliance if it has a dam- aged cord or plug, if it is not working properly, or if it has been damaged or dropped 9 This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. 10 Do not cover or block any openings on the appliance including air vents/filters and steam outlet 11 Do not store this appliance outdoors. Do not use this product near water —– for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like 12 Do not immerse cord or plug in water 13 Keep cord away from heated surfaces 14 Do not let cord hang over edge of table or counter 15 Either: i)When cleaning surfaces of door and oven that comes together on closing the door, use only mild non-abrasive soaps, or detergents applied with a sponge or soft cloth. ii)When separate cleaning instructions are provided, see door surface cleaning instructions on page 15 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS 16 To reduce risk of fire in the cavity: i) Do not overcook food. Carefully attend appliance if paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. ii) Remove wire twist-ties from paper or plastic bags before placing bag in oven iii) If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord , or shut off power at the fuse or circuit breaker panel iv) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 17. DO NOT operate using microwave only or combination function without food or liquid inside the oven as this may result in overheating and may cause damage. 18. NEVER Remove the exterior of the oven. 19. NEVER Remove any fixed internal parts of the oven. 20. NEVER Tamper with the control panel, door, seals, or any other part oven. 21. DO NOT Obstruct air vents/filters or steam outlet. 22. NEVER hang tea towels or cloths on any part of the oven. 23. If the door seals are damaged ,the oven must be repaired by an approved Servicer. 24. All service and repair work must be carried out by an approved Servicer. 25. If the power cable is damaged in any way it MUST be replaced by an approved Servicer. 26. When handling hot liquids, foods, and containers, care should be taken to avoid scalds and burns. 27. When heating liquids using microwave only or combination function, the contents should be stirred prior to heating to avoid eruptive boiling. 28. Feeding bottles and baby food jars should be opened when heating, the contents stirred or shaken and the temperature checked prior to consumption to avoid burns. 29. Never use the oven to heat alcohol, e.g. brandy, rum etc. Also, food containing alcohol, such as Christmas pudding, can more easily catch fire if overheated. 30. Never attempt to deep fry in the oven. 4 For all cord connected appliances GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING — Improper use of the grounding can result in the risk of electric shock Consult a qualified electric…

Text truncated - open the document above for the full version.

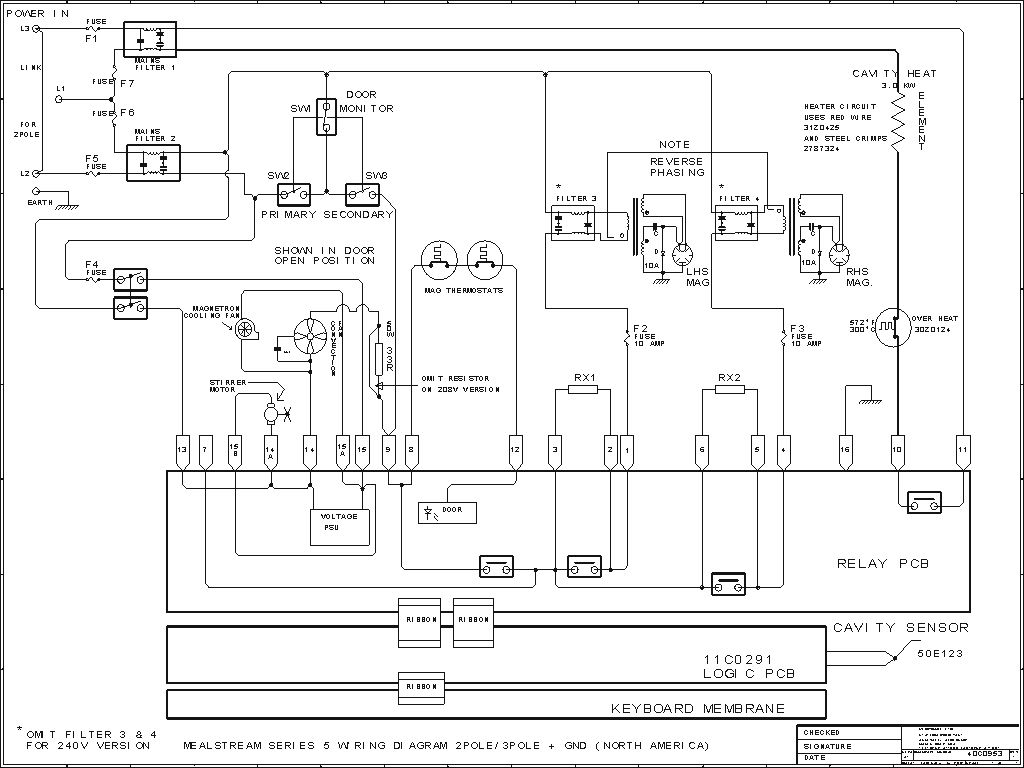

Mealstream Series 5 CTM3 208v 60Hz FCC Approval Additional Information Technical Data 1) Power Supply - 208v @ 60 Hz 3) Max Supply Power - 6.25 Kw 3) Output Microwave Power - 1425 w 4) Output Convected Power - 3000 w 5) Frequency - 2.405 GHz Single Phase L1 L2 L3 Heater Circuit L1 L2 L3 Heater Circuit Three Phase Description A small modification can made to the 208v 60 Hz unit to enable the units to run on a three phase supply. In single phase both the magnetrons and the heater circuit are run on the same phase. In three phase the heater is run on the third phase alone. This is done by removing a link to the terminal block. Please note that this modification will take place when the oven is in production. Magnetron 2 Magnetron 1 Magnetron 2 Magnetron 1 208 Volts 208 Volts 208 Volts

Mealstream Series 5 CTM3 208v 60Hz FCC Approval Letter of Agency Merrychef LTD Station Road West Ash Vale Aldershot Hampshire GU12 5XA UK Letter of Agency American Telecommunications Certification Body, Inc 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Merrychef Ltd authorise EMC Projects Ltd to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB) We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862.Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Andrew Brown. Development Manager

Mealstream Series 5 CTM3 240v 60Hz FCC Approval Section JK Merrychef Limited Station Road West Ash Vale GU12 5XA 6 th February 2001 American Telecommunications Certification body 6731 Whittier Avenue Suite C110 Mclean VA 22101 Re: Certification Application FCC ID: PVC CTM3246015A Please be advised that the following information is to be held confidential on behalf of the Merrychef Ltd. Section HI: Schematics The application contains technical information, which Merrychef Ltd deems to be trade secrets and proprietary. If made public this information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours Sincerely, Andrew Brown Development Manager

Mealstream Series 5 CTM3 240v 60Hz FCC Approval Section JK Merrychef Limited Station Road West Ash Vale GU12 5XA 6 th February 2001 American Telecommunications Certification body 6731 Whittier Avenue Suite C110 Mclean VA 22101 Re: Certification Application FCC ID: PVC CTM3246015A Please be advised that the following information is to be held confidential on behalf of the Merrychef Ltd. Section HI: Schematics The application contains technical information, which Merrychef Ltd deems to be trade secrets and proprietary. If made public this information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours Sincerely, Andrew Brown Development Manager

Front Side Back Mealstream Series 5 CTM3 208v 60Hz FCC Approval External Photos

Mealstream Series 5 CTM3 208v 60Hz FCC Approval Label Artwork FCC label – 208v 60Hz Placement FCC Label Description The FCC label will be position to the top left of the back of the Mealstream oven. The label has an adhesive back and has a curing time 24 hours. For further information, please see attached specification sheet.

Mealstream Series 5 CTM3 208v 60Hz FCC Approval Warning Labels A Identifier Label Description A Warning Component failure warning (Micro-switch) C B Identifier Label Description B Warning Component failure warning (Fuse) C Warning Component failure warning (Micro-switch) D Identifier Label Description D Warning Operation warning Identifier Label Description E Warning Service warning E A, C - Component failure warning (Micro-switch) B - Component failure warning (Fuse) D - Operation warning E - Service warning

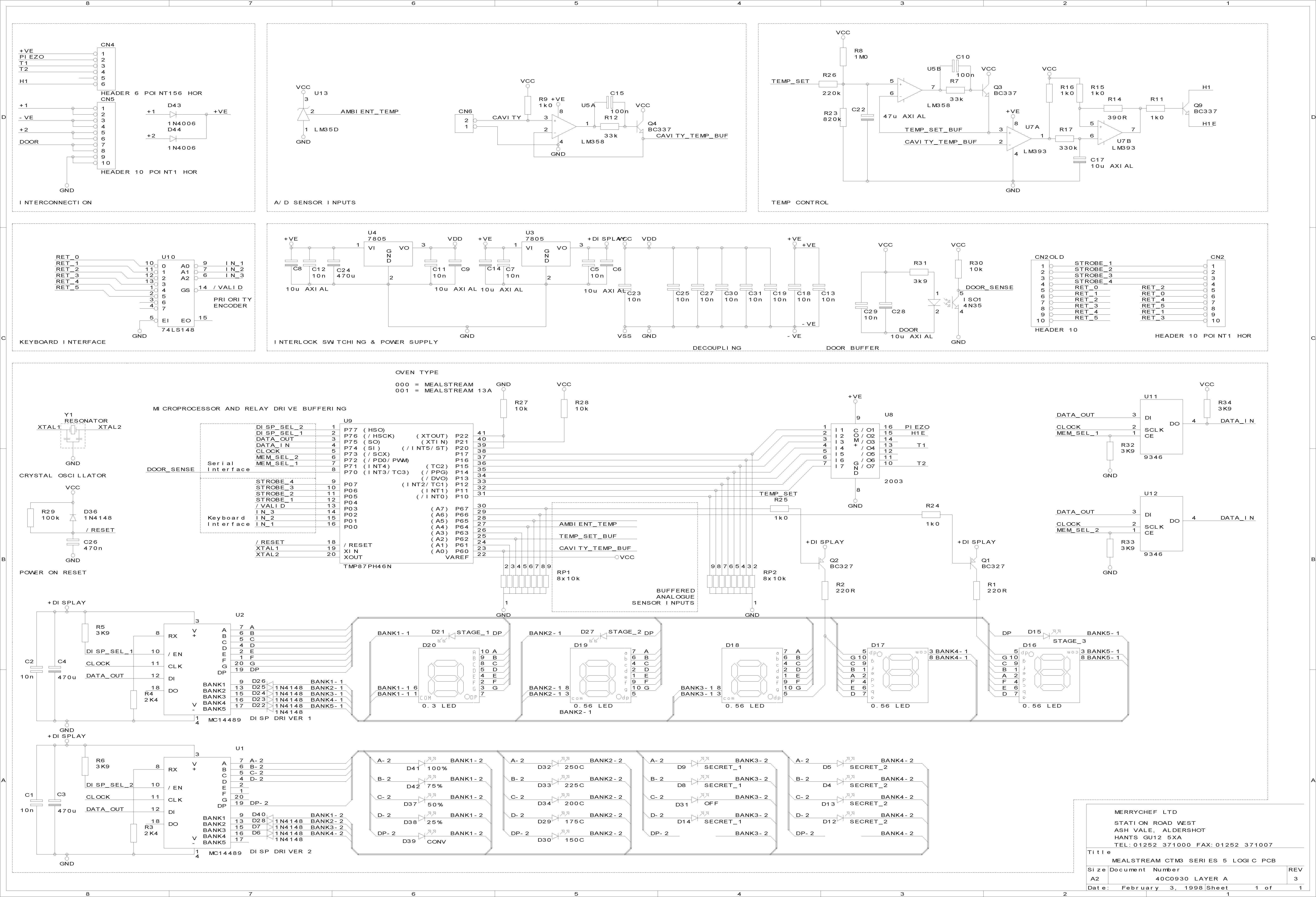

Mealstream Series 5 CTM3 208V 60Hz FCC Approval Internal Photos Left Hand Side View No. Description No. Description 1 13 Amps (F1) 7a Fuse holder 1a Fuse holder 8 Filter (Heater Circuit) 2 10 Amp (F2) 9 Filter (Microwave) 2a Fuse holder 10 Micro-switch (SW1) 3 10 Amp (F3) 11 Rubber Stop 3a Fuse holder 12 Door arm 4 1 Amp (F4) 13 Door Hinge 4a Fuse holder 14 Micro-switch (SW2) 5 13 Amp (F5) 15 Door Arm Stop 5a Fuse holder 16 Mains Terminal Block 6 13 Amp (F6) 17 Filter (Mains) 7 13 Amp (F7) 3 3a 2 2a 1 1a 4 4a 5 5a 6 7 8 9 6a 7a 10 11 12 13 14 15 16 17 17 18 19 20 21 22 23 24 No. Description No. Description 17 Door Arm 22 Temperature Sensor 18 Door Hinge 23 Stream Vent Guard 19 Micro-switch (SW3) 24 Steam Pipe 20 Door Arm 25 Filter (Mains) 21 Door Spring Right Hand Side View 26 25 26 27 28 29 30 31 29 25 26 27 28 No. Description No. Description 25 Magnetron 29 Transformer 26 Resistor 30 Twin Blower 27 HT Diode 31 Capacitor Clip 28 Capacitor 32 Filter (Mains) Top View 32 32 Mealstream Series 5 CTM3 208v 60Hz FCC Approval 1) Logic Board Component Side Mealstream Series 5 CTM3 208v 60Hz FCC Approval 2) Logic Board Solder Side Mealstream Series 5 CTM3 208v 60Hz FCC Approval 3) Relay Board Component Side 4) Relay Board Solder Side

The mealststream (CTM3206015A) is a combination microwave oven intended for commercial use. The oven is used to either reheat or prime cook food. The oven has two heat sources available; a 3 kW resistive heating element located at the rear of the oven cavity, and two magnetrons which launch/produce microwave energy from the top of the cavity. Energy is evenly distributed in the cavity via a high speed fan whereas microwave energy is circulated by a rotating stirrer antenna located in a sealed roof section of the oven. A micro-controller facilitates control of the oven and allows for specific microwave powers and cavity temperatures to be set. Both energy sources can be used in combination. This results in an oven which has the speed of a microwave and yet yields a traditional cooking result. Microwave leakage is prevented by utilising a fully welded cavity and a door with a intrusive 1/4 way trap system. The door is monitored by a primary and secondary interlock system. Microwave Power Cavity Temperature Fan only 0°C 25% 150°C 50% 175°C 75% 200°C 100% 225°C 250°C Mealstream Series 5 CTM3 208v 60Hz FCC Approval Operation Guide

13-02-2001 FULL PARTS EXPLOSION for Assembly CTM3206015A MEALSTREAM SERIES 5 US SPEC Level Component/ Quantity UOM Description 1 31Z2056 F50 1 EA LABEL - SERVICE HISTORY RECORD 1 40C0731 STOR 1 EA INSTALLATION LAYOUT CTM2 1 40E0378 F52 2 EA MERRYCHEF DECAL THIS WAY UP LABEL 1 40E0379 F52 2 EA MERRYCHEF DECAL FRAGILE LABEL 1 10C0114 STOR 1 EA MEALSTREAM S5 & CD2 MAIN ASSY 2 11C0178 G9A 1 EA PACKING KIT MEALSTREAM 2 31Z3017 PROD 10 EA M4X12 POZI PAN BZP 2 31Z4013 PROD 12 EA M5 STEEL FULL NUT 2 31Z4015 PROD 8 EA M4 STEEL FULL NUT BZP 2 31Z5019 PROD 25 EA M4 SHAKEPROOF WASHER 2 31Z0121 H1B 0.10 MT 5MM GSS SLEEVING 100MTRS PER REEL 2 314613 G8 2 EA GROMMET R175/16/143 2 022001015 G1 2 EA RADIO FREQUENCY TRAP ISSUE NO 2 2 101520 PROD 32 EA M4X10 HEX HD SCW S/S 2 101820 PROD 14 EA M5X10 HEX HD SCW S/S 2 101825 PROD 1 EA M5X25 HEX HD SCW S/S 2 101876 PROD 2 EA M5X16 HEX HD SCW BZP 2 105120 PROD 1 EA M8 FULL NUT BRASS NKL PLTD 2 11C0160 STOR 1 EA CAVITY ASSY 3 31Z4013 PROD 25 EA M5 STEEL FULL NUT 3 31Z5012 PROD 25 EA M5 EXT SHAKEPROOF WR 3 790019 D7A 1 EA CTM3 MEALSTREAM CAVITY ISS 14 ISSUE 14 3 790052 G24 0.70 EA CTM2/2/4 SILICON SL LH/RH SECTION PROFIL 3 790074 G3A 1 EA STIFFENER PLATE ISSUE 1 3 80T7133 PROD 8 EA M6X12 HEX HD STAINLESS STEEL 3 80X7025 C44 4 EA M5 DOME NUT STAINLESS STEEL 2 11C0162 G82 1 EA STIRRER MOTOR S/ASSY 3 31Z3027 PROD 2 EA M3X20 PAN POZI SCREW BZP 3 31Z4015 PROD 2 EA M4 STEEL FULL NUT BZP 3 11C0186 G2 1 EA STIRRER MOTOR BRACKET ASSEMBLY ISSUE 2 3 31Z5004 PROD 2 EA M4 STEEL FLAT WASHER FORM A BZP 3 31Z5019 PROD 2 EA M4 SHAKEPROOF WASHER 3 022001022 G1 1 EA TOP STIRRER COUPLING ISSUE NO 3 3 022001023 G1 1 EA STIRRER BLADE COUPLG ISSUE NO 3 3 101506 PROD 2 EA M4X12 CSK SLT HD SCW S/S 3 101524 PROD 2 EA M4X20 HEX HD SCW S/S 3 101614 PROD 1 EA M4X4 SKT SET SCW OIL BLACK 3 105115 PROD 1 EA M6 FULL NUT BRASS NKL PLTD 3 2175164 PROD 2 EA 3/32 X 3/4 SPLIT PIN BRASS 3 2741021 G4 1 EA CERAMIC SHAFT WL01709 3 310100 G5 1 EA STIRRER MOTOR CTM1/2 UDS1NE1D16BWNN 3 790042 G20 1 EA STIRRER INSLTN PLATE ISSUE NO 1 3 790043 G20 2 EA STIRRER INSLTN PLATE ISSUE NO 1 3 790044 G20 2 EA STIRRER INSLTN PLATE ISSUE NO 1 3 790045 G22 1 EA WAVE STIRRER BLADE ISSUE 1 3 31Z5001 PROD 2 EA M3 SPLIT SPRING WASH 3 31Z5000 PROD 2 EA M3 STEEL FLAT WASHER FORM A BZP 2 11C0163 G46 1 EA STIRRER GLASS S/ASSY 3 790053 G25 1.20 MT CTM2/3/4 SILICON SL FRONT/REAR SECTION P 3 1810005 G3 0.001 EA SILASTIC (CLEAR) CAF30 3 790051 C2A 1 EA CTM2/3 TOP CAVITY GLASS BOROSILICATE 2 11C0165 F2B 1 EA INNER PANEL ASSEMBLY - RH CTM2/3 3 105047 PROD 2 EA M3 NYLOC NUT BZP 3 30Z0240 E5 1 EA MICROSWITCH V5A010CB1N 3 31Z0115 E2 1 EA INSULATOR PAD 3 31Z3027 PROD 2 EA M3X20 PAN POZI SCREW BZP 3 31Z5000 PROD 2 EA M3 STEEL FLAT WASHER FORM A BZP 3 40C0851 A3B 1 EA BRACKET - MICROSWITCH CTM3 3 790018 G1A 1 EA INNER PANEL RH - CTM2/3 ISSUE 11 3 31Z3079 PROD 2 EA NO.8 X 1/2 TYPE AB SELF TAP PAN POZI 2 11C0166 G71R 1 EA HINGE ASSEMBLY - RH - CTM2/3 3 80X7003 PROD 1 EA M5 FULL NUT ST/STEEL 3 101825 PROD 1 EA M5X25 HEX HD SCW S/S 3 40C0752 G12 1 EA ROLLER MEALSTREAM ISSUE NO 5 3 790025 G30 1 EA BRACKET - RH HINGE - CTM2/3 ISSUE 12 3 790027 G20 1 EA ROLLER SHAFT 2 11C0167 STOR 1 EA HINGE ASSEMBLY - LH - CTM2/3 3 80X7003 PROD 1 EA M5 FULL NUT ST/STEEL 3 101825 PROD 1 EA M5X25 HEX HD SCW S/S 3 40C0752 G12 1 EA ROLLER MEALSTREAM ISSUE NO 5 3 790024 G30 1 EA BRACKET - LH HINGE - CTM2/3 ISSUE 12 3 790027 G20 1 EA ROLLER SHAFT 2 11C0168 STOR 1 EA BASE ASSY 3 31Z5009 PROD 2 EA M5 STEEL WASHER 3 022001066 A3B 2 EA REAR CAVITY SUPT BKT ISSUE NO 4 3 101876 PROD 2 EA M5X16 HEX HD SCW BZP 3 31Z5012 PROD 2 EA M5 EXT SHAKEPROOF WR 3 40C0868 G29 2 EA AIR FILTER PANEL - CTM3 ISSUE 1 3 40C0872 G7A 1 e OVEN BASE - CTM3 ISSUE NO 3 3 700045 G17 2 EA FIBREGLASS SPACER 2 11C0279 G78 2 EA DOOR ARM STOP ASSEMBLY CTM3 & CD 3 101825 PROD 2 EA M5X25 HEX HD SCW S/S 3 31Z4013 PROD 2 EA M5 STEEL FULL NUT 3 40C0887 A3B 1 EA STOP - DOOR ARM ISSUE NO 2 3 40C0888 A3B 1 EA BRACKET - DOOR ARM STOP ISSUE NO 2 3 31Z5012 PROD 4 EA M5 EXT SHAKEPROOF WR 3 31Z5008 PROD 2 EA M5 STEEL WASHER LRGE 2 1922017 G3 8.50 MT ALUMINIUM TAPE 55MTR REELS 25MM X 0.05MM 2 2747048 G3A 1 EA MOTOR SPACER BOARD 2 2781050 G4 0.20 MT DIA 8MM SLEEVING (GLASS FIBRE) 2 314402 G16 0.32 MT 25MM FLEXIBL CONDUIT 24304 2 314442 MILLENIU 1 EA M6 CABLE TIE SCREW MOUNTED 2 31Z2003 F49 1 EA R F EMISSION INSPECTION LABEL 2 31Z2071 F51 1 EA LABEL - UNIVERSAL WARNING 2 31Z3004 PROD 40 EA M4X10 PAN POZI SCREW BZP 2 31Z3061 PROD 6 EA NO6 X 3/8 S/T SCREW 2 31Z3080 PROD 2 EA M4X10 S/S POZI PAN 2 31Z5008 PROD 22 EA M5 STEEL WASHER LRGE 2 31Z5012 PROD 22 EA M5 EXT SHAKEPROOF WR 2 31Z5044 E8 3 EA RFI GASKET 25.4MM X 11.51MM 2.38MM THICK KNIT MESH WASHER 2 520000 G18 2 EA SPRING - R/ANGLE DOUBLE LOOP 149LB RATING 2 790002 G3B 1 EA L/H OUTER COVER ISSUE 5 2 790003 G3C 1 EA R/H OUTER COVER ISSUE 5 2 790005 G2A 1 EA TOP COVER ISSUE 5 2 790010 G17 2 EA PIN - DOOR ARM PIVOT - CTM2 ISSUE NO 3 2 790020 G19 1 EA L/H TDK MTG STRIP ISSUE 3 2 790021 G19 1 EA R/H TDK MTG STRIP ISSUE 3 2 790046 G22 1 EA STEAM PIPE ISSUE 2 2 790047 E8B 1 EA ELEMENT COVER PLATE ISSUE NO 3 2 790048 F3B 2 EA WAVEGUIDE ISSUE 3 2 790049 G23 2 EA WAVEGUIDE GASKET 2 790050 G23 2 EA WAVEGUIDE SEALING PLATE 2 790052 G24 0.26 EA CTM2/2/4 SILICON SL LH/RH SECTION PROFIL 2 790059 A3B 2 EA BAFFLE PLATE ISSUE 5 2 790061 G27 1 EA STEAM VENT GUARD ISSUE 3 2 790084 G23 2 EA HINGE BRACKET SPACER 2 81W7953 PROD 1 EA CLIP HOSE SIZE 1A 2 50E123 G16 1 EA THERMISTOR MICROAIRE TEMP SENSR 2 11C0296 STOR 1 EA TRANSFORMER MOUNTING PLATE ASS 3 790057 A3B 1 EA LEFT HAND SCREEN ISSUE NO 8 3 790058 A3B 1 EA RIGHT HAND SCREEN ISSUE NO 8 3 790055 G1B 1 EA MOUNTING PLATE - TRANS/FAN ISSUE 11 3 11C0266 G77R 2 EA HT DIODE ASSEMBLY - CTM3 4 30Z0939 F31 1 EA DIODE 400mA 10kV RECTIFIER (HVR-1X70B) 4 31Z0007 MILLENIU 1 EA 250 STEEL RECEPTACLE 160389-3 4 31Z0011 MILLENIU 1 EA BOOT CLEAR 0.250 180460 4 89T0040 G78 1 EA 4BA CRIMP LUG 16-14 3 314613 G8 4 EA GROMMET R175/16/143 3 101520 PROD 2 EA M4X1…

Text truncated - open the document above for the full version.

Commercial In Confidence Commercial In Confidence Page 1 of 28 TEST REPORT No: P2888/2 Customer/Applicant: Merrychef Limited Address: Station Road West Ash Vale Aldershot Hampshire GU12 5XA Subject: ELECTROMAGNETIC COMPATIBILITY Customer Ref: 20681 Manufacturer: Merrychef Limited Product: Micro Combination Oven Model/Trade Name: Mealstream Series 5 208V-60Hz System Model No/Type: CTM3206015A Serial No/Lot No: 83080700 Tests Carried Out: CFR 47 Part 18 Sections 18.305 & 18.307 Tests marked “NUA” in this report are not included in the UKAS accreditation schedule for our laboratory. Opinions and interpretations expressed herein are outside the scope of UKAS accreditation. Report Author: F Barkas Checked By: O.W.Cockram Title: (EMC Engineer) Title: (General Manager) Signature Signature Issue Date: 28 th February 2001 Commercial In Confidence EMC Projects Ltd. Report No: P2888/2 Commercial In Confidence Page 2 of 28 Report Summary Report No: P2888/2 Test Standard: CFR 47 Part 18 Sections 18.305 & 18.307 Carried Out At: EMC Projects Ltd., Ringwood, Hants, BH24 2DB Equipment Tested: Mealstream Series 5 208V-60Hz Model No: This customer has declared that CTM3206015A is the correct designation of this equipment not CTN320603A/CTN324602A as shown on some of the documentation. Serial No: 83080700 Software Version: - Carried Out On: 25 th - 28 th Jan 2001 Test Engineer: F Barkas In Attendance: Gordon Hind SUMMARY of RESULTS The Table below depicts a summary of the tests and test results detailed in this report. Test Test Type Specification & Issue Result Page Levels/Comments 1 Power Output & Frequency MPT-5 Pass 8 2.45GHz.+/- 50MHz @1009Watts 1 Conducted Emissions CFR 47 Part 18 Section 18.305 Non Consumer Equipment Limits Pass 8 208V-60Hz Supply 2 Radiated Emissions CFR 47 Part 18 Section 18.307 ISM greater than 500W Limits Pass 13 10m & 3m Open Area Test Site Commercial In Confidence EMC Projects Ltd. Report No: P2888/2 Commercial In Confidence Page 3 of 28 CONTENTS PAGE Report Summary 2 1. INTRODUCTION_______________________________________________________5 2. MODES OF OPERATION_________________________________________________5 3. GENERAL TEST SETUP_________________________________________________5 3.1 Figure 1 - Block Diagram of EUT Set-up_______________________________________5 3.2 Conducted Emissions_______________________________________________________6 3.2.1 Figure 1 - General Test Set-up - Table Top Equipment_________________________________6 3.3 Radiated Emissions_________________________________________________________7 3.3.1 Figure 1 - OATS General Test Set-up_______________________________________________7 4. TEST EQUIPMENT______________________________________________________7 5. AMBIENT CONDITIONS_________________________________________________7 6. TEST PROCEDURES____________________________________________________8 6.1 Power Measurement________________________________________________________8 6.2 Conducted Emissions_______________________________________________________8 6.3 Radiated Emissions_________________________________________________________8 7. TESTS CARRIED OUT___________________________________________________9 8. TEST RESULTS_______________________________________________________10 8.1 Test 1a Power Output & Fundamental Frequency________________________________10 8.1.1 Test 1a Power Output__________________________________________________________10 8.1.2 Test 1b Fundamental Frequency__________________________________________________10 8.1.3 Test 1 - Test Equipment Used____________________________________________________10 8.1.4 Test 1 - Figure 1 - Set-up Photographs____________________________________________11 8.2 Test 2 - Conducted Emissions 208V-60Hz Supply_______________________________12 8.2.1 Test 2 - Test Equipment Used____________________________________________________12 8.2.2 Test 2 - Figure 1 - Set-up Photographs_____________________________________________13 8.2.3 Test 2 – Figure 2 – 208V-60Hz supply – Live Line___________________________________14 8.2.4 Test 2 - Figure 3 - 208V-60Hz – Neutral Line_______________________________________15 8.3 Test 3 - Radiated Emissions 30MHz to 25GHz__________________________________16 8.3.1 Test 3a - Radiated Emissions 30MHz to 1GHz_______________________________________16 8.3.1.1 Test 3a - Test Equipment Used______________________________________________16 8.3.1.2 Test 3a - Figure 1 - Set-up Photographs_______________________________________17 8.3.1.3 Test 3a - Figure 2 – 30-300MHz Screened Room Emission Measurements Uncorrected_18 8.3.1.4 Test 3a - Figure 3 – 300-1000MHz Screened Room Emission Measurements Uncorrected19 8.3.2 Test 3b - Radiated Emissions 1GHz to 25GHz_______________________________________20 8.3.2.1 Test 3b- Test Equipment Used_______________________________________________20 8.3.2.2 Test 3b - Figure 1 - Set-up Photographs_______________________________________21 8.3.2.3 Test 3b - Figure 2 – 0-18GHz Screened Room Emission Measurements Uncorrected____22 8.3.2.4 Test 3b - Figure 3 – 18 – 26GHz Screened Room Emission Measurements Uncorrected_23 8.3.2.5 Test 3b - Figure 4 - Radiated Emissions 3m OATS______________________________24 8.3.2.6 Test 3b - Table 1- Radiated Emissions, Data____________________________________24 9. CONCLUSIONS________________________________________________________24 Commercial In Confidence EMC Projects Ltd. Report No: P2888/2 Commercial In Confidence Page 4 of 28 10. ANNEX A - TEST EQUIPMENT LIST___________________________________26 11. ANNEX B - CORRECTION FACTORS___________________________________27 11.1 Cable Attenuation OATS cable 30-1000MHz___________________________________27 11.2 Antenna Correction Factors BA4 30-1000MHz__________________________________28 Commercial In Confidence EMC Projects Ltd. Report No: P2888/2 Commercial In Confidence Page 5 of 28 1. INTRODUCTION This report details the results of the Electromagnetic Compatibility (EMC) tests carried out on a Microwav…

Text truncated - open the document above for the full version.

Commercial In Confidence EMC Projects Ltd. Report No: P2888/2 Commercial In Confidence Page 11 of 28 8.1.4 Test 1 - Figure 1 - Set-up Photographs

Commercial In Confidence EMC Projects Ltd. Report No: P2888/2 Commercial In Confidence Page 13 of 28 8.2.2 Test 2 - Figure 1 - Set-up Photographs

Commercial In Confidence EMC Projects Ltd. Report No: P2888/2 Commercial In Confidence Page 17 of 28 8.3.1.2 Test 3a - Figure 1 - Set-up Photographs

Commercial In Confidence EMC Projects Ltd. Report No: P2888/2 Commercial In Confidence Page 21 of 28 8.3.2.2 Test 3b - Figure 1 - Set-up Photographs
