DRAFT 11/10/04 Confidential Information 1 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved @Road iWM3100 Series Installation Guide Important – Please Read! FCC RF Exposure Information Warning: The antenna supplied with this device must be used for installation and operation. Substitution of other antennas must be approved by the manufacturer for compliance to radiation safety limits. The mounting of this device and antenna must be done by professional installers to ensure that the user or nearby persons will maintain at least 20 cm from the antenna in normal use. Cautions: All persons must maintain a separation distance at least 20 cm from modem antenna when transmitter is operating to meet FCC RF exposure requirements. BEFORE THE INSTALLATION ¾ Gather Components Please ensure you have the following items are together before beginning the installation. There should be one complete set for each vehicle being installed. If any items are missing, contact a local Agent or @Road immediately. 1. iWM31XX Unit 2. Power Cable 3. Installation Parts Kit 4. One of following Antenna options, o Option A: separate GPS and GSM “on glass” antenna o Option B: one-piece permanent roof mount antenna o Option C: Limo/Lip mount: one-piece trunk lip mount antenna o Option D: Flush/Surface mount GPS/Wireless antenna o Option E: Glass mount GPS/Wireless antenna Following the simple steps below will ensure optimum performance of your iWM unit. Should you have questions, please contact @Road Customer Service toll-free at 1-877-4-AtRoad (1-877-428-7623). DRAFT 11/10/04 Confidential Information 2 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved 5. WLAN antenna 6. Installation Information Sheet, 4 part carbon (packaged with iWM Unit) ¾ BEFORE YOU CONTINUE Verify/Match Unit to Correct Vehicle NOTE: Some iWM’s are pre-matched to vehicle by number. This must be known before beginning the installation. 1) Check with the customer to see if vehicles were pre-matched by name/VIN/Serial Number. 2) Fill out the Installation Information Sheet noting iWM ID’s to Vehicles by VIN, License or Car Number . This information is required for the customer to track their vehicles. iWM3100 Assembly and External Interface Detail Input Power (10 ~ 24VDC, 2A) PCS/Cellular Antenna GPS Antenna WLAN Antenna Ethernet Port Data 1 & 2 Ports PTO Switches Port DRAFT 11/10/04 Confidential Information 3 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved BEGINNING THE INSTALLATION 1) Choose a Location Determine the best location to install the iWM unit. Recommendations are: • In the trunk, where luggage and other items will not come into contact with the unit • Behind or under the seats • Under or behind the dashboard • Behind the left or right kick-panels • In the console (side or overhead) • In the glove compartment/glove box • Hidden from driver’s view when possible, to limit driver tampering 2) Mount the iWM Unit The iWM should be mounted using screws or tie-wraps 3) Hook Up Power The iWM should be connected directly to a known 12V-DC power source (range of 10 to 24VDC), either the column harness or battery of the vehicle. Although the unit has a built-in self-resetting fuse, the iWM3100’s power cable must be fused protected at the power source PLEASE NOTE: Placement should: • Avoid direct sunlight • Provide minimal exposure to dust • Ensure minimal exposure to moisture • Never be installed in engine compartment (Unit is designed to be installed inside the vehicle) iWM3100Installation Side View It is essential that you follow these steps exactly, as any inaccuracies may cause hardware damage and the @Road system to malfunction. DRAFT 11/10/04 Confidential Information 4 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved on both the RED and WHITE power connections with the 10 amp fuses and fuse holders, included in the installation kit. Additionally, remember to place the tamper resistant sticker and a tie wrap over the cover of the fuse holder, as shown in the following picture, so that any tampering with power source wires can be easily detected. Use a voltmeter to verify voltage and hook wires as indicated below. Black Ground Red (fused, 10 Amps) to vehicle battery, unswitched (+), this wire must see at least 10 volts at all times, if not the unit will reset continually and send inaccurate information White (fused, 10 Amps) To true ignition, 12V switched, there must be 12 volt power in the “on”, “start”, and “run” position. All connections at the column harness must be made by either soldering bare wire to bare wire or using the poke and wrap method. Note: T-taps, scotch locks, and like connectors are not permitted and must not be used to tie the iWM to its power source. DRAFT 11/10/04 Confidential Information 5 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved 4) Position GPS Antenna for Optimum Performance To ensure best reception, install the GPS antenna in a location that provides a clear sky view (greater than a 90 degree angle view of the sky). Note: Mount antenna as far as possible (at least 2 feet) away from other antennas to minimize the possibility of interference. SMALL VEHICLE (A) BEST – Top of vehicle (B) Option – Dashboard of vehicle (C) Option – Rear brake light compartment (must be non-metallic) Could be on the dashboard or hidden Place under the rear brake light. under non-metallic dashboard. The Can be accessed through the trunk. antenna must face toward the sky. Only recommended when the rear window has a steep slope. LARGE VEHICLE (A) BEST – Top of the vehicle and as (B) OPTION – Middle of the roof close to the front as possible THIS POSITION NOT RECOMMENDED (due to restricted sky view) DRAFT 11/10/04 Confidential Information 6 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved 5) Connect GSM and WLAN Antenna (if separate GSM antenna or non- combo antenna) The GSM antenna should be installed in an optimum location, to intercept the cellular sign…

Text truncated - open the document above for the full version.

Cetecom Ict Services GmbH Untertuerkheimer Strasse 6-10 66117 Saarbruecken Germany Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 2004-12-20 TO WHOM IT MAY CONCERN Pursuant to CFR § 2.917, Cetecom hereby requests dismissal for its application with FCC ID: PDC-IWM3130XSM granted on 2004-12-15. If you have any questions, please feel free to contact us at the address shown below Sincerely, GERALD SCHMIDT CERTIFICATION MANAGER Recognized CB at USA/CANADA/JAPAN International Type Approval CETECOM ICT Services GmbH Untertürkheimer Straße 6-10 66117 Saarbrücken Phone: +49 681 5 98 - 8723 Fax: +49 681 5 98 - 8775 Email:[email protected]

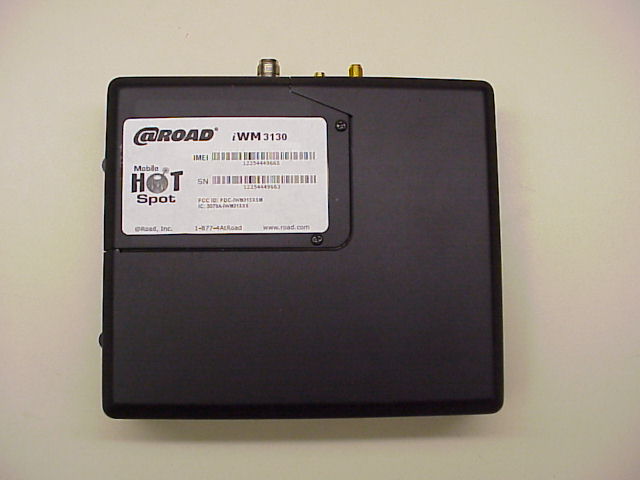

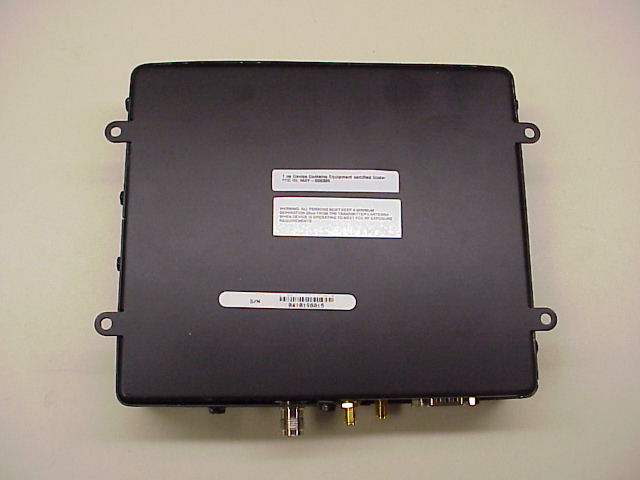

FCC ID: PDC-IWM313XSM EXTERNAL PHOTOS OF EUT ( iWM3130) iWM3130 – TOP VIEW iWM3130 – BOTTOM VIEW FCC ID: PDC-IWM313XSM iWM3130 – TOP VIEW WITH ANTENNA

FCC ID: PDC-IWM313XSM DRAFT iWM3130 FCC Label FCC ID and IC Label FCC Part 15 statement label RF Exposure FCC Statement Measurement in inches Width = 3.25 Height = 2.00 Corner radius = 0.125 This device complies with Part 15 of FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference that may cause undesired operation. WARNING: ALL PERSONS MUST KEEP A MINIMUM SEPARATION 20cm FROM THE TRANSMITTER’s ANTENNA WHEN DEVICE IS OPERATING TO MEET FCC RF EXPOSURE REQUIREMENT. FCC ID: PDC-IWM313XSM EXTERNAL PHOTOS OF EUT ( iWM3130) iWM3130 – TOP VIEW iWM3130 – BOTTOM VIEW

CETECOM ICT Services GmbH Test report no.: 2_3350-01-01/03Issue Date: 2003-08-01Page 87 (90) Photographs of the equipment CETECOM ICT Services GmbH Test report no.: 2_3350-01-01/03Issue Date: 2003-08-01Page 88 (90) Photographs of the equipment CETECOM ICT Services GmbH Test report no.: 2_3350-01-01/03Issue Date: 2003-08-01Page 89 (90) Photographs of the equipment CETECOM ICT Services GmbH Test report no.: 2_3350-01-01/03Issue Date: 2003-08-01Page 90 (90) Photographs of the equipment

FCC ID: PDC-IWM313XSM INTERNAL PHOTOS OF EUT ( iWM3130) EUT – TOP OPEN VIEW 1 FCC ID: PDC-IWM313XSM EUT – TOP OPEN VIEW 2 FCC ID: PDC-IWM313XSM EUT’s PCB – TOP VIEW PCB 1 PCB 2 FCC ID: PDC-IWM313XSM PCB 1 – TOP VIEW FCC ID: PDC-IWM313XSM PCB 1 – BOTTOM VIEW FCC ID: PDC-IWM313XSM PCB 2 – BOTTOM VIEW FCC ID: PDC-IWM313XSM GSM Module Close up View WLAN Module Close up View

December 8 th , 2004 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Subject: Declaration Of Tune-up Procedure To Whom It May Concern: Model# iWM3130 covered under FCC ID: PDC-IWM313XSM & and IC ID: 5079A-IWM313XSM carries a pre-certified GSM module# MC46 by Siemens. GSM module is tuned up by Siemens and the end user or OEM has no possibility to tune up this device. Sincerely, Hung Phan Hardware Engineer 47200 Bayside Pkwy. Fremont, CA 94538 Tel: (510) 870-1252 Fax: (510) 870-1281

MPE Calculation model# iWM3130 HUMAN EXPOSURE STATEMENT Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4R 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4R 2 (4) Where EIRP = Equivalent Isotropically radiated power MPE GSM 850 EIRP: 24.67dBm (293.09mW) Calculated at distance of 20cm Power density = 293.09 / (4 x pi x 20 2 ) = 0.058 mW/cm 2 Limit: 0.56 mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1. MPE Calculation model# iWM3130 MPE GSM 1900 EIRP: 26.14dBm (411.15mW) Calculated at distance of 20cm Power density = 411.15 / (4 x pi x 20 2 ) = 0.081 mW/cm 2 Calculation for distance at which power density will be 1mW/cm 2 Distance = {411.15 / (4 x pi x 1)} = 5.71cm Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1. MPE WLAN 802.11b EIRP: 21.91dBm (155.24mW) Calculated at distance of 20cm Power density = 155.24 / (4 x pi x 20 2 ) = 0.030 mW/cm 2 Calculation for distance at which power density will be 1mW/cm 2 Distance = {155.24 / (4 x pi x 1)} = 3.51cm Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.

Note: The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory Applicant:Siemens AG CETECOM - Certification and Testing in Communications GmbH Im Teelbruch 122 D-45219 Essen Germany Telephone: + 49 (0) 20 54 / 95 19 0 Fax: + 49 (0) 2054 / 95 19 20 T E S T R E P O R T No.: 2-20542043b/02 for GPRS/GSM 900/1800/1900 Module MC 45 + DSB 45 + Votronic Handset FCC ID: QIPMC45 TTI-P-G081/94 FCC Registration No. 99538 Test Report 2-20542043b/02, Page 2 of 65 20542043b_02.doc Table of contents 1. SUMMARY OF TEST RESULTS3 2. ADMINISTRATIVE DATA4 2.1. I DENTIFICATION OF THE TESTING LABORATORY 4 2.2. T EST LOCATION 4 2.3. O RGANIZATIONAL ITEMS 4 2.4. A PPLICANT ́ S DETAILS 4 2.5. M ANUFACTURER ́ S DETAILS 4 3. EQUIPMENT UNDER TEST (EUT)5 3.1. EUT: T YPE , S/N ETC . AND SHORT DESCRIPTIONS USED IN THIS TEST REPORT 5 3.2. A UXILIARY E QUIPMENT (AE): T YPE , S/N ETC . AND SHORT DESCRIPTIONS 5 3.3. EUT SET - UPS 6 3.4. EUT OPERATING MODES 6 4. TEST SET-UPS7 4.1. T EST S ET - UP 1 FOR C ONDUCTED MEASUREMENTS 7 4.2. T EST S ET - UP 2 FOR R ADIATED MEASUREMENTS 8 4.3. P ARAMETER SETTINGS ON MOBILE PHONE AND CMU9 5. MEASUREMENTS10 5.1. C ALIBRATION OF ANECHOIC CHAMBER 10 5.2. RF POWER OUTPUT § 2.1046 CONDUCTED 11 5.3. RF POWER OUTPUT § 2.1046 RADIATED 12 5.4. O CCUPIED BANDWIDTH § 2.104913 5.5. S PURIOUS EMISSIONS AT ANTENNA TERMINALS § 2.105117 5.6. F IELD STRENGTH OF SPURIOUS RADIATION § 2.105326 5.7. F REQUENCY STABILITY / TEMPERATURE VARIATION § 2.105550 6. INSTRUMENTS AND ANCILLARY EQUIPMENT „CTC“53 6.1. S INGLE INSTRUMENTS 53 6.2. T EST SYSTEMS 55 7. PHOTOGRAPHS56 7.1. E XTERNAL PHOTOS OF EUT56 7.2. I NTERNAL PHOTOS OF EUT57 7.3. P HOTOS OF TEST SET - UP 59 Test Report 2-20542043b/02, Page 4 of 65 20542043b_02.doc 2. Administrative Data 2.1. Identification of the testing laboratory Company name:CETECOM Certification and Testing in Communications GmbH Address:Im Teelbruch 122 D-45219 Essen - Kettwig Germany Laboratory accreditation:DAR-Registration No.: TTI-P-G081/94 FCC- Registration No.: 99538 Responsible for testing laboratory:Dipl.-Ing. W. Richter Deputies:Dieter Franke Dipl.-Ing. Karin Silberhorn Dipl.-Ing. Heiko Strehlow 2.2. Test location 2.2.1. Test laboratory “CTC” Company name:see chapter 2.1. Identification of the testing laboratory 2.3. Organizational items Reference No.:20542043 Order No.:-- Responsible for test report and project leader:Dipl.-Ing. V. Krueger Receipt of EUT:2002-07-17 Date(s) of test:2002-07-17 – 2002-08-01 Date of report:2002-08-19 Number of report pages:65 Number of diagram pages (annex):no diagrams --------------------------------------------------------------------------------------------------------------------------------------- Version of template: 4.05 2.4. Applicant ́s details Applicant ́s name:Siemens AG Address:Siemensdamm 50 13629 Berlin Germany Contact person:Mr. Hussein Halawi; Tel. +49 30 38630211 2.5. Manufacturer ́s details Manufacturer ́s name:please see Applicant ́s details Address:please see Applicant ́s details Test Report 2-20542043b/02, Page 5 of 65 20542043b_02.doc 3. Equipment under test (EUT) 3.1. EUT: Type, S/N etc. and short descriptions used in this test report short descrip- tion*) EUTType S/N serial number HW hardware status SW software status EUT A GPRS / GSM ModuleMC 4500499941137807 7 B 2.5SW: 34 EUT B Development support box DSB 45# 200B 1.1V 1.0 EUT C Handset VotronicHH-SI-30.3Sample 2V 1.1-- EUT D EUT E EUT F *) EUT short description is used to simplify the identification of the EUT in this test report. Additional Information for EUT A Frequency range:1850.2 – 1909.8 MHz Number of channels:300 Nominal power supply voltage:4,5 V (of module) Power supply range:3,3 – 4,5 V Temperature range:-30°C - +60°C Emission designator:300KGXW Antenna:… integral antenna: antenna connector: external antenna Max. stated nominal output power: conducted 30,0 ±2 dBm, radiated 30,0 ±2 dBm EIRP Max. measured output power:conducted 29,7 dBm, radiated 30,6 dBm EIRP 3.2. Auxiliary Equipment (AE): Type, S/N etc. and short descriptions AE short descrip- tion*) Auxiliary EquipmentType S/N serial number HW Hardware status SW software status AE 1 RS 232 cable 1for Com1 - Port--Length=1.81 meter-- AE 2 RS 232 cable 2for Com2 - Port--Length=1.81 meter-- AE 3 AC/DC AdapterMW 1000 GSSample 2Input: 230 V AC, 50 Hz, 28 W Output: 3-6V 9-12 V DC, 1000 mA, 12 VA -- AE 4 GSM Antenna900/ 1800 MHz# 10 dB Gain length=1 meter -- *) AE short description is used to simplify the identification of the auxiliary equipment in this test report. Test Report 2-20542043b/02, Page 6 of 65 20542043b_02.doc 3.3. EUT set-ups EUT set-up no.*) Combination of EUT and AERemarks set. 1EUT A + EUT B + EUT C + AE 1 + AE 2 + AE 3 Set-up for conducted measurements: MC 45 situated outside the DSB45 support-box com-1 cable and com-2 cable connected to DSB-Box but not terminated on the other side (open) set. 2EUT A + EUT B + EUT C + AE 1 + AE 2 + AE 3 + AE 4 Set-up for radiated measurements: MC 45 situated outside the DSB45 support-box com-1 cable and com-2 cable connected to DSB-Box but not terminated on the other side (open) set. 3---- *) EUT set-up no. is used to simplify the identification of the EUT set-up in this test report. 3.4. EUT operating modes EUT operating mode no.*) Description of operating modes Additional information op. 1 IDLE The mobile station is synchronized at the Broadcast Control Channel (BCCH) and listening to the Common Control Channel (CCCH), for details please see chapter: 4.3. Parameter settings on mobile phone and CMU. op. 2 TCH A communication link is established between the mobile station and the test simulator. The transmitter is operated at its maximum rated output power, for details please see chapter: 4.3. Parameter settings on mobile phone and CMU. *) EUT operating mode no. is used to simplify the test report. Test Report 2-20542043b/02, Page 7 of 65 20…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 90 PagesPage 1 (90) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2_3350-01-01/03 FCC Part 24/22/15 MC-46 FCC ID: QIPMC46 IC: 267W-MC46 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 CETECOM ICT Services GmbH Test report no.: 2_3350-01-01/03Issue Date: 2003-08-01Page 2 (90) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no.: 2_3350-01-01/03Issue Date: 2003-08-01Page 3 (90) 1.3Details of applicant Name : Siemens AG Street : Siemensdamm 50 City : D-13629 Berlin Country : Germany Telephone : +49 (0)30 386-0 Telefax : +49 (0)30 386-366-56 Contact : Mr. Hussein Halawi Telephone : +49 (0)30 386-302-11 e-mail: [email protected] 1.4Application details Date of receipt of application : 2003-07-28 Date of receipt of test item : 2003-07-30 Date of test : 2003-07-30/31 1.5Test item Type of equipment : Triple Band GSM Module (PCS 850/1800/1900 MHz) Type designation:MC-46 Manufacturer:applicant Street: City: Country: Serial numbers:IMEI : 00499900.254170.0 Additional information: : Frequency:1850.2 – 1909.8 MHz and 824.2 – 848.8 MHz Type of modulation:300KGXW / 300KG7W Number of channels :300 (PCS1900) and 125 (PCS850) Antenna:Integral antenna Power supply:3,7V DC Li-ion Battery Output power GSM 850:cond.: 33.00 dBm Peak , ERP: 24.80 dBm (Burst); EIRP: 26.90 dBm (Burst) Output power GSM 1900 :cond: 29.7dBm Peak, ERP : 28.50dBm(Burst), EIRP: 30.6 dBm (Burst) Type of equipment:Temperature range : -30°C - +60°C FCC – ID:QIPMC46 IC :267W-MC46 Hardware:S30880-S8320-A100-1 (B2.9) Software:Release 3 (SV96) 1.6Test standards: FCC Part 24, 22 FCC Part 15 CETECOM ICT Services GmbH Test report no.: 2_3350-01-01/03Issue Date: 2003-08-01Page 4 (90) 2 Technical test For Part 24/22 we use the substitution method ( TIA/EIA 603). All measurements in this report are done in GSM mode. Device is able to transmit data in GPRS mode also. But because the current measurements are performed in PEAK mode no other results from GPRS mode are possible. The only different is the modulation average power, which is 3 dB higher (by using 2 timeslots in the Up-link ). Remarks: 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2003-08-01RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 2003-08-01RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no.: 2_3350-01-01/03Issue Date: 2003-08-01Page 5 (90) 2.2Test report TEST REPORT Test report no. : 2_3350-01-01/03 CETECOM ICT Services GmbH Test report no.: 2_3350-01-01/03Issue Date: 2003-08-01Page 6 (90) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE Part PCS 1900 EMISSIONS LIMITS §24.2387 Part PCS 850 POWER OUTPUT SUBCLAUSE § 24.23215 FREQUENCY STABILITY SUBCLAUSE § 24.23517 AFC FREQ ERROR vs. VOLTAGE18 AFC FREQ ERROR vs. TEMPERATURE18 EMISSIONS LIMITS §24.23820 CONDUCTED SPURIOUS EMISSIONS34 BLOCK EDGE REQUIREMENTS FOR BLOCK 1 TO BLOCK 443 OCCUPIED BANDWIDTH §2.98959 EMISSION LIMITATIONS FOR CELLULAR §22.917(F)66 ADDITIONAL MEASUREMENTS FOR IDLE MODE PART 15.10974 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS82 Test site84 Photographs of the equipment86 CETECOM ICT Services GmbH Test report no.: 2_3350-01-01/03Issue Date: 2003-08-01Page 7 (90) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 – 24; 64 EMISSIONS LIMITS §24.238 Measurement Procedure: The following steps outline the procedure used to measure the radiated emissions from the mobile station. The site is constructed in accordance with ANSI C63.4 – 1992 requirements and is recognised by the FCC to be in compliance for a 3 and a 10 meter site. The spectrum was scanned from 30 MHz to the 10th harmonic of the highest frequency generated within the equipment, which is the transmitted carrier that can be as high as 1910 MHz. This was rounded up to 20 GHz. The resolution bandwidth is set as outlined in Part 24.238. The spectrum w…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_813FCC22-24_2004 FCC Part 22, 24 / RSS 132, 133 Model: iWM3130 FCC ID: PDC-IWM313XSM IC ID: 5079A-IWM313XS Test report no.: EMC_815FCC22-24_2004 Issue date: 2004-12-03 Page 2 (49) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_815FCC22-24_2004 Issue date: 2004-12-03 Page 3 (49) 1.3 Details of applicant Name : At Road, Inc. Street : 47200 Bayside Pkwy City / Zip Code : Fremont, CA 94538 Country : USA Contact : Hung Phan Telephone : 510 870 1252 Tele-fax : 510 870 1281 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2004-11-01 Date of test : 2004-11-01/02 1.5 Test item Manufacturer : Applicant Marketing Name : iWM313X Model No. : iWM3130 Description : GSM 850/1900 & 802.11b WLAN model for vehicular use FCC-ID : PDC-IWM313XSM IC-ID : 5079A-IWM313XS Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : External Power supply : 12VDC Nominal voltage (10-24VDC) Output power : 24.67dBm (293.09mW) max. ERP measured in GSM-850 26.14dBm (411.15mW) max. EIRP measured in PCS-1900 Extreme temp. Tolerance : Lower: -20 o C Upper: +60 o C 1.6 Test standards FCC Part 22,24 / RSS132,133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. The EUT (iWM3130) carries pre-certified Siemens GSM module model# MC46 with FCC ID: QIPMC46 This test report covers full radiated testing as per FCC 22/24 on EUT with GSM module. All conducted measurements for GSM 1900 are covered under test report# 2-205420436/02 and for GSM850 are covered under test report# 2_3350-01-01/03. Test report no.: EMC_815FCC22-24_2004 Issue date: 2004-12-03 Page 4 (49) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2004-12-03 EMC & Radio Lothar Schmidt (Technical Manager) Date Section Name Signature Responsible for test report and project leader: 2004-12-03 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_815FCC22-24_2004 Issue date: 2004-12-03 Page 5 (49) 2.2 Test report TEST REPORT Test report no.: EMC_815FCC22-24_2004 Model: iWM3130 Test report no.: EMC_815FCC22-24_2004 Issue date: 2004-12-03 Page 6 (49) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT §22.913(a) / § 24.232 (b) 7 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 16 RECEIVER RADIATED EMISSIONS §2.1053 / RSS-133 42 CONDUCTED EMISSIONS §15.107/207 47 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 48 BLOCK DIAGRAMS 49 Test report no.: EMC_815FCC22-24_2004 Issue date: 2004-12-03 Page 7 (49) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio Communication tester (CMU 200) to ensure max. Power transmission and proper modulation. This paragraph contains average output power, peak output power, EIRP & ERP measurements for the EUT. In all cases, the peak output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 824.2 MHz, 836.6 MHz and 848.8 MHz (bottom, middle and top of operational frequency range) for GSM-850 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) for PCS-1900 Test report no.: EMC_815FCC22-24_2004 Issue date: 2004-12-03 Page 8 (49) ERP (GSM-850) §22.913(a) Limits: Power Control Level Burst Peak ERP 5 ≤38.45dBm (7W) EIRP Burst Peak (dBm) Frequency (MHz) Power Control Level EIRP ERP 824.2 5 26.01 23.87 836.6 5 26.57 24.43 848.8 5 26.81 24.67 Measurement uncertainty ±0.5 dB ANALYZER SETTINGS: RBW = VBW = 3MHz Test report no.: EMC_815FCC22-24_2004 Issue date: 2004-12-03 Page 9 (49) -20 -10 0 10 20 30 40 Level [dBm] 819.2M822M824M826M829.2M Frequency [Hz] Marker: 824.049699 MHz 26.01 dBm EIRP (GSM-850) §22.913(a) CHANNEL 128 Test report no.: EMC_815FCC22-24_2004 Issue date: 2004-12-03 Page 10 (49) -20 -10 0 10 20 30 40 Level [dBm] 831.6M834M836M838M841.6M Frequency [Hz] Marker:…
