PDC-IWM315XEGGSM 850/1900 & 802.11b WLAN Transmitter

Confidential Information 1 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved @Road iWM3100 Series Installation Guide Important – Please Read! FCC RF Exposure Information Warning: The antenna supplied with this device must be used for installation and operation. Substitution of other antennas must be approved by the manufacturer for compliance to radiation safety limits. The mounting of this device and antenna must be done by professional installers to ensure that the user or nearby persons will maintain at least 20 cm from the antenna in normal use. Cautions: All persons must maintain a separation distance at least 20 cm from modem antenna when transmitter is operating to meet FCC RF exposure requirements. BEFORE THE INSTALLATION ¾ Gather Components Please ensure you have the following items are together before beginning the installation. There should be one complete set for each vehicle being installed. If any items are missing, contact a local Agent or @Road immediately. 1. iWM31XX Unit 2. Power Cable 3. Installation Parts Kit 4. One of following Antenna options, o Option A: separate GPS and GSM “on glass” antenna o Option B: one-piece permanent roof mount antenna o Option C: Limo/Lip mount: one-piece trunk lip mount antenna o Option D: Flush/Surface mount GPS/Wireless antenna o Option E: Glass mount GPS/Wireless antenna Following the simple steps below will ensure optimum performance of your iWM unit. Should you have questions, please contact @Road Customer Service toll-free at 1-877-4-AtRoad (1-877-428-7623). Confidential Information 2 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved 5. WLAN antenna 6. Installation Information Sheet, 4 part carbon (packaged with iWM Unit) ¾ BEFORE YOU CONTINUE Verify/Match Unit to Correct Vehicle NOTE: Some iWM’s are pre-matched to vehicle by number. This must be known before beginning the installation. 1) Check with the customer to see if vehicles were pre-matched by name/VIN/Serial Number . 2) Fill out the Installation Information Sheet noting iWM ID’s to Vehicles by VIN, License or Car Number. This information is required for the customer to track their vehicles. iWM3100 Assembly and External Interface Detail Confidential Information 3 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved BEGINNING THE INSTALLATION 1) Choose a Location Determine the best location to install the iWM unit. Recommendations are: • In the trunk, where luggage and other items will not come into contact with the unit • Behind or under the seats • Under or behind the dashboard • Behind the left or right kick-panels • In the console (side or overhead) • In the glove compartment/glove box • Hidden from driver’s view when possible, to limit driver tampering 2) Mount the iWM Unit The iWM should be mounted using screws or tie-wraps 3) Hook Up Power The iWM should be connected directly to a known 12V-DC power source (range of 10 to 24VDC), either the column harness or battery of the vehicle. Although the unit has a built-in PLEASE NOTE: Placement should: • Avoid direct sunlight • Provide minimal exposure to dust • Ensure minimal exposure to moisture • Never be installed in engine compartment (Unit is designed to be installed inside the vehicle) iWM3100Installation Side View It is essential that you follow these steps exactly, as any inaccuracies may cause hardware damage and the @Road system to malfunction. Confidential Information 4 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved self-resetting fuse, the iWM3100’s power cable must be fused protected at the power source on both the RED and WHITE power connections with the 10 amp fuses and fuse holders, included in the installation kit. Additionally, remember to place the tamper resistant sticker and a tie wrap over the cover of the fuse holder, as shown in the following picture, so that any tampering with power source wires can be easily detected. Use a voltmeter to verify voltage and hook wires as indicated below. Black Ground Red (fused, 10 Amps) to vehicle battery, unswitched (+), this wire must see at least 10 volts at all times, if not the unit will reset continually and send inaccurate information White (fused, 10 Amps) To true ignition, 12V switched, there must be 12 volt power in the “on”, “start”, and “run” position. All connections at the column harness must be made by either soldering bare wire to bare wire or using the poke and wrap method. Note: T-taps, scotch locks, and like connectors are not permitted and must not be used to tie the iWM to its power source. Confidential Information 5 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved 4 ) Position GPS Antenna for Optimum Performance To ensure best reception, install the GPS antenna in a location that provides a clear sky view (greater than a 90 degree angle view of the sky). Note: Mount antenna as far as possible (at least 2 feet) away from other antennas to minimize the possibility of interference. SMALL VEHICLE (A) BEST – Top of vehicle (B) Option – Dashboard of vehicle (C) Option – Rear brake light compartment (must be non-metallic) Could be on the dashboard or hidden Place under the rear brake light. under non-metallic dashboard. The Can be accessed through the trunk. antenna must face toward the sky. Only recommended when the rear window has a steep slope. LARGE VEHICLE (A) BEST – Top of the vehicle and as (B) OPTION – Middle of the roof close to the front as possible THIS POSITION NOT RECOMMENDED (due to restricted sky view) Confidential Information 6 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved 5) Connect GSM and WLAN Antenna (if separate GSM antenna or non- combo antenna) The GSM antenna should be installed in an optimum location, to intercept the cellular signals, arriving at slightly above zero degrees from the horizon. Signals will typically penetrate through non-metal material such as glass, fiberglass, and aluminum. Please refer to the illustrations below. Note: Mo…

Text truncated - open the document above for the full version.

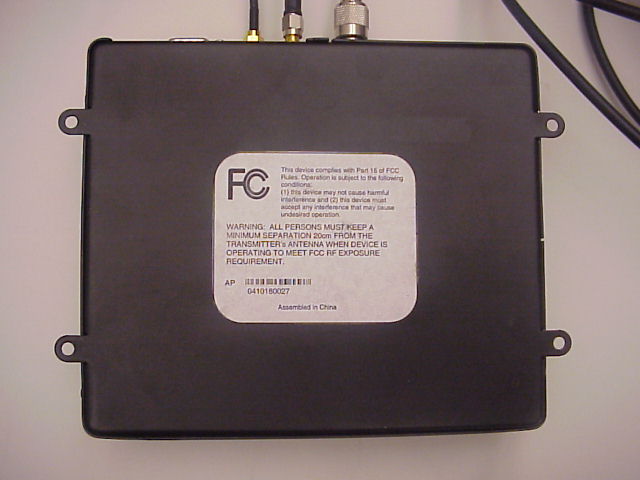

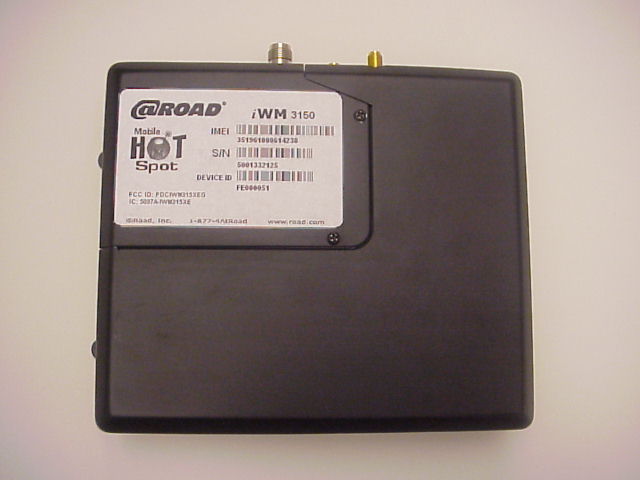

FCC ID: PDC-IWM315XEG EXTERNAL PHOTOS OF EUT ( iWM3150) iWM3150 – TOP VIEW iWM3150 – BOTTOM VIEW FCC ID: PDC-IWM315XEG iWM3150 – TOP VIEW WITH ANTENNA

FCC ID: PDC-IWM315XEG Labeling For iWM3150 Top Label Bottom label This device complies with Part 15 of FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference that may cause undesired operation. WARNING: ALL PERSONS MUST KEEP A MINIMUM SEPARATION 20cm FROM THE TRANSMITTER’s ANTENNA WHEN DEVICE IS OPERATING TO MEET FCC RF EXPOSURE REQUIREMENT. 0410180027 Assembled in China Measurement in inches Width = 3.50” Height = 2.00” Corner radius = 0.125” Measurement in inches Width = 3.50” Height = 2.75” Corner radius = 0.125” AP FCC ID: PDC-IWM315XEG EXTERNAL PHOTOS OF EUT ( iWM3150) iWM3150 – TOP VIEW iWM3150 – BOTTOM VIEW

FCC ID: PDC-IWM315XEG INTERNAL PHOTOS OF EUT ( iWM3150) EUT – TOP OPEN VIEW 1 FCC ID: PDC-IWM315XEG EUT – TOP OPEN VIEW 2 PCB 1 PCB 2 FCC ID: PDC-IWM315XEG PCB 1 – TOP VIEW FCC ID: PDC-IWM315XEG PCB 1 – BOTTOM VIEW FCC ID: PDC-IWM315XEG PCB 2 – BOTTOM VIEW FCC ID: PDC-IWM315XEG GSM Module Close up View WLAN Module Close up View

MC75: component side MC75: component side, shielding opened MC75: rear side

MPE Calculation model# iWM3150 HUMAN EXPOSURE STATEMENT Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 (4) Where EIRP = Equivalent Isotropically radiated power MPE GSM 850 EIRP: 24.07dBm (255.27mW) Calculated at distance of 20cm Power density = 255.27 / (4 x pi x 20 2 ) = 0.0507 mW/cm 2 Calculation for distance at which power density will be 1mW/cm 2 Distance = √ {255.27 / (4 x pi x 1)} = 4.5cm Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1. MPE Calculation model# iWM3150 MPE GSM 1900 EIRP: 26.92dBm (492.04mW) Calculated at distance of 20cm Power density = 492.04 / (4 x pi x 20 2 ) = 0.097 mW/cm 2 Calculation for distance at which power density will be 1mW/cm 2 Distance = √ {492.04 / (4 x pi x 1)} = 6.25cm Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1. MPE WLAN 802.11b EIRP: 21.91dBm (155.24mW) Calculated at distance of 20cm Power density = 155.24 / (4 x pi x 20 2 ) = 0.030 mW/cm 2 Calculation for distance at which power density will be 1mW/cm 2 Distance = √ {155.24 / (4 x pi x 1)} = 3.51cm Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_874FCC22-24_2005 FCC Part 22, 24 / RSS 132, 133 Model: iWM3150 FCC ID: PDC-IWM315XEG IC ID: 5097A-IWM315XE Test report no.: EMC_874FCC22-24_2005iWM3150 Issue date: 2005-03-29 Page 2 (59) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Neelesh Raj 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_874FCC22-24_2005iWM3150 Issue date: 2005-03-29 Page 3 (59) 1.3 Details of applicant Name : At Road, Inc. Street : 47071 Bayside Pkwy City / Zip Code : Fremont, CA 94538 Country : USA Contact : Hung Phan Telephone : 510 870 1252 Tele-fax : 510 870 1281 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2005-3-16 Date of test : 2005-3-16 to 2005-3-23 1.5 Test item Manufacturer : Applicant Marketing Name : Mobile Hot Spot Model No. : iWM3150 Description : QUAD-BAND GSM (850, 900, 1800 1900MHz) with 802.11b WLAN model for vehicular use FCC-ID : PDC-IWM315XEG IC-ID : 5079A-IWM315XE Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : External Power supply : 12VDC Nominal voltage (10-24VDC) Output power : 21.93dBm (155.96mW) max. ERP measured in GSM-850 26.92dBm (492.04mW) max. EIRP measured in PCS-1900 Extreme temp. Tolerance : Lower: -20 o C Upper: +60 o C 1.6 Test standards FCC Part 22,24 / RSS132,133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_874FCC22-24_2005iWM3150 Issue date: 2005-03-29 Page 4 (59) PROJECT OVERVIEW: The EUT (iWM3150) carries pre-certified Siemens GSM module model# MC75 with FCC ID: QIPMC75. This test report covers full radiated testing as per FCC 22/24 on EUT with GSM module. All conducted measurements for are covered under test report# 4_Siem_0504_GSM_FCC Test report no.: EMC_874FCC22-24_2005iWM3150 Issue date: 2005-03-29 Page 5 (59) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2005-04-04 EMC & Radio Lothar Schmidt (Technical Manager) Date Section Name Signature Responsible for test report and project leader: 2005-04-04 EMC & Radio Neelesh Raj (EMC Engineer) Date Section Name Signature Test report no.: EMC_874FCC22-24_2005iWM3150 Issue date: 2005-03-29 Page 6 (59) 2.2 Test report TEST REPORT Test report no.: EMC_874FCC22-24_2005 Model: iWM3150 Test report no.: EMC_874FCC22-24_2005iWM3150 Issue date: 2005-03-29 Page 7 (59) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 22.913(A) / § 24.232 (B) ............................................................................................ 8 ERP (GSM-850) §22.913(a)..............................................................................................................................................9 EIRP (PCS-1900) §24.232(b) ..........................................................................................................................................13 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 ........................................................................ 17 RESULTS OF RADIATED TESTS GSM-850:................................................................................................................18 RESULTS OF RADIATED TESTS PCS-1900: ...............................................................................................................30 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 .................................................................... 45 CONDUCTED EMISSIONS § 15.107/207 ............................................................................................... 51 CO-LOCATION – (RADIATED) TRANSMITTER ...................................................................................... 52 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS ................................................................. 58 BLOCK DIAGRAMS ........................................................................................................................................ 59 Test report no.: EMC_874FCC22-24_2005iWM3150 Issue date: 2005-03-29 Page 8 (59) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio…

Text truncated - open the document above for the full version.

EMC Measurement/Technical Report on 4_Siem_0504_GSM_FCCa 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. GSM Module MC75 Siemens Cellular Engine MC75 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Aufsichtsratsvorsitzender - Chairman of the Supervisory Board: Michael Abels Vorstand - Board of Directors: Dr. Hans-Jürgen Meckelburg René Schildknecht Registergericht - registered in: Düsseldorf, HRB 44096 USt-IdNr VAT Nr: DE 203159652 Report Reference: TTI-P-G 178/99 Test Laboratory (Headquarter): Interlab is a registered trademark of 7 layers AG with Development BoardDSB75 Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 2. Testobject Data 2.1 General EUT Description 2.2 EUT Main Components 2.3 Ancillary Equipment 2.4 EUT Setups 2.5 Operating Modes 3. Test Results 3.1 RF Power Output 3.3 Spurious Emissions at Antenna Terminals 3.2 Frequency Stability 3.4 Field Strength of Spurious Radiation 4. Testequipment 5. Foto Report 6. Setup Drawings 7. Annex 3 3 4 5 5 5 5 5 6 6 7 7 7 7 8 13 16 8 19 25 28 30 33 Measurement plots 3.5 Emission and Occupied Bandwidth 22 3.6 Modulation Charcteristics Page 2 of 33 Testreport Reference: 4_Siem_0504_GSM_FCCa 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for a broadband PCS device Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 and Parts 20 to 69 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2 Subpart J - Equipment Authorization Procedures, Certification § 2.1046 Measurement required: RF power output § 2.1049 Measurement required: Occupied bandwidth § 2.1051 Measurement required: Spurious emissions at antenna terminals § 2.1053 Measurement required: Field strength of spurious emission § 2.1055 Measurement required: Frequency stability § 2.1057 Frequency spectrum to be investigated Part 24 Subpart E - Broadband PCS § 24.232 Power and antenna height limits § 24.235 Frequency stability § 24.238 Emission limits Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Page 3 of 33 Testreport Reference: 4_Siem_0504_GSM_FCCa 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . - Deutscher Akkreditierungs Rat 2004-12-20 Andreas Petz 2005-01-17 2005-01-04 to 2005-01-07 Responsible for testing and report: Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data Siemens AG (BLN) Thorsten Liebig Siemensdamm 50 13629 Berlin Germany please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 5 of 33 Testreport Reference: 4_Siem_0504_GSM_FCCa 2. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Nominal Voltage: Equipment under Test: Siemens Cellular Engine MC75 GSM 850/900/1800/1900 GSM Module MC75 DC 4,5 V Ports 2.1 General EUT Description General product description: GSM module for mobile phones which is able to operate in the bands 850, 900, 1800 and 1900. The manufacturer declared that nominal voltage is equal to high voltage. The EUT provides the following ports: Maximum Voltage: Minimum Voltage: 4,5 V 3,2 V antenna connector enclosure + antenna The main components of EUT are listed and described in Chapter 2.2 Page 6 of 33 Testreport Reference: 4_Siem_0504_GSM_FCCa Short Description Equipment under Test Type Designation 2.2 EUT Main components: Type, S/N, Short Descriptions etc. used in this Test Report HW StatusSW StatusSerial No.Date of Receipt B2.3Revision 00.144 IMEI: 004999003471868 2005-01-03MC75GSM ModuleEUT A (Code: 01400z02) EUT A is connected to the development board. The SMA antenna connector is provided by the development board. For radiated tests an external antenna will be used additionally.. B1-DSB75_B1_00892004-12-20 DSB75Development BoardEUT B (Code: 014001aa) B1-DSB75_B1_00772004-12-20 DSB75Development BoardEUT C (Code: 014002aa) NOTE: The short description is used to simplify the identification of the EUT in this test report 2.3 Ancillary Equipment Short Description Equipment under TestType DesignationHW StatusSW StatusSerial No.FCC Id For the purposes of this test report, ancillary equipment is defined as equipment which is used in conjunction with the EUT to provide operational and control features to the EUT. It is necessary to configure the system in a typical fashion, as a customer would normally use it. But never the less Ancillary Equipment can influence the test results. AE1Allgon-MiniMAG Dualband Antenna Ordering number: 1140.26 --EMV Referenz Antenne_02 - Setup No.Combination of EUTsDescription 2.4 EUT Setups This chapter describes the combination of EUT's and ancillary equipment used for testing. 01s400a01EUT A + EUT B + AE1setup for radiated spurious emissions tests 01s400a02EUT A + EUT Bsetup for conducted tests (DSB board in housing) 01s400a03EUT A + EUT Csetup for conducted tests (DSB board) Op. Mode Description of Operating Modes Remarks 2.5 Operating Modes This chapter describes the operating modes of the EUT's used for testing. op-mode 1Call established on Traffic Channel (TCH) 512, Ca…

Text truncated - open the document above for the full version.

7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Aufsichtsratsvorsitzende Chairman of the Supervisory Board: Michael Abels Vorstand - Board of Directors: Dr. Hans-Jürgen Meckelburg René Schildknecht Registergericht - registered in: Düsseldorf, HRB 44096 USt-IdNr VAT Nr: DE 203159652 Interlab is a registered trademark of 7 layers AG EMC Measurement/Technical Report on GSM Module MC75 Siemens Cellular Engine MC75 Report Reference: 4_Siem_0504_GSM_FCCc Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] TTI-P-G 178/99 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Testreport Reference: 4_Siem_0504_GSM_FCCc Page 2 of 42 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 5 1.1 Testing Laboratory 5 1.2 Project Data 5 1.3 Applicant Data 5 1.4 Manufacturer Data 5 2 Testobject Data 6 2.1 General EUT Description 6 2.2 EUT Main components 7 2.3 Ancillary Equipment 7 2.4 EUT Setups 7 2.5 Operating Modes 8 3 Test Results 9 3.1 RF Power Output 9 3.2 Frequency stability 13 3.3 Spurious emissions at antenna terminals 16 3.4 Field strength of spurious radiation 20 3.5 Emission and Occupied Bandwidth 23 3.6 Mobile emissions in base frequency range 26 4 Test Equipment 28 5 Foto Report 31 6 Setup Drawings 35 7 Annex 37 Measurement Plots Testreport Reference: 4_Siem_0504_GSM_FCCc Page 3 of 42 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for a GSM cellular radiotelephone device Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 and Parts 20 to 69 (10-1-01 Edition). The following subparts are applicable to the results in this test report. Part 2 Subpart J - Equipment Authorization Procedures, Certification § 2.1046 Measurement required: RF power output § 2.1049 Measurement required: Occupied bandwidth § 2.1051 Measurement required: Spurious emissions at antenna terminals § 2.1053 Measurement required: Field strength of spurious emission § 2.1055 Measurement required: Frequency stability § 2.1057 Frequency spectrum to be investigated Part 22 Subpart H – Cellular Radiotelephone Service § 22.355 Frequency tolerance § 22.913 Effective radiated power limits § 22.917 Emission limitations for cellular Summary Test The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Testreport Reference: 4_Siem_0504_GSM_FCCc Page 5 of 42 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR- Registration no. TTI-P-G 178/99 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Arndt Stöcker Dipl.-Ing. Thomas Hoell 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Robert Machulec Receipt of EUT: 2004-12-20 Date of Test(s): 2005-01-04 to 2005-01-07 Date of Report: 2005-01-18 1.3 Applicant Data Company Name: Siemens AG Address: Siemensdamm 50 13629 Berlin Germany Contact Person: Thorsten Liebig 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Testreport Reference: 4_Siem_0504_GSM_FCCc Page 6 of 42 2 Testobject Data 2.1 General EUT Description Equipment under GSM Module MC75 Type Designation: Siemens Cellular Engine MC75 Kind of Device: (optional) GSM 850/900/1800/1900 Voltage Type: DC Nominal Voltage: 4,5 V Maximum Voltage: 4,5 V Minimum Voltage: 3,2 V General product description: GSM module for mobile phones which is able to operate in the bands 850, 900, 1800 and 1900. The manufacturer declared that nominal voltage is equal to high voltage. In GSM 850 mode the card operates in channel blocks A and B from 824,2 MHz (lowest channel = 128) to 848,8 MHz (highest channel = 251). The EUT provides the following ports: Ports antenna connector enclosure + antenna The main components of the EUT are listed and described in Chapter 2.2 Testreport Reference: 4_Siem_0504_GSM_FCCc Page 7 of 42 2.2 EUT Main components Type, S/N, Short Descriptions etc. used in this Test Report Short Description Equipment under Test Type Designation Serial No. HW Status SW Status Date of Receipt EUT A (Code: 01400z02) GSM Module MC75 IMEI: 0049990034 71868 B2.3 Revision 00.144 2005-01-03 EUT A is connected to the development board. The SMA antenna connector is provided by the development board. For radiated tests an external will be used aditionally. EUT B (Code: 014001aa) Develop- ment Board DSB75 DSB75_B1_ 0089 B1 – 2004-12-20 EUT C (Code: 014002aa) Develop- ment Board DSB75 DSB75_B1_ 0077 B1 – 2004-12-20 NOTE: The short description is used to simplify the identification of the EUT in this test report. 2.3 Ancillary Equipment For the purposes of this test report, ancillary equipment is defined as equipment which is used in conjunction with the EUT to provide operational and control features to the EUT. It is necessary to configure the system in a typical fashion, as a customer would normally use it. But nevertheless Ancillary Equipment can influence the test results. Short Description Equipment under Test Type Designation HW Status SW Status Serial no. FCC ID AE1 Allgon- MiniMAG Dualband Antenna Ordering number: 1140.26 – – EMV Referenz Antenne_02 – 2.4 EUT Setups This chapter describes the combination of EUT's and ancillary equipment used for testing. Setup No. Combination of EUTs Description 01s400a01 EUT A + EUT B + AE1 setup for radiated spurious emissions tests 01s400a02 EUT A + EUT B setup for conducted tests (DSB board in housing) 01…

Text truncated - open the document above for the full version.

Test setup – Radiated Emissions Test setup – Radiated Emissions
