PDC-IWM313XSMGSM 850/1900 & 802.11b WLAN Transmitter

DRAFT 11/10/04 Confidential Information 1 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved @Road iWM3100 Series Installation Guide Important – Please Read! FCC RF Exposure Information Warning: The antenna supplied with this device must be used for installation and operation. Substitution of other antennas must be approved by the manufacturer for compliance to radiation safety limits. The mounting of this device and antenna must be done by professional installers to ensure that the user or nearby persons will maintain at least 20 cm from the antenna in normal use. Cautions: All persons must maintain a separation distance at least 20 cm from modem antenna when transmitter is operating to meet FCC RF exposure requirements. BEFORE THE INSTALLATION ¾ Gather Components Please ensure you have the following items are together before beginning the installation. There should be one complete set for each vehicle being installed. If any items are missing, contact a local Agent or @Road immediately. 1. iWM31XX Unit 2. Power Cable 3. Installation Parts Kit 4. One of following Antenna options, o Option A: separate GPS and GSM “on glass” antenna o Option B: one-piece permanent roof mount antenna o Option C: Limo/Lip mount: one-piece trunk lip mount antenna o Option D: Flush/Surface mount GPS/Wireless antenna o Option E: Glass mount GPS/Wireless antenna Following the simple steps below will ensure optimum performance of your iWM unit. Should you have questions, please contact @Road Customer Service toll-free at 1-877-4-AtRoad (1-877-428-7623). DRAFT 11/10/04 Confidential Information 2 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved 5. WLAN antenna 6. Installation Information Sheet, 4 part carbon (packaged with iWM Unit) ¾ BEFORE YOU CONTINUE Verify/Match Unit to Correct Vehicle NOTE: Some iWM’s are pre-matched to vehicle by number. This must be known before beginning the installation. 1) Check with the customer to see if vehicles were pre-matched by name/VIN/Serial Number. 2) Fill out the Installation Information Sheet noting iWM ID’s to Vehicles by VIN, License or Car Number . This information is required for the customer to track their vehicles. iWM3100 Assembly and External Interface Detail Input Power (10 ~ 24VDC, 2A) PCS/Cellular Antenna GPS Antenna WLAN Antenna Ethernet Port Data 1 & 2 Ports PTO Switches Port DRAFT 11/10/04 Confidential Information 3 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved BEGINNING THE INSTALLATION 1) Choose a Location Determine the best location to install the iWM unit. Recommendations are: • In the trunk, where luggage and other items will not come into contact with the unit • Behind or under the seats • Under or behind the dashboard • Behind the left or right kick-panels • In the console (side or overhead) • In the glove compartment/glove box • Hidden from driver’s view when possible, to limit driver tampering 2) Mount the iWM Unit The iWM should be mounted using screws or tie-wraps 3) Hook Up Power The iWM should be connected directly to a known 12V-DC power source (range of 10 to 24VDC), either the column harness or battery of the vehicle. Although the unit has a built-in self-resetting fuse, the iWM3100’s power cable must be fused protected at the power source PLEASE NOTE: Placement should: • Avoid direct sunlight • Provide minimal exposure to dust • Ensure minimal exposure to moisture • Never be installed in engine compartment (Unit is designed to be installed inside the vehicle) iWM3100Installation Side View It is essential that you follow these steps exactly, as any inaccuracies may cause hardware damage and the @Road system to malfunction. DRAFT 11/10/04 Confidential Information 4 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved on both the RED and WHITE power connections with the 10 amp fuses and fuse holders, included in the installation kit. Additionally, remember to place the tamper resistant sticker and a tie wrap over the cover of the fuse holder, as shown in the following picture, so that any tampering with power source wires can be easily detected. Use a voltmeter to verify voltage and hook wires as indicated below. Black Ground Red (fused, 10 Amps) to vehicle battery, unswitched (+), this wire must see at least 10 volts at all times, if not the unit will reset continually and send inaccurate information White (fused, 10 Amps) To true ignition, 12V switched, there must be 12 volt power in the “on”, “start”, and “run” position. All connections at the column harness must be made by either soldering bare wire to bare wire or using the poke and wrap method. Note: T-taps, scotch locks, and like connectors are not permitted and must not be used to tie the iWM to its power source. DRAFT 11/10/04 Confidential Information 5 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved 4) Position GPS Antenna for Optimum Performance To ensure best reception, install the GPS antenna in a location that provides a clear sky view (greater than a 90 degree angle view of the sky). Note: Mount antenna as far as possible (at least 2 feet) away from other antennas to minimize the possibility of interference. SMALL VEHICLE (A) BEST – Top of vehicle (B) Option – Dashboard of vehicle (C) Option – Rear brake light compartment (must be non-metallic) Could be on the dashboard or hidden Place under the rear brake light. under non-metallic dashboard. The Can be accessed through the trunk. antenna must face toward the sky. Only recommended when the rear window has a steep slope. LARGE VEHICLE (A) BEST – Top of the vehicle and as (B) OPTION – Middle of the roof close to the front as possible THIS POSITION NOT RECOMMENDED (due to restricted sky view) DRAFT 11/10/04 Confidential Information 6 PN: 900-003x-000 DRAFT © 2002 At Road, Inc. All Rights Reserved 5) Connect GSM and WLAN Antenna (if separate GSM antenna or non- combo antenna) The GSM antenna should be installed in an optimum location, to intercept the cellular sign…

Text truncated - open the document above for the full version.

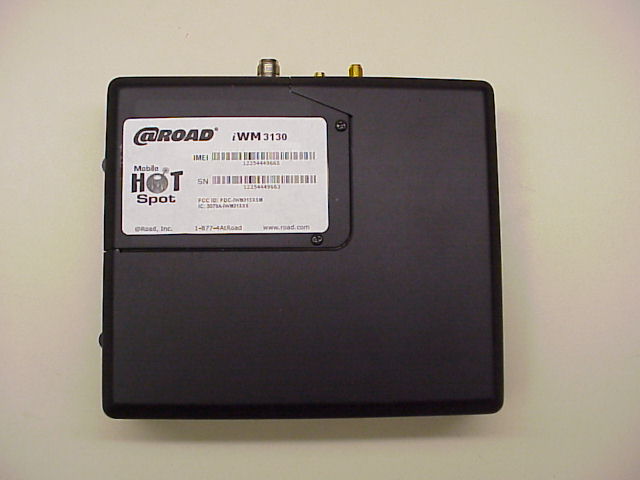

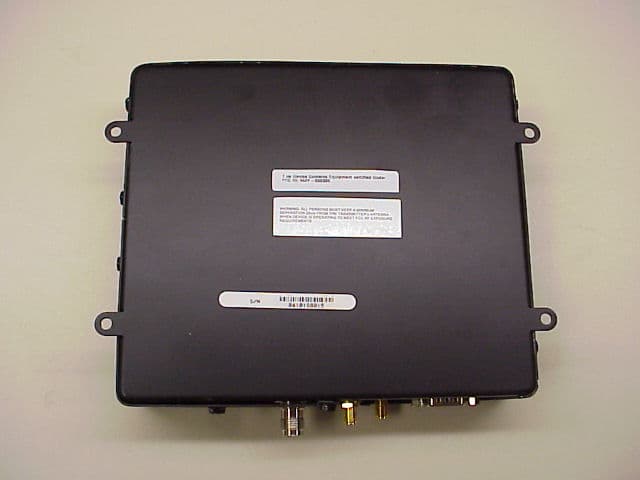

FCC ID: PDC-IWM313XSM EXTERNAL PHOTOS OF EUT ( iWM3130) iWM3130 – TOP VIEW iWM3130 – BOTTOM VIEW FCC ID: PDC-IWM313XSM iWM3130 – TOP VIEW WITH ANTENNA

FCC ID: PDC-IWM313XSM DRAFT iWM3130 FCC Label FCC ID and IC Label FCC Part 15 statement label RF Exposure FCC Statement Measurement in inches Width = 3.25 Height = 2.00 Corner radius = 0.125 This device complies with Part 15 of FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference that may cause undesired operation. WARNING: ALL PERSONS MUST KEEP A MINIMUM SEPARATION 20cm FROM THE TRANSMITTER’s ANTENNA WHEN DEVICE IS OPERATING TO MEET FCC RF EXPOSURE REQUIREMENT. FCC ID: PDC-IWM313XSM EXTERNAL PHOTOS OF EUT ( iWM3130) iWM3130 – TOP VIEW iWM3130 – BOTTOM VIEW

Page 11 Page 12

FCC ID: PDC-IWM313XSM INTERNAL PHOTOS OF EUT ( iWM3130) EUT – TOP OPEN VIEW 1 FCC ID: PDC-IWM313XSM EUT – TOP OPEN VIEW 2 FCC ID: PDC-IWM313XSM EUT’s PCB – TOP VIEW PCB 1 PCB 2 FCC ID: PDC-IWM313XSM PCB 1 – TOP VIEW FCC ID: PDC-IWM313XSM PCB 1 – BOTTOM VIEW FCC ID: PDC-IWM313XSM PCB 2 – BOTTOM VIEW FCC ID: PDC-IWM313XSM GSM Module Close up View WLAN Module Close up View

MPE Calculation model# iWM3130 HUMAN EXPOSURE STATEMENT Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4R 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4R 2 (4) Where EIRP = Equivalent Isotropically radiated power MPE GSM 850 EIRP: 24.67dBm (293.09mW) Calculated at distance of 20cm Power density = 293.09 / (4 x pi x 20 2 ) = 0.058 mW/cm 2 Limit: 0.56 mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1. MPE Calculation model# iWM3130 MPE GSM 1900 EIRP: 26.14dBm (411.15mW) Calculated at distance of 20cm Power density = 411.15 / (4 x pi x 20 2 ) = 0.081 mW/cm 2 Calculation for distance at which power density will be 1mW/cm 2 Distance = {411.15 / (4 x pi x 1)} = 5.71cm Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1. MPE WLAN 802.11b EIRP: 21.91dBm (155.24mW) Calculated at distance of 20cm Power density = 155.24 / (4 x pi x 20 2 ) = 0.030 mW/cm 2 Calculation for distance at which power density will be 1mW/cm 2 Distance = {155.24 / (4 x pi x 1)} = 3.51cm Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_815FCC15.247_2004 FCC Part 15.247 for DSSS systems / CANADA RSS-210 Model: iWM3130 FCC ID: PDC-IWM313XSM IC ID: 5079A-IWM313XS CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 2 (36) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 3 (36) 1.3 Details of applicant Name : At Road, Inc. Street : 47200 Bayside Pkwy City / Zip Code : Fremont, CA 94538 Country : USA Contact : Hung Phan Telephone : 510 870 1252 Tele-fax : 510 870 1281 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2004-11-01 Date of test : 2004-11-01/02 1.5 Test item Manufacturer : Applicant Marketing Name : iWM313X Model No. : iWM3130 Description : GSM 850/1900 & 802.11b WLAN model for vehicular use FCC-ID : PDC-IWM313XSM IC-ID : 5079A-IWM313XS Additional information Frequency : 2412MHz – 2462MHz Type of modulation : DSSS Number of channels : 11 Antenna : External Power supply : 5VDC Output power : 18.15dBm (65.32mW) conducted peak power Extreme temp. Tolerance : Lower: -20 o C Upper: +60 o C 1.6 Test standards: FCC Part 15 §15.247 / CANADA RSS-210 The EUT (iWM3130) carries pre-certified Z-COM, INC. BT module model# XI-325 & XI-325B with FCC ID: M4Y-000325 This test report covers full radiated testing as per FCC 15.247 on EUT with BT module. All conducted measurements for are covered under test report# RF900628R02 CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 4 (36) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (Only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2004-12-03 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2004-12-03 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 5 (36) 2.2 Test report TEST REPORT Test report no.: EMC_815FCC15.247_2004 FCC Part 15.247 for DSSS systems / CANADA RSS-210 CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 6 (36) TEST REPORT REFERENCE LIST OF MEASUREMENTS PAGE MAXIMUM PEAK OUTPUT POWER §15.247 (b) (1) 7 BAND EDGE COMPLIANCE §15.247 (c) 11 RADIATED EMISSIONS COLLOCATION WLAN & GSM 25 CONDUCTED EMISSIONS §15.107/207 28 RECEIVER SPURIOUS RADIATION §15.209 29 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 34 BLOCK DIAGRAMS 35 CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 7 (36) MAXIMUM PEAK OUTPUT POWER § 15.247 (b) (1) (RADIATED) EIRP : TEST CONDITIONS MAXIMUM PEAK OUTPUT POWER (dBm) Frequency (MHz) 2412 2437 2462 T nom (23)°C V nom 21.66 21.91 21.20 Measurement uncertainty ±0.5dBm RBW/VBW: 10MHz LIMIT SUBCLAUSE § 15.247 (b) (1) Frequency range RF power output 2400-2483.5 MHz 30dBm on Conducted CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 8 (36) -20 -10 0 10 20 30 Level [dBm] 2.387G2.4G2.41G2.42G2.437G Frequency [Hz] Marker: 2.413853707 GHz 21.66 dBm EIRP (2412MHz): CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 9 (36) -20 -10 0 10 20 30 Level [dBm] 2.412G2.43G2.44G2.45G2.462G Frequency [Hz] Marker: 2.437651303 GHz 21.91 dBm EIRP (2437MHz): CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 10 (36) -20 -10 0 10 20 30 Level [dBm] 2.437G2.45G2.46G2.47G2.487G Frequency [Hz] Marker: 2.463152305 GHz 21.2 dBm EIRP (2462MHz): CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 11 (36) -20 0 20 40 60 80 100 120 Level [dBμV/m] 2.31G 2.34G 2.36G 2.38G 2.412 G Frequency [Hz] Marker: 2.376024048 GHz 28.09 dBμV/m BAND EDGE COMPLIANCE §15.247 (c) Low frequency section (spurious in the restricted band 2310 – 2390 MHz) Operating condition : Tx at 2412MHz SWEEP TABLE : "FCC15.247 LBE_AVG" Limit Line : 54dBμV Start Stop Detector Meas. RBW VBW Transducer Frequency Frequency Time Bandw. 2.31 GHz 2.412 GHz MaxPeak Coupled 1 MHz 10Hz #326 horn (dBi) CETECOM Inc. Test report no.: EMC_815FCC15.247_2004 Issue date: 2004-12-03 Page 12 (36) -20 0 20 40 60 80 100 120 Level [dBμV/m] 2.31G 2.34G 2.36G 2.38G 2.412 G Frequency [Hz] Marker: 2.390128257 GHz 65.54 dBμV/m BAND EDGE COMPLIANCE §…

Text truncated - open the document above for the full version.

FCC ID: M4Y-000325 Report No.: RF900628R021Issued: August 13, 2001 FCC TEST REPORT REPORT NO.: RF900628R02 MODEL NO.: XI-325, XI-325B RECEIVED: June 28, 2001 TESTED: July 2 ~ August 9, 2001 APPLICANT: Z-COM, INC. ADDRESS: 7F-2, No.9, Prosperity RD. I, Science-Based Industrial Park Hsinchu, 300 Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 Lab Code: 200102-0 FCC ID: M4Y-000325 Report No.: RF900628R022Issued: August 13, 2001 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST PROCEDURES...........................................................................................10 4.1.4TEST SETUP..........................................................................................................10 4.1.5EUT OPERATING CONDITIONS........................................................................11 4.1.6TEST RESULTS(A)................................................................................................12 4.1.7TEST RESULTS(B)................................................................................................18 4.2RADIATED EMISSION MEASUREMENT..........................................................24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................24 4.2.2TEST INSTRUMENTS...........................................................................................25 4.2.3TEST PROCEDURES...........................................................................................26 4.2.4TEST SETUP..........................................................................................................27 4.2.5EUT OPERATING CONDITIONS........................................................................27 4.2.6TEST RESULTS(A)................................................................................................28 4.2.7TEST RESULTS(B)................................................................................................33 4.36DB BANDWIDTH MEASUREMENT..................................................................38 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................38 4.3.2TEST INSTRUMENTS...........................................................................................38 4.3.3TEST PROCEDURE..............................................................................................39 4.3.4TEST SETUP..........................................................................................................39 4.3.5EUT OPERATING CONDITIONS........................................................................39 4.3.6TEST RESULTS......................................................................................................40 4.4MAXIMUM PEAK OUTPUT POWER..................................................................44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............44 4.4.2TEST INSTRUMENTS...........................................................................................44 4.4.3TEST PROCEDURES...........................................................................................45 FCC ID: M4Y-000325 Report No.: RF900628R023Issued: August 13, 2001 4.4.4TEST SETUP..........................................................................................................45 4.4.5EUT OPERATING CONDITIONS........................................................................45 4.4.6TEST RESULTS......................................................................................................46 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................47 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT......................47 4.5.2TEST INSTRUMENTS...........................................................................................47 4.5.3TEST PROCEDURE..............................................................................................48 4.5.4TEST SETUP..........................................................................................................48 4.5.5EUT OPERATING CONDITIONS........................................................................48 4.5.6TEST RESULTS......................................................................................................49 4.6BAND EDGES MEASUREMENT.........................................................................53 4.6.1LIMITS OF BAND EDGES MEASUREMENT....................................................53 4.6.2TEST INS…

Text truncated - open the document above for the full version.

FCC ID: M4Y-000325 Report No.: RF900628R0231Issued: August 13, 2001 EUT 2.4GHz Wireless LAN Card MODEL XI-325 MODE Channel 6 FREQUENCY RANGE Above 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 30 deg. C, 60 % RH, 1050 hPa TESTED BY: Gary Chang ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Antenna Factor (dB) Cable Factor (dB) Pre-Amp. Factor (dB) Correction Factor (dB) 12063.4050.2 PK74.00-23.801.00H30719.2427.613.310.00-30.92 2*2438.40106.3 PK--1.26H14474.2428.383.640.00-32.03 3*2438.40100.1 AV--1.26H14468.1028.383.640.00-32.03 44126.1053.0 PK74.00-21.001.65H33515.8032.404.790.00-37.19 54874.3052.5 PK74.00-21.501.79H30414.2033.075.250.00-38.31 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Antenna Factor (dB) Cable Factor (dB) Pre-Amp. Factor (dB) Correction Factor (dB) 12062.4051.3 PK74.00-22.701.40V920.4027.613.310.00-30.92 2*2437.20100.2 PK--1.77V35468.2028.383.640.00-32.02 3*2437.2093.4 AV--1.77V35461.4028.383.640.00-32.02 44126.1052.6 PK74.00-21.401.37V18115.4032.404.790.00-37.19 54874.4053.0 PK74.00-21.001.52V29714.7033.075.250.00-38.31 NOTE: 1. Emission level = Raw value - Correction Factor 2. Correction Factor = Pre-Amp. Factor - Ant. Factor - Cable loss (Pre-Amp. Factor = 0, when a Pre-Amplifier is not used for the test.) 3. Margin value = Emission level - Limit value 4. “ * “ : Fundamental frequency 5. The other emission levels were very low against the limit. FCC ID: M4Y-000325 Report No.: RF900628R0232Issued: August 13, 2001 EUT 2.4GHz Wireless LAN Card MODEL XI-325 MODE Channel 11 FREQUENCY RANGE Above 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 30 deg. C, 60 % RH, 1050 hPa TESTED BY: Gary Chang ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Antenna Factor (dB) Cable Factor (dB) Pre-Amp. Factor (dB) Correction Factor (dB) 12088.4047.8 PK74.00-26.201.26H5416.8027.663.330.00-30.99 2*2464.30104.6 PK--1.58H372.5028.423.660.00-32.08. 3*2464.3097.3 AV--1.58H365.2028.423.660.00-32.08. 42486.5055.5 PK74.00-18.501.09H5423.4028.473.680.00-32.15. 52486.5051.5 AV54.00-2.501.09H5419.4028.473.680.00-32.15 64176.2052.6 PK74.00-21.402.01H28715.4032.404.810.00-37.21 74924.2052.9 PK74.00-21.101.10H17214.5033.155.280.00-38.43 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Antenna Factor (dB) Cable Factor (dB) Pre-Amp. Factor (dB) Correction Factor (dB) 12088.0049.9 PK74.00-24.101.08V16218.9027.663.330.00-30.99 2*2464.20102.2 PK--1.02V10170.1628.423.660.00-32.09 3*2464.2096.4 AV--1.02V10164.3028.423.660.00-32.09 42495.6057.4 PK74.00-16.601.05V4325.3028.473.680.00-32.15 52495.6051.5 AV54.00-2.501.05V4319.3328.473.680.00-32.16 64176.4051.7 PK54.00-22.301.03V1214.5032.404.810.00-37.22 74924.1052.9 PK54.00-21.101.07V12214.5033.155.280.00-38.43 NOTE: 1. Emission level = Raw value - Correction Factor 2. Correction Factor = Pre-Amp. Factor - Ant. Factor - Cable loss (Pre-Amp. Factor = 0, when a Pre-Amplifier is not used for the test.) 3. Margin value = Emission level - Limit value 4. “ * “ : Fundamental frequency 5. The other emission levels were very low against the limit. FCC ID: M4Y-000325 Report No.: RF900628R0233Issued: August 13, 2001 4.2.7 TEST RESULTS(B) EUT2.4GHz Wireless LAN CardMODELXI-325B MODEChannel 11 FREQUENCY RANGE 30-1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Quasi-Peak ENVIRONMENTAL CONDITIONS 30 deg. C, 60 % RH, 1050 hPa TESTED BY: Gary Chang ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Antenna Factor (dB) Cable Factor (dB) Pre-Amp. Factor (dB) Correction Factor (dB) 1132.4130.7 QP43.50-12.801.06H19018.4011.161.130.00-12.29 2264.7432.8 QP46.00-13.201.34H12018.4012.751.700.00-14.45 3352.4834.2 QP46.00-11.801.25H25017.8014.312.050.00-16.36 4396.4733.9 QP46.00-12.101.02H34615.7015.962.220.00-18.18 5440.2734.9 QP46.00-11.101.16H31316.2016.322.380.00-18.69 6528.7034.5 QP46.00-11.501.73H28314.2017.662.610.00-20.26 7748.1737.2 QP46.00-8.801.51H28013.8020.143.260.00-23.41 8924.0133.1 QP46.00-12.901.26H2118.4021.003.680.00-24.70 NOTE: 1. Emission level = Raw value - Correction Factor 2. Correction Factor = Pre-Amp. Factor - Ant. Factor - Cable loss (Pre-Amp. Factor = 0, when a Pre-Amplifier is not used for the test.) 3. Margin value = Emission level - Limit value 4. The other emission levels were very low against the limit. FCC ID: M4Y-000325 Report No.: RF900628R0234Issued: August 13, 2001 EUT2.4GHz Wireless LAN CardMODELXI-325B MODEChannel 11 FREQUENCY RANGE 30-1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Quasi-Peak ENVIRONMENTAL CONDITIONS 30 deg. C, 60 % RH, 1050 hPa TESTED BY: Gary Chang ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Antenna Factor (dB) Cable Factor (dB) Pre-Amp. Factor (dB) Correction Factor (dB) 1132.4730.7 QP43.50-12.801.40V30918.4011.161.130.00-12.29 2220.4729.4 QP46.00-16.602.13V2717.6010.261.520.00-11.80 3264.0232.8 QP46.00-13.201.81V22618.4012.751.700.00-14.45 4396.0435.8 QP46.00-10.201.48V16817.6015.962.220.00-18.18 5528.0437.1 QP46.00-8.902.12V2016.9017.622.600.00-20.22 6748.1439.2 QP46.00-6.801.11V25715.8020.143.260.00-23.41 7880.6335.9 QP46.00-10.101.72V3211.7020.683.550.00-24.24 NOTE: 1. Emission level = Raw value - Correction Factor 2. Co…

Text truncated - open the document above for the full version.

Test setup – Radiated Emissions Test setup – Radiated Emissions
