PDYTP1227ALPElectronic Energy Saving Lamp

U SER ’ S M ANUAL Products are applied to hotel, supermarkets, offices, families, etc. Rate voltage: 110-120V, Rate Frequency: 60Hz. Caution: The RF lighting device complies with part 18 of the FCC rules. 1. Use only on 110-120 Voltage, 60 Herz. 2. Never disassemble or modify, any changes could void the user’s authority to operate this device. 3. Not for use in totally enclosed fixtures. 4. Risk of electric shock-use in dry locations only. 5. This device is not intended for use with emergency exit fixtures or emergency exit lights. 6. This product may cause interference to radio equipment and should not be installed near maritime safety communication equipment or other critical navigation or communication equipment operating between 0.45-30MHz. 7. To prevent burns do not touch the bulb during operation or immediately after switching off. 8. Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. 9. Add weight of the device may cause instability of a freestanding portable. 10. Use only with portable table lamps in which the distance from the bottom of the base to the top of the lamp holder does not exceed three times minimum base width. 11. Use only with portable table lamps which are provide with lamp shades. 12. Use indoors with open, surface mounted and track fixtures.

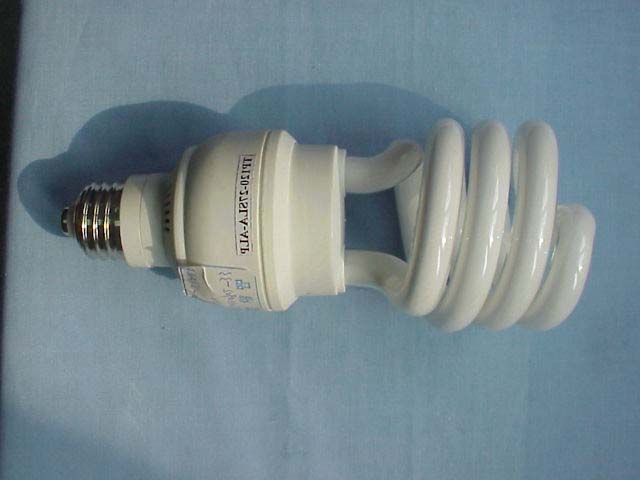

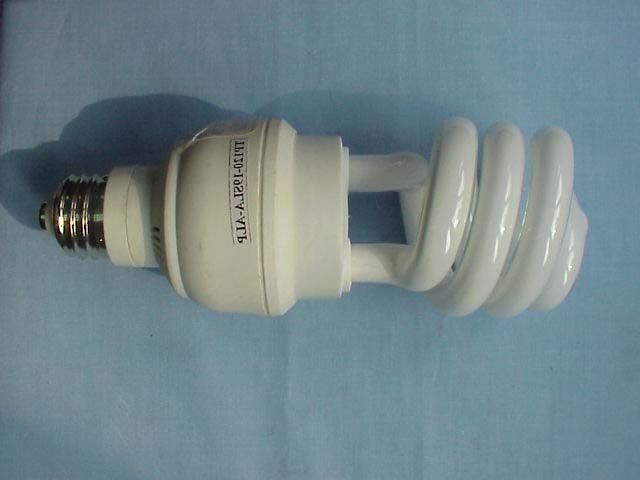

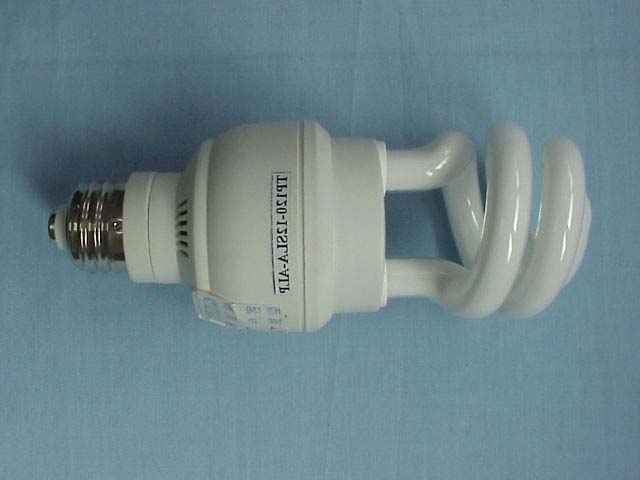

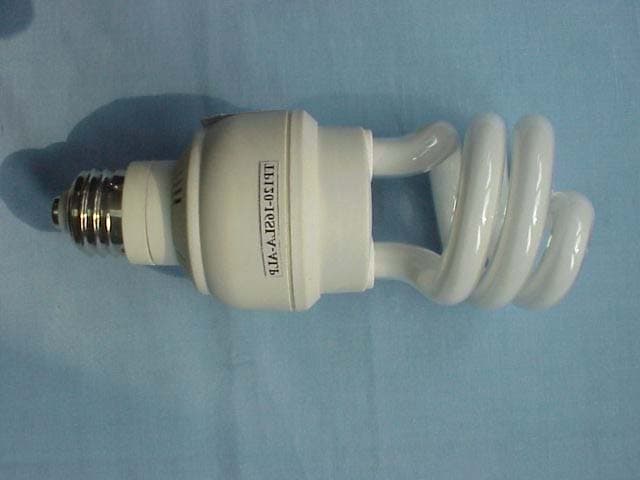

F IGURE 1 E NERGY S AVING L AMP (M/N: TP120-12SLA-ALP) G ENERAL A PPEARANCE F IGURE 2 E NERGY S AVING L AMP (M/N: TP120-16SLA-ALP) G ENERAL A PPEARANCE F IGURE 3 E NERGY S AVING L AMP (M/N: TP120-19SLA-ALP) G ENERAL A PPEARANCE F IGURE 4 E NERGY S AVING L AMP (M/N:TP120-24SLA-ALP) G ENERAL A PPEARANCE F IGURE 5 E NERGY S AVING L AMP (M/N: TP120-27SLA-ALP) G ENERAL A PPEARANCE

Label Drawing PDYTP1227ALP PDYTP1227ALP PDYTP1227ALP PDYTP1227ALP PDYTP1227ALP

Label Location Information Refer to the below red arrow: (for example)

F IGURE 1 E NERGY S AVING L AMP (M/N: TP120-12SLA-ALP) C OVER R EMOVED F IGURE 2 E NERGY S AVING L AMP (M/N: TP120-12SLA-ALP) M AIN B OARD (C OMPONENT S IDE ) F IGURE 3 E NERGY S AVING L AMP (M/N: TP120-12SLA-ALP) M AIN B OARD (S OLDERED S IDE ) F IGURE 4 E NERGY S AVING L AMP (M/N: TP120-16SLA-ALP) C OVER R EMOVED F IGURE 5 E NERGY S AVING L AMP (M/N: TP120-16SLA-ALP) M AIN B OARD (C OMPONENT S IDE ) F IGURE 6 E NERGY S AVING L AMP (M/N: TP120-16SLA-ALP) M AIN B OARD (S OLDERED S IDE ) F IGURE 7 E NERGY S AVING L AMP (M/N: TP120-19SLA-ALP) C OVER R EMOVED F IGURE 8 E NERGY S AVING L AMP (M/N: TP120-19SLA-ALP) M AIN B OARD (C OMPONENT S IDE ) F IGURE 9 E NERGY S AVING L AMP (M/N: TP120-19SLA-ALP) M AIN B OARD (S OLDERED S IDE ) F IGURE 10 E NERGY S AVING L AMP (M/N: TP120-24SLA-ALP) C OVER R EMOVED F IGURE 11 E NERGY S AVING L AMP (M/N: TP120-24SLA-ALP) M AIN B OARD (C OMPONENT S IDE ) F IGURE 12 E NERGY S AVING L AMP (M/N: TP120-24SLA-ALP) M AIN B OARD (S OLDERED S IDE ) F IGURE 13 E NERGY S AVING L AMP (M/N: TP120-27SLA-ALP) C OVER R EMOVED F IGURE 14 E NERGY S AVING L AMP (M/N: TP120-27SLA-ALP) M AIN B OARD (C OMPONENT S IDE ) F IGURE 15 E NERGY S AVING L AMP (M/N: TP120-27SLA-ALP) M AIN B OARD (S OLDERED S IDE )

Schematics

Tospo Electronics Co., Ltd FCC ID: PDYTP1227ALP Page 1 of 29 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02101 Application for FCC Certificate On Behalf of Tospo Electronics Co., Ltd Electronic Energy Saving Lamp Model No.: TP120-12SLA-ALP TP120-16SLA-ALP TP120-19SLA-ALP TP120-24SLA-ALP TP120-27SLA-ALP FCC ID: PDYTP1227ALP Prepared For : Tospo Electronics Co., Ltd No.2 West Xing-Sheng Road, Hengdian Industrial Area Dong Yang City, Zhejiang, P.R. China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F02101 Date of Test : Sep 16~19, 2002 Date of Report : Oct 15, 2002 Tospo Electronics Co., Ltd FCC ID: PDYTP1227ALP Page 2 of 29 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02101 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 4 1.3 Measurement Uncertainty .......................................................................................................... 4 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 5 2.1 Test Equipment........................................................................................................................... 5 2.2 Block Diagram of Test Setup ..................................................................................................... 5 2.3 Conducted Emission Limits ....................................................................................................... 5 2.4 Test Configuration...................................................................................................................... 6 2.5 Operating Condition of EUT ...................................................................................................... 6 2.6 Test Procedures .......................................................................................................................... 6 2.7 Test Results ................................................................................................................................ 7 3 FIELDSTRENGTH TEST ............................................................................................................ 12 3.1 Test Equipment......................................................................................................................... 12 3.2 Block Diagram of Test Setup ................................................................................................... 12 3.3 Test Configuration.................................................................................................................... 12 3.4 Operating Condition of EUT .................................................................................................... 12 3.5 Test Procedure .......................................................................................................................... 13 3.6 Test Result ................................................................................................................................ 13 Tospo Electronics Co., Ltd FCC ID: PDYTP1227ALP Page 3 of 29 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02101 TEST REPORT FOR FCC CERTIFICATE Applicant : Tospo Electronics Co., Ltd Manufacturer : Tospo Electronics Co., Ltd EUT Description : Electronic Energy Saving Lamp (A) Model No.: TP120-12SLA-ALP; TP120-16SLA-ALP TP120-19SLA-ALP; TP120-24SLA-ALP TP120-27SLA-ALP (B) Serial No.: E02091301; E02091302 E02091303; E02091304 E02091305 (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Sep 16~19, 2002 Prepared by : Test Engineer : CATHRIN YIN (Assistant) COFFON YE (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) ALEX CHIU (Assistant Manager) Tospo Electronics Co., Ltd FCC ID: PDYTP1227ALP Page 4 of 29 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02101 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Electronic Energy Saving Lamp Type of EUT : ; Production … Pre-product … Pro-type Model Number : TP120-12SLA-ALP; TP120-16SLA-ALP TP120-19SLA-ALP; TP120-24SLA-ALP TP120-27SLA-ALP Applicant : Tospo Electronics Co., Ltd No.2 West Xing-Sheng Road, Hengdian Industrial Area DongYang City, Zhejiang, P.R. China Manufacturer : Tospo Electronics Co., Ltd No.2 West Xing-Sheng Road, Hengdian Industrial Area DongYang City, Zhejiang, P.R. China Test Model Apparent Power (V ̇ A) Real Power (W) TP120-12SLA-ALP 21.46 12.42 TP120-16SLA-ALP 29.20 16.90 TP120-19SLA-ALP 32.40 18.80 TP120-24SLA-ALP 43.20 24.60 TP120-27SLA-ALP 41.60 23.90 1.2 Description of Test Facility Site Description : Sept. 17, 1998 file on (Semi-Anechoic Chamber) Federal C…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test (M/N: TP120-12SLA-ALP) (M/N: TP120-16SLA-ALP) (M/N: TP120-19SLA-ALP) (M/N: TP120-24SLA-ALP) (M/N: TP120-27SLA-ALP) 2. Field strength Test (M/N: TP120-12SLA-ALP) (M/N: TP120-16SLA-ALP) (M/N: TP120-19SLA-ALP) (M/N: TP120-24SLA-ALP) (M/N: TP120-27SLA-ALP)
