PEY3000AS2Bluetooth Access Server

Safety and Regulatory Information This section lists required safety, conformity and regulatory information for certain jurisdictions. For the latest and updated information, please refer to the ratings plate on the Red-M 3000AS access server. European Economic Area United States Canada European Economic Area See the (currently unsigned) Certificate of Conformity. (Requires Adobe Acrobat Reader.) We, Red-M, declare under our sole responsibility that the 3000AS is in conformity with the provisions of Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. This equipment is intended to be used in all Member States of the European Economic Area (EEA). It is intended to be directly connected to BRI ISDN public telecommunications network interfaces in all EEA Member States with the exception of Sweden and Norway. In these countries it may only be indirectly connected behind a device providing supplementary insulation for a primary circuit between the ISDN port of this product and the ISDN network interface as detailed in the relevant special national conditions of EN60950: 1992 clause 6.2.1.2. It is designed to connect to "Bluetooth" compatible radio interfaces using the 2.4 GHz frequency band in all EEA Member States with the exception of France where the use of the following frequencies is restricted: 2.4000 - 2.4460 GHz - Use Excluded - Military Band 2.4540 - 2.4835 GHz - Limited to indoor video applications [Member States of the EEA are: Austria, Belgium, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Liechtenstein, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom.] United States This equipment complies with part 15 of the FCC rules. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. This equipment complies with Part 68 of the FCC rules. On the rear of this equipment is a label that contains, among other information, the FCC registration number for this equipment. If requested, the following information must be provided to the telephone company. FCC Registration Number: RDMGTB-40289-XD-N Ringer Equivalence Number (REN): N/A Facility Interface Code (FIC): Connects to 02IS5 via NT1/NTCE Service Order Code (SOC): 6.0Y USOC Jack Type: Connects via NT1/NTCE using RJ11C, RJ21X or RJ49C An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack that is Part 68 compliant. See Installation Instructions for details. If this equipment, 3000AS, causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes to its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice so you can make the necessary modifications to maintain uninterrupted service. If trouble is experienced with this equipment, 3000AS, for repair or warranty information, please contact Red-M, 860 Hillview Ct, Suite 260, Milpitas CA 95035, USA (+1 800 606 2343). If the equipment is causing harm to the telephone network, the top telephone company may request that you disconnect the equipment until the problem is resolved. Connection to party line service is subject to state tariffs. (Contact the state public utility commission, public service commission or corporation commission for information.) It is strongly suggested that an AC surge arrestor is installed in the AC outlet to which this equipment is connected. CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord. To conform with FCC rules regarding RF exposure, this equipment should be installed a minimum of 20cm away from any personnel. Canada NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. top Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference, including interference that may cause undesired operation of the device. This device has been designed to operate with an antenna having a maxi…

Text truncated - open the document above for the full version.

BIG02D.sch-1 - Mon Nov 27 15:00:32 2000

Index of External Photographs 1. General external front view 2. General external side view – connectors visible 3. General external rear view 4. General internal front view – plastic outer enclosure removed 1 2 3 4

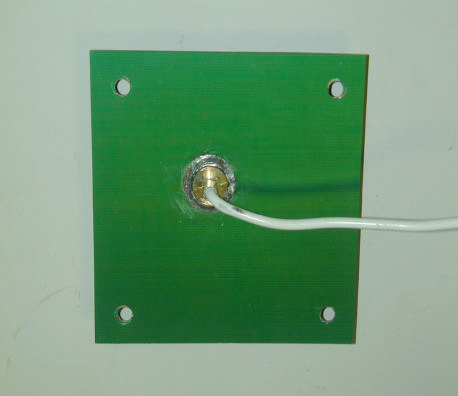

External View of 3000AS External Antenna. Internal View of 3000AS External Antenna, Top View of PCB. Internal View of 3000AS External Antenna, Bottom View of PCB.

Serial No. / LAN Address: Bluetooth Address: 000281 DDDDDC 000281 DDDDDF Assembly: 158-193-02 1 5 8 - 1 4 8 - 0 4 Made in the UK Complies with Part 68, FCC Rules Registration Number: RDMGTB-40289-XD-N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation. 110-120/220-240V ~ 60/50Hz 2/1A FCC ID: PEY3000AS2 3000AS Access Server ARTWORK All detail within this box to be printed except that shown in RED. Any detail in GREEN to be printed but see notes for specific content. 158-148-04 158-124-01 Artwork Revision A RevDateBy B 12/6/01 26/6/01 NE NE Assy Number up-reved as DRAM increased to 64M. FCC ID modified for new application TITLE: USE BLANK STOCK: VERSION: ARTWORK/LABEL PART NUMBER: Red-M Wexham Springs Framewood Road Wexham Slough SL3 6PJ England Copyright 2001 Red-M© Notes: (1) “Serial No. / LAN Address” increments in steps of 4, with right-hand character being either 0, 4, 8 or C). Specific range of values will be specified with order. (2) “Bluetooth Address” is 3 greater than “Serial No. / LAN Address” (right- hand character being either 3, 7, B or F). (3) Artwork to be made from CorelDraw (.CDR) format. PDF format for inspection only. (4) Barcode is format Code39 and comprises a Single Character Prefix as defined above followed by the right-hand 6 characters of “Serial No. / LAN Address” (eg “ZDDDDDC” where “Z” is the Single Character Prefix). This product makes use of intellectual property which belongs to Red-M. Patents Pending. All rights reserved 2001. Barcode Single Character Prefix is “R” Artwork - Red-M 3000AS Access Server (US Version), Rating Plate Label FCC Approval only - CSR/64M Version S a m p le L a b e l A r t w o r k f o r A p p r o v a ls A p p li c a t io n s

Index of Internal Photographs 1. General internal top view – plastic outer enclosure removed – Bluetooth radio module visible 2. General internal bottom view – plastic outer enclosure removed 3. General internal view – main PCB visible 4. General internal view – hard drive and power supply visible 5. Main PCB – component side 6. Main PCB – solder side 7. Bluetooth radio module PCB – component side 8. Bluetooth radio module PCB – solder side 1 2 3 4 5 6

Bluetooth radio and baseband operation: a summary Bluetooth operates using frequency hopping spread spectrum techniques (FHSS) with Gaussian frequency shift keying (GFSK). The parameters of these techniques are described in more detail below. For more information please refer to the Radio and Baseband specification chapters of the Bluetooth Core specification at http://www.bluetooth.com/developer/specification/Bluetooth_11_Specifications_Book.pdf Bluetooth channel definition The Bluetooth channel is represented by a pseudo-random hopping sequence hopping through 79 RF channels. The hopping sequence is unique for each piconet (a group of units comprising a master and up to 7 slaves all sharing the same channel) and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1600 hops/s. All Bluetooth units participating in the piconet are time- and hop- synchronized to the channel. Time slots The channel is divided into time slots, each 625 ms in length. The time slots are numbered according to the Bluetooth clock of the piconet master. The slot numbering ranges from 0 to 2 27 -1 and is cyclic with a cycle length of 2 27 . In the time slots, master and slave can transmit packets. A time division duplex scheme is used where master and slave alternatively transmit. The master shall start its transmission in even-numbered time slots only, and the slave shall start its transmission in odd-numbered time slots only. The packet start shall be aligned with the slot start. Packets transmitted by the master or the slave may extend over up to five time slots. The RF hop frequency shall remain fixed for the duration of the packet. For a single packet, the RF hop frequency to be used is derived from the current Bluetooth clock value. For a multi-slot packet, the RF hop frequency to be used for the entire packet is derived from the Bluetooth clock value in the first slot of the packet. The RF hop frequency in the first slot after a multi-slot packet shall use the frequency as determined by the current Bluetooth clock value. If a packet occupies more than one time slot, the hop frequency applied shall be the hop frequency as applied in the time slot where the packet transmission was started. Modulation and bit rate The data transmitted has a symbol rate of 1 Ms/s. A Gaussian-shaped, binary FSK modulation is applied with a BT product of 0.5. A binary one is represented by a positive frequency deviation, a binary zero by a negative frequency deviation. The maximum frequency deviation shall be between 140 kHz and 175 kHz. Modulation and characteristics The Modulation is GFSK (Gaussian Frequency Shift Keying) with a BT=0.5. The Modulation index must be between 0.28 and 0.35. A binary one is represented by a positive frequency deviation, and a binary zero is represented by a negative frequency deviation. The symbol timing shall be better than ±20 ppm. For each transmit channel, the minimum frequency deviation (Fmin = the lesser of {Fmin+, Fmin-}) which corresponds to 1010 sequence shall be no smaller than ±80% of the frequency deviation (fd) which corresponds to a 00001111 sequence. In addition, the minimum deviation shall never be smaller than 115 kHz. The zero crossing error is the time difference between the ideal symbol period and the measured crossing time. This shall be less than ± 1/8 of a symbol period.

A slim, compact module with built-in Bluetooth TM spec base protocol. Features High density loading of components gives a compact, light-weight package measuring 32×15×2.5mm (at 12.0ml). RF connector accompanied. Built-in Bluetoothspec base protocol. Can be used with same-shape Class 1(20dBm)~Class 3(0dBm). HCI interface over UART and USB. Supported PCM interface for SCO. Built-in flash memory, system clock. Board to Board connecter type. Applications Mobile Phones, PCs, PDAs, Terminal Adapters, Digital Cameras, Printers, Other Peripheral Devices Typical Specifications Characteristics 2402 to 2480 GFSK 1 79 3.3 1 723 max -80 typ 20 max. : Class 1 *qualified 4 max. : Class 2 0 max. : Class 3 *qualified Item Frequency[MHz] Modulation Channel spacing[MHz] Channel Number[MHz] Supply Voltage[V] Symbol Late[Mbps] Transmit speed[kbps] Input sensitivity[dBm] Output Power[dBm] Bluetooth TM Module(Board to Board type) UGT 4 Series Dimensions Unit:mm Block Diagram PLL PLL Demod Bluetooth Link controller Bluetooth Protocol Management S-RAM Flash Memory UART/USB Transceiver PCM Interface RESET UART/USB PCM Ref OSC CAUTION 1.The appearance and specifications of the product may be modified without prior notice to improve its performance. 2.This catalog shows only outline specifications. When using the product, please obtain formal specifications for supply. 3.This catalog is valid till the end of December 2001. 4.All products and brand names provided in this catalog are trademarks or registered trademarks of their respective owners. 5.The BLUETOOTHtrademarks are owned by Telefonaktiebolaget L M Ericsson, Sweden and licensed to ALPS ELECTRIC CO.,LTD. 32 15 2.5

Red-M Wexham Springs . Framewood . Framewood Road . Wexham . Slough . SL3 6PJ Tel: +44 (0)1753 661700 Fax: +44 (0)1753 661745 www.red-m.com Red-M (Communications) Limited trading as Red-M . Registered Office as above Company Registered in England . Registered No: 3985301 . VAT No: GB 669 1783 84 Maximum Permissable Exposure Calculations. The following calculations are based on guidelines published in OET Bulletin 65, Edition 97-01, August 1997: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. Near to Far Field Frequency (GHz)Wavelength (m)Transition (cm) Lower2.40000.125~2.0 Upper2.48350.121~1.9 For a simple case, discounting reflections, equation 3, page 19 gives: Power Density, S= PG/ 4πR² Worst case power input to antenna :2.55 mW. Antenna gain :0 dBi. Numeric antenna gain :1. General population/ uncontrolled limit:1mW/cm². Distance from antenna, R, where power density limit is reached is: R= √ (PG / 4πS) R= 0.45 cm Notes. 1. The maximum transmitter output power is that measured for FCC Part 15.247(b3). 2. The MPE calculation is based on the highest measured antenna output power. 3. The general population/ uncontrolled limit is taken from OET 65, Appendix A Table 1B page 67. Red-M Wexham Springs . Framewood . Framewood Road . Wexham . Slough . SL3 6PJ Tel: +44 (0)1753 661700 Fax: +44 (0)1753 661745 www.red-m.com Red-M (Communications) Limited trading as Red-M . Registered Office as above Company Registered in England . Registered No: 3985301 . VAT No: GB 669 1783 84 For a truly worst case prediction of power density, including reflections from nearby surfaces, OET 65 recommends using equation 6, page 20. Power Density S= PG/πR² Using the same figures as above the distance from antenna, R, where power density limit is reached is: R= √ PG/ πS R= 0.90 cm. Mark Bailey 20/03/01 Red-M Ltd.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To: F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 Test Report Serial No: RFI/MPTB1/RP42177B This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By:Release Version No: PDF01 Issue Date: 15 June 2001Test Date: 11 May 2001 to 17 May 2001 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42177B Conformance Testing DepartmentPage 2 of 56 Issue Date: 15 June 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42177B Conformance Testing DepartmentPage 3 of 56 Issue Date: 15 June 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT).........................................................................................5 3. Test Specification, Methods And Procedures..............................................................8 4. Deviations From The Test Specification.....................................................................10 5. Operation Of The EUT During Testing........................................................................11 6. Summary Of Test Results............................................................................................12 7. Measurements, Examinations And Derived Results..................................................13 8. Measurement Uncertainty............................................................................................28 Appendix 1. Test Equipment Used...................................................................................30 Appendix 2. Measurement Methods................................................................................31 Appendix 3. Test Configuration Drawings......................................................................41 Appendix 4. Graphical Test Results................................................................................46 Appendix 5. Photographs of EUT.....................................................................................55 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42177B Conformance Testing DepartmentPage 4 of 56 Issue Date: 15 June 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 1. Client Information Company Name: Red-M (Communications) Ltd. Address: Wexham Springs Framewood Road Wexham Slough SL3 6PJ. Contact Name: Mark Bailey. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42177B Conformance Testing DepartmentPage 5 of 56 Issue Date: 15 June 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Red-M Model Name or Number: 3000AS Unique Type Identification: None given Serial Number: 00028110400A0 Country of Manufacture: UK FCC ID Number: Pending Date of Receipt: 11 May 2001 Brand Name: Red-M Model Name or Number: Access Server External Aerial (3000-501) Unique Type Identification: Not applicable Serial Number: 1 Country of Manufacture: UK FCC ID Number: Pending Date of Receipt: 11 May 2001 2.2. Description Of EUT The 3000AS is a Bluetooth Access Server. It provides connectivity between Bluetooth devices, LAN and WAN. The product has an in-built Bluetooth antenna and the option for the connection of an external antenna. 2.3. Modifications Incorporated In EUT The EUT has not been modified from what is described by the Model Name and Unique Type Identification stated above. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42177B Conformance Testing DepartmentPage 6 of 56 Issue Date: 15 June 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 2.4. Additional Information Related To Testing Power Supply Requirement: 115 V, 60 Hz AC Mains supply Intended Operating Environment: Commercial, Light Industry Weight: 3.8 kg Dimensions: 245 x 145 x 334 Interface Ports: RS232 (x2) 10/100 Fast Ethernet (x3) AC Mains Input ISDN BRI S-i/f External Antenna RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/MPTB1/RP42177B Conformance Testing DepartmentPage 7 of 56 Issue Date: 15 June 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Se…

Text truncated - open the document above for the full version.

PEY3000AS2 Certification answers to TCB questions: Dear Ben and Mark, Thank you for your business. We have a few details to address before we can proceed to issue the grant for this device. 1. I need a photo of the external antenna referenced in the test report. Photo provided. 2. Please provide documentation on the external antenna connector compliance with the unique connector requirement of 15.203. just to confirm the connector used for the external antenna is an MCX type. 3. Please provide a field strength measurement for the emission at 2483.5MHz. This is the start of a restricted band and 2.4GHz devices in the highest channel may intrude into this band. I cannot reconstruct the field strength at 2483.5MHz from the plots contained in the test report, but perhaps you can. Test report supplement with radiated field strength data provided.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 SUPPLEMENTARY TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To: F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 Supplementary Test Report Serial No.: RFI/MPTB1/SUP42465A This Supplementary Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: PP Release Version No:PDF01 Issue Date: 06 July 2001 This supplementary report is issued as an addendum to RFI Test Report Serial No: RFI/MPTB1/RP42177B. It has been issued to identify possible spurious emissions in the restricted frequency band closest to the operating frequency band. It shows compliance to FCC Part 15.209 Radiated emission limits and the general requirements for FCC Part 15.205 Restricted bands of operation. This supplementary report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the supplementary eport if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This supplementary report may be copied in full. RADIO FREQUENCY INVESTIGATION LTD.SUPPLEMENTARY TEST REPORT S.No: RFI/MPTB1/SUP42465A Conformance Testing DepartmentPage 2 of 16 Issue Date: 06 July 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.SUPPLEMENTARY TEST REPORT S.No: RFI/MPTB1/SUP42465A Conformance Testing DepartmentPage 3 of 16 Issue Date: 06 July 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 CONTENTS 1. Client Information......................................................................................................4 2. Equipment Under Test (EUT).....................................................................................5 3. Test Results................................................................................................................8 Appendix 1. Graphical Test Results............................................................................15 RADIO FREQUENCY INVESTIGATION LTD.SUPPLEMENTARY TEST REPORT S.No: RFI/MPTB1/SUP42465A Conformance Testing DepartmentPage 4 of 16 Issue Date: 06 July 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 1. Client Information Company Name: Red-M (Communications) Ltd. Address: Wexham Springs Framewood Road Wexham Slough SL3 6PJ. Contact Name: Mark Bailey. RADIO FREQUENCY INVESTIGATION LTD.SUPPLEMENTARY TEST REPORT S.No: RFI/MPTB1/SUP42465A Conformance Testing DepartmentPage 5 of 16 Issue Date: 06 July 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Red-M Model Name or Number: 3000AS Unique Type Identification: None given Serial Number: 00028110400A0 Country of Manufacture: UK FCC ID Number: Pending Date of Receipt: 11 May 2001 Brand Name: Red-M Model Name or Number: Access Server External Aerial (3000-501) Unique Type Identification: Not applicable Serial Number: 1 Country of Manufacture: UK FCC ID Number: Pending Date of Receipt: 11 May 2001 2.2. Description Of EUT The 3000AS is a Bluetooth Access Server. It provides connectivity between Bluetooth devices, LAN and WAN. The product has an in-built Bluetooth antenna and the option for the connection of an external antenna. 2.3. Modifications Incorporated In EUT The EUT has not been modified from what is described by the Model Name and Unique Type Identification stated above. RADIO FREQUENCY INVESTIGATION LTD.SUPPLEMENTARY TEST REPORT S.No: RFI/MPTB1/SUP42465A Conformance Testing DepartmentPage 6 of 16 Issue Date: 06 July 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 2.4. Additional Information Related To Testing Power Supply Requirement: 115 V, 60 Hz AC Mains supply Intended Operating Environment: Commercial, Light Industry Weight: 3.8 kg Dimensions: 245 x 145 x 334 Interface Ports: RS232 (x2) 10/100 Fast Ethernet (x3) AC Mains Input ISDN BRI S-i/f External Antenna RADIO FREQUENCY INVESTIGATION LTD.SUPPLEMENTARY TEST REPORT S.No: RFI/MPTB1/SUP42465A Conformance Testing DepartmentPage 7 of 16 Issue Date: 06 July 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: 10/100 Switch Brand Name: 3COM Model Name or Number: 3 Com Office Connect Dual Speed Hub 8 Serial Number: 0101/7P1F67471 FCC ID Number: None stated Cable Length And Type: 3m, 10/100 Type Connected to Port: 10/100 RADIO FREQUENCY INVESTIGATION LTD.SUPPLEMENTARY TEST REPORT S.N…

Text truncated - open the document above for the full version.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 PHOTOGRAPH SECTION FOR RFI TEST REPORT SERIAL NO: RFI/MPTB1/RP42177B Test Of: Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To: F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 RADIO FREQUENCY INVESTIGATION LTD.Photograph Section S.No. RFI/MPTB1/RP42177B Conformance Testing DepartmentIssue Date: 18 June 2001 Test Of:Red-M (Communications) Ltd. 3000AS Wireless Internet Server with Access Server External Aerial (3000-501) To:F.C.C. Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.247 This appendix contains the following photographs: Photo Reference NumberTitle PHT/42177JD02/001Rear and side view of radiated emissions test configuration. PHT/42177JD02/002Side view of radiated emissions test configuration. PHT/42177JD02/003Rear view of radiated emissions test configuration. PHT/42177JD02/004Rear and …
