PJO2710Model 2710 GPRS Phone

Prepared Venson Wang 2710 User manual Approved Stephen Huang Checked Alex Pao Release Day 2004/11/22 Rev. A 2710 User Manual Prepared Venson Wang 2710 User manual Approved Stephen Huang Checked Alex Pao Release Day 2004/11/22 Rev. A Index Your phone....................................................................................................................................................... 8 Keys and connectors ................................................................................................................................. 8 Standby mode............................................................................................................................................ 9 Getting started............................................................................................................................................... 10 Installing the SIM card and the battery................................................................................................... 10 Charging the battery..................................................................................................................................... 12 Switching the phone on and off .............................................................................................................. 12 Call functions................................................................................................................................................. 13 Making a call .......................................................................................................................................... 13 Answering or rejecting an incoming call ................................................................................................ 13 Handling more than one call ................................................................................................................... 14 Input method................................................................................................................................................. 15 Menu Structure............................................................................................................................................. 17 Phone book ............................................................................................................................. 17 Modify .................................................................................................................................................... 17 Add.......................................................................................................................................................... 17 Groups..................................................................................................................................................... 17 Speed dial................................................................................................................................................ 18 Memory status......................................................................................................................................... 19 Copy all................................................................................................................................................... 19 Delete ...................................................................................................................................................... 19 CLI (Calling Line Identification)............................................................................................................ 19 Message ...............................................................................................................................20 SMS ........................................................................................................................................................ 20 Unsent and Outbox Message .................................................................................................................. 22 Template.................................................................................................................................................. 22 Voice mail ............................................................................................................................................... 23 Call Record ............................................................................................................................ 24 Prepared Venson Wang 2710 User manual Approved Stephen Huang Checked Alex Pao Release Day 2004/11/22 Rev. A Setting ..................................................................................................................................... 25 Alarm ...................................................................................................................................................... 25 Melody .................................................................................................................................................... 26 Ring volume............................................................................................................................................ 26 Ring or Vibrate........................................................................................................................................ 26 Key tone .................................................................................................................................................. 27 Display setting ........................................................................................................................................ 27 Call setting .............................................................................................................................................. 28 Security ...................................................................................................…

Text truncated - open the document above for the full version.

Product Functional Declaration We, Arima Communication Corp. applicant of the FCC ID PJO2710 hereby declare that the product is designed for Multi-band (GSM 900, DCS 1800, PCS 1900) operation. We understand that the GSM 900 and DCS 1800 are not available in USA and Certification is not being sought for these frequency bands.

Arima Communication Corp. No. 16, Lane 658, Ying Tao Road, Yingko Taipei Hsien, Taiwan Tel: 886-2-82277755 Fax: 886-2-82275533 Jan. 5, 2005 Power of Attorney To whom it may concern, Please be notified that we, Arima Communication Corp. have assigned Sporton International Inc., located at No. 52, Hwa Ya 1 st Rd ., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C., as our agent. Any and all acts carried out by Sporton International Inc., on the matters of relating to FCC part 24, 15B and OET 65 Supplement C, Sporton International Inc. shall have the full responsitivity to guarantee all the accurate testing method and testing data. However, Arima Communication Corp. will be fully responsible for mass products to be in compliance with regulations. This authorization is limited to the product of as following: ( 1 ) GSM Mobile Handset Model: Arima 2710 ( Brand: Not available yet ) Any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Gallon Lee Arima Communication Corp. Tel: 886-2-82277755 Fax: 886-2-82275533 E-Mail: [email protected]

Arima Communication Corp. Jan. 5, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID:PJO2710 Confidentiality Letter Request Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematic Circuitry Diagram 2. Functional Block Diagram 3. Tune-up procedure 4. Parts List (BOM) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustify benefits to its competitors. The Applicants understands the pursant to Rule 0.457, disclosure of this Application and all accompanying documentation will not made before the date of the Grant for this application. Sincerely,

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 17, 2005 RE: Arima Communications Corp. FCC ID: PJO2710 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Kindly review page 46 of the Manual. The second and third paragraphs appear to be in error. To begin, this device does not appear to contain any provisions for connection to a computer, therefore references to a “digital device are in error. Also, the second paragraph is in conflict with the protected rights of the consumer as stated in paragraph one. Please review. 2.) The tune-up procedure does not provide any target values for tuning RF power. Please provide. 3.) This device contains a radio transmitter which is unlawful on specific bands in the United States. Please review and provide attestation as necessary. 4.) With regard to your radiated Pout measurement, was any attempt made to measure the reflected as well as the forward power on the substitution antenna? FYI: Usually on a 3M site, better repeatability can be had by using a height of 1.5M to reduce the effect of reflected waves off the ground plane. Kindly consider revising your test procedure. 5.) Kindly define the E and I in the RF output final amplifier as required by Part 2 of the Rules. 6.) Was this device tested for SAR compliance with earphone attached? The Commission has seen several instances where the earpiece and it’s attached cord will affect SAR compliance. I see no evidence that the earphone was checked. Please refer to P1528 for guidance. 7.) William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

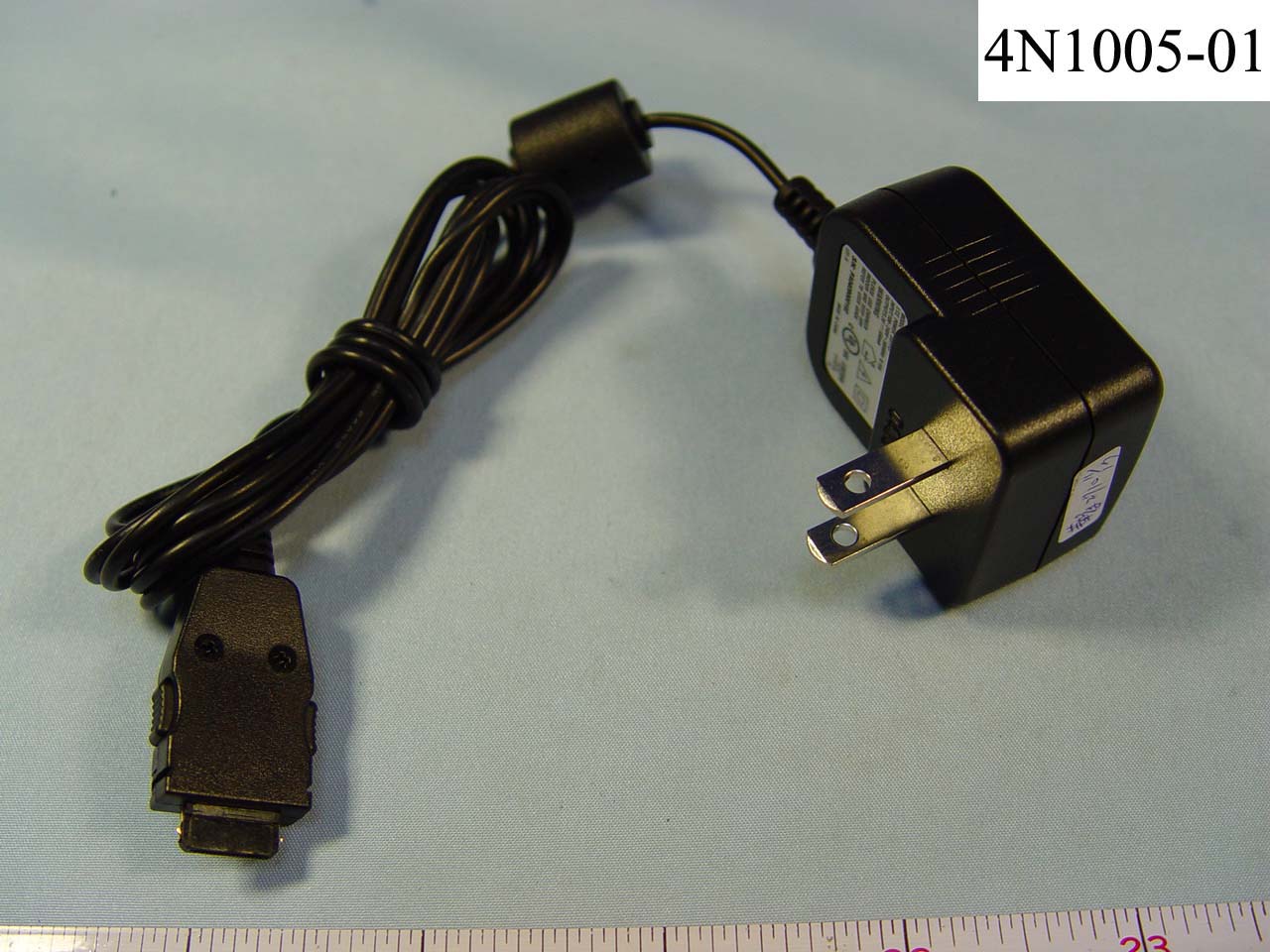

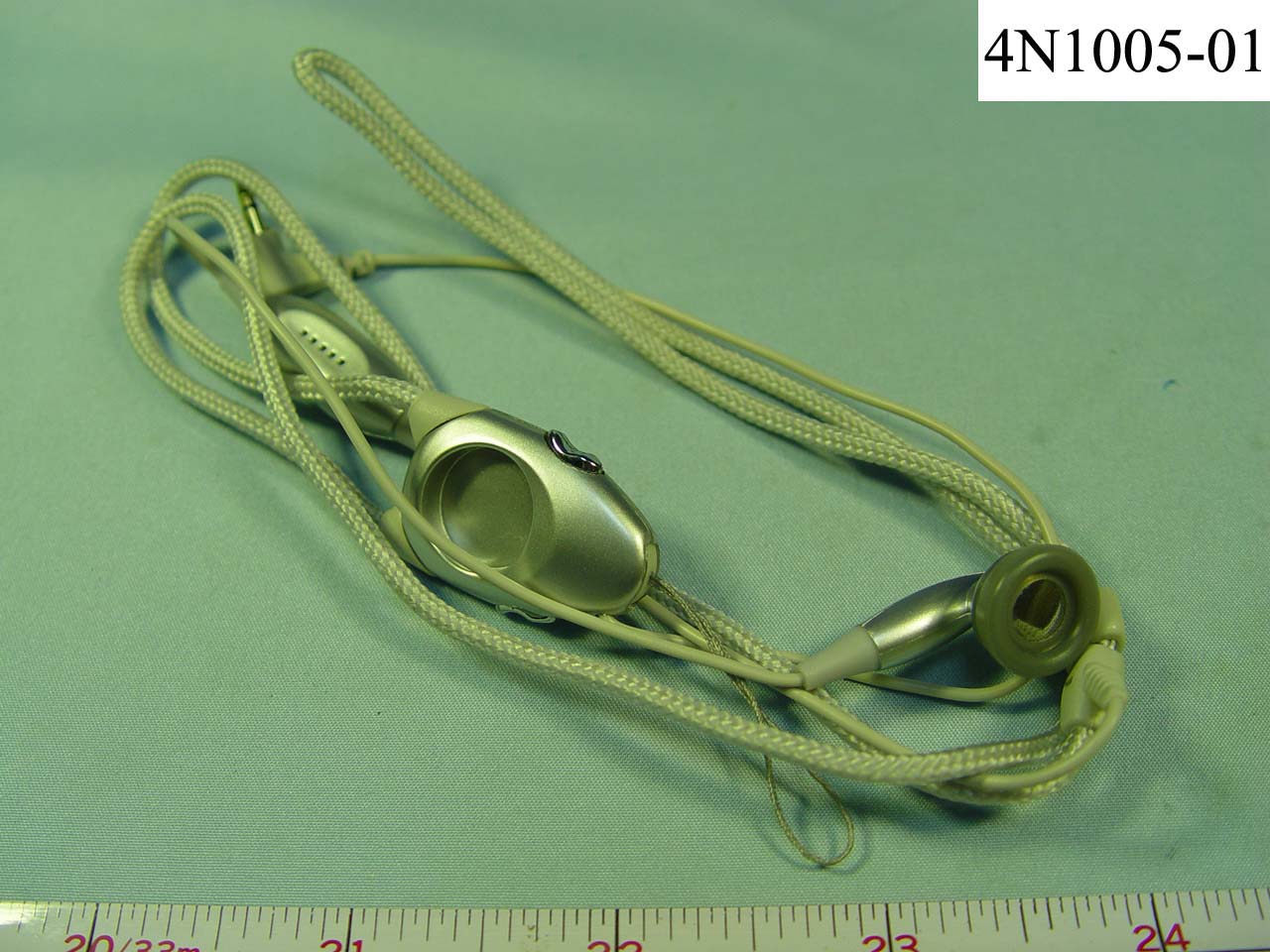

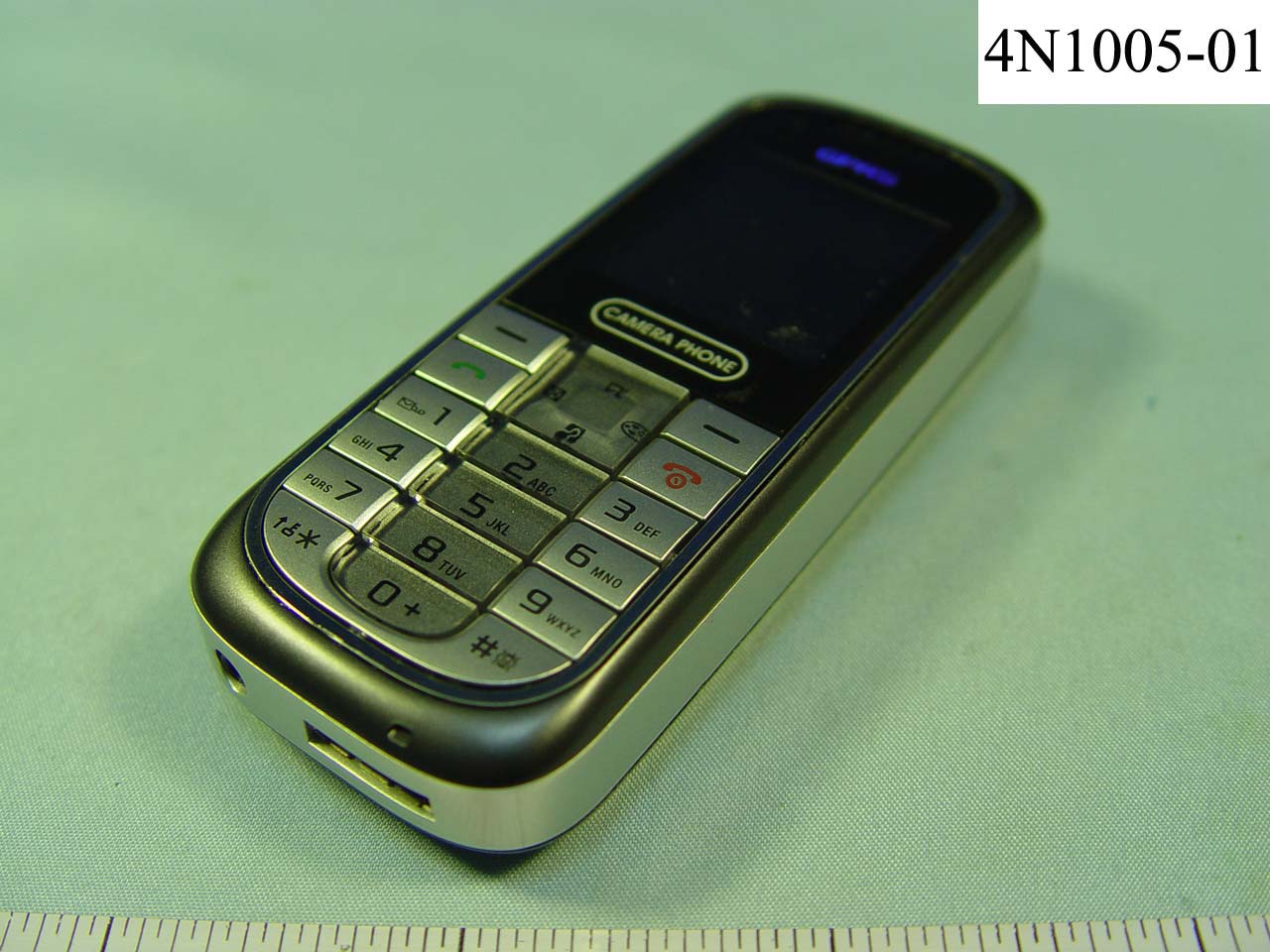

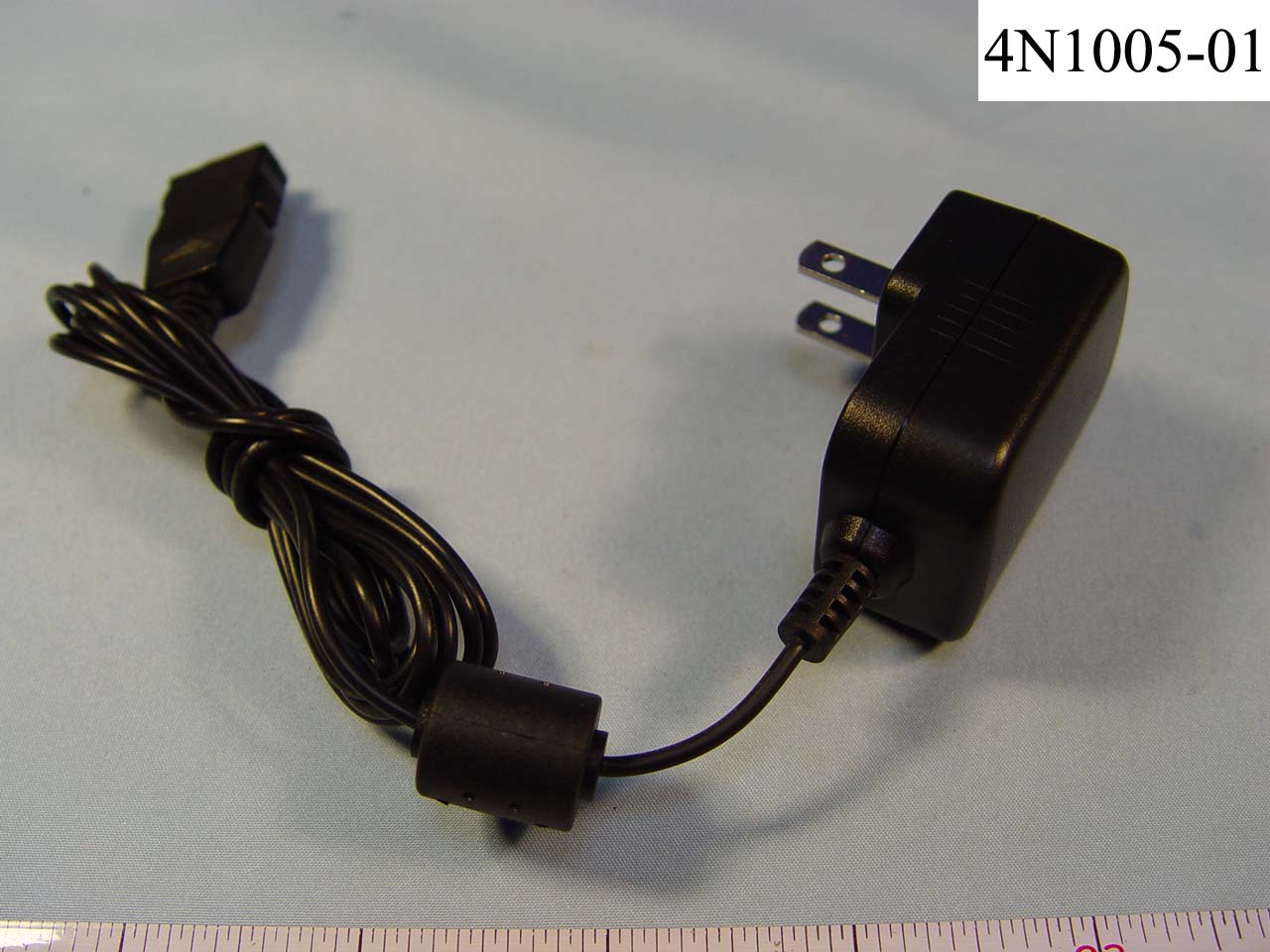

FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255

FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : B2 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : B3 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : B4 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : B5 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : B6 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FG4N1005-01 SPORTON International Inc. PAGE NUMBER : B7 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 07, 2004 FAX : 886-2-2696-2255

OPERATIONAL DESCRIPTION OF THE ARIMA 2710 GSM PHONE The equipment under test (EUT) is the transmitter of the Arima Model 2710, a Tri-band (900/1800/1900) GSM mobile phone. The transmitter operates in a half-duplex system according to the GSM standards. The majority of the phone circuitry consists of device chipsets; the TRF6151BRGZR Transceiver IC, the RF3133 Power Amplifier, PTWL3014CGQW Analog Baseband PMU and the HERCROM400G2 Digital Baseband Processor. The remainder of the major radio components is Front-End Module. There is also a combination Flash Memory/SRAM IC. A rechargeable lithium-ion battery with a nominal voltage of 3.8 volts powers the system. The transmitter oscillators that comprise the translation loop architecture are integrated on the transceiver IC and are phase locked to a 26 MHz VCXO reference signal. The UHF MAIN N-integer synthesizer operates on a frequency from 925 MHz to 960 MHz for using in the 900 MHz GSM band, from 1805 MHz to 1880 MHz for using in the 1800 MHz DCS band and from 1930 MHz to 1990 MHz for using in the 1800 MHz PCS band. The main oscillator signals are amplified by the power amplifier and pass through FEM and then finally delivered to the antenna port. Power control circuitry are fully integrated on PA. The power settings are calibrated at the factory and stored in the flash memory IC. These settings are used as the reference level for the power control circuitry that is integrated on PA. The Analog Baseband device also controls power ramping functions. The GMSK modulation is provided in-loop by quadrature I/Q signals that are sent to the transceiver IC from the Analog Baseband IC that converted the digital stream from the Digital Baseband processor into an analog signal used by the modulator. The RF performance conforms to the ETSI specifications for spectrum due to modulation, transient switching modulation spectrum, power ramp, and output power, as well as all the other ETSI requirements. The receiver is a direct-conversion design. The RF preamplifiers are integrated to the transceiver and provide the signal to the mixers, low-pass filters, variable gain amplifiers, and DC offset correction circuits comprise the remainder of the receiver. The received signals now at Baseband frequencies are routed from the transceiver to the Analog baseband IC for further processing and ultimately to the digital baseband processor. The Analog baseband IC digitizes the baseband I/Q signals using Sigma-Delta DACs and sends them to the Digital baseband processor. This IC also has analog-to-digital converters (ADCs) and digital-to-analog converters (DACs) to directly interface to the handset speaker and microphone. The voiceband Codec converts voice signals into digital samples and vice versa. Additional the Analog baseband IC contains all required system power supply regulators. The function of Analog baseband IC also includes: auxiliary RF control, battery charging control, on/off switch analysis and on-chip test support. The baseband processor handles all physical layer radio control signals and network interfaces. The 32 KHz clock oscillator operates the baseband IC from a backup battery when the main battery is removed. The baseband processor is a dual-core device that splits the processing between a DSP core and an ARM TDMI processor. The DSP handles the physical and layer 1 processing, while the ARM7 executes the layer 2 and layer 3 protocol and the man-machine interface (MMI). The dual cores communicate through a dedicated block of dual port memory. It also communicates with the Subscriber Identity Module (SIM) through an interface to the Analog baseband IC. The baseband processor also communicates to the calibration system or external devices through a digital serial link that is available on the system connector. The other main signals on the system connector include the digital audio interface (DAI) and allows for an external battery charging voltage. The MMI completes the phone design and includes the displays, keypads, vibration motor, LEDs, speaker, microphone, and headset.

©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No FA4N1005-1-2-01 Specific Absorption Rate (SAR) Test Report for Arima Communication Corporation on the GSM Mobile Phone Report No. : FA4N1005-1-2-01 Trade Name : Arima Model Name : 2710 FCC ID : PJO2710 Date of Testing : Nov. 22 and Nov. 24, 2004 Date of Report. : Nov. 24, 2004 Date of Review : Nov. 24, 2004 ‚ The test results refer exclusively to the presented test model/sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. 1190 ILAC MRA ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No FA4N1005-1-2-01 Table of Contents 1. Statement of Compliance----------------------------------------------------------------------------------------------------------------- 1 2. Administration Data ------------------------------------------------------------------------------------------------------------------------ 2 2.1 Testing Laboratory -------------------------------------------------------------------------------------------- 2 2.2 Detail of Applicant--------------------------------------------------------------------------------------------- 2 2.3 Detail of Manufacturer --------------------------------------------------------------------------------------- 2 2.4 Application Detail---------------------------------------------------------------------------------------------- 2 3.General Information------------------------------------------------------------------------------------------------------------------------- 3 3.1 Description of Device Under Test (DUT)---------------------------------------------------------------- 3 3.2 Product Photo-------------------------------------------------------------------------------------------------- 4 3.3 Applied Standards:-------------------------------------------------------------------------------------------- 5 3.4 Device Category and SAR Limits------------------------------------------------------------------------- 6 3.5 Test Conditions: ----------------------------------------------------------------------------------------------- 6 3.5.1 Ambient Condition------------------------------------------------------------------------------------ 6 3.5.2 Test Configuration ------------------------------------------------------------------------------------ 6 4.Specific Absorption Rate (SAR)--------------------------------------------------------------------------------------------------------- 7 4.1 Introduction ----------------------------------------------------------------------------------------------------- 7 4.2. SAR Definition ------------------------------------------------------------------------------------------------ 7 5. SAR Measurement Setup ----------------------------------------------------------------------------------------------------------------- 8 5.1.DASY4 E-Field Probe System----------------------------------------------------------------------------- 9 5.1.1.ET3DV6 E-Field Probe Specification ----------------------------------------------------------10 5.1.2 ET3DV6 E-Field Probe Calibration -------------------------------------------------------------10 5.2 DATA Acquisition Electronics (DAE) -------------------------------------------------------------------- 11 5.3 Robot------------------------------------------------------------------------------------------------------------12 5.4 Measurement Server ---------------------------------------------------------------------------------------12 5.5 SAM Twin Phantom -----------------------------------------------------------------------------------------12 5.6. Device Holder for SAM Twin Phantom ----------------------------------------------------------------14 5.7 Data Storage and Evaluation -----------------------------------------------------------------------------15 5.7.1 Data Storage------------------------------------------------------------------------------------------15 5.7.2 Data Evaluation --------------------------------------------------------------------------------------15 5.8. Test Equipment List-----------------------------------------------------------------------------------------18 6. Tissue Simulating Liquids ------------------------------------------------------------------------------------------------------------- 19 7. Uncertainty Assessment---------------------------------------------------------------------------------------------------------------- 21 8. SAR Measurement Evaluation -------------------------------------------------------------------------------------------------------- 23 8.1 Purpose of System Performance check ---------------------------------------------------------------23 8.2 System Setup -------------------------------------------------------------------------------------------------23 8.3Validation Results---------------------------------------------------------------------------------------------25 9. Description for DUT Testing Position ---------------------------------------------------------------------------------------------- 26 10. Measurement Procedures ------------------------------------------------------------------------------------------------------------ 31 11. SAR Test Results ------------------------------------------------------------------------------------------------------------------------ 33 11.1 Right Cheek--------------------------------------------------------------------------------------------------33 11.2 Right Tilted ------------------------------------------------------------------------…

Text truncated - open the document above for the full version.

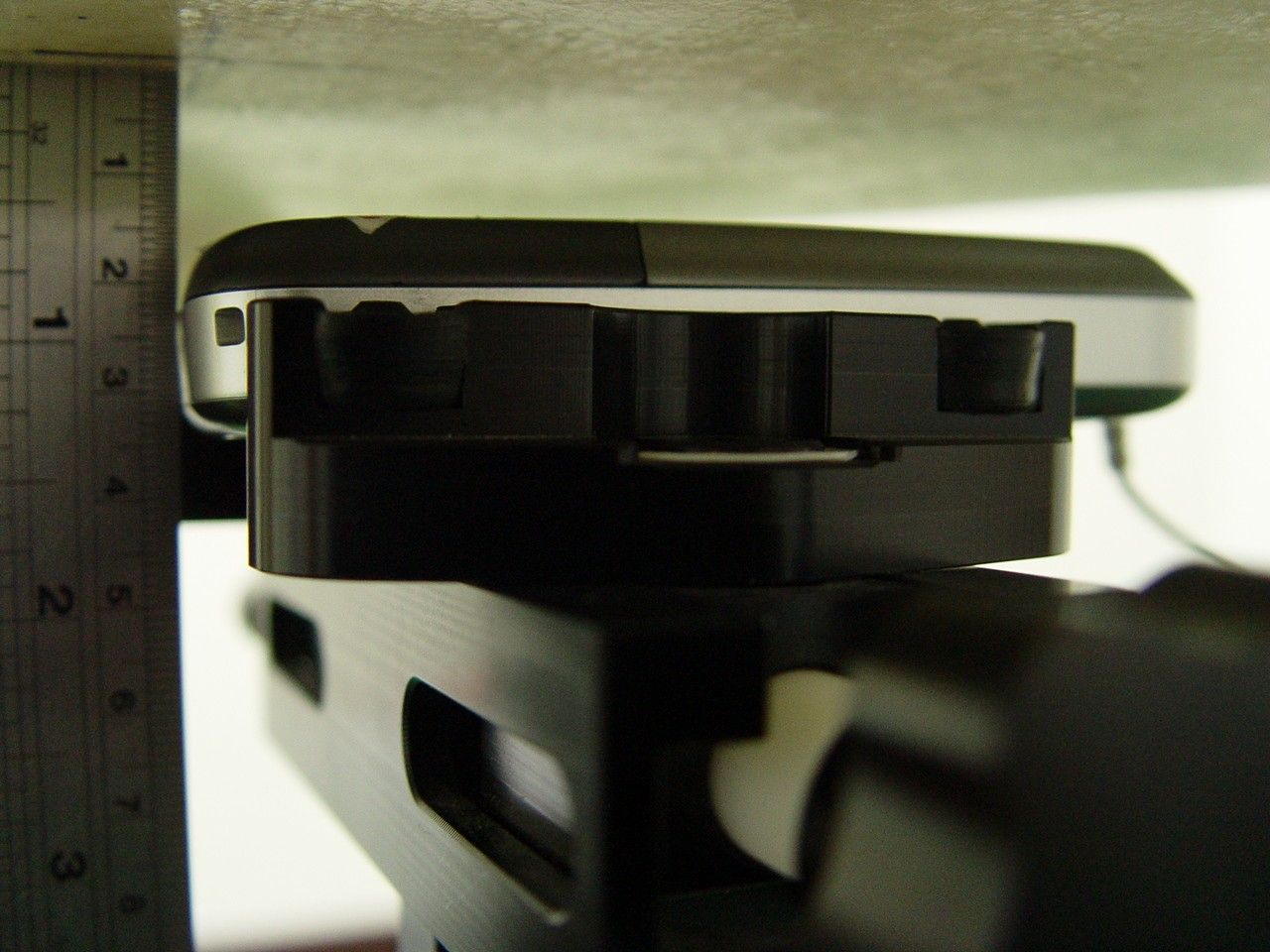

Test Laboratory: Sporton International Inc. SAR Testing Lab Date/Time: 01/21/05 20:58:34 Body_PCS Ch661_Keypad Down With 1.5cm Gap _20051021 DUT: Arima 2710; Type: GSM Dual Band Mobile Phone; Serial: 446019197507595 Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:4 Medium: MSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.49 mho/m; ε r = 53.1; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：23.0 °C DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.56, 4.56, 4.56); Calibrated: 9/30/2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 11/17/2004 - Phantom: SAM 12; Type: QD 000 P40 C; Serial: TP-1150 - Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Ch661/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.21 mW/g Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.2 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 1.91 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.573 mW/g Maximum value of SAR (measured) = 1.12 mW/g 0 dB = 1.12mW/g

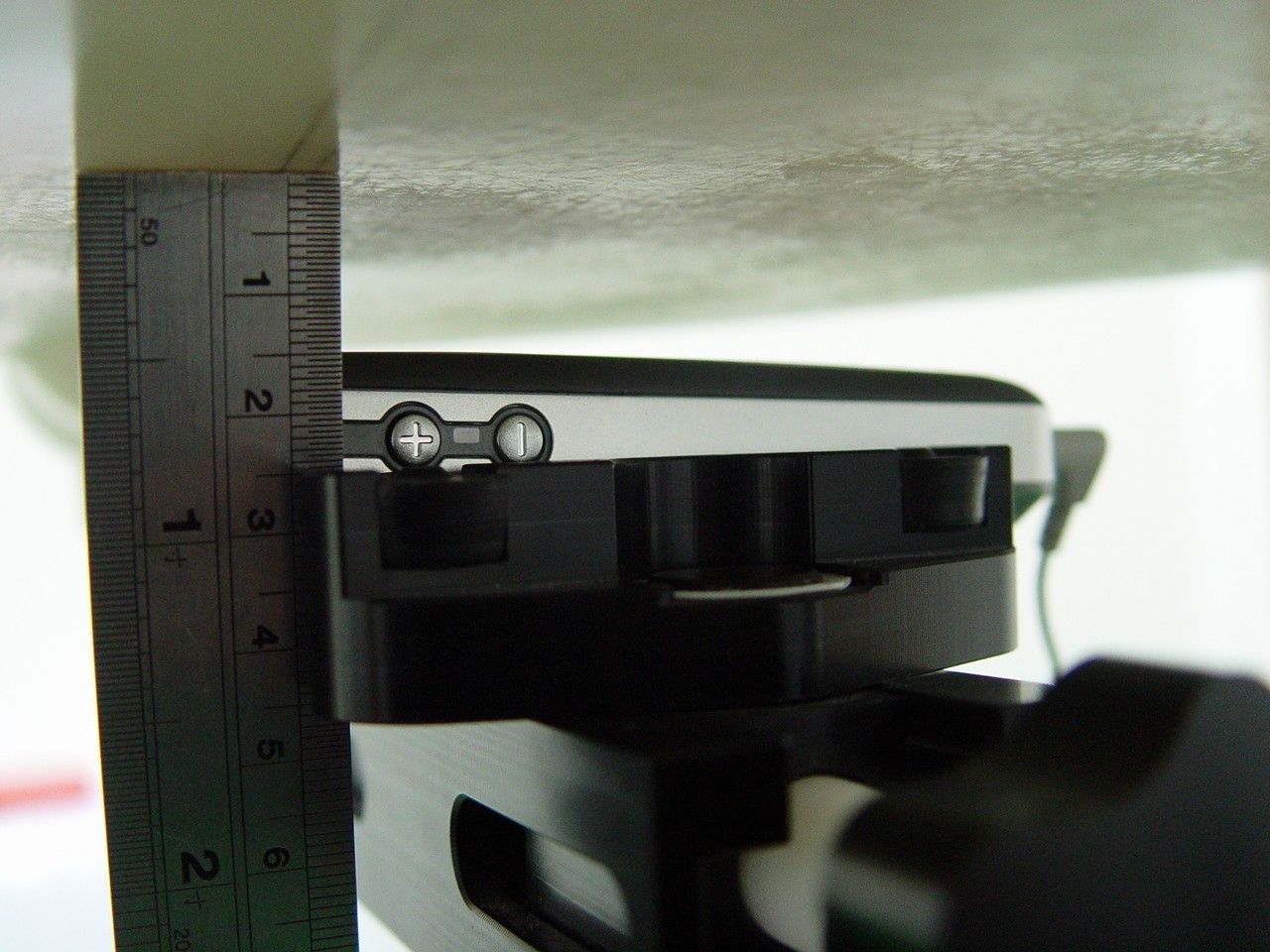

Test Laboratory: Sporton International Inc. SAR Testing Lab Date/Time: 01/21/05 16:25:18 Body_PCS Ch661_Keypad Up With 1.5cm Gap _20050121 DUT: Arima 2710; Type: GSM Dual Band Mobile Phone; Serial: 446019197507595 Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:4 Medium: MSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.49 mho/m; ε r = 53.1; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.1 °C DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.56, 4.56, 4.56); Calibrated: 9/30/2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 11/17/2004 - Phantom: SAM 12; Type: QD 000 P40 C; Serial: TP-1150 - Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Ch661/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.314 mW/g Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.4 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.584 W/kg SAR(1 g) = 0.23 mW/g; SAR(10 g) = 0.135 mW/g Maximum value of SAR (measured) = 0.385 mW/g 0 dB = 0.385mW/g

SPORTON International Inc. FCC ID : PJO2710 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Dec. 07, 2004 FCC TEST REPORT Report No. : FG4N1005-01 Table of Contents History of this test report....................................................................................................................................ii 1. General Information ........................................................................................................................................1 1.1. Applicant ................................................................................................................................................................................... 1 1.2 Manufacturer............................................................................................................................................................................. 1 1.3 Basic Description of Equipment under Test............................................................................................................................... 1 1.4 Feature of Equipment under Test .............................................................................................................................................. 2 1.5 Report Date.............................................................................................................................................................................. 2 2 Test Configuration of Equipment under Test ...............................................................................................3 2.1 Test Manner.............................................................................................................................................................................. 3 2.2 Test Mode................................................................................................................................................................................. 3 2.3 Connection Diagram of Test System ......................................................................................................................................... 4 2.4 Ancillary Equipment List ............................................................................................................................................................ 4 3. General Information of Test Site ....................................................................................................................5 3.1 Test Voltage.............................................................................................................................................................................. 5 3.2 Test in Compliance with ............................................................................................................................................................ 5 3.3 Frequency Range Investigated.................................................................................................................................................. 5 3.4 Test Distance............................................................................................................................................................................ 5 4. Test Data and Test Result...............................................................................................................................6 4.1 List of Measurements and Examinations ................................................................................................................................... 6 4.2 RF Output Power ...................................................................................................................................................................... 7 4.3 ERP / EIRP Measurement......................................................................................................................................................... 8 4.4 Occupied Bandwidth and Band Edge Measurement...................................................…
