V5 Node B Installation Guide Version 1.0.5 Page 1 of 44 V5 Node B Installation Guide V5 Node B Installation Guide Version 1.0.5 Page 2 of 44 Information in this document and the products described are subject to change without notice. ©2000-2007 IPWireless, Inc. All rights reserved. Reproduction, alteration, or distribution in any manner whatsoever without the written permission of IPWireless Inc, is strictly forbidden. Trademarks used in this text: the IPWireless logo, icon and IPWireless Broadband Modem are trademarks of IPWireless, Inc.; Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products, IPWireless, Inc., disclaims any proprietary interest in trademarks and trade names other than its own. August 2007 Part No. IPW-1442 V5 Node B Installation Guide Version 1.0.5 Page 3 of 44 WEEE Compliance In compliance with the requirements for marking electrical and electronic equipment as directed in article 11 (2) of Directive 2002/96/EC, Waste from Electrical and Electronic Equipment (WEEE), IPWireless applies a crossed-out bin symbol to all Node B products. The mark signifies that the IPWireless equipment is to be reprocessed or recycled using IPWireless authorized recyclers and processes. This minimizes the disposal of unsorted municipal waste, achieves a high level of separate collection of WEEE, and ensures the environmentally sound disposal of electrical and electronic equipment placed on the market after 13 August 2005. To dispose of equipment marked with the WEEE symbol, IPWireless has contracted with certified companies that can reprocess this equipment per European Union requirements. To find out further information regarding disposal of IPWireless equipment within the EU visit the IPWireless web site, ipwireless.com, or contact your IPWireless representative. V5 Node B Installation Guide Version 1.0.5 Page 4 of 44 Contents 1. Release Version ..................................................................................... 6 2. Safety Precautions ................................................................................ 7 3. General Warnings .................................................................................. 7 4. Overview ................................................................................................. 9 5. General Specifications ........................................................................ 10 6. Installation ............................................................................................ 15 Step 1 Pre-Installation ........................................................................................ 15 Step 2 Parts Shipped & Tools Required ........................................................... 16 Step 3 Site Preparations for Node B Installation ............................................. 20 Step 4 Mounting Installations ............................................................................ 24 Step 5 Ground Installation ................................................................................. 27 Step 6 DC Power Connection-Control Shelf .................................................... 28 Step 7 DC Power Connection-Radio Equipment Shelf .................................... 29 Step 8 Inter-Shelf Connections ......................................................................... 30 Step 9 Backhaul Connections (Iub) to INC ....................................................... 32 Step 9 Backhaul Connections (Iub) to INC ....................................................... 32 Step 10 Antenna Cabling - Installation ............................................................. 35 Step 11 Alarm Connections ............................................................................... 36 Step 12 GPS Installation & Operation ............................................................... 38 Step 13 TTLNA Interfaces .................................................................................. 40 7. APPENDIX ............................................................................................ 41 Appendix A - Installation Check Card ............................................................... 41 Appendix B – Glossary ...................................................................................... 42 V5 Node B Installation Guide Version 1.0.5 Page 5 of 44 Tables Table 2-1 : Safety Symbols ................................................................................................... 7 Table 5-1 : Specifications ................................................................................................... 10 Table 5-2 : Node B Model Types ........................................................................................ 12 Table 6-1 : Control Shelf - Packing List ............................................................................. 17 Table 6-2 : Radio Equipment Shelf - Packing List ............................................................ 18 Table 6-3 : Tools Required .................................................................................................. 19 Table 6-4 : Materials Required ............................................................................................ 19 Table 6-5 : Site Preparation Checklist ............................................................................... 20 Table 6-6 : Ethernet Pin-outs using RJ45 ......................................................................... 33 Table 6-7 : T1/E1 Pin-outs (RJ48C) .................................................................................... 34 Table 6-8 : Alarm Inputs & Outputs ................................................................................... 37 Figures Figure 5-1 : Node B Rack Mount – Control Shelf Physical Dimensions ........................ 11 Figure 5-2 : Node…

Text truncated - open the document above for the full version.

16 July 2010 Reason to Supersede Exhibit –PKTNODEBAFB1 The Part 90 test report exhibit was superseded due to a typographical error being found within. This typographical error has now been corrected and the test report was superseded on 16 July 2010. The filing is unaffected by the change made to the test report. Exhibit superseded: RFI-RPT-RP76943JD01B V2.0.pdf (Part 90 test report) RFI Global Services TCB

IPWireless 700MHz V5 Radio Shelf Model: AFB FCC ID: PKTNODEBAFB1 External Photographs Figure 1: Front of Radio Shelf Figure 2: Right Side of Radio Shelf Figure 3: Rear of Radio Shelf Figure 4: Left Side of Radio Shelf

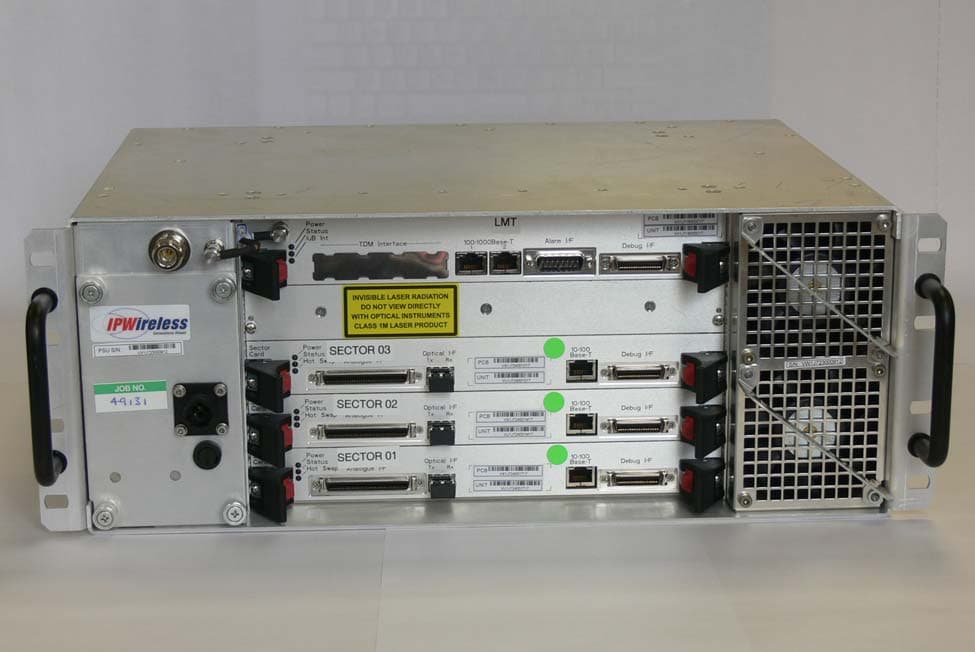

IPWireless V5C Digital Shelf Model: VT External Photographs Figure 1: Front of Digital Shelf Figure 2: Right Side of Digital Shelf Figure 3: Rear of Digital Shelf Figure 4: Left Side of Digital Shelf

FCC ID: PKTNODEBAFB1

IPWireless 700MHz V5 Radio Shelf Model: AFD FCC ID: PKTNODEBAFB1 Internal Photographs Figure 1: Radio Shelf – Front Panel Removed Figure 2: Radio Shelf – Top Cover Removed Figure 3: Radio Shelf – Bottom Filter Tray Removed Figure 4: RF Filter Figure 5: 28VDC Power Supply Figure 6: 12VDC Power Supply Figure 7: RF Power Amplifier – Lid Removed Figure 8: RF Patch Card – Top Figure 9: RF Patch Card – Bottom Figure 10: Radio Card with Clamshell Figure 11: Radio Card ‐ Top Figure 12: Radio Card‐ Bottom

IPWireless V5C Digital Shelf Model: VT Internal Photographs Figure 1: Control Card – Top Figure 2: Control Card – GPS & Memory Removed Figure 3: Control Card ‐ Bottom Figure 4: Sector Card Top Figure 5: Sector Card ‐ Bottom Figure 6: GPS & Memory Modules ‐ Top Figure 7: GPS & Memory Modules ‐ Bottom Figure 8: Power Supply Assembly Figure 9: Power Supply Figure 10: Blanking Panel ‐ Top Figure 11: Blanking Panel ‐ Bottom

Unit 7 Greenways Business Park Bellinger Close Chippenham Wiltshire SN15 1BN Telephone: 01249 800100 Facsimile: 01249 800101 IPWireless U.K. Ltd Registered Office as above Reg. No: 4218312 VAT No: 771 3836 15 5 th July 2010 RFI Global Services Ltd Pavillion A Ashwood Business Park Basingstoke Hampshire RG23 8BG RE: 700MHz V5 Node B FCC ID: PKTNODEBAFB1 MPE Calculation To Whom It May Concern, The MPE calculation in table 1 below for the 700MHz V5 Node B assumes the transmitter is operating using a 100% duty cycle, this is the worst case operating configuration. The limit is calculated with f = 728MHz as this is the lowest frequency of the Node B and provides the most conservative assessment. MPE Distance Calculation 5MHz Channel Antenna Gain 20 dBi Line Loss 0 dB Antenna Gain Ratio 100 700MHz V5 Node B Model AFB Tx Output Power 40 dBm Output Power mW 10000.00 mW Maximum EIRP (per Channel) 1000000.00 mW MPE Limit from 1.1310 (f MHz /1500) 0.485 mw/cm 2 Un-controlled/General Public Limit Minimum Distance to meet MPE Limit 405.06 cm (100% Duty Cycle) 159.35 inches Table 1: 100% Duty Cycle Calculation The calculations above show the 700MHz V5 Node B complies with the uncontrolled/ General Public limit of 0.485 mW/cm 2 at a minimum distance of 4.06m for operation using 5MHz channels. Yours Faithfully, P Warburg Technical Associate IPWireless UK Ltd

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: IPWireless 700 MHz V5 Node B Model: AFB/VT To: FCC Part 27: 2009 Subpart C Test Report Serial No: RFI-RPT-RP76943JD01A V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Brian Watson, COO Payments and Consultancy: pp Checked By: A. Henriques Signature: Date of Issue: 01 July 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP76943JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 01 JULY 2010 Page 2 of 104 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP76943JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 01 JULY 2010 RFI Global Services Ltd Page 3 of 104 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 5. Measurements, Examinations and Derived Results ................................................................ 10 6. Measurement Uncertainty ........................................................................................................ 103 Appendix 1. Test Equipment Used.............................................................................................. 104 TEST REPORT SERIAL NO: RFI-RPT-RP76943JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 01 JULY 2010 Page 4 of 104 RFI Global Services Ltd 1. Customer Information Company Name: IPWireless (UK) Ltd Address: Unit 7 Greenways Business Park Bellinger Close Chippenham Wiltshire SN15 1BN TEST REPORT SERIAL NO: RFI-RPT-RP76943JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 01 JULY 2010 RFI Global Services Ltd Page 5 of 104 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR27 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 27 Subpart C (Miscellaneous Wireless Communication Services) Site Registration: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 01 June 2010 to 23 June 2010 2.2. Summary of Test Results (Sub Band A, B & C) FCC Reference (47CFR) Measurement Result Part 27.50 Transmitter Carrier Output Power and Effective Radiated Power (ERP) Part 2.1049 Transmitter Occupied Bandwidth Part 27.54 Frequency Stability (Temperature & Voltage Variation) Part 27.53 Transmitter Conducted Emissions - Channel Edge Part 27.53 Transmitter Conducted Emissions Part 27.53 Transmitter Conducted Emissions at Band Edges Part 27.53 Transmitter Radiated Spurious Emissions Part 27.53 Transmitter Radiated Emissions at Band Edges Additional Testing Requirements for Sub Band B & C Part 27.53 Transmitter Conducted Emission Limitations Part 27.53 Transmitter Radiated Spurious Emission Limitations Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2009) Title: American National Standard Methods of Measurement of Electromagnetic Emissions from Low Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP76943JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 01 JULY 2010 Page 6 of 104 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Description: Radio Shelf Brand Name: IPWireless Model Name or Number: AFB Serial Number: AFBJ15001130 FCC ID Number: PKTNODEBAFB1 Description: Digital Shelf Brand Name: IPWireless Model Name or Number: VT Serial Number: VT1J736009517 Description: Sector card 2 (part of VT Digital Shelf) Brand Name: IPWireless Model Name or Number: Sector card Serial Number: VU1J73700RV17 3.2. Description of EUT The equipment under test was a W-CDMA Wireless Base Station comprising a radio shelf and a digital shelf intended for mounting into a 19” rack. Both shelves are connected together to create a Node B. The equipment utilizes Frequency Division Duplex technology. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: RFI-RPT-RP76943JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 01 JULY 2010 RFI Global Services Ltd Page 7 of 104 3.4. Additional Information Related to Testing Power Supply Requirement: -48.0 V DC ±15% Type of Unit: FDD Wireless base station transceiver Modulation Type: QPSK, 16QAM, 64QAM Duty Cycle: 100% Antenna Ports: Two x 7/16 female. Marked ANT 1 and ANT 2 Antenna Gain: Up to +20 dBi (stated) Chip Rate: 3.84 Mcps Channel Bandwidth: 5.0 MHz Sub Band A Transmit Frequency Range: 728 MHz to 746 MHz Channel ID Channel Frequency (MHz) Bottom 731.0 Transmit Channels Tested: Top 743.0 Receive Frequency Range: 698 MHz to 716 MHz Sub Band B Transmit Frequency Range: 746 MHz to 758 MHz Channel ID Channel Frequency (MHz) Bottom 748.5 Transmit Channels Tested: Top 755.5 Receive Frequency Range: 776 MHz to 787 MHz Sub Band C Trans…
